Ford F-250 (2024 year). Manual in english

E407238

The rear parking aid sensors are in the rear
bumper and in the power tailgate.

Note:

Rear parking sensors in the bumper

function with the tailgate is up, and the
sensors in the power tailgate function when
the power tailgate is down.

Note:

Reverse braking assist is unavailable

when the tailgate is down.

REAR PARKING AID AUDIBLE
WARNINGS

A warning tone sounds when your vehicle
approaches an object. As your vehicle
moves closer to an object, the rate of the
tone increases. The warning tone
continuously sounds when an object is 12 in
(30 cm) or less from the rear bumper.

If your vehicle remains stationary for a few
seconds, the audible warning turns off. If
your vehicle moves backward the tone
sounds again.

Note:

When the parking aid system sounds

a tone, the audio system could reduce the
set volume.

FRONT PARKING AID

WHAT IS THE FRONT PARKING
AID

Front parking sensors detect objects in
front of your vehicle.

FRONT PARKING AID
LIMITATIONS

The front parking aid sensors are active
when your vehicle is in any position other
than park (P) and the vehicle speed is less
than 5 mph (8 km/h).

The sensor coverage area is up to 47 in
(120 cm) from the bumper.

If your vehicle is in reverse (R), the front
parking aid detects objects when your
vehicle is moving at a low speed or an
object is moving toward your vehicle and
provides an audible warning, for example
another vehicle at a low speed. If your
vehicle remains stationary for a few
seconds, the audible warning turns off.
Visual indication is always active in reverse
(R).

If your vehicle is in any forward gear, the
front parking aid provides audible warnings
and visual indication when your vehicle is
moving at a speed of 5 mph (8 km/h) or
below and the system detects an object
within the detection zone. If your vehicle
remains stationary for a few seconds, the
visual indication and audible warning turns
off.

If your vehicle is in neutral (N), the front
and rear sensors provide visual indication
only when your vehicle is moving below a
speed of 5 mph (8 km/h) and obstacles
are detected inside the detection areas.
Once your vehicle stops, the visual
indication and audible warning stops after
a few seconds.

282

Parking Aids

(If Equipped)

LOCATING THE FRONT PARKING
AID SENSORS

E310332

The front parking aid sensors are in the
front bumper.

FRONT PARKING AID AUDIBLE
WARNINGS

A warning tone sounds when there is an
object within 47 in (120 cm) from the front
bumper. As your vehicle moves closer to
an object, the rate of the tone increases.

The warning tone continuously sounds
when an object is 12 in (30 cm) or less from
the front bumper.

Note:

If the detected object is 12 in (30 cm)

or less from your vehicle, visual indication
remains on.

PARKING AID INDICATORS

E388639

The system provides object distance
indication through the center display.

•

As the distance to the object
decreases, the indicator blocks
illuminate and move toward the vehicle
icon.

•

If there is no object detected, the
distance indicator blocks are grey.

Visual indication remains on when the
transmission is in reverse (R). When you
stop your vehicle, visual indication turns
off after four seconds.

If the parking aids are not available, the
distance indicator blocks do not display.

283

Parking Aids

(If Equipped)

PARKING AIDS –
TROUBLESHOOTING

PARKING AIDS – INFORMATION
MESSAGES

If a fault is present in the parking aids, a
warning message appears in the
instrument cluster or the touchscreen.

Action

Message

The system detects a condition that

requires service. Have your vehicle checked

as soon as possible.

Park Aid Fault

Inclement weather, ice, mud, or water is

blocking the sensor, causing the system to

become unavailable. You can typically

clean the sensor to resolve.

Sensor Blocked

A correct trailer connection is sensed during

a given ignition cycle.

Trailer Connected

PARKING AIDS VIDEOS

Reverse Sensing System Video Link

284

Parking Aids

(If Equipped)

WHAT IS THE REAR VIEW
CAMERA

The rear view camera provides a video
image of the area behind your vehicle when
the transmission is in reverse (R).

E332186

The rear view camera button is
above the center display.

REAR VIEW CAMERA
PRECAUTIONS

WARNING:

The rear view camera

system is a reverse aid supplement
device that still requires the driver to use
it in conjunction with the interior and
exterior mirrors for maximum coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Reverse your vehicle

slowly. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Use caution when the

tailgate is ajar. If the tailgate is ajar, the
camera is out of position and the video
image could be incorrect. All guide lines
disappear when the tailgate is ajar.
Failure to follow this instruction could
result in personal injury.

WARNING:

Use caution when

turning camera features on or off when
the transmission is not in park (P). Make
sure your vehicle is not moving.

Note:

When towing, the camera only sees

what you are towing. This might not provide
adequate coverage and you might not see
some objects. In some vehicles, the guide
lines may disappear when you connect the
trailer tow connector.

LOCATING THE REAR VIEW
CAMERA

The rear view camera is on the tailgate. It
provides a video image of the area behind
your vehicle.

285

Rear View Camera

(If Equipped)

REAR VIEW CAMERA GUIDE
LINES

E306774

Active guide lines.

Centerline.

Fixed guide line: Green zone.

Fixed guide line: Yellow zone.

Fixed guide line: Red zone.

Rear bumper.

Active guide lines only show with fixed
guide lines. To use active guide lines, turn
the steering wheel to point the guide lines
toward an intended path. If the steering
wheel position changes while reversing,
your vehicle might deviate from the
intended path.

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position
is straight.

Use caution while reversing. Objects in the
red zone are closest to your vehicle and
objects in the green zone are farther away.
Objects get closer to your vehicle as they
move from the green zone to the yellow or
red zones. Use the side view mirrors and
rear view mirror to get better coverage on
both sides and rear of your vehicle.

Note:

Active guide lines and fixed guide

lines are only available when the
transmission is in reverse (R).

Note:

The centerline is only available if the

active or fixed guide lines are on.

Note:

Not all camera modes work properly

without an auxiliary camera.

REAR VIEW CAMERA
SETTINGS

ZOOMING THE REAR VIEW
CAMERA IN AND OUT

WARNING:

When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

Selectable settings for this feature are
zoom in (+) and zoom out (-). Press the
symbol on the camera screen to change
the view. The default setting is zoom off.

This allows you to get a closer view of an
object behind your vehicle. The zoomed
image keeps the bumper in the image to
provide a reference. The zoom is only
active while the transmission is in reverse
(R).

286

Rear View Camera

(If Equipped)

Note:

Zooming in also engages park hold

which applies the electric park brake when
you shift to park (P). When you press the
zoom button, the electronic park hold
button illuminates on the touchscreen. See

Connecting a Trailer

(page 356).

Note:

Manual zoom is only available when

the transmission is in reverse (R).

Note:

Only the centerline shows when you

enable manual zoom.

SWITCHING REAR VIEW CAMERA
DELAY ON AND OFF

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Rear View Camera

4. Switch

Rear View Camera Delay

on or

off.

When shifting the transmission out of
reverse (R) and into any gear other than
park (P), the camera image remains in the
display until:

•

Your vehicle speed reaches
approximately 5 mph (8 km/h).

•

You shift your vehicle into park (P).

287

Rear View Camera

(If Equipped)

WHAT IS THE 360 DEGREE
CAMERA

The 360 degree camera system consists
of front, side and rear cameras which
provide visibility around your vehicle.

HOW DOES THE 360 DEGREE
CAMERA WORK

The 360 degree camera system consists
of front, side and rear cameras.

The 360 Degree Camera system:

•

Allows you to see what is directly in
front of or behind your vehicle.

•

Provides a cross traffic view in front of
and behind your vehicle.

•

Allows you to see a top-down view of
the area outside your vehicle, including
the blind spots and obstacles near your
vehicle.

360 DEGREE CAMERA
PRECAUTIONS

WARNING:

The 360 degree

camera system still requires the driver
to use it in conjunction with looking out
of the windows, and checking the interior
and exterior mirrors for maximum
coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Do not switch the

camera features on or off when your
vehicle is moving.

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

WARNING:

Use caution when the

WARNING:

When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

LOCATING THE 360 DEGREE
CAMERAS

Rear View Camera

The rear view camera is on the tailgate. It
provides a video image of the area behind
your vehicle.

Rear View Camera with Tailgate
Lowered

This camera is on top of the tailgate and
allows you to see the area behind your
vehicle with the tailgate lowered. This view
is available in the rear normal view and the
360 degree camera view. The vehicle icon
in the 360 camera view on screen reflects
that the tailgate is down. With the tailgate
in the lowered position, you do not have a
view of the hitch, split view, or zoom view.

288

360 Degree Camera

(If Equipped)

Note:

This feature is intended for special

scenarios only and not for general driving
conditions.

Note:

These views are not identical to when

the tailgate is up. The guidelines are not
available.

Front View Camera

The front view camera is in the grille. It
provides a video image of the area in front
of your vehicle.

Side View Camera

The side view camera is on the outside
mirror. It provides a video image of the area
on the sides of your vehicle to aid you when
parking or when backing up a trailer.

Bed Camera

The bed camera is mounted within the
high-mount stop lamp. It displays the
contents of your truck bed. The camera
contains a dynamic guideline to help locate
the center of your vehicle. This view can
be accessed while in drive (D) or reverse
(R).

Auxiliary Camera

The auxiliary camera is a variant of the rear
view camera and you can access it by
pressing the AUX button on the display
screen when moving in reverse (R) or in
drive (D). It displays a rear view image from
the back of a trailer while in reverse.

360 DEGREE CAMERA GUIDE
LINES

Note:

Active guide lines are only available

when the transmission is in reverse (R).

E306774

Active guide lines.

Centerline.

Fixed guide line: Green zone.

Fixed guide line: Yellow zone.

Fixed guide line: Red zone.

Rear bumper.

Active guide lines only show with fixed
guide lines. Turn the steering wheel to
point the guide lines toward an intended
path. If the steering wheel position changes
when reversing, your vehicle could deviate
from the intended path.

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position
is straight.

289

360 Degree Camera

(If Equipped)

Objects in the red zone are closest to your
vehicle and objects in the green zone are
farther away. Objects get closer to your
vehicle as they move from the green zone
to the yellow or red zones. Use the side
view mirrors and rear view mirror to get
better coverage on both sides and rear of
your vehicle.

Keep Out Zone

E310341

The keep out zone is represented by the
yellow dotted lines running parallel to your
vehicle.

360 DEGREE CAMERA
SETTINGS

SWITCHING THE 360 DEGREE
CAMERA ON AND OFF

E332186

The 360 degree camera system
button is above the center
display. The front and rear

cameras have multiple screens which
consist of:

•

Normal view.

•

Normal view with 360.

•

Split view.

•

Bed camera.

•

Auxiliary camera.

•

Hitch view.

Note:

The rear view camera activates when

you switch into reverse (R). Additional views
are then accessible on the touchscreen.

When in park (P), neutral (N) or drive (D),
the front images display when the button
is pressed. When in reverse (R), only the
rear images display when the button is
pressed.

Note:

Not all cameras are available.

Note:

The 360 degree camera system turns

off when your vehicle is in motion at low
speed, except when in reverse (R).

SWITCHING THE 360 DEGREE
CAMERA VIEW

E337002

Press to access the different
camera views.

E336516

Front normal view provides an
image of what is directly in front
of your vehicle.

E336517

Front split view provides an
extended view of what is in front
of your vehicle.

E310996

Normal + 360 degree view
contains the normal camera
view next to a 360 degree

camera view.

E310967

Rear normal view provides an
image of what is directly behind
your vehicle.

E310974

Rear split view provides an
extended view of what is behind
your vehicle.

E310995

Bed camera shows the truck
bed.

290

360 Degree Camera

(If Equipped)

E311776

Trailer AUX camera shows a rear
view camera image of what is
behind your trailer. This camera

needs to be purchased and installed
separately.

E350276

The hitch view provides an
image of the area around the
tow hitch.

E310965

Trailer reverse guidance shows
the sides of your truck and trailer.
See

Trailer Reverse Guidance

(page 398).

E224485

Zooms in on the image and park
hold is activated. See

Connecting a Trailer

(page 356).

E337359

Zooms in on the 360 degree
image.

Note:

The rear normal view, bed camera

view, hitch view and trailer auxiliary view are
available when your vehicle speed is greater
than 6 mph (10 km/h).

291

360 Degree Camera

(If Equipped)

WHAT IS CRUISE CONTROL

Cruise control lets you maintain a set
speed without keeping your foot on the
accelerator pedal.

Requirements

Use cruise control when the vehicle speed
is greater than 20 km/h in metric units or
15 mph in imperial units.

SWITCHING CRUISE CONTROL
ON AND OFF

WARNING:

Do not use cruise

control on winding roads, in heavy traffic
or when the road surface is slippery. This
could result in loss of vehicle control,
serious injury or death.

The cruise controls are on the steering
wheel.

Switching Cruise Control On

E332905

Press the button to activate the
system. When the system
activates, the set speed is equal

to the current vehicle speed or 20 km/h (15
mph), whichever is greater. If the speed is
too low, or other conditions are not correct
for cruise control activation, the system
enters standby mode.

Switching Cruise Control Off

E332905

Press the button when the
system is active or switch the
ignition off.

Note:

When you switch cruise control off,

the set speed clears.

SETTING THE CRUISE
CONTROL SPEED

WARNING:

When you are going

downhill, your vehicle speed could
increase above the set speed. The
system does not apply the brakes.

Drive to the speed you prefer.

E246884

E246885

Press either the SET+ or SET-
buttons to set the current speed.

Take your foot off the accelerator pedal.

Note:

The indicator changes color in the

information display.

Changing the Set Speed

E246884

Press the SET+ button to
increase the set speed in small
increments. Press and hold the

SET+ button to accelerate. Release the
button when you have reached your
preferred speed.

E246885

Press the SET- button to
decrease the set speed in small
increments. Press and hold the

SET- button to decelerate. Release the
button when you have reached your
preferred speed.

Note:

If you accelerate by pressing the

accelerator pedal, the set speed does not
change. When you release the accelerator
pedal, your vehicle returns to the speed that
you previously set.

292

Cruise Control

CANCELING THE SET SPEED

E308130

Press the button, or tap the
brake pedal to cancel the set
speed.

Note:

The system remembers the set

speed.

Note:

The system cancels if the vehicle

speed drops below 10 mph (16 km/h) under
the set speed when driving uphill.

RESUMING THE SET SPEED

E308130

Press the button.

CRUISE CONTROL
INDICATORS

E71340

Illuminates when you switch the
system on.

293

Cruise Control

HOW DOES ADAPTIVE CRUISE
CONTROL WITH STOP AND GO
WORK

Adaptive cruise control with stop and go
uses radar and camera sensors to maintain
a set gap between your vehicle and the
vehicle in front of you while following it to
a complete stop. Stop and go can also be
set to follow a vehicle directly in front of
you and adjust the set speed, while you are
at a complete stop.

ADAPTIVE CRUISE CONTROL
PRECAUTIONS

WARNING:

You are responsible for

WARNING:

Do not use adaptive

cruise control on winding roads, in heavy
traffic or when the road surface is
slippery. This could result in loss of
vehicle control, serious injury or death.

WARNING:

Pay close attention to

changing road conditions such as
entering or leaving a highway, on roads
with intersections or roundabouts, roads
without visible lanes of travel, roads that
are unpaved, or steep slopes. Failure to
follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING:

The system is not a

crash warning or avoidance system.

WARNING:

Do not use the system

when towing a trailer that has
aftermarket electronic trailer brake
controls. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Do not use tire sizes

other than those recommended because
this can affect the normal operation of
the system. Failure to do so may result
in a loss of vehicle control, which could
result in serious injury.

WARNING:

Do not use the system

with a snow plow blade installed.

WARNING:

In situations with poor

visibility, such as fog, heavy rain or other
inclement weather, you may need to
override or completely switch off the
system.

When Following a Vehicle

WARNING:

When following a

vehicle that is braking, your vehicle does
not always decelerate quickly enough to
avoid a crash without driver intervention.
Apply the brakes when necessary. Failure
to follow this instruction could result in
personal injury or death.

Hilly Condition and Trailer Tow
Usage

You should select a lower gear when the
system is active in situations such as
prolonged downhill driving on steep slopes,
for example in mountainous areas. The
system needs additional engine braking in
these situations to reduce the load on the
vehicle’s regular brake system to prevent
it from overheating.

294

Adaptive Cruise Control

(If Equipped)

Note:

An audible alarm sounds and the

system shuts down if it applies brakes for
an extended period of time. This allows the
brakes to cool. The system functions
normally again after the brakes cool.

Note:

When towing with adaptive cruise

control, switch on Tow/Haul mode and
diesel engine brake.

Note:

Tow/Haul mode increases the time

gaps and allows more distance for braking.

ADAPTIVE CRUISE CONTROL
LIMITATIONS

Sensor Limitations

WARNING:

On rare occasions,

detection issues can occur due to the
road infrastructures, for example bridges,
tunnels and safety barriers. In these
cases, the system may brake late or
unexpectedly. At all times, you are
responsible for controlling your vehicle,
supervising the system and intervening,
if required.

WARNING:

If the system

malfunctions, have your vehicle checked
as soon as possible.

WARNING:

Large contrasts in

outside lighting can limit sensor
performance.

WARNING:

The system only warns

of vehicles detected by the radar sensor.
In some cases there may be no warning
or a delayed warning. Apply the brakes
when necessary. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

The system may not

detect stationary or slow moving
vehicles below 6 mph (10 km/h).

WARNING:

The system does not

detect pedestrians or objects in the road.

WARNING:

The system does not

detect oncoming vehicles in the same
lane.

WARNING:

The system may not

operate properly if the sensor is blocked.
Keep the windshield free from
obstruction.

WARNING:

The sensor may

incorrectly track lane markings as other
structures or objects. This can result in
a false or missed warning.

E371980

Camera.

Radar sensor.

The camera is on the windshield behind
the interior mirror.

The radar sensor is in the lower grille.

295

Adaptive Cruise Control

(If Equipped)

Note:

You cannot see the sensor. It is

behind a fascia panel.

Note:

Keep the front of your vehicle free of

dirt, metal badges or objects. Vehicle front
protectors, aftermarket lights, additional
paint or plastic coatings could also degrade
sensor performance.

A message displays if something obstructs
the camera or the sensor. When something
blocks the sensor, the system cannot
detect a vehicle ahead and does not
function. See

Adaptive Cruise Control

– Information Messages

(page 308).

The radar sensor has a limited field of view.
It may not detect vehicles at all or detect
a vehicle later than expected in some
situations. The lead vehicle image does
not illuminate if the system does not
detect a vehicle in front of you.

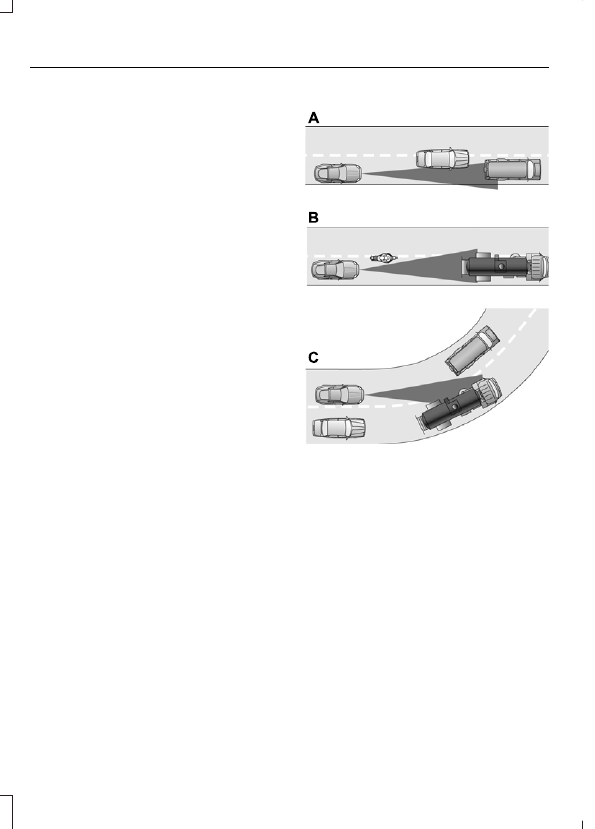

Detection Issues Can Occur:

E71621

When driving on a different line
than the vehicle in front.

With vehicles that edge into your
lane. The system can only detect
these vehicles once they move
fully into your lane.

There may be issues with the
detection of vehicles in front
when driving into and coming out
of a bend or curve in the road.

In these cases, the system may brake late
or unexpectedly.

If something hits the front end of your
vehicle or damage occurs, the
radar-sensing zone may change. This could
cause missed or false vehicle detection.

296

Adaptive Cruise Control

(If Equipped)

Optimal system performance requires a
clear view of the road by the windshield
camera.

Optimal performance may not occur if:

•

The camera is blocked.

•

There is poor visibility or lighting
conditions.

•

There are bad weather conditions.

SWITCHING ADAPTIVE
CRUISE CONTROL ON AND OFF

The cruise controls are on the steering
wheel.

Switching Adaptive Cruise Control
On

E144529

Press the button to activate the
system. When the system
activates, the set speed is equal

to whichever is greater, the current vehicle
speed, or 15 mph when in imperial units or
20 km/h when in metric units. If the speed
is too low, or other conditions are not
correct for adaptive cruise control
activation, the system enters standby
mode. When you are below 15 mph when
in imperial units or 20 km/h when in metric
units, adaptive cruise control does not
activate unless you are following another
vehicle.

The indicator, current gap setting and set
speed appear in the instrument cluster
display.

Switching Adaptive Cruise Control
Off

E144529

Press the button when the
system is in standby mode or
switch the ignition off.

Note:

When you switch the system off, the

set speed clears.

ADAPTIVE CRUISE CONTROL
AUTOMATIC CANCELLATION

The system may cancel if:
•

The tires lose traction.

•

You apply the parking brake.

The system may cancel and set the parking
brake if:
•

You unbuckle the seatbelt and open
the driver door after adaptive cruise
control stops your vehicle.

•

Adaptive cruise control holds your
vehicle at a stop continuously for more
than three minutes.

The system may deactivate or prevent
activating when requested if:
•

The vehicle has a blocked sensor.

•

The brake temperature is too high.

•

There is a failure in the system or a
related system.

SETTING THE ADAPTIVE
CRUISE CONTROL SPEED

Drive to the speed you prefer.

E246884

E246885

Press the SET+ or SET- buttons
to set the current speed.

Take your foot off the accelerator pedal.

The indicator, current gap setting and set
speed appear in the instrument cluster
display.

A vehicle image illuminates if there is a
vehicle detected in front of you.

297

Adaptive Cruise Control

(If Equipped)

E380799

Note:

When adaptive cruise control is

active, the speedometer may vary slightly
from the set speed displayed in the
instrument cluster display.

Setting the Adaptive Cruise Speed
from a Complete Stop

E246884

E246885

Press the SET+ or SET- buttons
while keeping the brake pedal
fully depressed.

The set speed adjusts to 20 km/h when in
metric units or 15 mph when in imperial
units.

The indicator, current gap setting and set
speed appear in the instrument cluster
display.

Note:

The system activates from a

complete stop only when it detects a lead
vehicle in close proximity.

Manually Changing the Set Speed

E246884

Press the SET+ button to
increase the set speed in small
increments. Press and hold the

SET+ button to increase set speed in large
increments. Release the button when the
indicated set speed reaches the preferred
speed.

E246885

Press the SET- button to
decrease the set speed in small
increments. Press and hold the

SET- button to decrease the set speed in
large increments. Release the button when
the indicated set speed reaches the
preferred speed.

You can also press the accelerator or brake
pedal until you reach the speed you prefer.
Press the SET+ or SET- button to select
the current speed as the set speed.

The system may apply the brakes to slow
the vehicle to the new set speed. The set
speed continuously displays in the
instrument cluster display when the
system is active.

SETTING THE ADAPTIVE
CRUISE CONTROL GAP

Press the button to cycle
through the four gap settings.

E375589

The selected gap appears in the
information display as shown by the bars
in the image.

Note:

The gap setting is time dependent

and therefore, the distance adjusts with your
vehicle speed.

Note:

It is your responsibility to select a gap

appropriate to the driving conditions.

298

Adaptive Cruise Control

(If Equipped)

Adaptive Cruise Control Gap Settings

Dynamic

Behavior

Gap Distance

Graphic

Display,

Bars Indic-

ated

Between

Vehicles

Sport.

Closest.

Normal.

Close.

Normal.

Medium.

Comfort.

Far.

Each time you switch the system on, it
selects the last chosen gap setting.

Following a Vehicle

When a vehicle ahead of you enters the
same lane or a slower vehicle is ahead in
the same lane, the vehicle speed adjusts
to maintain the gap setting.

Note:

When you are following a vehicle and

you switch on a turn signal lamp, adaptive
cruise control may provide a small,
temporary acceleration to help you pass.

Your vehicle maintains a consistent gap
from the vehicle ahead until:
•

The vehicle in front of you accelerates
to a speed above the set speed.

•

The vehicle in front of you moves out
of the lane you are in.

•

You set a new gap distance.

The system applies the brakes to slow
down your vehicle to maintain a safe gap
distance from the vehicle in front of you.
The system only applies limited braking.
You can override the system by applying
the brakes.

Note:

The brakes may emit noise when

applied by the system.

If the system determines that its maximum
braking level is not sufficient, an audible
warning sounds, a message appears in the
information display and an indicator
flashes when the system continues to
brake. Take immediate action.

CANCELING THE SET SPEED

E308130

Press the button or tap the brake
pedal.

The set speed does not erase.

RESUMING THE SET SPEED

E308130

Press the button.

Your vehicle speed returns to the
previously set speed and gap setting. The
set speed displays continuously in the
information display when the system is
active.

Note:

Only use resume if you are aware of

the set speed and intend to return to it.

Resuming the Set Speed from a
Complete Stop

(If Equipped)

If your vehicle follows a vehicle to a
complete stop and remains stationary for
less than a few seconds, your vehicle
accelerates from a stationary position to
follow the vehicle ahead.

If your vehicle follows a vehicle to a
complete stop and remains stationary for
more than a few seconds, an indicator and
message displays.

299

Adaptive Cruise Control

(If Equipped)

E380823

Details

Message

Cruise control does not resume automatic-

ally when this display is active.

Stopped

If the lead vehicle begins to move, you are

prompted to press the resume button.

Press button to resume

Press and release the button or use the

accelerator pedal to resume following the

lead vehicle.

Displays when on a limited access highway
after following a vehicle to a complete stop.

In this situation, the vehicle resumes

following the lead vehicle without a button
press or pressing the accelerator pedal. The

system can remain in auto-resume state

for approximately 30 seconds, after which

it no longer automatically resumes.

Auto-Resume

OVERRIDING THE SET SPEED

WARNING:

If you override the

system by pressing the accelerator
pedal, it does not automatically apply
the brakes to maintain a gap from any
vehicle ahead.

When you press the accelerator pedal, you
override the set speed and gap distance.

Use the accelerator pedal to intentionally
exceed the set speed limit.

When you override the system, the
indicator remains blue, the set speed is
dimmed and the lead vehicle icon does not
appear in the instrument cluster display.

The system resumes operation when you
release the accelerator pedal. The vehicle
speed decreases to the set speed, or a
lower speed if following a slower vehicle.

300

Adaptive Cruise Control

(If Equipped)

ADAPTIVE CRUISE CONTROL
INDICATORS

E144529

Illuminates when you switch
adaptive cruise control on. The
color of the indicator changes to

indicate the system status.

White indicates the system is on but
inactive.

Blue indicates that you set the speed and
the system is active.

SWITCHING FROM ADAPTIVE
CRUISE CONTROL TO CRUISE
CONTROL

WARNING:

Normal cruise control

will not brake when your vehicle is
approaching slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary.

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Normal Cruise Control

E332905

The cruise control indicator
replaces the adaptive cruise
control indicator if you select

normal cruise control. The gap setting
does not display, and the system does not
respond to lead vehicles. Automatic
braking remains active to maintain set
speed. The system remembers the last
setting when you start your vehicle.

LANE CENTERING

HOW DOES LANE CENTERING
WORK

Adaptive cruise control with lane centering
uses the vehicle's front radar sensor and
front windshield camera sensor, together
with the steering sensor to operate.

Using these sensors, the system applies
continuous steering assistance towards
driving in the middle of the lane you choose
on highway roads.

Note:

The gap setting for adaptive cruise

control with lane centering, operates in the
same way as normal adaptive cruise control.

LANE CENTERING PRECAUTIONS

WARNING:

Do not use the system

when towing a trailer or when the vehicle
is loaded to near or over maximum
payload. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Do not use the system

if any changes or modifications to the
steering, suspension system or wheels
and tires have been made. Any changes
or modifications to the steering,
suspension system or wheels and tires
could affect the functionality and
performance of the system. Failure to
follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

Adaptive cruise control precautions apply
to lane centering unless stated otherwise
or contradicted by a lane centering
precaution. See

Adaptive Cruise Control

Precautions

(page 294).

301

Adaptive Cruise Control

(If Equipped)

LANE CENTERING
REQUIREMENTS

You must keep your hands on the steering
wheel at all times.

Lane centering only activates when all of
the following occur:
•

Adaptive cruise control with lane
centering is enabled in the touchscreen.
See

Switching Lane Centering On

and Off

(page 302).

•

You have adaptive cruise control with
stop and go enabled and set.

•

The steering sensor detects your hands
on the steering wheel.

•

The system detects both lane markings
when driving on a straight road.

•

Your vehicle is initially centered in the
lane between two visible line markings.

Note:

If the system does not detect valid

lane line markings, the system remains in
standby until valid line markings are
available.

Note:

If the system does not detect your

hands on the steering wheel, apply a slight
force to the steering wheel.

LANE CENTERING LIMITATIONS

Adaptive cruise control limitations apply
to lane centering unless stated otherwise
or contradicted by a lane centering
limitation. See

Adaptive Cruise Control

Limitations

(page 295).

Lane centering may not correctly operate
in any of the following conditions:
•

The lane width is too narrow or wide.

•

The curve in the road is too small.

•

The system does not detect the
minimum required lane markings or
when lanes merge or split.

•

When the required steering effort to
maintain lane center exceeds the lane
centering system limit.

•

When driving in areas that are under
construction or when road work is in
progress.

•

If the front windshield camera and/or
the front radar are blocked.

•

When using a spare tire.

•

Inclement weather conditions
including, but not limited to, high wind,
heavy rain, and fog.

•

Driving into direct sunlight.

•

When modification to the steering
system has been made, including
alterations to the steering wheel.

•

When towing a trailer.

•

When the vehicle is loaded to near or
maximum payload. See

Lane Centering Precautions

(page

301).

Note:

System operation may also be limited

under snow, heavy rain, or road spray
conditions.

Note:

The system steering assistance is

limited and may not have sufficient effort
for all driving situations and/or conditions,
such as driving through tight curves or
driving through curves at high speeds.

SWITCHING LANE CENTERING ON
AND OFF

Keep your hands on the steering wheel at
all times.

The controls are on the steering wheel.

E308131

Press the button.

302

Adaptive Cruise Control

(If Equipped)

The indicator appears in the instrument
cluster display. When the system is on, the
color of the indicator changes to indicate
the system status.

You can override the system at any time
by steering your vehicle.

Note:

The correct requirements must be

met before you can switch the system on.
See

Lane Centering Requirements

(page

302).

Enabling and Disabling Lane
Centering

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Lane Centering Assist

LANE CENTERING ALERTS

You must keep your hands on the steering
wheel at all times.

When the system is active and detects no
steering activity for a period of time, the
system alerts you to put your hands on the
steering wheel. If you do not react
appropriately to the warnings the adaptive
cruise control with lane centering system
cancels and slows your vehicle down to
idle speeds while maintaining steering
control. See

Lane Centering Automatic

Cancellation

(page 303).

The system also alerts you if your vehicle
crosses lane line markings without
detected steering activity.

Note:

The system could detect a light grip

or light touch on the steering wheel as
hands-off driving.

LANE CENTERING AUTOMATIC
CANCELLATION

When an external condition cancels the
system, and your hands are on the steering
wheel, a tone sounds and a message
appears in the instrument cluster display.

When an external condition cancels the
system, and your hands are not on the
steering wheel, the system immediately
alerts you to take control of the vehicle. If
this alert is ignored, the system slows the
vehicle while maintaining steering
assistance when lane markings are
available. When no lane markings are
available, the vehicle comes to a stop.

E308130

If your vehicle starts to slow
down after system cancellation,
you must take full control of the

vehicle. To re-enable adaptive cruise
control with lane centering after
cancellation, press and release the resume
button.

Automatic cancellation can also occur if:
•

The lane becomes too wide or narrow.

•

The system cannot detect valid lane
markings.

•

Lane markings cross over one another.

•

The curve of the road is too sharp.

Note:

If your vehicle slows down due to your

inactivity twice within a key cycle, the
system disables. To reset the system, when
the vehicle is stationary, return the gear
selector to park (P) and turn the vehicle off.
Then, restart the vehicle with your foot on
the brake pedal.

LANE CENTERING MANUAL
CANCELLATION

When you perform the following actions,
adaptive cruise control with lane centering
will cancel:

303

Adaptive Cruise Control

(If Equipped)

•

The brake pedal is pressed.

•

Adaptive cruise control button on the
steering wheel is switched off .

The lane centering system is momentarily
suppressed when either of the following
actions are performed:

•

Turn signal indicator is latched or
tapped with added steering input.

•

You steer the vehicle out of lane.

LANE CENTERING INDICATORS

E297977

Illuminates when you switch
lane centering on. The color of
the indicator changes to indicate

the system status.

Gray status indicates the system is on but
in standby mode.

Blue status indicates the system is enabled
and applying steering assistance to keep
the vehicle in the center of the lane.

Amber status with an audible tone, that
then changes to gray status, indicates a
system automatic cancellation.

LANE CENTERING –
TROUBLESHOOTING

LANE CENTERING –
INFORMATION MESSAGES

Note:

Depending on your vehicle options

and instrument cluster type, some
messages can appear different or not at all.

Details

Message

You must return your hands to the steering wheel and provide

steering input to cancel the message.

Keep Hands on Steering

Wheel

Lane centering is currently not available, due to conditions

that prevent the system from becoming active. To reset the

system, when the vehicle is stationary, return the gear selector

to park (P) and turn the vehicle off. Then, restart the vehicle

with your foot on the brake pedal.

Lane Centering Assist

Not Available

Adaptive cruise control with lane centering is about to cancel.

You must immediately take full control of the vehicle.

Resume Control

Adaptive cruise control with lane centering is in standby mode.

When safe to do so, you can resume adaptive cruise control

with lane centering by applying pressure on the accelerator
pedal. Alternatively, you can also re-enable adaptive cruise

control with lane centering by pressing the resume button on

the steering wheel.

Press Accelerator Pedal

to Resume

304

Adaptive Cruise Control

(If Equipped)

PREDICTIVE SPEED ASSIST

(IF

EQUIPPED)

HOW DOES PREDICTIVE SPEED
ASSIST WORK

Predictive Speed Assist works with
adaptive cruise control and adjusts the
vehicle speed to the road geometry and to
the speed limit detected by the speed sign
recognition system. As the system
identifies curves and highway exits, the
vehicle speed temporarily decreases ahead
of and during the changing road geometry.
When passing new speed signs, the set
speed updates. See

Predictive Speed

Assist Precautions

(page 305).

There are limitations that affect the
accuracy of the speed sign recognition
system and its ability to determine the
current speed limit. Predictive speed assist
and its ability to determine the current
speed limit shares these limitations. See

Speed Sign Recognition

(page 343).

Note:

The adaptive cruise control gap

setting operates normally when the feature
is enabled.

PREDICTIVE SPEED ASSIST

PRECAUTIONS

WARNING:

You are responsible for

WARNING:

Pay close attention to

changing road conditions. You may need
to override the system by pressing the
brake or accelerator pedal if the adjusted
speed becomes higher or lower than
necessary.

WARNING:

The system only

provides limited braking. Your vehicle
may not always decelerate quickly
enough to avoid a crash without driver
intervention. Apply the brakes when
necessary.

WARNING:

The system does not

activate the turn signal.

Adaptive cruise control precautions apply
to predictive speed assist unless stated
otherwise or contradicted by a predictive
speed assist precaution. See

Adaptive

Cruise Control Precautions

(page 294).

The system only applies limited braking.
You can override the system with the
accelerator pedal or cancel the system by
applying the brakes.

The system may adapt to various factors
such as time of day, lane width. This could
influence speed adjustments and
accelerations.

The system may adapt to various drive
modes. See

Drive Mode Control

(page

309). This could influence speed
adjustments and accelerations.

Note:

The system does not activate the

turn signal automatically.

305

Adaptive Cruise Control

(If Equipped)

PREDICTIVE SPEED ASSIST
LIMITATIONS

WARNING:

The system may not

always adjust vehicle speed in certain
road or weather conditions such as
crossing traffic, yield or stop signs, right
of way, traffic lights, speed bumps, rain,
snow, fog. You must always apply the
brake or accelerator pedal when
necessary.

The road geometry and speed limit
information provided by the navigation
map data could be inaccurate or out of
date.

The system may not detect and read
speed limit signs with conditional
information, for example, when a sign is
flashing, during specific time ranges, or
when children are present.

Note:

The system does not set the vehicle

speed to speed limits shown with a
supplementary traffic sign.

Under certain conditions, the system may
not adjust the vehicle speed until after your
vehicle passes the speed limit.

Detection of road geometry operates only
where related information is available.
Road geometry information may not be
available in some areas.

SWITCHING PREDICTIVE SPEED
ASSIST MODE ON AND OFF

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Adaptive Cruise Control

5. Switch

Predictive Speed Assist

on or

off.

ADJUSTING THE SET SPEED
TOLERANCE

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Adaptive Cruise Control

5. Switch

Predictive Speed Assist

on.

6. Press

Tolerance

Adjust the slider to set the tolerance.

Note:

You can set tolerance for vehicle

speed adjustment based on speed sign
recognition only.

PREDICTIVE SPEED ASSIST
ALERTS

If the speed sign recognition system
detects a speed limit below the minimum
adaptive cruise control set speed, a tone
sounds and the system returns to standby
mode.

PREDICTIVE SPEED ASSIST
INDICATORS

A blue marker around the speed sign and
a blue arrow next to the set speed
indicates that the system is active.

306

Adaptive Cruise Control

(If Equipped)

E385814

Speed sign indicator

When the system detects a new speed
sign, a gray indicator appears above the
set speed while the system adjusts the
vehicle speed to the speed limit. When the
speed limit is reached, the set speed
updates and the gray indicator disappears.

Road geometry indicator

When the system detects a curve or
highway exit, the vehicle starts to
decelerate, and the indicator appears and
changes color.

Road geometry indicator symbols

E379737

Left curve.

E379738

Right curve.

PREDICTIVE SPEED ASSIST – TROUBLESHOOTING

(IF EQUIPPED)

PREDICTIVE SPEED ASSIST – INFORMATION MESSAGES

Details

Message

Navigation system based speed limit information is not

available. If the message continues to appear, have your

vehicle checked as soon as possible.

Adaptive Cruise Control

Speed Sign Recognition

Not Available

The system is going to cancel and you must take control.

Driver Resume Control

307

Adaptive Cruise Control

(If Equipped)

ADAPTIVE CRUISE CONTROL
– TROUBLESHOOTING

ADAPTIVE CRUISE CONTROL –
INFORMATION MESSAGES -
VEHICLES WITH: STOP AND GO

Note:

Depending on your vehicle options

and instrument cluster type, not all
messages display or are available.

Note:

The system could abbreviate or

shorten certain messages depending upon
which cluster type you have.

Action

Message

A malfunction is preventing the adaptive cruise from engaging.

Adaptive Cruise

Malfunction

Front Sensor Not Aligned

Contact an authorized dealer to have the radar checked for

proper coverage and operation.

Conditions exist preventing the system from being available.

Adaptive Cruise Not

Available

You have a blocked radar because of poor radar visibility due
to inclement weather or ice, mud, or water in front of the radar.

You can typically clean the sensor to resolve this.

Adaptive Cruise Not

Available Sensor

Blocked See Manual

Due to the nature of radar technology, it is possible to get a

blockage warning with no actual block. This happens, for

example, when driving in sparse rural or desert environments.
A false blocked condition either self clears, or clears after you

restart your vehicle.

You have selected normal cruise control. The system does

not brake or react to traffic.

Normal Cruise Active

Adaptive Braking Off

Displays when the adaptive cruise control is going to cancel

and you must take control.

Adaptive Cruise - Driver

Resume Control

Displays when the vehicle speed is too slow to activate the

adaptive cruise control and there is no lead vehicle in range.

Adaptive Cruise Speed

Too Low to Activate

ADAPTIVE CRUISE CONTROL
VIDEOS

Adaptive Cruise Control with Stop and Go
and Lane-Centering Assist

308

Adaptive Cruise Control

(If Equipped)

WHAT IS DRIVE MODE
CONTROL

This feature connects multiple vehicle
systems through a single interface,
providing you with enhanced vehicle
control and driving dynamics for different
driving scenarios, terrains, weather, or
various road conditions.

HOW DOES DRIVE MODE
CONTROL WORK

When a drive mode is selected it alters
various electrical and mechanical systems
within the vehicle to a predetermined
configuration. The systems altered and
features available will depend on which
mode is selected.

Note:

: The electronic locking differential is

available and automatically engages in
some drive modes. See

Electronic Locking

Differential

(page 242).

Note:

Off-Road drive modes automatically

disable the Brake Over Accelerator system
to allow for two-footed driving in off-road
environments. See

Brake Over Accelerator

(page 246).

Note:

Your vehicle automatically starts in

the last selected drive mode, for applicable
modes, when you return to your vehicle after
short trips up to 2 hours between ignition
cycles. At startup, the system displays a
prompt on the instrument cluster display
that gives you the option to return to the last
drive mode that you chose prior to shutting
the vehicle off. If you select yes, the system
returns to the last selected drive mode and
the default four-wheel drive mode
associated with that mode. If you select no
or do not make a selection, the system
remains in normal Mode and the four-wheel
drive mode remains the same as selected
in the prior ignition cycle.

SELECTING A DRIVE MODE

E308146

Rotate the controller located on the center
console. Rotate the drive mode controller
once to activate the drive mode selection
menu in the display. Rotate the controller
a second time to select and engage the
drive mode.

Note:

Button icons vary depending on the

vehicle’s configuration.

DRIVE MODES

ECO - 4X4

E295413

This mode decreases
accelerator pedal
responsiveness to soften driver

inputs and encourage efficient driving.

Depending on your vehicle’s options,
adaptive cruise control is slower to return
to the set speed and auto start-stop
engages more often. The system
decreases air conditioning output to
conserve energy when set to auto mode.

309

Drive Mode Control

Use this mode for fuel efficient driving
which allows for an extended vehicle
range.

Note:

Two-wheel drive high (2H) is the

default four-wheel drive mode. Four-wheel
drive low (4L) is not available.

Note:

The electronic locking differential is

available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 242).

ECO - 4X2

E295413

This mode decreases
accelerator pedal
responsiveness to soften driver

inputs and encourage efficient driving.

Depending on your vehicle’s options,
adaptive cruise control is slower to return
to the set speed and auto start- stop
engages more often. The system
decreases air conditioning output to
conserve energy when set to Auto Mode.

Use this mode for fuel efficient driving
which allows for an extended driving range.

Note:

The electronic locking differential is

available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 244).

NORMAL - 4X4

E225310

This mode adjusts all systems
to their base settings and
balances vehicle performance

for all around drivability. Each time you
switch your vehicle off it defaults to this
mode.

Use this mode for everyday driving, such
as city and highway routes or commuting.

Note:

Two-wheel drive high (2H) is the

default four-wheel drive mode. All
four-wheel drive modes are selectable when
in normal mode.

Note:

The electronic locking differential is

available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 242).

NORMAL - 4X2

E225310

This mode adjusts all systems
to their base settings and
balances vehicle performance

for all around drivability. Each time you
switch your vehicle off it defaults to this
mode.

Use this mode for everyday driving, such
as city and highway routes or commuting.

Note:

The electronic locking differential is

available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 244).

OFF-ROAD - 4X4

E359277

This mode lowers accelerator
pedal responsiveness and delays
transmission upshifts for

improved vehicle control in low speed
off-road environments. Traction and
stability controls allow the wheels to spin
to maintain vehicle momentum and clear
debris from the tires for improved traction.

Depending on your vehicle’s options, the
system inhibits auto start stop and
engages the rear electronic locking
differential.

Use this mode for driving through mud,
sand, and rough, uneven off-road terrains.

Note:

Four-wheel drive high (4H) is the

default four-wheel drive mode. Depending
on your vehicle options, four-wheel drive
auto (4A) or two-wheel drive high (2H) is
not available.

310

Drive Mode Control

Note:

The electronic locking differential

engages when you select this mode at any
speed, and you can disengage it at any time
using the button. See

Switching the

Electronic Locking Differential On and
Off

(page 242).

Note:

This mode is for Off-Road use only.

Do not use this mode when driving on
pavement. Depending on the four-wheel
drive mode selection, this could cause
driveline bind up and damage the system.
See

Four-Wheel Drive

(page 234).

ROCK CRAWL

E367349

This mode lowers accelerator
pedal responsiveness and holds
the transmission in lower gears

to enhance vehicle control for low speed
rock crawling. The system switches the
traction and stability controls to their rock
crawl settings.

Depending on your vehicle’s options, this
feature inhibits auto start stop and
engages the rear electronic locking
differential.

Use this mode when crossing aggressive
terrain including rocks, mountain trails, and
boulders.

Note:

Four-wheel drive low (4L) is the only

four-wheel drive mode available.

Note:

This mode is for Off-Road use only.

Do not use this mode when driving on
pavement. This could cause driveline bind
up and damage the system depending on
the four-wheel drive mode you select. See

Four-Wheel Drive

(page 234).

SLIPPERY - 4X4

E295414

This mode lowers accelerator
pedal responsiveness, adjusts
transmission shift points, and

optimizes traction and stability controls to
help mitigate wheel spin and maintain
vehicle control in slick driving conditions.

Depending on your vehicle’s options, this
feature adjusts all-wheel drive control to
provide optimum traction for slippery
surfaces.

Use this mode for less than ideal road
conditions such as snow and ice covered
roads or for firm surfaces that are covered
with loose or slippery materials.

Note:

Four-wheel drive high (4H) is the

default four-wheel drive mode. All
four-wheel drive modes are selectable.

Note:

The electronic locking differential is

available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 242).

Note:

Do not use this mode when driving

on dry pavement. This could cause driveline
bind up and damage the system depending
on the four-wheel drive mode you select.
See

Four-Wheel Drive

(page 234).

SLIPPERY - 4X2

E295414

This mode lowers accelerator
pedal responsiveness, adjusts
transmission shift points, and

optimizes traction and stability controls to
help mitigate wheel spin and maintain
vehicle control in slick driving conditions.

Depending on your vehicle’s options, this
feature adjusts all-wheel drive control to
provide optimum traction for slippery
surfaces.

Use this mode for less than ideal road
conditions such as snow and ice covered
roads or for firm surfaces that are covered
with loose or slippery materials.

311

Drive Mode Control

Note:

The electronic locking differential is

available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 244).

TOW/HAUL - 4X4

E246592

For improved vehicle operation
when towing a trailer or hauling
a heavy load. This mode moves

upshifts to higher engine speeds to reduce
the frequency of transmission shifting. It
also provides downshift engine braking to
assist in maintaining vehicle speed when
descending a slope.

Depending on your vehicle’s options, the
system enhances steering response to
assist in controlling the vehicle when
towing or hauling and auto-start stop is
inhibited.

Note:

All four-wheel drive modes are

selectable. This mode does not default to
a certain four-wheel drive mode and
maintains the previous selection.

Note:

The electronic locking differential is

available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 242).

TOW/HAUL - 4X2

E246592

For improved vehicle operation
when towing a trailer or hauling
a heavy load. This mode moves

upshifts to higher engine speeds to reduce
the frequency of transmission shifting. It
also provides downshift engine braking to
assist in maintaining vehicle speed when
descending a slope.

Depending on your vehicle’s options, the
system enhances steering response to
assist in controlling the vehicle when
towing or hauling and auto-start stop is
inhibited.

Note:

The electronic locking differential is

available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 244).

TRAIL - 4X2

E295419

This mode lowers accelerator
pedal responsiveness and delays
transmission up-shifts for

improved vehicle control in low speed
off-road environments. The system
optimizes the traction and stability
controls for improved traction and to help
maintain forward momentum through
loose deformable terrains.

Depending on your vehicle's options, the
system disables auto-start-stop and
optimizes the all-wheel drive system for
enhanced traction.

Use this mode for driving on two-track
trails, loose gravel and mixed uneven
terrain.

Note:

The brake over accelerator system is

on in this mode. See

Brake Over

Accelerator

(page 246).

Note:

The electronic locking differential is

available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 244).

DRIVE MODE CONTROL –
TROUBLESHOOTING

DRIVE MODE CONTROL –
WARNING LAMPS

E130458

Some drive modes reduce
traction and stability control
performance and the indicator

illuminates in the instrument cluster.

312

Drive Mode Control

Note:

The system has diagnostic checks

that continuously monitor the system for
proper operation. If a mode is unavailable
due to a system fault, the drive mode
system defaults to normal. When the
system defaults to normal, the driveline
settings remain the same as prior to the
system fault.

DRIVE MODE CONTROL – INFORMATION MESSAGES

Details

Message

You have selected a four-wheel drive mode

that is not available in the current drive

mode. Select an available four-wheel drive

mode.

Selected 4x4 Mode Not Available in Current

Drive Mode

313

Drive Mode Control

Ford F-250 (2024 year). Manual in english - page 9
