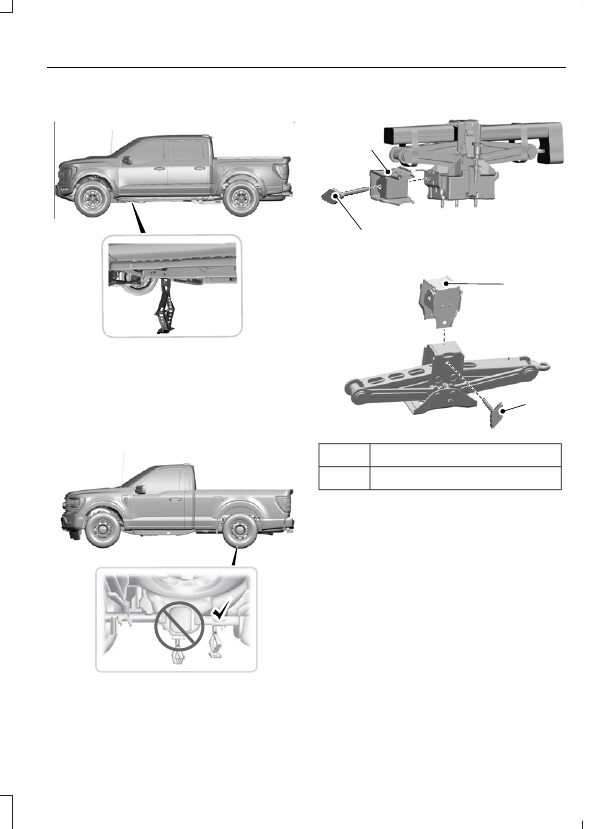

Front Jacking Points

E363124

Note:

Use the frame rail as the front jacking

location point, not the control arm. There is
an arrow marked on the frame rail.

Rear Jacking Points

E323397

Note:

Jack at the specified locations to

avoid damage to the vehicle.

E363809

E363808

Extension Block

Wing bolt

Place the vehicle jack at the jacking
point next to the tire you are changing.

2. When jacking the vehicle to service a

front wheel/tire, remove the wing bolt
holding the extension block to the jack
stowage bracket and reuse wing bolt
to attach extension block to jacking
surface.

Note:

Do not use the extension block when

jacking the rear tire position.

Note:

If servicing a rear tire position, the

extension block is not needed.

573

Changing a Road Wheel

3. Reassemble the jack handle, including

the S-hook, to the lug wrench. Insert
the S-hook into the eyelet of the jack
and turn the jack handle clockwise until
the wheel is completely off the ground.

E376830

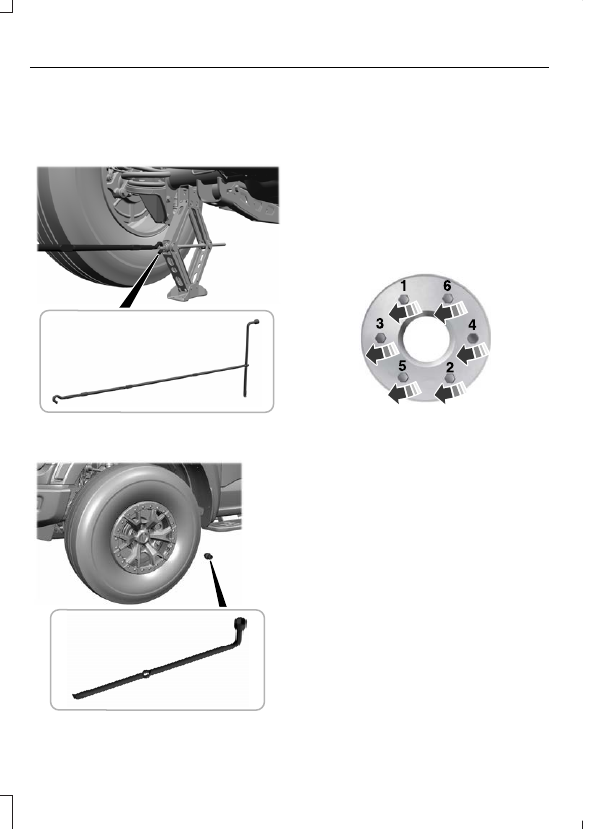

4. Remove the wheel nuts with the lug

wrench.

E376829

5. Replace the flat tire with the spare tire,

making sure the valve stem is facing
outward. Reinstall the wheel nuts until
the wheel is snug against the hub. Do
not fully tighten the wheel nuts until
you lower the wheel.

6. Lower the wheel by turning the jack

handle counterclockwise.

Remove the vehicle jack and fully
tighten the wheel nuts in the order
shown.

E166719

8. Remove the wheel trim with the wheel

nut trim remover provided on the end
of the wheel nut wrench.

574

Changing a Road Wheel

E376828

Note:

Stow the center wheel trim in a safe

location for replacement on the wheel when
repaired.

9. Stow the flat tire.

10.

Stow the vehicle jack and lug wrench.
Make sure the jack is securely
fastened before you drive.

11.

Unblock the wheels.

Stowing the Flat or Spare Tire

Note:

Failure to follow the spare tire

stowage instructions could result in failure
of the cable or loss of the spare tire.

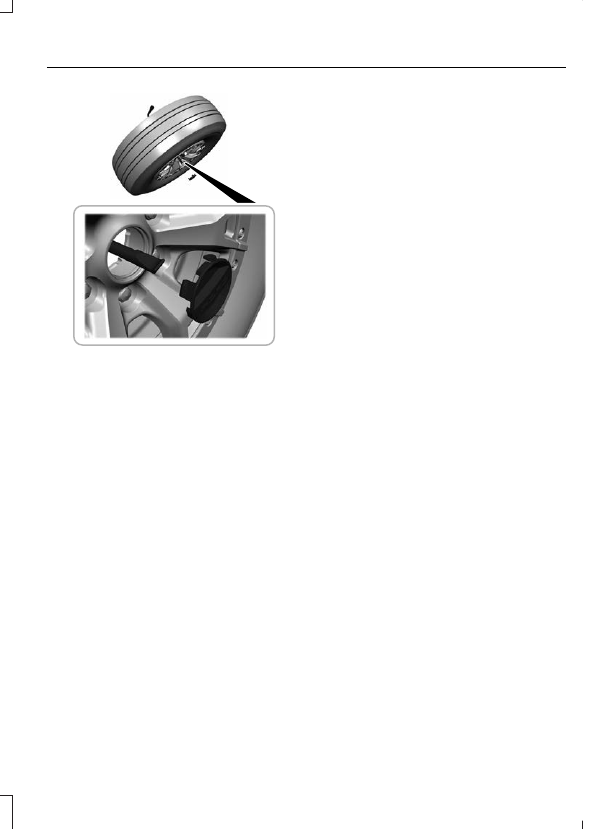

Lay the tire on the ground with the
valve stem facing up.

2. Slide the wheel partially under the

vehicle and install the retainer through
the wheel center. Pull on the cable to
align the components at the end of the
cable.

3. Turn the jack handle clockwise until

you raise the tire to its stowed position
underneath the vehicle. The effort to
turn the jack handle increases
significantly and the spare tire carrier
ratchets or slips when you raise the tire
to the maximum tightness. Tighten to
the point where the ratchet or slip
occurs a minimum of three times, as
indicated by an audible click each time.
The spare tire carrier does not allow
you to overtighten. If the spare tire
carrier ratchets or slips with little effort,
have your vehicle checked as soon as
possible.

4. Check that the tire lies flat against the

frame and you properly tighten it. Try
to push or pull, then turn the tire to be
sure it does not move. Loosen and
retighten, if necessary. Failure to
properly stow the spare tire could
result in failure of the winch cable and
loss of the tire.

5. Repeat this tightness check procedure

when servicing the spare tire pressure,
every six months, as per your scheduled
maintenance information, or at any
time that the spare tire gets disturbed
through service of other components.

6. If removed, install the spare tire lock

into the bumper drive tube with the
spare tire lock key and jack handle.

575

Changing a Road Wheel

Stowing the Vehicle Jack and Tool
Bag

E323394

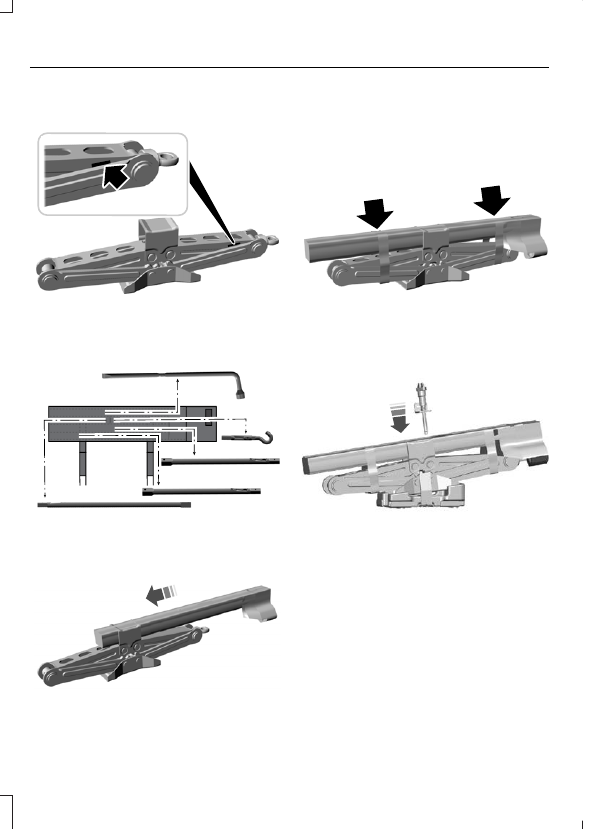

Turn the lead screw eyelet to adjust
the jack up or down until the stowage
markings on the upper channel align
with the lower channel.

E323393

2. Place the tools inside of the tool bag.

E327653

3. Install the tool bag through the vehicle

jack load rest.

4. Restow the extension block and wing

bolt to the jack bracket.

E323386

5. Secure the jack tool bag straps around

the vehicle jack.

E327654

6. Place the jack and tool bag back onto

the jack bracket.

576

Changing a Road Wheel

E323384

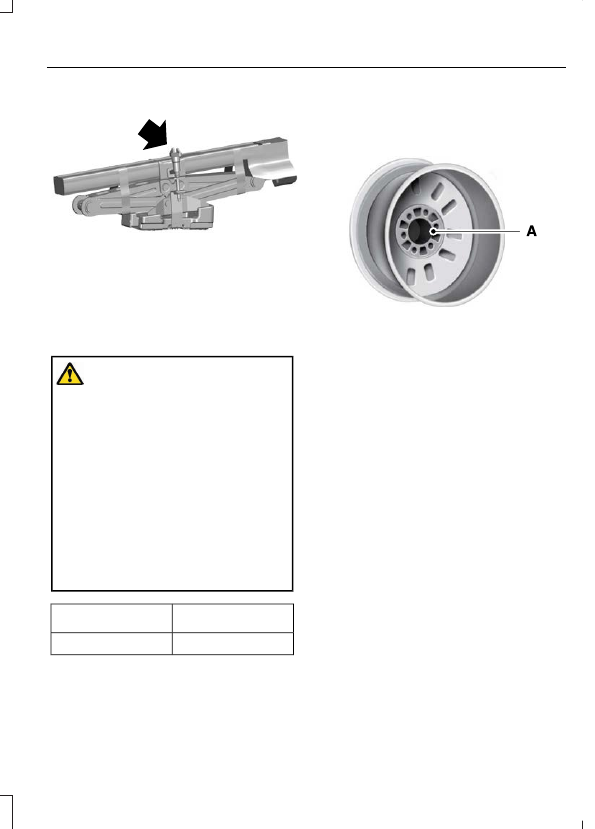

Turn the wing bolt on the jack bracket
clockwise until you secure the jack and
tools to the jack bracket.

WHEEL NUTS

WARNING:

When you install a

wheel, always remove any corrosion, dirt
or foreign materials present on the
mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make
sure to secure any fasteners that attach
the rotor to the hub so they do not
interfere with the mounting surfaces of
the wheel. Installing wheels without
correct metal-to-metal contact at the
wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to
come off while your vehicle is in motion,
resulting in loss of vehicle control,
personal injury or death.

lb.ft (Nm)

Bolt Size

150 lb.ft (204 Nm)

M14 x 1.5

Torque specifications are for nut and bolt

threads free of dirt and rust. Use only our
recommended replacement wheel nuts
and or wheel bolts.

Retighten the wheel nuts to the specified
torque within 100 mi (160 km) after any
wheel disturbance, such as tire rotation,
changing a flat tire or wheel removal.

E145950

Hub pilot bore.

Inspect the wheel pilot hole and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.

577

Changing a Road Wheel

ENGINE SPECIFICATIONS - 2.7L ECOBOOST™

Specification

Engine

10.0:1

Compression ratio.

165 in³ (2,700 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

Minimum 87 octane

Required fuel.

0.028 in (0.7 mm) - 0.031 in (0.8 mm)

Spark plug gap.

578

Capacities and Specifications

ENGINE SPECIFICATIONS - 3.5L ECOBOOST™, EXCLUDING:
RAPTOR

Specification

Engine

10.5:1

Compression ratio.

213.4 in³ (3,497 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

Minimum 87 octane

Required fuel.

0.028 in (0.7 mm) - 0.031 in (0.8 mm)

Spark plug gap.

579

Capacities and Specifications

ENGINE SPECIFICATIONS - 3.5L ECOBOOST™, RAPTOR

Specification

Item

Front mount/longitudinal

Engine position.

3.5L 24V Ti-VCT

Engine type.

Number and arrangement of cylinders.

4 per cylinder

Valves.

Twin independent variable camshaft timing
- hydraulic roller finger follower valve actu-

ation

Actuation.

3.6 in (92.5 mm)

Bore.

3.4 in (86.7 mm)

Stroke.

10.5:1

Compression ratio.

213.4 in³ (3,497 cm³)

Engine displacement.

449.7 hp (335.5 kW) (457 cv) @ 6000 rpm

Maximum net power.

510 lb.ft (691 Nm) @ 3000 rpm

Maximum net torque.

625 rpm

Normal engine idling speed.

6250 rpm

Maximum engine speed.

1-4-2-5-3-6

Ignition firing order.

Coil on plug

Ignition system.

Turbo charged

Air induction type.

0.028 in (0.7 mm) - 0.031 in (0.8 mm)

Spark plug gap.

580

Capacities and Specifications

ENGINE SPECIFICATIONS - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)

Specification

Engine

10.5:1

Compression ratio.

213.4 in³ (3,497 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

Minimum 87 octane

Required fuel.

0.028 in (0.7 mm) - 0.031 in (0.8 mm)

Spark plug gap.

581

Capacities and Specifications

ENGINE SPECIFICATIONS - 5.0L

Specification

Engine

12:1

Compression ratio.

307 in³ (5,038 cm³)

Displacement.

1-3-7-2-6-5-4-8

Firing order.

Coil on plug, coil near plug

Ignition system.

Minimum 87 octane

Required fuel.

0.039 in (1 mm) - 0.043 in (1.1 mm)

Spark plug gap.

582

Capacities and Specifications

ENGINE SPECIFICATIONS - 5.2L

Description

Item

90 degree V8.

Configuration.

3.70 in (94 mm) bore x 3.66 in (93 mm)

stroke.

Bore x stroke.

315 in³ (5,163 cm³)

Displacement.

9.5:1

Compression ratio.

0.037 ± 0.002 in (0.95 ± 0.05 mm)

Spark plug gap.

700 hp (515 kW) @ 6650 rpm

Horsepower.

640 lb.ft (868 Nm) @ 4250 rpm

Torque.

7000 RPM

Redline.

Overhead cams - roller finger followers.

Valvetrain.

Coil on plug.

Ignition.

3.6 in (92 mm)

Throttle body.

Forged aluminum.

Pistons.

Forged steel cross plane.

Crankshaft.

Forged steel I-beam.

Connecting rods.

Intercooled supercharger.

Induction.

High flow exhaust with X-pipe and active

valves for acoustic refinement.

Exhaust system.

583

Capacities and Specifications

MOTORCRAFT PARTS - 2.7L ECOBOOST™

Motorcraft Part Number

Component

FA-1883

Air filter element.

BAGM-48H6-760

Battery.

FP-92

Cabin air filter.

FL-2062-A

Engine oil filter.

SP-594

Spark plug.

WW-2208

Windshield wiper blade.

We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.

584

Capacities and Specifications

MOTORCRAFT PARTS - 3.5L ECOBOOST™, EXCLUDING: RAPTOR

Motorcraft Part Number

Component

FA-1883

Air filter element.

BAGM-48H6-760

Battery-standard.

BAGM-94RH7-800

Battery-optional.

FP-92

Cabin air filter.

FL-500-S

Engine oil filter.

SP-596

Spark plug.

WW-2208

Windshield wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36

Performance Specifications. Filter Type C.

585

Capacities and Specifications

MOTORCRAFT PARTS - 3.5L ECOBOOST™, RAPTOR

Motorcraft Part Number

Component

FA-1883

Air filter element.

BAGM-94RH7-800

Battery.

FP-92

Cabin air filter.

FL-500-S

Engine oil filter.

SP-596

Spark plug.

WW-2208

Windshield wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36

Performance Specifications. Filter Type C.

586

Capacities and Specifications

MOTORCRAFT PARTS - 3.5L, HYBRID ELECTRIC VEHICLE (HEV)

Motorcraft Part Number

Component

FA-1883

Air filter element.

BAGM-94RH7-800

Battery-standard.

FP-92

Cabin air filter.

FL-500-S

Engine oil filter.

SP-596

Spark plug.

WW-2208

Windshield wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36

Performance Specifications. Filter Type C.

587

Capacities and Specifications

MOTORCRAFT PARTS - 5.0L

Motorcraft Part Number

Component

FA-1883

Air filter element.

BAGM-48H6-760

Battery-standard.

BAGM-94RH7-800

Battery-optional.

FP-92

Cabin air filter.

FL-500-S

Engine oil filter.

SP-588

Spark plug.

WW-2208

Windshield wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36

Performance Specifications. Filter Type C.

588

Capacities and Specifications

MOTORCRAFT PARTS - 5.2L

Motorcraft Part Number

Component

FA-1922

Air filter element.

BAGM-94RH7-800

Battery.

FL-500-S

Oil filter.

SP-581-X

Spark plugs.

FT-202

Transmission filter.

WW-2208

Windshield wiper blade.

FP-92

Cabin air filter.

If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36

Performance Specifications. Filter Type C.

Note:

The use of any oil filter other than the dealer supplied oil filter could cause engine

damage. Use the listed Motorcraft oil filter for maximum performance, reliability and
durability.

589

Capacities and Specifications

ENGINE OIL CAPACITY AND
SPECIFICATION - 2.7L
ECOBOOST™

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Motor Oil / Huile moteur
SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP, XO-5W30-Q1FS(U.S.)
CXO-5W30-LSP6, CXO-5W30-LFS6(Canada)

590

Capacities and Specifications

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,

use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30

E240523

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil.

ENGINE OIL CAPACITY AND
SPECIFICATION - 3.5L
ECOBOOST™

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

591

Capacities and Specifications

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Motor Oil / Huile moteur
SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP, XO-5W30-Q1FS(U.S.)
CXO-5W30-LSP6, CXO-5W30-LFS6(Canada)

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30

592

Capacities and Specifications

E240523

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil.

ENGINE OIL CAPACITY AND
SPECIFICATION - 3.5L, HYBRID
ELECTRIC VEHICLE (HEV)

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

593

Capacities and Specifications

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Motor Oil / Huile moteur
SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP, XO-5W30-Q1FS(U.S.)
CXO-5W30-LSP6, CXO-5W30-LFS6(Canada)

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30

E240523

594

Capacities and Specifications

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil.

ENGINE OIL CAPACITY AND
SPECIFICATION - 5.0L

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

7.75 qt (7.33 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Motor Oil / Huile moteur
SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP, XO-5W30-Q1FS(U.S.)
CXO-5W30-LSP6, CXO-5W30-LFS6(Canada)

595

Capacities and Specifications

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,

use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30

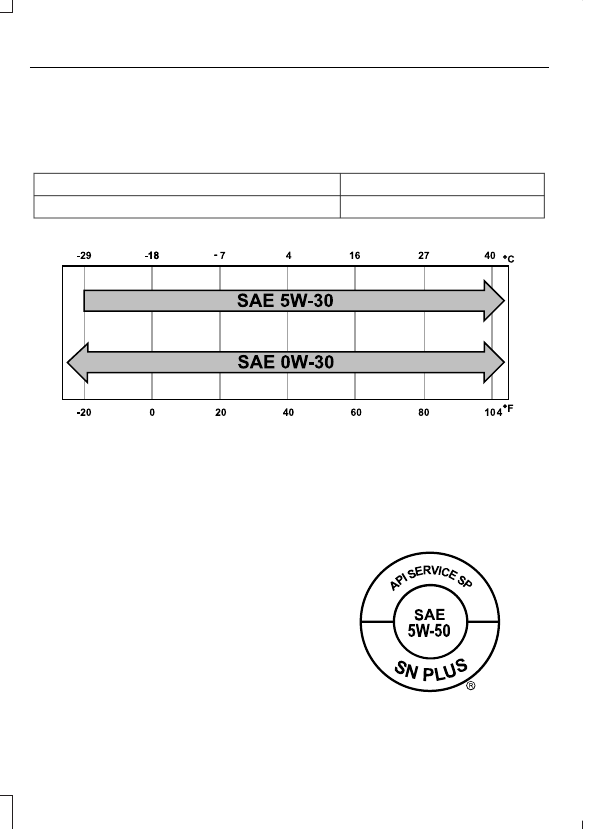

E240523

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil.

ENGINE OIL CAPACITY AND
SPECIFICATION - 5.2L

Engine Oil

E408327

596

Capacities and Specifications

We recommend Motorcraft ® motor oil for
your vehicle. If Motorcraft ® oil is not
available, use motor oils of the
recommended viscosity grade that display
the API service symbol for API SP.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Quantity

Variant

11.5 qt (10.88 L)

All.

Materials

Specification

Name

WSS-M2C931-E1

Motorcraft® SAE 5W-50 Full Synthetic Motor
Oil(U.S.)
Motorcraft® SAE 5W-50 Full Synthetic Motor Oil /
Huile moteur synthétique SAE 5W-50 Motor-
craft®(Canada)
XO-5W50-QGT(U.S. & Canada)

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 2.7L
ECOBOOST™

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

15.4 qt (14.6 L)

All.

597

Capacities and Specifications

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 3.5L
ECOBOOST™, EXCLUDING:
RAPTOR

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

13.8 qt (13.1 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

598

Capacities and Specifications

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 3.5L
ECOBOOST™, RAPTOR

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

13.4 qt (12.7 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 3.5L,
HYBRID ELECTRIC VEHICLE
(HEV)

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

7.3 qt (6.9 L)

Low temperature cooling circuit with
battery radiator.

6.66 qt (6.3 L)

Low temperature cooling circuit without
battery radiator.

15.5 qt (14.7 L)

High temperature cooling circuit.

599

Capacities and Specifications

Materials

Specification

Name

WSS-M97B57-A2

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 5.0L

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

14.3 qt (13.5 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 5.2L

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

600

Capacities and Specifications

Capacities

Quantity

Variant

12.7 qt (12 L)

High temperature cooling system volume.

3.28 qt (3.1 L)

Low temperature cooling system volume.

Materials

Specification

Name

WSS-M97B57-A2

FUEL TANK CAPACITY - GASOLINE

Capacities

Quantity

Variant

23.0 gal (87.1 L)

Regular cab.

23.0 gal (87.1 L)

Super cab.

26.0 gal (98.4 L)

Crew cab.

36.0 gal (136.3 L)

Optional.

601

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 2.7L
ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

2.71 fl oz (80 ml)

29 oz (0.82 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

603

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 3.5L
ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

2.71 fl oz (80 ml)

29 oz (0.82 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

604

Capacities and Specifications

Ford F-150 (2024 year). Manual in english - page 18
