ADDING WASHER FLUID

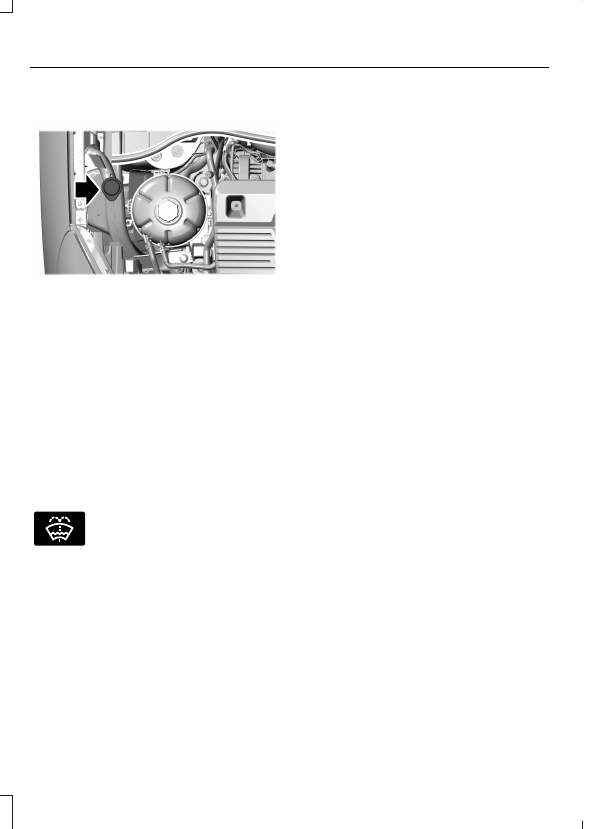

E334429

Remove the washer fluid reservoir cap.

2. Add washer fluid that meets our

specification. See

Washer Fluid

Specification

(page 428).

3. Install the washer fluid reservoir cap.

Note:

The reservoir supplies the front and

rear washer systems.

WIPERS AND WASHERS –
TROUBLESHOOTING

WIPERS AND WASHERS –
WARNING LAMPS

E132353

Illuminates when the windshield
washer fluid is low.

WIPERS AND WASHERS –
FREQUENTLY ASKED QUESTIONS

Why are there streaks and smears
on the windshield?

•

The wiper blades could be dirty, worn
or damaged. Check the wiper blades.
See

Checking the Wiper Blades

(page 86). If the wiper blades are dirty,
clean them with washer fluid or water
applied with a soft sponge or cloth. If
the wiper blades are worn or damaged,
install new ones. See

Replacing the

Front Wiper Blades

(page 86).

Wipers and Washers

EXTERIOR LIGHTING
CONTROL

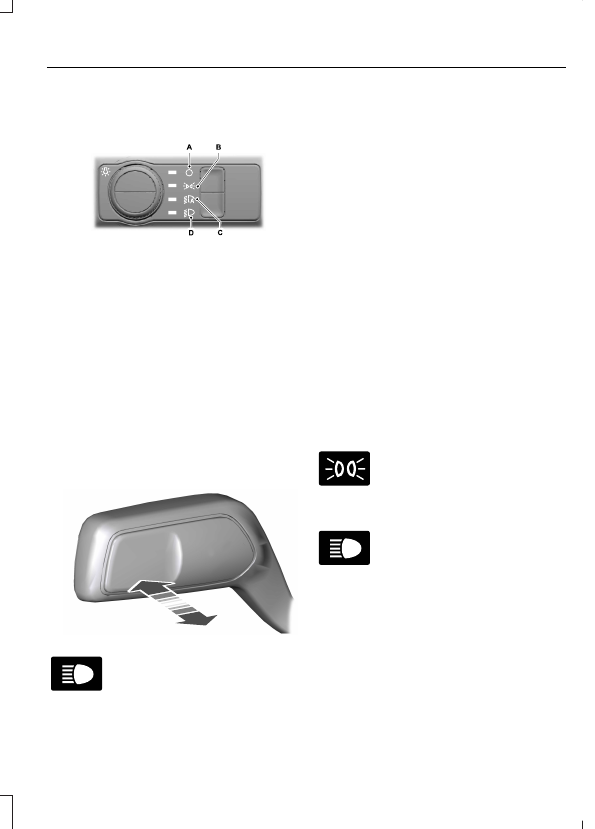

E327629

Lamps off.

Parking lamps on.

Autolamps on.

Headlamps on.

Rotate the control to make a selection.

Note:

The lighting control defaults to

autolamps every time you switch your
vehicle on.

HEADLAMPS

USING THE HIGH BEAM
HEADLAMPS

E328253

E67019

Push the lever away from you to
switch the high beams on.

Push the lever forward again or pull the
lever toward you to switch the high beams
off.

Slightly pull the lever toward you and
release it to flash the headlamps.

Note:

Continuous activation only with

headlamps on.

SWITCHING HEADLAMP EXIT
DELAY ON AND OFF

To switch headlamp exit delay on, pull the
turn signal lever toward you after switching
your vehicle off.

To switch headlamp exit delay off, pull the
turn signal lever toward you again or switch
your vehicle on.

Note:

The headlamps turn off after three

minutes with any door open or 30 seconds
after the last door closes.

HEADLAMP INDICATORS

Lamps On

E71341

Illuminates when you switch the
low beam headlamps or the
parking lamps on.

Headlamp High Beam

E67019

Illuminates when you switch the
high beam headlamps on.

Exterior Lighting

HEADLAMPS –
TROUBLESHOOTING

HEADLAMPS – FREQUENTLY
ASKED QUESTIONS

Why is there condensation in the
headlamps?

•

Headlamps have vents to
accommodate normal changes in air
pressure. Condensation can be a
natural by-product of this design.
When moist air enters the lamp
assembly through the vents, there is a
possibility that condensation can occur
when the temperature is cold. When
normal condensation occurs, a fine
mist can form on the interior of the
lens. The fine mist eventually clears
and exits through the vents during
normal operation.

How much condensation is
acceptable?

•

The presence of a fine mist, for
example no streaks, drip marks or large
droplets. A fine mist covers less than
50% of the lens.

How long does it take for the
acceptable condensation to clear?

•

Clearing time can take as long as 48
hours under dry weather conditions.

How much condensation is
unacceptable?

•

A water puddle inside the lamp.
Streaks, drip marks or large droplets
present on the interior of the lens.

What should I do if unacceptable
condensation is present?

•

Have your vehicle checked as soon as
possible.

Why do my headlamps turn off
when I have them switched on
when I switch my vehicle off?

•

The battery saver turns the headlamps
off after a short period of time after you
switch your vehicle off.

AUTOLAMPS

WHAT ARE AUTOLAMPS

WARNING:

The system does not

relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the headlamps on in low visibility
conditions, for example daytime fog.

Autolamps turn the headlamps on in low
light situations or when the windshield
wipers operate.

AUTOLAMP SETTINGS

Press

Settings

on the touchscreen.

2. Press

Vehicle

3. Press

Lighting

4. Press

Autolamp Delay

5. Select a setting.

Exterior Lighting

EXTERIOR LAMPS

USING THE TURN SIGNAL LAMPS

E242676

E67018

Push the lever up or down to
switch the turn signal lamps on.

Set the lever to the middle position to
switch the turn signal lamps off.

Note:

Tap the lever up or down to make the

turn signal lamps flash three times.

Turn Signal Lamp Indicator

E67018

It flashes when you switch the
turn signal lamps on.

Note:

An increase in the rate of flashing

warns of a failed turn signal lamp.

SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: DAYTIME
RUNNING LAMPS (DRL)

WARNING:

The daytime running

lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.

Daytime running lamps are always on
unless you switch on the headlamps or
your vehicle is in park (P).

SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: CONFIGURABLE
DAYTIME RUNNING LAMPS

WARNING:

The daytime running

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Lighting

4. Switch

Daytime Running Lights

on or

off.

The daytime running lamps turn on when
all of the following occur:
•

You switch the system on.

•

You switch your vehicle on.

Exterior Lighting

•

The transmission is not in park (P) for
vehicles with automatic transmissions
or you release the parking brake for
vehicles with manual transmissions.

•

The lighting control is in the autolamps
position.

•

The headlamps are off.

Note:

Other lighting control positions do

not turn on the daytime running lamps.

USING THE FRONT FOG LAMPS

To switch the lamps on or off:

Set the lighting control to the parking
lamps, headlamps or autolamps
position.

Note:

When the lighting control is in the

autolamps position, you cannot switch the
fog lamps on unless the low beam
headlamps are on.

Press the button on the

lighting control to switch the front fog
lamps on or off.

Note:

Only switch the front fog lamps on

during reduced visibility.

Note:

The brightness of the daytime running

lamps may decrease when the front fog
lamps are switched on.

Note:

The front fog lamps lights switch off

automatically when high beams are
activated.

Front Fog Lamps Indicator

It illuminates when you switch
the front fog lamps on.

EXTERIOR LAMP INDICATORS

Front Fog Lamp

It illuminates when you switch
the front fog lamps on.

Turn Signal Lamp

E67018

It flashes when you switch the
turn signal lamps on.

Note:

An increase in the rate of flashing

warns of a failed turn signal lamp.

EXTERIOR LAMPS ON AUDIBLE
WARNING

Sounds when you open the driver door and
the exterior lamps are on.

AUTOMATIC HIGH BEAM
CONTROL

HOW DOES AUTOMATIC HIGH
BEAM CONTROL WORK

Automatic high beam control turns the
high beams on if it is dark enough and no
other traffic is present. If it detects an
approaching vehicle’s headlamps or tail
lamps, or street lighting ahead, the system
turns the high beams off.

A camera sensor, centrally mounted
behind the windshield of your vehicle,
continuously monitors conditions to turn
the high beams on and off.

Exterior Lighting

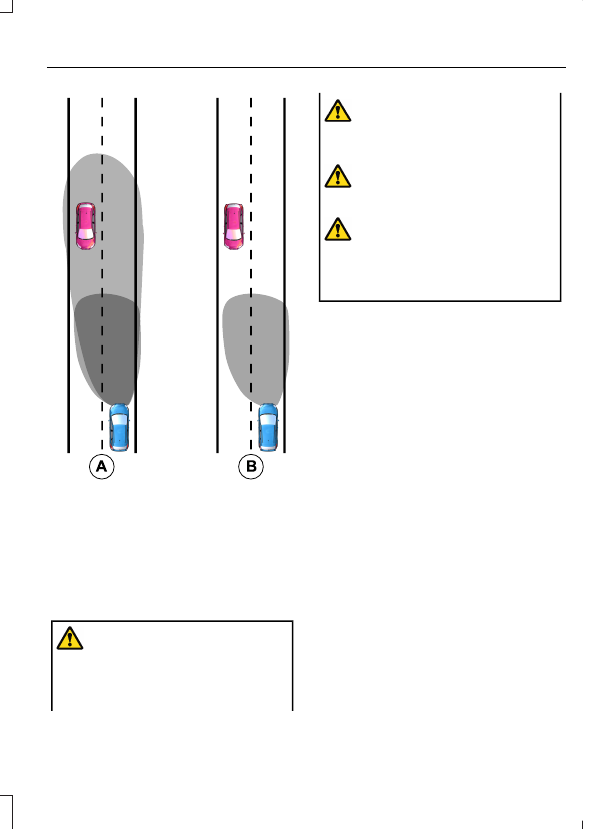

E327596

Without automatic high beam
control.

With automatic high beam
control.

AUTOMATIC HIGH BEAM
CONTROL PRECAUTIONS

WARNING:

The system does not

relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the high beams on or off.

WARNING:

The system may not

switch the high beams off if the lights of
oncoming vehicles are hidden by
obstacles, for example guard rails.

WARNING:

You may need to

override the system when approaching
other road users.

WARNING:

In situations with poor

visibility, such as fog, heavy rain or other
inclement weather, you may need to
override or completely switch off the
system.

AUTOMATIC HIGH BEAM
CONTROL REQUIREMENTS

The system turns the high beams on if all
of the following occur:
•

You switch the system on.

•

You set the lighting control to the
autolamps position.

•

The ambient light level is low enough
that you require high beams.

•

There is no traffic in front of your
vehicle.

•

The vehicle speed is greater than
approximately 25 mph (40 km/h).

AUTOMATIC HIGH BEAM
CONTROL LIMITATIONS

The system turns the high beams off if any
of the following occur:
•

You switch the system off.

•

You set the lighting control to any
position except autolamps.

•

You switch the rear fog lamps on.

•

The ambient light level is high enough
that you do not require high beams.

Exterior Lighting

•

The system detects an approaching
vehicle's headlamps or a leading
vehicle's tail lamps.

•

The system detects severe rain, snow
or fog.

•

The system detects street lighting.

•

The camera has reduced visibility.

•

The vehicle speed falls below
approximately 19 mph (30 km/h).

Note:

The deactivation speed may be lower

on curves.

SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle

3. Press

Lighting

4. Switch

Auto Highbeam

on or off.

AUTOMATIC HIGH BEAM
CONTROL INDICATORS

E146105

Illuminates to confirm when the
system is ready to assist.

OVERRIDING AUTOMATIC HIGH
BEAM CONTROL

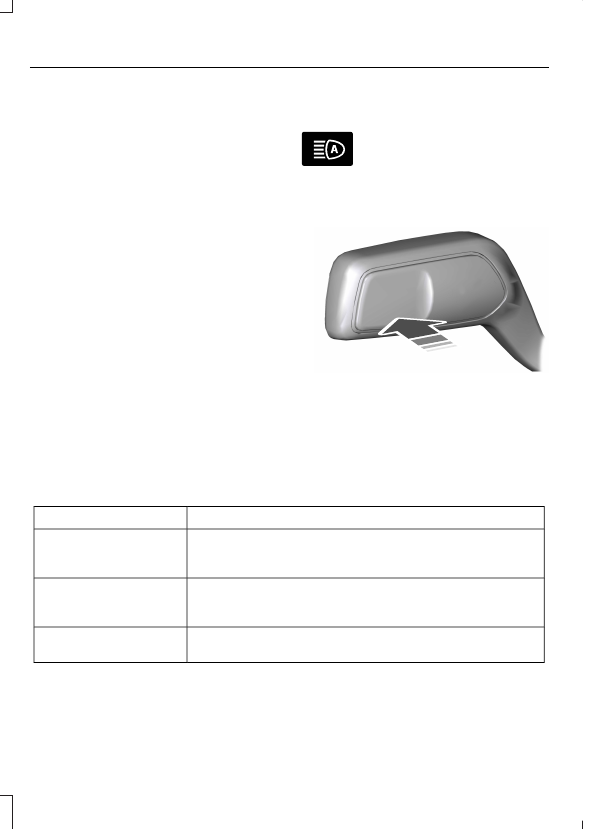

E248603

Push the lever away from you to switch
between high beam and low beam.

AUTOMATIC HIGH BEAM CONTROL – TROUBLESHOOTING

AUTOMATIC HIGH BEAM CONTROL – INFORMATION MESSAGES

Details

Message

The camera has reduced visibility. Clean the windshield. If
the message continues to appear, have your vehicle checked
as soon as possible.

Front Camera Low Visib-
ility Clean Screen

The camera has malfunctioned. Wait a short period of time
for the camera to cool down. If the message continues to
appear, have your vehicle checked as soon as possible.

Front Camera Tempor-
arily Not Available

The camera has malfunctioned. Have your vehicle checked
as soon as possible.

Front Camera Malfunc-
tion Service Required

Exterior Lighting

SWITCHING ALL OF THE
INTERIOR LAMPS ON AND OFF

E310027

E310028

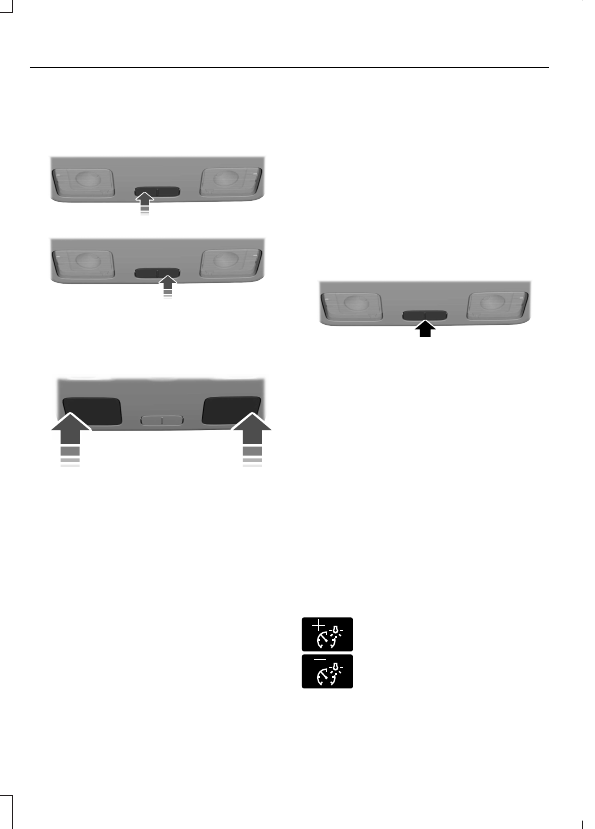

SWITCHING THE FRONT
INTERIOR LAMPS ON AND OFF

E249791

Note:

Press the edge of the lamp lens to

switch the front interior lamp off before
switching the ignition off to prevent the
vehicle battery from running out of charge.

SWITCHING THE REAR
INTERIOR LAMPS ON AND OFF

Press the edge of the lamp lens.

Note:

If you switch the rear lamps on

through the overhead console, you cannot
switch them off with the rear lamp switch.

INTERIOR LAMP FUNCTION

WHAT IS THE INTERIOR LAMP
FUNCTION

The interior lamp function turns the
courtesy and luggage compartment lamps
on or off.

SWITCHING THE INTERIOR LAMP
FUNCTION ON AND OFF

E264886

When you set the switch to the middle
position, the interior lamps turn on if:
•

You open any door.

•

You press the unlock button on the
remote control.

•

You switch the ignition off.

Note:

If you switch the ignition off, the

interior lamps could turn off after a short
time to prevent the vehicle battery from
running out of charge.

ADJUSTING THE INSTRUMENT
PANEL LIGHTING
BRIGHTNESS

The instrument lighting dimmer buttons
are on the lighting control.

E291299

E296433

Repeatedly press one of the
buttons to adjust the brightness.

Interior Lighting

AMBIENT LIGHTING

SWITCHING AMBIENT LIGHTING
ON AND OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Ambient Light

4. Switch

Ambient Light

on or off.

ADJUSTING AMBIENT LIGHTING

Drag the slider left or right.

Interior Lighting

OPENING AND CLOSING THE
WINDOWS

WARNING:

Do not leave children

or pets unattended in your vehicle and
do not let children play with the power
windows. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

When closing the

power windows, verify that they are free
of obstructions and make sure children
and pets are not in the proximity of the
window openings. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

If an obstruction is

detected, release the switch and reverse
the window immediately. Failure to
follow this instruction could result in
personal injury or death.

WARNING:

Do not leave a key or

remote control unattended in the vehicle.
Children or pets could operate the power
windows and could become trapped in
a closing window. Failure to follow this
instruction could result in personal injury
or death.

Press the window control switch
to open the window. Lift the
window control switch to close

the window.

To reduce wind noise or pulsing noise when
just one window is open, slightly open the
opposite window.

One-Touch Down

(If Equipped)

Fully press the window control switch and
release it. Press again or lift it to stop the
window.

One-Touch Up

(If Equipped)

Fully lift the window control switch and
release it. Press or lift it again to stop the
window.

Resetting One-Touch Up

Carry out all steps within 30 seconds of
starting the sequence.

Lift and hold the window control switch
until you fully close the door window.
Continue to hold the window control
switch for a few seconds after you
close the window.

2. Release the window control switch.

3. Press and hold the window control

switch until you fully open the door
window.

4. Release the window control switch.

5. Lift and hold the window control switch

until you fully close the window.

6. Test for correct window operation by

carrying out the one-touch down and
one-touch up features.

Accessory Delay

When you switch the ignition off, the
window switches remain operational for
several minutes or until you open either
front door.

WINDOW BOUNCE-BACK

WHAT IS WINDOW BOUNCE-BACK

The window stops and reverses if it detects
an obstruction when closing.

Windows

OVERRIDING WINDOW BOUNCE-
BACK

WARNING:

If you override

bounce-back, the window does not
reverse if it detects an obstacle. Take
care when closing the windows to avoid
personal injury or damage to your
vehicle.

Close the window until it reaches the
point of resistance and let it reverse.

2. Lift the window control switch within

five seconds to override bounce-back
and close the window. Bounce-back
is now disabled and you can close the
window manually.

Note:

The window goes past the point of

resistance and you can fully close it.

Note:

If the window does not close, have

your vehicle checked as soon as possible.

RESETTING WINDOW BOUNCE-
BACK

WARNING:

Bounce-back is off until

you reset the memory. Take care when
closing the windows to avoid personal
injury or damage to your vehicle.

If you have disconnected the battery, you
must reset the bounce-back memory
separately for each window.

Carry out all steps within 30 seconds of
starting the sequence.

Close the window.

2. Press and hold the window control

switch until the window is fully open.
Keep the switch pressed for a few
seconds.

3. Lift and hold the switch until the

window is fully closed. Keep the switch
held for a few seconds.

4. Press and hold the switch until the

window is fully open. Keep the switch
pressed for a few seconds.

5. Lift and hold the switch until the

window is fully closed. Keep the switch
held for a few seconds.

Note:

Repeat the procedure if the window

does not close when you use one-touch.

LOCKING THE REAR WINDOW
CONTROLS

WARNING:

When children and pets

are in the rear seat, use the power
window lockout button to prevent
accidental operation of the power
windows.

Press the control to lock or
unlock the rear window controls.
It illuminates when you lock the

rear window controls.

Windows

INTERIOR MIRROR
PRECAUTIONS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products.

MANUALLY DIMMING THE
INTERIOR MIRROR

Pull the tab below the mirror toward you
to reduce glare at night.

AUTO-DIMMING INTERIOR
MIRROR

WHAT IS THE AUTO-DIMMING
INTERIOR MIRROR

The mirror dims to reduce the effect of
bright light from behind. It returns to
normal when the bright light from behind
is no longer present or when you shift into
reverse (R).

AUTO-DIMMING INTERIOR
MIRROR LIMITATIONS

Do not block the sensors on the front and
back of the mirror.

Note:

A rear center passenger or raised rear

center head restraint could prevent light
from reaching the sensor.

100

Interior Mirror

ADJUSTING THE EXTERIOR
MIRRORS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

E303926

Left-hand mirror.

Right-hand mirror.

E303927

To adjust your mirrors, switch your vehicle
on, with the ignition in accessory mode or
the engine running.

Select the mirror you want to adjust.
The control light turns on.

2. Use the adjustment control to adjust

the position of the mirror.

3. Press the mirror control again. The

control light turns off.

FOLDING THE EXTERIOR
MIRRORS

Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning it to its
original position.

101

Exterior Mirrors

OPENING AND CLOSING THE
SUNSHADE

Opening the Sunshade

WARNING:

Do not leave a key or

remote control unattended in the vehicle.
Children or pets could operate the
sunshade and get caught in a closing
sunshade. Failure to follow this
instruction could result in personal injury.

WARNING:

Do not leave children

or pets unattended in your vehicle and
do not let children play with the
sunshade. Failure to follow this
instruction could result in personal injury.

The sun shade operates independently of
the moonroof.

The sunshade controls are on the overhead
console and have one-touch open.

To stop the motion during a one-touch
operation, press the control a second time.

Press and release the rear of the
control.

Closing the Sunshade

WARNING:

When closing the

sunshade, verify that it is free of
obstructions and make sure children and
pets are not in the proximity of the
sunshade. Failure to follow this
instruction could result in personal injury.

WARNING:

If an obstruction is

detected, press the switch a second time
and reverse the sunshade immediately.
Failure to follow this instruction could
result in personal injury.

The sun shade operates independently of
the moonroof.

The sunshade controls are on the overhead
console and have one-touch close.

To stop the motion during a one-touch
operation, press the control a second time.

Press and release the front of
the control.

OPENING AND CLOSING THE
MOONROOF

Opening the Moonroof

WARNING:

Do not leave children

or pets unattended in your vehicle and
do not let children play with the
moonroof. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

Do not leave a key or

remote control unattended in the vehicle.
Children or pets could operate the
moonroof and could become trapped in
a closing moonroof. Failure to follow this
instruction could result in personal injury
or death.

The moonroof controls are on the
overhead console and have one-touch
open.

To stop the motion during a one-touch
operation, press the control a second time.

Press and release the rear of the
control to open the moonroof.

102

Moonroof

Closing the Moonroof

WARNING:

When closing the

moonroof, verify that it is free of
obstructions and make sure children and
pets are not in the proximity of the
moonroof. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

If an obstruction is

detected, release the switch and reverse
the moonroof immediately. Failure to
follow this instruction could result in
personal injury or death.

The moonroof controls are on the
overhead console and have one-touch
close.

To stop the motion during a one-touch
operation, press the control a second time.

Press and release the front of
the control to close the
moonroof.

VENTING THE MOONROOF

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the moonroof. Failure
to follow this instruction could result in
personal injury.

Press and release the front of
the control to vent the
moonroof.

Press and release the front of the control
to close the moonroof.

MOONROOF BOUNCE-BACK

WHAT IS MOONROOF BOUNCE-
BACK

The moonroof stops and reverses some
distance if it detects an obstacle when
closing.

OVERRIDING MOONROOF
BOUNCE-BACK

Press and hold the close switch within two
seconds after the moonroof comes to a
stop.

103

Moonroof

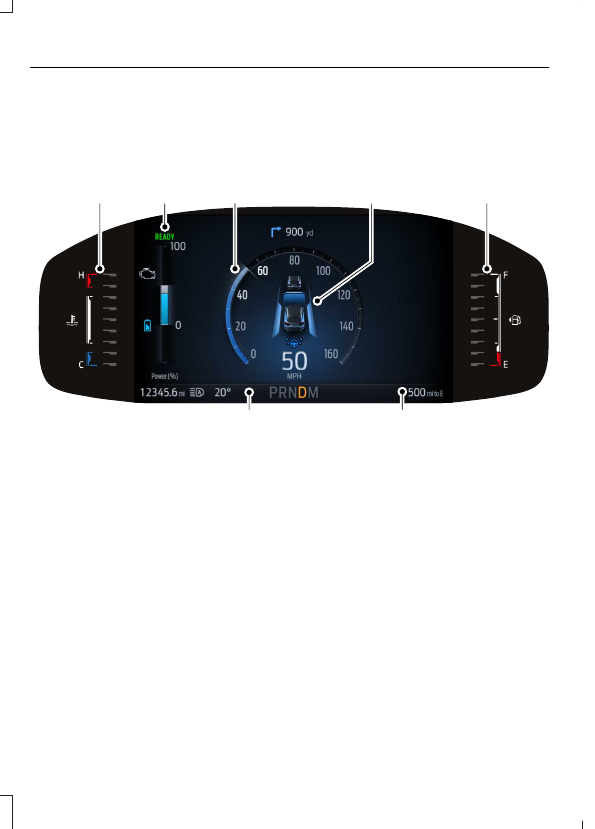

INSTRUMENT CLUSTER OVERVIEW - 1.5L ECOBOOST™/2.0L
ECOBOOST™, VEHICLES WITH: 12.3 INCH INSTRUMENT
CLUSTER DISPLAY SCREEN

E386371

Tachometer.

Instrument cluster display.

Speedometer.

Fuel gauge.

Distance to empty.

Information bar.

104

Instrument Cluster

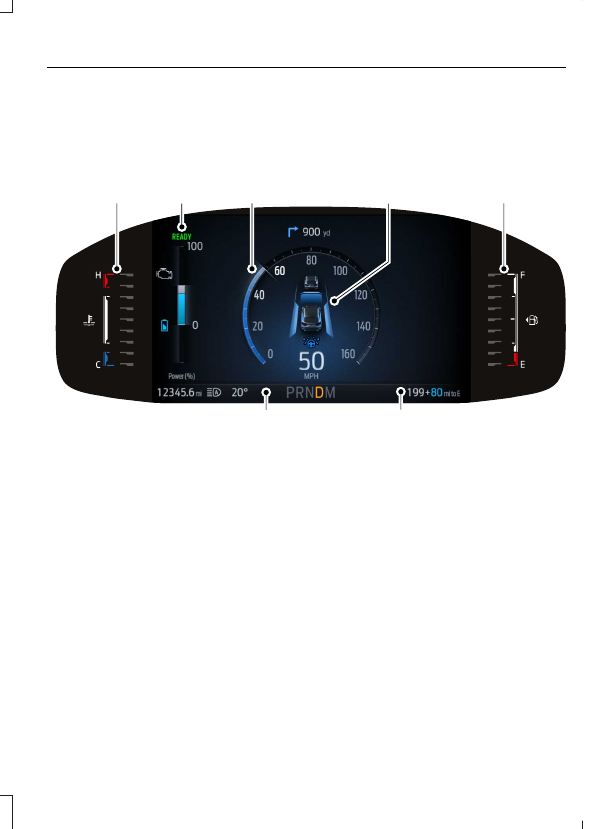

INSTRUMENT CLUSTER OVERVIEW - 1.5L ECOBOOST™/2.0L
ECOBOOST™, VEHICLES WITH: 8 INCH INSTRUMENT CLUSTER
DISPLAY SCREEN

E381943

Engine coolant temperature gauge.

Tachometer.

Speedometer.

Instrument cluster display.

Fuel gauge.

Distance to empty.

Information bar.

105

Instrument Cluster

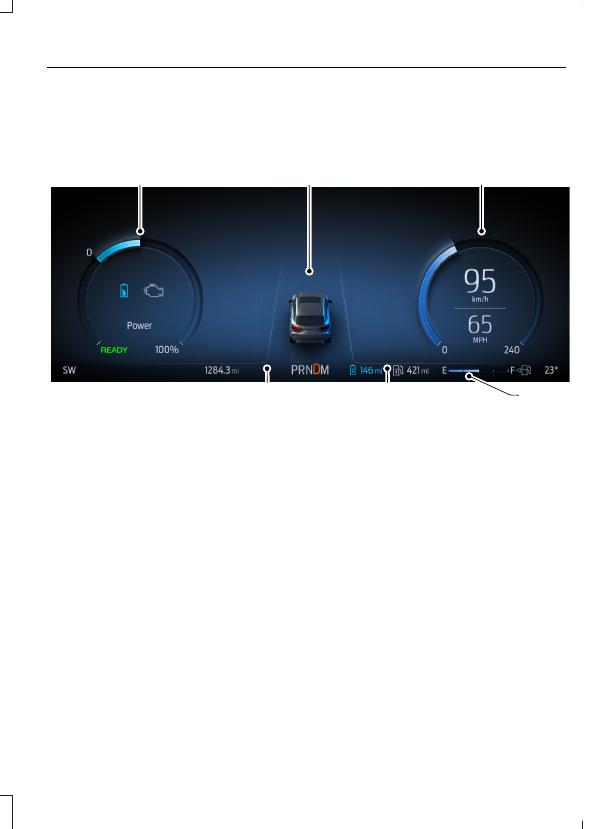

INSTRUMENT CLUSTER OVERVIEW - FULL HYBRID ELECTRIC
VEHICLE (FHEV), VEHICLES WITH: 8 INCH INSTRUMENT
CLUSTER DISPLAY SCREEN

E381921

Engine coolant temperature gauge.

Power gauge.

Speedometer.

Instrument cluster display.

Fuel gauge.

Distance to empty.

Information bar.

106

Instrument Cluster

INSTRUMENT CLUSTER OVERVIEW - PLUG-IN HYBRID ELECTRIC
VEHICLE (PHEV), VEHICLES WITH: 8 INCH INSTRUMENT
CLUSTER DISPLAY SCREEN

E381942

Engine coolant temperature gauge.

Power gauge.

Speedometer.

Instrument cluster display.

Fuel gauge.

Vehicle driving range.

Information bar.

107

Instrument Cluster

INSTRUMENT CLUSTER OVERVIEW - FULL HYBRID ELECTRIC
VEHICLE (FHEV), VEHICLES WITH: 12.3 INCH INSTRUMENT
CLUSTER DISPLAY SCREEN

E386370

Power gauge.

Instrument cluster display.

Speedometer.

Fuel gauge.

Distance to empty.

Information bar.

108

Instrument Cluster

INSTRUMENT CLUSTER OVERVIEW - PLUG-IN HYBRID ELECTRIC
VEHICLE (PHEV), VEHICLES WITH: 12.3 INCH INSTRUMENT
CLUSTER DISPLAY SCREEN

E386372

Power gauge.

Instrument cluster display.

Speedometer.

Fuel gauge.

Vehicle driving range.

Information bar.

TACHOMETER

Indicates the engine speed.

109

Instrument Cluster

POWER GAUGE

The power gauge displays power to the
wheels when accelerating or maintaining
speed. The high voltage battery power and
engine power contributions are
distinguished by color and added together
to indicate total power to the wheels.
When slowing down by lifting your foot off
the accelerator pedal or pressing the brake,
the gauge displays the power captured by
the regenerative braking system and
returned to the high voltage battery.

SPEEDOMETER

Indicates the vehicle speed.

FUEL GAUGE

WHAT IS THE FUEL GAUGE

Indicates approximately how much fuel is
in the fuel tank.

FUEL GAUGE LIMITATIONS

The fuel gauge may not provide an
accurate reading when your vehicle is on
an incline.

LOCATING THE FUEL FILLER
DOOR

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

WHAT IS THE LOW FUEL
REMINDER

A low fuel level reminder displays and
sounds when the distance to empty
reaches 50 mi (80 km), 25 mi (40 km),
10 mi (20 km) and 0 mi (0 km).

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

WHAT IS DISTANCE TO EMPTY

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but
also increase or stay constant for periods
of time.

VEHICLE RANGE DISPLAY

Displays the approximate range your
vehicle can travel with the energy currently
onboard. Estimates vary based on the
energy used when driving.

Changes in driving pattern can cause the
values to not only decrease but also
increase or stay constant for periods of
time.

The amount of energy being used when
driving is affected by such as:
•

Mild or aggressive acceleration or
braking.

•

Your vehicle's speed.

•

Use of accessories, such as climate
control.

•

Ambient temperature and weather
conditions.

•

Driving in a city or on a highway.

•

Driving on hilly road conditions.

•

Towing.

Note:

It is normal for vehicle range

estimates to vary due to changes in average
energy usage. This could cause different
range estimates each time you fully charge
your battery or fill your tank.

110

Instrument Cluster

Note:

Electric range is lower in cold

temperatures due to reduced energy
capacity in the high voltage battery. Set a
departure time and cabin temperature to
maintain battery temperature for best range
and performance. See

Setting the

Charging Schedule and Preferences

(page

207).

Gasoline Distance to Empty

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank.

Electric Range

Indicates the approximate distance your
vehicle can travel on electric power only
with the engine off.

ENGINE COOLANT
TEMPERATURE GAUGE

Indicates the engine coolant temperature.

WHAT IS THE INFORMATION
BAR

The information bar displays information
related to the ambient air temperature,
odometer, compass, indicators and
warning lamps.

WHAT ARE THE INSTRUMENT
CLUSTER WARNING LAMPS

Warning lamps alert you to a vehicle
condition that could become serious.
Some lamps illuminate when you start
your vehicle to make sure they work. If any
lamps remain on after starting your vehicle,
refer to the respective system warning
lamp for further information.

INSTRUMENT CLUSTER
WARNING LAMPS

Anti-Lock Braking System

E67020

If it illuminates when you are
driving, this indicates your
vehicle requires service. Your

vehicle continues to have normal braking
without the anti-lock brake system
function. Have your vehicle checked as
soon as possible.

Battery

E67021

It illuminates when you switch
the ignition on.

If it illuminates when the engine

is running, this indicates your vehicle
requires service. Have your vehicle
checked as soon as possible.

Brake System

E270480

E67024

It illuminates when you apply the
parking brake and the ignition is
on. If it illuminates when your
vehicle is moving, make sure the
parking brake is released. If the
parking brake is released, this

indicates low brake fluid level or the brake
system requires service. Have your vehicle
checked as soon as possible.

Note:

Indicators may vary depending on

region.

Door Ajar

E323451

It illuminates when you switch
the ignition on and remains on if
any door is open.

111

Instrument Cluster

Electric Park Brake

E146190

E67024

It illuminates or flashes when the
electric parking brake requires
service. Have your vehicle
checked as soon as possible.

Engine or Motor Coolant
Temperature

E103308

If it illuminates, safely stop your
vehicle and switch your vehicle
off. Have your vehicle checked

as soon as possible.

Fasten Seatbelt

E71880

It illuminates and a tone sounds
until you fasten the seatbelts.

Fasten Rear Seatbelt

E206718

It illuminates and a tone sounds
until you fasten the rear
seatbelts.

High Voltage Electric System
Failure

E144693

It illuminates if your vehicle has
an electrical component fault or
failure that causes your vehicle

to shutdown or enter a limited operating
mode. A message may appear in the
instrument cluster display.

Hood Ajar

E246598

It illuminates when the ignition
is on and the hood is not
completely closed.

Liftgate Ajar

E162453

It illuminates when the ignition
is on and the liftgate is not
completely closed.

Low Beam Warning

E181350

It illuminates when the low
beam headlamp requires service.
Have the system checked as

soon as possible.

Low Fuel Level

It illuminates when the fuel level
is low.

Low Tire Pressure Warning

E139232

It illuminates when your tire
pressure is low. If illuminated,
check your tire pressure as soon

as possible. If it begins to flash at anytime,
have the system checked as soon as
possible.

Low Washer Fluid

E132353

It illuminates when the washer
fluid is low.

Malfunction Indicator Lamp

E67028

It illuminates when the ignition
is on and the engine is off, this is
normal operation. If it illuminates

when the engine is on this indicates that
the emission control system requires
service. If it flashes, have your vehicle
checked immediately. See

Starting and

Stopping the Engine – Warning Lamps

(page 176).

Oil Pressure

E67022

It illuminates when the engine
oil pressure is low.

112

Instrument Cluster

Powertrain Fault

Illuminates when the powertrain
requires service. Have the
system checked as soon as

possible.

Vehicle Plugged In

(If Equipped)

E228962

It illuminates when your vehicle
is plugged in.

WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS

Indicators notify you of various features
that are active on your vehicle.

INSTRUMENT CLUSTER
INDICATORS

Adaptive Cruise Control

E402315

See

Adaptive Cruise Control

(page 259).

Automatic High Beam Control

E146105

Auto Hold

E323448

E323449

See

Auto Hold

(page 233).

Auto-Start-Stop

E121377

Blind Spot Monitor

E151262

See

Blind Spot Information

System

(page 289).

Cruise Control

E402396

See

Cruise Control

(page 257).

EV Charge

E281479

EV Later

E281477

See

EV Later

(page 274).

EV Now

E281476

See

EV Now

(page 275).

Front Airbag

E67017

Front Fog Lamps

High Beam

E67019

Lamps On

E71341

See

Exterior Lighting Control

(page 89).

113

Instrument Cluster

USING THE INSTRUMENT
CLUSTER DISPLAY CONTROLS

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

The controls are on the steering wheel.

E250032

Return button.

OK button.

Menu button.

Return Button

Press to go back or exit a menu.

Button

Press to make a selection.

Toggle Buttons

Press the toggle up or down button to
scroll through menu items.

Status Indicator

E204495

Menu items with a check box
indicate a feature's status. A
check in the box indicates the

feature is on, and unchecked indicates the
feature is off.

INSTRUMENT CLUSTER
DISPLAY MAIN MENU -
VEHICLES WITH: 8 INCH
INSTRUMENT CLUSTER
DISPLAY SCREEN

Depending on your vehicle options, some
menu items can appear different or not at
all.

Note:

For your safety, some features are

speed-dependent and could be unavailable
when your vehicle is above a certain speed.

Menu Item

MyView

Trip/Fuel

Status Information

Vehicle Maintenance

Trip

Audio

Phone

Navigation

Settings

Head-Up Display (HUD)

115

Instrument Cluster Display

INSTRUMENT CLUSTER
DISPLAY MAIN MENU -
VEHICLES WITH: 12.3 INCH
INSTRUMENT CLUSTER
DISPLAY SCREEN

Depending on your vehicle options, some
menu items can appear different or not at
all.

Note:

For your safety, some features are

speed-dependent and could be unavailable
when your vehicle is above a certain speed.

Menu Item

MyView

Trip/Fuel

Trip/Energy

Status Information

Vehicle Maintenance

Trip

Audio

Navigation

Phone

Settings

Head-Up Display (HUD)

CUSTOMIZING THE
INSTRUMENT CLUSTER
DISPLAY - VEHICLES WITH: 8
INCH INSTRUMENT CLUSTER
DISPLAY SCREEN

Press the menu button on the steering
wheel to enter the instrument cluster
display main menu.

2. Select

MyView

3. Select

Configure MyView

4. Use the controls on the steering wheel

to highlight a screen to add.

5. Press the

button.

Note:

The amount of screens you can add

is limited. If the selected screen does not
appear, you must deselect screens from the
menu.

Configure MyView

Power Distribution

Trailer Light Status

Battery Charge

Now Playing

Navigation

Trip 1

Trip 2

This Trip

Electric Economy

Fuel Economy

Eco Coach

EV Coach

Tire Pressure

Note:

Some options may appear slightly

different or not at all if items are optional.

Configuring Gauges

Press the menu button on the steering
wheel to enter the instrument cluster
display main menu.

2. Select

Settings

3. Select

Display

4. Select

Left Gauge

116

Instrument Cluster Display

5. Select a setting and press the

button.

CUSTOMIZING THE
INSTRUMENT CLUSTER
DISPLAY - VEHICLES WITH:
12.3 INCH INSTRUMENT
CLUSTER DISPLAY SCREEN

Press the menu button on the steering
wheel to enter the instrument cluster
display main menu.

2. Select

MyView

3. Select

Configure MyView

4. Use the controls on the steering wheel

to highlight a screen to add.

5. Press the

button.

Note:

The amount of screens you can add

is limited. If the selected screen does not
appear, you must deselect screens from the
menu.

Configure MyView

Power Distribution

Trailer Lights Status

Calm Screen

Trip 1

Trip 2

This Trip

Electric Economy

Fuel Economy

Eco Behavior

EV Coach

Configure MyView

Tire Pressure

Battery Charge

Driver Assistance

Note:

Some options may appear slightly

different or not at all if items are optional.

Configuring Gauges

Press the menu button on the steering
wheel to enter the instrument cluster
display main menu.

2. Select

Settings

3. Select

Display Setup

4. Select

Gauge Style

5. Select a setting and press the

button.

PERSONALIZED SETTINGS

CHANGING THE INSTRUMENT
CLUSTER DISPLAY LANGUAGE

You can change the language using the
touchscreen.

Press

General

2. Press

Language

3. Select a language.

Note:

Available languages vary by region.

CHANGING THE MEASUREMENT
UNIT

You can change the measurement unit
using the touchscreen.

Press

General

2. Press

Measurement Units

3. Select a measurement unit.

117

Instrument Cluster Display

CHANGING THE TEMPERATURE
UNIT

You can change the temperature unit using
the touchscreen.

Press

General

2. Press

Temperature Units

3. Select a temperature unit.

CHANGING THE TIRE PRESSURE
UNIT

You can change the tire pressure unit using
the touchscreen.

Press

General

2. Press

Tire Pressure Units

3. Select a pressure unit.

FUEL ECONOMY DISPLAY -
FULL HYBRID ELECTRIC
VEHICLE (FHEV)/PLUG-IN
HYBRID ELECTRIC VEHICLE
(PHEV)

This display comes with an instant fuel
economy gauge, along with the average
fuel economy. The gauge continuously
averages the fuel economy since your last
reset.

For plug-in hybrid vehicles, the system
includes both the electric only and the
hybrid operation in the calculation. More
electric only driving results in a greater
average fuel economy.

When the gasoline engine is off, changes
from the instant fuel economy gauge to an
electric driving message.

Note:

Press and hold the

button on the

controls on the steering wheel to reset your
average fuel economy.

Note:

Fuel economy display is a selectable

screen. See

Customizing the Instrument

Cluster Display

(page 116). See

Customizing the Instrument Cluster
Display

(page 117).

FUEL ECONOMY DISPLAY -
EXCLUDING: FULL HYBRID
ELECTRIC VEHICLE (FHEV)/
PLUG-IN HYBRID ELECTRIC
VEHICLE (PHEV)

An instant fuel economy gauge is provided
along with average fuel economy. Average
fuel economy is continuously averaged
since the last reset.

Note:

Press and hold the

button on the

controls on the steering wheel to reset your
average fuel economy.

EV COACH

EV coach can help you get the most out of
your vehicle's electric driving capabilities.

Note:

EV coach is a selectable screen.

When you are accelerating or maintaining
speed you see a blue or white solid bar
indicating vehicle power. You may also see
a blue rectangular box which shows the
power level at which the engine turns on.

•

When the power level is within the box,
the color of the bar is blue. This means
you are in electric operation and the
engine is off.

•

When the power level is outside of the
box, the color of the bar is white. This
means you are in hybrid operation with
a combination of the electric motor
and the engine providing vehicle power.

118

Instrument Cluster Display

When you are decelerating with either your
foot off the accelerator pedal or on the
brake pedal, a green or white solid bar
displays indicating the power being used
to slow down your vehicle. You may also
see a green rectangular box which shows
the amount of power that can be
recaptured by the regenerative braking
system and returned to the high voltage
battery.

•

When the power level is within the box,
the color of the bar is green. This
means that the regenerative braking
system is being used to efficiently slow
your vehicle down and return the
maximum percentage of energy to the
high voltage battery.

•

When the power level is outside of the
box, the color of the bar is white. This
means both the regenerative braking
system and conventional braking
system are being used.

ELECTRIC ECONOMY

This screen shows your average driving
distance per kilowatt-hour of electricity
used on your plug-in hybrid vehicle. The
value is calculated only when your
available electric range is being used and
the gasoline engine is off.

Distance per full charge is also shown. This
is an estimate of the electric range you
would have if you plugged in and fully
charged your vehicle right now. The higher
your electric economy, the higher your
distance per full charge.

Your electric economy is affected by your
driving style and route, climate control use,
outside temperature and other factors.
Best economy is achieved with mild to
moderate acceleration and braking,
moderate speeds and low climate control
usage.

Note:

Electric economy is a selectable

screen. See

Customizing the Instrument

Cluster Display

(page 116). See

Customizing the Instrument Cluster
Display

(page 117).

BATTERY CHARGE

Displays a high voltage battery gauge and
an estimate of available electric driving
range. The high voltage battery gauge
displays the total amount of charge
associated with your available electric only
driving range. A full fill represents the total
amount of energy you can get from an
external charge (plugging your vehicle in).
When the fill reaches empty the powertrain
system will automatically switch to hybrid
operation. See

How Does a Plug-In

Hybrid Electric Vehicle Work

(page 181).

BRAKE COACH

The brake coach appears after your vehicle
has come to a stop. It coaches you to brake
in a manner that maximizes the amount
of energy returned through the
regenerative braking system.

The percent displayed indicates the
regenerative braking efficiency, with 100%
representing the maximum amount of
energy recovered.

Note:

While regenerative braking works in

all drive modes, brake coach display may
not be available in all drive modes.

You can switch brake coach on or off in the
settings menu. See

Instrument Cluster

Display Main Menu

(page 115).

TRIP SUMMARY

The trip summary displays upon shutting
off your vehicle. The values are cumulative
since you last started your vehicle.

119

Instrument Cluster Display

Ford Escape (2024 year). Manual in english - page 3
