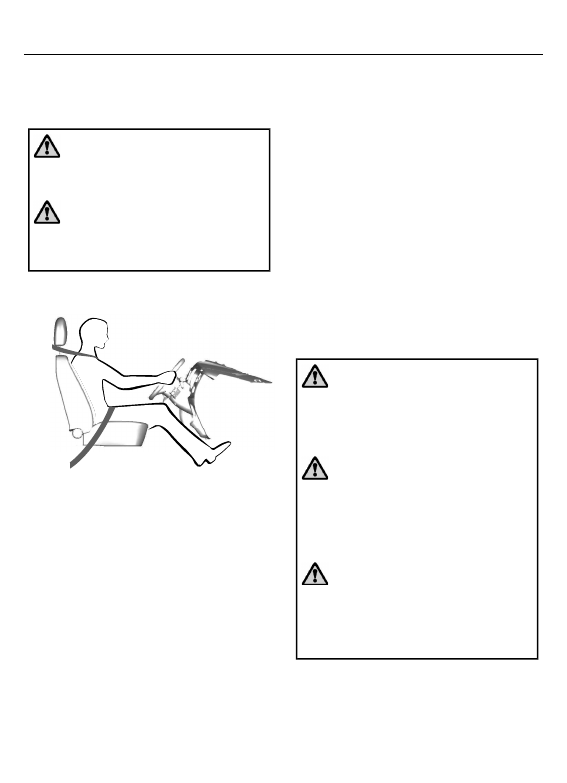

SITTING IN THE CORRECT
POSITION

WARNING:

Do not recline the

seatback as this can cause the occupant
to slide under the safety belt, resulting
in serious injury in the event of a crash.

WARNING:

Do not place objects

higher than the seatback to reduce the
risk of serious injury in the event of a
crash or during heavy braking.

E68595

When you use them properly, the seat,
head restraint, safety belt and airbags will
provide optimum protection in the event
of a crash.

We recommend that you follow these
guidelines:

•

Sit in an upright position with the base
of your spine as far back as possible.

•

Do not recline the seatback more than
30 degrees.

•

Adjust the head restraint so that the
top of it is level with the top of your
head and as far forward as possible.
Make sure that you remain
comfortable.

•

Keep sufficient distance between
yourself and the steering wheel. We
recommend a minimum of 10 in
(25 cm) between your breastbone and
the airbag cover.

•

Hold the steering wheel with your arms
slightly bent.

•

Bend your legs slightly so that you can
press the pedals fully.

•

Position the shoulder strap of the
safety belt over the center of your
shoulder and position the lap strap
tightly across your hips.

Make sure that your driving position is
comfortable and that you can maintain full
control of your vehicle.

HEAD RESTRAINTS

WARNING:

Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk
of neck injury in the event of a crash. Do
not adjust the head restraint when your
vehicle is moving.

WARNING:

The head restraint is a

safety device. Whenever possible it
should be installed and properly
adjusted when the seat is occupied.
Failure to adjust the head restraint
properly could reduce its effectiveness
during certain impacts.

WARNING:

Adjust the head

restraints for all passengers before you
drive your vehicle. This will help minimize
the risk of neck injury in the event of a
crash. Do not adjust the head restraints
when your vehicle is moving.

Seats

Note:

Adjust the seat backrest to an upright

driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your head
and as far forward as possible. Make sure
that you remain comfortable. If you are
extremely tall, adjust the head restraint to
its highest position.

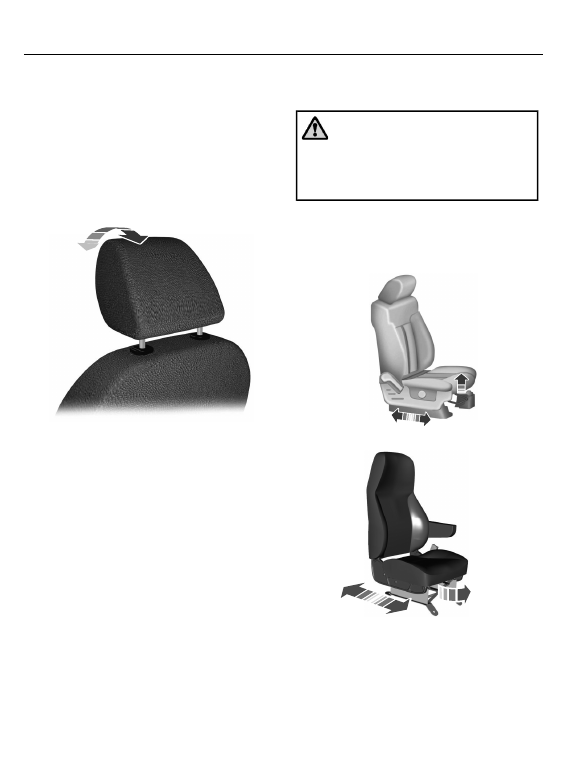

Front Seat Adjustable Head Restraint
(If Equipped)

E138642

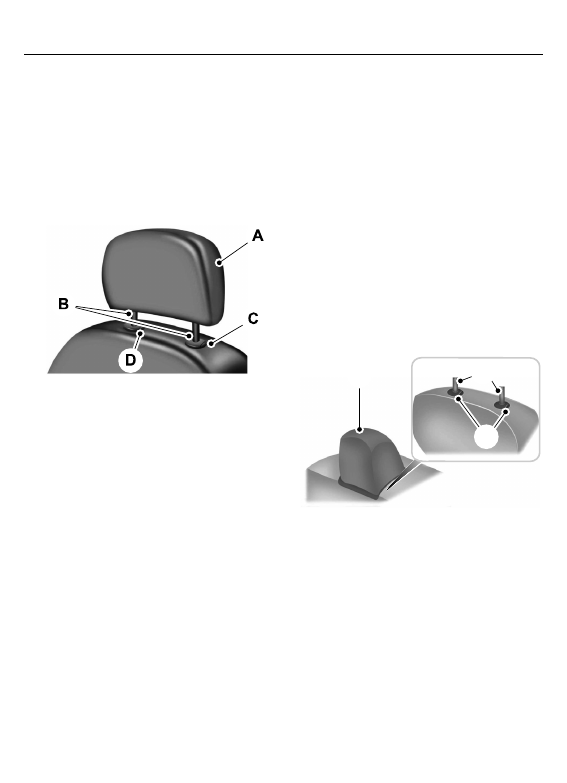

The head restraints consist of:

An energy absorbing head
restraint.

Two steel stems.

Guide sleeve adjust and release
button.

Guide sleeve unlock and remove
button.

Adjusting the Head Restraint

Raising the Head Restraint

Pull the head restraint up.

Lowering the Head Restraint

Press and hold button C.

2. Push the head restraint down.

Removing the Head Restraint

Press and hold buttons C and D.

2. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

Front Row Center, Outboard (Crew
Cab), and Rear Seat Center (Crew Cab)
Head Restraints

Note:

The SuperCab has rear outermost

head restraints that you cannot remove and
are bolted to the back wall.

Your vehicle may have head restraints that
are non-adjustable. The non-adjustable
head restraints consist of:

E162872

An energy absorbing head
restraint.

Two steel stems.

Guide sleeve unlock and remove
button.

Removing the Head Restraint

Press and hold the C buttons.

2. Pull up the head restraint.

Seats

Installing the Head Restraint

Align the steel stems into the guide sleeves
and push the head restraint down until it
locks.

Tilting Head Restraints (If Equipped)

The front head restraints tilt for extra
comfort. To tilt the head restraint, do the
following:

E144727

Adjust the seat backrest to an upright
driving or riding position.

2. Pivot the head restraint forward toward

your head to the preferred position.

After the head restraint reaches the
forward-most tilt position, pivot it forward
again to release it to the rearward, un-tilted
position.

Note:

Do not attempt to force the head

restraint backward after it is tilted. Instead,
continue tilting it forward until the head
restraint releases to the upright position.

MANUAL SEATS

WARNING:

Do not adjust the driver

seat or seat backrest when your vehicle
is moving. This may result in sudden seat
movement, causing the loss of control
of your vehicle.

Moving the Seat Backward and
Forward

Type 1

E162727

Type 2

E226571

Seats

Recline Adjustment

Type 1

E162728

Type 2

E208773

Tilting the Seatback Forward
(Two-Passenger Bench Seat)

E208777

Note:

You may need to apply pressure on

the back of the seat to get the release lever
to release.

Lift the handle to unlock and release the
seatback forward.

Manual Lumbar

(If Equipped)

E162729

The lumbar control is on the outboard side
of the seat. Turn the control to adjust your
support.

POWER SEATS

(IF EQUIPPED)

WARNING:

Do not adjust the driver

seat or seat backrest when your vehicle
is moving. This may result in sudden seat
movement, causing the loss of control
of your vehicle.

WARNING:

Do not place cargo or

any objects behind the seatback before
returning it to the original position.

Seats

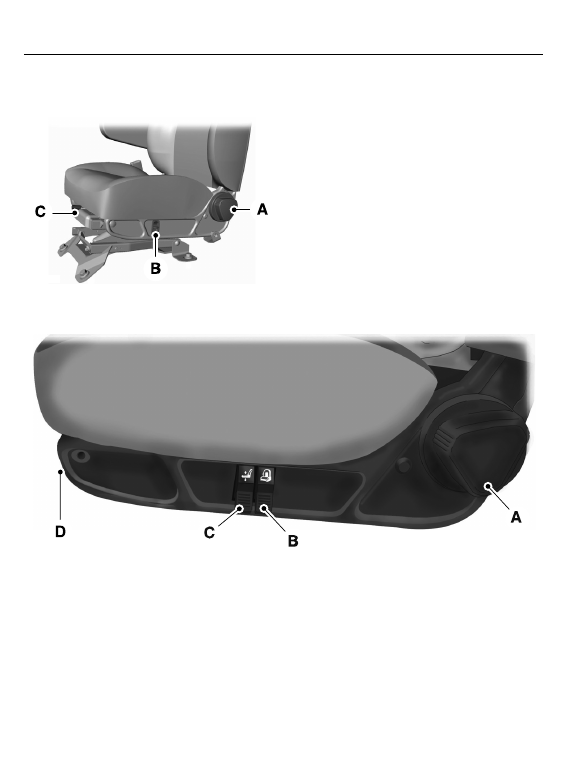

Air-Ride Seat

Type 1

E208778

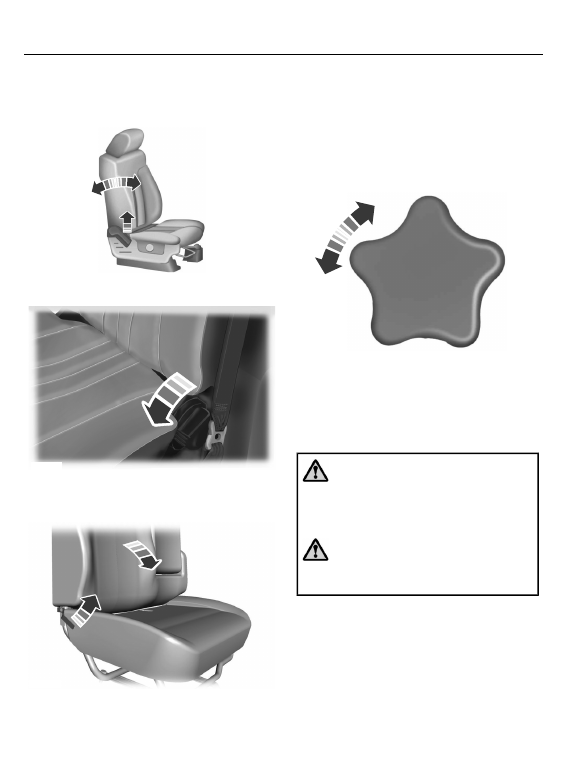

Rotate the handle to adjust the
angle of the seat backrest.

Pull the control up to raise the
seat. Push the control down to
lower the seat.

Move the lever to the left to
move the seat forward or
backward. Release the lever to
lock the seat in position.

Type 2

E298809

Rotate the handle to adjust the angle of the seat backrest.

Pull the lever up to inflate the lumbar. Push the lever down to deflate the lumbar.

Pull the lever up to raise the seat height. Push the lever down to lower the seat
height.

Move the lever to the left to move the seat forward or backward. Release the
lever to lock the seat in position.

Seats

REAR SEATS

(IF EQUIPPED)

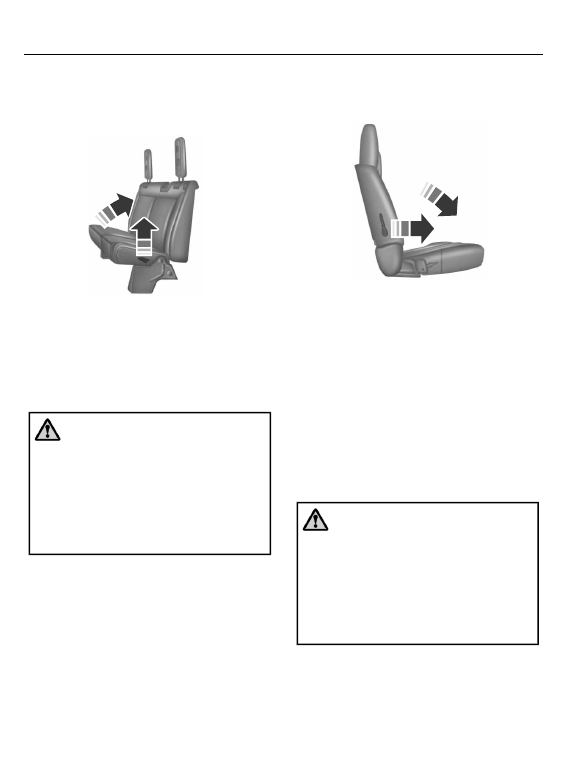

Folding Up the Rear Seats (SuperCab)

E162737

Pull the control to release the seat
cushion.

2. Rotate the seat cushion up until it locks

into the vertical storage position.

Returning the Seat to the Seating
Position

WARNING:

Make sure that cargo

or any objects are not trapped
underneath the seat cushion before
returning the seat cushion to its original
position, and that the seat cushion locks
into place. Failure to do so may prevent
the seat from operating properly in the
event of a crash, which could increase
the risk of serious injury.

Pull the control on the side of the seat
to release the seat cushion from the
storage position.

2. Push the seat cushion down until it

locks into the horizontal position.

Folding the Rear Seat Back (Crew
Cab)

E162738

Pull forward on the control to fold
down the seatback.

2. Pull down on the handle and lift up on

the seatback to return it to the original
position.

Folding up the Rear Seat Cushion

Pull the control to release the seat
cushion.

2. Rotate the seat cushion up until it locks

into the vertical storage position.

Returning the Seat to the Seating
Position

WARNING:

Make sure that cargo

Pull the control on the side of the seat
to release the seat cushion from the
storage position.

Seats

2. Push the seat cushion down until it

locks into the horizontal position.

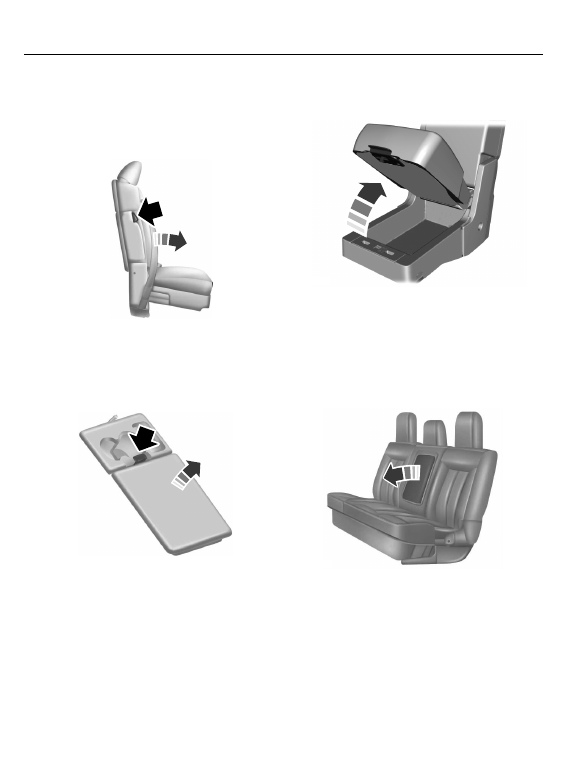

FRONT SEAT ARMREST

E162745

Press the button on the right-hand side of
the seat, then pull the seat backrest down
to release the armrest. You can gain access
to the cupholders and optional seat
backrest storage bin.

E162746

Pull up on the tab to open the storage bin.

Lift up on the seat backrest to return it to
the upright position.

20% Seat Cushion Storage

(If

Equipped)

E265303

Lift the latch to open the lid and gain
access to the storage compartment under
the center seat cushion.

REAR SEAT ARMREST

(IF

EQUIPPED)

E162744

Fold the armrest down to use it.

Seats

12 Volt DC Power Point

WARNING:

Do not plug optional

electrical accessories into the cigar
lighter socket. Incorrect use of the cigar
lighter can cause damage not covered
by the vehicle warranty, and can result
in fire or serious injury.

Note:

When you switch the ignition on, you

can use the socket to power 12 volt
appliances with a maximum current rating
of 15 amps.

If the power supply does not work after you
switch the ignition off, switch the ignition
on.

Note:

Do not hang any accessory from the

accessory plug.

Note:

Do not use the power point over the

vehicle capacity of 12 volt DC 180 watts or
a fuse may blow.

Note:

Always keep the power point caps

closed when not in use.

Do not insert objects other than an
accessory plug into the power point. This
damages the power point and may blow
the fuse.

Run the vehicle for full capacity use of the
power point.

To prevent the battery from running out of
charge:

•

Do not use the power point longer than
necessary when the vehicle is not
running.

•

Do not leave devices plugged in
overnight or when you park your vehicle
for extended periods.

Locations

Power points may be in the following
locations:

•

On the instrument panel (two
locations).

•

Inside the front under-seat storage
compartment.

•

Inside the rear under-seat storage
compartment.

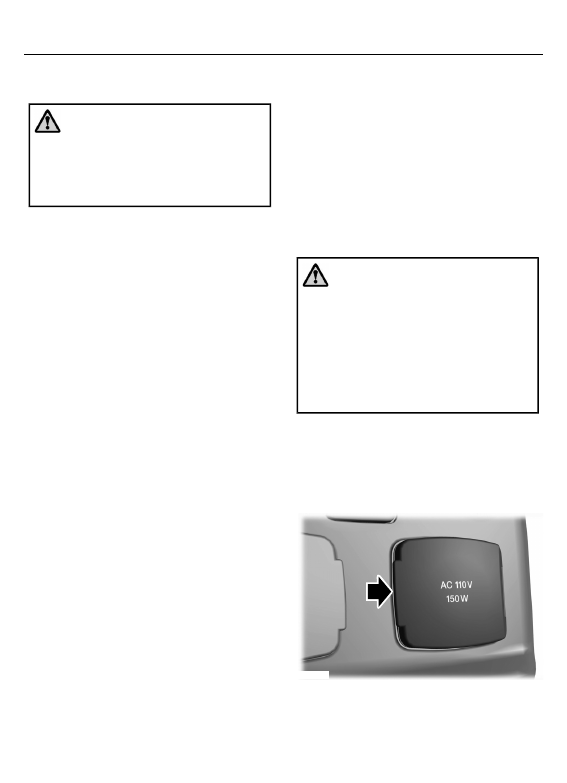

110 Volt AC Power Point

(If Equipped)

WARNING:

Do not keep electrical

devices plugged in the power point
whenever the device is not in use. Do not
use any extension cord with the 110 volt
AC power point, since it will defeat the
safety protection design. Doing so may
cause the power point to overload due
to powering multiple devices that can
reach beyond the 150 watt load limit and
could result in fire or serious injury.

Note:

The power point turns off when you

switch the ignition off, or when the battery
voltage drops below 11 volts.

You can use the power point for electric
devices that require up to 150 watts. It is
in the center of the instrument panel.

E193395

Note:

Depending on your vehicle, the power

point cover may open to the right or upward.

Auxiliary Power Points

When the indicator light on the power point
is:

•

On: The power point is working, the
ignition is on and a device is plugged
in.

•

Off: The power point is off, the ignition
is off or no device is plugged in.

•

Flashing: The power point is in fault
mode.

The power outlet temporarily turns off
power when in fault mode if the device
exceeds the 150 watt limit. Unplug your
device and switch the ignition off. Switch
the ignition back on, but do not plug your
device back in. Let the system cool off and
switch the ignition off to reset the fault
mode. Switch the ignition back on and
make sure the indicator light remains on.

Do not use the power point for certain
electric devices, including:

•

Cathode-ray, tube-type televisions.

•

Motor loads, such as vacuum cleaners,
electric saws and other electric power
tools or compressor-driven
refrigerators.

•

Measuring devices, which process
precise data, such as medical
equipment or measuring equipment.

•

Other appliances requiring an
extremely stable power supply such as
microcomputer-controlled electric
blankets or touch-sensor lamps.

Auxiliary Power Points

LOCATING THE USB PORTS

Data Transfer USB Ports

The USB ports could be in the following
locations:

•

On the lower instrument panel below
the climate control.

•

Inside the center console.

Note:

These USB ports can also charge

devices.

Note:

Not all USB ports in your vehicle have

data transfer capabilities.

Note:

We recommend using only USB-IF

certified cables and adapters. Non-certified
cables and adapters may not work.

Charge Only USB Ports

The USB ports could be in the following
locations:

•

On the lower instrument panel.

•

On the upper instrument panel.

•

Inside the media bin.

•

Inside the center console.

•

On the rear of the center console.

•

In the cargo area.

•

In the frunk.

PLAYING MEDIA USING THE
USB PORT

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

Connect your device to the USB port.

E100027

Press the audio button on the
feature bar.

Select

Sources

Select the USB option.

Press the button to play a track.
Press the button again to pause
the track.

Press the button to skip to the
next track.

Press and hold the button to fast

forward through the track.

Press the button once to return
to the beginning of a track.
Repeatedly press the button to

return to previous tracks.

Press and hold the button to fast rewind.

USB Ports

GENERAL INFORMATION

WARNING:

Extended idling at high

engine speeds can produce very high
temperatures in the engine and exhaust
system, creating the risk of fire or other
damage.

WARNING:

Do not park, idle or

drive your vehicle on dry grass or other
dry ground cover. The emission system
heats up the engine compartment and
exhaust system, creating the risk of fire.

WARNING:

Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start
the engine. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

Exhaust leaks may

result in entry of harmful and potentially
lethal fumes into the passenger
compartment. If you smell exhaust
fumes inside your vehicle, have your
vehicle inspected immediately. Do not
drive if you smell exhaust fumes.

If you disconnect the battery, your vehicle
could exhibit some unusual driving
characteristics for approximately 5 mi
(8 km) after you reconnect it. This is
because the engine management system
must realign itself with the engine. You can
disregard any unusual driving
characteristics during this period.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

When you start the engine, avoid pressing
the accelerator pedal before and during
operation.

If you operate your vehicle in a heavy snow
storm or blowing snow conditions, the
engine air induction could become partially
clogged with snow and ice. If this occurs,
the engine could experience a significant
reduction in power output. At the earliest
opportunity, clear all the snow and ice
away from the air induction inlet.

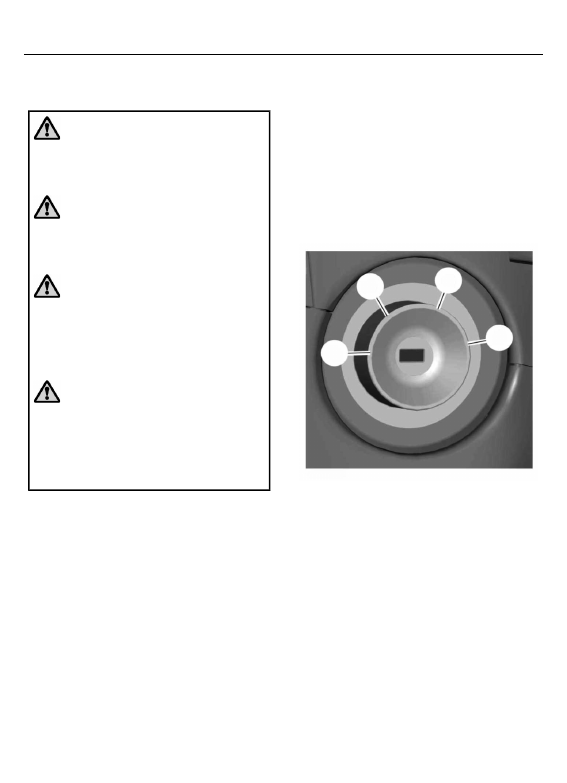

IGNITION SWITCH

5 5

E252

522

///

(off) - The ignition is off.

Note:

When you switch the ignition off and

leave your vehicle, do not leave your key in
the ignition. This could cause your vehicle
battery to lose charge.

(accessory) - Allows the electrical

accessories, such as the radio, to operate
while the engine is not running.

Note:

Do not leave the ignition key in this

position for too long. This could cause your
vehicle battery to lose charge.

(on) - All electrical circuits are

operational and the warning lamps and
indicators illuminate.

100

Starting and Stopping the Engine

III

(start) - Cranks the engine.

STARTING A GASOLINE
ENGINE

When you start the engine, the idle speed
increases helping to warm up the engine.
If the engine idle speed does not slow
down, have your vehicle checked as soon
as possible.

Before starting the engine check the
following:

•

Make sure all occupants fasten their
seatbelts.

•

Make sure the headlamps and
electrical accessories are off.

•

Make sure the parking brake is on.

•

Make sure the transmission is in park
(P) or neutral (N).

•

Turn the ignition key to the on position.

Note:

Do not press the accelerator pedal.

Fully press the brake pedal.

2. Turn the key to the start position to

start the engine. Release the key when
the engine starts.

Note:

The engine may continue cranking

for up to 15 seconds or until it starts.

Note:

If you cannot start the engine on the

first try, wait for a short period and try again.

Failure to Start

If you cannot start the engine after three
attempts, wait 10 seconds and follow this
procedure:

Fully press the brake pedal.

2. Shift into park (P).

3. Fully press and hold the accelerator

pedal.

4. Attempt to start your vehicle and wait

until the engine stops cranking.

5. Release the accelerator pedal.

6. Start the engine.

Stopping the Engine When Your
Vehicle is Stationary

Shift into park (P) or neutral (N).

2. Turn the key to the off position.

3. Apply the parking brake.

Stopping the Engine When Your
Vehicle is Moving

WARNING:

Switching off the

engine when your vehicle is still moving
results in a significant decrease in
braking assistance. Higher effort is
required to apply the brakes and to stop
your vehicle. A significant decrease in
steering assistance could also occur. The
steering does not lock, but higher effort
could be required to steer your vehicle.
When you switch the ignition off, some
electrical circuits, for example airbags,
also turn off. If you unintentionally switch
the ignition off, shift into neutral (N) and
restart the engine.

Switch the ignition off to stop the
engine.

2. Put the transmission into neutral (N)

and use the brakes to bring your vehicle
to a safe stop.

3. When your vehicle has stopped, shift

into park (P).

4. Apply the parking brake.

101

Starting and Stopping the Engine

Guarding Against Exhaust Fumes

WARNING:

Exhaust leaks may

Important Ventilating Information

If you stop your vehicle and leave the
engine idling for long periods of time, we
recommend you either open the windows
at least 1 in (3 cm) or set the climate
control to outside air.

STARTING THE ENGINE

STARTING A DIESEL ENGINE

Before starting your vehicle, check the
following:

•

Make sure that the headlamps and
electrical accessories are off.

•

Make sure that the parking brake is on.

•

Make sure that the transmission is in
park (P).

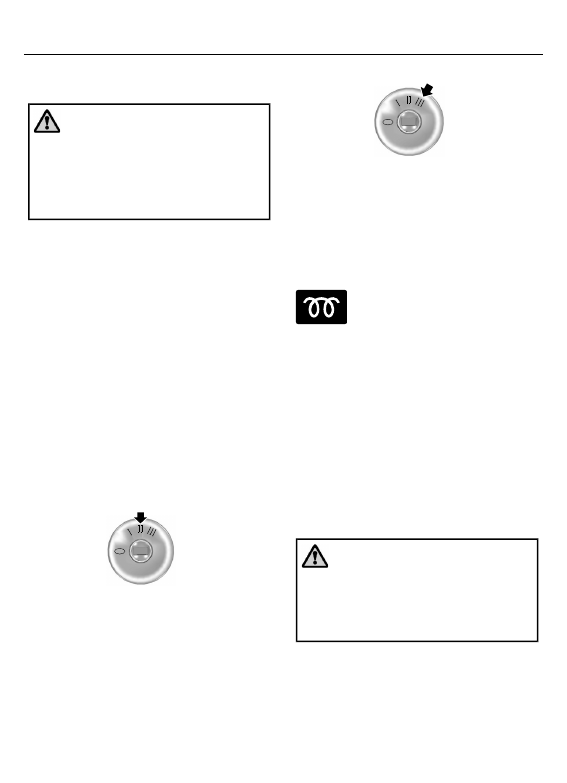

E322357

Turn the key to position

Note:

Wait until the glow plug indicator

turns off.

2. Fully press the brake pedal.

Note:

Do not touch the accelerator pedal.

E322354

3. Turn the key to position

III

Note:

The engine may continue cranking

for up to 15 seconds or until it starts.

Note:

The engine takes longer to start at

lower temperatures. It may crank for several
seconds when very cold.

Glow Plug Indicator

If it illuminates, wait until the
glow plug indicator turns off
before starting the engine.

SWITCHING OFF THE ENGINE

Allow the engine to idle for three to five
minutes before shutting it down. The larger
the engine, the greater the need is for this
idling period.

Note:

Try to limit engine idle to 10 minutes.

Excessive idling reduces fuel economy.

ENGINE IDLE SHUTDOWN

(IF

EQUIPPED)

WARNING:

In the event of engine

shutdown, make sure your vehicle is
safely off the road and the problem is
resolved before returning to the road.
Failure to do so may result in a crash,
serious injury or death.

This feature automatically shuts down the
engine when it has been idling in park (P)
or neutral (N) for an extended period,
depending on the setting.

102

Starting and Stopping the Engine

When the engine idle shutdown process
has started:

•

A chime sounds and a message
appears in the information display
showing a timer counting down from
30 seconds.

•

You can reset the timer by pressing the
brake pedal, accelerator pedal, or by
shifting into another gear.

•

If you do not intervene within 30
seconds, the engine shuts down and a
message appears in the information
display alerting you that the engine has
shut down.

•

Shortly after the engine has shut down,
the electrical system simulates a key
off and even though the ignition is still
on, the electrical system simulates a
normal accessory delay period before
shutting down.

•

You must switch the ignition off to
reset the system before restarting your
vehicle.

The engine idle shutdown timer does not
start if:

•

The engine is operating in battery
charge protect or power take-off mode.

•

The exhaust emission control device is
regenerating.

ENGINE BLOCK HEATER

(IF

EQUIPPED)

WARNING:

Failure to follow engine

block heater instructions could result in
property damage or serious personal
injury.

WARNING:

Do not use your heater

with ungrounded electrical systems or
two-pronged adapters. There is a risk of
electrical shock.

WARNING:

Do not fully close the

hood, or allow it to drop under its own
weight when using the engine block
heater. This could damage the power
cable and may cause an electrical short
resulting in fire, injury and property
damage.

Note:

The heater is most effective when

outdoor temperatures are below 0°F
(-18°C).

The heater acts as a starting aid by
warming the engine coolant. This allows
the climate control system to respond
quickly. The equipment includes a heater
element (installed in the engine block) and
a wire harness. You can connect the
system to a grounded 120-volt AC
electrical source.

We recommend that you do the following
for a safe and correct operation:

•

Use a 16-gauge outdoor extension cord
that is product certified by
Underwriter’s Laboratory (UL) or
Canadian Standards Association
(CSA). This extension cord must be
suitable for use outdoors, in cold
temperatures, and be clearly marked
Suitable for Use with Outdoor
Appliances. Do not use an indoor
extension cord outdoors. This could
result in an electric shock or become a
fire hazard.

•

Use as short an extension cord as
possible.

•

Do not use multiple extension cords.

•

Make sure that when in operation, the
extension cord plug and heater cord
plug connections are free and clear of
water. This could cause an electric
shock or fire.

•

Make sure your vehicle is parked in a
clean area, clear of combustibles.

103

Starting and Stopping the Engine

Ford F-650 / 750 (2023 year). Manual in english - page 6
