Ford E-450 (2023 year). Manual in english

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concen-
trate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer
Fluid / Liquide lave-glace de haute qualité Motor-
craft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)

AUTOMATIC TRANSMISSION
FLUID CAPACITY AND
SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

•

Reduced fuel economy.

Note:

Only use MERCON LV transmission

fluid for automatic transmissions that
require MERCON LV transmission fluid. The
use of any other fluid could cause
transmission damage.

Capacities

Quantity

Variant

17.4 qt (16.5 L)

All.

Approximate dry fill capacity. Actual amount could vary during fluid changes.

Materials

Specification

Name

WSS-M2C938-AMERCON® LV,

Motorcraft® MERCON® LV Automatic Transmission
Fluid(U.S.)
Motorcraft® MERCON® LV Automatic Transmission
Fluid / Huile pour boîte automatique MERCON® LV
Motorcraft®(Canada)
XT-10-QLVC(U.S.)
CXT-10-LV6(Canada)

231

Capacities and Specifications

BRAKE FLUID SPECIFICATION

Use fluid that meets the defined
specification.

If you do not use fluid that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced brake performance.

Note:

Keep brake fluid clean and dry.

Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and failure.

Capacities

Quantity

Variant

Fill as required.

Hydroboost Brake System.

Fill as required.

Vacuum Brake System.

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid / Liquide de frein automobile
haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

WSS-M6C65-A1

Motorcraft® High Performance DOT 3 Motor Vehicle
Brake Fluid(U.S.)
Motorcraft® High Performance DOT 3 Motor Vehicle
Brake Fluid / Liquide de frein automobile DOT 3
haute performance Motorcraft®(Canada)
PM-1-C(U.S.)
CPM-1-C(Canada)

Note:

We recommend using DOT 4 Low

Viscosity (LV) High Performance Brake Fluid
for vehicles with vacuum brake booster
systems. High Performance DOT 3 brake
fluid is also acceptable to use.

Note:

Use of any fluid other than the

recommended fluid could cause reduced
brake performance and not meet our
performance standards.

REAR AXLE FLUID CAPACITY
AND SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

232

Capacities and Specifications

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:

•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Limited Slip Axle

Capacities

Quantity

Variant

3.28 qt (3.1 L)

E-350 Dana axle M70FF (M267FF).

4.86 qt (4.6 L)

E-450 Dana axle M70HD (M273HD).

Fill Dana rear axles to 0.24–0.55 in (6–14 mm) below the bottom of the fill hole.

Materials

Specification

Name

WSL-M2C192-A

Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant(U.S.)
Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant / Lubrifiant synthétique pour pont arrière
SAE 75W-140 Motorcraft®(Canada)
XY-75W140-QL(U.S.)
CXY-75W140-1L(Canada)

Conventional Axle

Capacities

Quantity

Variant

3.28 qt (3.1 L)

E-350 Dana axle M70FF (M267FF).

4.86 qt (4.6 L)

E-450 Dana axle M70HD (M273HD).

Fill Dana rear axles to 0.24–0.55 in (6–14 mm) below the bottom of the fill hole.

233

Capacities and Specifications

Materials

Specification

Name

WSP-M2C197-A

Motorcraft® SAE 80W-90 Premium Rear Axle
Lubricant(U.S.)
Motorcraft® SAE 80W-90 Premium Axle Lubricant
/ Lubrifiant pour essieux de très haute qualité SAE
80W-90 Motorcraft®(Canada)
XY-80W90-QL(U.S.)
CXY-80W90-1L(Canada)

HYDRAULIC POWER
STEERING FLUID CAPACITY
AND SPECIFICATION

Use fluid that meets the defined
specification.

If you do not use fluid that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

Fill as required.

All.

Materials

Specification

Name

WSS-M2C938-AMERCON® LV,

234

Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER

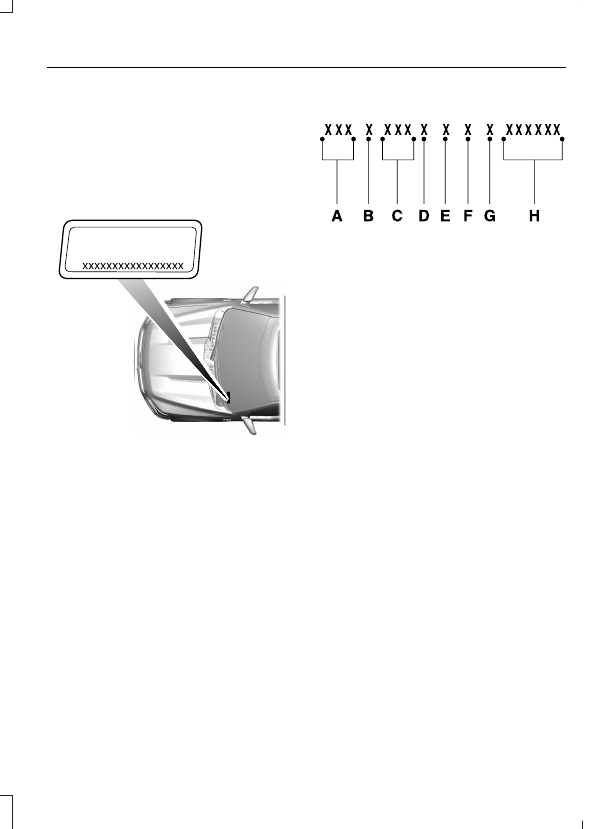

LOCATING THE VEHICLE
IDENTIFICATION NUMBER

The vehicle identification number is on the
left-hand side of the instrument panel.

E311767

Note:

In the illustration, XXXX is

representative of your vehicle identification
number.

VEHICLE IDENTIFICATION
NUMBER OVERVIEW

The vehicle identification number contains
the following information:

E142477

World manufacturer identifier.

Brake system, gross vehicle
weight rating, restraint devices
and their locations.

Make, vehicle line, series, body
type.

Engine or motor type.

Check digit.

Model year.

Assembly plant.

Production sequence number.

235

Vehicle Identification

CONNECTED VEHICLE
REQUIREMENTS

Connected service and related feature
functionality requires a compatible vehicle
network.

Some remote features require additional
service activation. Log in to your Ford
account for details. Some restrictions, third
party terms and message or data rates
may apply.

CONNECTED VEHICLE
LIMITATIONS

Evolving technology, cellular networks, or
regulations could affect functionality and
availability, or continued provision of some
features. These changes could even stop
some features from functioning.

CONNECTING THE VEHICLE TO
A MOBILE NETWORK

WHAT IS THE MODEM

The modem allows access to a
range of features built into your
vehicle.

ENABLING AND DISABLING THE
MODEM

Press

Settings

2. Press

FordPass Connect

3. Press

Connectivity Settings

4. Switch connectivity features on or off.

DISABLING THE CONNECTIVITY
DEVICE

To disable the connectivity device, contact
the Ford Customer Relationship Center.

CONNECTING FORDPASS TO THE
MODEM

Make sure that the modem is enabled
using the vehicle settings menu.

2. Open the FordPass app on your device

and log in.

3. Add your vehicle or select your vehicle

if already added.

4. Select the option to activate your

vehicle.

5. Make sure that the name on the screen

matches the name shown in your
FordPass account.

6. Confirm that FordPass account is

connected to the modem.

CONNECTED VEHICLE –
TROUBLESHOOTING

CONNECTED VEHICLE –
FREQUENTLY ASKED QUESTIONS

Why can I not confirm the
connection of my FordPass
account to the modem?

•

The modem is not enabled. Switch
vehicle connectivity on.

•

The network signal is weak. Move your
vehicle closer to a place where the
network signal is not obstructed.

236

Connected Vehicle

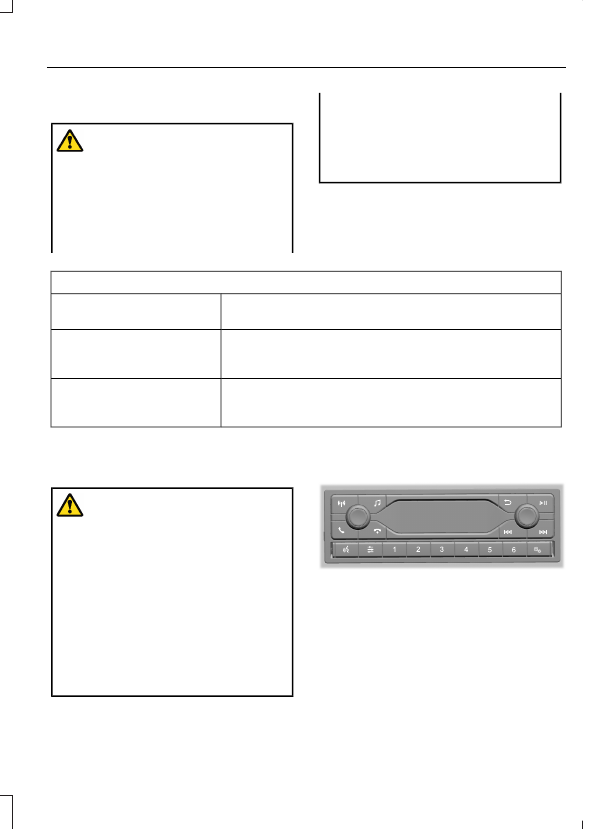

GENERAL INFORMATION

WARNING:

Driving while distracted

hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

Radio Frequencies and Reception
Factors

Note:

Listening to loud audio for long

periods of time could damage your hearing.

Radio Reception Factors

The further you travel from an AM or FM station, the
weaker the signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating
tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

AUDIO UNIT

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

E305609

Note:

Depending on your vehicle option

package, the controls may look different
from what you see here.

Note:

Some features, such as satellite

radio, may not be available in your location.
Check with an authorized dealer.

237

Audio System

(If Equipped)

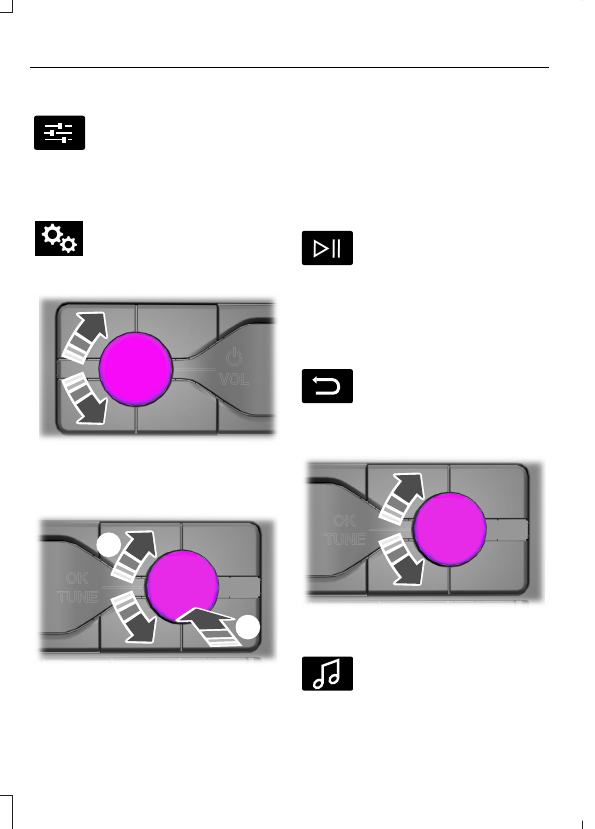

Accessing the Sound Settings

E280315

Press the button to adjust the
sound settings. You can also
activate and set the sensitivity

of the adaptive or speed compensated
volume.

Accessing the System Settings

Press the button.

Adjusting the Volume

E260697

Turn to adjust the volume.

Changing Radio Stations

E260687

Auto or Manual tuning.

Station name tuning.

Note:

You can change between auto or

manual tuning with the rotary control using
the system settings.

Note:

You can change radio stations using

the seek buttons.

Note:

You can recall radio stations using

the numeric preset buttons.

Pausing or Playing Media

In media mode, press and
release the button to pause
playback. Press the button again

to resume playback.

In radio mode, press the button to mute
the signal. Press the button again to
restore the signal.

Returning to the Previous Screen

E281480

Press and release the button.

Scrolling Through the Menu
Options

E260782

Selecting Media

E100027

Press the button to select media
mode.

Repeatedly press the button, or

rotate the right-hand rotary control to
scroll through the available media sources.

238

Audio System

(If Equipped)

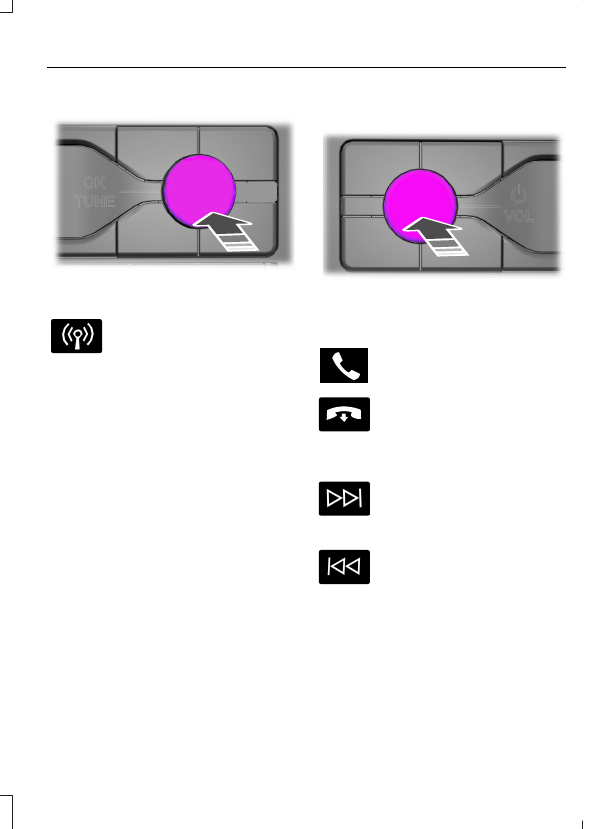

Selecting a Menu Option

E260781

Selecting the Radio

Press the button to select radio
mode.

Press the button again to display

the available radio sources. Repeatedly
press the button, or rotate the right-hand
rotary control to scroll through the
available radio sources.

Setting a Memory Preset

Tune to a station then press and hold one
of the numbered memory preset buttons.
The audio mutes briefly while the system
saves the station and returns once the
station is stored.

Switching the Audio Unit On and
Off

E260686

Press and release the button.

Using a Cell Phone

Press the button to either
answer an incoming phone call
or to make a phone call.

E265040

Press and hold the button to end
a phone call.

Using Seek, Fast Forward and
Reverse

Press and release the button to
skip to the next track.

Press and hold the button to fast

forward through the track.

Press and release the button to
return to the beginning of a track.

Repeatedly press the button to

return to previous tracks.

Press and hold the button to rewind.

In radio mode, select a frequency band and
press and release either button. The
system stops at the first station it finds in
that direction.

239

Audio System

(If Equipped)

In satellite radio mode, press and release
to select the next or previous satellite radio
station. If you select a specific category,
such as jazz, rock or news, press to find the
next or previous station in the category you
select.

CONNECTING A BLUETOOTH®
DEVICE

Pairing a Device

E142607

Press the button.

Select

Bluetooth®

and follow the

instructions on the screen.

Note:

When pairing a new device, you can

choose to download contacts, set this as
the primary device and enable Emergency
Assistance.

STREAMING BLUETOOTH
AUDIO

Selecting a

Bluetooth®

Source

E100027

Press the button to display the menu.

2. Repeatedly press the button to scroll

to the

Bluetooth®

device.

3. Press the

button.

Press the button to play the
track. Press the button again to
pause the track.

Press the button to skip to the
next track.

Press and hold the button to fast

forward through the track.

Press the button once to return
to the beginning of the track.
Repeatedly press the button to

return to previous tracks.

Press and hold the button to fast rewind.

Note:

Not all functions are supported by all

phones.

PLAYING MEDIA FROM A USB
DEVICE

Supported Audio File Formats

You can play audio file formats including
MP3, WMA, WAV, M4A, M4B, AAC, and
FLAC.

Note:

The NTFS file system is not

supported.

Selecting the USB Device

E100027

Press the button to display the
menu.

Repeatedly press the button to scroll to
your USB device.

Press the

button.

Playing from the USB Device

Press the button to play a track.
Press the button again to pause
the track.

Press the button to skip to the
next track.

Press and hold the button to fast

forward through the track.

Press the button once to return
to the beginning of a track.
Repeatedly press the button to

return to previous tracks.

Press and hold the button to fast rewind.

240

Audio System

(If Equipped)

Sorting by Categories

You can also sort and play music by
specific categories, for example artist or
album.

Press the

button to view the available

categories.

USB PORT

WARNING:

Driving while distracted

E201595

The USB port allows you to plug in media
playing devices, memory sticks and charge
devices.

Note:

Not all USB ports in your vehicle have

data transfer capabilities. See

Auxiliary

Power Points

(page 80).

USING VOICE RECOGNITION

Phone Voice Service

This system allows you to use the voice
recognition features of your phone and
focus on your driving.

E142599

Press and hold the voice control
button on the audio unit.

Note:

This only works when connected via

Bluetooth. See

Connecting a Bluetooth®

Device

(page 240).

Note:

When using voice recognition use the

language set on the device.

Note:

We recommend that you check your

data plan before using your phone voice
service through the system. Using them
could result in additional charges.

241

Audio System

(If Equipped)

For a complete listing of the accessories
that are available for your vehicle, please
contact your authorized dealer or visit the
online store web site:

Web Address (United States)

www.Accessories.Ford.com

Web Address (Canada)

www.Accessories.Ford.ca

We will repair or replace any properly
authorized dealer-installed Ford Original
Accessory found to be defective in
factory-supplied materials or workmanship
during the warranty period, as well as any
component damaged by the defective
accessories.

We will warrant your Ford Original
Accessory through the warranty that
provides the greatest benefit:
•

24 months, unlimited mileage.

•

The remainder of your new vehicle
limited warranty.

Contact an authorized dealer for details
and a copy of the warranty.

Ford Licensed Accessories are the
accessory manufacturer's designs. The
manufacturer develops and therefore
warrants Ford Licensed Accessories, and
does not design or test these accessories
to Ford Motor Company engineering
requirements. Contact an authorized Ford
dealer for the manufacturer’s limited
warranty details, and request a copy of the
Ford Licensed Accessories product limited
warranty from the accessory manufacturer.

For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
•

When adding accessories, equipment,
passengers and luggage to your
vehicle, do not exceed the total weight
capacity of the vehicle or of the front
or rear axle (GVWR or GAWR as
indicated on the Safety Compliance
Certification label). Ask an authorized
dealer for specific weight information.

•

The Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulate the use
of mobile communications systems
that are equipped with radio
transmitters, for example two-way
radios, telephones and theft alarms.
Any such equipment installed in your
vehicle should comply with Federal
Communications Commission (FCC)
and Canadian Radio
Telecommunications Commission
(CRTC) regulations and should be
installed only by an authorized dealer.

•

An authorized dealer needs to install
mobile communications systems.
Improper installation may harm the
operation of your vehicle, particularly
if the manufacturer did not design the
mobile communication system
specifically for automotive use.

•

If you or an authorized Ford dealer add
any non-Ford electrical or electronic
accessories or components to your
vehicle, you may adversely affect
battery performance and durability. In
addition, you may also adversely affect
the performance of other electrical
systems in the vehicle.

242

Accessories

AUXILIARY SWITCHES

For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
•

•

The Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulate the use
of mobile communications systems
equipped with radio transmitters, for
example, two-way radios, telephones
and theft alarms. Any such equipment
installed in your vehicle should comply
with Federal Communications
Commission (FCC) and Canadian
Radio Telecommunications
Commission (CRTC) regulations, and
should be installed by an authorized
dealer.

•

E163431

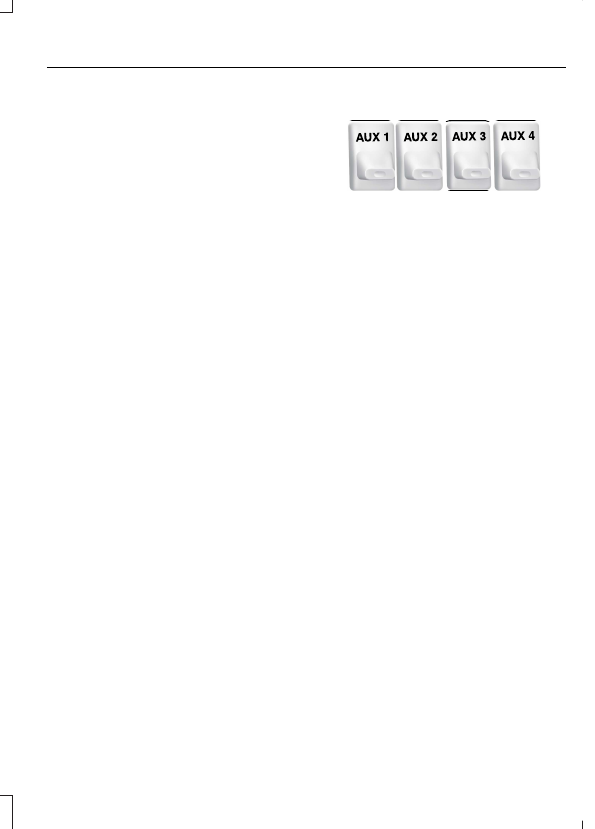

The auxiliary switch option package
provides four switches, mounted in the
center of the instrument panel. These
switches operate when the vehicle is
running or from battery power, depending
on the switchable PDB fuse locations #82
and #83. Ford recommends, however, that
the engine remain running to maintain
battery charge when using the auxiliary
switches for extended periods of time or
higher current draws.

When switched on, the auxiliary switches
provide 20 amps or 40 amps of electrical
battery power for a variety of personal or
commercial uses.

The switches include the fuse and relay kit.
This kit contains the required fuses and
relays that an authorized technician needs
to install into the power distribution box,
located under the hood. Refer to the
instruction sketch included in the kit.
Contact an authorized dealer for service.

Each switch includes a power lead (a
blunt-cut and sealed wire) located in the
underhood cowl shield above the engine
block powertrain control module.

The power leads are coded as follows:

243

Accessories

Fuse
Amp

Rating

Wire

Color

Circuit

Number

Switch

40A

Yellow

CAC05

AUX 1

40A

Green

with

Brown

Trace

CAC06

AUX 2

20A

Violet

with

Green

Trace

CAC07

AUX 3

20A

Brown

CAC08

AUX 4

Learn more about auxiliary switches by
visiting
https://www.fleet.ford.com/truckbbas/.

Upfitter Interface Module

(If Equipped)

The Upfitter Interface Module (UIM) is an
electronic control module that operates
equipment (such as lift buckets, cranes,
motors, salt spreaders and snow plows)
with external relays.

If you replace the module, it will require
additional programming by the upfitter.
Obtain this data directly from the upfitter
company. The upfitter contact information
is in the vehicle door opening.

For more information on the Upfitter
Interface Module and the auxiliary
switches, contact your upfitter.

244

Accessories

PROTECT YOURSELF FROM THE RISING
COST OF VEHICLE REPAIRS WITH A FORD
PROTECT EXTENDED SERVICE PLAN.

Ford Protect Extended Service
Plans (U.S. Only)

Ford Protect extended service plan means
peace of mind. It is the extended service
plan backed by Ford Motor Company, and
provides more protection beyond the New
Vehicle Limited Warranty coverage. When
you visit your Ford Dealer, Insist on Ford
Protect extended service plans!

Ford Protect Can Quickly Pay for Itself

One trip to the Service Center could easily
exceed the price of your Ford Protect
extended service plan. With Ford Protect
extended service plan you minimize your
risk for unexpected repair bills and rising
repair costs.

Up to 1,000+ Covered Vehicle
Components

There are four mechanical Ford Protect
extended service plans with different levels
of coverage. Ask your authorized dealer for
details.

PremiumCARE - Our most
comprehensive coverage. With over
1,000 covered components, this plan
is so complete it is probably easier to
list what is not covered.

2. ExtraCARE - Covers 113 components,

and includes many high-tech items.

3. BaseCARE - Covers 84 components.

4. PowertrainCARE - Covers 29 critical

components.

Ford Protect extended service plans are
honored by all authorized Ford dealers in
the U.S., Canada and Mexico.

That means you get:
•

Reliable, quality service at any Ford or
Lincoln dealership.

•

Repairs performed by factory trained
technicians, using genuine parts.

Rental Car Reimbursement

1st day Rental Benefit

If you bring your car into your dealer for
service, we’ll give you a loaner to use for
the day.

Extended Rental Benefits

If your vehicle is kept overnight for covered
repairs, you are eligible for rental car
coverage, including warranty repairs, and
Field Service Actions.

Roadside Assistance

Exclusive 24/7 roadside assistance,
including:

•

Towing, flat-tire change and battery
jump starts.

•

Out of fuel and lock-out assistance.

•

Travel expense reimbursement for
lodging, meals and rental car.

•

Assistance for taxi, shuttle, rental car
coverage or other transportation.

Transferable Coverage

If you sell your vehicle before your Ford
Protect extended service plan coverage
expires, you can transfer any remaining
coverage to the new owner. Which should
give you and your potential buyer a little
more peace of mind.

245

Ford Protect

Less Cost to Properly Maintain Your
Vehicle

Ford Protect extended service plan also
offers a Premium Maintenance Plan that
covers all scheduled maintenance, and
selected wear items. The coverage is
prepaid, so you never have to worry about
the cost of your vehicle’s maintenance.

Covered maintenance includes:
•

Windshield wiper blades.

•

Spark plugs.

•

The clutch disc (if equipped).

•

Brake pads and linings.

•

Shock absorbers.

•

Struts.

•

Engine belts.

•

Engine coolant hoses, clamps and
O-rings.

•

Diesel exhaust fluid replenishment (if
equipped).

•

Cabin air filter replacement every
20,000 mi (32,000 km) (electric
vehicles only).

Interest Free Finance Options

Just a 5% down payment will provide you
with an affordable, no interest, no fee
payment program allowing you all the
security and benefits Ford Protect
extended service plan has to offer while
paying over time. You are pre-approved
with no credit check or hassles. To learn
more, call our Ford Protect extended
service plan specialists at 800-367-3377.

Ford Protect Extended Service Plan
P.O. Box 321067
Detroit, MI 48232

Ford Protect Extended Service
Plan (CANADA ONLY)

You can get more protection for your
vehicle by purchasing a Ford Protect
extended service plan. Ford Protect
extended service plan is the only service
contract backed by Ford Motor Company
of Canada, Limited. Depending on the plan
you purchase, Ford Protect extended
service plan provides benefits such as:

•

Rental reimbursement.

•

Coverage for certain maintenance and
wear items.

•

Protection against repair costs after
your New Vehicle Limited Warranty
Coverage expires.

•

Roadside Assistance benefits.

There are several Ford Protect extended
service plans available in various time,
distance and deductible combinations.
Each plan is tailored to fit your own driving
needs, including reimbursement for towing
and rental. When you purchase Ford
Protect extended service plan, you receive
added peace-of-mind protection
throughout Canada, the United States and
Mexico, provided by a network of
participating authorized Ford Motor
Company dealers.

Note:

Repairs performed outside of Canada

and the United States are not eligible for
Ford Protect extended service plan
coverage.

This information is subject to change. For
more information; visit your local Ford of
Canada dealer or www.ford.ca to find the
Ford Protect extended service plan that is
right for you.

246

Ford Protect

Ford E-450 (2023 year). Manual in english - page 15
