3. Switch

Cross Traffic Alert

on or off.

Note:

The system switches on every time

you switch the ignition on. To permanently
switch the system off, contact an authorized
dealer.

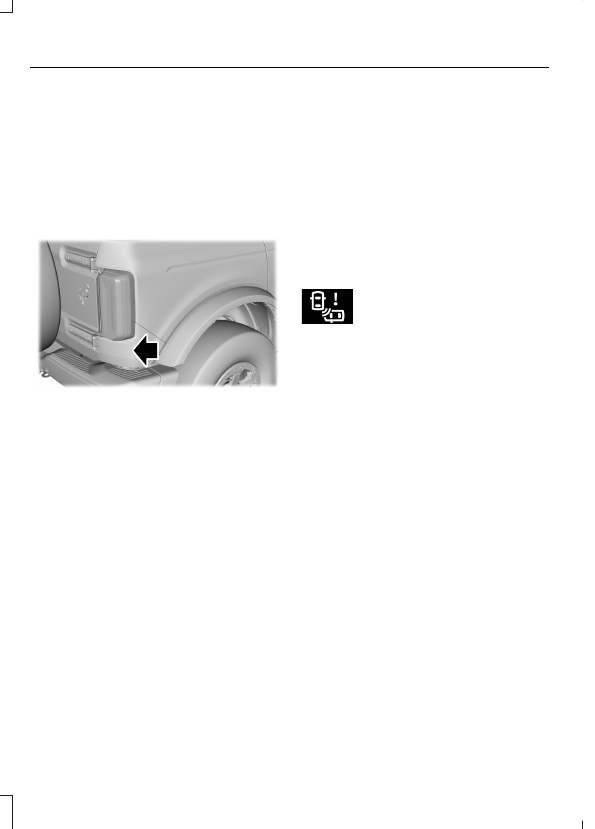

LOCATING THE CROSS
TRAFFIC ALERT SENSORS

E339014

The sensors are behind the rear fascia
panel.

Note:

Keep the sensors free from snow, ice

and large accumulations of dirt.

Note:

Do not cover the sensors with bumper

stickers, repair compound or other objects.

Note:

Bike and cargo racks could cause

false alerts due to obstruction of the sensor.
We recommend switching the feature off
when using a bike or cargo rack.

Note:

Blocked sensors may affect system

accuracy.

If something is blocking the sensors, a
message may appear in the information
display when you shift into reverse (R).

CROSS TRAFFIC ALERT
INDICATORS

E268294

When the cross traffic alert
detects an approaching vehicle,
a tone sounds, a warning lamp

illuminates in the relevant exterior mirror
and arrows appear in the information
display to show which side the vehicle is
approaching from.

If the system malfunctions, a warning lamp
illuminates in the instrument cluster and
a message appears in the information
display. Have your vehicle checked as soon
as possible.

Note:

If arrows do not display, a message

appears in the information display.

Note:

In some conditions, the system could

alert you, even when there is nothing in the
detection zone, for example a vehicle
passing further away from your vehicle.

260

Cross Traffic Alert

(If Equipped)

CROSS TRAFFIC ALERT – TROUBLESHOOTING

CROSS TRAFFIC ALERT – INFORMATION MESSAGES

Action

Message

Displays instead of indication arrows when

the system detects a vehicle. Check for

approaching traffic.

Cross Traffic Alert

Indicates blocked cross traffic alert system
sensors. Clean the sensors. If the message

continues to appear, have your vehicle

checked as soon as possible.

Cross Traffic Not Available Sensor Blocked

See Manual

The system has malfunctioned. Have your

vehicle checked as soon as possible.

Cross Traffic System Fault

Displays if you attach a trailer to your

vehicle.

Cross Traffic Alert Deactivated Trailer

Attached

261

Cross Traffic Alert

(If Equipped)

WHAT IS PRE-COLLISION
ASSIST

Pre-collision assist detects and warns of
approaching hazards in the roadway. If
your vehicle is rapidly approaching another
stationary vehicle, a vehicle traveling in the
same direction as yours, or a pedestrian
within your driving path, the system
provides multiple levels of assistance to
help avoid a collision.

HOW DOES PRE-COLLISION
ASSIST WORK

The system warns the driver of potential
hazards by providing three levels of
assistance.

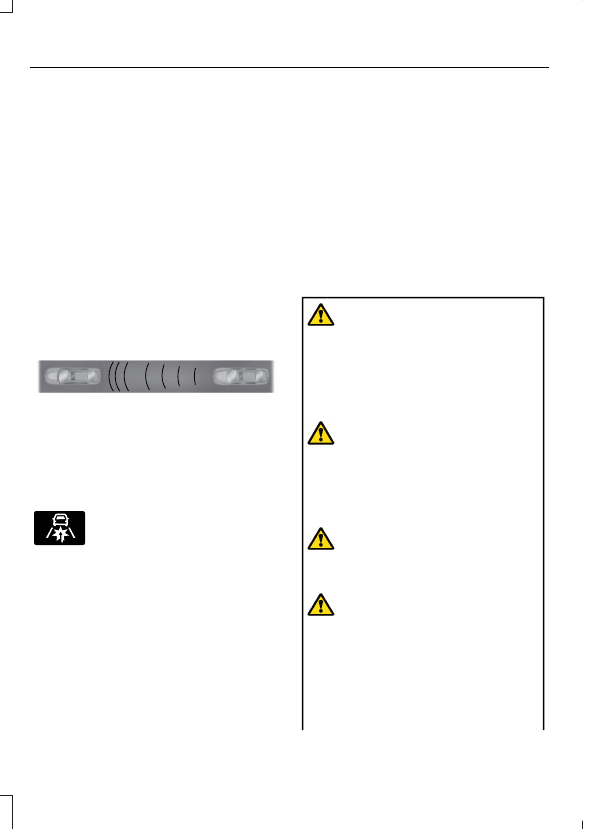

E156130

If your vehicle is rapidly approaching
potential hazards the system provides the
following levels of functionality:

Alert.

2. Brake Support.

3. Automatic Emergency Braking.

E329466

Alert

: When active, a flashing

visual warning appears and an
audible warning tone sounds.

Brake Support

: The system is designed

to help reduce the impact speed by
preparing the brakes for rapid braking. The
system does not automatically apply the
brakes. If you press the brake pedal, the
system could apply additional braking up
to maximum braking force, even if you
lightly press the brake pedal.

Automatic Emergency Braking

Automatic emergency braking may
activate if the system determines that a
collision is imminent.

Note:

If you perceive pre-collision assist

alerts as being too frequent or disturbing,
then you can reduce the alert sensitivity,
although the manufacturer recommends
using the highest sensitivity setting where
possible. Setting lower sensitivity would
lead to fewer and later system warnings.

Each system has various levels of
detection capabilities. See

Pre-Collision

Assist Limitations

(page 263).

PRE-COLLISION ASSIST
PRECAUTIONS

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

WARNING:

The system does not

detect vehicles moving in a different
direction or animals. Apply the brakes
when necessary. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

The system does not

operate during hard acceleration or
steering. Failure to take care may lead
to a crash or personal injury.

WARNING:

The system may fail or

operate with reduced function during
cold and severe weather conditions.
Snow, ice, rain, spray and fog can
adversely affect the system. Keep the
front camera and radar free of snow and
ice. Failure to take care may result in the
loss of control of your vehicle, serious
personal injury or death.

262

Pre-Collision Assist

WARNING:

Take additional care if

your vehicle is heavily loaded or you are
towing a trailer. These conditions could
result in reduced performance of this
system. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

The system cannot

help prevent all crashes. Do not rely on
this system to replace driver judgment
and the need to maintain a safe distance
and speed.

WARNING:

In situations where the

vehicle camera has limited detection
capability, this may reduce system
performance. These situations include
but are not limited to direct or low
sunlight, vehicles at night without tail
lights, unconventional vehicle types,
pedestrians with complex backgrounds,
running pedestrians, partly obscured
pedestrians, or pedestrians that the
system cannot distinguish from a group.
Failure to take care may result in the loss
of control of your vehicle, serious
personal injury or death.

PRE-COLLISION ASSIST
LIMITATIONS

Pre-collision assist depends on the
detection ability of its camera and sensors.
Any obstructions or damage to these areas
can limit detection or prevent the system
from functioning. See

Locating the

Pre-Collision Assist Sensors

(page 264).

The system is active at speeds above
3 mph (5 km/h).

Note:

The pre-collision assist system

automatically disables when you select
four-wheel drive low, manually disable
AdvanceTrac™, or select rock crawl mode.

Note:

Brake support and automatic

emergency braking are active at speeds up
to 80 mph (130 km/h). If your vehicle has a
radar sensor included with adaptive cruise
control, then brake support and automatic
emergency braking are active up to the
maximum speed of your vehicle.

Pedestrian Detection Limitations

Pedestrian detection is active at speeds
up to 50 mph (80 km/h).

Pedestrian detection operates optimally
when detected hazards are clearly
identifiable. System performance may
reduce in situations where pedestrians are
running, partly obscured, have a complex
background, or when the system cannot
distinguish pedestrians from a group.

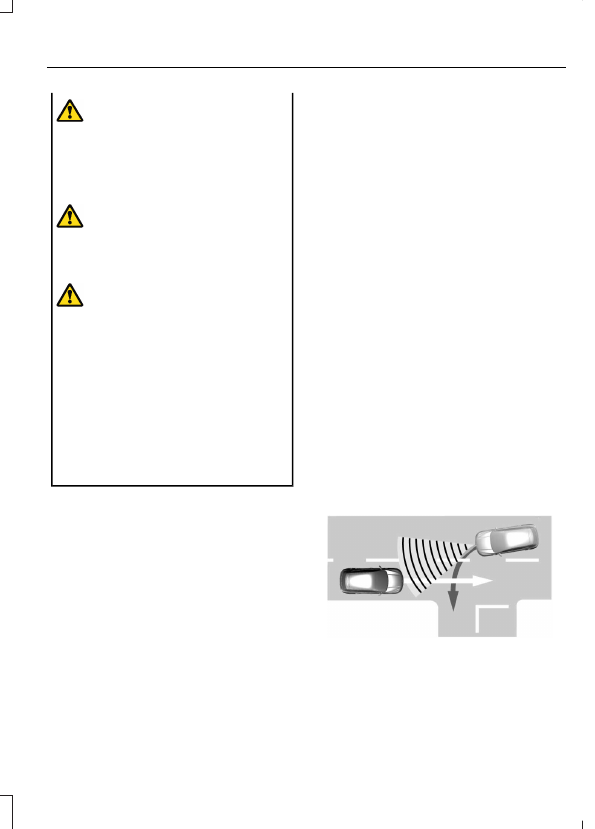

Intersection Assist

(If Equipped)

If your vehicle comes with a radar sensor
included in adaptive cruise control, the
pre-collision assist system may operate in
a scenario where you are turning across an
oncoming vehicle's path. Detection of
vehicles driving in an oncoming direction
is active if your vehicle is driving at speeds
up to 19 mph (30 km/h).

E309750

263

Pre-Collision Assist

SWITCHING PRE-COLLISION
ASSIST ON AND OFF

To switch the system on or off, use the
touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Pre-Collision Assist

4. Switch the feature on or off.

Adjusting the Pre-Collision Assist
Settings

You can adjust the following settings by
using the touchscreen controls in the
pre-collision assist menu:
•

Change alert and distance alert
sensitivity to one of three possible
settings.

•

Switch distance indication and alert on
or off.

•

If required, switch automatic
emergency braking on or off.

•

If required, switch the entire
pre-collision assist feature on or off.

•

If required, switch evasive steering
assist on or off.

Note:

Automatic emergency braking and

evasive steering turn on every time you
switch the ignition on.

Note:

If your vehicle has a radar sensor, we

recommend that you switch the system off
if you install a snow plow or similar object
in such a way that it may block the radar
sensor. Your vehicle remembers the selected
setting across key cycles.

Note:

If you switch automatic emergency

braking off, evasive steering assist switches
off.

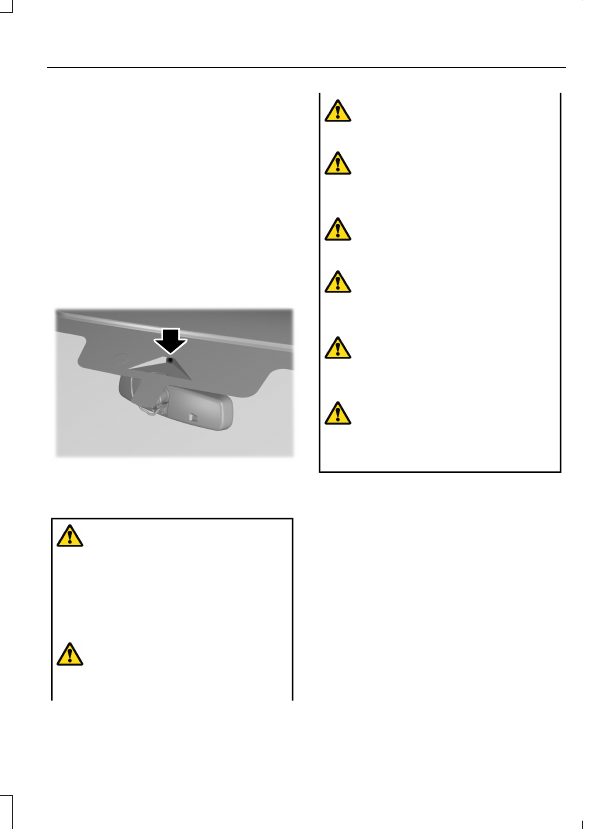

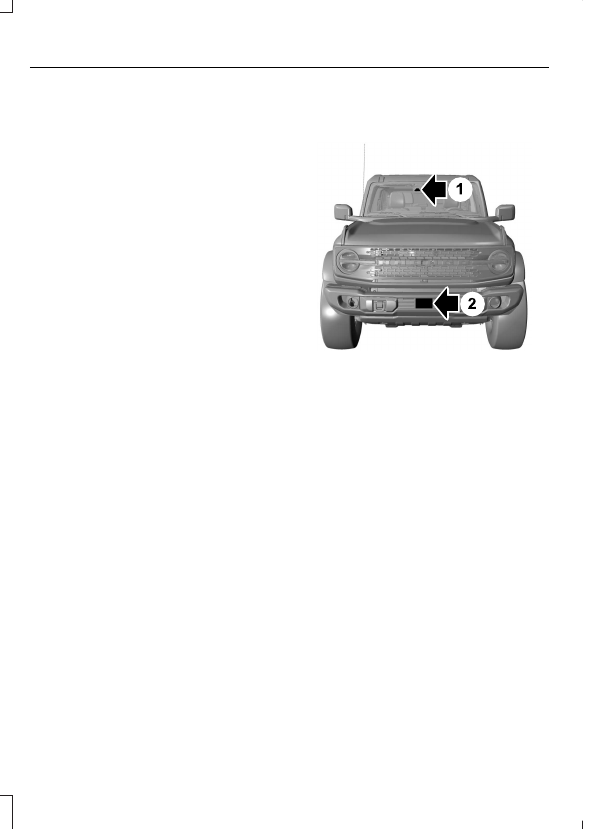

LOCATING THE PRE-
COLLISION ASSIST SENSORS

E327933

Camera.

Radar sensor (if equipped).

If a message regarding a blocked sensor
or camera appears in the information
display, something is obstructing the radar
signals or camera images. If your vehicle
has a radar sensor, it is behind the fascia
cover in the center of the lower grille. With
a blocked sensor or camera, the system
may not function, or performance may
reduce. See

Pre-Collision Assist –

Information Messages

(page 267).

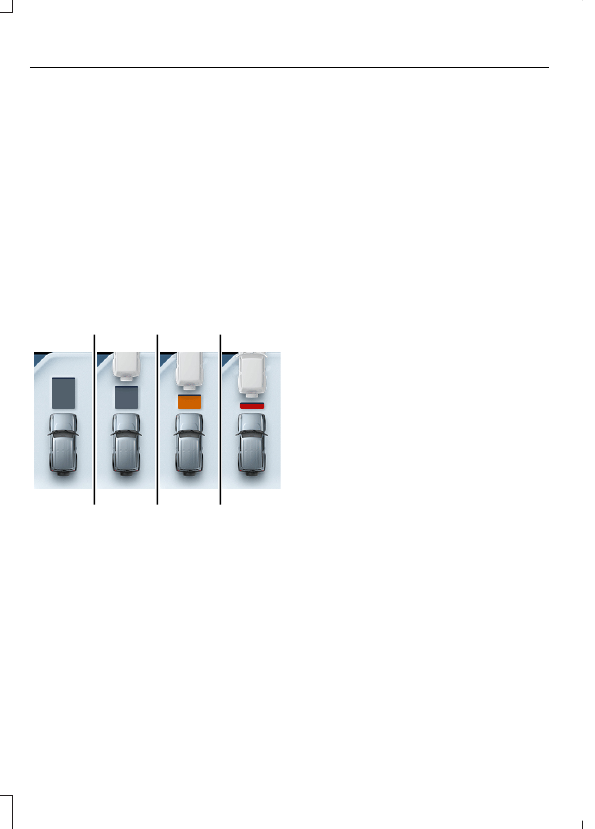

DISTANCE INDICATION

WHAT IS DISTANCE INDICATION

Distance indication displays the gap
between your vehicle and the vehicle
ahead of you.

Note:

The graphic does not display if you

switch on cruise control or adaptive cruise
control.

264

Pre-Collision Assist

Time Gap

Distance Gap

Distance Indic-

ator Color

System Sensit-

ivity

Vehicle Speed

Greater than 0.9

seconds.

Greater than
82 ft (25 m).

Gray.

Normal.

62 mph

(100 km/h).

0.6-0.9

seconds.

56–82 ft

(17–25 m).

Yellow.

Less than 0.6

seconds.

Less than 56 ft

(17 m).

Red.

265

Pre-Collision Assist

SWITCHING DISTANCE
INDICATION ON AND OFF

To switch the system on or off, use the
touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Pre-Collision Assist

4. Switch

Distance Indication

on or off.

DISTANCE INDICATION
INDICATOR

The indicator displays the time gap
between your vehicle and vehicles traveling
in the same direction ahead of you.

E358508

AUTOMATIC EMERGENCY
BRAKING

WHAT IS AUTOMATIC
EMERGENCY BRAKING

Automatic emergency braking may
activate if the system determines that a
collision is imminent. The system may help
reduce impact damage to avoid the crash
completely.

Automatic emergency braking is only
available up to certain speeds. See

Pre-Collision Assist Limitations

(page

263).

SWITCHING AUTOMATIC
EMERGENCY BRAKING ON AND
OFF

To switch the system on or off, use the
touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Pre-Collision Assist

4. Press

Auto Emergency Braking

5. Switch the feature on or off.

EVASIVE STEERING ASSIST

WHAT IS EVASIVE STEERING

ASSIST

If your vehicle is rapidly approaching a road
user, evasive steering assist helps you steer
around the road user.

After you turn the steering wheel in an
attempt to avoid a crash with the road
user, the system applies additional steering
torque to help you steer around the road
user. After you pass the road user, the
system applies steering torque when you
turn the steering wheel to steer back into
the lane. The system deactivates after you
fully pass the road user.

Note:

Road users are defined as another

stationary vehicle in the same lane or a
vehicle traveling in the same lane in the
same direction as you. See

Pre-Collision

Assist Precautions

(page 262).

266

Pre-Collision Assist

EVASIVE STEERING ASSIST
LIMITATIONS

Evasive steering assist only activates when
all the following occur:
•

Automatic emergency braking and
evasive steering assist are on.

•

The system detects a road user ahead
and starts to apply the brakes.

•

You significantly turn the steering
wheel to steer around a road user.

Note:

Evasive steering assist does not

automatically steer around a road user. If
you do not turn the steering wheel, evasive
steering assist does not activate.

Note:

Evasive steering assist does not

activate if the distance to the road user
ahead is too small and the system cannot
avoid a crash.

Note:

Evasive steering does not activate

with cyclists or pedestrians.

SWITCHING EVASIVE STEERING
ASSIST ON AND OFF

To switch the system on or off, use the
touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Pre-Collision Assist

4. Switch

Evasive Steering

on or off.

Note:

If you switch automatic emergency

braking off, evasive steering assist turns off.

Note:

Automatic emergency braking and

evasive steering assist turn on every time
you switch the ignition on.

PRE-COLLISION ASSIST –
TROUBLESHOOTING

PRE-COLLISION ASSIST –
WARNING LAMPS

E335612

A telltale illuminates in the
cluster to indicate if the system
is disabled or unavailable.

PRE-COLLISION ASSIST – INFORMATION MESSAGES

Action

Message

You have a blocked sensor due to bad

weather, ice, mud or water in front of the

radar sensor. You can typically clean the

sensor to resolve.

Pre-Collision Assist Not Available Sensor

Blocked

A fault with the system has occurred. Have

your vehicle checked as soon as possible.

Pre-Collision Assist Not Available

267

Pre-Collision Assist

PRE-COLLISION ASSIST –
FREQUENTLY ASKED QUESTIONS

Camera Troubleshooting

The windshield in front of the camera
is dirty or obstructed.

Clean the outside of the windshield in
front of the camera.

The windshield in front of the camera
is clean, but the message remains in
the instrument cluster display.

Wait a short time. It could take several
minutes for the camera to detect that
there is no obstruction.

Radar Troubleshooting

(If Equipped)

The surface of the radar in the grille is
dirty or obstructed.

Clean the grille surface in front of the
radar or remove the object causing the
obstruction.

The surface of the radar in the grille is
clean, but the message remains in the
instrument cluster display.

Wait a short time. It could take several
minutes for the radar to detect that
there is no obstruction.

Heavy rain, spray or fog is interfering
with the radar signals.

The pre-collision assist system is
temporarily disabled. Pre-collision
assist reactivates a short time after
the weather conditions improve.

Swirling water or snow or ice on the
surface of the road could interfere with
the radar signals.

The pre-collision assist system is
temporarily disabled. Pre-collision
assist reactivates a short time after
the weather conditions improve.

Radar is out of alignment due to a front
end impact.

Have your vehicle serviced to have the
radar checked for proper coverage and
operation.

268

Pre-Collision Assist

WHAT IS DRIVER ALERT

Driver alert alerts you if it determines that
you are becoming drowsy or if your driving
deteriorates.

HOW DOES DRIVER ALERT
WORK

Driver Alert calculates your alertness level
based on your driving behavior in relation
to the lane markings and other factors
through use of the front camera sensor
behind the interior mirror.

E309385

DRIVER ALERT PRECAUTIONS

WARNING:

You are responsible for

WARNING:

Take regular rest

breaks if you feel tired. Do not wait for
the system to warn you.

WARNING:

Certain driving styles

may result in the system warning you
even if you are not feeling tired.

WARNING:

In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance.

WARNING:

The system will not

operate if the sensor cannot track the
road lane markings.

WARNING:

If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

WARNING:

The system may not

correctly operate if your vehicle is fitted
with a suspension kit not approved by
us.

WARNING:

The system may not

operate properly if the sensor is blocked.
Keep the windshield free from
obstruction.

Note:

If something is blocking the camera

or damaged the windshield, Driver Alert may
not function.

DRIVER ALERT LIMITATIONS

Driver alert may not function correctly if:
•

The sensor cannot track the road lane
markings.

•

Your vehicle's speed is less than
approximately 40 mph (65 km/h).

269

Driver Alert

(If Equipped)

SWITCHING DRIVER ALERT ON
AND OFF

To switch driver alert on or off, use the
touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Switch

Driver Alert

on or off.

Note:

The system remains on or off

depending on the last selection.

Resetting Driver Alert

You can reset the system by either:
•

Switching the ignition off and on.

•

Stopping the vehicle and then opening
and closing the driver door.

DRIVER ALERT INDICATORS

System Warnings

The warning system has two stages:

A temporary warning is issued to advise
you to take a rest. This message only
appears for a short time.

2. If you do not rest and the system

continues to detect that your driving
deteriorates, it issues a further warning.
This remains in the instrument cluster
display until you cancel it.

Note:

The system does not warn you if the

vehicle speed falls below approximately
40 mph (65 km/h).

DRIVER ALERT – TROUBLESHOOTING

DRIVER ALERT – INFORMATION MESSAGES

Action

Message

Stop and rest as soon as it is safe to do so.

Driver Alert Warning Rest Now

Take a rest soon.

Driver Alert Warning Rest Suggested

270

Driver Alert

(If Equipped)

LOAD CARRYING
PRECAUTIONS

Keep your loaded vehicle weight
within its design rating capability,
with or without a trailer. Properly
loading your vehicle provides
maximum return of vehicle design
performance. Before you load your
vehicle, become familiar with the
following terms for determining
your vehicle’s weight rating, with
or without a trailer, from the
vehicle’s Tire and Loading
Information label or Safety
Compliance Certification label.

WARNING:

The

appropriate loading capacity of
your vehicle can be limited either
by volume capacity (how much
space is available) or by payload
capacity (how much weight the
vehicle should carry). Once you
have reached the maximum
payload of your vehicle, do not
add more cargo, even if there is
space available. Overloading or
improperly loading your vehicle
can contribute to loss of vehicle
control and vehicle rollover.

WARNING:

Exceeding the

Safety Compliance Certification
label vehicle weight limits can
adversely affect the
performance and handling of
your vehicle, cause vehicle
damage and can result in the
loss of control of your vehicle,
serious personal injury or death.

WARNING:

Do not use

replacement tires with lower
load carrying capacities than the
original tires because they may
lower your vehicle's GVWR and
GAWR limitations. Replacement
tires with a higher limit than the
original tires do not increase the
GVWR and GAWR limitations.

WARNING:

Do not exceed

the GVWR or the GAWR
specified on the certification
label.

WARNING:

Exceeding any

vehicle weight rating can
adversely affect the
performance and handling of
your vehicle, cause vehicle
damage and can result in the
loss of control of your vehicle,
serious personal injury or death.

WARNING:

When loading

the roof racks, we recommend
you evenly distribute the load,
as well as maintain a low center
of gravity. Loaded vehicles, with
higher centers of gravity, may

271

Load Carrying

handle differently than unloaded
vehicles. Take extra precautions,
such as slower speeds and
increased stopping distance,
when driving a heavily loaded
vehicle.

The gross combined weight must
never exceed the Gross Combined
Weight Rating.

LOCATING THE SAFETY
COMPLIANCE CERTIFICATION
LABELS

Safety Compliance Certification Label
Example:

E198828

The Safety Compliance Certification label
is located on the door hinge pillar,
door-latch post, or the door edge that
meets the door-latch post, next to the
driver seating position.

WHAT IS THE GROSS AXLE
WEIGHT RATING

GAWR (Gross Axle Weight
Rating)

GAWR is the maximum allowable
weight that a single axle (front or
rear) can carry. These numbers
are on the Safety Compliance
Certification label.

WHAT IS THE GROSS VEHICLE
WEIGHT RATING

GVWR is the maximum allowable
weight of the fully loaded vehicle.
This includes all options,
equipment, passengers and cargo.
It appears on the Safety
Compliance Certification label.

WHAT IS THE MAXIMUM
LOADED TRAILER WEIGHT

Maximum loaded trailer weight is the
highest possible weight of a fully loaded
trailer the vehicle can tow. Consult an
authorized dealer (or the RV and Trailer
Towing Guide available at an authorized
dealer) for more detailed information. See

Towing a Trailer

(page 283).

WHAT IS THE GROSS
COMBINED WEIGHT RATING

Gross Combined Weight Rating
(GCWR) is the maximum
allowable weight of the vehicle
and the loaded trailer, including
all cargo and passengers, that the
vehicle can handle without risking

272

Load Carrying

damage. (Important: The towing
vehicle’s braking system is rated
for operation at Gross Vehicle
Weight Rating, not at Gross
Combined Weight Rating.)
Separate functional brakes should

be used for safe control of towed
vehicles and for trailers where the
Gross Combined Weight of the
towing vehicle plus the trailer
exceed the Gross Vehicle Weight
Rating of the towing vehicle.

Note:

For trailer towing

information refer to the RV and
Trailer Towing Guide available at
an authorized dealer, or online at
the website that follows.

RV & Trailer Towing Guide Online

www.fleet.ford.com/towing-guides

Website

273

Load Carrying

CALCULATING PAYLOAD

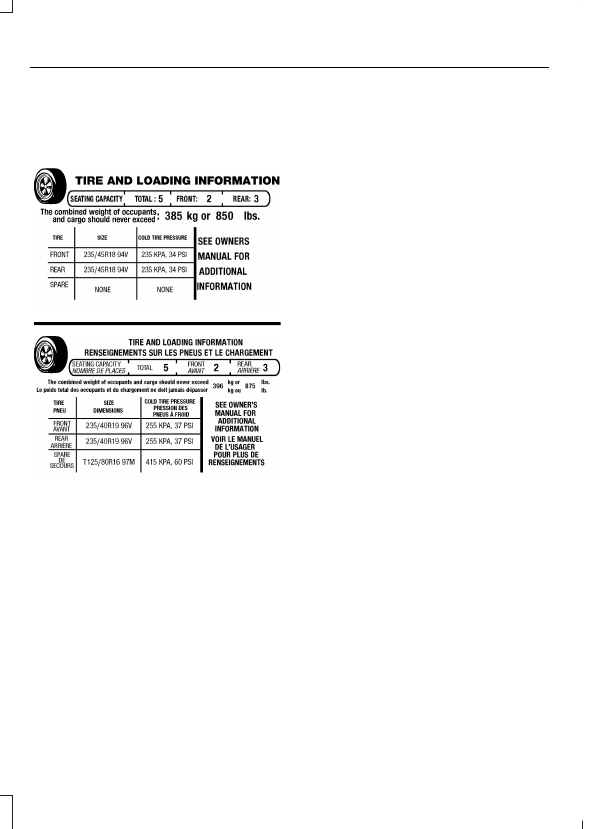

Tire and Loading Label Information
Example:

E198719

Payload is the combined weight
of cargo and passengers that your
vehicle is carrying. The maximum
payload for your vehicle appears
on the Tire and Loading label. The
label is either on the B-pillar or the
edge of the driver door. Vehicles
exported outside the US and
Canada may not have a tire and
loading label. Look for “The
combined weight of occupants
and cargo should never exceed
XXX kg or XXX lb” for maximum
payload. The payload listed on the
Tire and Loading Information label

is the maximum payload for your
vehicle as built by the assembly
plant. If you install any additional
equipment on your vehicle, you
must determine the new payload.
Subtract the weight of the
equipment from the payload listed
on the Tire and Loading label.
When towing, trailer tongue
weight or king pin weight is also
part of payload.

CALCULATING THE LOAD
LIMIT

Steps for determining the correct
load limit:

1. Locate the statement "The

combined weight of occupants
and cargo should never exceed

XXX kg or XXX lb." on your
vehicle’s placard.

2. Determine the combined

weight of the driver and
passengers that will be riding
in your vehicle.

3. Subtract the combined weight

of the driver and passengers
from XXX kg or XXX lb.

4. The resulting figure equals the

available amount of cargo and
luggage load capacity. For
example, if the “XXX” amount
equals 1,400 lb. and there will
be five 150 lb. passengers in
your vehicle, the amount of
available cargo and luggage
load capacity is 650 lb.
(1400-750 (5 x 150) = 650 lb.)

274

Load Carrying

5. Determine the combined

weight of luggage and cargo
being loaded on the vehicle.
That weight may not safely
exceed the available cargo and
luggage load capacity
calculated in Step 4.

6. If your vehicle will be towing a

trailer, load from your trailer
will be transferred to your
vehicle. Consult this manual to
determine how this reduces the
available cargo and luggage
load capacity of your vehicle.

Helpful examples for
calculating the available
amount of cargo and luggage
load capacity

Suppose your vehicle has a

1400-pound (635-kilogram) cargo
and luggage capacity. You decide
to go golfing. Is there enough load
capacity to carry you, four of your
friends and all the golf bags? You
and four friends average 220
pounds (99 kilograms) each and
the golf bags weigh approximately
30 pounds (13.5 kilograms) each.
The calculation would be: 1400 -
(5 x 220) - (5 x 30) = 1400 - 1100
- 150 = 150 pounds. Yes, you have
enough load capacity in your
vehicle to transport four friends
and your golf bags. In metric units,
the calculation would be: 635
kilograms - (5 x 99 kilograms) -
(5 x 13.5 kilograms) = 635 - 495 -
67.5 = 72.5 kilograms.

Suppose your vehicle has a
1400-pound (635-kilogram) cargo
and luggage capacity. You and
one of your friends decide to pick
up cement from the local home
improvement store to finish that
patio you have been planning for
the past two years. Measuring the
inside of the vehicle with the rear
seat folded down, you have room
for twelve 100-pound
(45-kilogram) bags of cement. Do
you have enough load capacity to
transport the cement to your
home? If you and your friend each
weigh 220 pounds (99 kilograms),
the calculation would be: 1400 -
(2 x 220) - (12 x 100) = 1400 - 440
- 1200 = - 240 pounds. No, you do
not have enough cargo capacity
to carry that much weight. In

metric units, the calculation would
be: 635 kilograms - (2 x 99
kilograms) - (12 x 45 kilograms) =
635 - 198 - 540 = -103 kilograms.
You will need to reduce the load
weight by at least 240 pounds
(104 kilograms). If you remove
three 100-pound (45-kilogram)
cement bags, then the load
calculation would be: 1400 - (2 x
220) - (9 x 100) = 1400 - 440 -
900 = 60 pounds. Now you have
the load capacity to transport the
cement and your friend home. In
metric units, the calculation would
be: 635 kilograms - (2 x 99
kilograms) - (9 x 45 kilograms) =
635 - 198 - 405 = 32 kilograms.

275

Load Carrying

Content .. 14 15 16 17 ..
