developed sufficient torque to prevent your
vehicle from rolling down the slope. This
is an advantage when pulling away on a
slope, for example from a car park ramp,
traffic lights or when reversing uphill into
a parking space.

The system activates on any slope that
causes your vehicle to roll.

Note:

There is no warning light to indicate

the system is either on or off.

Using Hill Start Assist

Press the brake pedal to bring your
vehicle to a complete standstill. Keep
the brake pedal pressed and shift into
first gear when facing uphill or reverse
(R) when facing downhill.

2. If the sensors detect that your vehicle

is on a slope, the system activates
automatically.

3. When you remove your foot from the

brake pedal, your vehicle remains on
the slope without rolling away for
about two to three seconds. This hold
time automatically extends if you are
in the process of driving off.

4. Drive off in the normal manner. The

system releases the brakes
automatically.

Note:

When you remove your foot from the

brake pedal and press the pedal again when
the system is active, you will experience
significantly reduced brake pedal travel. This
is normal.

Switching the System On and Off

When you switch the ignition on, the
system automatically turns on. You cannot
turn the system on or off.

AUTO HOLD

WARNING:

The system does not

replace the parking brake. When you
leave your vehicle, always apply the
parking brake.

WARNING:

You must remain in

your vehicle when the system turns on.
At all times, you are responsible for
controlling your vehicle, supervising the
system and intervening, if required.
Failure to take care may result in the loss
of control of your vehicle, serious
personal injury or death.

WARNING:

The system will turn

off if a malfunction is apparent. Failure
to take care may result in the loss of
control of your vehicle, serious personal
injury or death.

The system applies the brakes to hold your
vehicle at a standstill after you stop your
vehicle and release the brake pedal. This
could be beneficial in certain situations, for
example when waiting on a hill or in traffic.

Switching Auto Hold On and Off

E319161

Press the button on your console to access
auto hold on the touchscreen.

Note:

You can only switch the system on

after you close the driver door, fasten your
seatbelt and start the engine.

185

Brakes

Note:

The system remembers the last

setting when you start your vehicle.

Make sure you switch the system off before
towing with your vehicle or before using an
automatic car wash.

Using Auto Hold

Use the brakes to bring your vehicle to
a complete stop. The auto hold active
indicator illuminates in the information
display.

2. Release the brake pedal. The system

holds your vehicle at a standstill. The
auto hold active indicator remains
illuminated in the information display.

Note:

The system only activates if you

apply enough brake pressure. If your vehicle
is on a steep slope, you need to press the
brake pedal harder before the system
activates.

Note:

Under certain conditions, the system

could apply the electric parking brake. The
brake system warning lamp illuminates. The
electric parking brake releases when you
press the accelerator pedal. See

Electric

Parking Brake

(page 183).

Note:

If auto-start-stop turns off the

engine, auto hold remains active.

Note:

The system deactivates if you shift

into reverse (R) and press the brake pedal.

3. Pull away in the normal manner. The

system releases the brakes and the
auto hold active indicator turns off.

Auto Hold Indicator

The auto hold indicator
illuminates in the information
display when the system is on
and is either active or
unavailable.

Illuminates when the system is active. Your
vehicle remains stationary after you
release the brake pedal.

Illuminates when the system is on but
unavailable to hold your vehicle at a
standstill.

The system could be unavailable when any
of the following occur:

•

During an active park assist maneuver.

•

Your vehicle is in stay in neutral mode.

•

The driver door is open.

•

You do not fasten your seatbelt.

•

You shift into reverse (R) before the
system is active.

186

Brakes

PRINCIPLE OF OPERATION

The traction control system helps avoid
drive wheel spin and loss of traction.

If your vehicle begins to slide, the system
applies the brakes to individual wheels
and, when needed, reduces engine power
at the same time. If the wheels spin when
accelerating on slippery or loose surfaces,
the system reduces engine power in order
to increase traction.

USING TRACTION CONTROL

WARNING:

Operating your vehicle

with the traction control disabled could
lead to an increased risk of loss of vehicle
control, vehicle rollover, personal injury
and death.

The system automatically turns on each
time you switch the ignition on.

If your vehicle is stuck in mud or snow,
switching traction control off may be
beneficial as this allows the wheels to spin.

Note:

When you switch traction control off,

stability control remains fully active.

Switching the System Off

When you switch the system off or on, a
message appears in the information
display showing system status.

You can switch the system off by either
using the information display controls or
the switch.

Using the Information Display
Controls

You can switch this feature off or on in the
information display. See

General

Information

(page 102).

Using a Switch

(If Equipped)

Using the traction control switch on the
center console to turn this feature off or
on.

System Indicator Lights and
Messages

E138639

The stability and traction control
light:

•

Temporarily illuminates on engine
start-up.

•

Flashes when a driving condition
activates either of the systems.

•

Illuminates if a problem occurs in either
of the systems.

E130458

The stability and traction control
off light temporarily illuminates
on engine start-up and stays on

when you switch the traction control
system off.

187

Traction Control

PRINCIPLE OF OPERATION

WARNING:

Vehicle modifications

involving braking system, aftermarket
roof racks, suspension, steering system,
tire construction and wheel and tire size
may change the handling characteristics
of your vehicle and may adversely affect
the performance of the electronic
stability control system. In addition,
installing any stereo loudspeakers may
interfere with and adversely affect the
electronic stability control system. Install
any aftermarket stereo loudspeaker as
far as possible from the front center
console, the tunnel, and the front seats
in order to minimize the risk of interfering
with the electronic stability control
sensors. Reducing the effectiveness of
the electronic stability control system
could lead to an increased risk of loss of
vehicle control, vehicle rollover, personal
injury and death.

WARNING:

Remember that even

advanced technology cannot defy the
laws of physics. It’s always possible to
lose control of a vehicle due to
inappropriate driver input for the
conditions. Aggressive driving on any
road condition can cause you to lose
control of your vehicle increasing the risk
of personal injury or property damage.
Activation of the electronic stability
control system is an indication that at
least some of the tires have exceeded
their ability to grip the road; this could
reduce the operator’s ability to control
the vehicle potentially resulting in a loss
of vehicle control, vehicle rollover,
personal injury and death. If your
electronic stability control system
activates, SLOW DOWN.

The system automatically turns on each
time you switch the ignition on.

If a fault occurs in either the stability
control or the traction control system, you
may experience the following conditions:

•

The stability and traction control light
illuminates steadily.

•

The stability control and traction
control systems do not enhance your
vehicle's ability to maintain traction of
the wheels.

If a driving condition activates either the
stability control or the traction control
system you may experience the following
conditions:

•

The stability and traction control light
flashes.

•

Your vehicle slows down.

•

Reduced engine power.

•

A vibration in the brake pedal.

•

The brake pedal is stiffer than usual.

•

If the driving condition is severe and
your foot is not on the brake, the brake
pedal may move as the system applies
higher brake force.

The stability control system has several
features built into it to help you maintain
control of your vehicle:

Electronic Stability Control

The system enhances your vehicle’s ability
to prevent skids or lateral slides by
applying brakes to one or more of the
wheels individually and, if necessary,
reducing engine power.

Roll Stability Control

The system enhances your vehicle’s ability
to prevent rollovers by detecting your
vehicle’s roll motion and the rate at which
it changes by applying the brakes to one
or more wheels individually.

188

Stability Control

Traction Control

The system enhances your vehicle’s ability
to maintain traction of the wheels by
detecting and controlling wheel spin. See

Using Traction Control

(page 187).

E72903

Vehicle without stability control
skidding off its intended route.

Vehicle with stability control
maintaining control on a slippery
surface.

USING STABILITY CONTROL

The system automatically turns on each
time you switch the ignition on.

You cannot switch the stability control and
roll stability control systems off, but when
you shift into reverse (R), the systems turn
off.

You can switch the traction control system
off or on. See

Using Traction Control

(page 187).

189

Stability Control

WHAT IS TRAIL CONTROL

WARNING:

The system does not

control speed in low traction conditions
or extremely steep slopes. The system
is designed to be an aid and does not
relieve you of your responsibility to drive
with due care and attention. Failure to
follow this instruction could result in
personal injury.

WARNING:

The system does not

replace the parking brake. When you
leave your vehicle, always apply the
parking brake and shift the transmission
into park (P) for automatic transmission
or first gear for manual transmission.

Trail control lets you focus on steering
during low-speed and off-road use by
controlling your vehicle's acceleration and
braking.

You can use trail control under the
following speeds:
•

20 mph (32 km/h) in four-wheel drive
or four-wheel drive lock.

•

5 mph (8 km/h) in reverse (R).

You may hear a noise from the anti-lock
brake system pump motor when you use
the system. This is normal.

SWITCHING TRAIL CONTROL
ON AND OFF

E318506

Press the button on the console.

The system switches off if you press the
button again or exceed 42 mph (68 km/h).

SETTING THE TRAIL CONTROL
SPEED

E318924

Note:

The buttons are on the steering

wheel.

Drive to your preferred speed.

Press the button to increase the
set current speed.

Press the button to decrease the
set current speed.

Note:

The indicator changes color.

You can adjust the set speed in small or
large increments. Press the toggle button
upward or downward once to adjust the
set speed in small increments. Press and
hold the toggle button upward or
downward to adjust the set speed in large
increments.

You can also adjust the set speed by
braking.

Note:

Pressing the brake pedal does not

switch off the system.

190

Trail Control

(If Equipped)

CANCELING THE SET SPEED

E350925

Press the button.

TRAIL CONTROL INDICATORS

E318506

TRAIL CONTROL – TROUBLESHOOTING

TRAIL CONTROL – INFORMATION MESSAGES

Action

Message

You need to reduce your vehicle speed to use trail

control.

Reduce Speed To Enter Trail

Control

You need to release the park brake to use trail control.

Trail Control Not Available with

Park Brake Applied

You need to switch off the trailer backup assist to use

trail control.

Trail Control Not Available

While Pro Trailer Backup

Assist™ Active

You successfully enabled trail control and can set a

speed with the

Set +

SET-

control.

Trail Control Enabled Use SET

Button to Set Speed

The system turns trail control off due to a system fault.

You must resume control.

Trail Control Off Driver Resume

Control

Displays when the system has turned off.

Trail Control Off

Displays when a system fault is present. See the trail

control section in your owner's manual.

Trail Control Fault See Manual

You need to select drive (D), neutral (N), or reverse

(R) to use trail control.

Trail Control To Activate Select

Gear

You need to switch cruise control off to use trail

control.

Trail Control Not Available with

Cruise Control Active

You need to close the driver door to use trail control.

Trail Control Not Available with

Driver Door Open

Due to some action from you, the system turned the

trail control propulsion system off. The vehicle will still

brake if descending a hill. You need to press trail

control to switch it back on.

Descent Control Now Active

Press Trail Control Switch To

Exit

191

Trail Control

(If Equipped)

PRINCIPLE OF OPERATION

WARNING:

To help avoid personal

injury, always use caution when in
reverse (R) and when using the sensing
system.

WARNING:

The system may not

detect objects with surfaces that absorb
reflection. Always drive with due care
and attention. Failure to take care may
result in a crash.

WARNING:

Traffic control systems,

fluorescent lamps, inclement weather,
air brakes, external motors and fans may
affect the correct operation of the
sensing system. This may cause reduced
performance or false alerts.

WARNING:

The system may not

detect small or moving objects,
particularly those close to the ground.

WARNING:

If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

WARNING:

The parking aid system

can only assist you to detect objects
when your vehicle is moving at parking
speeds. To help avoid personal injury you
must take care when using the parking
aid system.

WARNING:

In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance.

WARNING:

The system may not

function if the sensor is blocked.

Note:

If your vehicle has MyKey™, the

sensing system cannot be switched off
when a MyKey™ is present. See

Principle

of Operation

(page 63).

Note:

Do not clean the sensors with sharp

objects.

Note:

If your vehicle sustains damage to

the bumper or fascia and you leave it
misaligned or bent, the sensing zone could
be altered causing inaccurate measurement
of obstacles or false alerts.

Note:

Add-on devices such as large trailer

hitches, bike or surfboard racks, license plate
brackets, or bumper covers installed around
the bumper or facia can block the normal
detection zone of the system causing false
alerts. Remove the add-on devices to
prevent false alerts.

Note:

When you connect a trailer to your

vehicle, the rear parking aid could detect the
trailer and therefore provide an alert. Disable
the rear parking aid when you connect a
trailer to prevent the alert.

The sensing system warns you of obstacles
within a certain range of your vehicle. The
system turns on when you switch the
ignition on.

You can switch the system off through the
information display menu or from the
pop-up message that appears once you
shift the transmission into reverse (R). See

General Information

(page 102). If your

vehicle has a parking aid button, you can
switch the system off by pressing the
button. The system turns on when you
switch the ignition on.

If a fault is present in the system, a warning
message appears in the information
display. See

Information Messages

(page 107).

192

Parking Aids

REAR PARKING AID

(IF EQUIPPED)

WARNING:

The system may not

detect objects with surfaces that absorb
reflection. Always drive with due care
and attention. Failure to take care may
result in a crash.

WARNING:

The system may not

detect small or moving objects,
particularly those close to the ground.

WARNING:

To help avoid personal

injury, always use caution when in
reverse (R) and when using the sensing
system.

WARNING:

The parking aid system

can only assist you to detect objects
when your vehicle is moving at parking
speeds. To help avoid personal injury you
must take care when using the parking
aid system.

The sensors are on the rear bumper.

The sensors are active when the
transmission is in reverse (R) and the
vehicle speed is less than 5 mph (8 km/h).
When the parking aid system sounds a
tone, the audio system could reduce the
set volume.

Note:

Keep the sensors free from snow, ice

and large accumulations of dirt.

Note:

Do not cover up the sensors.

Note:

Do not clean the sensors with sharp

objects.

Note:

If your vehicle sustains damage

leaving the sensors misaligned, this could
cause inaccurate measurements or false
alerts.

Note:

Some accessories, for example, large

trailer hitches or bike or surfboard racks can
cause reduced performance or false alerts.

A warning tone sounds when your vehicle
approaches an object. As your vehicle
moves closer to an object, the rate of the
tone increases. The warning tone
continuously sounds when an object is 12 in
(30 cm) or less from the center of the rear
bumper.

Note:

There is a decreased coverage area

at the outer corners.

E130178

The sensor coverage area is up to 70 in
(180 cm) from the rear bumper.

If the system detects a fault, a warning
message appears in the information
display.

The system detects large objects when
you shift into reverse (R) and any of the
following occur:
•

Your vehicle is moving backward at low
speed.

•

Your vehicle is stationary but an object
is approaching the rear of your vehicle
at low speed.

•

Your vehicle is moving backward at low
speed and an object is moving toward
your vehicle, for example, another
vehicle at low speed.

193

Parking Aids

If your vehicle remains stationary for two
seconds the audible warning turns off. If
your vehicle moves backward the tone
sounds again.

Note:

If the detected object is 12 in (30 cm)

or less from the rear bumper, the audible
warning does not turn off.

Object Distance Indicator

(If Equipped)

E322352

The system provides object distance
indication through the information display.

•

As the distance to the object
decreases, the indicator blocks
illuminate and move toward the vehicle
icon.

•

If the system does not detect an object,
the distance indicator blocks are gray.

When you shift into reverse (R), the system
provides audible warnings and visual
indication when your vehicle is moving and
the detected object is moving toward your
vehicle. When you stop your vehicle, the
audible warnings stop after two seconds.
Visual indication remains on when the
transmission is in reverse (R).

FRONT PARKING AID

(IF EQUIPPED)

WARNING:

The system may not

detect objects with surfaces that absorb
reflection. Always drive with due care
and attention. Failure to take care may
result in a crash.

WARNING:

The system may not

detect small or moving objects,
particularly those close to the ground.

WARNING:

To help avoid personal

injury, always use caution when in
reverse (R) and when using the sensing
system.

WARNING:

The parking aid system

can only assist you to detect objects
when your vehicle is moving at parking
speeds. To help avoid personal injury you
must take care when using the parking
aid system.

Note:

Keep the sensors free from snow, ice

and large accumulations of dirt.

Note:

Do not cover up the sensors.

Note:

Do not clean the sensors with sharp

objects.

Note:

If your vehicle sustains damage

leaving the sensors misaligned, this may
cause inaccurate measurements or false
alerts.

Note:

Some accessories, for example large

trailer hitches or bike or surfboard racks can
cause reduced performance or false alerts.

The sensors are on the front bumper.

The sensors are active when the
transmission is in any position other than
park (P). When the parking aid system
sounds a tone, the audio system may
reduce the set volume.

194

Parking Aids

Note:

There is a decreased coverage area

at the outer corners.

The system turns off when the vehicle
speed reaches 5 mph (8 km/h).

E187330

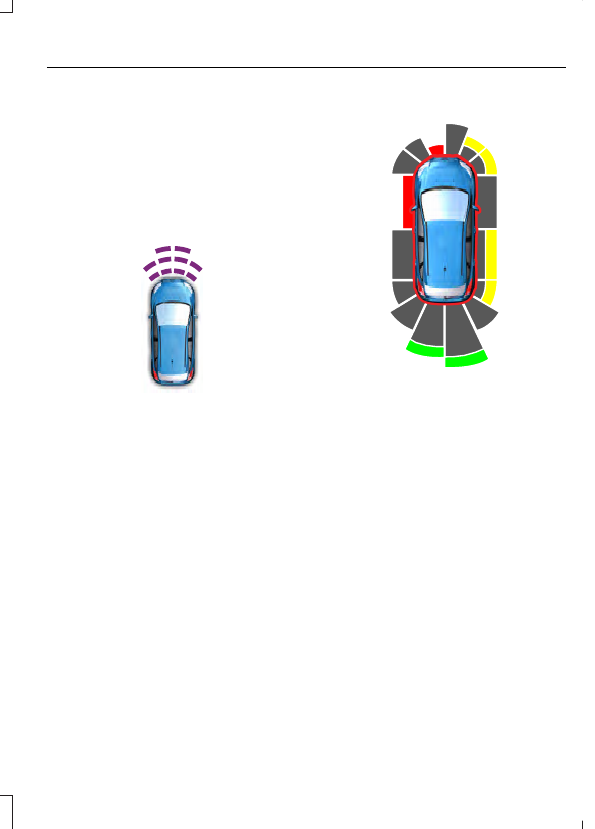

The sensor coverage area is up to 28 in
(70 cm) from the center of the bumper.

If the transmission is in reverse (R), the
system detects objects when your vehicle
is moving at low speed or an object is
moving toward your vehicle, for example
another vehicle at low speed. When you
stop your vehicle, the audible warning turns
off after two seconds.

If the transmission is in any forward gear,
the system provides audible warnings
when your vehicle is moving and an object
is within the detection area. When you stop
your vehicle, the audible warning turns off
after two seconds and the visual warning
turns off after four seconds.

If the system detects a fault, a warning
message appears in the information
display.

Object Distance Indicator

(If Equipped)

E190459

The system provides object distance
indication through the information display.

•

As the distance to the object
decreases, the indicator blocks
illuminate and move toward the vehicle
icon.

•

If there is no object detected, the
distance indicator blocks are gray.

When you shift into any forward gear, the
system provides audible warnings and
visual indication when your vehicle is
moving at a speed of approximately 5 mph
(8 km/h) or below and the system detects
an object within the detection zone. When
you stop your vehicle, the audible warnings
stop after two seconds and visual
indication stops after four seconds.

Note:

If the detected object is 12 in (30 cm)

or less from your vehicle, visual indication
remains on.

195

Parking Aids

When you shift into neutral (N), the system
only provides visual indication if your
vehicle is moving at a speed of
approximately 5 mph (8 km/h) or below,
for example, your vehicle is moving on a
slope, and the system detects an object
moving toward your vehicle. When you
stop your vehicle, visual indication stops
after four seconds.

REAR VIEW CAMERA

(IF EQUIPPED)

WARNING:

The rear view camera

system is a reverse aid supplement
device that still requires the driver to use
it in conjunction with the interior and
exterior mirrors for maximum coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Use caution when the

rear cargo door is ajar. If the rear cargo
door is ajar, the camera will be out of
position and the video image could be
incorrect. All guide lines disappear when
the rear cargo door is ajar. Failure to
follow this instruction could result in
personal injury.

WARNING:

Use caution when

turning camera features on or off when
the transmission is not in park (P). Make
sure your vehicle is not moving.

WARNING:

Reverse your vehicle

slowly. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

The rear view camera system provides a
video image of the area behind your
vehicle.

During operation, lines appear in the
display which represent your vehicle’s path
and proximity to objects behind your
vehicle.

E142435

The camera is on the liftgate.

Using the Rear View Camera
System

The rear view camera system displays
what is behind your vehicle when you place
the transmission in reverse (R).

Note:

The reverse sensing system is not

effective at speeds above 6 mph (10 km/h)
and may not detect certain angular or
moving objects.

The system uses three types of guides to
help you see what is behind your vehicle:
•

Active guidelines: Show the intended
path of your vehicle when reversing.

•

Fixed guidelines: Show the actual path
your vehicle is moving in while reversing
in a straight line. This can be helpful
when backing into a parking space or
aligning your vehicle with another
object behind you.

•

Centerline: Helps align the center of
your vehicle with an object, for
example, a trailer.

196

Parking Aids

Note:

If the transmission is in reverse (R)

and the luggage compartment door or
liftgate is open, no rear view camera
features will display.

Note:

When towing, the camera only sees

what you are towing. This might not provide
adequate coverage as it usually provides in
normal operation and some objects might
not be seen. In some vehicles, the guidelines
may disappear when you connect the trailer
tow connector.

The camera may not operate correctly
under the following conditions:
•

Nighttime or dark areas if one or both
reverse lamps are not operating.

•

Mud, water or debris obstructs the
camera's view. Clean the lens with a
soft, lint-free cloth and non-abrasive
cleaner.

•

The rear of your vehicle is hit or
damaged, causing the camera to
become misaligned.

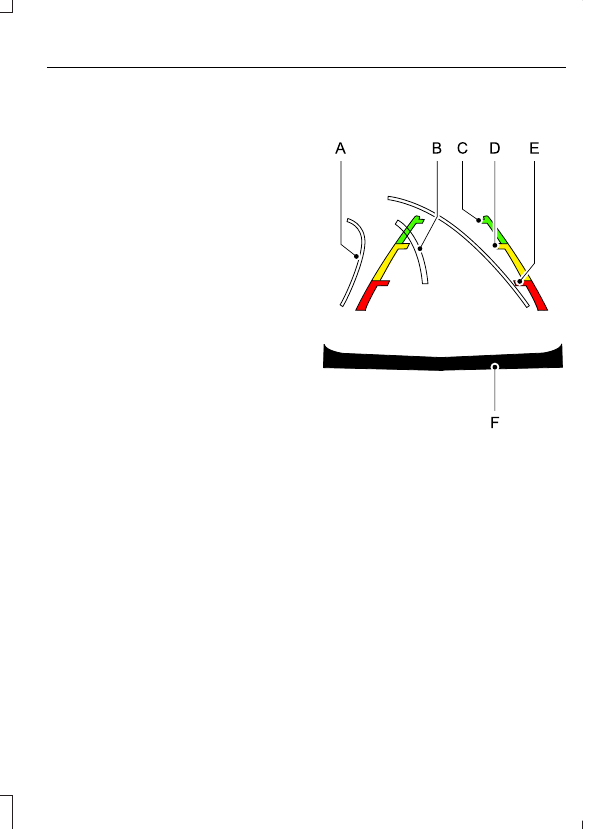

Camera Guidelines

E306774

Active guidelines.

Centerline.

Fixed guideline: Green zone.

Fixed guideline: Yellow zone.

Fixed guideline: Red zone.

Rear bumper.

Active guidelines are only shown with fixed
guidelines. To use active guidelines, turn
the steering wheel to point the guidelines
toward an intended path. If you change
the steering wheel position while reversing,
your vehicle might deviate from the original
intended path.

197

Parking Aids

The fixed and active guidelines fade in and
out depending on the steering wheel
position. The active guidelines do not
display when the steering wheel position
is straight.

Always use caution while reversing.
Objects in the red zone are closest to your
vehicle and objects in the green zone are
farther away. Objects are getting closer to
your vehicle as they move from the green
zone to the yellow or red zones. Use the
side view mirrors and rear view mirror to
get better coverage on both sides and rear
of your vehicle.

Note:

Active guidelines are only available

when the transmission is in reverse (R).

Note:

Upon a battery disconnect, the active

guidelines may not be functional until your
vehicle has been driven a short distance and
exceeds a speed of 12 mph (20 km/h).

Manual Zoom

WARNING:

When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

Selectable settings for this feature are
zoom in (+) and zoom out (-). Press the
symbol in the camera screen to change the
view. The default setting is with the zoom
off.

This allows you to get a closer view of an
object behind your vehicle. The zoomed
image keeps the bumper in the image to
provide a reference. The zoom is only
active while the transmission is in reverse
(R).

Note:

Manual zoom is only available when

the transmission is in reverse (R).

Note:

When you enable manual zoom, only

the centerline is shown.

Camera System Settings

The rear view camera system settings can
be accessed through the display screen.
See

General Information

(page 102).

Obstacle Distance Indicator

E322352

The system uses red, yellow and green
highlights that appear on top of the video
image when any of the sensing systems
detect an object.

Rear Camera Delay

Selectable settings for this feature are on
and off.

The default setting for the rear camera
delay is off.

198

Parking Aids

When shifting the transmission out of
reverse (R) and into any gear other than
park (P) while the delay mode is on, the
camera image remains in the display until:
•

Your vehicle speed sufficiently
increases.

•

You shift your vehicle into park (P) on
vehicles with automatic transmission.

•

You enable the hand brake on vehicles
with manual transmission.

180 DEGREE CAMERA

(IF EQUIPPED)

WARNING:

The front camera

system still requires the driver to use it
in conjunction with looking out of your
vehicle.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Use caution when

turning camera features on or off when
the transmission is not in park (P). Make
sure your vehicle is not moving.

E321541

The front view camera is in the grille. The
camera provides a video image of the area
in front of your vehicle.

Note:

The area displayed on the screen can

vary according to your vehicle's orientation
or road condition.

Note:

The front view camera switches off

if your vehicle speed exceeds 6 mph
(10 km/h). Switch the system back on by
using the camera system button once below
the speed threshold.

Note:

The front camera system switches

on when you are in mud/ruts, rock crawl or
sand mode.

Using the System

The 180 degree camera system consists
of front and rear cameras. The system:
•

Allows you to see what is directly in
front or behind your vehicle.

•

Provides cross traffic view in front and
behind your vehicle.

•

Provides visibility during parking
maneuvers.

E321477

The camera system button is on the audio
unit and allows you to enable and disable
the front camera.

199

Parking Aids

Note:

The camera system may not operate

correctly if mud, water or debris obstructs
the camera's view. You can clean the lens
with a soft, lint-free cloth and non-abrasive
cleaner or by using your front or rear washer.
See

Wipers and Washers

(page 80).

Camera Views

Press the camera icon on the touchscreen
to toggle between different views.
•

Normal Rear View:

Provides an image

of what is directly behind your vehicle
when your vehicle is in reverse (R).

•

Expanded Rear View:

Provides an

expanded 180 degree image of what
is directly behind your vehicle when
your vehicle is in reverse (R).

•

Normal Front View:

Provides an

image of what is directly in front your
vehicle when your vehicle is in park (P),
neutral (N) or drive (D).

•

Expanded Front View:

Provides an

expanded 180 degree image of what
is directly in front your vehicle when
your vehicle is in park (P), neutral (N)
or drive (D).

200

Parking Aids

Ford Bronco Sport (2022 year). Manual in english - page 12
