WHAT IS AUTOMATIC HIGH
BEAM CONTROL

The system turns on high beams if it is dark
enough and no other traffic is present. If it
detects an approaching vehicle’s
headlamps or tail lamps, or street lighting
ahead, the system turns the high beams
off. Low beams remain on.

A camera sensor, centrally mounted
behind the windshield of your vehicle,
continuously monitors conditions to turn
the high beams on and off.

SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF

Switch the system on or off using the
information display. See

General

Information

(page 65).

Activating the Automatic High
Beam Control

Switch the lighting control to the
autolamps position to activate.
See

Autolamps

(page 53).

Note:

Automatic high beams are not

available when you do not turn on
autolamps.

When active, the high beams turn on if all
of the following occur:
•

The ambient light level is low enough.

•

There is no traffic in front of your
vehicle.

•

The vehicle speed is greater than
approximately 32 mph (52 km/h).

When active, the high beams turn off if any
of the following occur:
•

The ambient light level is high enough
that it does not require high beams.

•

The system detects an approaching
vehicle's headlamps or tail lamps.

•

The system detects severe rain, snow
or fog.

•

The camera is blocked.

•

The vehicle speed falls below
approximately 27 mph (44 km/h).

Note:

The deactivation speed is lower on

curves.

Note:

There could be a delay in high beam

reactivation in certain curvy road situations.

Note:

If you have a blocked sensor, the

system may not operate properly. Keep the
windshield free from obstruction or damage.

Note:

The system may not operate properly

in cold or inclement conditions. You can
switch on the high beams by overriding the
system.

Note:

If the system detects a blockage, for

example bird droppings, bug splatter, snow
or ice, the system goes into low beam mode
until you clear the blockage. If you have a
blocked camera, a message may appear in
the information display.

Note:

Using much larger tires or equipping

vehicle accessories such as snowplows can
modify your vehicle's ride height and
degrade automatic high beam control
performance.

AUTOMATIC HIGH BEAM
CONTROL INDICATORS

The indicator illuminates to
confirm when the system is
ready to assist.

Automatic High Beam Control

(If Equipped)

OVERRIDING AUTOMATIC
HIGH BEAM CONTROL

WARNING:

The system does not

relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the high beams on or off.

WARNING:

You may need to

override the system when approaching
other road users.

WARNING:

You may need to

override the system during inclement
weather.

E308790

Push the lever away from you to switch
between high beam and low beam.

Automatic High Beam Control

(If Equipped)

POWER WINDOWS

(IF EQUIPPED)

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the power windows.
They may seriously injure themselves.

WARNING:

When closing the

power windows, you should verify they
are free of obstructions and make sure
that children and pets are not in the
proximity of the window openings.

E163056

Note:

You may hear a pulsing noise when

just one of the windows is open. Lower the
opposite window slightly to reduce this
noise.

Press the switch to open the window.

Lift the switch to close the window.

One-Touch Down

Press the switch fully and release it. Press
again or lift it to stop the window.

Accessory Delay

You can use the window switches for
several minutes when you switch the
ignition off or until you open either front
door.

EXTERIOR MIRRORS

(IF EQUIPPED)

Power Exterior Mirrors

(If Equipped)

WARNING:

Do not adjust the

mirrors when your vehicle is moving.

E163059

Left mirror.

Off.

Right mirror.

To adjust your mirrors:

Select the mirror you want to adjust.

2. Move the control in the direction you

want to tilt the mirror.

3. Return the control to the center

position to lock the mirrors in place.

Fold-Away Exterior Mirrors

Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning it to its
original position.

Windows and Mirrors

Telescoping Mirrors

(If Equipped)

E163061

This feature lets you extend the mirror
about 3 in (75 mm). It is useful when
towing a trailer. You can manually pull out
or push in the mirrors to the desired
position.

INTERIOR MIRROR

(IF EQUIPPED)

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products.

You can adjust the interior mirror to your
preference. Some mirrors also have a
second pivot point. This lets you move the
mirror head up or down and from side to
side.

Manual Dimming Mirror

Pull the tab below the mirror toward you
to reduce the effect of bright light from
behind.

Windows and Mirrors

GAUGES

2.3 Inch Display

E219638

Engine oil pressure gauge.

Engine coolant temperature gauge.

Fuel gauge.

Transmission fluid temperature gauge.

Speedometer.

Information display.

Tachometer.

Instrument Cluster

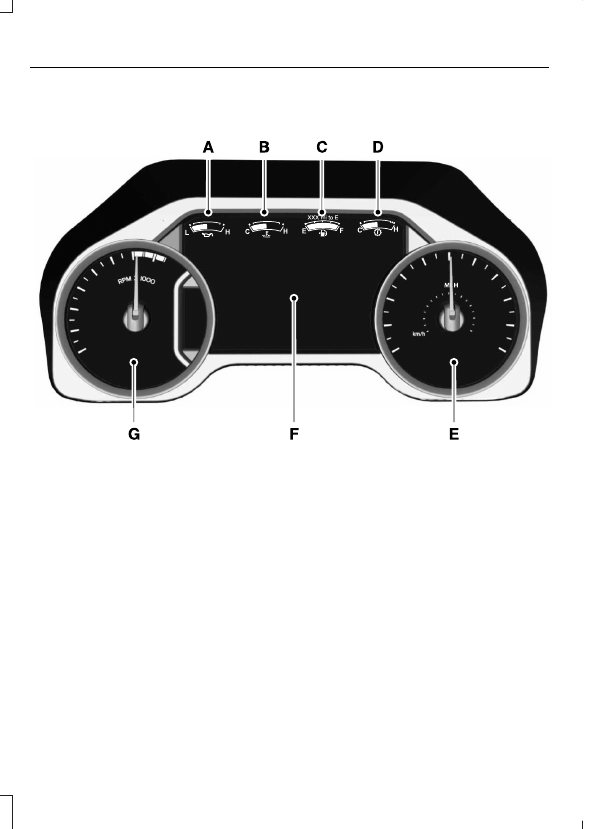

8 Inch Display

E299699

Engine oil pressure gauge.

Engine coolant temperature gauge.

Fuel gauge.

Transmission fluid temperature gauge.

Speedometer.

Information display.

Tachometer.

Instrument Cluster

Engine Oil Pressure Gauge

Indicates engine oil pressure. At normal
operating temperature, the level indicator
is in the normal range. If the pressure gauge
falls below the normal range, stop your
vehicle, switch off the engine and check
the engine oil level. Add oil if needed. If the
oil level is correct, have your vehicle
checked by an authorized dealer.

Engine Coolant Temperature
Gauge

WARNING:

Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury.

Indicates engine coolant temperature. At
normal operating temperature, the level
indicator is in the normal range. If the
engine coolant temperature exceeds the
normal range, stop your vehicle as soon as
possible, switch off the engine and let the
engine cool.

Fuel Gauge

The fuel gauge indicates about how much
fuel is in the fuel tank.

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

Note:

The fuel gauge may vary slightly

when your vehicle is moving or on a slope.

Low Fuel Reminder

A low fuel level reminder displays and
sounds when the distance to empty
reaches 50 mi (80 km), 25 mi (40 km),
10 mi (20 km) and 0 mi (0 km) for all
vehicle keys.

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

Distance to Empty

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but
also increase or stay constant for periods
of time.

Transmission Fluid Temperature
Gauge

Indicates transmission fluid temperature.
At normal operating temperature, the level
indicator is in the normal range. If the
transmission fluid temperature exceeds
the normal range, stop your vehicle as soon
as possible and verify the airflow is not
restricted by snow or debris blocking
airflow through the grille.

Special operating conditions such as
snowplowing, towing, or off-road use may
cause higher than normal operating
temperatures. See

Special Operating

Conditions Scheduled Maintenance

(page 256).

To lower the transmission temperature
into the normal range, alter the severity of
your driving conditions. Operating the
transmission for extended periods with the
gauge in the higher than normal area may
cause internal transmission damage. If the
gauge continues to show high
temperatures, see an authorized dealer.

Instrument Cluster

WARNING LAMPS AND
INDICATORS

The following warning lamps and
indicators alert you to a vehicle condition
that may become serious. Some lamps
illuminate when you start your vehicle to
make sure they work. If any lamps remain
on after starting your vehicle, refer to the
respective system warning lamp for further
information.

Note:

Some warning indicators appear in

the information display and operate the
same as a warning lamp but do not
illuminate when you start your vehicle.

Airbag Warning Lamp

E67017

If it does not illuminate when you
switch the ignition on, continues
to flash or remains on when the

engine is running, this indicates a
malfunction. Have your vehicle checked
as soon as possible.

Anti-Lock Brake System Warning
Lamp

If it illuminates when you are
driving, this indicates a
malfunction. Your vehicle

continues to have normal braking without
the anti-lock brake system function. Have
your vehicle checked as soon as possible.

Battery

If it illuminates while driving, it
indicates a malfunction. Switch
off all unnecessary electrical

equipment and have an authorized dealer
check the system immediately.

Brake System Warning Lamp

WARNING:

Driving your vehicle

with the warning lamp on is dangerous.
A significant decrease in braking
performance may occur. It may take you
longer to stop your vehicle. Have your
vehicle checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.

Note:

Indicators vary depending on region.

This lamp is a dual function lamp and will
illuminate when:

•

You apply the parking brake with the
ignition on.

•

Your vehicle has a brake fault or low
brake fluid level, regardless of parking
brake position.

E270480

If the lamp illuminates while you
are moving, you may have the
parking brake applied. Be sure
that the parking brake is off.
Have your vehicle checked as
soon as possible if the lamp

continues to illuminate.

Cruise Control Indicator

(If Equipped)

E71340

It illuminates when you switch
the system on.

See

What Is Cruise Control

(page 109).

Direction Indicator

Illuminates when you switch on
the left or right direction
indicator or the hazard warning

flasher. If the indicators stay on or flash
faster, check for a burned out bulb.

Instrument Cluster

Engine Coolant Temperature
Warning Lamp

If it illuminates when your vehicle
is moving, this indicates that the
engine is overheating. Stop your

vehicle as soon as it is safe to do so and
switch the engine off. Have your vehicle
checked as soon as possible.

Engine Oil

It illuminates when you switch
the ignition on.

If it illuminates when the engine

is running this indicates a malfunction.
Stop your vehicle as soon as it is safe to
do so and switch the engine off. Check the
engine oil level. If the oil level is sufficient,
this indicates a system malfunction. Have
your vehicle checked as soon as possible.

See

Engine Oil Check

(page 167).

Fasten Seatbelt Warning Lamp

E71880

It illuminates and a tone sounds
until you fasten the seatbelts.

Headlamp High Beam Indicator

It illuminates when you switch
the headlamp high beam on.

Low Fuel Level Warning Lamp

If it illuminates when you are
driving, refuel as soon as
possible.

Low Tire Pressure Warning Lamp

(If Equipped)

It illuminates if the tire pressure
in one or more tires is below the
correct tire pressure.

It also illuminates momentarily when you
switch the ignition on to confirm the lamp
is functional. If it does not illuminate when
you switch the ignition on, or begins to
flash at any time, have the system checked
by your authorized dealer.

Powertrain
Malfunction/Electronic Throttle
Control

Illuminates when the system
detects a powertrain fault, have
an authorized dealer check the

system as soon as possible.

Service Engine Soon

If it illuminates when the engine
is running this indicates a
malfunction. The On Board

Diagnostics system has detected a
malfunction of the vehicle emission control
system.

If it flashes, engine misfire may be
occurring. Increased exhaust gas
temperatures could damage the catalytic
converter or other vehicle components.
Avoid heavy acceleration and deceleration
and have your vehicle serviced
immediately.

It illuminates when you switch the ignition
on prior to engine start to check the bulb
and to indicate whether your vehicle is
ready for Inspection and Maintenance
(I/M) testing.

Normally, it illuminates until the engine is
cranked and automatically turns off if no
malfunctions are present. However, if after
15 seconds it flashes eight times, this
indicates that your vehicle is not ready for
Inspection and Maintenance (I/M) testing.
See

Emission Law

(page 92).

Instrument Cluster

Traction Control Indicator

E138639

It flashes during a traction
control event.

If it does not illuminate when you switch
the ignition on, or remains on when the
engine is running, this indicates a
malfunction. Have your vehicle checked
as soon as possible.

Traction Control System Off

E130458

It will illuminate when the driver
disables traction control.

Tow Haul Indicator

E246592

Illuminates when the driver
activates the tow/haul feature.
If the light flashes steadily, have

an authorized dealer check the system
immediately, damage to the transmission
could occur.

AUDIBLE WARNINGS AND
INDICATORS

Headlamps On Warning Chime

Sounds when you remove the key from the
ignition and open the driver's door and you
have left the headlamps or parking lamps
on.

Key in Ignition Warning Chime

Sounds when you open the driver's door
and you have left the key in the ignition.

Parking Brake On Warning Chime

Sounds when you have left the parking
brake on and drive your vehicle. If the
warning chime remains on after you have
released the parking brake, have the
system checked by your authorized dealer
immediately.

Instrument Cluster

GENERAL INFORMATION

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

Note:

Trailer options are not available if

your vehicle speed is greater than 3 mph
(5 km/h).

Information Display Controls

E184451

•

Press the up and down arrow buttons
to scroll through and highlight the
options within a menu.

•

Press the right arrow button to enter a
sub-menu.

•

Press the left arrow button to exit a
menu.

•

Press the

button to choose and

confirm settings or messages.

E204495

This icon shows the features on
or off status. A check in the box
indicates the feature is on, and

unchecked indicates the feature is off.

2.3 Inch Display Menu

Note:

Some options could appear slightly

different or not at all if the items are
optional.

Main Menu

Trip 1

Trip 2

Fuel Economy

Driver Assist

Settings

Information Displays

Trip 1 or 2

Displays the following of an individual
journey.

•

Digital speed.

•

Distance.

•

Time.

•

Distance to empty.

•

Average fuel economy.

Note:

Hold

to reset fuel history and

average fuel economy.

Fuel Economy

Displays the following:

•

Instant fuel economy.

•

Average fuel economy.

•

Average speed.

•

Distance to empty.

Note:

Hold

to reset fuel history and

average fuel economy.

Driver Assist

Displays the following:

•

Progressive range select.

•

Engine hours.

•

Maintenance monitor.

Settings

Select Your Setting

Lighting

Vehicle

Locks

FordPass

Windows

Wiper Controls

Select Your Setting

Units

Displ. Settings

Temperature

Language

8 Inch Display Menu

Note:

Some options could appear slightly

different or not at all if the items are
optional.

Information Displays

Main Menu

MyView

Trip/Fuel

Vehicle Info

Settings

MyView

Trip 1

Fuel Economy

For more options, press the

button.

Configure MyView

Trip/Fuel

Trip 1

Trip 2

Fuel Economy

Fuel History

Trip 1 or 2

Displays the following of an individual
journey.

•

Trip timer.

•

Distance to empty.

•

Trip odometer.

•

Average fuel economy.

Note:

Hold

to reset fuel history and

average fuel economy.

Fuel Economy

Displays your instantaneous fuel usage as
a bar graph and average mpg.

Fuel History

Displays your fuel usage based on time.
The graph is updated each minute with the
fuel economy that you achieved during 30
minutes of driving.

Information Displays

Vehicle Info

Gauge View

Digital Speedometer

Engine Information

Maintenance Monitor

Transmission Temp

•

Engine Information - Shows engine hours, engine idle hours and engine oil temp and
oil life.

Settings

Turn On or Off

Driver Alert

Select Your Setting

Pre-Collision

Select Your Setting

Cruise
Control

Select Your Setting

Gauge Selec-
tion

Select Your Setting

Lighting

Vehicle

Advanced
Settings

Locks

FordPass

Windows

Wiper Controls

Select Your Setting

Units

Displ.
Settings

Temperature

Tire Pressure

Language

Information Displays

INFORMATION MESSAGES

Note:

Depending on the vehicle options

equipped with your vehicle, not all of the
messages will display or be available.
Certain messages may be abbreviated or
shortened depending upon which cluster
type you have.

Battery and Charging System

Action

Message

The charging system needs servicing. If the warning stays on

or continues to come on, contact an authorized dealer as soon

as possible.

Check Charging System

The battery management system detects an extended low-

voltage condition. Your vehicle will disable various features

to help preserve the battery. Turn off as many of the electrical

loads as soon as possible to improve system voltage. If the

system voltage has recovered, the disabled features will

operate again as normal.

Low Battery Features

Temporarily Turned Off

The battery management system determines that the battery

is at a low state of charge. Turn your ignition off as soon as

possible to protect the battery. This message will clear once

you restart your vehicle and the battery state of charge has

recovered. Turning off unnecessary electrical loads will allow

faster battery state-of-charge recovery.

Turn Power Off To Save

Battery

Doors and Locks

Action

Message

The driver door is not completely closed.

Driver Door Ajar

The passenger door is not completely closed.

Passenger Door Ajar

Driver Alert

Action

Message

Stop and rest as soon as it is safe to do so.

Driver Alert Warning Rest Now

Take a rest soon.

Driver Alert Warning Rest Suggested

Information Displays

Engine

Action

Message

The engine has reduced power to help reduce high

engine temperature.

Power Reduced to Lower Engine

Temp

Fuel

Action

Message

An early reminder of a low fuel condition.

Fuel Level Low

The fuel fill inlet may not be properly closed.

Check Fuel Fill Inlet

Lane Departure Warning System

Action

Message

The system detects a condition that causes

the system to be temporarily unavailable.

Front Camera Temporarily Not Available

The system detects a condition that

requires you to clean the windshield in order

for it to operate properly.

Front Camera Low Visibility Clean Screen

Have the system checked as soon as

possible.

Front Camera Malfunction Service Required

The system requests you to keep your

hands on the steering wheel.

Keep Hands on Steering Wheel

Maintenance

Action

Message

Stop your vehicle as soon as safely possible and turn off the

engine. Check the oil level. If the warning stays on or continues

to come on with your engine running, contact an authorized

dealer as soon as possible.

Low Engine Oil Pressure

The engine oil life remaining is 10% or less.

Change Engine Oil Soon

The oil life left is at 0%.

Oil Change Required

Information Displays

Content .. 2 3 4 5 ..
