ENGINE SPECIFICATIONS - 2.0L ECOBOOST™

Specification

Engine

10:1

Compression ratio.

122.0 in³ (1,999 cm³)

Displacement.

1-3-4-2

Firing order.

Coil on plug

Ignition system.

0.028–0.031 in (0.7–0.8 mm)

Spark plug gap.

388

Capacities and Specifications

ENGINE SPECIFICATIONS - 2.5L, HYBRID ELECTRIC VEHICLE

(HEV)/PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)

Specification

Engine

13.0:1

Compression ratio.

152 in³ (2,490 cm³)

Displacement.

1-3-4-2

Firing order.

Coil on plug

Ignition system.

0.049–0.053 in (1.25–1.35 mm)

Spark plug gap.

389

Capacities and Specifications

MOTORCRAFT PARTS - 1.5L ECOBOOST™

Motorcraft Part Number

Component

FA-1939

Air filter element.

BAGM-48H6-760

Battery.

FP-89

Cabin air filter.

FL-910-S

Engine oil filter.

SP-550

Spark plug.

WW-2502 (driver side)

Windshield wiper blade.

WW-2051 (passenger side)

WW-1112 (rear window)

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

We recommend Motorcraft parts that are
available at your authorized dealer or at
www.fordparts.com. We engineer these
parts for your vehicle to meet or exceed
our specifications. Use of other parts could
impact vehicle performance, emissions
and durability. Your warranty could be void
for any damage related to use of other
parts.

MOTORCRAFT PARTS - 2.0L ECOBOOST™

Motorcraft Part Number

Component

FA-1939

Air filter element.

BAGM-48H6-760

Battery.

FP-89

Cabin air filter.

FL-910-S

Engine oil filter.

SP-578

Spark plug.

WW-2502 (driver side)

Windshield wiper blade.

WW-2051 (passenger side)

390

Capacities and Specifications

Motorcraft Part Number

Component

WW-1112 (rear window)

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

MOTORCRAFT PARTS - 2.5L, HYBRID ELECTRIC VEHICLE (HEV)/

PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)

Motorcraft Part Number

Component

FA-1948

Air filter element.

FL-910-S

Oil filter.

BXT-99RT4-A

Battery.

SP-530

Spark plug.

FP-89

Cabin air filter.

WW-2502 (driver side)

Windshield wiper blade.

WW-2051 (passenger side)

WW-1112 (rear window)

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specifications SAE/USCAR-36.

We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.

391

Capacities and Specifications

ENGINE OIL CAPACITY AND

SPECIFICATION - 1.5L

ECOBOOST™

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:

•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

5.3 qt (5.05 L)

All.

Materials

Specification

Name

WSS-M2C960-A1

Motorcraft® SAE 5W-20 Synthetic Blend Motor
Oil(U.S.)
Motorcraft® SAE 5W-20 Super Premium Motor Oil
/ Huile moteur de très haute qualité SAE 5W-20
Motorcraft®(Canada)
XO-5W20-Q1SP(U.S.)
CXO-5W20-LSP6(Canada)

392

Capacities and Specifications

Alternative Engine Oil for

Extremely Cold Climates

To improve engine cold start performance,

we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C962-A1

Motorcraft® SAE 0W-20 Full Synthetic Motor
Oil(U.S.)
(Canada)
XO-0W20-QFS(U.S.)

E240522

ENGINE OIL CAPACITY AND

SPECIFICATION - 2.0L

ECOBOOST™

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:

•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

393

Capacities and Specifications

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

5.5 qt (5.2 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Synthetic Blend Motor
Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil
/ Huile moteur de très haute qualité SAE 5W-30
Motorcraft®(Canada)
XO-5W30-Q1SP(U.S.)
CXO-5W30-LSP6(Canada)

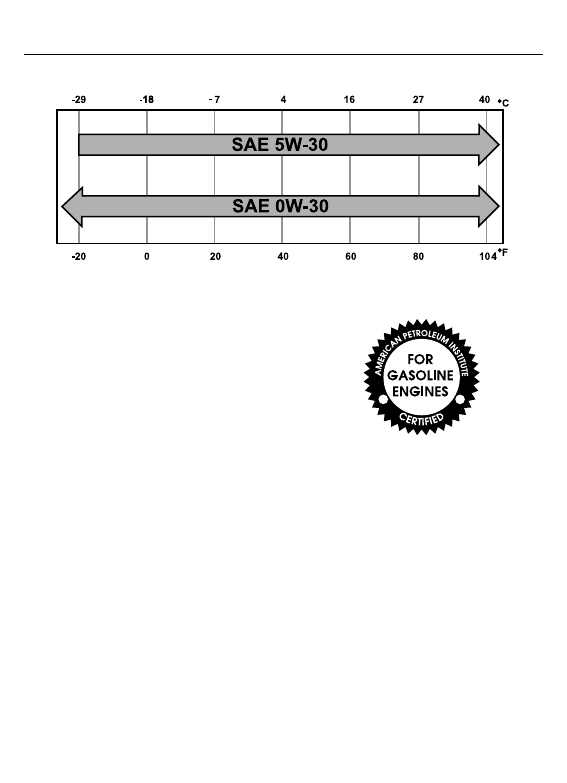

Alternative Engine Oil for

Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

394

Capacities and Specifications

E240523

ENGINE OIL CAPACITY AND

SPECIFICATION - 2.5L, HYBRID

ELECTRIC VEHICLE (HEV)/

PLUG-IN HYBRID ELECTRIC

VEHICLE (PHEV)

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:

•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

395

Capacities and Specifications

Capacities

Including the Oil Filter

Variant

5.7 qt (5.4 L)

All.

Materials

Specification

Name

WSS-M2C962-A1

Motorcraft® SAE 0W-20 Full Synthetic Motor
Oil(U.S.)
(Canada)
XO-0W20-QFS(U.S.)

COOLING SYSTEM CAPACITY

AND SPECIFICATION - 1.5L

ECOBOOST™

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:

•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

7.6 qt (7.2 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

396

Capacities and Specifications

COOLING SYSTEM CAPACITY

AND SPECIFICATION - 2.0L

ECOBOOST™

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:

•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

8.7 qt (8.2 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

COOLING SYSTEM CAPACITY

AND SPECIFICATION - 2.5L,

HYBRID ELECTRIC VEHICLE

(HEV)/PLUG-IN HYBRID

ELECTRIC VEHICLE (PHEV)

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:

•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

397

Capacities and Specifications

Capacities

Quantity

Variant

5.0 qt (4.7 L)

HEV-Low temperature cooling circuit.

9.6 qt (9.1 L)

HEV-High temperature cooling circuit.

6.6 qt (6.2 L)

PHEV-Low temperature cooling circuit.

10.1 qt (9.6 L)

PHEV-High temperature cooling circuit.

Materials

Specification

Name

WSS-M97B57-A2

FUEL TANK CAPACITY - EXCLUDING: HYBRID ELECTRIC VEHICLE

(HEV)/PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)

Capacities

Quantity

Variant

15.7 gal (59.5 L)

1.5L all-wheel drive.

14.8 gal (56.2 L)

1.5L front-wheel drive.

15.7 gal (59.5 L)

2.0L all-wheel drive.

15.7 gal (59.5 L)

2.0L front-wheel drive.

398

Capacities and Specifications

FUEL TANK CAPACITY - HYBRID ELECTRIC VEHICLE (HEV)/

PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)

Capacities

Quantity

Variant

14.3 gal (54.2 L)

HEV.

11.1 gal (42 L)

PHEV.

399

Capacities and Specifications

AIR CONDITIONING SYSTEM

CAPACITY AND

SPECIFICATION - 1.5L

ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:

•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

2.7 fl oz (80 ml)

17.6 oz (0.5 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

400

Capacities and Specifications

AIR CONDITIONING SYSTEM

CAPACITY AND

SPECIFICATION - 2.0L

ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:

•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

3.4 fl oz (100 ml)

19.4 oz (0.55 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

401

Capacities and Specifications

AIR CONDITIONING SYSTEM

CAPACITY AND

SPECIFICATION - 2.5L, HYBRID

ELECTRIC VEHICLE (HEV)/

PLUG-IN HYBRID ELECTRIC

VEHICLE (PHEV)

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified

personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:

•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

4.7 fl oz (140 ml)

18.5 oz (0.525 kg)

HEV.

4.7 fl oz (140 ml)

19.4 oz (0.55 kg)

PHEV.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C31-B2

Motorcraft® R-1234yf Refrigerant POE Oil(U.S.)
Motorcraft® R-1234yf Refrigerant POE Oil / Huile
POE pour frigorigène R-1234yf Motorcraft®(Canada)
YN-34(U.S. & Canada)

WASHER FLUID SPECIFICATION

Capacities

Quantity

Variant

Fill as required.

All.

402

Capacities and Specifications

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concen-
trate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer
Fluid / Liquide lave-glace de haute qualité Motor-
craft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)

BRAKE FLUID SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:

•

Component damage that your vehicle
warranty does not cover.

•

Reduced brake performance.

Note:

We recommend you use Dot 4 Low

Viscosity (LV) High Performance Brake Fluid
meeting WSS-M6C65-A2 specifications or
ISO 4925 Class 6 standards. If you use any
fluid other than the recommended fluid, it
could cause reduced brake performance
and not meet our performance standards.
Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and possible failure.

Capacities

Quantity

Variant

Fill as required.

All.

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid / Liquide de frein automobile
haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

403

Capacities and Specifications

Ford Escape (2022 year). Manual in english - page 24
