E167358

4. On the wall or screen, observe a light

pattern with a distinct horizontal edge
toward the right. If this edge is not at
the horizontal reference line, adjust the
beam so the edge is at the same height
as the horizontal reference line.

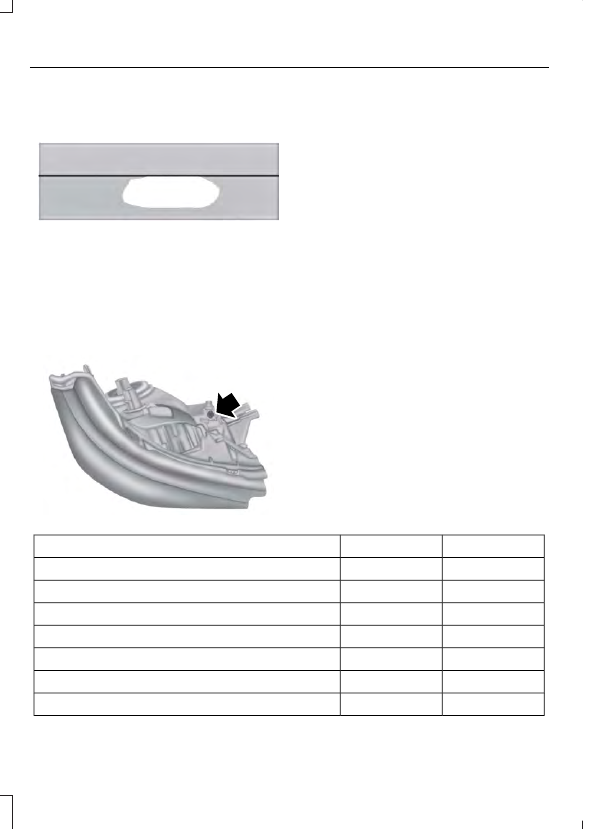

E163806

5. Locate the vertical adjuster on each

headlamp. Use a #2 Phillips
screwdriver to turn the adjuster either
counterclockwise or clockwise in order
to adjust the vertical aim of the
headlamp.

6. Repeat Steps 3 through 7 to adjust the

other headlamp.

Close the hood and turn off the lamps.

Horizontal Aim Adjustment

Horizontal aim is not required for this
vehicle and is not adjustable.

EXTERIOR BULBS

EXTERIOR BULB SPECIFICATION
CHART

Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized D.O.T. marking
for North America to make sure they have
the proper lamp performance, light
brightness, light pattern and safe visibility.
The correct bulbs will not damage the
lamp assembly or void the lamp assembly
warranty and will provide quality bulb
illumination time.

Power (Watt)

Specification

Lamp

LED

Front turn signal.

LED

Daytime running lamp.

LED

Headlamp low beam.

LED

Headlamp high beam.

LED

Front fog lamp.

LED

Front side marker lamp.

LED

Side turn signal.

408

Maintenance

Power (Watt)

Specification

Lamp

3057K

Rear lamp, stoplamp and rear turn signal (low
series).

LED

Rear lamp, stoplamp and rear turn signal (high
series).

LED

Central high mounted brake lamp.

3057K

Reversing lamp (low series).

LED

Reversing lamp (high series).

W5W

License plate lamp.

LED lamps are not serviceable. Contact an authorized dealer if they fail.

409

Maintenance

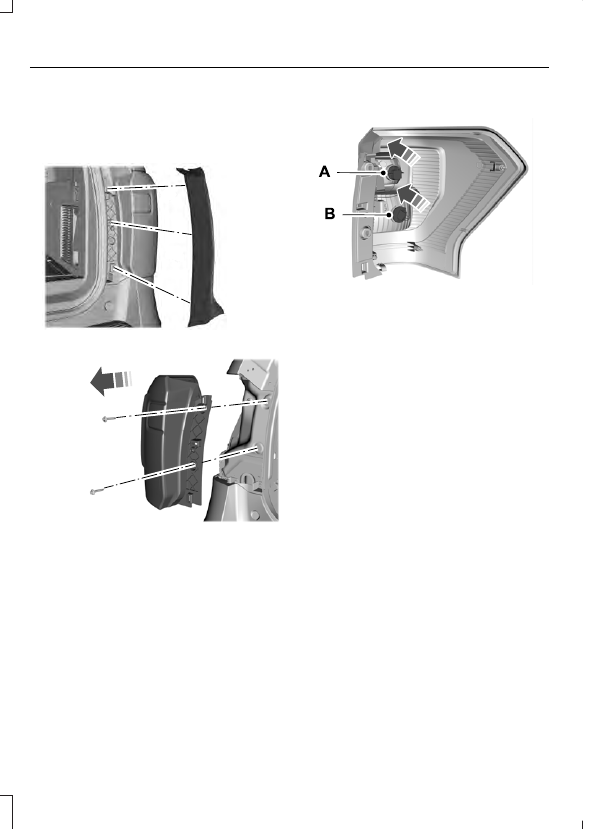

REMOVING A REAR LAMP
ASSEMBLY

Switch all of the lamps and the ignition
off.

E249669

2. Carefully remove the cover.

E248886

3. Remove the retaining bolts from the

lamp assembly.

4. Remove the lamp assembly.

5. To install, reverse the removal

procedure.

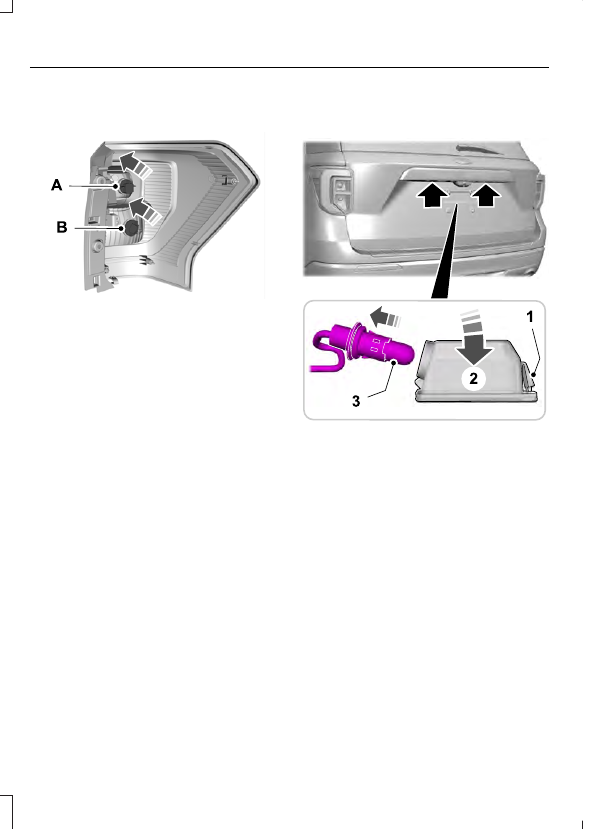

CHANGING A REAR LAMP BULB

E248889

Reversing lamp bulb.

Rear lamp, stoplamp and turn
signal bulb.

Remove the rear lamp assembly. See

Removing a Rear Lamp Assembly

(page 410).

2. Disconnect the electrical connector.

3. Turn the bulb holder counterclockwise

and remove it.

4. To install, reverse the removal

procedure.

410

Maintenance

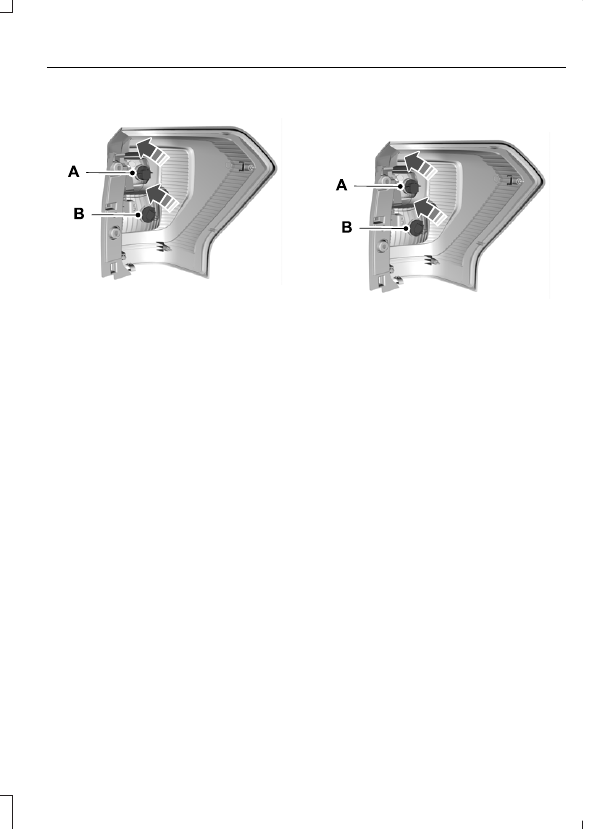

CHANGING A STOPLAMP BULB

E248889

Reversing lamp bulb.

Rear lamp, stoplamp and turn
signal bulb.

Remove the rear lamp assembly. See

Removing a Rear Lamp Assembly

(page 410).

2. Disconnect the electrical connector.

3. Turn the bulb holder counterclockwise

and remove it.

4. To install, reverse the removal

procedure.

CHANGING A REAR TURN SIGNAL
LAMP BULB

E248889

Reversing lamp bulb.

Rear lamp, stoplamp and turn
signal bulb.

Remove the rear lamp assembly. See

Removing a Rear Lamp Assembly

(page 410).

2. Disconnect the electrical connector.

3. Turn the bulb holder counterclockwise

and remove it.

4. To install, reverse the removal

procedure.

411

Maintenance

CHANGING A REVERSING LAMP
BULB

E248889

Reversing lamp bulb.

Rear lamp, stoplamp and turn
signal bulb.

Remove the rear lamp assembly. See

Removing a Rear Lamp Assembly

(page 410).

2. Disconnect the electrical connector.

3. Turn the bulb holder counterclockwise

and remove it.

4. To install, reverse the removal

procedure.

CHANGING A LICENSE PLATE
LAMP BULB

E292276

Use a suitable tool, for example a
screwdriver, to carefully remove the
lamp.

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

4. To install, reverse the removal

procedure.

INTERIOR BULBS

INTERIOR BULB SPECIFICATION
CHART

Your vehicle has LED lamps. These are not
serviceable items. See an authorized dealer
if they fail.

412

Maintenance

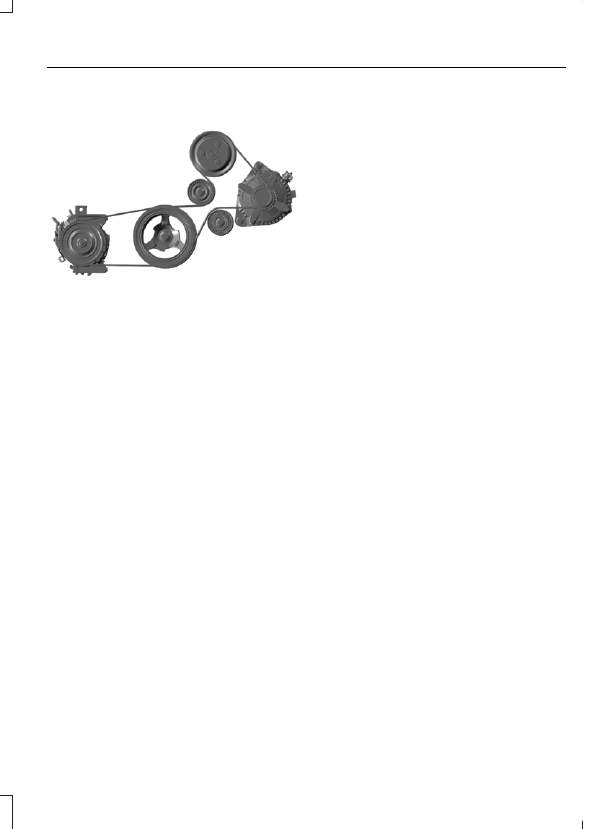

DRIVE BELT ROUTING

E347332

Note:

The long drive belt is on the inner

groove closest to the engine. The short drive
belt is on the outer groove farthest from the
engine.

413

Maintenance

CLEANING PRODUCTS

Materials

For best results, use the following products

or products of equivalent quality:

For additional information and assistance,
we recommend that you contact an
authorized dealer.

Specification

Name

Motorcraft® Bug and Tar Remover, ZC-42 (U.S. & Canada)

ESR-M5B194-B

Motorcraft® Custom Bright Metal Cleaner, ZC-15 (U.S. & Canada)

ESR-M14P4-A

Motorcraft® Detail Wash, ZC-3-A (U.S. & Canada)

ESR-M14P3-A

Motorcraft® Engine Shampoo and Degreaser, ZC-20 (U.S.)

Motorcraft® Engine Shampoo, CXC-66-A (Canada)

Motorcraft® Premium Leather and Vinyl Cleaner, ZC-56 (U.S. &
Canada)

Motorcraft® Multi-Purpose Cleaner, CXC-101 (Canada)

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concentrate with
Bitterant, ZC-32-B2 (U.S.)

WSS-M14P19-A

Motorcraft® Premium Quality Windshield Washer Fluid, CXC-37-
F/M (Canada)

Motorcraft® Professional Strength Carpet & Upholstery Cleaner,
ZC-54 (U.S. & Canada)

ESR-M14P5-A

Motorcraft® Premium Glass Cleaner, CXC-100 (Canada)

Motorcraft® Spot and Stain Remover, ZC-14 (U.S.)

ESR-M14P5-A

Motorcraft® Ultra-Clear Spray Glass Cleaner, ZC-23 (U.S.)

Motorcraft® Wheel and Tire Cleaner, ZC-37-A (U.S. & Canada)

CLEANING THE EXTERIOR

CLEANING THE EXTERIOR
PRECAUTIONS

Immediately remove fuel spillages, additive
residuals, bird droppings, insect deposits
and road tar. These may cause damage to
your vehicle’s paintwork or trim over time.

Remove any exterior accessories, for
example antennas, before entering a car
wash.

CLEANING HEADLAMPS AND
REAR LAMPS

We recommend that you only use cold or
lukewarm water containing car shampoo
to clean the headlamps and the rear
lamps.

414

Vehicle Care

Do not scrape the lamps.

Do not wipe lamps when they are dry.

CLEANING WINDOWS AND WIPER
BLADES

To clean the windshield and wiper blades:
•

Clean the windshield with a
non-abrasive glass cleaner.

Note:

When cleaning the interior of the

windshield, avoid getting any glass cleaner
on the instrument panel or door panels.
Wipe any glass cleaner off these surfaces
immediately.

•

Clean the wiper blades with washer
fluid or water applied with a soft
sponge or cloth.

Note:

Do not use razor blades or other

sharp objects to clean or remove decals
from the inside of the heated rear window.
This can cause damage not covered by the
vehicle Warranty.

CLEANING CHROME, ALUMINIUM
OR STAINLESS STEEL

We recommend that you only use a car
shampoo, a soft cloth and water on
bumpers and other chrome, aluminium or
stainless steel parts.

Note:

For additional information and

assistance, we recommend that you contact
an authorized dealer.

Note:

Rinse the area well after cleaning.

Note:

Do not use abrasive materials, for

example steel wool or plastic pads, as they
can scratch these surfaces.

Note:

Do not use chrome cleaner, metal

cleaner or polish on wheels or wheel covers.

CLEANING WHEELS

Only use a recommended wheel and tire
cleaner to clean the wheels weekly. For
additional information and assistance, we
recommend that you contact an
authorized dealer.

Use a sponge to remove heavy
deposits of dirt and brake dust.

2. Rinse well after cleaning.

Note:

Do not apply a cleaning chemical to

warm or hot wheel rims and covers.

If you intend on parking your vehicle for an
extended period after cleaning the wheels
with a wheel cleaner, drive your vehicle for
a few minutes before parking your vehicle.
This reduces the risk of corrosion of the
brake discs, brake pads and linings.

Do not clean the wheels when they are hot.

Note:

Some car washes could damage

wheel rims and covers.

Note:

Using non-recommended cleaners,

harsh cleaning products, chrome wheel
cleaners or abrasive materials could
damage wheel rims and covers.

CLEANING THE ENGINE
COMPARTMENT

Use a vacuum cleaner to remove debris
from the screen area below windshield.

Note:

If you are not familiar with the parts

around the engine do not wash the engine
compartment. Avoid frequent engine
washes.

When washing the engine compartment:
•

Never wash or rinse the engine while it
is hot or running.

•

Never wash or rinse any ignition coil,
spark plug wire or spark plug well.

•

Cover the battery, power distribution
box, and air filter assembly to prevent
water damage.

415

Vehicle Care

Note:

If your vehicle has an engine cover

remove the cover before application of
shampoo and degreaser.

•

Spray an approved engine shampoo
and degreaser on all parts that require
cleaning and rinse with water.

CLEANING STRIPES OR
GRAPHICS

It is recommended to wash your vehicle by
hand however, pressure washing may be
used under the following conditions:

•

Use a spray with a 40° wide spray
angle pattern.

•

Keep the nozzle at a 12 in (305 mm)
distance and 90° angle to your
vehicle's surface.

•

Do not use water pressure higher than
2,000 psi (14,000 kPa).

•

Do not use water hotter than 179°F
(82°C).

Note:

Holding the pressure washer nozzle

at an angle to the vehicle's surface may
damage graphics and cause the edges to
peel away from the vehicle's surface.

CLEANING CAMERA LENSES AND

SENSORS

We recommend that you only use
lukewarm or cold water and a soft cloth
to clean the camera lens and sensors.

Note:

Do not pressure wash camera lens

and sensors.

CLEANING THE UNDERBODY

Flush the complete underside of your
vehicle frequently. Keep body and door
drain holes free from packed dirt.

Rear suspension components may require
regular cleaning with a power washer or a
thorough rinse with a strong stream of
water if the vehicle is operated in dusty or
muddy environments. Rear leaf springs or
other suspension components may emit
squeaking or popping noises while
operating the vehicle if particles, such as
dirt, rocks, or other debris, are present in
the components.

CLEANING THE INTERIOR

CLEANING THE INSTRUMENT
PANEL

WARNING:

Do not use chemical

solvents or strong detergents when
cleaning the steering wheel or
instrument panel to avoid contamination
of the airbag system.

We recommend that you only clean the
instrument panel and cluster lens with a
damp soft cloth. Dry the area with a clean,
soft cloth.

For additional information and assistance,
we recommend that you contact an
authorized dealer.

Note:

Avoid cleaners or polishes that

increase the gloss of the upper portion of
the instrument panel. The dull finish in this
area helps protect you from undesirable
windshield reflection.

CLEANING PLASTIC

We recommend that you only use a mild
soap and water solution on a soft cloth.
Dry the area with a clean, soft cloth.

416

Vehicle Care

CLEANING DISPLAYS AND
SCREENS

We recommend that you only use a
microfiber cloth in a circular motion to
clean off the fingerprint or dust.

If dirt or fingerprints are still on the screen,
apply a small amount of alcohol to the
cloth and try to clean it again.

Note:

Do not pour or spray alcohol onto the

touchscreen.

Note:

Do not use detergent or any type of

solvent to clean the touchscreen.

CLEANING SEATS AND THE
HEADLINER

WARNING:

On vehicles equipped

with seat-mounted airbags, do not use
chemical solvents or strong detergents.
Such products could contaminate the
side airbag system and affect
performance of the side airbag in a crash.

Cleaning Fabric Seats and the
Headliner

We recommend that you only clean the
fabric seats and headliners in the following
way:

Remove dust and loose dirt with a
vacuum cleaner.

2. Wipe the surface with a soft, damp

cloth and a mild soap and water
solution. Dry the area with a clean, soft
cloth.

3. For additional information and

assistance, we recommend that you
contact an authorized dealer.

For heavy stains, spot clean the area. If a
ring forms on the fabric, immediately clean
the entire area, but do not oversaturate or
the ring could set.

Cleaning Vinyl and Leather

We recommend that you only clean the
leather and vinyl surfaces in the following
way:

Remove dust and loose dirt with a
vacuum cleaner.

2. Wipe the surface with a soft, damp

cloth and a mild soap and water
solution. Dry the area with a clean, soft
cloth.

3. For additional information and

assistance, we recommend that you
contact an authorized dealer.

With King Ranch Edition

Your vehicle has seating covered in
premium, top-grain leather that is
extremely durable, but still requires special
care and maintenance in order to preserve
longevity and comfort.

Regular cleaning and conditioning
maintains the appearance of the leather.

Scratches

Because the leather in the seat comes
from genuine steer hides, there may be
evidence of naturally occurring markings,
such as small scars. These markings give
character to the seating covers and are
considered to be proof of a genuine leather
product.

To lessen the appearance of certain
scratches and other wear marks, apply
conditioner on the affected area.

417

Vehicle Care

Conditioning

•

Clean the surfaces using the steps
outlined in the cleaning leather and
vinyl section.

•

Make sure the leather is dry then apply
a nickel-sized amount of conditioner
to a clean, dry cloth.

•

Rub the conditioner into the leather
until it disappears. Allow the
conditioner to dry, then repeat the
process for the entire interior. If a film
appears, wipe it off with a dry, clean
cloth.

For additional information, visit:

www.krsaddleshop.com

CLEANING CARPETS AND FLOOR
MATS

We recommend that you only clean your
carpets in the following way:

Remove dust and loose dirt with a
vacuum cleaner.

2. Wipe the surface with a soft, damp

cloth and a mild soap and water
solution. Dry the area with a clean, soft
cloth.

3. For additional information and

assistance, we recommend that you
contact an authorized dealer.

For heavy stains, spot clean the area. If a
ring forms on the fabric, clean the entire
area immediately, but do not oversaturate
or the ring could set.

We recommend that you only clean your
floor mats in the following way:

Remove dust and loose dirt with a
vacuum cleaner.

2. Wash rubber floor mats using mild

soap and lukewarm or cold water.

3. Completely dry the floor mat before

placing them back in your vehicle.

CLEANING SEATBELTS

WARNING:

Do not use cleaning

solvents, bleach or dye on the vehicle's
seatbelts, as these actions may weaken
the belt webbing.

Wipe the surface with a soft, damp
cloth and a mild soap and water
solution. Dry the area with a clean, soft
cloth.

CLEANING MOONROOF TRACKS

Remove debris from the tracks with a
vacuum cleaner.

2. Wipe the bulb seal and mating painted

roof metal surface with a soft, damp
cloth and a mild soap and water
solution.

Note:

The moonroof rail tracks are greased

to maintain proper functionality. Do not
wipe off the grease.

REPAIRING MINOR PAINT
DAMAGE

Authorized dealers have touch-up paint to
match your vehicle’s color. Your vehicle
color code is printed on a sticker on the
front, left-hand side door jamb. Take your
color code to your authorized dealer to
make sure you get the correct color.

Before repairing minor paint damage, use
a cleaner to remove particles such as bird
droppings, tree sap, insect deposits, tar
spots, road salt and industrial fallout.

Read the instructions before using cleaning
products.

418

Vehicle Care

WAXING YOUR VEHICLE

Wax the high-gloss painted surface of your
prewashed vehicle once or twice a year.

We recommend that you only use an
approved quality wax that does not
contain abrasives. Follow the
manufacturer's instructions to apply and
remove the wax. For additional information
and assistance, we recommend that you
contact an authorized dealer.

When washing and waxing, park your
vehicle in a shaded area out of direct
sunlight.

Note:

Avoid waxing unpainted or low-gloss

black colored parts, they discolor over time.

419

Vehicle Care

PREPARING YOUR VEHICLE
FOR STORAGE

If you plan on storing your vehicle for 30
days or more, the following maintenance
recommendations ensures your vehicle
stays in good operating condition.

Under various conditions, long-term
storage may lead to degraded engine
performance or failure unless you use
specific precautions to preserve your
vehicle.

General

•

Store all vehicles in a dry, ventilated
place.

•

If vehicles are stored outside, they
require regular maintenance to protect
against rust and weather damage.

•

Make sure all linkages, cables, levers
and pins under your vehicle are covered
with grease to prevent rust.

•

Move vehicles at least 25 ft (7.5 m)
every 15 days to lubricate working parts
and prevent corrosion.

•

Fill the fuel tank with high-quality fuel
until the first automatic shutoff of the
fuel pump nozzle.

Engine

•

Change the engine oil and filter prior to
storage because used engine oil
contains contaminants which may
cause engine damage.

•

Start the engine every 15 days for a
minimum of 15 minutes. Run at fast
idle with the climate controls set to
defrost until the engine reaches normal
operating temperature.

•

With your foot on the brake, shift
through all the gears while the engine
is running.

Body

•

Wash your vehicle thoroughly to
remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housings
and the underside of front fenders.

•

Periodically wash your vehicle if it is
stored in exposed locations.

•

Touch-up exposed or primed metal to
prevent rust.

•

Cover chrome and stainless steel parts
with a thick coat of auto wax to prevent
discoloration. Re-wax as necessary
when you wash your vehicle.

•

Lubricate all hood, door and luggage
compartment hinges and latches with
a light grade oil.

•

Cover interior trim to prevent fading.

•

Keep all rubber parts free from oil and
solvents.

Hybrid Battery Systems

We recommend the following actions for
your vehicle:
•

When storing your vehicle for greater
than 30 days the state of charge
should be approximately 50%.
Additionally we recommend
disconnecting the 12V battery which
will reduce system loads on the HV
battery.

12 Volt Battery

•

Check and recharge as necessary. Keep
connections clean.

Note:

It is necessary to reset memory

features if you disconnect the battery
cables.

Brakes

Make sure the brakes and parking brake
release fully.

420

Storing Your Vehicle

Note:

If you intend on parking your vehicle

for an extended period after cleaning the
wheels with a wheel cleaner, drive your
vehicle for a few minutes before doing so to
reduce the risk of increased corrosion of the
brake discs, brake pads and linings.

Tires

•

Maintain recommended air pressure.

Note:

If you intend on parking your vehicle

for an extended period after cleaning the
wheels with a wheel cleaner, drive your
vehicle for a few minutes before doing so.
This reduces the risk of corrosion of the
brake discs, brake pads and linings.

REMOVING YOUR VEHICLE
FROM STORAGE

When your vehicle is ready to come out of
storage, do the following:
•

We recommend that you change the
engine oil before you use your vehicle
again.

•

Wash your vehicle to remove any dirt
or grease film build-up on window
surfaces.

•

Check windshield wipers for any
deterioration.

•

Check under the hood for any foreign
material that may have collected
during storage such as mice or squirrel
nests.

•

Check the exhaust for any foreign
material that may have collected
during storage.

•

Check tire pressures and set tire
inflation per the Tire Label.

•

Check brake pedal operation. Drive
your vehicle 15 ft (4.5 m) back and
forth to remove rust build-up.

•

Check fluid levels (including coolant,
oil and gas) to make sure there are no
leaks, and fluids are at recommended
levels.

•

If you remove the battery, clean the
battery cable ends and check for
damage.

Contact an authorized dealer if you have
any concerns or issues.

421

Storing Your Vehicle

LOCATING THE TIRE LABEL

You will find a Tire Label
containing tire inflation pressure
by tire size and other important
information located on the B-Pillar
or the edge of the driver's door.
See

Locating the Safety

Compliance Certification
Labels

(page 332).

DEPARTMENT OF
TRANSPORTATION UNIFORM
TIRE QUALITY GRADES

E142542

Tire Quality Grades apply to new
pneumatic passenger car tires.
The Quality grades can be found
where applicable on the tire
sidewall between tread shoulder
and maximum section width. For
example:

Treadwear 200

Traction AA Temperature A

These Tire Quality Grades are
determined by standards that the
United States Department of
Transportation has set.

Tire Quality Grades apply to new
pneumatic passenger car tires.
They do not apply to deep tread,
winter-type snow tires,
space-saver or temporary use
spare tires, light truck or LT type
tires, tires with nominal rim
diameters of 10 to 12 inches or
limited production tires as defined
in Title 49 Code of Federal
Regulations Part 575.104 (c)(2).

U.S. Department of
Transportation Tire quality
grades:

The U.S. Department of

Transportation requires us to give
you the following information
about tire grades exactly as the
government has written it.

Treadwear

The treadwear grade is a
comparative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test course.
For example, a tire graded 150
would wear 1½ times as well on
the government course as a tire
graded 100. The relative
performance of tires depends
upon the actual conditions of their
use, however, and may depart
significantly from the norm due to
variations in driving habits, service
practices, and differences in road
characteristics and climate.

422

Wheel and Tire Information

Traction AA A B C

WARNING:

The traction

grade assigned to this tire is
based on straight-ahead braking
traction tests, and does not
include acceleration, cornering,
hydroplaning or peak traction
characteristics.

The traction grades, from highest

to lowest are AA, A, B, and C. The
grades represent the tire’s ability
to stop on wet pavement as
measured under controlled
conditions on specified
government test surfaces of
asphalt and concrete. A tire
marked C may have poor traction
performance.

Temperature A B C

WARNING:

The

temperature grade for this tire is
established for a tire that is
properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.

The temperature grades are A
(the highest), B and C,
representing the tire’s resistance
to the generation of heat and its
ability to dissipate heat when
tested under controlled conditions
on a specified indoor laboratory

test wheel. Sustained high
temperature can cause the
material of the tire to degenerate
and reduce tire life, and excessive
temperature can lead to sudden
tire failure. The grade C
corresponds to a level of
performance which all passenger
car tires must meet under the
Federal Motor Vehicle Safety
Standard No. 139. Grades B and A
represent higher levels of
performance on the laboratory
test wheel than the minimum
required by law.

INFORMATION ON THE TIRE
SIDEWALL

Both United States and Canada
Federal regulations require tire
manufacturers to place
standardized information on the
sidewall of all tires. This
information identifies and
describes the fundamental
characteristics of the tire and also
provides a U.S. DOT Tire
Identification Number for safety
standard certification and in case
of a recall.

423

Wheel and Tire Information

Content .. 23 24 25 26 ..
