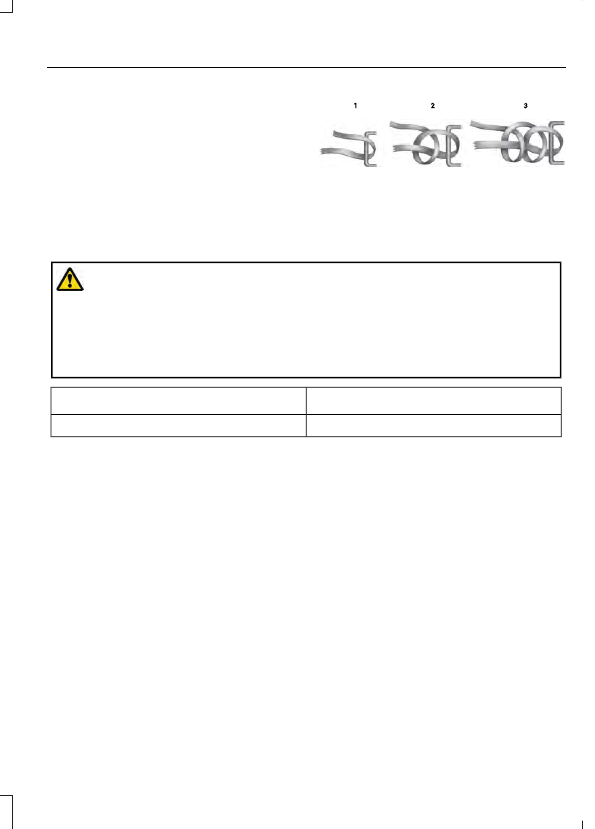

5. Locate the front cargo tie-down in the

opposite rear corner of the cargo area.
Thread the retainer strap through the
tie-down and pull tight.

E143746

6. Secure by tying a 2-half hitch knot.

TECHNICAL SPECIFICATIONS

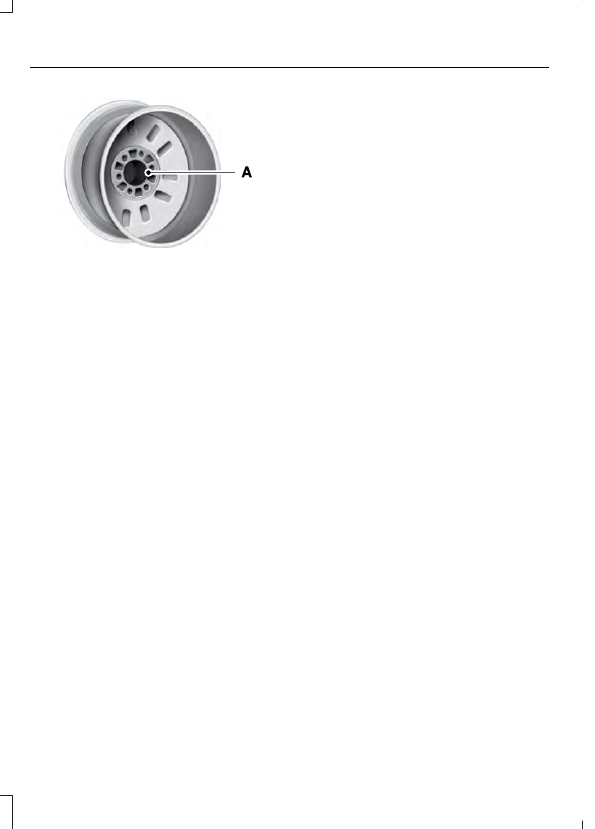

Wheel Lug Nut Torque Specifications

WARNING:

When you install a wheel, always remove any corrosion, dirt or foreign

materials present on the mounting surfaces of the wheel or the surface of the wheel
hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners
that attach the rotor to the hub so they do not interfere with the mounting surfaces of
the wheel. Installing wheels without correct metal-to-metal contact at the wheel
mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while
your vehicle is in motion, resulting in loss of vehicle control, personal injury or death.

lb.ft (Nm)

Bolt size

150 lb.ft (204 Nm)

M14 x 1.5

Torque specifications are for nut and bolt threads free of dirt and rust. Use only our

recommended replacement fasteners.

Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any
wheel disturbance (such as tire rotation, changing a flat tire, wheel removal).

377

Wheels and Tires

ENGINE SPECIFICATIONS - 2.3L ECOBOOST™

2.3L EcoBoost

Engine

10:1

Compression ratio.

138 in³ (2,261 cm³)

Displacement.

1-3-4-2

Firing order.

Coil on plug

Ignition system.

0.028–0.031 in (0.7–0.8 mm)

Spark plug gap.

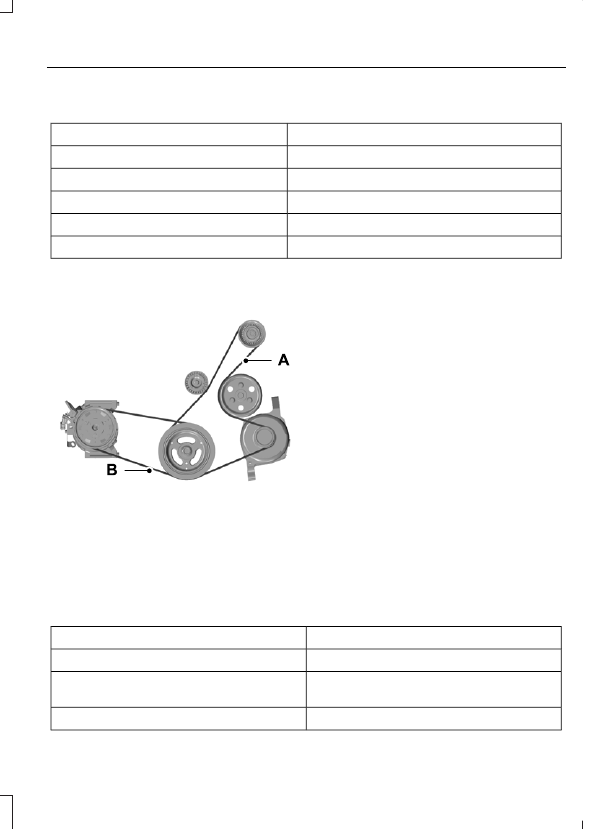

Drivebelt Routing

2.3L EcoBoost Engine

E293908

Long drivebelt is on first pulley
groove closest to engine.

Short drivebelt is on second
pulley groove farthest from
engine.

ENGINE SPECIFICATIONS - 3.0L, ST

Description

Item

60 degree V6

Configuration.

3.36 in (85.4 mm) bore x 3.39 in (86 mm)

stroke

Bore x stroke.

180 in³ (2,956 cm³)

Displacement.

379

Capacities and Specifications

Description

Item

9.5:1

Compression ratio.

1-4-2-5-3-6

Firing order.

0.028–0.031 in (0.7–0.8 mm)

Spark plug gap.

400 hp

Horsepower.

415 lb.ft

Torque.

6500 RPM

Redline.

Overhead cam - roller finger followers

Valvetrain.

Coil on plug

Ignition.

2.4 in (60 mm)

Throttle body.

Cast aluminum

Pistons.

Forged steel

Crankshaft.

Forged steel

Connecting rods.

Twin turbocharged

Induction.

18.0 psi (124 kPa)

Maximum Boost.

Dual 2.16 in (55 mm) exhaust with quad

3 in (76 mm) chrome tips

Exhaust system.

When using premium fuel.

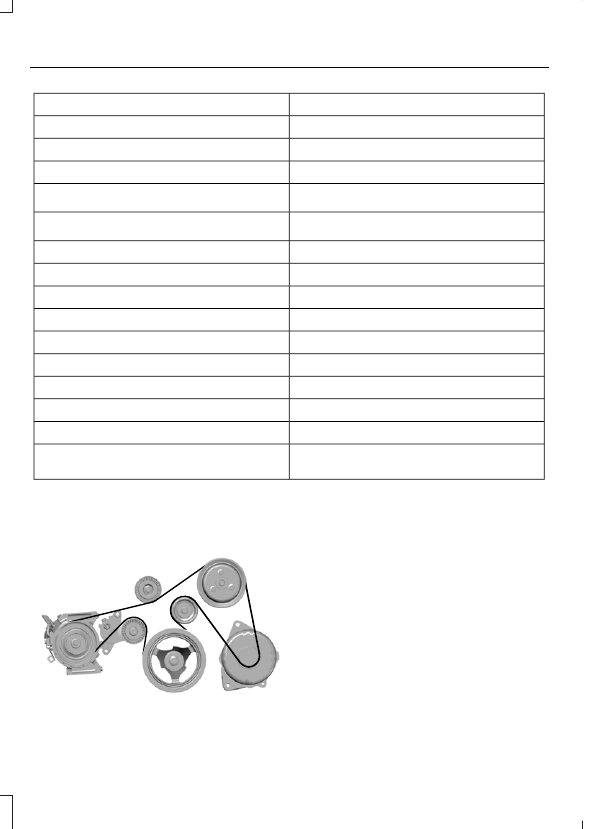

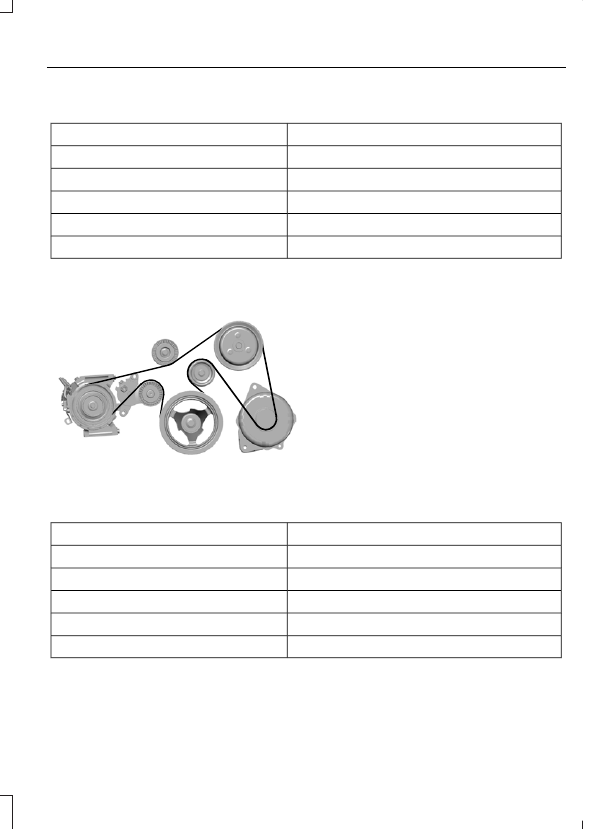

Drivebelt Routing

E297178

380

Capacities and Specifications

ENGINE SPECIFICATIONS - 3.0L

3.0L

Engine

9.5:1

Compression ratio.

180 in³ (2,956 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

0.028–0.031 in (0.7–0.8 mm)

Spark plug gap.

Drivebelt Routing

E297178

ENGINE SPECIFICATIONS - 3.3L, GASOLINE

3.3L

Engine

12.0:1

Compression ratio.

204 in³ (3,340 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

0.049–0.053 in (1.25–1.35 mm)

Spark plug gap.

381

Capacities and Specifications

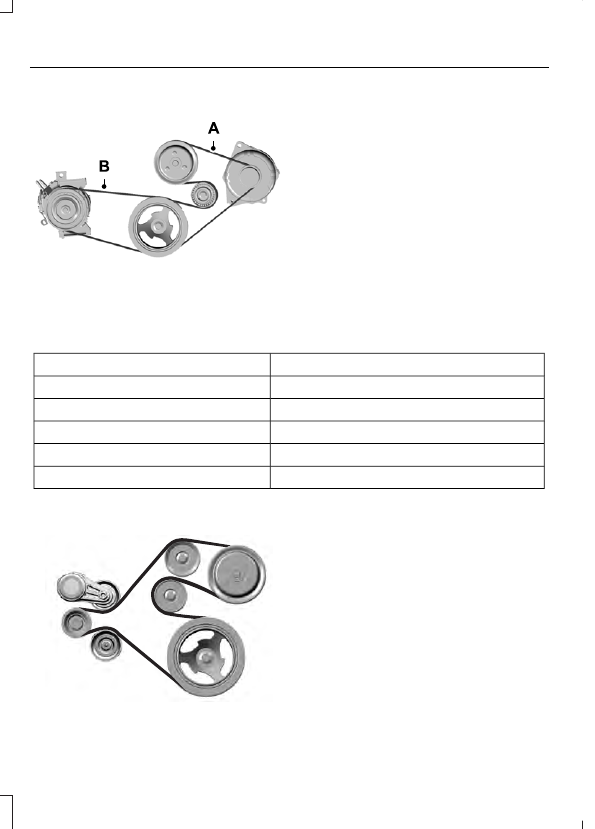

Drivebelt Routing

E288323

Long drivebelt is on second
pulley groove farthest from
engine.

Short drivebelt is on first pulley
groove closest to engine.

ENGINE SPECIFICATIONS - 3.3L, HYBRID ELECTRIC VEHICLE
(HEV)

3.3L HEV

Engine

12.0:1

Compression ratio.

204 in³ (3,340 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

0.049–0.053 in (1.25–1.35 mm)

Spark plug gap.

Drivebelt Routing

E291364

382

Capacities and Specifications

MOTORCRAFT PARTS - 2.3L ECOBOOST™

Motorcraft Part Number

Component

FA-1884

Air filter element.

BAGM-48H6-760

Battery.

FP-97

Cabin air filter.

FL-910-S

Engine oil filter.

SP-594

Spark plug.

WW-1110

Rear window wiper blade.

WW-2616 (driver side)

Windshield wiper blade.

WW-2113 (passenger side)

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

We recommend Motorcraft parts that are
available at your authorized dealer or at
www.fordparts.com. We engineer these
parts for your vehicle to meet or exceed
our specifications. Use of other parts could
impact vehicle performance, emissions
and durability. Your warranty could be void
for any damage related to use of other
parts.

MOTORCRAFT PARTS - 3.0L

Motorcraft Part Number

Component

FA-1884

Air filter element.

BAGM-48H6-760

Battery.

FP-97

Cabin air filter.

FL-2062-A

Engine oil filter.

SP-594

Spark plug.

WW-1110

Rear window wiper blade.

WW-2616 (driver side)

Windshield wiper blade.

383

Capacities and Specifications

Motorcraft Part Number

Component

WW-2113 (passenger side)

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

MOTORCRAFT PARTS - 3.3L

Motorcraft Part Number

Component

FA-1947

Air filter element.

BAGM-48H6-760

Battery.

FP-97

Cabin air filter.

FL-500-S

Engine oil filter.

SP-520

Spark plug.

WW-1110

Rear window wiper blade.

WW-2616 (driver side)

Windshield wiper blade.

WW-2113 (passenger side)

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

VEHICLE IDENTIFICATION
NUMBER

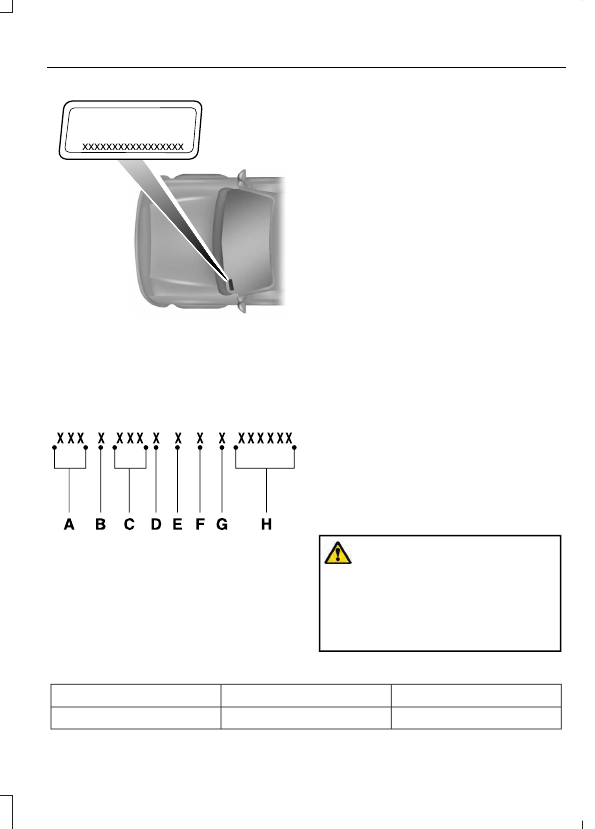

The vehicle identification number is on the
left-hand side of the instrument panel.

384

Capacities and Specifications

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier.

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations.

Make, vehicle line, series, body
type.

Engine type.

Check digit.

Model year.

Assembly plant.

Production sequence number.

CAPACITIES AND
SPECIFICATIONS - 2.3L
ECOBOOST™

Use oil and fluid that meets the defined
specification and viscosity grade.

If you do not use oil and fluid that meets
the defined specification and viscosity
grade, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

Air Conditioning System

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system
can cause personal injury.

Capacities

Refrigerant Oil

Refrigerant

Variant

5.41 fl oz (160 ml)

35 oz (0.99 kg)

All.

385

Capacities and Specifications

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

Automatic Transmission

Note:

Only use MERCON® ULV

transmission fluid for automatic
transmissions that require MERCON® ULV
transmission fluid. The use of any other fluid
could cause transmission damage.

Capacities

Quantity

Variant

12.6 qt (11.9 L)

All.

Approximate dry fill capacity. Actual amount could vary during fluid changes.

Materials

Specification

Name

WSS-M2C949-A, MERCON® ULV

Motorcraft® MERCON® ULV Automatic Transmis-
sion Fluid(U.S.)
Motorcraft® MERCON® ULV Automatic Transmis-
sion Fluid / MERCON® ULV huile pour boîtes auto-
matique Motorcraft®(Canada)
XT-12-QULV(U.S. & Canada)

386

Capacities and Specifications

Engine Coolant

Capacities

Quantity

Variant

14.1 qt (13.3 L)

Without trailer towing.

15.2 qt (14.4 L)

With trailer towing.

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

Engine Oil

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

5.2 qt (4.9 L)

All.

387

Capacities and Specifications

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Synthetic Blend Motor
Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil
/ Huile moteur de très haute qualité SAE 5W-30
Motorcraft®(Canada)
XO-5W30-Q1SP(U.S.)
CXO-5W30-LSP6(Canada)

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

E240523

388

Capacities and Specifications

Fuel Tank

Capacities

Quantity

Variant

17.9 gal (67.8 L)

All.

Grease

Materials

Specification

Name

ESA-M1C75-B

Motorcraft® Premium Long-Life Grease(U.S.)
Motorcraft® Premium Long-Life Grease / Graisse
longue durée de qualité première Motor-
craft®(Canada)
XG-1-E1(U.S. & Canada)

ESB-M1C93-B

Motorcraft® Multi-Purpose Grease Spray(U.S.)
Motorcraft® Multi-Purpose Grease Spray / Graisse
tout usage en aérosol Motorcraft®(Canada)
XL-5-A(U.S. & Canada)

Hydraulic Brake System

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid / Liquide de frein automobile
haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

Note:

We recommend using DOT 4 Low

Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid could cause reduced brake
performance and not meet our performance
standards. Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and possible failure.

Locks

389

Capacities and Specifications

Materials

Specification

Name

Motorcraft® Penetrating and Lock Lubricant(U.S.)
Motorcraft® Penetrating Fluid / Liquide dégrippant
Motorcraft®(Canada)
XL-1(U.S.)
CXC-51-A(Canada)

Transfer Case

Capacities

Quantity

Variant

1.1 qt (1 L)

All.

Materials

Specification

Name

WSS-M2C938-AMERCON® LV,

Motorcraft® MERCON® LV Automatic Transmission
Fluid(U.S.)
Motorcraft® MERCON® LV Automatic Transmission
Fluid / Huile pour boîte automatique MERCON® LV
Motorcraft®(Canada)
XT-10-QLVC(U.S.)
CXT-10-LV6(Canada)

Front Axle

Capacities

Quantity

Variant

0.6 qt (0.6 L)

Four-wheel drive.

390

Capacities and Specifications

Materials

Specification

Name

WSL-M2C192-A

Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant(U.S.)
Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant / Lubrifiant synthétique pour pont arrière
SAE 75W-140 Motorcraft®(Canada)
XY-75W140-QL(U.S.)
CXY-75W140-1L(Canada)

Rear Axle

Capacities

Quantity

Variant

1.9 qt (1.8 L)

Two-wheel drive.

1.7 qt (1.6 L)

Four-wheel drive.

Materials

Specification

Name

WSS-M2C942-A

Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant(U.S.)
Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant / Huile synthétique de haute
qualité pour engrenages hypoïdes SAE 75W-85
Motorcraft®(Canada)
XY-75W85-QL(U.S. & Canada)

Washer Reservoir

Capacities

Quantity

Variant

Fill as required.

All.

391

Capacities and Specifications

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concen-
trate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer
Fluid / Liquide lave-glace de haute qualité Motor-
craft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)

CAPACITIES AND
SPECIFICATIONS - 3.0L

Use oil and fluid that meets the defined
specification and viscosity grade.

If you do not use oil and fluid that meets
the defined specification and viscosity
grade, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

Air Conditioning System

WARNING:

The air conditioning

Capacities

Refrigerant Oil

Refrigerant

Variant

5.41 fl oz (160 ml)

35 oz (0.99 kg)

With rear air conditioning.

3.04 fl oz (90 ml)

24 oz (0.68 kg)

Without rear air condi-
tioning.

392

Capacities and Specifications

Ford Explorer (2022 year). Manual in english - page 24
