Ford Explorer (2022 year). Manual in english

When you shift into neutral (N), the system
only provides visual indication if your
vehicle is moving at a speed of
approximately 5 mph (8 km/h) or below,
for example, your vehicle is moving on a
slope, and the system detects an object
moving toward your vehicle. When you
stop your vehicle, visual indication stops
after four seconds.

SIDE SENSING SYSTEM

(IF

EQUIPPED)

WARNING:

The system may not

detect objects with surfaces that absorb
reflection. Always drive with due care
and attention. Failure to take care may
result in a crash.

WARNING:

The system may not

detect small or moving objects,
particularly those close to the ground.

WARNING:

To help avoid personal

injury, always use caution when in
reverse (R) and when using the sensing
system.

WARNING:

The parking aid system

can only assist you to detect objects
when your vehicle is moving at parking
speeds. To help avoid personal injury you
must take care when using the parking
aid system.

The system uses the front and rear
outermost parking aid sensors to detect
objects that are near to the sides of your
vehicle. The system displays them on a
virtual map in the information display as
your vehicle moves past them.

The sensors are on the front and rear
bumpers.

Note:

Keep the sensors free from snow, ice

and large accumulations of dirt.

Note:

Do not cover up the sensors.

Note:

Do not clean the sensors with sharp

objects.

Note:

If your vehicle sustains damage

leaving the sensors misaligned, this may
cause inaccurate measurements or false
alerts.

The system may not function if:
•

You switch the ignition on, off and back
on within a few seconds.

•

Your vehicle remains stationary for over
two minutes.

•

The anti-lock brake system activates.

•

The traction control system activates.

Note:

If you switch traction control off, the

side sensing system also turns off.

Note:

Some accessories, for example large

trailer hitches or bike or surfboard racks can
cause reduced performance or false alerts.

To reinitialize the system, you may have to
drive your vehicle approximately 10 ft
(3 m).

E190458

The sensor coverage area is up to 24 in
(60 cm) from the side of your vehicle.

233

Parking Aids

When the system detects an object within
the coverage area and the driving path of
your vehicle, an audible warning sounds.
As your vehicle moves closer to the object,
the rate of the tone increases.

Note:

The system does not detect an object

that is moving toward the side of your
vehicle, for example another vehicle moving
at low speed, if it does not pass a front or
rear sensor.

Object Distance Indicator

(If Equipped)

E190459

The system provides object distance
indication through the information display.

•

As the distance to the object
decreases, the indicator blocks
illuminate and move toward the vehicle
icon.

•

If there is no object detected, the
distance indicator blocks are gray.

When you shift into reverse (R), the system
provides audible warnings and a visual
indication when detected objects are
within 24 in (60 cm) and are inside the
driving path of your vehicle. When you stop
your vehicle, the audible warnings turn off
after two seconds.

When you shift into any forward gear, the
system provides audible warnings and a
visual indication when your vehicle is
moving at a speed of approximately 5 mph
(8 km/h) or below and the system detects
an object within the detection zone. When
you stop your vehicle, the audible warnings
turn off after two seconds and the visual
indication turns off after four seconds.

When you shift into neutral (N), the system
only provides a visual indication if your
vehicle is moving at a speed of
approximately 5 mph (8 km/h) or below.
For example, your vehicle is moving on a
slope, and the system detects an object
moving toward your vehicle. When you
stop your vehicle, the visual indication
turns off after four seconds.

If the system is not available, the side
distance indicator blocks do not display.

ACTIVE PARK ASSIST

(IF

EQUIPPED)

WARNING:

You must remain in

your vehicle when the system turns on.
At all times, you are responsible for
controlling your vehicle, supervising the
system and intervening, if required.
Failure to take care may result in the loss
of control of your vehicle, serious
personal injury or death.

WARNING:

The sensors may not

detect objects in heavy rain or other
conditions that cause interference.

234

Parking Aids

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

The system assists parking into and out of
parking spaces. It uses sensors to detect
parking spaces. The system then steers,
accelerates, brakes and shifts gear as
required to maneuver into or out of a
parking space.

Using Active Park Assist

E146186

The parking button is near the
transmission selector on the
center console.

Press the parking button to bring up full
screen notifications. Press either the
parking button or the soft keys on the
display screen to switch between Parallel
Park In, Perpendicular Park In or Parallel
Park Out parking modes.

Driving into a Parking Space

Note:

When parking perpendicularly, the

system backs your vehicle into parking
spaces.

Press the active park assist button.

Note:

The system does not recognize

parking space lines and centers your vehicle
between objects.

Note:

The system detects other vehicles

and curbs to find a parking space.

Note:

The system searches for parallel

parking spaces on the passenger side. Press
the active park assist button again to make
the system search for perpendicular spaces.

2. Use the direction indicator lever to

search for a parking space on the driver
or passenger side of your vehicle.

3. Drive your vehicle approximately 3 ft

(1 m) away from and parallel to the
other parked vehicles when searching
for a parking space.

Note:

A tone sounds and a message

appears in the information display when
active park assist finds a suitable parking
space.

4. Press and hold the brake pedal.

5. Release the steering wheel and shift

into neutral (N).

6. Press and hold the active park assist

button.

Release the brake pedal to allow the
vehicle to park.

Note:

When parallel parking between

objects, the system parks closer to the
object in front of your vehicle to allow easier
access to your luggage compartment.

Note:

When perpendicular parking, the

system aligns the front end of your vehicle
with the object next to it.

Note:

When perpendicular parking, if the

system detects only one object, it allows
enough distance to open the door on either
side.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

Note:

When parking is complete the vehicle

shifts into park (P).

Leaving a Parking Space

The system assists leaving only parallel
parking spaces.

Press the active park assist button.

2. Use the direction indicator lever to

choose the direction to leave.

3. Press and hold the brake pedal.

235

Parking Aids

4. Release the steering wheel and shift

into neutral (N).

5. Release the parking brake.

6. Press and hold the active park assist

button.

Release the brake pedal to allow the
vehicle to move.

Note:

You can slow down your vehicle at

any time by pressing the brake pedal.

Note:

After the system drives your vehicle

to a position where you can exit the parking
space in a forward movement, a message
appears instructing you to take full control
of your vehicle.

Canceling Active Park Assist

To cancel parking assistance at any time,
shift out of neutral (N).

Note:

If you turn the steering wheel or open

the driver door the parking assistance also
cancels.

Pausing Active Park Assist

To pause parking assistance at any time,
release the active park assist button.

The vehicle stops moving until you press
and hold the active park assist button
again.

Note:

If you open the passenger or rear

doors the parking assistance also pauses.

Active Park Assist Troubleshooting

Possible Cause

Symptom

The system is unable to detect a vehicle, curb or object
to park next to, or in-between. This could occur because
of sensors not operating correctly, not enough room
for your vehicle, or the traction control is off.

The system does not correctly
operate.

You may have switched traction control off.

The system does not search for
a parking space.

The transmission is in reverse (R). Your vehicle must
be moving forward to be able to detect a parking space.

There could be blockage on the sensors. For example,
snow, ice or large accumulations of dirt. Blocked
sensors can affect how the system functions.

The system does not offer a
parking space.

The sensors in the front or rear bumper could be
damaged.

There is not enough room in the parking space for your
vehicle to safely park.

There is not enough space for the parking maneuver on
the opposite side of the parking space.

The parking space is more than 5 ft (1.5 m) or less than
2 ft (0.5 m) away.

236

Parking Aids

Possible Cause

Symptom

The vehicle speed is greater than 22 mph (35 km/h)
for parallel parking or greater than 19 mph (30 km/h)
for perpendicular parking.

You recently disconnected or replaced the battery. After
you reconnect the battery you must drive your vehicle
on a straight road for a short period of time.

An irregular curb along the parking space prevents the
system from correctly aligning your vehicle.

The system does not correctly
position your vehicle in a
parking space.

Vehicles or objects bordering the space may not be
correctly parked.

Your vehicle stopped too far past the parking space.

The tires may not be correctly installed or maintained.
For example, not inflated correctly, improper size, or of
different sizes.

A repair or alteration changes the detection capabilities.

A parked vehicle has a high attachment. For example,
a salt sprayer, snowplow or moving truck bed.

The parking space length or position of parked objects
changes after your vehicle passes the space.

You are using a spare tire or a tire more significantly
worn than the other tires.

The temperature around your vehicle quickly changes.
For example, driving from a heated garage into cold
outside temperature, or after leaving a car wash.

REAR VIEW CAMERA

WARNING:

The rear view camera

system is a reverse aid supplement
device that still requires the driver to use
it in conjunction with the interior and
exterior mirrors for maximum coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Reverse your vehicle

slowly. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

237

Parking Aids

WARNING:

Use caution when the

rear cargo door is ajar. If the rear cargo
door is ajar, the camera will be out of
position and the video image may be
incorrect. All guidelines disappear when
the rear cargo door is ajar. Failure to
follow this instruction could result in
personal injury.

WARNING:

Use caution when

turning camera features on or off when
the transmission is not in park (P). Make
sure your vehicle is not moving.

Note:

Some vehicles may not come

equipped with guidelines.

The rear view camera system provides a
video image of the area behind your
vehicle.

During operation, lines appear in the
display which represent your vehicle’s path
and proximity to objects behind your
vehicle.

E253742

The camera is located on the luggage
compartment door.

Using the Rear View Camera
System

The rear view camera system displays
what is behind your vehicle when you place
the transmission in reverse (R).

Note:

The reverse sensing system is not

effective at speeds above 3 mph (5 km/h)
and may not detect certain angular or
moving objects.

The system uses three types of guides to
help you see what is behind your vehicle:
•

Active guidelines (if equipped): Show
the intended path of your vehicle when
reversing.

•

Fixed guidelines: Show the actual path
your vehicle is moving in while reversing
in a straight line. This can be helpful
when backing into a parking space or
aligning your vehicle with another
object behind you.

•

Centerline: Helps align the center of
your vehicle with an object (for
example, a trailer).

Note:

If the transmission is in reverse (R)

and the luggage compartment door or
liftgate is open, no rear view camera
features will display.

Note:

When towing, the camera only sees

what you are towing. This might not provide
adequate coverage as it usually provides in
normal operation and some objects might
not be seen. In some vehicles, the guidelines
may disappear when you connect the trailer
tow connector.

The camera may not operate correctly
under the following conditions:
•

Nighttime or dark areas if one or both
reverse lamps are not operating.

•

Mud, water or debris obstructs the
camera's view. Clean the lens with a
soft, lint-free cloth and non-abrasive
cleaner. You can also use the rear
washer to clean the camera. See

Rear

Window Wiper and Washers

(page

86).

•

The rear of your vehicle is hit or
damaged, causing the camera to
become misaligned.

238

Parking Aids

Camera System Settings

The rear view camera system settings can
be accessed through the touchscreen. See

Settings

(page 458).

Camera Guidelines

Note:

Active guidelines are only available

when the transmission is in reverse (R).

B C

E142436

Active guidelines (If equipped)

Centerline

Fixed guideline: Green zone

Fixed guideline: Yellow zone

Fixed guideline: Red zone

Rear bumper

Active guidelines are only shown with fixed
guidelines. To use active guidelines, turn
the steering wheel to point the guidelines
toward an intended path. If you change
the steering wheel position while reversing,
your vehicle might deviate from the original
intended path.

The fixed and active guidelines fade in and
out depending on the steering wheel
position. The active guidelines do not
display when the steering wheel position
is straight.

Always use caution while reversing.
Objects in the red zone are closest to your
vehicle and objects in the green zone are
farther away. Objects are getting closer to
your vehicle as they move from the green
zone to the yellow or red zones. Use the
side view mirrors and rear view mirror to
get better coverage on both sides and rear
of the vehicle.

Obstacle Distance Indicator

(If

Equipped)

E190459

239

Parking Aids

The system will provide an image of your
vehicle and the sensor zones. The zones
will highlight green, yellow and red when
the parking aid sensors detect an object in
the coverage area.

Manual Zoom

WARNING:

When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

Note:

Manual zoom is only available when

the transmission is in reverse (R).

Note:

When you enable manual zoom, only

the centerline is shown.

Selectable settings for this feature are
Zoom in (+) and Zoom out (-). Press the
symbol in the camera screen to change the
view. The default setting is Zoom OFF.

This allows you to get a closer view of an
object behind your vehicle. The zoomed
image keeps the bumper in the image to
provide a reference. The zoom is only
active while the transmission is in reverse
(R).

Rear Camera Delay

Selectable settings for this feature are ON
and OFF.

The default setting for the rear camera
delay is OFF.

When shifting the transmission out of
reverse (R) and into any gear other than
park (P), the camera image remains in the
display until:
•

Your vehicle speed reaches
approximately 5 mph (8 km/h).

•

You shift your vehicle into park (P).

360 DEGREE CAMERA

(IF

EQUIPPED)

WARNING:

The 360 degree

camera system still requires the driver
to use it in conjunction with looking out
of the windows, and checking the interior
and exterior mirrors for maximum
coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Use caution when

turning camera features on or off when
the transmission is not in park (P). Make
sure your vehicle is not moving.

WARNING:

You are responsible for

Note:

Use caution using the 360 view when

any of the doors are ajar. If a door is ajar, the
camera becomes out of position and the
video image could be incorrect.

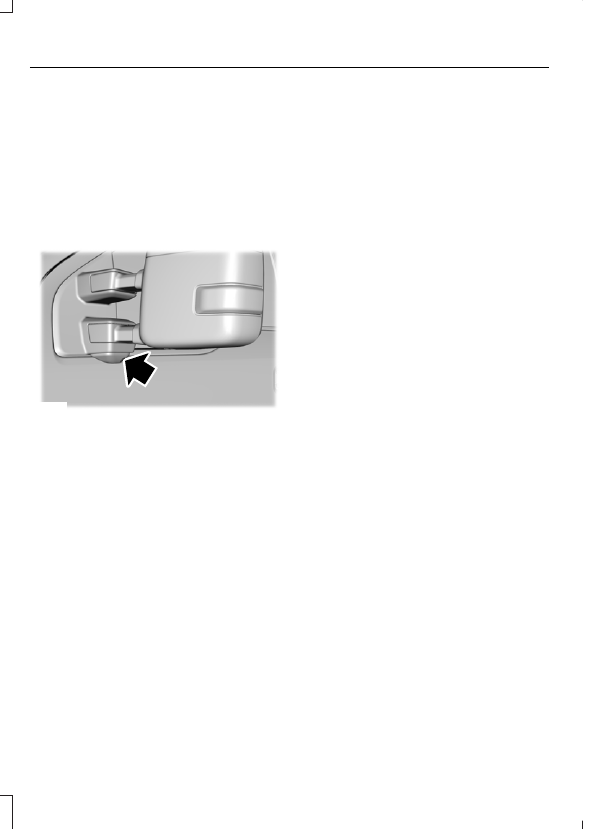

The 360 degree camera system consists
of front, side and rear cameras. The
system:
•

Allows you to see what is directly in
front or behind your vehicle.

•

Provides cross traffic view in front and
behind your vehicle.

240

Parking Aids

•

Allows you to see a top-down view of
the area outside your vehicle, including
the blind spots.

•

Provides you with visibility around your
vehicle in parking maneuvers such as:
•

Centering in a parking space.

•

Obstacles near the vehicle.

•

Parallel parking.

E205884

The front camera enable button
is near the display screen and
turns on the front camera when

your vehicle is not in reverse (R).

Using the System

Note:

The 360 degree camera system turns

off when your vehicle is in motion at low
speed, except when in reverse (R).

The front and rear cameras have multiple
screens which consist of normal view with
360, normal view, and split view. When in
park (P), neutral (N) or drive (D), only the
front images display when you press the
button. When in reverse (R), only the rear
images display.

E224483

Press to access the different
camera views.

E224783

Normal + 360 view:

Contains

the normal camera view next to
a 360 degree camera view.

E224784

Normal view:

Provides an

image of what is directly in front
or behind your vehicle.

E224785

Split view:

Provides an

extended view of what is in front
or behind your vehicle.

E224485

Zooms in on the image.

Keep Out Zone

E225016

The yellow dotted lines running parallel to
your vehicle represent the keep out zone.

Front Camera

WARNING:

The front camera

system still requires the driver to use it
in conjunction with looking out of your
vehicle.

Note:

The system turns off the front video

image when your vehicle is in motion at low
speeds, except when in reverse (R).

E188845

241

Parking Aids

WHAT IS CRUISE CONTROL

Cruise control lets you maintain a set
speed without keeping your foot on the
accelerator pedal.

Requirements

Use cruise control when the vehicle speed
is greater than 20 mph (30 km/h).

SWITCHING CRUISE CONTROL
ON AND OFF

WARNING:

Do not use cruise

control on winding roads, in heavy traffic
or when the road surface is slippery. This
could result in loss of vehicle control,
serious injury or death.

The cruise controls are on the steering
wheel.

Switching Cruise Control On

E71340

Press the button to put the
system in standby mode.

Switching Cruise Control Off

E71340

Press the button when in
standby mode or switch the
ignition off.

Note:

When you switch cruise control off

the set speed clears.

SETTING THE CRUISE
CONTROL SPEED

WARNING:

When you are going

downhill, your vehicle speed could
increase above the set speed. The
system does not apply the brakes.

Drive to the speed you prefer.

Press the toggle button upward
or downward to set the current
speed.

Take your foot off the accelerator pedal.

Note:

The indicator changes color in the

information display.

Changing the Set Speed

Press and release the toggle
button upward to increase the
set speed in small increments.

Press and hold the toggle button upward
to accelerate. Release the button when
you have reached your preferred speed.

Press and release the toggle
button downward to decrease
the set speed in small

increments.

Press and hold the toggle button
downward to decelerate. Release the
button when you have reached your
preferred speed.

Note:

If you accelerate by pressing the

accelerator pedal, the set speed does not
change. When you release the accelerator
pedal, your vehicle returns to the speed that
you previously set.

243

Cruise Control

(If Equipped)

CANCELING THE SET SPEED

E280804

Press the button, or tap the
brake pedal to cancel the set
speed.

Note:

The system remembers the set

speed.

Note:

The system cancels if the vehicle

speed drops below 10 mph (16 km/h) under
the set speed when driving uphill.

RESUMING THE SET SPEED

Press the button.

CRUISE CONTROL
INDICATORS

E71340

Illuminates when you switch the
system on.

244

Cruise Control

(If Equipped)

HOW DOES ADAPTIVE CRUISE
CONTROL WITH STOP AND GO
WORK

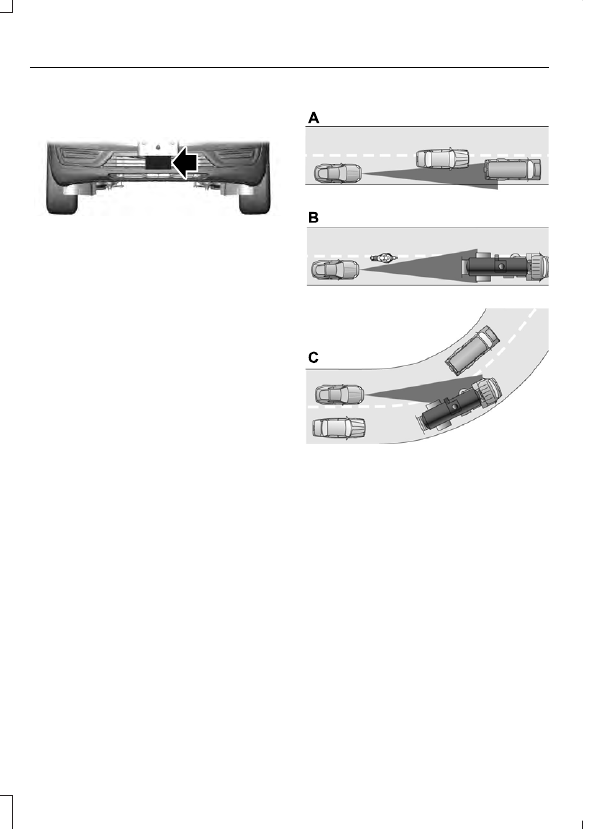

Adaptive cruise control with stop and go
uses radar and camera sensors to adjust
the speed of your vehicle to maintain a set
gap from the vehicle in front of you in the
same lane while following it to a complete
stop. You can also engage the system to
follow a vehicle in front of you and adjust
set speed while stopped.

WHAT IS ADAPTIVE CRUISE
CONTROL WITH LANE
CENTERING

Adaptive cruise control with lane centering
uses radar and camera sensors to help
keep your vehicle in the lane by applying
continuous assistance steering torque
input toward the lane center on highways.

Note:

The adaptive cruise control gap

setting operates normally.

WHAT IS INTELLIGENT
ADAPTIVE CRUISE CONTROL

Intelligent adaptive cruise control
combines speed sign recognition with
adaptive cruise control to adjust the cruise
set speed to the speed limit detected by
the speed sign recognition system. For
example, if the speed sign recognition
system detects a 50 mph (80 km/h)
speed limit, the cruise set speed is updated
to 50 mph (80 km/h) +/- the driver's
selected speed offset.

Note:

The adaptive cruise control gap

setting operates normally.

ADAPTIVE CRUISE CONTROL
PRECAUTIONS - VEHICLES
WITH: LANE CENTERING

Adaptive cruise control precautions apply
to lane centering unless stated otherwise
or contradicted by a lane centering
precaution. See

Adaptive Cruise Control

Precautions

(page 245).

WARNING:

Do not use the system

when towing a trailer. Failure to follow
this instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

Do not use the system

if any changes or modifications to the
steering wheel have been made. Any
changes or modifications to the steering
wheel could affect the functionality or
performance of the system. Failure to
follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

ADAPTIVE CRUISE CONTROL
PRECAUTIONS - VEHICLES
WITH: STOP AND GO

WARNING:

You are responsible for

245

Adaptive Cruise Control

(If Equipped)

WARNING:

Pay close attention to

changing road conditions such as
entering or leaving a highway, on roads
with intersections or roundabouts, roads
without visible lanes of travel, roads that
are winding, slippery, unpaved, or steep
slopes.

WARNING:

The system does not

control speed in low traction conditions
or extremely steep slopes. The system
is designed to be an aid and does not
relieve you of your responsibility to drive
with due care and attention. Failure to
follow this instruction could result in
personal injury.

WARNING:

The system is not a

crash warning or avoidance system.

WARNING:

Do not use the system

when towing a trailer that has
aftermarket electronic trailer brake
controls. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Do not use tire sizes

other than those recommended because
this can affect the normal operation of
the system. Failure to do so may result
in a loss of vehicle control, which could
result in serious injury.

WARNING:

Do not use the system

with a snow plow blade installed.

WARNING:

Do not use the system

in poor visibility, for example fog, heavy
rain, spray or snow.

When Following a Vehicle

WARNING:

When following a

vehicle that is braking, your vehicle does
not always decelerate quickly enough to
avoid a crash without driver intervention.
Apply the brakes when necessary. Failure
to follow this instruction could result in
personal injury or death.

Hilly Condition Usage

You should select a lower gear when the
system is active in situations such as
prolonged downhill driving on steep
grades, for example in mountainous areas.
The system needs additional engine
braking in these situations to reduce the
load on the vehicle’s regular brake system
to prevent it from overheating.

Note:

An audible alarm sounds and the

system shuts down if it applies brakes for
an extended period of time. This allows the
brakes to cool. The system functions
normally again after the brakes cool.

ADAPTIVE CRUISE CONTROL
LIMITATIONS - VEHICLES
WITH: LANE CENTERING

Adaptive cruise control limitations apply
to lane centering unless stated otherwise
or contradicted by a lane centering
limitation. See

Adaptive Cruise Control

Limitations

(page 247).

The system may not correctly operate in
any of the following conditions:
•

The lane is too narrow or wide.

•

The system does not detect at least
one lane marking or when lanes merge
or split.

•

Limited steering torque input is applied.

246

Adaptive Cruise Control

(If Equipped)

•

Areas under construction or new
infrastructure.

•

When modifications to the steering
system have been made.

•

When using a spare tire.

Note:

The driving assistance torque is

limited and may not be sufficient for all
driving situations such as driving through
tight curves or driving through curves at high
speeds.

Note:

In exceptional conditions, the system

may deviate from the center line.

ADAPTIVE CRUISE CONTROL
LIMITATIONS - VEHICLES
WITH: STOP AND GO

Sensor Limitations

WARNING:

On rare occasions,

detection issues can occur due to the
road infrastructures, for example bridges,
tunnels and safety barriers. In these
cases, the system may brake late or
unexpectedly. At all times, you are
responsible for controlling your vehicle,
supervising the system and intervening,
if required.

WARNING:

If the system

malfunctions, have your vehicle checked
as soon as possible.

WARNING:

Large contrasts in

outside lighting can limit sensor
performance.

WARNING:

The system only warns

of vehicles detected by the radar sensor.
In some cases there may be no warning
or a delayed warning. Apply the brakes
when necessary. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

The system may not

detect stationary or slow moving
vehicles below 6 mph (10 km/h).

WARNING:

The system does not

detect pedestrians or objects in the road.

WARNING:

The system does not

detect oncoming vehicles in the same
lane.

WARNING:

The system may not

operate properly if the sensor is blocked.
Keep the windshield free from
obstruction.

WARNING:

The sensor may

incorrectly track lane markings as other
structures or objects. This can result in
a false or missed warning.

E307893

The camera is mounted on the windshield
behind the interior mirror.

247

Adaptive Cruise Control

(If Equipped)

E307892

The radar sensor is in the lower grille.

Note:

You cannot see the sensor. It is

behind a fascia panel.

Note:

Keep the front of your vehicle free of

dirt, metal badges or objects. Vehicle front
protectors, aftermarket lights, additional
paint or plastic coatings could also degrade
sensor performance.

A message displays if something obstructs
the camera or the sensor. When something
blocks the sensor, the system cannot
detect a vehicle ahead and does not
function. See

Adaptive Cruise Control

– Information Messages

(page 254).

The radar sensor has a limited field of view.
It may not detect vehicles at all or detect
a vehicle later than expected in some
situations. The lead vehicle image does
not illuminate if the system does not
detect a vehicle in front of you.

Detection issues can occur:

E71621

When driving on a different line
than the vehicle in front.

With vehicles that edge into your
lane. The system can only detect
these vehicles once they move
fully into your lane.

There may be issues with the
detection of vehicles in front
when driving into and coming out
of a bend or curve in the road.

In these cases, the system may brake late
or unexpectedly.

If something hits the front end of your
vehicle or damage occurs, the
radar-sensing zone may change. This could
cause missed or false vehicle detection.

248

Adaptive Cruise Control

(If Equipped)

Ford Explorer (2022 year). Manual in english - page 15
