Ford F-150 (2022 year). Manual in english

Note:

For vehicles with adjustable head

restraints, route the tether strap under the
head restraint and between the head
restraint posts. Otherwise, route the tether
strap over the top of the seat backrest.

2. Locate the correct anchor for the

selected seating position. You may
need to pull the seat backrest forward
to access the tether anchors. Make sure
the seat is locked in the upright position
before installing the child restraint.

3. Clip the tether strap to the anchor.

4. Tighten the child restraint tether strap

according to the manufacturer's
instructions.

If you incorrectly clip the tether strap, the
child restraint may not be retained properly
in the event of a crash.

If you did not properly anchor the child
restraint, the risk of a child being injured in
a crash greatly increases.

If your child restraint system has a tether
strap, and the child restraint manufacturer
recommends its use, we also recommend
its use.

ATTACHING THE REAR SEAT
TETHER STRAP

(If Equipped)

Crew Cab and Super Cab

E309318

There are three loops of webbing above
the back of the rear seat. Use these loops
as routing loops and anchor loops for up
to three child restraint tether straps.

For example, you can use the center loop
as a routing loop for a child restraint in the
center rear seat and as an anchoring loop
for child restraints installed in the
outermost rear seats.

Many tether straps cannot be tightened if
the tether strap is hooked to the loop
directly behind the child restraint.

To provide a tight tether strap:

E309384

Route the vehicle tether loop between
the head restraint posts, then route the
child restraint tether strap through the
loop, forward of the head restraint.

2. Hook the strap to the vehicle tether

anchor loop in the adjacent seating
position. If using the driver side, pass
the strap behind the shoulder belt for
the center seat. Put the tether strap
through the routing loop. The head
restraint support post holds the child
restraint tightly, but the head restraint
post is not strong enough to hold the
child restraint during a crash.

3. Tighten the tether strap according to

the child restraint manufacturer's
instructions.

Child Safety

If you did not properly anchor the child
restraint, the risk of a child being injured in
a crash greatly increases.

If your child restraint system has a tether
strap, and the child restraint manufacturer
recommends its use, we also recommend
its use.

BOOSTER SEATS

Use a belt-positioning booster seat for
children who have outgrown or no longer
properly fit in a child restraint and meet
the following criteria.

•

Generally children who are less than
57 in (1.45 m) tall.

•

Are greater than age four (4) and less
than age twelve (12).

•

Are between 40 lb (18 kg) and 80 lb
(36 kg) and upward to 100 lb (45 kg).

Many state and provincial laws require that
children use approved booster seats until
they reach age eight, a height of 57 in
(1.45 m) tall, or 80 lb (36 kg).

Booster seats should be used until you can
answer yes to all of these questions when
seated without a booster seat:

E142595

•

Can the child sit all the way back
against their vehicle seat backrest with
knees bent comfortably at the edge of
the seat cushion?

•

Can the child sit without slouching?

•

Does the lap belt rest low across the
hips?

•

Is the shoulder belt centered on the
shoulder and chest?

•

Can the child stay seated like this for
the whole trip?

Always use booster seats in conjunction
with your vehicle lap and shoulder belt.

Types of Booster Seats

E68924

•

Backless booster seats

If your backless booster seat has a
removable shield, remove the shield.

If a vehicle seating position has a low seat
backrest or no head restraint, a backless
booster seat may place your child's head,
as measured at the tops of the ears, above
the top of the seat. In this case, move the
backless booster to another seating
position with a higher seat backrest or
head restraint and lap and shoulder belts,
or consider using a high-back booster seat.

Child Safety

E70710

•

High-back booster seats

If, with a backless booster seat, you cannot
find a seating position that adequately
supports your child's head, a high-back
booster seat would be a better choice.

Children and booster seats vary in size and
shape. Choose a booster that keeps the
lap belt low and snug across the hips,
never up across the stomach, and lets you
adjust the shoulder belt to cross the chest
and rest snugly near the center of the
shoulder.

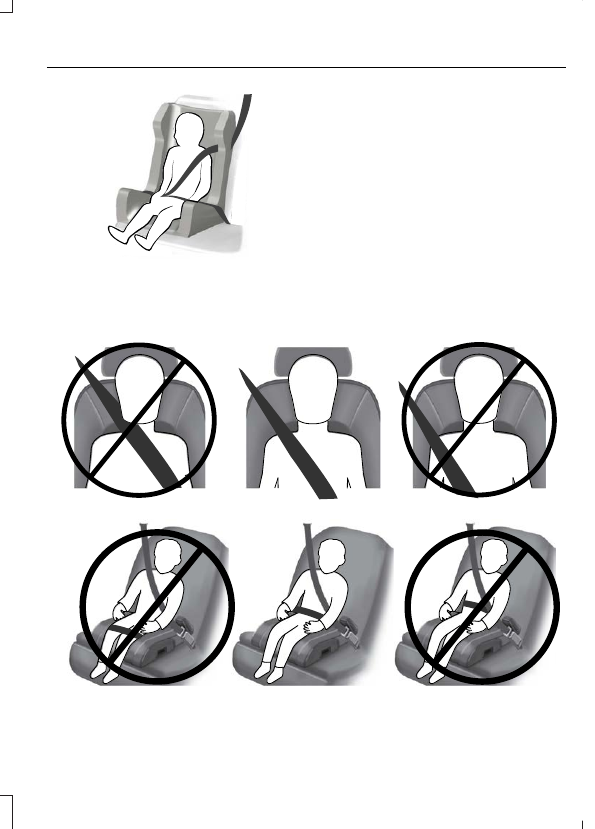

The following drawings compare the ideal
fit to a shoulder belt uncomfortably close
to the neck and a shoulder belt that could
slip off the shoulder. The drawings also
show how the lap belt should be low and
snug across the child's hips.

E142596

E142597

Child Safety

If the booster seat slides on the vehicle
seat upon which it is being used, placing a
rubberized mesh sold as shelf or carpet
liner under the booster seat may improve
this condition. Do not use any item thicker
than this under the booster seat. Check
with the booster seat manufacturer's
instructions.

CHILD SAFETY LOCKS

(IF

EQUIPPED)

WARNING:

You cannot open the

rear doors from inside if you have put the
child safety locks on.

E238364

A child safety lock is on the rear edge of
each rear door. You must switch the child
safety lock separately on each door.

Left-Hand Side

Turn the key clockwise to switch the child
lock on and counterclockwise to switch it
off.

Right-Hand Side

Turn the key counterclockwise to switch
the child lock on and clockwise to switch
it off.

Child Safety

SEATBELT PRECAUTIONS

WARNING:

Always drive and ride

with your seatback upright and the lap
belt snug and low across the hips.

WARNING:

Children must always

be properly restrained.

WARNING:

Do not allow a

passenger to hold a child on their lap
when your vehicle is moving. Failure to
follow this instruction could result in
personal injury or death in the event of a
sudden stop or crash.

WARNING:

All occupants of your

vehicle, including the driver, should
always properly wear their seatbelts,
even when an airbag supplemental
restraint system is provided. Failure to
properly wear your seatbelt could
seriously increase the risk of injury or
death.

WARNING:

It is extremely

dangerous to ride in a cargo area, inside
or outside of a vehicle. In a crash, people
riding in these areas are more likely to be
seriously injured or killed. Do not allow
people to ride in any area of your vehicle
that is not equipped with seats and
seatbelts. Make sure everyone in your
vehicle is in a seat and properly using a
seatbelt. Failure to follow this warning
could result in serious personal injury or
death.

WARNING:

In a rollover crash, an

unbelted person is significantly more
likely to die than a person wearing a
seatbelt.

WARNING:

Each seating position

in your vehicle has a specific seatbelt
assembly made up of one buckle and
one tongue designed to be used as a pair.
Use the shoulder belt on the outside
shoulder only. Never wear the shoulder
belt under the arm. Never use a single
seatbelt for more than one person.

WARNING:

Even with advanced

restraints systems, properly restrain
children 12 and under in a rear seating
position. Failure to follow this could
seriously increase the risk of injury or
death.

WARNING:

Seatbelts and seats

may be hot in a vehicle that is in the
sunshine. The hot seatbelts or seats may
burn a small child. Check seat covers and
buckles before you place a child
anywhere near them.

WARNING:

If your vehicle is

involved in a crash, have the seatbelts
and associated components inspected
as soon as possible. Failure to follow this
instruction could result in personal injury
or death.

All seating positions in this vehicle have
seatbelts. All occupants of the vehicle
should properly wear their seatbelts, even
when an airbag supplemental restraint
system is provided.

The seatbelt system consists of:
•

Lap and shoulder seatbelts.

•

A shoulder seatbelt with automatic
locking mode, except driver seatbelt.

•

Height adjusters at the front outermost
seating positions.

•

Seatbelt pretensioners at the front
outermost and rear outermost seating
positions.

Seatbelts

E71880

A seatbelt warning light and
chime.

E67017

Crash sensors and monitoring
system with readiness indicator.

The seatbelt pretensioners are designed
to tighten the seatbelts when activated. In
frontal and near-frontal crashes, the
seatbelt pretensioners may be activated
alone or, if the crash is of sufficient severity,
together with the front airbags. In side
crashes and rollovers, the pretensioners
will be activated when the Safety Canopy
is activated.

FASTENING AND
UNFASTENING THE
SEATBELTS

This applies to all seating positions, except
for the front center position of Super Cab
and Crew Cab.

E142587

Insert the seatbelt tongue into the
buckle until you hear a snap and feel it
latch.

E142588

2. Press the button to release the

seatbelt.

Using the Seatbelt With Cinch
Tongue

This applies to the front center seating
position of Super Cab and Crew Cab.

The cinch tongue slides up and down the
seatbelt webbing when you stow the
seatbelt or when you put the seatbelts on.
When you buckle the seatbelt, the cinch
tongue allows you to shorten the lap
portion, but pinches the webbing to keep
the lap portion from getting longer. The
cinch tongue is designed to slip during a
crash, so wear the shoulder belt properly
and do not allow any slack in either the lap
or shoulder portions.

Fastening the Cinch Tongue

WARNING:

Always drive and ride

with your seatback upright and the lap
belt snug and low across the hips.

Pull the seatbelt from the retractor so
that the shoulder belt portion of the
seatbelt crosses your shoulder and
chest.

2. Make sure the belt is not twisted. If the

belt is twisted, remove the twist.

Seatbelts

3. Insert the belt tongue into the proper

buckle for your seating position until
you hear a snap and feel it latch.

4. Make sure you securely fasten the

tongue to the buckle by pulling on the
tongue.

While you are fastened in the seatbelt, the
seatbelt with a cinch tongue adjusts to
your movement. However, if you brake
hard, turn hard, or if your vehicle receives
an impact of 5 mph (8 km/h) or more, the
seatbelt locks and helps reduce your
forward movement.

SENSITIVE LOCKING MODE

WHAT IS SENSITIVE LOCKING
MODE

Sensitive locking mode is a seatbelt
retractor feature that allows shoulder belt
length adjustment according to your
movements and locking in response to
vehicle movement.

HOW DOES SENSITIVE LOCKING
MODE WORK

If the driver suddenly brakes, turns a corner
sharply, or the vehicle receives an impact
of about 5 mph (8 km/h) or more, the
seatbelts lock to help reduce forward
movement of the driver and passengers.

In addition, the seatbelt retractor locks if
you pull the seatbelt webbing out too
quickly. If the retractor locks, slowly lower
the height adjuster to allow the seatbelt
to retract.

If the retractor does not unlock, pull the
seatbelt out slowly then feed a small
length of webbing back toward the stowed
position.

For rear seatbelts, recline the rear seat
backrest or push the seat backrest cushion
away from the seatbelt. Feed a small
length of webbing back toward the stowed
position.

AUTOMATIC LOCKING MODE

WHAT IS AUTOMATIC LOCKING
MODE

This feature keeps the seatbelts
pre-locked. The belt still retracts to remove
any slack in the shoulder belt.

WHEN TO USE AUTOMATIC
LOCKING MODE

Use this mode any time you install a child
restraint in a front seating position in a
Regular Cab, Super Cab, Crew Cab or any
rear seating position of a Super Cab or
Crew Cab. The optional front seat center
seatbelt in the Super Cab and Crew Cab
has a cinch mechanism. Properly restrain
children 12 years old and under in a rear
seat whenever possible. See

Child Safety

(page 47).

Note:

Automatic locking mode is not

available on the driver seatbelt.

Seatbelts

ENGAGING AUTOMATIC LOCKING
MODE

E142591

Fasten the combination lap and
shoulder belt.

2. Grasp the shoulder portion and pull

downward until you pull the entire belt
out.

3. Allow the belt to retract. As the belt

retracts, you will hear a clicking sound.
This indicates the seatbelt is now in the
automatic locking mode.

DISENGAGING AUTOMATIC
LOCKING MODE

Unbuckle the combination lap and
shoulder belt and allow it to retract
completely to disengage the automatic
locking mode and activate the vehicle
sensitive locking mode.

ADJUSTING THE SEATBELTS
DURING PREGNANCY

WARNING:

Always ride and drive

with your seatback upright and properly
fasten your seatbelt. Fit the lap portion
of the seatbelt snugly and low across
the hips. Position the shoulder portion of
the seatbelt across your chest. Pregnant
women must follow this practice. See
the following figure.

E142590

Pregnant women should always wear their
seatbelt. Position the lap belt portion of a
combination lap and shoulder belt low
across the hips below the belly and worn
as tight as comfort allows. Position the
shoulder belt to cross the middle of the
shoulder and the center of the chest.

ADJUSTING THE SEATBELT
HEIGHT

WARNING:

Position the seatbelt

height adjuster so that the seatbelt rests
across the middle of your shoulder.
Failure to adjust the seatbelt correctly
could reduce its effectiveness and
increase the risk of injury in a crash.

Seatbelts

E145664

Pull the button and slide the height
adjuster up or down.

2. Release the button and pull down on

the height adjuster to make sure it is
locked in place.

ADJUSTING THE SEATBELT
LENGTH

E162708

Pull some seatbelt webbing out of the
shoulder belt retractor.

2. While holding the webbing below the

tongue, grasp the metal tip of the
tongue so that it is parallel to the
webbing and slide the tongue up.

3. Provide enough lap belt length so that

the tongue can reach the buckle.

SEATBELT REMINDER

HOW DOES THE SEATBELT

REMINDER WORK

This feature supplements the seatbelt
warning function by providing additional
reminders that intermittently sound a tone
and illuminate the seatbelt warning lamp
when you are in the driver seat or you have
a front seat passenger and a seatbelt is
unbuckled.

The system uses information from the
front passenger sensing system to
determine if a front seat passenger is
present and therefore potentially in need
of a warning. To avoid the system
switching on the Belt-Minder feature for
objects you place on the front passenger
seat, only the front seat passengers receive
warnings as determined by the front
passenger sensing system.

If the Belt-Minder warnings expire
(warnings for about five minutes) for one
passenger (driver or front passenger), the
other passenger can still cause the
Belt-Minder feature to switch on.

Seatbelts

Then

The Belt-Minder feature will not activate.

You and the front seat passenger buckle
your seatbelts before you switch the igni-
tion on or less than 1–2 minutes elapse after
you switch the ignition on...

The Belt-Minder feature activates, the
seatbelt warning lamp illuminates and an
indicator tone sounds for 6 seconds every
25 seconds, repeating for about 5 minutes
or until you and the front seat passenger
buckle your seatbelts.

You or the front seat passenger do not
buckle your seatbelts before your vehicle
reaches at least 6.0 mph (9.7 km/h) and
1–2 minutes elapse after you switch the
ignition on...

The seatbelt for the driver or front
passenger is unbuckled for about 1 minute
while the vehicle is traveling at least
6.0 mph (9.7 km/h) and more than 1–2
minutes elapse after you switch the ignition
on...

Seatbelts

SEATBELT REMINDER
INDICATORS

A warning lamp illuminates if the ignition
is on, a front seat is occupied and the
seatbelt has not been fastened.

E71880

The warning lamp illuminates
until you fasten your seatbelt.

SEATBELT REMINDER AUDIBLE
WARNINGS

A warning tone sounds if the warning lamp
illuminates and your vehicle exceeds a
relatively low speed.

The warning tone sounds for up to five
minutes or until you fasten your seatbelt.

SWITCHING THE SEATBELT
REMINDER ON AND OFF

WARNING:

While the system

allows you to deactivate it, this system
is designed to improve your chances of
being safely belted and surviving an
accident. We recommend you leave the
system activated for yourself and others
who may use the vehicle.

Note:

The driver and front passenger

warnings switch off independently. When
you perform this procedure for one seating
position, do not buckle the other position as
this cancels the process.

Note:

If you are using MyKey, you cannot

disable the seatbelt reminder. Also, if the
seatbelt reminder has been previously
disabled, it will be re-enabled during the use
of MyKey. See

MyKey™

(page 96).

Read Steps 1 - 4 before proceeding with
the programming procedure.

Make sure that:
•

The parking brake is set.

•

The transmission is in park (P).

•

The ignition is off.

•

The driver and front passenger
seatbelts are unfastened.

Switch the ignition on. Do not start the
engine.

2. Wait about one minute until the

seatbelt warning light switches off.
After Step 2, wait an additional five
seconds before proceeding with Step
3. Once you start Step 3, you must
complete the procedure within 30
seconds.

3. For the seating position you are

switching off, buckle then unbuckle the
seatbelt three times at a moderate
speed, ending in the unbuckled state.
After Step 3, the seatbelt warning light
switches on.

4. When the seatbelt warning light is on,

buckle then unbuckle the seatbelt.
After Step 4, the seatbelt warning light
flashes for confirmation.

This switches the feature off for that
seating position if it is currently on.

This switches the feature on for that
seating position if it is currently off.

CHECKING THE SEATBELTS

Check the seatbelts and child restraints
periodically to make sure they work
properly and are not damaged. Make sure
there are no nicks, tears or cuts. Replace if
necessary.

Check the following seatbelt assemblies
after a crash.

•

Retractors.

•

Buckles.

•

Front seatbelt buckle assemblies.

Seatbelts

•

Shoulder belt height adjusters.

•

Shoulder belt guide on seat backrest.

•

Child restraint LATCH and tether
anchors.

•

Attaching hardware.

Read the child restraint manufacturer's
instructions for additional inspection and
maintenance information specific to the
child restraint.

We recommend that all seatbelt
assemblies in use in vehicles involved in a
crash be replaced. However, if the crash
was minor and an authorized dealer finds
that the belts do not show damage and
continue to operate properly, they do not
need to be replaced. Seatbelt assemblies
not in use during a crash should also be
checked and replaced if either damage or
improper operation is noted.

Properly care for seatbelts. See

Cleaning

Seatbelts

(page 515).

SEATBELT EXTENSIONS

WARNING:

Persons who fit into

the vehicle's seatbelt should not use an
extension. Unnecessary use could result
in serious personal injury in the event of
a crash.

WARNING:

Only use extensions

provided free of charge by our dealers.
The dealer will provide an extension
designed specifically for this vehicle,
model year and seating position. The use
of an extension intended for another
vehicle, model year or seating position
may not offer you the full protection of
your vehicle's seatbelt restraint system.

WARNING:

Never use seatbelt

extensions to install child restraints.

WARNING:

Do not use extensions

to change the way the seatbelt fits
across the torso, over the lap or to make
the seatbelt buckle easier to reach.

If, because of body size or driving position,
it is not possible to properly fasten the
seatbelt over your lap and shoulder, an
extension that is compatible with the
seatbelts is available free of charge from
our dealers. Only use our seatbelt
extensions made by the original equipment
seatbelt manufacturer with our seatbelts.
Ask your authorized dealer if your extension
is compatible with your vehicle restraint
system.

Seatbelts

WHAT IS THE PERSONAL
SAFETY SYSTEM

An advanced safety system that protects
occupants in frontal crashes.

HOW DOES THE PERSONAL
SAFETY SYSTEM WORK

This system provides an improved level of
frontal crash protection to front seat
occupants and is designed to reduce the
risk of airbag-related injuries. The system
analyzes occupant conditions and crash
severity before activating the appropriate
safety devices. During a crash, the
restraints control module may deploy the
seatbelt pretensioners, and one or both
stages of the dual-stage airbags based on
crash severity and occupant conditions.

PERSONAL SAFETY SYSTEM
COMPONENTS

•

Driver and passenger dual-stage airbag
supplemental restraints.

•

Front seat outermost seatbelts with
pretensioners, energy management
retractors and seatbelt usage sensors.

•

Front passenger sensing system.

•

Passenger airbag off and on indicators.

•

Front crash severity sensors.

•

Restraints control module with impact
and safing sensors.

•

Restraint system warning light and
tone.

•

The electrical wiring for the airbags,
crash sensors, seatbelt pretensioners,
front seatbelt usage sensors, front
passenger sensing system and
indicator lights.

Personal Safety System™

HOW DO THE FRONT AIRBAGS
WORK

E151127

The driver and front passenger airbags
deploy during significant frontal and near
frontal crashes.

The driver and passenger front airbag
system consists of:
•

Driver and passenger airbag modules.

•

Front passenger sensing system.

•

Crash sensors and monitoring system
with readiness indicator. See

Crash

Sensors and Airbag Indicator

(page

77).

The airbags are a supplemental restraint
system and are designed to work with the
seatbelts to help protect the driver and
right front passenger from certain upper
body injuries. Airbags do not inflate slowly;
there is a risk of injury from a deploying
airbag.

Note:

You will hear a loud bang and see a

cloud of harmless powdery residue if an
airbag deploys. This is normal.

The airbags inflate and deflate rapidly
upon activation. After airbag deployment,
it is normal to notice a smoke-like, powdery
residue or smell the burnt propellant. This
may consist of cornstarch, talcum powder
(to lubricate the bag) or sodium

compounds (for example, baking soda)
that result from the combustion process
that inflates the airbag. Small amounts of
sodium hydroxide may be present which
may irritate the skin and eyes, but none of
the residue is toxic.

Contact with a deploying airbag may cause
abrasions or swelling. Temporary hearing
loss is also a possibility as a result of the
noise associated with a deploying airbag.

Because airbags must inflate rapidly and
with considerable force, there is the risk of
death or serious injuries such as fractures,
facial and eye injuries or internal injuries,
particularly to occupants who are not
properly restrained or are otherwise out of
position at the time of airbag deployment.
Thus, it is extremely important that
occupants be properly restrained as far
away from the airbag module as possible
while maintaining vehicle control.

Routine maintenance of the airbags is not
required.

HOW DO THE SIDE AIRBAGS
WORK

WARNING:

Do not place objects

or mount equipment on or near the
airbag cover, on the side of the front or
rear seatbacks, or in areas that may
come into contact with a deploying
airbag. Failure to follow these
instructions may increase the risk of
personal injury in the event of a crash.

WARNING:

Accessory seat covers

not released by Ford Motor Company
could prevent the deployment of the
airbags and increase the risk of injuries
in a crash.

Airbags

WARNING:

Do not lean your head

on the door. The side airbag could injure
you as it deploys from the side of the
seatback.

The side airbags are on the outermost side
of the seat backrests of the front seats. In
certain sideways crashes or rollovers, the
airbags will be inflated. The airbag was
designed to inflate between the door panel
and occupant to further enhance the
protection provided to occupants in side
impact crashes.

E152533

The system consists of the following:
•

A label or embossed side panel
indicating that side airbags are fitted
to your vehicle.

•

Side airbags inside the driver and front
passenger seat backrests.

•

Crash sensors and monitoring system
with readiness indicator. See

Crash

Sensors and Airbag Indicator

(page

77).

HOW DO THE KNEE AIRBAGS
WORK

Driver and passenger knee airbags are
under or within the instrument panel.
During a crash, the restraints control
module may activate the driver and
passenger knee airbags (individually or
both) based on crash severity and
respective occupant conditions. Under
certain crash and occupant conditions, the
driver and passenger knee airbags may
deploy (individually or both) but the
corresponding front airbag may not
activate. It is important to be properly
seated and restrained to reduce the risk of
death or serious injury.

E67017

Make sure the knee airbags are
operating properly. See

Crash

Sensors and Airbag Indicator

(page 77).

HOW DOES THE SAFETY
CANOPY™ WORK

WARNING:

Do not place objects

or mount equipment on or near the
headliner at the siderail that may come
into contact with a deploying curtain
airbag. Failure to follow these
instructions may increase the risk of
personal injury in the event of a crash.

WARNING:

Do not lean your head

on the door. The curtain airbag could
injure you as it deploys from the
headliner.

WARNING:

To reduce risk of injury,

do not obstruct or place objects in the
deployment path of the airbag.

Airbags

The Safety Canopy deploys during
significant side crashes or when a certain
likelihood of a rollover event is detected
by the rollover sensor. The Safety Canopy
is mounted to the roof side-rail sheet
metal, behind the headliner, above each
row of seats. In certain sideways crashes
or rollover events, the Safety Canopy will
be activated, regardless of which seats are
occupied. The Safety Canopy inflates
between the side window area and
occupants to further enhance protection
provided in side impact crashes and
rollover events.

E75004

The system consists of the following:
•

Safety Canopy curtain airbags above
the trim panels over the front and rear
side windows identified by a label or
wording on the headliner or roof-pillar
trim.

•

A flexible headliner which opens above
the side doors to allow air curtain
deployment

E67017

· Crash sensors and monitoring
system with a readiness
indicator. See

Crash Sensors

and Airbag Indicator

(page 77).

Properly restrain children 12 years old and
under in the rear seats. The Safety Canopy
will not interfere with children restrained
using a properly installed child or booster
seat because it is designed to inflate
downward from the headliner above the
doors along the side window opening.

AIRBAG PRECAUTIONS

WARNING:

Airbags do not inflate

slowly or gently, and the risk of injury
from a deploying airbag is the greatest
close to the trim covering the airbag
module.

WARNING:

All occupants of your

WARNING:

Properly secure

children 12 years old and under in a rear
seating position whenever possible. If
you are unable to properly secure all
children in a rear seating position,
properly secure the largest child on the
front seat. If you must use a forward
facing child restraint on the front seat,
move the seat as far back as possible.
Failure to follow these instructions could
result in personal injury or death.

WARNING:

Do not place your arms

on the airbag cover or through the
steering wheel. Failure to follow this
instruction could result in personal injury.

Airbags

Ford F-150 (2022 year). Manual in english - page 3
