TIRE PRESSURE MONITORING SYSTEM – INFORMATION MESSAGES

Action

Message

After inflating your tires to the manufacturer’s recommended
pressure as shown on the Tire Label, on the edge of the driver
door or the B-Pillar, drive your vehicle for at least two minutes

over 20 mph (32 km/h) before the light turns off.

Tire Pressure Low

The system has detected a fault that requires service. Have

your vehicle checked as soon as possible.

Tire Pressure Monitor

Fault

The system has detected a fault that requires service or a

spare tire is in use. Have your vehicle checked as soon as

possible.

Tire Pressure Sensor

Fault

Trailer Tire Pressure Monitoring System

Action

Message

One or more tires on your trailer is below the specified

tire pressure.

Trailer Tire Low Specified:

Displays when one or more tires on your trailer is above

the recommended temperature.

Trailer Tire Over Temperature

A trailer tire pressure sensor is malfunctioning. If the

warning stays on or continues to come on, contact an

authorized dealer as soon as possible.

Trailer Tire Pressure Sensor

Fault

The trailer tire pressure monitoring system is

malfunctioning. If the warning stays on or continues

to come on, contact an authorized dealer.

Trailer Tire Pressure Monitor

Fault

The system cannot detect the trailer tire pressure

monitoring system.

Trailer Tire Pressure Monitor

Capability Not Detected

The trailer tire pressure monitoring system is not setup.

See

Tire Pressure Monitoring System

(page 448).

Trailer Tire Pressure Indication

Not Setup See Manual

454

Tire Pressure Monitoring System

(If Equipped)

CHANGING A FLAT TIRE

WARNING:

If the tire pressure

monitor sensor becomes damaged it
may not function.

Note:

The use of tire sealant may damage

your tire pressure monitoring system and
should only be used in roadside
emergencies.

Note:

The tire pressure monitoring system

indicator light illuminates when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on this vehicle.

If you get a flat tire when driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe
place on the side of the road.

Have a flat serviced by an authorized
dealer to prevent damage to the system
sensors. See

Tire Pressure Monitoring

System Precautions

(page 449). Replace

the spare tire with a road tire as soon as
possible. During repairing or replacing the
flat tire, have the authorized dealer inspect
the system sensor for damage.

Dissimilar Spare Wheel and Tire
Assembly Information

WARNING:

Failure to follow these

guidelines could result in an increased
risk of loss of vehicle control, injury or
death.

If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that were originally provided
by Ford. If the dissimilar spare tire or wheel
is damaged, it should be replaced rather
than repaired.

A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and
wheels.

Full-size dissimilar spare

When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
•

Exceed 70 mph (113 km/h).

•

Use more than one dissimilar spare
wheel and tire assembly at a time.

•

Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.

When driving with the full-size dissimilar
spare wheel and tire assembly, 4WD
functionality may be limited. You may
experience the following:
•

Additional noise from the transfer case
or other drive components.

•

Difficulty shifting out of a mechanically
locked 4WD mode.

When driving with the full-size dissimilar
spare wheel and tire assembly, it is
recommended that you do not:
•

Exceed 50 mph (80 km/h) in 4WD.

•

Engage 4WD unless the vehicle is
stationary.

•

Use 4WD on dry pavement.

455

Changing a Road Wheel

The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
•

Handling, stability and braking
performance.

•

Comfort and noise.

•

Ground clearance and parking at curbs.

•

Winter weather driving capability.

•

Wet weather driving capability.

•

Four-wheel drive capability.

When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
•

Towing a trailer.

•

Driving vehicles equipped with a
camper body.

•

Driving vehicles with a load on the
cargo rack.

Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly
and seek service as soon as possible.

Location of the Spare Tire and
Tools

See the following table for their locations:

Location

Item

Under the vehicle, just forward of the rear

bumper.

Spare tire - pick-up trucks only

Fastened to the floor pan behind the rear-

most seat on the passenger side.

Jack

Regular Cab: Fastened to floor behind the

driver seat.

Jack handle, lug wrench, lug wrench exten-

sion - only provided on dual rear wheel

vehicles.

Super Cab and Crew Cab: Fastened to the

floor under the rear seat on the driver's side.

Tire Change Procedure

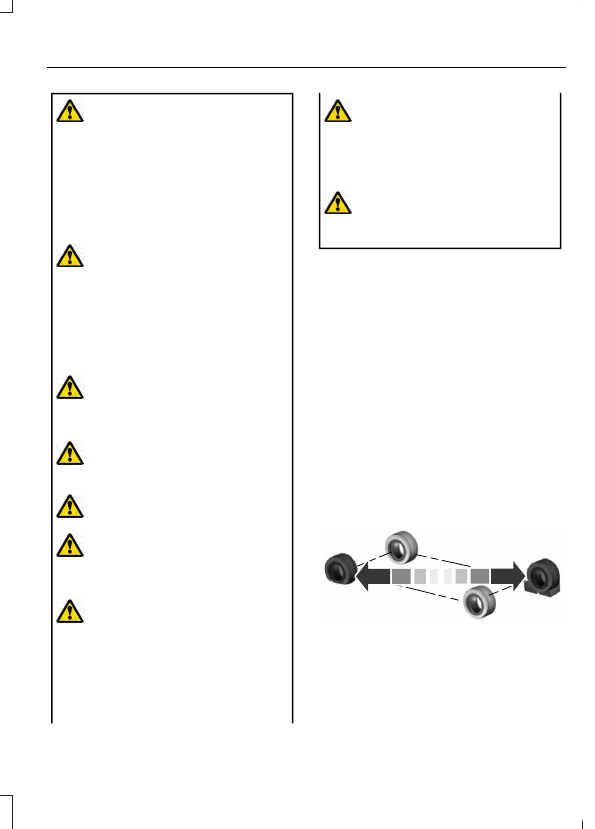

WARNING:

The jack supplied with

this vehicle is only intended for changing
wheels. Do not use the vehicle jack other
than when you are changing a wheel in
an emergency.

E166722

456

Changing a Road Wheel

WARNING:

To help prevent your

vehicle from moving when changing a
wheel, shift the transmission into park
(P), set the parking brake and use an
appropriate block or wheel chock to
secure the wheel diagonally opposite to
the wheel being changed. For example,
when changing the front left wheel,
place an appropriate block or wheel
chock on the right rear wheel.

WARNING:

Always use the jack

provided as original equipment with your
vehicle. If using a jack other than the one
provided, make sure the jack capacity is
adequate for the vehicle weight,
including any vehicle cargo or
modifications. If you are unsure if the jack
capacity is adequate, contact the
authorized dealer.

WARNING:

Failure to follow these

guidelines could result in an increased
risk of loss of vehicle control, injury or
death.

WARNING:

Never place anything

between the vehicle jack and your
vehicle.

WARNING:

Never place anything

between the vehicle jack and the ground.

WARNING:

Park your vehicle so

that you do not obstruct the flow of
traffic or place yourself in any danger and
set up a warning triangle.

WARNING:

The jack supplied with

this vehicle is only intended for changing
a flat tire in an emergency. Do not
attempt to do any other work on your
vehicle when it is supported by the jack,
as your vehicle could slip off the jack.
Failure to follow this instruction could
result in personal injury or death.

WARNING:

Do not attempt to

change a tire on the side of the vehicle
close to moving traffic. Pull far enough
off the road to avoid the danger of being
hit when operating the jack or changing
the wheel.

WARNING:

Only use the spare

wheel carrier to stow wheels provided
with your vehicle.

Note:

Do not use impact tools or power

tools operating at over 200 RPM on the
spare wheel carrier winch, which may cause
it to malfunction and result in the wheel and
tire not being securely stowed.

Note:

Passengers should not remain in the

vehicle when the vehicle is being jacked.

Park the vehicle on a level firm ground
and activate the hazard flashers.

2. Apply the parking brake, place the

transmission in park (P), switch the
engine off.

3. Block the wheel diagonally opposite

the flat tire. For example, if the left
front tire is flat, block the right rear
wheel.

E175447

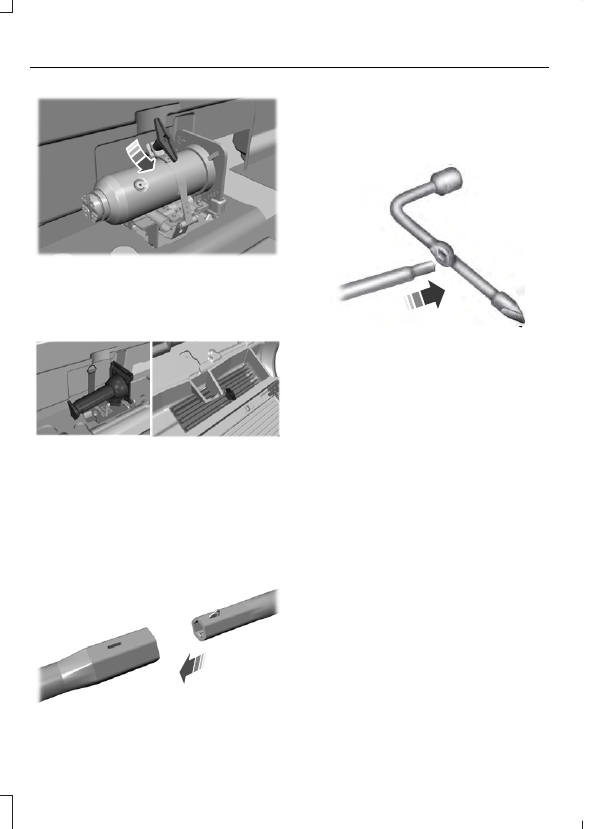

4. You can find the jack on the floor

behind the rear-most seat on the
passenger side. Turn the retainers
counterclockwise to remove the jack.

457

Changing a Road Wheel

E309424

5. You can find the tool kit on the floor

under the driver seat for regular cab or
under the rear seat on the driver side.
Turn the retainers counterclockwise to
remove the tool kit.

E309795

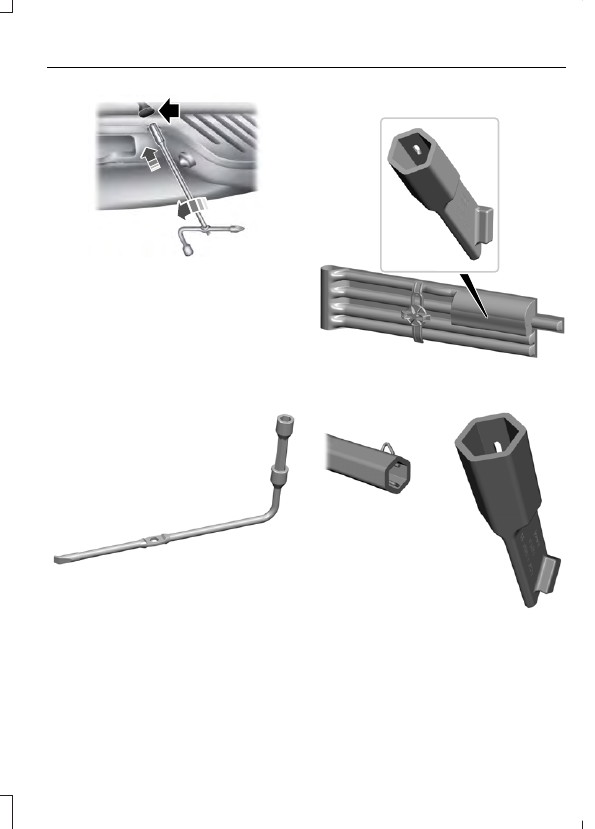

6. Use the ignition key to open the lock at

the rear bumper.

One or more handle extensions are
used to operate the spare tire carrier.
To assemble, align the button with the
hole and slide the parts together. To
disconnect, press the button and pull
apart.

E308882

8. The lug wrench is used to turn the

handle extensions and the jack handle;
slide the square end of the handle
extension into the square hold of the
lug wrench until it clicks in place.

E162796

9. Fully insert the jack handle, with one

extension, through the bumper hole
and into the guide tube. Additional
extensions will be needed if the tailgate
is in the lowered position and cannot
be raised. Turn the handle
counterclockwise and lower the spare
tire until you can slide the tire rearward
and the cable is slack. You will feel
some resistance when you turn the jack
handle assembly. If not replacing the
spare or flat tire to the underbody
storage area, raise the wheel retainer
up into the installed position. Do not
store spare or flat tire at other
locations.

10.

Slide the retainer through the center
of the spare tire wheel and remove
the spare tire.

458

Changing a Road Wheel

E310417

11.

Remove the wheel trim with the lug
wrench tip, or use the wheel trim tool
described later in this section.

12.

Loosen each wheel lug nut one-half
turn counterclockwise, but do not
remove them until the wheel is raised
off the ground. For dual rear wheel,
assemble the lug wrench and
extension tool together to access the
lug nuts.

E309794

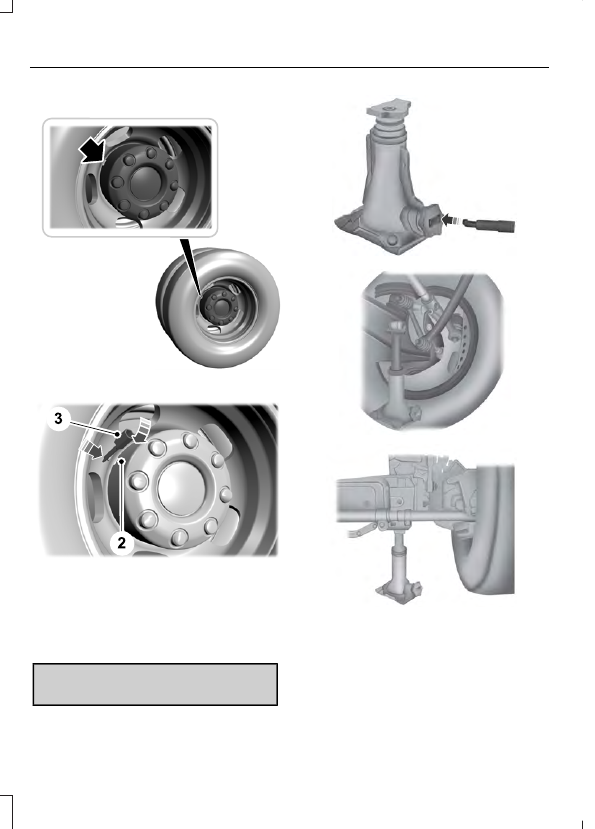

13.

Position the jack under the correct
jacking points.

Removing Wheel Trim With Single
Wheels

Insert the flat end of the lug wrench
between the wheel rim and the wheel
trim.

2. Carefully remove the wheel trim.

Vehicles With Dual Rear Alloy Wheels

E338541

E338539

The wheel trim removal tool is in the
storage bag near the lug wrench.

459

Changing a Road Wheel

Rear Wheel Trim

E338557

Locate the notch in the wheel trim.

E338552

2. Insert the wheel trim removal tool into

the notch in the wheel trim.

3. Rotate the wheel trim removal tool and

remove the wheel trim.

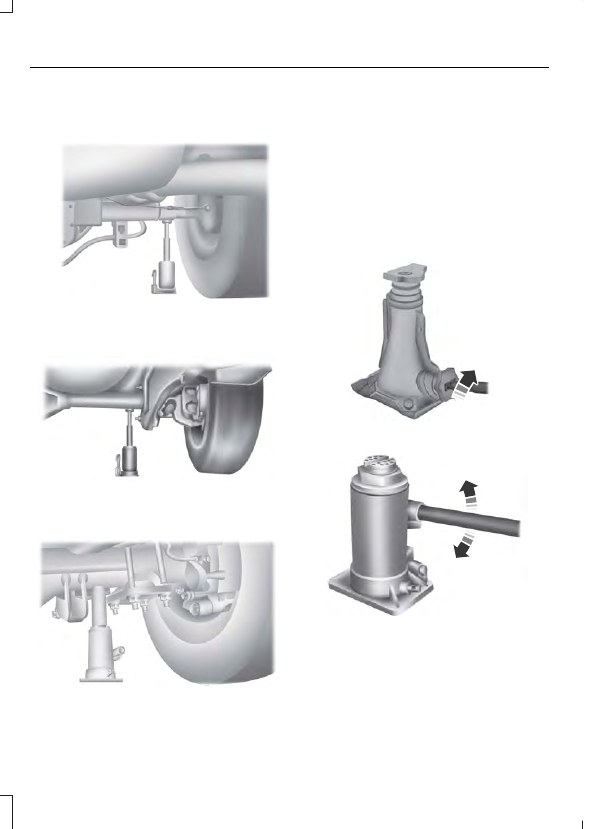

Jacking the Vehicle

F-250 and F-350 Single Rear Wheel
Vehicles

E162801

E162802

E162803

460

Changing a Road Wheel

E162804

E162805

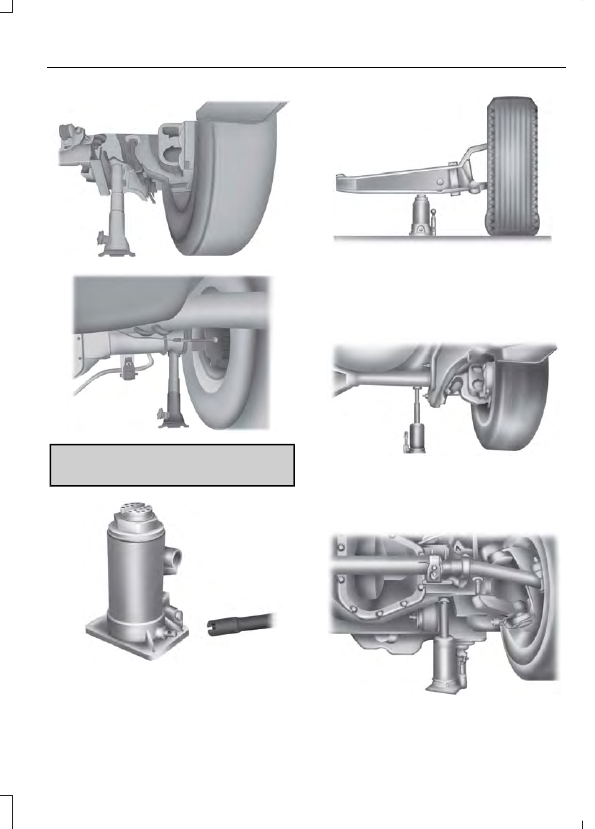

F-350 Dual Rear Wheel, F-450 and F-550
Vehicles

E162812

E162813

Front (4x2):F350 Dual rear wheel

Note:

Place the jack directly under the

I-beam.

E162815

Front passenger side (4x4): F-350 dual
rear wheel

E162814

Front driver side (4x4): F-350 dual rear
wheel

461

Changing a Road Wheel

Note:

Make sure the jack fits onto the flat

area on the outboard side of the differential
housing.

E162817

Rear: F-350 dual rear wheel

E162816

Front: F-450 and F-550

E162818

Rear: F-450 and F-550

Insert the hooked end of the jack handle
into the jack and turn the jack handle
clockwise. For hydraulic jacks, operate the
handle up-and-down until the wheel is
completely off the ground and high enough
to install the spare tire.

Note:

Hydraulic jacks have a pressure relief

valve that prevents lifting loads which
exceed the jack's rated capacity.

F-250 and F-350 Single Rear Wheel
Vehicles

E162811

F-350 Dual Rear Wheel Vehicles

E162819

462

Changing a Road Wheel

Remove the lug nuts with the lug wrench,
replace the flat tire with the spare, making
sure the valve stem of the spare is facing
outward when replacing a front wheel. For
the rear wheel position on vehicles with
single rear wheel fitments, install the spare
with the valve stem facing outward. For
vehicles with dual rear wheels, the valve
stem of the spare must face outward when
replacing an inner wheel, but must face
inward when replacing an outboard wheel.

Reinstall the lug nuts until the wheel is
snug against the hub. Do not fully tighten
the lug nuts until the wheel has been
lowered.

Lower the vehicle completely by turning
the jack handle counterclockwise until the
vehicle is completely lowered.

Note:

For F-350 Dual Rear Wheel, F-450

and F-550 Vehicles, insert the notched end
of the jack handle to the release valve, open
the release valve slightly by turning the
handle counterclockwise. Stop turning the
release valve when vehicle start to lower.
Make sure to close the valve when you
completely lower your vehicle.

F-350 Dual Rear Wheel, F-450 and
F-550 Vehicles.

E162812

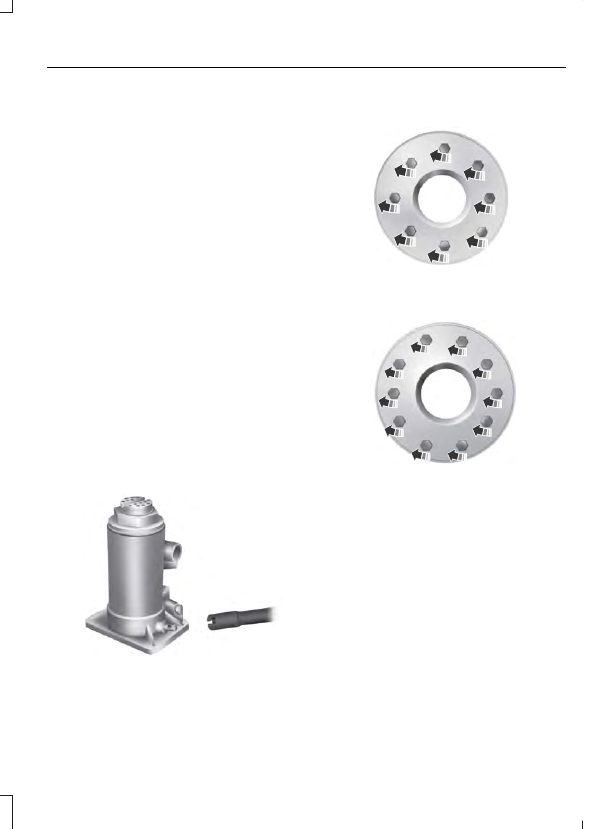

Installing the lug Nuts and Ornaments

E161441

8-lug nut torque sequence

E169375

10-lug nut torque sequence

Note:

When installing the wheel center

ornaments, make sure that the ornament
retention towers on the back side of the
ornament are aligned with the studs or nuts
and retain to the flange on the lug nuts.

463

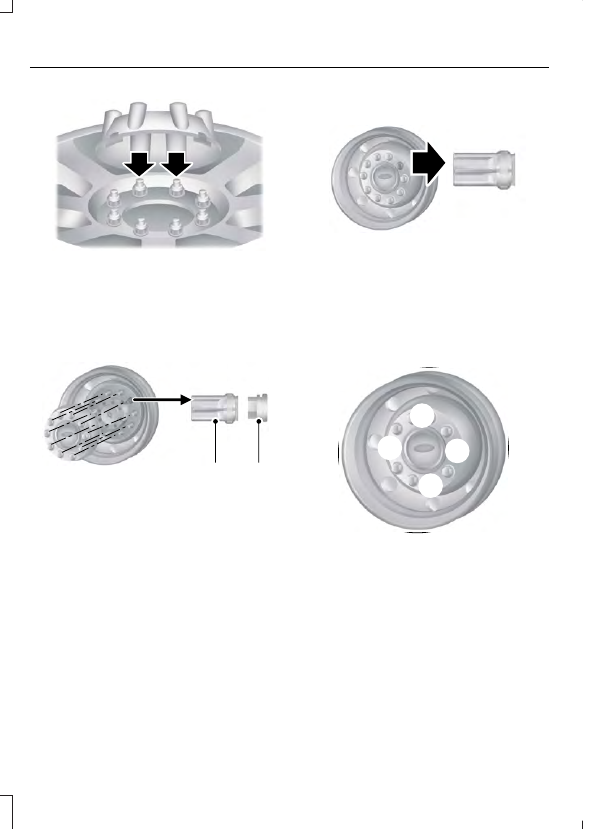

Changing a Road Wheel

E162820

Note:

For dual rear wheels, align the

ornament with the lug nuts. (A) is the clip
in the ornament and (B) is the flange of the
lug nut. Make sure that each of the retention
clips are sitting on a lug nut flange.

E162822

Note:

If the ornament retention clips are

aligned between the studs or lug nuts, the
ornament will be improperly installed. This
improper installation may appear and sound
correct, but will not keep the ornament on
the vehicle. Ornaments improperly installed
in this manner may become loose or fall off
during driving.

E162823

Use your hand or a rubber mallet to tap the
ornament until the retention clips snap
over the lug nut flanges. Tap in a star
pattern until the ornament seats fully onto
the wheel. There should be an even gap
between the ornament and the wheel
when it is properly installed.

E162824

Stowing the Flat Tire or Spare Tire

Place the tire on end with the valve
stem facing toward the front of the
vehicle. Lay the tire on the ground, near
the rear of the vehicle, with the valve
stem side facing up.

464

Changing a Road Wheel

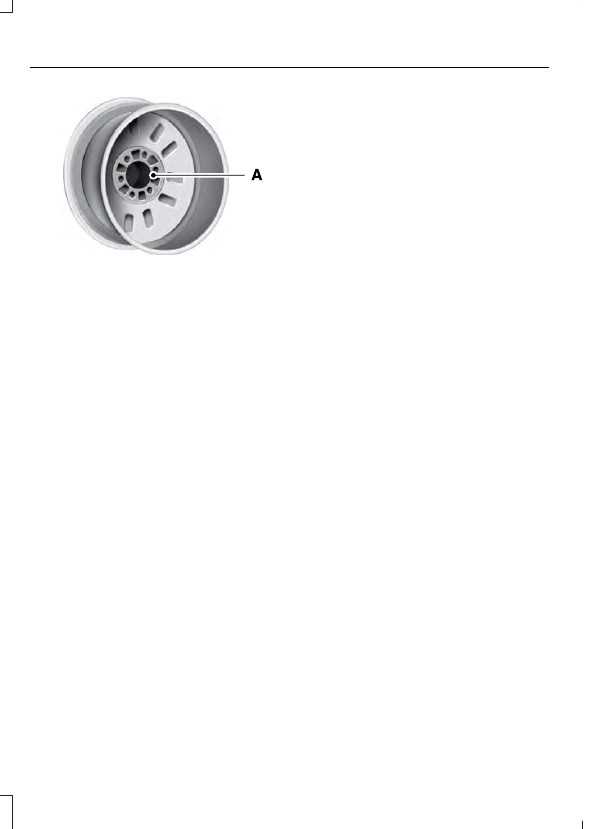

E162800

2. Slide the wheel partially under the

vehicle and install the retainer through
the wheel center. If equipped, you may
have to remove the wheel center cap
prior to pushing the retainer through
the center of the wheel. To remove the
center cap, press it off with the lug
wrench tip from the inner side of the
wheel. Pull on the cable to align the
components at the end of the cable.

3. Reinsert the lug wrench extension(s)

through the rear bumper and guide
tube and turn the lug wrench clockwise
until the tire is raised to its stowed
position underneath the vehicle. The
wrench will become harder to turn and
the spare tire winch will ratchet or slip
when the tire is raised to maximum
tightness. You will hear a clicking sound
from the winch indicating that the tire
is properly stowed, tighten until a
minimum of three clicks are heard.
Check that the tire lies flat against the
frame and is secure.

4. Carefully place all tools back in the tool

kit bag.

5. Reinstall the tool kit bag and tighten

the wing nut.

6. Properly reinstall the jack into the

bracket and tighten the wing nut.

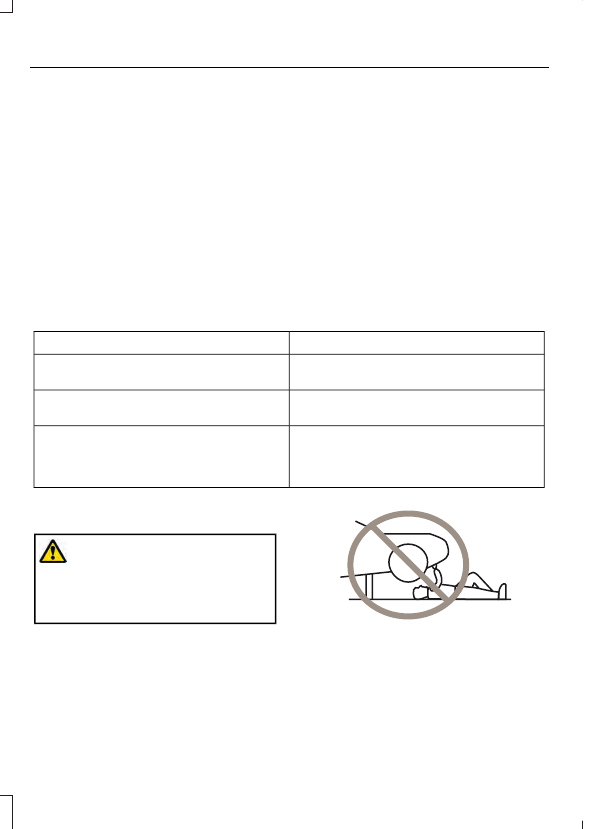

WHEEL NUTS

WARNING:

When you install a

wheel, always remove any corrosion, dirt
or foreign materials present on the
mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make
sure to secure any fasteners that attach
the rotor to the hub so they do not
interfere with the mounting surfaces of
the wheel. Installing wheels without
correct metal-to-metal contact at the
wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to
come off while your vehicle is in motion,
resulting in loss of vehicle control,
personal injury or death.

lb.ft (Nm)

Bolt Size

150 lb.ft (204 Nm)

M14 x 1.5

Torque specifications are for nut and bolt

threads free of dirt and rust. Use only our
recommended replacement wheel nuts
and or wheel bolts.

Retighten the wheel nuts to the specified
torque within 100 mi (160 km) after any
wheel disturbance, such as tire rotation,
changing a flat tire or wheel removal.

On vehicles equipped with dual rear
wheels, retighten the wheel lug nuts to the
specified torque at 100 mi (160 km), and
again at 500 mi (800 km) of new vehicle
operation and after any wheel disturbance,
such as tire rotation, changing a flat tire,
or wheel removal.

It is important to follow the proper wheel
mounting and lug nut torque procedures.

465

Changing a Road Wheel

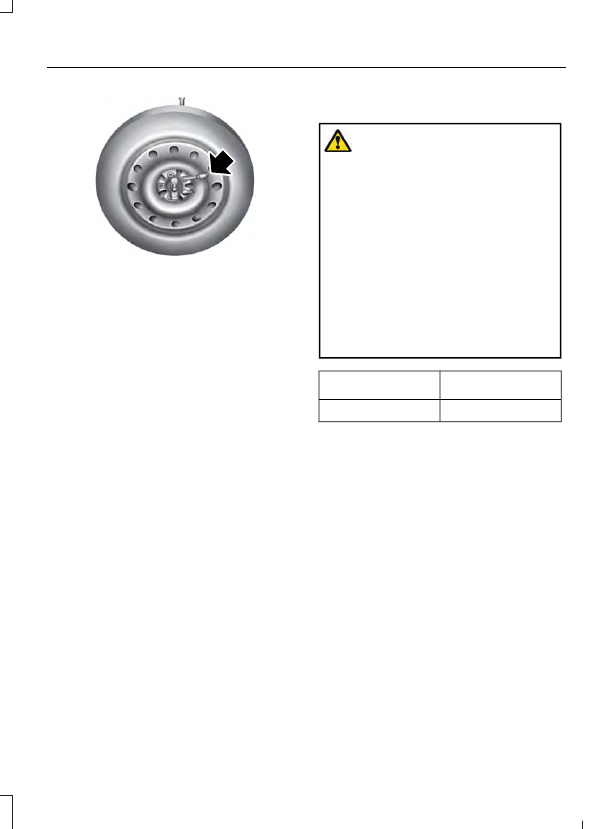

E145950

Hub pilot bore.

Inspect the wheel pilot hole and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.

466

Changing a Road Wheel

ENGINE SPECIFICATIONS - 6.2L

6.2L V8 Engine

Engine

379 in³ (6,210 cm³)

Displacement.

Minimum 87 octane

Required fuel.

1-5-4-8-6-3-7-2

Firing order.

Coil on plug

Ignition system.

0.041 in (1.04 mm) - 0.047 in (1.2 mm)

Spark plug gap.

9.8:1

Compression ratio.

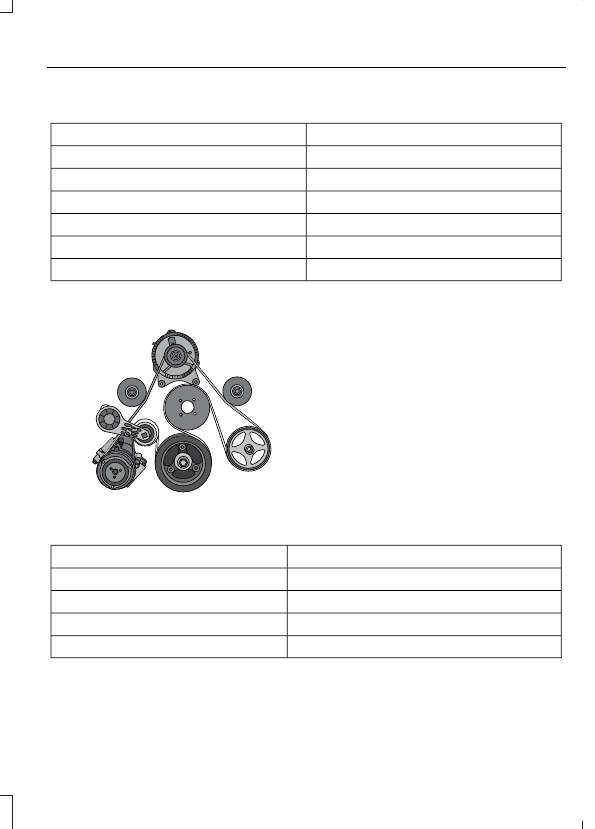

Drivebelt Routing

E163761

ENGINE SPECIFICATIONS - 6.7L DIESEL

6.7L V8 Diesel Engine

Engine

406 in³ (6,651 cm³)

Displacement.

Ultra Low Sulfur Diesel up to B20

Required fuel.

1-3-7-2-6-5-4-8

Firing order.

15.8:1

Compression ratio.

467

Capacities and Specifications

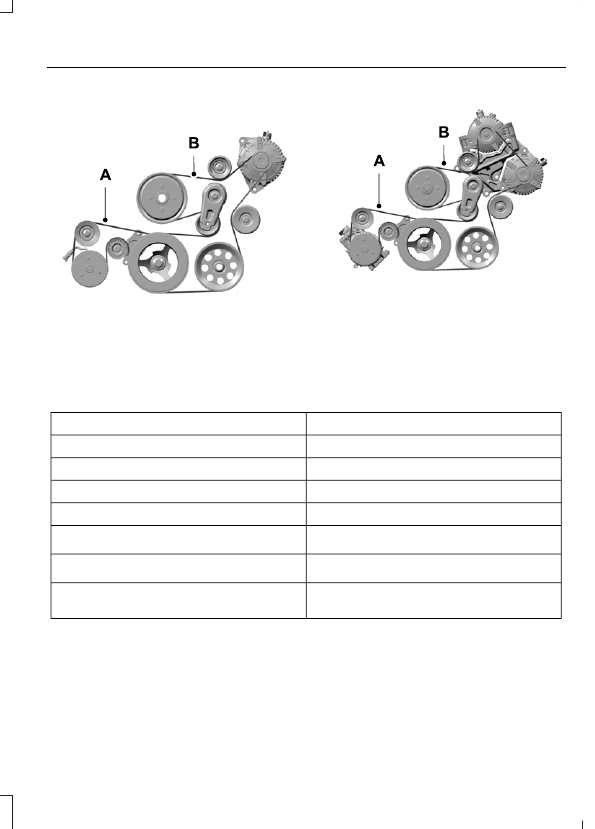

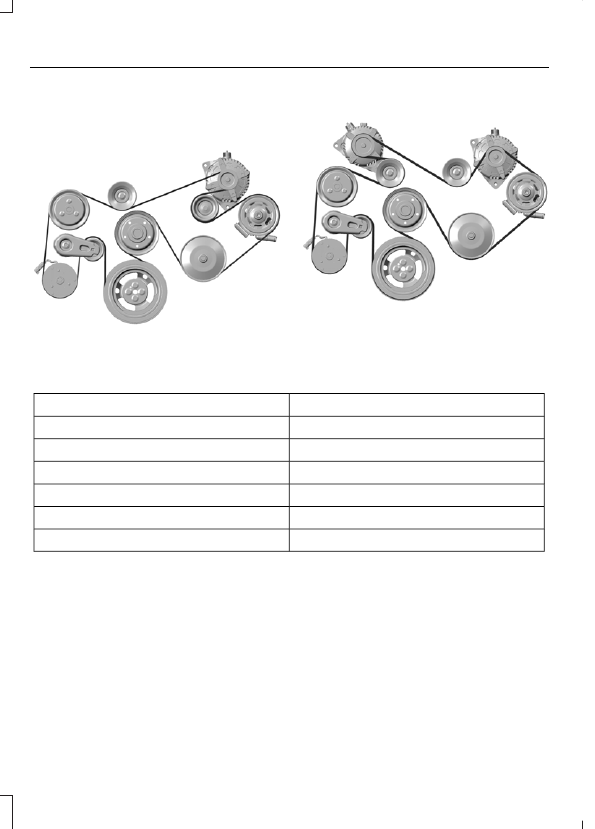

Drivebelt Routing

Single Alternator

E299020

Dual Alternator

E299021

ENGINE SPECIFICATIONS - 7.3L

7.3L V8 Engine

Engine

445 in³ (7,293 cm³)

Displacement.

Minimum 87 octane

Required fuel.

1-5-4-8-6-3-7-2

Firing order.

Coil near spark plug with spark plug wire

Ignition system.

0.049 in (1.25 mm) - 0.053 in (1.35 mm)

Spark plug gap.

10.5:1

Compression ratio.

468

Capacities and Specifications

Drivebelt Routing

Single Alternator

E305075

Drivebelt closest to the engine.

Drivebelt furthest from the
engine.

Dual Alternator

E298579

Drivebelt closest to the engine.

Drivebelt furthest from the
engine.

MOTORCRAFT PARTS - 6.2L

Motorcraft Part number

Component

FA-1950

Air filter element.

BXT-65-650

Battery (XL).

BXT-65-750

Battery (all except XL).

FP-79

Cabin air filter.

FL-820-S

Engine oil filter.

SP-526

Spark plugs.

FT-188

Six-speed automatic transmission fluid
filter (6R100).

469

Capacities and Specifications

Content .. 26 27 28 29 ..
