Ford F-350 (2022 year). Manual in english

Action

Message

The system detects a condition that

requires service. Have your vehicle checked

as soon as possible.

Check Front Park Aid

The system detects a condition that

requires service. Have your vehicle checked

as soon as possible.

Check Rear Park Aid

Displays the park aid status.

Front Park Aid On Off

Displays the park aid status.

Rear Park Aid On Off

262

Parking Aids

(If Equipped)

WHAT IS THE REAR VIEW
CAMERA

The rear view camera provides a video
image of the area behind your vehicle when
the transmission is in reverse (R).

E332186

The rear view camera button is
on the instrument panel.

REAR VIEW CAMERA
PRECAUTIONS

WARNING:

The rear view camera

system is a reverse aid supplement
device that still requires the driver to use
it in conjunction with the interior and
exterior mirrors for maximum coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Reverse your vehicle

slowly. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Use caution when the

tailgate is ajar. If the tailgate is ajar, the
camera is out of position and the video
image could be incorrect. All guide lines
disappear when the tailgate is ajar.
Failure to follow this instruction could
result in personal injury.

WARNING:

Use caution when

turning camera features on or off when
the transmission is not in park (P). Make
sure your vehicle is not moving.

Note:

When towing, the camera only sees

what you are towing. This might not provide
adequate coverage and you might not see
some objects. In some vehicles, the guide
lines may disappear when you connect the
trailer tow connector.

LOCATING THE REAR VIEW
CAMERA

The rear view camera is on the tailgate. It
provides a video image of the area behind
your vehicle.

263

Rear View Camera

REAR VIEW CAMERA GUIDE
LINES

E306774

Active guide lines.

Centerline.

Fixed guide line: Green zone.

Fixed guide line: Yellow zone.

Fixed guide line: Red zone.

Rear bumper.

Active guide lines only show with fixed
guide lines. To use active guide lines, turn
the steering wheel to point the guide lines
toward an intended path. If the steering
wheel position changes while reversing,
your vehicle might deviate from the
intended path.

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position
is straight.

Use caution while reversing. Objects in the
red zone are closest to your vehicle and
objects in the green zone are farther away.
Objects get closer to your vehicle as they
move from the green zone to the yellow or
red zones. Use the side view mirrors and
rear view mirror to get better coverage on
both sides and rear of your vehicle.

Note:

Active guide lines and fixed guide

lines are only available when the
transmission is in reverse (R).

Note:

The centerline is only available if the

active or fixed guide lines are on.

Note:

Not all camera modes work properly

without an auxiliary camera.

REAR VIEW CAMERA
SETTINGS

ZOOMING THE REAR VIEW
CAMERA IN AND OUT

WARNING:

When manual zoom is

on, the full area behind your vehicle may
not show. Be aware of your surroundings
when using the manual zoom feature.

Selectable settings for this feature are
zoom in (+) and zoom out (-). Press the
symbol on the camera screen to change
the view. The default setting is zoom off.

This allows you to get a closer view of an
object behind your vehicle. The zoomed
image keeps the bumper in the image to
provide a reference. The zoom is only
active while the transmission is in reverse
(R).

264

Rear View Camera

Note:

Zooming in also engages park hold

which applies the electric park brake when
you shift to park (P). When you press the
zoom button, the electronic park hold
button illuminates on the touchscreen. See

Connecting a Trailer

(page 323).

Note:

Manual zoom is only available when

the transmission is in reverse (R).

Note:

Only the centerline shows when you

enable manual zoom.

SWITCHING REAR VIEW CAMERA
DELAY ON AND OFF

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Rear View Camera

4. Switch

Rear View Camera Delay

on or

off.

When shifting the transmission out of
reverse (R) and into any gear other than
park (P), the camera image remains in the
display until:

•

Your vehicle speed reaches
approximately 5 mph (8 km/h).

•

You shift your vehicle into park (P).

265

Rear View Camera

WHAT IS THE 360 DEGREE
CAMERA

The 360 degree camera system consists
of front, side and rear cameras which
provide visibility around your vehicle.

HOW DOES THE 360 DEGREE
CAMERA WORK

The 360 Degree Camera system:

•

Allows you to see what is directly in
front of or behind your vehicle.

•

Helps you when parallel parking and
centering in a parking space.

•

Provides a cross traffic view in front of
and behind your vehicle.

•

Allows you to see a top-down view of
the area outside your vehicle, including
the blind spots and obstacles near your
vehicle.

360 DEGREE CAMERA
PRECAUTIONS

WARNING:

The 360 degree

camera system still requires the driver
to use it in conjunction with looking out
of the windows, and checking the interior
and exterior mirrors for maximum
coverage.

WARNING:

Objects that are close

to either corner of the bumper or under
the bumper, might not be seen on the
screen due to the limited coverage of the
camera system.

WARNING:

Use caution when

turning camera features on or off when
the transmission is not in park (P). Make
sure your vehicle is not moving.

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

360 DEGREE CAMERA
LIMITATIONS

Note:

Use caution if a door is ajar. The 360

degree camera could be out of position and
the image could be incorrect.

LOCATING THE 360 DEGREE
CAMERAS

Rear View Camera

The rear view camera is on the tailgate. It
provides a video image of the area behind
your vehicle.

Front View Camera

The front view camera is in the grille. It
provides a video image of the area in front
of your vehicle.

Side View Camera

The side view camera is on the outside
mirror. It provides a video image of the area
on the sides of your vehicle to aid you when
parking or when backing up a trailer.

266

360 Degree Camera

(If Equipped)

Bed Camera

The bed camera is mounted within the
high-mount stop lamp. It displays the
contents of your truck bed. The camera
contains a dynamic guideline to help locate
the center of your vehicle. This view can
be accessed while in drive (D) or reverse
(R).

Auxiliary Camera

The auxiliary camera is a variant of the rear
view camera and is accessed by pressing
the AUX button on the display screen when
moving in reverse (R) or in drive (D). It
displays a rear view image from the back
of a trailer while in reverse.

360 DEGREE CAMERA GUIDE
LINES

Note:

Active guide lines are only available

when the transmission is in reverse (R).

E306774

Active guide lines.

Centerline.

Fixed guide line: Green zone.

Fixed guide line: Yellow zone.

Fixed guide line: Red zone.

Rear bumper.

Active guide lines only show with fixed
guide lines. Turn the steering wheel to
point the guide lines toward an intended
path. If the steering wheel position changes
when reversing, your vehicle could deviate
from the intended path.

267

360 Degree Camera

(If Equipped)

The fixed and active guide lines fade in and
out depending on the steering wheel
position. The active guide lines do not
display when the steering wheel position
is straight.

Objects in the red zone are closest to your
vehicle and objects in the green zone are
farther away. Objects get closer to your
vehicle as they move from the green zone
to the yellow or red zones. Use the side
view mirrors and rear view mirror to get
better coverage on both sides and rear of
your vehicle.

Keep Out Zone

E310341

The Keep Out Zone is represented by the
yellow dotted lines running parallel to your
vehicle.

360 DEGREE CAMERA
SETTINGS

SWITCHING THE 360 DEGREE
CAMERA ON AND OFF

E332186

The 360 degree camera system
button is on the instrument
panel. The front and rear

cameras have multiple screens which
consist of:

•

Normal view.

•

Normal view with 360.

•

Split view.

•

Bed camera.

•

Auxiliary camera.

•

Hitch view.

Note:

The rear view camera activates when

you switch into reverse (R). Additional views
are then accessible on the touchscreen.

When in park (P), neutral (N) or drive (D),
the front images display when the button
is pressed. When in reverse (R), only the
rear images display when the button is
pressed.

Note:

Not all cameras are available.

Note:

The 360 degree camera system turns

off when your vehicle is in motion at low
speed, except when in reverse (R).

SWITCHING THE 360 DEGREE
CAMERA VIEW

E337002

Press to access the different
camera views.

E336516

Front normal view provides an
image of what is directly in front
of your vehicle.

E336517

Front split view provides an
extended view of what is in front
of your vehicle.

E310996

Normal + 360 degree view
contains the normal camera
view next to a 360 degree

camera view.

E310967

Rear normal view provides an
image of what is directly behind
your vehicle.

E310974

Rear split view provides an
extended view of what is behind
your vehicle.

268

360 Degree Camera

(If Equipped)

E310995

Bed camera shows the truck
bed.

E311776

Trailer AUX camera shows a rear
view camera image of what is
behind your trailer. This camera

needs to be purchased and installed
separately.

E350276

The hitch view provides an
image of the area around the
tow hitch.

E310965

Trailer reverse guidance shows
the sides of your truck and trailer.
See

Trailer Reverse Guidance

(page 357).

E224485

Zooms in on the image and park
hold is activated. See

Connecting a Trailer

(page 323).

E337359

Zooms in on the 360 degree
image.

Note:

The rear normal view, bed camera

view, hitch view and trailer auxiliary view are
available when your vehicle speed is greater
than 6 mph (10 km/h).

269

360 Degree Camera

(If Equipped)

WHAT IS CRUISE CONTROL

Cruise control lets you maintain a set
speed without keeping your foot on the
accelerator pedal.

Requirements

Use cruise control when the vehicle speed
is greater than 20 mph (30 km/h).

SWITCHING CRUISE CONTROL
ON AND OFF

WARNING:

Do not use cruise

control on winding roads, in heavy traffic
or when the road surface is slippery. This
could result in loss of vehicle control,
serious injury or death.

The cruise controls are on the steering
wheel. See

What Is Cruise Control

(page

270).

Switching Cruise Control On

E265296

Press the button.

Switching Cruise Control Off

E265297

Press the button when the
system is in standby mode.

The system also turns off when you switch
the ignition off.

Note:

The set speed erases when you

switch the system off.

SETTING THE CRUISE
CONTROL SPEED

WARNING:

When you are going

downhill, your vehicle speed could
increase above the set speed. The
system does not apply the brakes.

Drive to the speed you prefer.

Press either the Set+ or Set-
buttons to set the current speed.

Take your foot off the accelerator pedal.

Note:

The indicator changes color in the

information display.

Changing the Set Speed

Press the Set+ button to
increase the set speed in small
increments. Press and hold the

Set+ button to accelerate. Release the
button when you have reached your
preferred speed.

Press the Set- button to
decrease the set speed in small
increments. Press and hold the

Set- button to decelerate. Release the
button when you have reached your
preferred speed.

Note:

If you accelerate by pressing the

accelerator pedal, the set speed does not
change. When you release the accelerator
pedal, your vehicle returns to the speed that
you previously set.

270

Cruise Control

(If Equipped)

CANCELING THE SET SPEED

E308130

Press the button, or tap the
brake pedal to cancel the set
speed.

Note:

The system remembers the set

speed.

Note:

The system cancels if the vehicle

speed drops below 10 mph (16 km/h) under
the set speed when driving uphill.

RESUMING THE SET SPEED

E308130

Press the button.

CRUISE CONTROL
INDICATORS

E71340

Illuminates when you switch the
system on.

271

Cruise Control

(If Equipped)

HOW DOES ADAPTIVE CRUISE
CONTROL WORK

Adaptive Cruise Control adjusts your
vehicle speed to maintain a selected gap
between you and the vehicle in front of you
in the same lane. The system uses sensors
to maintain the speed and gap. You can
select four different gap settings.

ADAPTIVE CRUISE CONTROL
PRECAUTIONS

WARNING:

You are responsible for

WARNING:

Do not use adaptive

cruise control on winding roads, in heavy
traffic or when the road surface is
slippery. This could result in loss of
vehicle control, serious injury or death.

WARNING:

Pay close attention to

changing road conditions such as
entering or leaving a highway, on roads
with intersections or roundabouts, roads
without visible lanes of travel, roads that
are winding, slippery, unpaved, or steep
slopes.

WARNING:

The system is not a

crash warning or avoidance system.

WARNING:

Do not use the system

when towing a trailer that has
aftermarket electronic trailer brake
controls. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Do not use tire sizes

other than those recommended because
this can affect the normal operation of
the system. Failure to do so may result
in a loss of vehicle control, which could
result in serious injury.

WARNING:

Do not use the system

with a snow plow blade installed.

WARNING:

Do not use the system

in poor visibility, for example fog, heavy
rain, spray or snow.

When Following a Vehicle

WARNING:

When following a

vehicle that is braking, your vehicle does
not always decelerate quickly enough to
avoid a crash without driver intervention.
Apply the brakes when necessary. Failure
to follow this instruction could result in
personal injury or death.

Hilly Condition and Trailer Tow
Usage

You should select a lower gear when the
system is active in situations such as
prolonged downhill driving on steep slopes,
for example in mountainous areas. The
system needs additional engine braking in
these situations to reduce the load on the
vehicle’s regular brake system to prevent
it from overheating.

272

Adaptive Cruise Control

(If Equipped)

Note:

An audible alarm sounds and the

system shuts down if it applies brakes for
an extended period of time. This allows the
brakes to cool. The system functions
normally again after the brakes cool.

Note:

When towing with adaptive cruise

control, switch on Tow/Haul Mode and
Diesel Engine Brake.

Note:

Tow/Haul mode increases the time

gaps and allows more distance for braking.

ADAPTIVE CRUISE CONTROL
LIMITATIONS

Sensor Limitations

WARNING:

On rare occasions,

detection issues can occur due to the
road infrastructures, for example bridges,
tunnels and safety barriers. In these
cases, the system may brake late or
unexpectedly. At all times, you are
responsible for controlling your vehicle,
supervising the system and intervening,
if required.

WARNING:

If the system

malfunctions, have your vehicle checked
as soon as possible.

WARNING:

Large contrasts in

outside lighting can limit sensor
performance.

WARNING:

The system only warns

of vehicles detected by the radar sensor.
In some cases there may be no warning
or a delayed warning. Apply the brakes
when necessary. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

The system may not

detect stationary or slow moving
vehicles below 6 mph (10 km/h).

WARNING:

The system does not

detect pedestrians or objects in the road.

WARNING:

The system does not

detect oncoming vehicles in the same
lane.

WARNING:

The system may not

operate properly if the sensor is blocked.
Keep the windshield free from
obstruction.

WARNING:

The sensor may

incorrectly track lane markings as other
structures or objects. This can result in
a false or missed warning.

E307836

Camera.

Radar sensor.

The camera is on the windshield behind
the interior mirror.

The radar sensor is in the lower grille.

Note:

You cannot see the sensor. It is

behind a fascia panel.

273

Adaptive Cruise Control

(If Equipped)

Note:

Keep the front of your vehicle free of

dirt, metal badges or objects. Vehicle front
protectors, aftermarket lights, additional
paint or plastic coatings could also degrade
sensor performance.

A message displays if something obstructs
the camera or the sensor. When something
blocks the sensor, the system cannot
detect a vehicle ahead and does not
function. See

How Does Adaptive Cruise

Control Work

(page 272).

The radar sensor has a limited field of
view. It may not detect vehicles at all or
detect a vehicle later than expected in
some situations. The lead vehicle image
does not illuminate if the system does not
detect a vehicle in front of you.

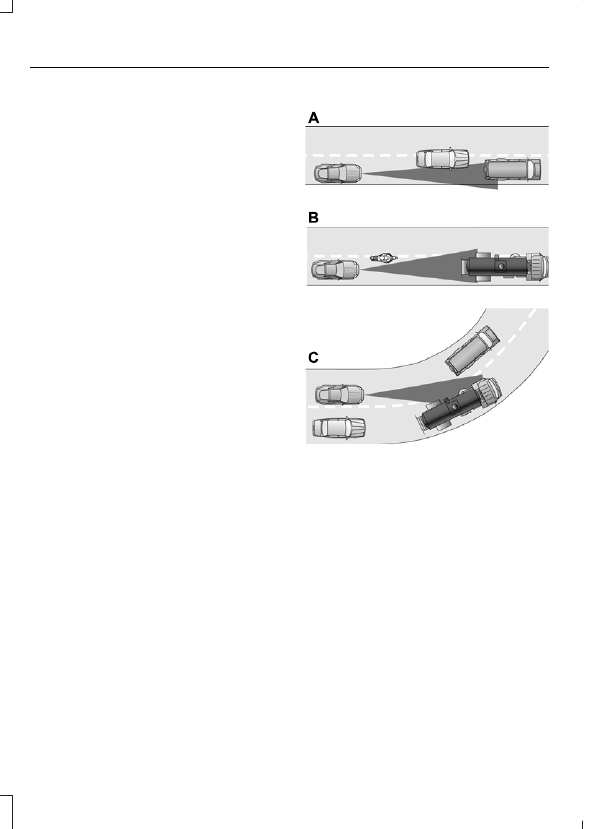

Detection Issues Can Occur:

E71621

When driving on a different line
than the vehicle in front.

With vehicles that edge into your
lane. The system can only detect
these vehicles once they move
fully into your lane.

There may be issues with the
detection of vehicles in front
when driving into and coming out
of a bend or curve in the road.

In these cases, the system may brake late
or unexpectedly.

If something hits the front end of your
vehicle or damage occurs, the
radar-sensing zone may change. This
could cause missed or false vehicle
detection.

274

Adaptive Cruise Control

(If Equipped)

Optimal system performance requires a
clear view of the road by the windshield
camera.

Optimal performance may not occur if:

•

The camera is blocked.

•

There is poor visibility or lighting
conditions.

•

There are bad weather conditions.

SWITCHING ADAPTIVE
CRUISE CONTROL ON AND OFF

The cruise controls are on the steering
wheel.

Switching Adaptive Cruise Control
On

E265296

Press and release the button.

E144529

The indicator, current gap setting
and set speed appear in the
instrument cluster display.

Switching Adaptive Cruise Control
Off

E265297

Press and release the button
when the system is in standby
mode or switch the ignition off.

Note:

When you switch the system off, the

set speed and gap setting clears.

ADAPTIVE CRUISE CONTROL
AUTOMATIC CANCELLATION

The system is not functional at vehicle
speeds below 12 mph (20 km/h). The
information display indicates low engine
speed, an audible alarm sounds and the
automatic braking releases if the vehicle
drops below this speed.

The system may cancel if:
•

The tires lose traction.

•

You apply the parking brake.

The system may deactivate or prevent
activating when requested if:
•

The vehicle has a blocked sensor.

•

The brake temperature is too high.

•

There is a failure in the system or a
related system.

Note:

If the engine speed drops too low, an

audible warning sounds and a message
appears in the information display.
Automatic braking releases.

SETTING THE ADAPTIVE
CRUISE CONTROL SPEED

Drive to the speed you prefer.

Press the Set+ or Set- buttons
to set the current speed.

Take your foot off the accelerator pedal.

The indicator, current gap setting and set
speed appear in the information display.

E233874

A vehicle image illuminates if there is a
vehicle detected in front of you.

275

Adaptive Cruise Control

(If Equipped)

Note:

When adaptive cruise control is

active, the speedometer may vary slightly
from the set speed displayed in the
information display.

Manually Changing the Set Speed

Press the Set+ button to
increase the set speed in small
increments. Press and hold the

Set+ button to accelerate. Release the
button when you have reached your
preferred speed.

Press the Set- button to
decrease the set speed in small
increments. Press and hold the

Set- button to decelerate. Release the
button when you have reached your
preferred speed.

You can also press the accelerator or brake
pedal until you reach the speed you prefer.
Press the Set+ or Set- button to select the
current speed as the set speed.

The system may apply the brakes to slow
the vehicle to the new set speed. The set
speed continuously displays in the
information display when the system is
active.

SETTING THE ADAPTIVE
CRUISE CONTROL GAP

You can decrease or increase the distance
between your vehicle and the vehicle in
front by pressing the gap control.

E263696

Press and release to increase the
gap distance.

E263697

Press and release to decrease
the gap distance.

E233874

The selected gap appears in the
information display as shown by the bars
in the image.

Note:

The gap setting is time dependent

and therefore, the distance adjusts with your
vehicle speed.

Note:

It is your responsibility to select a gap

appropriate to the driving conditions.

Adaptive Cruise Control Gap Settings

Dynamic

Behavior

Gap Distance

Graphic

Display,

Bars Indic-

ated

Between

Vehicles

Sport.

Closest.

Normal.

Close.

Normal.

Medium.

Comfort.

Far.

Each time you switch the system on, it
selects the last chosen gap setting.

Following a Vehicle

When a vehicle ahead of you enters the
same lane or a slower vehicle is ahead in
the same lane, the vehicle speed adjusts
to maintain the gap setting.

276

Adaptive Cruise Control

(If Equipped)

Note:

When you are following a vehicle and

you switch on a turn signal lamp, adaptive
cruise control may provide a small,
temporary acceleration to help you pass.

Your vehicle maintains a consistent gap
from the vehicle ahead until:
•

The vehicle in front of you accelerates
to a speed above the set speed.

•

The vehicle in front of you moves out
of the lane you are in.

•

You set a new gap distance.

The system applies the brakes to slow
down your vehicle to maintain a safe gap
distance from the vehicle in front of you.
The system only applies limited braking.
You can override the system by applying
the brakes.

Note:

The brakes may emit noise when

applied by the system.

If the system determines that its maximum
braking level is not sufficient, an audible
warning sounds, a message appears in the
information display and an indicator
flashes when the system continues to
brake. Take immediate action.

CANCELING THE SET SPEED

E265298

Press the button or tap the brake
pedal.

The set speed does not erase.

RESUMING THE SET SPEED

Press the button.

Your vehicle speed returns to the
previously set speed and gap setting. The
set speed displays continuously in the
information display when the system is
active.

Note:

Only use resume if you are aware of

the set speed and intend to return to it.

OVERRIDING THE SET SPEED

WARNING:

If you override the

system by pressing the accelerator
pedal, it does not automatically apply
the brakes to maintain a gap from any
vehicle ahead.

When you press the accelerator pedal, you
override the set speed and gap distance.

Use the accelerator pedal to intentionally
exceed the set speed limit.

When you override the system, the green
indicator illuminates and the vehicle icon
does not appear in the instrument cluster
display.

The system resumes operation when you
release the accelerator pedal. The vehicle
speed decreases to the set speed, or a
lower speed if following a slower vehicle.

ADAPTIVE CRUISE CONTROL
INDICATORS

E144529

Illuminates when you switch
adaptive cruise control on. The
color of the indicator changes to

indicate the system status.

White indicates the system is on but
inactive.

Green indicates that you set the speed and
the system is active.

277

Adaptive Cruise Control

(If Equipped)

Ford F-350 (2022 year). Manual in english - page 16
