Note:

If prediluted coolant is not available,

use the approved concentrated coolant
diluting it to 50/50 with distilled water. See

Cooling System Capacity and
Specification

has not been deionized could contribute to
deposit formation, corrosion and plugging
of the small cooling system passageways.

Note:

Coolants marketed for all makes and

models might not meet our specifications
and could cause damage to the cooling
system. Resulting component damage
could void the vehicle warranty.

If the coolant level is at or below the
minimum mark, add prediluted coolant
immediately.

To top up the coolant level do the
following:

Unscrew the cap slowly. Any pressure
escapes as you unscrew the cap.

2. Add prediluted coolant approved to

the correct specification. See

Cooling

System Capacity and Specification

(page 346).

3. Add enough prediluted coolant to

reach the correct level.

4. Replace the coolant reservoir cap. Turn

the cap clockwise until it contacts the
hard stop.

5. Check the coolant level in the coolant

reservoir the next few times you drive
your vehicle. If necessary, add enough
prediluted coolant to bring the coolant
level to the correct level.

If you have to add more than 1.1 qt (1 L) of
coolant per month, have your vehicle
checked as soon as possible. Operating
your vehicle with a low level of coolant can
result in overheating and possible electric
motor damage.

In case of emergency, you can add a large
amount of water without coolant in order
to reach a vehicle service location. In this
instance, have qualified personnel do the
following as soon as possible:

Drain the cooling system.

2. Chemically clean the coolant system.

3. Refill with coolant.

Water alone, without coolant, can cause
damage from corrosion, overheating or
freezing.

Do not use the following as a coolant
substitute:
•

Alcohol.

•

Methanol.

•

Brine.

•

Any coolant mixed with alcohol or
methanol antifreeze.

Alcohol and other liquids can cause
damage from overheating or freezing.

Do not add extra inhibitors or additives to
the coolant. These can be harmful and
compromise the corrosion protection of
the coolant.

Recycled Coolant

We do not recommend the use of recycled
coolant, as an approved recycling process
is not yet available.

Dispose of used coolant in an appropriate
manner. Follow your community's
regulations and standards for recycling and
disposing of automotive fluids.

307

Maintenance

Severe Climates

If you drive in extremely cold climates:
•

It may be necessary to increase the
coolant concentration above 50%.

•

A coolant concentration of 60%
provides improved freeze point
protection.

•

Coolant concentrations above 60%
decrease the overheat protection
characteristics of the coolant and may
cause damage to the electric motor.

If you drive in extremely hot climates:
•

You can decrease the coolant
concentration to 40%.

•

A coolant concentration of 40%
provides improved overheat protection.

•

Coolant concentrations below 40%
decrease the overheat and corrosion
protection characteristics of the
coolant and may cause damage to the
electric motor.

Coolant Change

Change the coolant at specific mileage
intervals listed in the scheduled
maintenance information. Add prediluted
coolant approved to the correct
specification. See

Cooling System

Capacity and Specification

(page 346).

AUTOMATIC TRANSMISSION
FLUID CHECK

If required, have an authorized dealer check
and change the transmission fluid at the
correct service interval. See

Scheduled

Maintenance

(page 392).

The automatic transmission does not have
a transmission fluid dipstick.

Refer to your scheduled maintenance
information for scheduled intervals for fluid
checks and changes. Your transmission
does not consume fluid. However, if you
notice a sign of leaking fluid, contact an
authorized dealer.

Do not use supplemental transmission
fluid additives, treatments or cleaning
agents. The use of these materials may
affect transmission operation and result
in damage to internal transmission
components.

12V BATTERY

CHANGING THE 12V BATTERY

If the 12 volt battery needs servicing, see
your authorized dealer.

CHARGING THE 12V BATTERY

Your vehicle has a high voltage to low
voltage energy transfer feature that keeps
the 12 volt battery charged by the high
voltage battery. If the 12 volt battery level
is low, the high voltage battery transfers
energy to the 12 volt battery when the
vehicle is off.

12V BATTERY –
TROUBLESHOOTING

12V BATTERY – WARNING LAMPS

If it illuminates when the green
ready to drive indicator is
activated, this indicates your

vehicle requires service. Have your vehicle
checked as soon as possible.

308

Maintenance

12V BATTERY – INFORMATION MESSAGES

Action

Message

Your vehicle has a 12 volt battery problem.

We recommend having the battery system

checked by an authorized EV dealer.

12V Battery Fault Service Soon

The electric vehicle range is reduced due

to the park and/or hazard lamps on while

your vehicle was off.

Electric Range Reduced due to Park/Hazard

Lamps On While Vehicle Off

Your vehicle has an electrical drain within

the vehicle. Please check for any after-

market devices that could be draining the

battery. If none are found, please have your
vehicle serviced by an authorized EV dealer.

Electrical System Drain Service Required

ADJUSTING THE HEADLAMPS

Vertical Aim Adjustment

The headlamps on your vehicle are
properly aimed at the assembly plant. If
your vehicle has been in an accident, have
the alignment of your headlamps checked
by an authorized dealer.

Headlamp Aiming Target

E142592

8 feet (2.4 meters)

Center height of lamp to ground

25 feet (7.6 meters)

Horizontal reference line

Vertical Aim Adjustment

Park your vehicle on a level surface
approximately 25 ft (7.6 m) away from
a vertical wall or screen.

2. Apply the parking brake.
3. Measure the height from the center of

your headlamp to the ground.

Note:

There may be an identifying mark on

the lens to help you locate the center of the
headlamp low beam light.

4. Mark a horizontal reference line on the

wall or screen that is a minimum of 8 ft
(2.4 m) long.

5. Switch the low beam headlamps on

and open the hood.

309

Maintenance

E142465

6. On the wall or screen you will observe

a flat zone of high intensity light
located at the top of the right hand
portion of the beam pattern. If the top
edge of the high intensity light zone is
not at the horizontal reference line, the
headlamp will need to be adjusted.

Note:

To see a clearer light pattern while

adjusting one headlamp, block the light
from the other headlamp.

E335000

Locate the vertical adjuster on each
headlamp. Use a Phillips #2
screwdriver to turn the adjuster either
clockwise or counterclockwise to
adjust the vertical aim of the
headlamp.

8. Repeat Steps 3 through 7 to adjust the

other headlamp.

9. Close the hood and turn off the lamps.

EXTERIOR BULBS

EXTERIOR BULB SPECIFICATION
CHART

Your vehicle has LED lamps. These are not
serviceable items. See an authorized dealer
if they fail.

INTERIOR BULBS

INTERIOR BULB SPECIFICATION
CHART

Your vehicle has LED lamps. These are not
serviceable items. See an authorized dealer
if they fail.

310

Maintenance

GENERAL INFORMATION

Your dealer has many quality products
available to clean your vehicle and protect
its finishes.

CLEANING PRODUCTS

Materials

For best results, use the following products
or products of equivalent quality:

Specification

Name

Motorcraft® Bug and Tar Remover, ZC-42 (U.S. & Canada)

ESR-M5B194-B

Motorcraft® Custom Bright Metal Cleaner, ZC-15 (U.S. & Canada)

ESR-M14P4-A

Motorcraft® Detail Wash, ZC-3-A (U.S. & Canada)

ESR-M14P3-A

Motorcraft® Engine Shampoo and Degreaser, ZC-20 (U.S.)

Motorcraft® Engine Shampoo, CXC-66-A (Canada)

Motorcraft® Premium Leather and Vinyl Cleaner, ZC-56 (U.S. &
Canada)

Motorcraft® Multi-Purpose Cleaner, CXC-101 (Canada)

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concentrate with
Bitterant, ZC-32-B2 (U.S.)

WSS-M14P19-A

Motorcraft® Premium Quality Windshield Washer Fluid, CXC-37-
F/M (Canada)

Motorcraft® Professional Strength Carpet & Upholstery Cleaner,
ZC-54 (U.S. & Canada)

ESR-M14P5-A

Motorcraft® Premium Glass Cleaner, CXC-100 (Canada)

Motorcraft® Spot and Stain Remover, ZC-14 (U.S.)

ESR-M14P5-A

Motorcraft® Ultra-Clear Spray Glass Cleaner, ZC-23 (U.S.)

Motorcraft® Wheel and Tire Cleaner, ZC-37-A (U.S. & Canada)

311

Vehicle Care

CLEANING THE EXTERIOR

CLEANING THE EXTERIOR
PRECAUTIONS

Immediately remove fuel spillages, additive
residuals, bird droppings, insect deposits
and road tar. These may cause damage to
your vehicle’s paintwork or trim over time.

Remove any exterior accessories, for
example antennas, before entering a car
wash.

CLEANING HEADLAMPS AND
REAR LAMPS

We recommend that you only use cold or
lukewarm water containing car shampoo
to clean the headlamps and the rear
lamps.

Do not scrape the lamps.

Do not wipe lamps when they are dry.

CLEANING WINDOWS AND WIPER
BLADES

To clean the windshield and wiper blades:
•

Clean the windshield with a
non-abrasive glass cleaner.

Note:

When cleaning the interior of the

windshield, avoid getting any glass cleaner
on the instrument panel or door panels.
Wipe any glass cleaner off these surfaces
immediately.

•

Clean the wiper blades with washer
fluid or water applied with a soft
sponge or cloth.

Note:

Do not use razor blades or other

sharp objects to clean or remove decals
from the inside of the heated rear window.
This can cause damage not covered by the
vehicle Warranty.

CLEANING CHROME, ALUMINIUM
OR STAINLESS STEEL

We recommend that you only use a car
shampoo, a soft cloth and water on
bumpers and other chrome, aluminium or
stainless steel parts.

Note:

For additional information and

assistance, we recommend that you contact
an authorized dealer.

Note:

Rinse the area well after cleaning.

Note:

Do not use abrasive materials, for

example steel wool or plastic pads, as they
can scratch these surfaces.

Note:

Do not use chrome cleaner, metal

cleaner or polish on wheels or wheel covers.

CLEANING WHEELS

Only use a recommended wheel and tire
cleaner to clean the wheels weekly. For
additional information and assistance, we
recommend that you contact an
authorized dealer.

Use a sponge to remove heavy
deposits of dirt and brake dust.

2. Rinse well after cleaning.

Note:

Do not apply a cleaning chemical to

warm or hot wheel rims and covers.

If you intend on parking your vehicle for an
extended period after cleaning the wheels
with a wheel cleaner, drive your vehicle for
a few minutes before parking your vehicle.
This reduces the risk of corrosion of the
brake discs, brake pads and linings.

Do not clean the wheels when they are hot.

Note:

Some car washes could damage

wheel rims and covers.

Note:

Using non-recommended cleaners,

harsh cleaning products, chrome wheel
cleaners or abrasive materials could
damage wheel rims and covers.

312

Vehicle Care

CLEANING STRIPES OR
GRAPHICS

It is recommended to wash your vehicle by
hand however, pressure washing may be
used under the following conditions:

•

Use a spray with a 40° wide spray
angle pattern.

•

Keep the nozzle at a 12 in (305 mm)
distance and 90° angle to your
vehicle's surface.

•

Do not use water pressure higher than
2,000 psi (14,000 kPa).

•

Do not use water hotter than 179°F
(82°C).

Note:

Holding the pressure washer nozzle

at an angle to the vehicle's surface may
damage graphics and cause the edges to
peel away from the vehicle's surface.

CLEANING CAMERA LENSES AND
SENSORS

We recommend that you only use
lukewarm or cold water and a soft cloth
to clean the camera lens and sensors.

Note:

Do not pressure wash camera lens

and sensors.

CLEANING THE UNDERBODY

Flush the complete underside of your
vehicle frequently. Keep body and door
drain holes free from packed dirt.

Rear suspension components may require
regular cleaning with a power washer or a
thorough rinse with a strong stream of
water if the vehicle is operated in dusty or
muddy environments. Rear leaf springs or
other suspension components may emit
squeaking or popping noises while
operating the vehicle if particles, such as
dirt, rocks, or other debris, are present in
the components.

WAXING

Wax the high-gloss painted surface of your
prewashed vehicle once or twice a year.

We recommend that you only use an
approved quality wax that does not
contain abrasives. For additional
information and assistance, we
recommend that you contact an
authorized dealer.

When washing and waxing, park your
vehicle in a shaded area out of direct
sunlight.

Note:

Avoid waxing unpainted or low-gloss

black colored parts, they discolor over time.

CLEANING THE INTERIOR

CLEANING THE INSTRUMENT
PANEL

WARNING:

Do not use chemical

solvents or strong detergents when
cleaning the steering wheel or
instrument panel to avoid contamination
of the airbag system.

We recommend that you only clean the
instrument panel and cluster lens with a
damp soft cloth. Dry the area with a clean,
soft cloth.

For additional information and assistance,
we recommend that you contact an
authorized dealer.

Note:

Avoid cleaners or polishes that

increase the gloss of the upper portion of
the instrument panel. The dull finish in this
area helps protect you from undesirable
windshield reflection.

313

Vehicle Care

CLEANING PLASTIC

We recommend that you only use a mild
soap and water solution on a soft cloth.
Dry the area with a clean, soft cloth.

CLEANING DISPLAYS AND
SCREENS

We recommend that you only use a
microfiber cloth in a circular motion to
clean off the fingerprint or dust.

If dirt or fingerprints are still on the screen,
apply a small amount of alcohol to the
cloth and try to clean it again.

Note:

Do not pour or spray alcohol onto the

touchscreen.

Note:

Do not use detergent or any type of

solvent to clean the touchscreen.

CLEANING SEATS AND THE
HEADLINER

WARNING:

On vehicles equipped

with seat-mounted airbags, do not use
chemical solvents or strong detergents.
Such products could contaminate the
side airbag system and affect
performance of the side airbag in a crash.

Cleaning Fabric Seats and the
Headliner

We recommend that you only clean the
fabric seats and headliners in the following
way:

Remove dust and loose dirt with a
vacuum cleaner.

2. Wipe the surface with a soft, damp

cloth and a mild soap and water
solution. Dry the area with a clean, soft
cloth.

3. For additional information and

assistance, we recommend that you
contact an authorized dealer.

For heavy stains, spot clean the area. If a
ring forms on the fabric, immediately clean
the entire area, but do not oversaturate or
the ring could set.

Cleaning Vinyl

We recommend that you only clean the
vinyl surfaces in the following way:

Remove dust and loose dirt with a
vacuum cleaner.

2. Wipe the surface with a soft, damp

cloth and a mild soap and water
solution. Dry the area with a clean, soft
cloth.

3. For additional information and

assistance, we recommend that you
contact an authorized dealer.

CLEANING CARPETS AND FLOOR
MATS

We recommend that you only clean your
carpets in the following way:

Remove dust and loose dirt with a
vacuum cleaner.

2. Wipe the surface with a soft, damp

cloth and a mild soap and water
solution. Dry the area with a clean, soft
cloth.

3. For additional information and

assistance, we recommend that you
contact an authorized dealer.

For heavy stains, spot clean the area. If a
ring forms on the fabric, clean the entire
area immediately, but do not oversaturate
or the ring could set.

We recommend that you only clean your
floor mats in the following way:

Remove dust and loose dirt with a
vacuum cleaner.

314

Vehicle Care

2. Wash rubber floor mats using mild

soap and lukewarm or cold water.

3. Completely dry the floor mat before

placing them back in your vehicle.

CLEANING SEATBELTS

WARNING:

Do not use cleaning

solvents, bleach or dye on the vehicle's
seatbelts, as these actions may weaken
the belt webbing.

Wipe the surface with a soft, damp
cloth and a mild soap and water
solution. Dry the area with a clean, soft
cloth.

CLEANING STORAGE
COMPARTMENTS

Remove dust and loose dirt with a
vacuum cleaner.

2. Wipe the surface with a soft, damp

cloth and a mild soap and water
solution. Dry the area with a clean, soft
cloth.

REPAIRING MINOR PAINT
DAMAGE

Authorized dealers have touch-up paint to
match your vehicle’s color. Your vehicle
color code is printed on a sticker on the
front, left-hand side door jamb. Take the
color code to an authorized dealer to make
sure you get the correct color.

Before repairing minor paint damage, use
a cleaner such as Motorcraft Bug and Tar
Remover to remove particles such as bird
droppings, tree sap, insect deposits, tar
spots, road salt and industrial fallout.

Make sure to read the instructions before
using cleaning products.

315

Vehicle Care

PREPARING YOUR VEHICLE
FOR STORAGE

If you plan on storing your vehicle for 30
days or more, read the following
maintenance recommendations to make
sure your vehicle stays in good operating
condition.

We engineer and test all vehicles and their
components for reliable, regular driving.
Under various conditions, long-term
storage may lead to degraded
performance or failure unless you use
specific precautions to preserve vehicle
components.

General

•

Store all vehicles in a dry, ventilated
place.

•

Protect from sunlight, if possible.

•

If vehicles are stored outside, they
require regular maintenance to protect
against rust and damage.

Body

•

Wash your vehicle thoroughly to
remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing
and the underside of front fenders.

•

Periodically wash your vehicle if it is
stored in exposed locations.

•

Touch-up exposed or primed metal to
prevent rust.

•

Cover chrome and stainless steel parts
with a thick coat of auto wax to prevent
discoloration. Re-wax as necessary
when you wash your vehicle.

•

Lubricate all hood, door and luggage
compartment hinges and latches with
a light grade oil.

•

Cover interior trim to prevent fading.

•

Keep all rubber parts free from oil and
solvents.

Cooling system

•

Protect against freezing temperatures.

•

When removing your vehicle from
storage, check coolant fluid level.
Confirm that there are no cooling
system leaks and that fluid is at the
recommended level.

Battery Systems

We recommend the following actions for
your vehicle:
•

When storing your vehicle for greater
than 30 days the state of charge
should be approximately 50%.
Additionally, we recommend
disconnecting the 12v battery which
will reduce system loads on the HV
battery.

Note:

Make sure the vehicle has been

switched off and doors closed for at least
five minutes before disconnecting the 12 volt
battery.

Brakes

•

Make sure the brakes and parking brake
release fully.

Tires

•

Maintain recommended air pressure.

Miscellaneous

•

Make sure all linkages, cables, levers
and pins under your vehicle are covered
with grease to prevent rust.

•

Move vehicles at least 25 ft (7.5 m)
every 15 days to lubricate working parts
and prevent corrosion.

317

Storing Your Vehicle

REMOVING YOUR VEHICLE
FROM STORAGE

When your vehicle is ready to come out of
storage, do the following:
•

Wash your vehicle to remove any dirt
or grease film build-up on window
surfaces.

•

Check windshield wipers for any
deterioration.

•

Check tire pressures and set tire
inflation per the Tire Label.

•

Check brake pedal operation. Drive
your vehicle 15 ft (4.5 m) back and
forth to remove rust build-up.

•

Check coolant levels to make sure
there are no leaks, and fluids are at
recommended levels.

•

If you removed the 12 volt battery,
clean the 12 volt battery cable ends and
check for damage.

Contact an authorized dealer if you have
any concerns or issues.

318

Storing Your Vehicle

LOCATING THE TIRE LABEL

The tire label or safety
certification label is on the driver
side B-pillar or the edge of the
driver door. It contains information
on the recommended front and
rear tire inflation pressures. See

Locating the Safety
Compliance Certification
Labels

(page 272).

DEPARTMENT OF
TRANSPORTATION UNIFORM
TIRE QUALITY GRADES

E142542

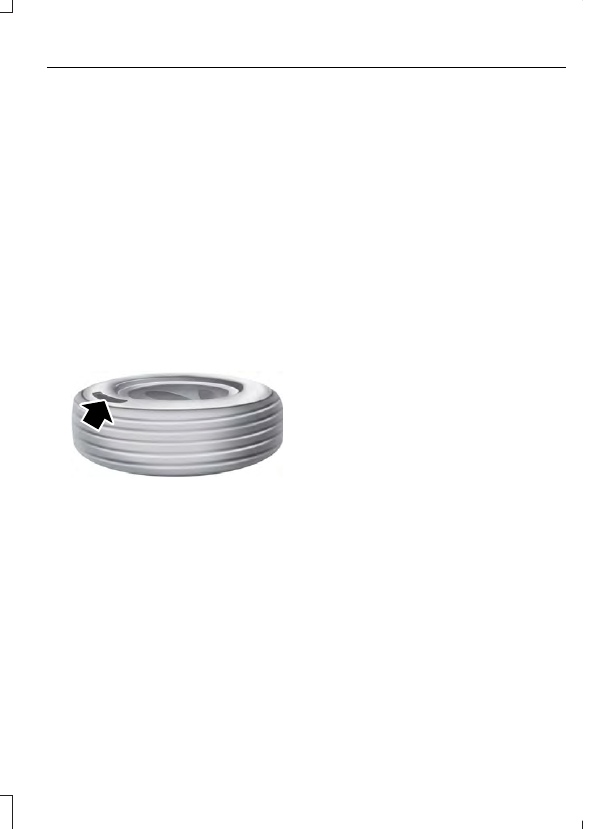

Tire Quality Grades apply to new
pneumatic passenger car tires.
The Quality grades can be found
where applicable on the tire
sidewall between tread shoulder
and maximum section width. For
example:

Treadwear 200

Traction AA Temperature A

These Tire Quality Grades are
determined by standards that the
United States Department of
Transportation has set.

Tire Quality Grades apply to new
pneumatic passenger car tires.
They do not apply to deep tread,
winter-type snow tires,
space-saver or temporary use
spare tires, light truck or LT type
tires, tires with nominal rim
diameters of 10 to 12 inches or
limited production tires as defined
in Title 49 Code of Federal
Regulations Part 575.104 (c)(2).

U.S. Department of
Transportation Tire quality
grades:

The U.S. Department of

Transportation requires us to give
you the following information
about tire grades exactly as the
government has written it.

Treadwear

The treadwear grade is a
comparative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test course.
For example, a tire graded 150
would wear 1½ times as well on
the government course as a tire
graded 100. The relative
performance of tires depends
upon the actual conditions of their
use, however, and may depart
significantly from the norm due to
variations in driving habits, service
practices, and differences in road
characteristics and climate.

319

Wheel and Tire Information

Traction AA A B C

WARNING:

The traction

grade assigned to this tire is
based on straight-ahead braking
traction tests, and does not
include acceleration, cornering,
hydroplaning or peak traction
characteristics.

The traction grades, from highest

to lowest are AA, A, B, and C. The
grades represent the tire’s ability
to stop on wet pavement as
measured under controlled
conditions on specified
government test surfaces of
asphalt and concrete. A tire
marked C may have poor traction
performance.

Temperature A B C

WARNING:

The

temperature grade for this tire is
established for a tire that is
properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.

The temperature grades are A
(the highest), B and C,
representing the tire’s resistance
to the generation of heat and its
ability to dissipate heat when
tested under controlled conditions
on a specified indoor laboratory

test wheel. Sustained high
temperature can cause the
material of the tire to degenerate
and reduce tire life, and excessive
temperature can lead to sudden
tire failure. The grade C
corresponds to a level of
performance which all passenger
car tires must meet under the
Federal Motor Vehicle Safety
Standard No. 139. Grades B and A
represent higher levels of
performance on the laboratory
test wheel than the minimum
required by law.

INFORMATION ON THE TIRE
SIDEWALL

Both United States and Canada
Federal regulations require tire
manufacturers to place
standardized information on the
sidewall of all tires. This
information identifies and
describes the fundamental
characteristics of the tire and also
provides a U.S. DOT Tire
Identification Number for safety
standard certification and in case
of a recall.

320

Wheel and Tire Information

Information on P Type Tires

C D

E142543

P215/65R15 95H is an example of
a tire size, load index and speed
rating. The definitions of these
items are listed below. (Note that
the tire size, load index and speed
rating for your vehicle may be
different from this example.)

Indicates a tire, designated

by the Tire and Rim Association,
that may be used for service on
cars, sport utility vehicles,
minivans and light trucks.

Note:

your tire size does not begin with
a letter this may mean it is
designated by either the European
Tire and Rim Technical
Organization or the Japan Tire
Manufacturing Association.

215:

Indicates the nominal

width of the tire in millimeters
from sidewall edge to sidewall
edge. In general, the larger the
number, the wider the tire.

65:

Indicates the aspect ratio

which gives the tire's ratio of
height to width.

Indicates a radial type tire.

15:

Indicates the wheel or rim

diameter in inches. If you change
your wheel size, you will have to
purchase new tires to match the
new wheel diameter.

95:

Indicates the tire's load

index. It is an index that relates to
how much weight a tire can carry.
You may find this information in
your owner’s manual. If not,
contact a local tire dealer.

Note:

You may not find this

information on all tires because it
is not required by federal law.

Indicates the tire's speed

rating. The speed rating denotes
the speed at which a tire is
designed to be driven for extended
periods of time under a standard
condition of load and inflation
pressure. The tires on your vehicle
may operate at different
conditions for load and inflation
pressure. These speed ratings may
need to be adjusted for the
difference in conditions. The
ratings range from 81 mph
(130 km/h) to 186 mph
(299 km/h). These ratings are
listed in the following chart.

321

Wheel and Tire Information

Note:

You may not find this

information on all tires because it
is not required by federal law.

Speed rating

Letter
rating

81 mph (130 km/h)

87 mph (140 km/h)

99 mph (159 km/h)

106 mph (171 km/h)

112 mph (180 km/h)

118 mph (190 km/h)

124 mph (200 km/h)

130 mph (210 km/h)

149 mph (240 km/h)

168 mph (270 km/h)

186 mph (299 km/h)

Note:

For tires with a maximum

speed capability over 149 mph
(240 km/h), tire manufacturers
sometimes use the letters ZR. For
those with a maximum speed
capability over 186 mph (299
km/h), tire manufacturers always
use the letters ZR.

U.S. DOT Tire Identification

Number (TIN):

This begins with

the letters DOT and indicates that
the tire meets all federal
standards. The next two numbers
or letters are the plant code
designating where it was
manufactured, the next two are

the tire size code and the last four
numbers represent the week and
year the tire was built. For
example, the numbers 317 mean
the 31st week of 1997. After 2000,
the numbers go to four digits. For
example, 2501 means the 25th
week of 2001. The numbers in
between are identification codes
used for traceability. This
information is used to contact
customers if a tire defect requires
a recall.

M+S or M/S:

Mud and Snow, or

AT:

All Terrain, or

AS:

All Season.

Tire Ply Composition and

Material Used:

Indicates the

number of plies or the number of
layers of rubber-coated fabric in
the tire tread and sidewall. Tire
manufacturers also must indicate
the ply materials in the tire and the
sidewall, which include steel,
nylon, polyester, and others.

Maximum Load:

Indicates the

maximum load in kilograms and
pounds that can be carried by the
tire. See the Safety Compliance
Certification Label (affixed to
either the door hinge pillar,
door-latch post, or the door edge
that meets the door-latch post,
next to the driver's seating
position), for the correct tire
pressure for your vehicle.

Treadwear, Traction and

Temperature Grades:

322

Wheel and Tire Information

Ford Mustang Mach-E (2022 year). Manual in english - page 19
