Ford GT (2022 year). Manual in english

SYMBOLS GLOSSARY

These are some of the symbols you may
see on your vehicle.

Anti-lock braking system

Battery

Brake system

E269429

Carbon Ceramic Brakes

E71340

Cruise control

E234586

Damper Control Mode

Direction Indicator

E236449

Door Ajar

Engine coolant temperature

Engine oil

E71880

Fasten seatbelt

E67017

Front airbag

E234582

Front Lift Mode Active

Frost Warning Lamp

E236451

Hatch Ajar

High Beam

E236450

Hood Ajar

E234584

Hydraulic System Fault

E234583

Launch Control

E181350

Low Beam Malfunction Warning
Lamp

Low Fuel Level

Low tire pressure warning

Parking Lamps

Powertrain Fault

E67040

Rear Fog Lamp

E234585

Ride Height System Fault

Service engine soon

E236447

Stability control

Introduction

E236448

Stability control Off

Transmission Fault

DATA RECORDING

WARNING:

Do not connect

wireless plug-in devices to the data link
connector. Unauthorized third parties
could gain access to vehicle data and
impair the performance of safety related
systems. Only allow repair facilities that
follow our service and repair instructions
to connect their equipment to the data
link connector.

We respect your privacy and are
committed to protecting it. The
information contained in this publication
was correct at the time of going to print
but as technology rapidly changes, we
recommend that you visit the regional Ford
website for the latest information.

Your vehicle has electronic control units
that have data recording functionality and
the ability to permanently or temporarily
store data. This data could include
information on the condition and status of
your vehicle, vehicle maintenance
requirements, events and malfunctions.
The types of data that can be recorded are
described in this section. Some of the data
recorded is stored in event logs or error
logs.

Note:

Error logs are reset following a service

or repair.

Note:

We may provide information in

response to requests from law enforcement,
other government authorities and third
parties acting with lawful authority or
through a legal process. Such information
could be used by them in legal proceedings.

Data recorded includes, for example:
•

Operating states of system
components, for example fuel level,
tire pressure and battery charge level.

•

Vehicle and component status, for
example wheel speed, deceleration,
lateral acceleration and seatbelt
status.

•

Events or errors in essential systems,
for example headlamps and brakes.

•

System responses to driving situations,
for example airbag deployment and
stability control.

•

Environmental conditions, for example
temperature.

Some of this data, when used in
combination with other information, for
example an accident report, damage to a
vehicle or eyewitness statements, could
be associated with a specific person.

Service Data

Service data recorders in your vehicle are
capable of collecting and storing
diagnostic information about your vehicle.
This potentially includes information about
the performance or status of various
systems and modules in the vehicle, such
as engine, throttle, steering or brake
systems. In order to properly diagnose and
service your vehicle, Ford Motor Company
(Ford of Canada in Canada), and service
and repair facilities may access or share
among them vehicle diagnostic
information received through a direct
connection to your vehicle when
diagnosing or servicing your vehicle.
Additionally, Ford Motor Company (Ford
of Canada, in Canada) may, where

Introduction

permitted by law, use vehicle diagnostic
information for vehicle improvement or
with other information we may have about
you, (for example, your contact
information), to offer you products or
services that may interest you. Data may
be provided to our service providers such
as part suppliers that may help diagnose
malfunctions, and who are similarly
obligated to protect data. We retain this
data only as long as necessary to perform
these functions or to comply with law. We
may provide information where required
in response to official requests to law
enforcement or other government
authorities or third parties acting with
lawful authority or court order, and such
information may be used in legal
proceedings. For U.S. only (if equipped), if
you choose to use connected apps and
services, you consent that certain
diagnostic information may also be
accessed electronically by Ford Motor
Company and Ford authorized service
facilities, and that the diagnostic
information may be used to provide
services to you, personalizing your
experience, troubleshoot, and to improve
products and services and offer you
products and services that may interest
you, where permitted by law. For Canada
only, for more information, please review
the Ford of Canada privacy policy at
www.ford.ca, including our U.S. data
storage and use of service providers in
other jurisdictions who may be subject to
legal requirements in Canada, the United
States and other countries applicable to
them, for example, lawful requirements to
disclose personal information to
governmental authorities in those
countries.

Event Data

This vehicle is equipped with an event data
recorder. The main purpose of an event
data recorder is to record, in certain crash
or near crash-like situations, such as an
airbag deployment or hitting a road
obstacle; this data will assist in
understanding how a vehicle’s systems
performed. The event data recorder is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or less.

The event data recorder in this vehicle is
designed to record such data as:
•

How various systems in your vehicle
were operating;

•

Whether or not the driver and
passenger seatbelts were
buckled/fastened;

•

How far (if at all) the driver was
depressing the accelerator and/or the
brake pedal; and

•

How fast the vehicle was traveling; and

•

Where the driver was positioning the
steering wheel.

This data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.

Note:

Event data recorder data is recorded

by your vehicle only if a non-trivial crash
situation occurs; no data is recorded by the
event data recorder under normal driving
conditions and no personal data or
information (e.g., name, gender, age, and
crash location) is recorded. However,
parties, such as law enforcement, could
combine the event data recorder data with
the type of personally identifying data
routinely acquired during a crash
investigation.

Introduction

To read data recorded by an event data
recorder, special equipment is required,
and access to the vehicle or the event data
recorder is needed. In addition to the
vehicle manufacturer, other parties, such
as law enforcement, that have such special
equipment, can read the information if they
have access to the vehicle or the event
data recorder.

Comfort, Convenience and
Entertainment Data

Your vehicle has electronic control units
that have the ability to store data based
on your personalized settings. The data is
stored locally in the vehicle or on devices
that you connect to it, for example, a USB
drive or digital music player. You can delete
some of this data and also choose whether
to share it through the services to which
you subscribe. See

Settings

(page 253).

Comfort and Convenience Data

Data recorded includes, for example:
•

Seat and steering wheel position.

•

Climate control settings.

•

Radio presets.

Entertainment Data

Data recorded includes, for example:
•

Music, videos or album art.

•

Contacts and corresponding address
book entries.

•

Navigation destinations.

Services That We Provide

If you use our services, we collect and use
data, for example account information,
vehicle location and driving characteristics,
that could identify you. We transmit this
data through a dedicated, protected
connection. We only collect and use data

to enable your use of our services to which
you have subscribed, with your consent or
where permitted by law. For additional
information, see the terms and conditions
of the services to which you have
subscribed.

Services That Third Parties
Provide

We recommend that you review the terms
and conditions and data privacy
information for any services to which you
subscribe. We take no responsibility for
services that third parties provide.

Vehicles With a Modem

The modem has a SIM. The modem
periodically sends messages to stay
connected to the cell phone network.
These messages could include information
that identifies your vehicle, the SIM and the
electronic serial number of the modem.
Cell phone network service providers could
have access to additional information, for
example cell phone network tower
identification.

Note:

The modem continues to send this

information unless you have all added value
services deactivated. Contact the Ford
Customer Relationship Center. Refer to the
regional Ford website for contact
information.

Note:

The service can be unavailable or

interrupted for a number of reasons, for
example environmental or topographical
conditions and data plan coverage.

Introduction

Vehicles With SYNC

Mobile Device Data

If you connect a mobile device to your
vehicle, you can display data from your
device on the touchscreen for example,
music and album art. You can share your
vehicle data with mobile apps on your
device through the system. See

Apps

(page 252).

The mobile apps function operates by your
connected device sending data to us in the
United States. The data is encrypted and
includes the vehicle identification number
of your vehicle, the SYNC module serial
number, odometer, enabled apps, usage
statistics and debugging information. We
retain it only as long as necessary to
provide the service, to troubleshoot, for
continuous improvement and to offer you
products and services that may be of
interest to you according to your
preferences and where allowed by law.

If you connect a cell phone to the system,
the system creates a profile that links to
that cell phone. The cell phone profile
enables more mobile features and efficient
operation. The profile contains, for
example data from your phonebook, read
and unread text messages and call history,
including history of calls when your cell
phone was not connected to the system.

If you connect a media device, the system
creates and retains a media device index
of supported media content. The system
also records a short diagnostic log of
approximately 10 minutes of all recent
system activity.

The cell phone profile, media device index
and diagnostic log remain in your vehicle
unless you delete them and are generally
accessible only in your vehicle when you
connect your cell phone or media device.
If you no longer plan to use the system or
your vehicle, we recommend you use the
master reset function to erase the stored
information. See

Settings

(page 253).

System data cannot be accessed without
special equipment and access to your
vehicle's module.

For additional information about our
privacy policy, see the regional Ford
website.

Vehicles With an Emergency Call
System

When the emergency call system is active,
it may disclose to emergency services that
your vehicle has been in a crash involving
the deployment of an airbag or activation
of the fuel pump shut-off. Certain versions
or updates to the emergency call system
may also be capable of electronically or
verbally disclosing to emergency services
operators your vehicle location or other
details about your vehicle or crash to assist
emergency services operators to provide
the most appropriate emergency services.
If you do not want to disclose this
information, do not activate the emergency
call system.

Note:

You cannot deactivate emergency

call systems that are required by law.

PERCHLORATE

Certain components in your vehicle such
as airbag modules, seatbelt pretensioners
and remote control batteries may contain
perchlorate material. Special handling
may apply for service or vehicle end of life
disposal.

Introduction

For more information visit:

Web Address

www.dtsc.ca.gov/hazard-

ouswaste/perchlorate

REPLACEMENT PARTS
RECOMMENDATION

We have built your vehicle to the highest
standards using quality parts. We
recommend that you demand the use of
genuine Ford and Motorcraft parts
whenever your vehicle requires scheduled
maintenance or repair. You can clearly
identify genuine Ford and Motorcraft parts
by looking for the Ford, FoMoCo or
Motorcraft branding on the parts or their
packaging.

Scheduled Maintenance and
Mechanical Repairs

One of the best ways for you to make sure
that your vehicle provides years of service
is to have it maintained in line with our
recommendations using parts that
conform to the specifications detailed in
this Owner’s Manual.

Genuine Ford and Motorcraft parts meet
or exceed these specifications.

Collision Repairs

We hope that you never experience a
collision, but accidents happen sometimes.

Genuine Ford replacement collision parts
meet our stringent requirements for fit,
finish, structural integrity, corrosion
protection and dent resistance. During
vehicle development we validate that
these parts deliver the intended level of
protection as a whole system. A great way
to know for sure you are getting this level
of protection is to use genuine Ford
replacement collision parts.

Warranty on Replacement Parts

Genuine Ford and Motorcraft replacement
parts are the only replacement parts that
benefit from a Ford Warranty.

The Ford Warranty may not cover damage
caused to your vehicle as a result of failed
non-Ford parts.

For additional information, refer to the
terms and conditions of the Ford Warranty.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is
covered by your New Vehicle Limited
Warranty, see your warranty guide that is
available online. For more information,
refer to our website and download your
copy of the warranty guide.

Additional Warranty Information

Your vehicle's warranty information is
covered in its entirety in the Ford GT
Warranty Guide. You can obtain warranty
service for your vehicle at a certified Ford
GT Service dealer. If you need assistance
locating an authorized dealer, please
contact your Ford GT Concierge at

1-800-210-5795

Introduction

We design and build our vehicles for our
customers to drive as delivered from the
factory. The Ford GT Warranty Guide
discusses vehicle use and the installation
of aftermarket parts and their effect on
warranty coverage. See the Ford GT
Warranty Guide for complete information.

Special Instructions

WARNING:

You risk death or

serious injury to yourself and others if you
do not follow the instruction highlighted
by the warning symbol. Failure to follow
the specific warnings and instructions
could result in personal injury.

WARNING:

NEVER use a rearward

facing child restraint on a seat protected
by an ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the CHILD
can occur.

For your added safety, your vehicle is fitted
with sophisticated electronic controls.

On Board Diagnostics Data Link
Connector

WARNING:

Do not connect

Your vehicle has an OBD Data Link
Connector (DLC) that is used in
conjunction with a diagnostic scan tool for
vehicle diagnostics, repairs and
reprogramming services. Installing an
aftermarket device that uses the DLC
during normal driving for purposes such as

remote insurance company monitoring,
transmission of vehicle data to other
devices or entities, or altering the
performance of the vehicle, may cause
interference with or even damage to
vehicle systems. We do not recommend
or endorse the use of aftermarket plug-in
devices unless approved by Ford. The
vehicle Warranty will not cover damage
caused by an aftermarket plug-in device.

Certified Ford GT Service Dealer

All occurrences of authorized dealer in this
manual are references to dealers who are
certified to work on the Ford GT. Not all
dealers have this certification. To locate a
certified Ford GT Service dealer, contact
your Ford GT Concierge at
1-800-210-5795.

MOBILE COMMUNICATIONS
EQUIPMENT

WARNING:

Driving while

distracted can result in loss of vehicle
control, crash and injury. We strongly
recommend that you use extreme
caution when using any device that may
take your focus off the road. Your
primary responsibility is the safe
operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

Using mobile communications equipment
is becoming increasingly important in the
conduct of business and personal affairs.
However, you must not compromise your
own or others’ safety when using such
equipment. Mobile communications can

Introduction

enhance personal safety and security when
appropriately used, particularly in
emergency situations. Safety must be
paramount when using mobile
communications equipment to avoid
negating these benefits. Mobile
communication equipment includes, but
is not limited to, cellular phones, pagers,
portable email devices, text messaging
devices and portable two-way radios.

FORD PERFORMANCE

Welcome to the Ford Performance family!

Performance and racing are deeply
embedded in Ford’s DNA, dating back to
October 10, 1901 when Henry Ford won his
first race against Alexander Winton,
America’s greatest racer at the time. Henry
Ford founded Ford Motor Company 18
months later with capital raised on the
back of this remarkable upset victory.

Today, that spirit of passion, innovation
and performance lives on through Ford
Performance. Established in 2015, the
company’s performance teams -- Ford
Special Vehicle Team (United States),
Team RS (Europe), Ford Performance
(Australia) and Ford Racing (United
States) – have unified under the mission
to create the world’s leading performance
vehicles, parts, accessories and
experiences for enthusiasts. This includes
accelerating the development of advanced
aerodynamics, lightweighting, electronics,
powertrain performance, fuel efficiency
and other technologies that can be applied
across Ford’s product portfolio.

We are proud and passionate about what
we do and we look forward to a long and
exciting relationship with you. Thank you
for choosing Ford Performance!

Introduction

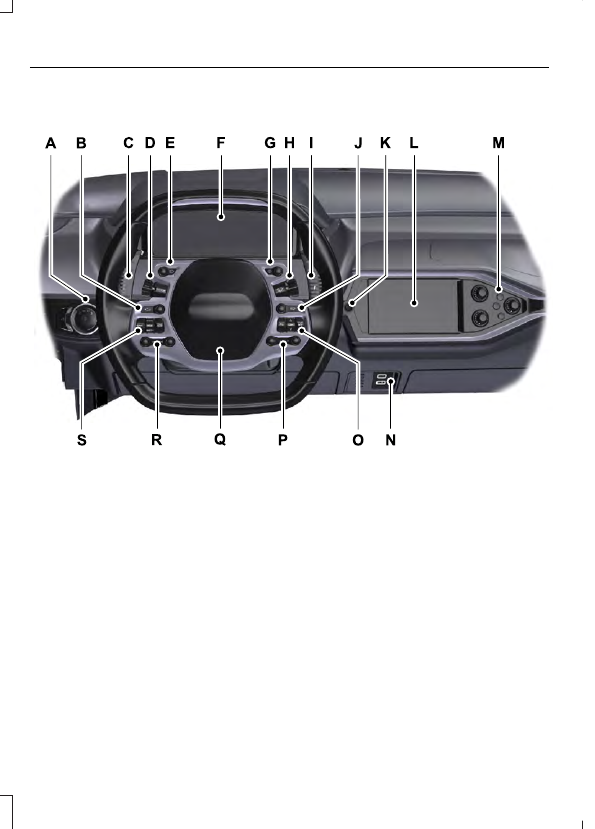

INSTRUMENT PANEL

E243664

Lighting control. See

Lighting Control

(page 62).

Left direction indicator. See

Direction Indicators

(page 64).

Left paddle shifter. See

Automatic Transmission

(page 103).

Drive mode control. See

Drive Mode Control

(page 119).

High beam switch. See

Lighting Control

(page 62).

Instrument cluster. See

Gauges

(page 67).

Windshield washers. See

Windshield Washers

(page 61).

Windshield wipers. See

Windshield Wipers

(page 61).

Right paddle shifter. See

Automatic Transmission

(page 103).

Right direction indicator. See

Direction Indicators

(page 64).

Audio on and off button. See

SYNC 3. See

Climate controls. See

Automatic Climate Control

(page 83).

At a Glance

Media hub. See

USB Port

(page 216).

Menu and voice control. See

Audio control. See

Horn.

Audio control. See

Cruise control. See

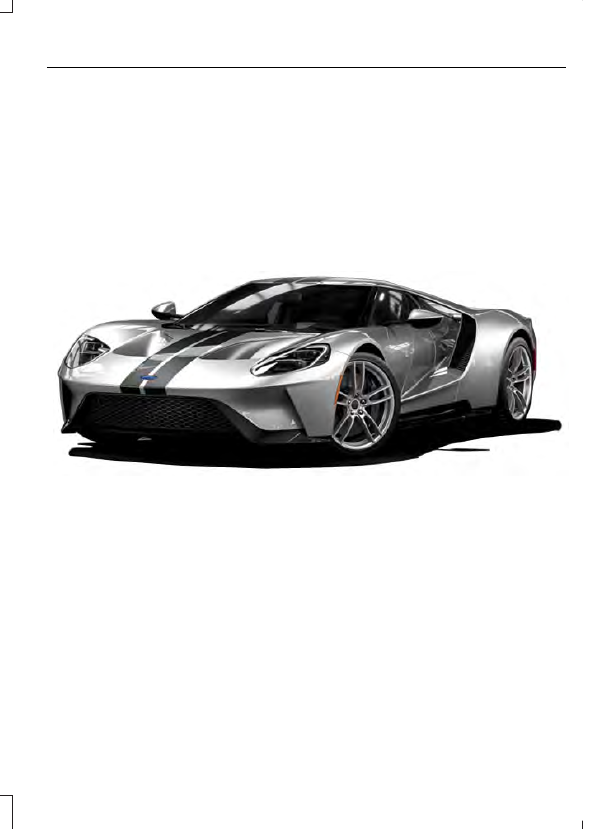

UNIQUE FEATURES

E236793

Vehicle Structure

•

Carbon fiber tub and body shell.

•

Aluminum structure fore and aft of tub.

•

Steel roll cage integrated into the tub.

Powertrain

•

Mid-engine 3.5L Twin Turbo EcoBoost
V6.

•

7-speed dual clutch automated
manual transmission.

Chassis

•

Electronic/hydraulic controlled torsion
bar front and rear suspension systems
with ride height varied depending on
drive mode.

•

Front end lift feature for driveway
approaches and speed bumps.

•

Independent front and rear suspension
with unequal length upper and lower
control arms.

•

Carbon ceramic brake discs.

•

Brembo 6-piston front and 4-piston
rear calipers.

•

20 in. x 8.5 in. forged alloy front wheels
with 245/35R20 Michelin Pilot Sport
Cup 2 tires.

At a Glance

•

20 in. x 11.5 in. forged alloy rear wheels
with 325/30R20 Michelin Pilot Sport
Cup 2 tires.

•

Carbon fiber wheels available as an
option.

Electronics and Vehicle Controls

•

Vehicle drive mode control with five
settings.

•

Full LCD instrument cluster with
customer selectable features.

•

Race inspired steering wheel with
stalkless steering column.

•

Paddle shifters.

•

SYNC 3 including navigation system.

•

Single zone automatic temperature
control.

•

ABS, ESC (electronic stability control)
and launch control.

•

Passive entry/passive start key system.

Exterior

•

Carbon fiber body panels including
undertrays.

•

Active aerodynamic rear wing and front
splitter.

•

LED headlamps and tail lamps.

Interior

•

Fixed seating positions.

•

Independently adjustable steering
column and pedals.

•

Carbon fiber, leather, and Alcantara
interior surfaces.

At a Glance

GENERAL INFORMATION

See the following sections for directions
on how to properly use safety restraints
for children.

WARNING:

Always make sure your

child is secured properly in a device that
is appropriate for their height, age and
weight. Child safety restraints must be
bought separately from your vehicle.
Failure to follow these instructions and
guidelines may result in an increased risk
of serious injury or death to your child.

WARNING:

All children are shaped

differently. The National Highway Traffic
Safety Administration and other safety
organizations, base their
recommendations for child restraints on
probable child height, age and weight
thresholds, or on the minimum
requirements of the law. We recommend
that you check with a NHTSA Certified
Child Passenger Safety Technician

(CPST) to make sure that you properly
install the child restraint in your vehicle
and that you consult your pediatrician to
make sure you have a child restraint
appropriate for your child. To locate a
child restraint fitting station and CPST,
contact NHTSA toll free at
1-888-327-4236 or go to
www.nhtsa.dot.gov. In Canada, contact
Transport Canada toll free at
1-800-333-0371 or go to www.tc.gc.ca
to find a Child Car Seat Clinic in your
area. Failure to properly restrain children
in child restraints made especially for
their height, age and weight, may result
in an increased risk of serious injury or
death to your child.

WARNING:

On hot days, the

temperature inside the vehicle can rise
very quickly. Exposure of people or
animals to these high temperatures for
even a short time can cause death or
serious heat related injuries, including
brain damage. Small children are
particularly at risk.

Child Safety

Recommendations for Safety Restraints for Children

Recommended Restraint

Type

Child Size, Height, Weight, or Age

Child

Use a child restraint

(sometimes called an

infant carrier, convertible

seat, or toddler seat).

Children weighing 40 lb (18 kg) or less

(generally age four or younger).

Infants or

toddlers

Use a belt-positioning

booster seat.

Children who have outgrown or no longer

properly fit in a child restraint (generally

children who are less than 57 in (1.45 m)

tall, are greater than age four and less

than age 12, and between 40 lb (18 kg)

and 80 lb (36 kg) and upward to 100 lb

(45 kg) if recommended by your child

restraint manufacturer).

Small children

Use a vehicle seatbelt

having the lap belt snug

and low across the hips,

shoulder belt centered

across the shoulder and

chest, and seat backrest

upright.

Children who have outgrown or no longer

properly fit in a belt-positioning booster

seat (generally children who are at least

57 in (1.45 m) tall or greater than 80 lb

(36 kg) or 100 lb (45 kg) if recommended

by child restraint manufacturer).

Larger children

•

You are required by law to properly use
child restraints for infants and toddlers
in the United States and Canada.

•

Many states and provinces require that
small children use approved booster
seats until they reach age eight, a
height of 57 in (1.45 m) tall, or 80 lb
(36 kg). Check your local and state or
provincial laws for specific
requirements about the safety of
children in your vehicle.

INSTALLING CHILD
RESTRAINTS

Child Seats

E142594

Child Safety

Use a child restraint (sometimes called an
infant carrier, convertible seat, or toddler
seat) for infants, toddlers, or children
weighing 40 lb (18 kg) or less (generally
age four or younger).

Using Lap and Shoulder Belts

WARNING:

NEVER use a rearward

facing child restraint on a seat protected
by an ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the CHILD
can occur.

WARNING:

Depending on where

you secure a child restraint, and
depending on the child restraint design,
you may block access to certain seatbelt
buckle assemblies and LATCH lower
anchors, rendering those features
potentially unusable. To avoid risk of
injury, make sure occupants only use
seating positions where they are able to
be properly restrained.

When installing a child restraint with
combination lap and shoulder belts:
•

Use the correct seatbelt buckle for that
seating position.

•

Insert the belt tongue into the proper
buckle until you hear a snap and feel it
latch. Make sure that you securely
fasten the tongue in the buckle.

•

Keep the buckle release button
pointing up and away from the child
restraint, with the tongue between the
child restraint and the release button,
to prevent accidental unbuckling.

•

Place the vehicle seat in the upright
position before you install the child
restraint.

•

Put the seatbelt in the automatic
locking mode. See Step 5. This vehicle
does not require the use of a locking
clip.

Perform the following steps when
installing the child restraint with
combination lap and shoulder belts:

Note:

Although the child restraint

illustrated is a forward facing child restraint,
the steps are the same for installing a rear
facing child restraint.

E142528

Position the child restraint in a seat
with a combination lap and shoulder
belt.

E142529

2. Pull down on the shoulder belt and

then grasp the shoulder belt and lap
belt together.

Child Safety

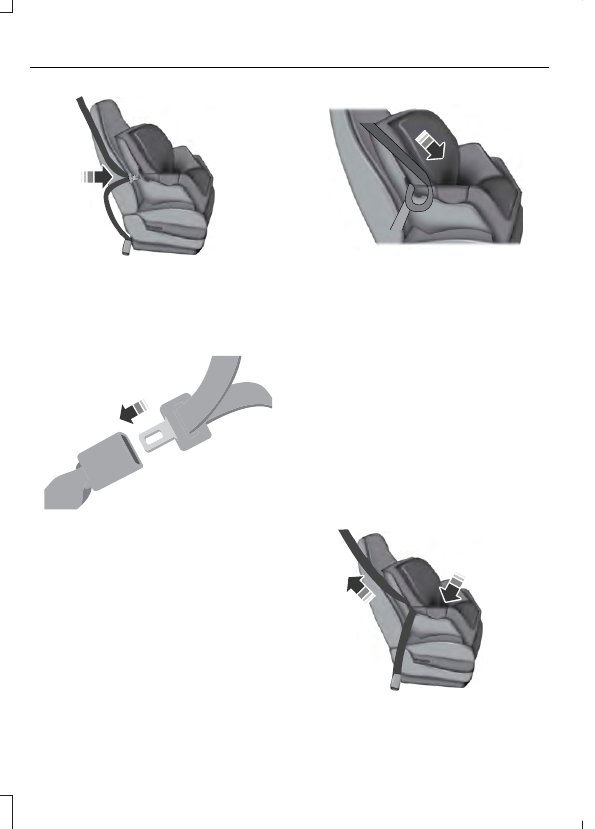

E142530

3. While holding the shoulder and lap belt

portions together, route the tongue
through the child restraint according
to the child restraint manufacturer's
instructions. Make sure that you did not
twist the belt webbing.

E142531

4. Insert the belt tongue into the proper

buckle (the buckle closest to the
direction the tongue is coming from)
for that seating position until you hear
a snap and feel the latch engage. Make
sure the tongue is latched securely by
pulling on it.

E142875

5. To put the retractor in the automatic

locking mode, grasp the shoulder
portion of the belt and pull downward
until you pull the entire belt out.

Note:

The automatic locking mode is

available on the front passenger seat. This
vehicle does not require the use of a locking
clip.

6. Allow the belt to retract to remove

slack. The belt clicks as it retracts to
indicate it is in the automatic locking
mode.

Try to pull the belt out of the retractor
to make sure the retractor is in the
automatic locking mode. You should
not be able to pull more belt out. If the
retractor did not lock, unbuckle the belt
and repeat Steps 5 and 6.

E142533

Child Safety

Ford GT (2022 year). Manual in english - page 1
