COOLING SYSTEM CAPACITY
AND SPECIFICATION - 7.3L

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

23.4 qt (22.13 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

FUEL TANK CAPACITY - DIESEL

Capacities

Quantity

Variant

50 gal (189.2 L)

Small.

55 gal (208.2 L)

Medium.

65 gal (246 L)

Large.

65 gal (246 L)

With dual tanks - Driver side tank.

50 gal (189.2 L)

With dual tanks - Passenger side tank.

297

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 6.7L DIESEL

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

3.38 fl oz (100 ml)

26.49 oz (0.751 kg)

All.

Materials

Specification

Name

WSH-M17B19-A

Motorcraft® R-134a Refrigerant(U.S.)
R-134a Refrigerant / Frigorigène R-134a(Canada)
YN-19(U.S.)
CYN-19-R(Canada)

WSH-M1C231-B

Motorcraft® PAG Refrigerant Compressor Oil(U.S.)
Motorcraft® PAG Refrigerant Compressor Oil / Huile
PAG pour compresseur frigorifique Motor-
craft®(Canada)
YN-12-D(U.S. & Canada)

299

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 7.3L

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

4.06 fl oz (120 ml)

26.46 oz (0.75 kg)

All.

Materials

Specification

Name

WSH-M17B19-A

Motorcraft® R-134a Refrigerant(U.S.)
R-134a Refrigerant / Frigorigène R-134a(Canada)
YN-19(U.S.)
CYN-19-R(Canada)

WSH-M1C231-B

Motorcraft® PAG Refrigerant Compressor Oil(U.S.)
Motorcraft® PAG Refrigerant Compressor Oil / Huile
PAG pour compresseur frigorifique Motor-
craft®(Canada)
YN-12-D(U.S. & Canada)

WASHER FLUID SPECIFICATION

Capacities

Quantity

Variant

Fill as required.

All.

300

Capacities and Specifications

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concen-
trate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer
Fluid / Liquide lave-glace de haute qualité Motor-
craft®(Canada)
ZC-32-B2(U.S.)
CXC-37-A/B/D/F(Canada)

DIESEL EXHAUST FLUID CAPACITY AND SPECIFICATION

Capacities

Quantity

Variant

8.0 gal (30.2 L)

All.

Materials

Specification

Name

WSS-M99C130-A

Motorcraft® Diesel Exhaust Fluid(U.S.)
Motorcraft® Diesel Exhaust Fluid / Fluide pour
échappement diesel Motorcraft®(Canada)
PM-27-GAL,PM-27-JUG(U.S.)
CPM-27-J(Canada)

AUTOMATIC TRANSMISSION
FLUID CAPACITY AND
SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

•

Reduced fuel economy.

Note:

Only use MERCON LV transmission

fluid for automatic transmissions that
require MERCON LV transmission fluid. The
use of any other fluid could cause
transmission damage.

301

Capacities and Specifications

Capacities

Quantity

Variant

16.3 qt (15.4 L)

Six-speed automatic transmission (6R140).

Approximate dry fill capacity. Actual amount could vary during fluid changes.

Materials

Specification

Name

WSS-M2C938-AMERCON® LV,

Motorcraft® MERCON® LV Automatic Transmission
Fluid(U.S.)
Motorcraft® MERCON® LV Automatic Transmission
Fluid / Huile pour boîte automatique MERCON® LV
Motorcraft®(Canada)
XT-10-QLVC(U.S.)
CXT-10-LV6(Canada)

BRAKE FLUID SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced brake performance.

Note:

Keep brake fluid clean and dry.

Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and failure.

Capacities

Quantity

Variant

Fill as required.

All.

302

Capacities and Specifications

Materials

Specification

Name

WSS-M6C65-A3

Motorcraft® DOT 5.1 Motor Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 5.1 Motor Vehicle Brake Fluid /
Liquide de frein automobile DOT 5.1 Motor-
craft®(Canada)
PM-21(U.S. & Canada)

REAR AXLE FLUID CAPACITY
AND SPECIFICATION - DIESEL

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

9.5 qt (9 L)

S-140 (13.5K, 17.5K, 19K single-speed).

11.2 qt (10.6 L)

21060S (21K single-speed).

17.5 qt (16.6 L)

21065T/P (21K two-speed).

14.3 qt (13.5 L)

S23-172 (23K single-speed).

18.5 qt (17.5 L)

S26-190 (26K single-speed).

Materials

Specification

Name

WSP-M2C197-A

Motorcraft® SAE 80W-90 Premium Rear Axle
Lubricant(U.S.)
Motorcraft® SAE 80W-90 Premium Axle Lubricant
/ Lubrifiant pour essieux de très haute qualité SAE
80W-90 Motorcraft®(Canada)
XY-80W90-QL(U.S.)
CXY-80W90-1L(Canada)

Alternative Rear Axle Fluid for
Severe Duty Service

303

Capacities and Specifications

Materials

Specification

Name

WSL-M2C192-A

Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant(U.S.)
Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant / Lubrifiant synthétique pour pont arrière
SAE 75W-140 Motorcraft®(Canada)
XY-75W140-QL(U.S.)
CXY-75W140-1L(Canada)

REAR AXLE FLUID CAPACITY
AND SPECIFICATION -
GASOLINE

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

9.5 qt (9 L)

S-140 (13.5K, 17.5K, 19K single-speed).

11.2 qt (10.6 L)

21060S (21K single-speed).

17.5 qt (16.6 L)

21065T/P (21K two-speed).

14.3 qt (13.5 L)

S23-172 (23K single-speed).

Materials

Specification

Name

WSP-M2C197-A

304

Capacities and Specifications

Alternative Rear Axle Fluid for
Severe Duty Service

Materials

Specification

Name

WSL-M2C192-A

HYDRAULIC POWER
STEERING FLUID CAPACITY
AND SPECIFICATION

Use oil and fluid that meets the defined
specification and viscosity grade.

If you do not use oil and fluid that meets
the defined specification and viscosity
grade, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

Capacities

Quantity

Variant

5.2 qt (4.9 L)

With air brakes.

6.1 qt (5.8 L)

With hydraulic brakes.

Materials

Specification

Name

WSS-M2C938-AMERCON® LV,

305

Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER

Locating the Vehicle Identification
Number

The vehicle identification number is on the
left-hand side of the instrument panel.

E311767

Note:

In the illustration, XXXX is

representative of your vehicle identification
number.

Vehicle Identification Number
Overview

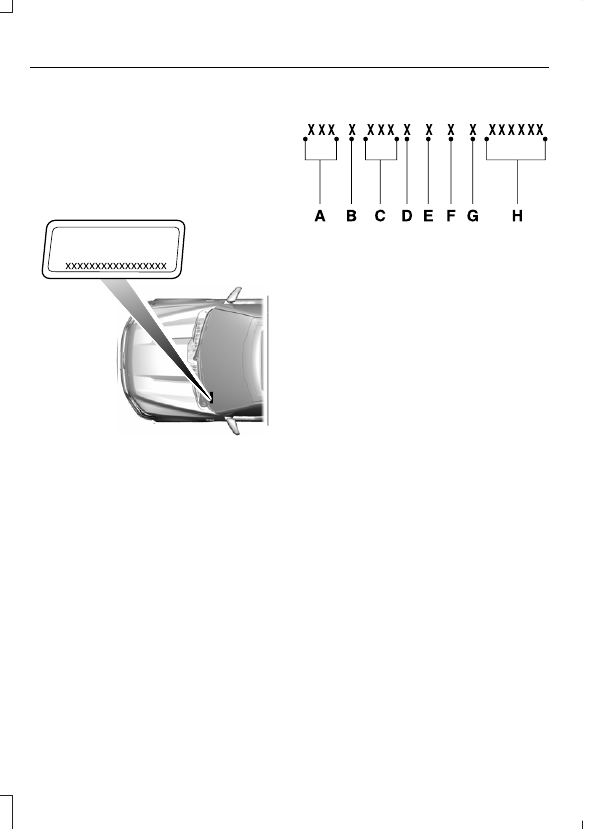

The vehicle identification number contains
the following information:

E142477

World manufacturer identifier.

Brake system, gross vehicle
weight rating, restraint devices
and their locations.

Make, vehicle line, series, body
type.

Engine or motor type.

Check digit.

Model year.

Assembly plant.

Production sequence number.

306

Vehicle Identification

CONNECTED VEHICLE
REQUIREMENTS

Connected service and related feature
functionality requires a compatible vehicle
network.

Some remote features require additional
service activation. Log in to your Ford
account for details. Some restrictions, third
party terms and message or data rates
may apply.

CONNECTED VEHICLE
LIMITATIONS

Evolving technology, cellular networks, or
regulations could affect functionality and
availability, or continued provision of some
features. These changes could even stop
some features from functioning.

CONNECTING THE VEHICLE TO
A MOBILE NETWORK

What Is the Modem

The modem allows access to a
range of features built into your
vehicle.

Enabling and Disabling the Modem

Press

Settings

2. Press

FordPass Connect

3. Press

Connectivity Settings

4. Switch connectivity features on or off.

Connecting FordPass to the
Modem

Make sure that the modem is enabled
using the vehicle settings menu.

2. Open the FordPass app on your device

and log in.

3. Add your vehicle or select your vehicle

if already added.

4. Select the option for vehicle details.

5. Select the option to activate your

vehicle.

6. Make sure that the name on the screen

matches the name shown in your
FordPass account.

Confirm that FordPass account is
connected to the modem.

CONNECTED VEHICLE – TROUBLESHOOTING

Connected Vehicle – Frequently Asked Questions

Possible Cause and Resolution

Symptom

I cannot confirm the
connection of my FordPass
account to the modem.

–

Modem is not enabled.
•

Switch vehicle connectivity on.

–

Weak network signal.
•

Move your vehicle closer to a place where the
network signal is not obstructed.

307

Connected Vehicle

(If Equipped)

GENERAL INFORMATION

WARNING:

Driving while distracted

hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

Radio Frequencies and Reception
Factors

Note:

Listening to loud audio for long

periods of time could damage your hearing.

Radio Reception Factors

The further you travel from an AM or FM station, the
weaker the signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating
tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

AUDIO UNIT

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

E305609

Note:

Depending on your vehicle option

package, the controls may look different
from what you see here.

Note:

Some features, such as satellite

radio, may not be available in your location.
Check with an authorized dealer.

308

Audio System

(If Equipped)

Accessing the Sound Settings

E280315

Press the button to adjust the
sound settings. You can also
activate and set the sensitivity

of the adaptive or speed compensated
volume.

Accessing the System Settings

Press the button.

Adjusting the Volume

E260697

Turn to adjust the volume.

Changing Radio Stations

E260687

Auto or Manual tuning.

Station name tuning.

Note:

You can change between auto or

manual tuning with the rotary control using
the system settings.

Note:

You can change radio stations using

the seek buttons.

Note:

You can recall radio stations using

the numeric preset buttons.

Pausing or Playing Media

In media mode, press and
release the button to pause
playback. Press the button again

to resume playback.

In radio mode, press the button to mute
the signal. Press the button again to
restore the signal.

Returning to the Previous Screen

E281480

Press and release the button.

Scrolling Through the Menu
Options

E260782

Selecting Media

E100027

Press the button to select media
mode.

Repeatedly press the button, or

rotate the right-hand rotary control to
scroll through the available media sources.

309

Audio System

(If Equipped)

Selecting a Menu Option

E260781

Selecting the Radio

Press the button to select radio
mode.

Press the button again to display

the available radio sources. Repeatedly
press the button, or rotate the right-hand
rotary control to scroll through the
available radio sources.

Setting a Memory Preset

Tune to a station then press and hold one
of the numbered memory preset buttons.
The audio mutes briefly while the system
saves the station and returns once the
station is stored.

Switching the Audio Unit On and
Off

E260686

Press and release the button.

Using a Cell Phone

Press the button to either
answer an incoming phone call
or to make a phone call.

E265040

Press and hold the button to end
a phone call.

Using Seek, Fast Forward and
Reverse

Press and release the button to
skip to the next track.

Press and hold the button to fast

forward through the track.

Press and release the button to
return to the beginning of a track.

Repeatedly press the button to

return to previous tracks.

Press and hold the button to rewind.

In radio mode, select a frequency band and
press and release either button. The
system stops at the first station it finds in
that direction.

310

Audio System

(If Equipped)

In satellite radio mode, press and release
to select the next or previous satellite radio
station. If you select a specific category,
such as jazz, rock or news, press to find the
next or previous station in the category you
select.

DIGITAL RADIO

Note:

HD Radio broadcasts are not

available in all markets.

HD Radio technology is the digital
evolution of analog AM/FM radio. Your
system has a special receiver that allows
it to receive digital broadcasts, where
available, in addition to the analog
broadcasts, it already receives. Digital
broadcasts provide a better sound quality
than analog broadcasts with free,
crystal-clear audio and no static or
distortion. For more information, and a
guide to available stations and
programming, please visit
www.hdradio.com.

When HD Radio is on and you tune to a
station broadcasting HD Radio technology,
you may notice the HD Radio logo on your
screen. When this logo is available, you
may also see Title and Artist fields
on-screen.

The multicast indicator appears in FM
mode, only, if the current station is
broadcasting multiple digital broadcasts.
The highlighted numbers signify available
digital channels where new or different
content is available. HD1 signifies the main
programming status and is available in
analog and digital broadcasts. Other
multicast stations, HD2 through HD7, are
only available digitally.

When HD Radio broadcasts are active, you
can access the following functions:
•

Memory presets

allow you to save an

active channel as a memory preset.
Touch and hold a memory preset slot
until the sound returns. There is a brief
mute while the radio saves the station.
Sound returns when finished. When
switching to an HD2 or HD3 memory
preset, the sound mutes before the
digital audio plays, because the system
has to reacquire the digital signal.

Note:

As with any saved radio station, you

cannot access the saved station if your
vehicle is outside the station’s reception
area.

311

Audio System

(If Equipped)

HD Radio Reception and Station Troubleshooting

Potential reception issues

If you are listening to a multicast station and you are on
the fringe of the reception area, the station may mute due
to weak signal strength.

Reception area

If you are listening to HD1, the system switches back to
the analog broadcast until the digital broadcast is available
again. However, if you are listening to any of the possible
HD2-HD7 multicast channels, the station mutes and stays
muted unless it is able to connect to the digital signal
again.

When the system first receives a station, aside from HD2-
HD7 multicast stations, it first plays the station in the
analog version. Once the receiver verifies the station is an
HD Radio station, it shifts to the digital version. Depending
on the station quality, you may hear a slight sound change
when the station changes from analog to digital. Blending
is the shift from analog to digital sound or digital back to
analog sound.

Station blending

In order to provide the best possible
experience, use the contact form to report
any station issues found while listening to
a station broadcasting with HD Radio
technology. Independent entities own and
operate each station. These stations are
responsible for the accuracy of all audio
streams and data fields.

312

Audio System

(If Equipped)

Ford F-650 / 750 (2022 year). Manual in english - page 19
