Ford F-600 (2022 year). Manual in english

Motorcraft Part number

Component

FT-221

Ten-speed automatic transmission fluid
filter (10R140).

WW-2248

Windshield wiper blades.

If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36/USC-D.

For spark plug replacement, contact your authorized dealer. Replace the spark plugs at

the recommended intervals. See

Normal Scheduled Maintenance

(page 628).

We recommend Motorcraft® parts that are available at your authorized dealer or at
www.fordparts.com. These parts are engineered for your vehicle, and meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.

470

Capacities and Specifications

MOTORCRAFT PARTS - 6.7L DIESEL

Motorcraft Part number

Component

FA-2031

Air filter.

FA-1952

Foam pre-filter.

BXT-65-750

Battery (two required).

FP-92

Cabin air filter.

FL-2051-S

Engine oil filter.

FD-4625AA

Fuel filter.

FT-221

Ten-speed automatic transmission fluid
filter (10R140).

WW-2248

Windshield wiper blades.

If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

471

Capacities and Specifications

MOTORCRAFT PARTS - 7.3L

Motorcraft Part Number

Component

FA-1950

Air filter element.

BXT-65-750

Battery.

FP-79

Cabin air filter.

FL-820-S

Engine oil filter.

SP-589

Spark plugs.

FT-221

Ten-speed automatic transmission fluid
filter (10R140).

WW-2248

Windshield wiper blades.

If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.

472

Capacities and Specifications

ENGINE OIL CAPACITY AND
SPECIFICATION - 6.2L

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

7.0 qt (6.6 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Synthetic Blend Motor
Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil
/ Huile moteur de très haute qualité SAE 5W-30
Motorcraft®(Canada)
XO-5W30-Q1SP(U.S.)
CXO-5W30-LSP6(Canada)

473

Capacities and Specifications

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,

we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

E240523

ENGINE OIL CAPACITY AND
SPECIFICATION - 6.7L DIESEL

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

Engine Oil

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft motor oil is not
available, use motor oil of the
recommended viscosity grade that meets
our specification WSS-M2C171-F1. You can
find the list of approved motor oils at
www.motorcraft.com.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

474

Capacities and Specifications

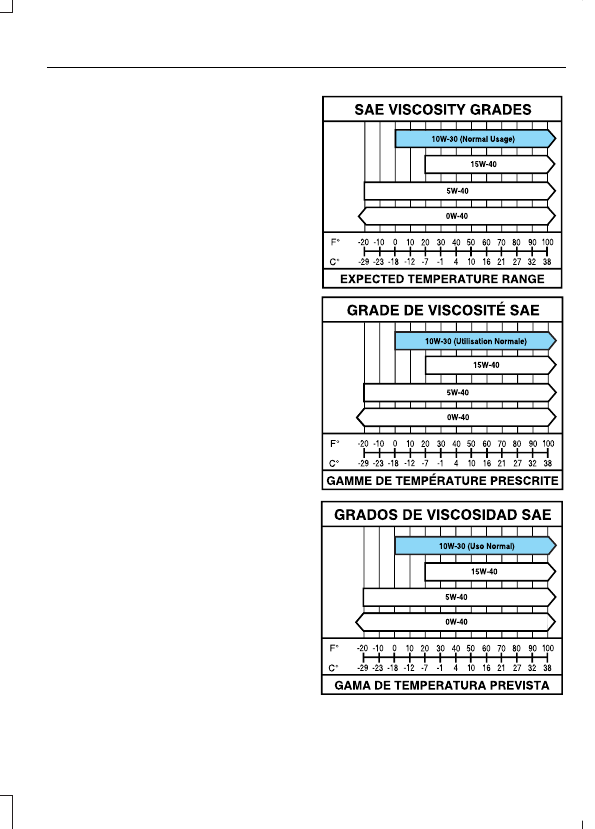

The use of correct oil viscosities for diesel
engines is important for satisfactory
operation. Determine which oil viscosity
best suits the temperature range you
expect to encounter for the next service
interval from the SAE Viscosity Grades
chart.

Note:

An engine block heater is

recommended at temperatures below -9°F
(-23°C).

E327351

475

Capacities and Specifications

Capacities

Including the Oil Filter

Variant

13.0 qt (12.3 L)

All.

Materials

Specification

Name

WSS-M2C171-F1

Motorcraft® SAE 10W-30 Super Duty Diesel Motor
Oil(U.S.)
Motorcraft® Super Duty Motor Oil SAE 10W-30 /
Huile moteur Super Duty SAE 10W-30 Motor-
craft®(Canada)
XO-10W30-QSDF(U.S.)
CXO-10W30-LSD12(Canada)

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C171-F1

Engine Oil - SAE 0W-40

Alternative Engine Oil for Biodiesel
Fuel Blends (B20 Max)

476

Capacities and Specifications

Materials

Specification

Name

WSS-M2C171-F1

Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor
Oil(U.S.)
(Canada)
XO-5W40-5Q3SD(U.S.)

WSS-M2C171-F1

Motorcraft® SAE 15W-40 Super Duty Diesel Motor
Oil(U.S.)
Motorcraft® Super Duty Motor Oil SAE 15W-40 /
Huile moteur Super Duty SAE 15W-40 Motor-
craft®(Canada)
XO-15W40-QSDF(U.S.)
CXO-15W40-LSD12(Canada)

Alternative Engine Oil for Severe
Duty Service

Materials

Specification

Name

WSS-M2C171-F1

Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor
Oil(U.S.)
(Canada)
XO-5W40-5Q3SD(U.S.)

ENGINE OIL CAPACITY AND
SPECIFICATION - 7.3L

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

477

Capacities and Specifications

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline

engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

8.0 qt (7.57 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

478

Capacities and Specifications

E240523

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 6.2L

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

24.6 qt (23.3 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

479

Capacities and Specifications

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 6.7L
DIESEL

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Note:

An engine block heater is

recommended at temperatures below-9°F
(-23°C).

Capacities

Quantity

Variant

31.7 qt (30 L)

Primary cooling system.

8.1 qt (7.7 L)

Secondary cooling system.

Materials

Specification

Name

WSS-M97B57-A2

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 7.3L

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

22.5 qt (21.3 L)

All.

480

Capacities and Specifications

Materials

Specification

Name

WSS-M97B57-A2

FUEL TANK CAPACITY - DIESEL

Capacities

Quantity

Variant

29.0 gal (109.8 L)

Complete vehicle-142 inch and 148 inch
wheelbase, middle location.

34.0 gal (128.7 L)

Complete vehicle-160 inch and 164 inch
wheelbase, middle location.

48.0 gal (181.7 L)

Complete vehicle-176 inch wheelbase,
middle location.

26.5 gal (100.3 L)

Incomplete vehicle, middle location.

40.0 gal (151.4 L)

Incomplete vehicle, aft- axle -location.

66.5 gal (251.7 L)

Incomplete vehicle, middle and aft- axle -
locations.

481

Capacities and Specifications

FUEL TANK CAPACITY - GASOLINE

Capacities

Quantity

Variant

34.0 gal (128.7 L)

Complete vehicle-all except 176 inch
wheelbase and incomplete vehicles.

48.0 gal (181.7 L)

Complete vehicle-176 inch wheelbase.

40.0 gal (151.4 L)

Incomplete vehicle, aft- axle -location.

26.5 gal (100.3 L)

Incomplete vehicle, middle location.

482

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 6.2L

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

4.1 fl oz (120 ml)

27 oz (0.765 kg)

With six-speed automatic
transmission.

3.7 fl oz (110 ml)

27 oz (0.765 kg)

With ten-speed automatic
transmission.

Materials

Specification

Name

WSH-M17B19-A

Motorcraft® R-134a Refrigerant(U.S.)
R-134a Refrigerant / Frigorigène R-134a(Canada)
YN-19(U.S.)
CYN-19-R(Canada)

WSH-M1C231-B

Motorcraft® PAG Refrigerant Compressor Oil(U.S.)
Motorcraft® PAG Refrigerant Compressor Oil / Huile
PAG pour compresseur frigorifique Motor-
craft®(Canada)
YN-12-D(U.S. & Canada)

483

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 6.7L DIESEL

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

3.7 fl oz (110 ml)

27 oz (0.765 kg)

All.

Materials

Specification

Name

WSH-M17B19-A

Motorcraft® R-134a Refrigerant(U.S.)
R-134a Refrigerant / Frigorigène R-134a(Canada)
YN-19(U.S.)
CYN-19-R(Canada)

WSH-M1C231-B

Motorcraft® PAG Refrigerant Compressor Oil(U.S.)
Motorcraft® PAG Refrigerant Compressor Oil / Huile
PAG pour compresseur frigorifique Motor-
craft®(Canada)
YN-12-D(U.S. & Canada)

484

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 7.3L

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

3.7 fl oz (110 ml)

27 oz (0.765 kg)

All.

Materials

Specification

Name

WSH-M17B19-A

Motorcraft® R-134a Refrigerant(U.S.)
R-134a Refrigerant / Frigorigène R-134a(Canada)
YN-19(U.S.)
CYN-19-R(Canada)

WSH-M1C231-B

Motorcraft® PAG Refrigerant Compressor Oil(U.S.)
Motorcraft® PAG Refrigerant Compressor Oil / Huile
PAG pour compresseur frigorifique Motor-
craft®(Canada)
YN-12-D(U.S. & Canada)

WASHER FLUID SPECIFICATION

Capacities

Quantity

Variant

Fill as required.

All.

485

Capacities and Specifications

Ford F-600 (2022 year). Manual in english - page 29
