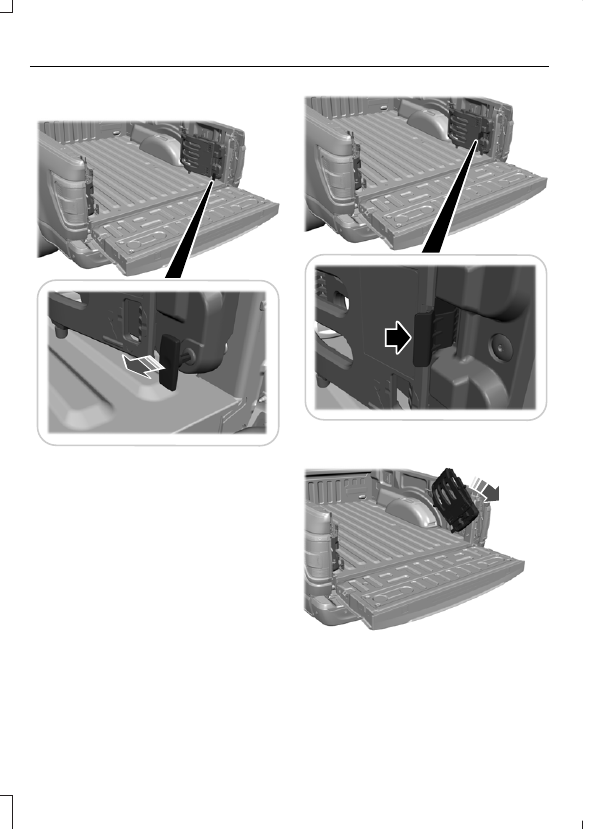

USING THE BED EXTENDER

E311521

1.

Pull the locking pin toward the center
of your vehicle.

E311522

2. Open the latches to release the panels.

A

B

A

1

2

20

3

A

A

E311523

3. Rotate the panels toward the tailgate.

Repeat steps 1-3 on the other side of
your vehicle.

102

Tailgate - Vehicles With: Remote Release Tailgate

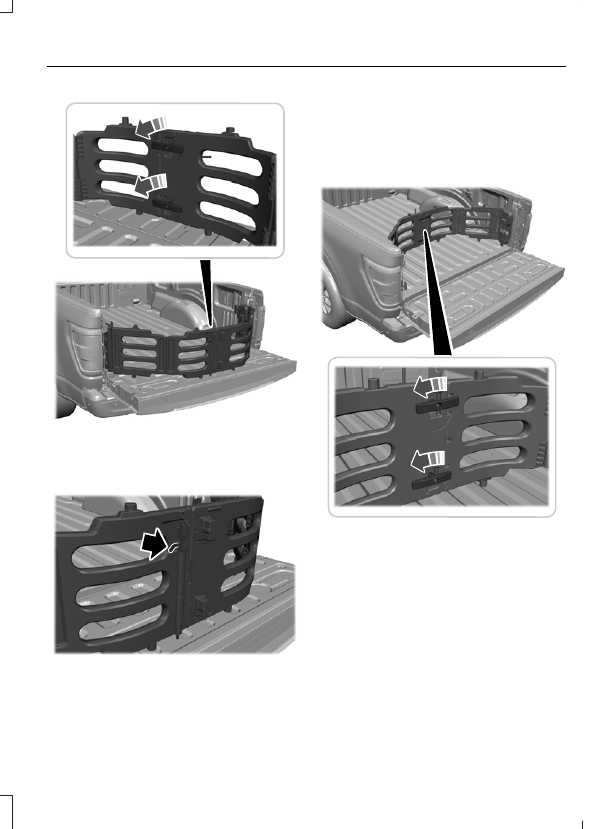

E311524

4. Connect the two panels. Rotate both

knobs one-quarter turn clockwise to
secure the panels.

E311520

5. Insert the latch rod into the tailgate

hole.

6. Engage both sides of the locking pins

into their holes in the pick-up box.

Grocery Mode

E311519

1.

Follow steps 1-4.

2. Before engaging the locking pins, rotate

the panels away from the tailgate.

3. Engage both sides of the locking pins

into their holes in the pick-up box.

4. Close the tailgate.

103

Tailgate - Vehicles With: Remote Release Tailgate

TAILGATE – TROUBLESHOOTING

TAILGATE – INFORMATION MESSAGES

Action

Message

Reminder to check the tailgate due to it recently being opened
from the remote control or the button on the instrument panel
while the vehicle is on and the transmission is not in Park (P).

Check Tailgate Ajar

You must clear the message using the steering wheel controls.

Repeatedly closing the tailgate will not clear the message.

Reminder to check if tailgate is closed securely. If message

persists contact an authorized dealer.

Power Tailgate System

Fault Service Now

104

Tailgate - Vehicles With: Remote Release Tailgate

TAILGATE – FREQUENTLY ASKED
QUESTIONS

Why won't my tailgate open?

Make sure the transmission is in park
(P), ensure nothing is obstructing the
tailgate path and or causing resistance
(tonneau cover or other aftermarket
accessories, freezing conditions or
being parked downhill). If you have
continued issues, the battery voltage
may be low or other system issues.
See an authorized dealer.

105

Tailgate - Vehicles With: Remote Release Tailgate

PASSIVE ANTI-THEFT
SYSTEM

WHAT IS THE PASSIVE ANTI-
THEFT SYSTEM

The passive anti-theft system prevents
someone from starting the vehicle with an
incorrectly coded key.

HOW DOES THE PASSIVE ANTI-
THEFT SYSTEM WORK

The passive anti-theft system arms when
you switch the ignition off.

It disarms when the ignition is switched on
with a correctly coded key.

Note:

The system is not compatible with

non-Ford aftermarket remote start systems.

Note:

Do not leave a duplicate coded key

in your vehicle. Always take the keys and
lock all doors when leaving your vehicle.

ANTI-THEFT ALARM SYSTEM

WHAT IS THE ANTI-THEFT ALARM
SYSTEM

The Anti-Theft Alarm System warns you
of an unauthorized entry to your vehicle.

HOW DOES THE ANTI-THEFT
ALARM SYSTEM WORK

When armed, the anti-theft alarm is
triggered in any of the following ways:
•

If someone opens a door, the tailgate
or the hood without a correctly coded
key or remote control.

•

If you turn the power on without a
correctly coded key.

•

If the interior sensors detect movement
inside your vehicle.

•

If the inclination sensors detect an
attempt to raise your vehicle.

•

If someone disconnects the vehicle
battery or the battery backup alarm.

•

If someone disconnects the trailer. See

Connecting a Trailer

 (page 323).

Any further attempts to carry out one of
the above sounds the alarm again.

If the anti-theft alarm is triggered, the
alarm horn sounds for 30 seconds and the
direction indicators flash for five minutes.

WHAT IS THE PERIMETER ALARM

The perimeter alarm is designed to detect
unauthorized access to your vehicle.

WHAT ARE THE INTERIOR
SENSORS

The interior sensors are designed to detect
any movement inside your vehicle.

The interior sensors are in the overhead
console.

Note:

Do not cover the interior sensors.

WHAT ARE THE INCLINATION
SENSORS

The inclination sensor is designed to detect
an attempt to raise your vehicle, for
example to remove a wheel or to tow it
away.

WHAT IS THE BATTERY BACKUP
ALARM

The battery backup alarm is an additional
alarm system that has its own battery and
horn. It is designed to detect if the vehicle
battery or the battery backup alarm is
disconnected.

106

Security

 (If Equipped)

ARMING THE ANTI-THEFT ALARM
SYSTEM

The alarm is ready to arm when there is
not a key in your vehicle.

Lock your vehicle with your remote control
to arm the alarm.

DISARMING THE ANTI-THEFT
ALARM SYSTEM

Disarm the alarm by performing any of the
following actions:
•

Unlock the doors or luggage
compartment with the remote control.

•

Switch your vehicle on or start your
vehicle.

ANTI-THEFT ALARM SYSTEM
SETTINGS

WHAT ARE THE ALARM SECURITY
LEVELS

You can select two levels of alarm security,
all sensors and perimeter sensing.

All Sensors

All sensors is the standard setting.

In all sensors, all equipped sensors are on
when you arm the alarm.

Note:

Do not arm the alarm with all sensors

if passengers, animals or other moving
objects are inside your vehicle.

Perimeter Sensing

In perimeter sensing, the interior sensors
are off when you arm the alarm.

All the other equipped sensors activate
when you arm the alarm in this mode.

SETTING THE ALARM SECURITY
LEVEL

1.

Press

Settings

 on the touchscreen.

2. Press

Vehicle Settings

.

3. Press

Alarm System

.

4. Press

Motion Sensors

.

5. Press a setting.

WHAT IS ASK ON EXIT

You can choose which level of security you
require after you switch the ignition off.

Note:

If you do not choose a setting, the

system defaults to all sensors.

SWITCHING ASK ON EXIT ON AND
OFF

1.

Press

Settings

 on the touchscreen.

2. Press

Vehicle Settings

.

3. Press

Alarm System

.

4. Switch

Ask on Exit

 on or off.

107

Security

 (If Equipped)

SECURITY – TROUBLESHOOTING

SECURITY – INFORMATION MESSAGES

Action

Message

The system has not detected a correctly coded key.

No Key Detected

The system has malfunctioned. Have your vehicle checked
as soon as possible.

Starting System Fault

Displays when the alarm has been triggered due to unauthor-
ized entry.

Vehicle Alarm To Stop
Alarm, Start Vehicle.

Alarm Announcement

108

Security

 (If Equipped)

SECURITY – FREQUENTLY ASKED
QUESTIONS

What should I do if there is any
potential alarm problem with my
vehicle?

Take all remote controls to an
authorized dealer if there is any
potential alarm problem with your
vehicle.

What should I do if the vehicle is unable
to start with a correctly coded key?

Have your vehicle checked as soon as
possible.

109

Security

 (If Equipped)

POWER RUNNING BOARD
PRECAUTIONS

WARNING:

In extreme climates,

excessive ice buildup may occur, causing
the running boards not to deploy. Make
sure that the running boards have
deployed, and have finished moving
before attempting to step on them. The
running boards will resume normal
function once the blockage is cleared.

WARNING:

Switch off the running

boards before jacking or placing any
object under your vehicle. Never place
your hand between the extended running
board and your vehicle. A moving running
board may cause injury.

Do not use the running boards, front and
rear hinge assemblies, running board
motors, or the running board underbody
mounts to lift your vehicle when jacking.
Use proper jacking points.

The running boards could move slower in
cold temperatures.

POWER RUNNING BOARD
SETTINGS

1.

Using the instrument cluster display
controls on the steering wheel, select

Settings

.

2. Select

Advanced Settings

.

3. Select

Vehicle

.

4. Select

Power Running Boards

.

5. Select a setting.

Power Running Board Settings

Off

The power running boards remain stowed,
regardless of door position.

Auto

The power running boards deploy when
you open the door and stow when you
close the door.

Out

The power running boards remain
deployed, regardless of door position.

DEPLOYING AND STOWING
THE POWER RUNNING
BOARDS

The power running boards deploy when
you open the door and stow when you
close the door.

Note:

The power running boards reverse

direction and move to the end of travel if
they encounter an object when moving.

POWER RUNNING BOARDS –
TROUBLESHOOTING

POWER RUNNING BOARDS –
FREQUENTLY ASKED QUESTIONS

Why is there unwanted noise coming
from my power running boards?

The power running board mechanism
could trap debris such as mud, dirt,
snow, ice and salt. If this happens, set
the running boards to the deployed
position. Then, wash the system, in
particular the front and rear hinge
arms, with a high-pressure car wash
wand.

110

Power Running Boards

 (If Equipped)

ADJUSTING THE STEERING
WHEEL - VEHICLES WITH:
POWER ADJUSTABLE
STEERING COLUMN

WARNING:

Do not adjust the

steering wheel when your vehicle is
moving.

Note:

 Make sure that you are sitting in the

correct position.  See

Sitting in the Correct

Position

 (page 158).

E261582

Use the control on the side of the steering
column to adjust the position.

To adjust:
•

Tilt: Press the top or bottom of the
control.

•

Telescope: Press the front or rear of
the control.

End of Travel Position

The steering column sets a stopping
position just short of the end of the column
position to prevent damage to the steering
column.  A new stopping position sets if
the steering column encounters an object
when tilting or telescoping.

To reset the steering column to its normal
stopping position:

1.

Confirm there is nothing obstructing
the motion of the steering column.

2. Press and hold the steering column

control until the steering column stops
moving.

3. Press the steering column control

again.

Note:

The steering column may begin to

move again.

4. When the steering column stops,

continue holding the control for a few
seconds.

5. Repeat for each direction as necessary.

A new stopping position sets.  The next
time you tilt or telescope the steering
column, it stops just short of the end of the
column position.

Memory Feature

 (If Equipped)

You can save and recall the steering
column position with the memory
function.  See

What Is the Memory

Function

 (page 174).

Pressing the adjustment control during a
memory recall cancels the operation.

Easy Entry and Exit Feature

The column moves up when you switch
the ignition off.  Switch the ignition on to
return the system to its previous settings.
You can switch this feature on or off in the
information display.  See

Instrument

Cluster Display

 (page 141).

111

Steering Wheel

Note:

 If you press any adjustment or

memory button when in easy exit mode, the
system cancels the operation.

Note:

Depending on your vehicle, the

column may move up and in.

ADJUSTING THE STEERING
WHEEL - VEHICLES WITH:
MANUAL ADJUSTABLE
STEERING COLUMN

WARNING:

Do not adjust the

steering wheel when your vehicle is
moving.

Note:

 Make sure that you are sitting in the

correct position.  See

Sitting in the Correct

Position

 (page 158).

E261502

1.

Unlock the steering column by pulling
down on the lever.

2. Adjust the steering wheel to the

preferred position. The wheel can move
up or down, in or out.

3. Lock the steering column into position

by pulling the lever up into the locked
position.

RESETTING THE STOPPING
POSITION - VEHICLES WITH:
POWER ADJUSTABLE
STEERING COLUMN

Note:

The steering wheel stops when it

detects an obstruction. This sets a new
stopping position.

To reset the steering column to its normal
stopping position:

1.

Confirm there is nothing obstructing
the motion of the steering column.

2. Press and hold the steering column

control until the steering column stops
moving.

3. Press the steering column control

again.

Note:

The steering column may start to

move again.

4. When the steering column stops,

continue holding the control for a few
seconds.

5. Repeat for each direction, as necessary.

HORN

E270945

Press on the center of the
steering wheel near the horn icon
to activate the horn.

SWITCHING THE HEATED
STEERING WHEEL ON AND OFF

(IF EQUIPPED)

To activate the heated steering
wheel, press the button on the
climate control unit.

112

Steering Wheel

On some vehicles, an indicator on the
button illuminates when the heated
steering wheel is on.

Note:

A sensor regulates the temperature

of the steering wheel.

113

Steering Wheel

ADJUSTING THE PEDALS

WARNING:

Do not use the pedal

adjustment controls when the vehicle is
moving. Failure to follow this instruction
could result in personal injury or death.

Your control is on the left-hand side of the
steering column or on the instrument
panel.

E176213

Farther away from you.

A.

Closer to you.

B.

You can save and recall the pedal positions
with the memory feature.  See

Memory

Function

 (page 174).

114

Adjustable Pedals

 (If Equipped)

WIPERS

WIPER PRECAUTIONS

Do not operate the wipers on a dry
windshield. This could scratch the glass or
damage the wiper blades. Use the
windshield washers before wiping a dry
windshield.

Fully defrost the windshield before you
switch the windshield wipers on.

Switch the windshield wipers off before
entering a car wash.

SWITCHING WINDSHIELD WIPERS
ON AND OFF

E327739

High-speed wipe.

A

Intermittent wipe.

B

Off.

C

E270969

Use the rotary control.

AUTOWIPERS

 (IF EQUIPPED)

WHAT ARE AUTOWIPERS

Autowipers turns on and controls the
speed and frequency of the windshield
wipers.

AUTOWIPERS SETTINGS

1.

Using the instrument cluster controls
on the steering wheel, select

Settings

.

2. Select

Vehicle

.

3. Select

Wipers

.

4. Switch

Rain Sensing

 on or off.

Note:

When you switch the feature off, the

wipers do not operate based on the rain
sensor. When you switch on the windshield
wipers to the intermittent wipe position with
the feature off, the wipers use the wipe
speed set by the rotary control.

ADJUSTING THE SENSITIVITY OF
THE RAIN SENSOR

E311292

Low sensitivity.

A

High sensitivity.

B

Use the rotary control to set the sensitivity
of the rain sensor.

115

Wipers and Washers

When you select low sensitivity, the wipers
operate when the sensor detects a large
amount of water on the windshield.

When you select high sensitivity, the wipers
operate when the sensor detects a small
amount of water on the windshield.

CHECKING THE WIPER
BLADES

E142463

Run the tip of your fingers over the edge of
the blade to check for roughness.

REPLACING THE FRONT
WIPER BLADES

Make sure your vehicle is off before
beginning this procedure.

E165804

1.

Pull the wiper blade and arm away
from the glass.

Note:

Do not hold the wiper blade to lift the

wiper arm.

E345993

2. Press the wiper blade locking clip.

3. Remove the wiper blade.

Note:

Make sure that the wiper arm does

not spring back against the glass when the
wiper blade is not attached.

4. To install, reverse the removal

procedure.

Note:

Make sure that the wiper blade locks

into place.

WASHERS

WASHER PRECAUTIONS

WARNING:

If you operate your

vehicle in temperatures below 41°F
(5°C), use washer fluid with antifreeze
protection. Failure to use washer fluid
with antifreeze protection in cold
weather could result in impaired
windshield vision and increase the risk
of injury or accident.

Do not operate the washers when the
washer reservoir is empty. This could cause
the washer pump to overheat.

116

Wipers and Washers

Keep the outside of the windshield clean.
The rain sensor is very sensitive and the
wipers may operate if dirt, mist or insects
hit the windshield.

USING THE WINDSHIELD WASHER

E311291

E270967

Press and hold the button at the
end of the lever to operate the
windshield washer.

Note:

A courtesy wipe occurs a short time

after the wipers stop to clear any remaining
washer fluid when switched on.  See

Switching the Courtesy Wipe On and Off

(page 117).

SWITCHING THE COURTESY WIPE
ON AND OFF

1.

Using the instrument cluster controls
on the steering wheel, select

Settings

.

2. Select

Vehicle

.

3. Select

Wipers

.

4. Switch

Courtesy Wipe

 on or off.

ADDING WASHER FLUID

E349287

WASHER FLUID SPECIFICATION

See

Washer Fluid Specification

 (page

117).

WIPERS AND WASHERS –
TROUBLESHOOTING

WIPERS AND WASHERS –
WARNING LAMPS

E132353

Illuminates when the windshield
washer fluid is low.

WIPERS AND WASHERS –
FREQUENTLY ASKED QUESTIONS

Why are there streaks and smears on
the windshield?

The wiper blades could be dirty, worn
or damaged. Check the wiper blades.
See

Checking the Wiper Blades

(page 116).  If the wiper blades are dirty,
clean them with washer fluid or water
applied with a soft sponge or cloth. If
the wiper blades are worn or damaged,
install new ones.  See

Replacing the

Front Wiper Blades

 (page 116).

117

Wipers and Washers
