Ford F-550 (2022 year). Manual in english

E308396

CHILD RESTRAINTS

CHILD RESTRAINT POSITION
INFORMATION

Install the child restraint tightly against the
vehicle seat. It may be necessary to lift or
remove the head restraint.

Rear Facing Child Restraints

Seatbelt Only

LATCH (Lower Anchors

Only)

Combined Weight of Child

and Child Restraint

Up to 65 lb (29 kg)

Over 65 lb (29 kg)

Forward Facing Child Restraints

Seatbelt and LATCH
(Lower Anchors and

Top Tether Anchor)

Seatbelt and Top

Tether Anchor

LATCH (Lower

Anchors and Top

Tether Anchor)

Combined Weight of

Child and Child

Restraint

Up to 65 lb (29 kg)

Over 65 lb (29 kg)

Child Safety

CHILD RESTRAINTS RECOMMENDATION

Recommended Restraint Type

Child Size, Height, Weight, or Age

Use a child restraint (sometimes

called an infant carrier, convertible

seat, or toddler seat).

Children weighing 40 lb (18 kg) or less (generally

age four or younger).

Use a belt-positioning booster

seat.

Children who have outgrown or no longer properly

fit in a child restraint (generally children who are
less than 57 in (1.45 m) tall, are greater than age

four and less than age 12, and between 40 lb (18 kg)

and 80 lb (36 kg) and upward to 100 lb (45 kg) if

recommended by your child restraint manufacturer).

Use a vehicle seatbelt having the

lap belt snug and low across the

hips, shoulder belt centered across

the shoulder and chest, and seat

backrest upright.

Children who have outgrown or no longer properly

fit in a belt-positioning booster seat (generally chil-

dren who are at least 57 in (1.45 m) tall or greater

than 80 lb (36 kg) or 100 lb (45 kg) if recommended

by child restraint manufacturer).

You are required by law to properly use
child restraints for infants and toddlers in
the United States, Canada and Mexico.

Many states and provinces require that
small children use approved booster seats
until they reach age eight, a height of 57 in
(1.45 m) tall, or 80 lb (36 kg). Check your
local and state or provincial laws for
specific requirements about the safety of
children in your vehicle.

When possible, properly restrain children
12 years of age and under in a rear seating
position of your vehicle. Accident statistics
suggest that children are safer when
properly restrained in the rear seating
positions than in a front seating position.

When installing a rear facing child restraint,
adjust the vehicle seats to avoid
interference between the child restraint
and the vehicle seat in front of the child
restraint.

INSTALLING CHILD
RESTRAINTS

USING SEATBELTS

WARNING:

Depending on where

you secure a child restraint, and
depending on the child restraint design,
you may block access to certain seatbelt
buckle assemblies and LATCH lower
anchors, rendering those features
potentially unusable. To avoid risk of
injury, make sure occupants only use
seating positions where they are able to
be properly restrained.

Note:

The following does not apply to the

front center position of Super Cab and Crew
Cab vehicles.

Note:

Although the child restraint

illustrated is a forward facing child restraint,
the steps are the same for installing a rear
facing child restraint.

Child Safety

Perform the following steps when
installing a child restraint with seatbelts.

Position the child restraint in a seat
with a seatbelt.

E142529

2. Pull down on the shoulder belt and

then grasp the shoulder belt and lap
belt together.

E142530

3. While holding the shoulder and lap belt

portions together, route the tongue
through the child restraint according
to the child restraint manufacturer's
instructions. Make sure you did not
twist the belt webbing.

E142531

4. Insert the belt tongue into the proper

buckle for that seating position until
the latch engages. Make sure the
tongue is latched securely by pulling
on it.

E142875

5. To put the retractor in the automatic

locking mode, grasp the shoulder
portion of the belt and pull downward
until you pull all of the seatbelt out.

Note:

The automatic locking mode is

available on the front passenger and rear
seats. This mode is also available on the
center seat of a Regular Cab. This vehicle
does not require the use of a locking clip.

6. Allow the belt to retract to remove

slack. The seatbelt clicks as it retracts
to indicate it is in the automatic locking
mode.

Child Safety

Pull the seatbelt out of the retractor to
make sure the retractor is in the
automatic locking mode. You should
not be able to pull more belt out. If the
retractor is not locked, unbuckle the
belt and repeat Steps 5 and 6.

E142533

8. Remove remaining slack from the belt.

Force the seat down with extra weight,
for example, by pressing down or
kneeling on the child restraint while
pulling up on the shoulder belt in order
to force slack from the belt. This is
necessary to remove the remaining
slack that exists once you add the extra
weight of the child to the child restraint.
It also helps to achieve the proper
snugness of the child restraint to your
vehicle. Sometimes, a slight lean
toward the buckle helps to remove
remaining slack from the belt.

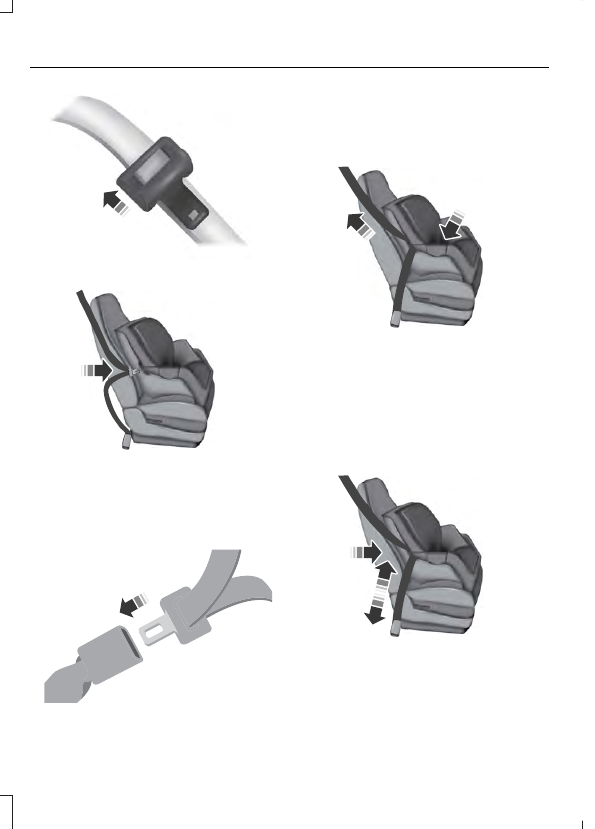

9. If the child restraint has a tether strap,

attach it.

E142534

10.

Before placing the child in the seat,
forcibly move the seat forward and
back to make sure the seat is securely
held in place.

To check this, grab the seat at the belt path
and attempt to move it side to side and
forward and back. There should be no
more than 1 in (2.5 cm) of movement.

We recommend checking with a NHTSA
Certified Child Passenger Safety
Technician to make certain the child
restraint is properly installed. In Canada,
check with Transport Canada for referral
to a Child Car Seat Clinic.

Using Seatbelts

WARNING:

Always use both the

lap and shoulder portion of the seatbelt
in the center seating position.

Note:

The following applies to the front

center position of Super Cab and Crew Cab
vehicles.

The seatbelt webbing below the tongue is
the lap portion of the seatbelt. The
webbing above the tongue is the shoulder
belt portion of the seatbelt.

Position the child restraint in the front
center seat.

Child Safety

E162708

2. Slide the tongue up the webbing.

E142530

3. While holding both shoulder and lap

portions next to the tongue, route the
tongue and webbing through the child
restraint according to the child restraint
manufacturer's instructions. Make sure
you did not twist the belt webbing.

E142531

4. Insert the belt tongue into the proper

buckle for that seating position until
the latch engages. Make sure the
tongue is latched securely by pulling
on it.

E142533

5. When pushing down with your knee on

the child restraint, pull up on the
shoulder belt portion to tighten the lap
belt portion of the seatbelt.

6. Allow the seatbelt to retract and

remove any slack in the belt to securely
tighten the child restraint in the vehicle.

If the child restraint has a tether strap,
attach it.

E142534

Child Safety

8. Before placing the child in the seat,

forcibly move the seat forward and
back to make sure the seat is securely
held in place. To check this, grab the
seat at the belt path and attempt to
move it side to side and forward and
back. There should be no more than
1 in (2.5 cm) of movement.

9. Check from time to time to be sure that

there is no slack in the lap and shoulder
belt. The shoulder belt must be snug
to keep the lap belt tight during a crash.

USING LOWER ANCHORS AND
TETHERS FOR CHILDREN

WARNING:

Do not attach two child

safety restraints to the same anchor. In
a crash, one anchor may not be strong
enough to hold two child safety restraint
attachments and may break, causing
serious injury or death.

WARNING:

Depending on where

The Lower Anchors and Tethers for
CHildren (LATCH) system has three
vehicle anchor points:

•

Two lower anchors where the vehicle
seat backrest and seat cushion meet,
called the seat bight.

•

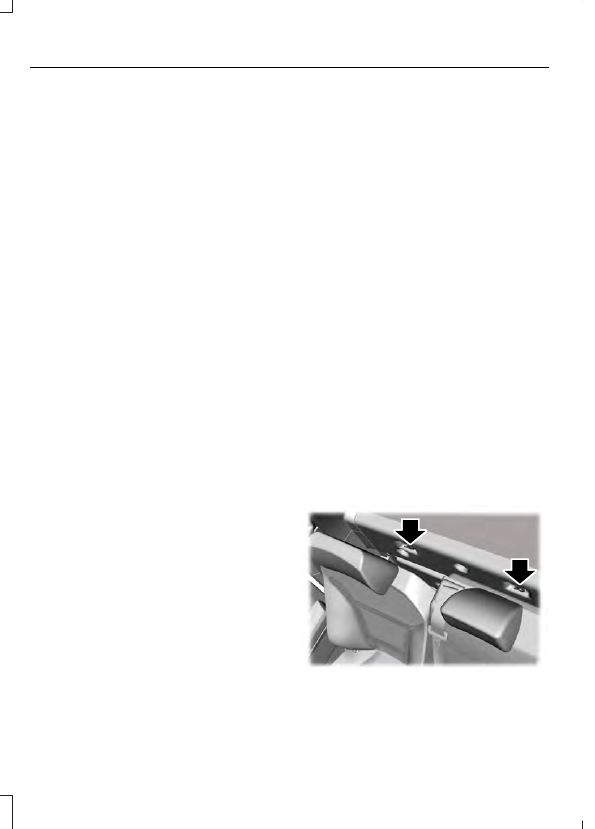

One top tether anchor behind that
seating position.

LATCH compatible child restraints have
two rigid or webbing mounted
attachments. These attachments connect
to the two lower anchors at the LATCH
equipped seating positions in your vehicle.
This type of attachment method
eliminates the need to use seatbelts to
attach the child restraint.

However, you can still use the seatbelt to
attach the child restraint if the lower
anchors are not used. For forward-facing
child restraints, you must also attach the
top tether strap to the proper top tether
anchor if a top tether strap has been
provided with your child restraint.

Follow the instructions later in this chapter
on attaching child restraints with tether
straps.

INSTALLING A CHILD RESTRAINT
IN A CENTER SEAT

WARNING:

The standardized

spacing for LATCH lower anchors is 11 in
(280 mm) center to center. Do not use
LATCH lower anchors for the center
seating position unless the child restraint
manufacturer's instructions permit and
specify using anchors spaced at least as
far apart as those in this vehicle.

The lower anchors at the center of the
second row rear seat are spaced 25.7 in
(652 mm) apart. The standardized spacing
for LATCH lower anchors is 11 in (280 mm)
center to center.

Child Safety

You cannot install a child restraint with
rigid LATCH attachments at the center
seating position. You can only use LATCH
compatible child restraints with
attachments on belt webbing at this
seating position provided that the child
restraint manufacturer's instructions
permit use with the anchor spacing stated.
Do not attach a child restraint to any lower
anchor if another child restraint is attached
to that anchor.

Each time you use the child restraint, check
that the seat is properly attached to the
lower anchors and tether anchor, if
applicable. Tug the child restraint from side
to side and forward and back where it is
secured to the vehicle. The seat should
move less than 1 in (2.5 cm).

If you did not properly anchor the child
restraint, the risk of a child being injured in
a crash greatly increases.

COMBINING THE SEATBELT AND

LOWER ANCHORS FOR
ATTACHING CHILD RESTRAINTS

When used in combination, you may attach
either the seatbelt or the LATCH lower
anchors first, provided a proper installation
is achieved. Attach the tether strap
afterward, if it is included with the child
restraint.

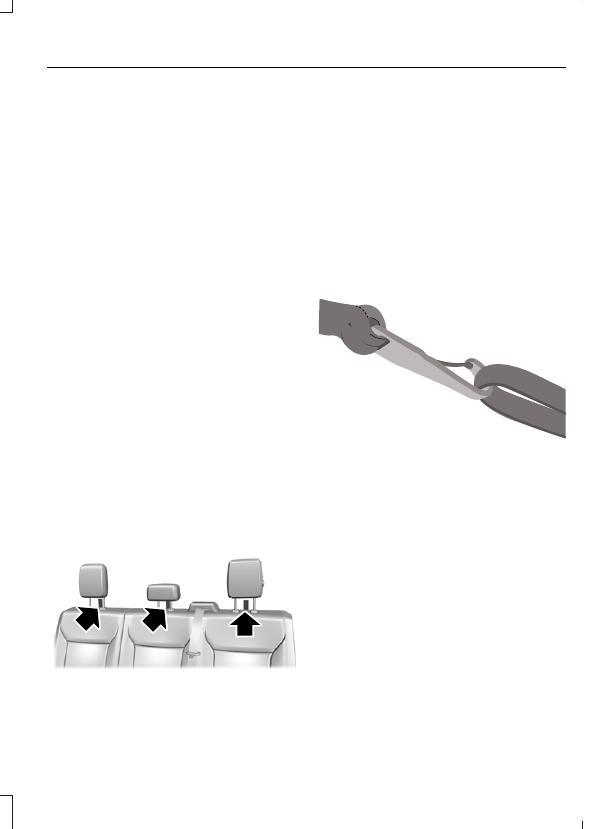

USING TETHER STRAPS

Many forward-facing child restraints
include a tether strap which extends from
the back of the child restraint and hooks
to an anchoring point called the top tether
anchor. Tether straps are available as an
accessory for many older child restraints.

Contact the manufacturer of your child
restraint for information about ordering a
tether strap, or to obtain a longer tether
strap if the tether strap on your child
restraint does not reach the appropriate
top tether anchor in the vehicle.

Attach the tether strap only to the
appropriate tether anchor. The tether strap
may not work properly if attached
somewhere other than the correct tether
anchor.

If you install a child restraint with rigid
LATCH attachments, do not tighten the
tether strap enough to lift the child
restraint off the vehicle seat cushion when
the child is seated in it. Keep the tether
strap just snug without lifting the front of
the child restraint. Keeping the child
restraint just touching the vehicle seat
gives the best protection in a severe crash.

Once you have installed the child restraint
using either the seatbelt, the lower anchors
of the LATCH system, or both, you can
attach the top tether strap.

ATTACHING THE FRONT SEAT
TETHER STRAP

Regular Cab

E175295

Route the child restraint tether strap
over the back of the seat and under the
head restraint.

Child Safety

Note:

For vehicles with adjustable head

restraints, route the tether strap under the
head restraint and between the head
restraint posts. Otherwise, route the tether
strap over the top of the seat backrest.

2. Locate the correct anchor for the

selected seating position. You may
need to pull the seat backrest forward
to access the tether anchors. Make sure
the seat is locked in the upright position
before installing the child restraint.

3. Clip the tether strap to the anchor.

4. Tighten the child restraint tether strap

according to the manufacturer's
instructions.

If you incorrectly clip the tether strap, the
child restraint may not be retained properly
in the event of a crash.

If you did not properly anchor the child
restraint, the risk of a child being injured in
a crash greatly increases.

If your child restraint system has a tether
strap, and the child restraint manufacturer
recommends its use, we also recommend
its use.

ATTACHING THE REAR SEAT
TETHER STRAP

Crew Cab and Super Cab

E309318

There are three loops of webbing above
the back of the rear seat. Use these loops
as routing loops and anchor loops for up
to three child restraint tether straps.

For example, you can use the center loop
as a routing loop for a child restraint in the
center rear seat and as an anchoring loop
for child restraints installed in the
outermost rear seats.

Many tether straps cannot be tightened if
the tether strap is hooked to the loop
directly behind the child restraint.

To provide a tight tether strap:

E309384

Route the vehicle tether loop between
the head restraint posts, then route the
child restraint tether strap through the
loop, forward of the head restraint.

2. Hook the strap to the vehicle tether

anchor loop in the adjacent seating
position. If using the driver side, pass
the strap behind the shoulder belt for
the center seat. Put the tether strap
through the routing loop. The head
restraint support post holds the child
restraint tightly, but the head restraint
post is not strong enough to hold the
child restraint during a crash.

3. Tighten the tether strap according to

the child restraint manufacturer's
instructions.

Child Safety

If you did not properly anchor the child
restraint, the risk of a child being injured in
a crash greatly increases.

If your child restraint system has a tether
strap, and the child restraint manufacturer
recommends its use, we also recommend
its use.

BOOSTER SEATS

Use a belt-positioning booster seat for
children who have outgrown or no longer
properly fit in a child restraint and meet
the following criteria.

•

Generally children who are less than
57 in (1.45 m) tall.

•

Are greater than age four (4) and less
than age twelve (12).

•

Are between 40 lb (18 kg) and 80 lb
(36 kg) and upward to 100 lb (45 kg).

Many state and provincial laws require that
children use approved booster seats until
they reach age eight, a height of 57 in
(1.45 m) tall, or 80 lb (36 kg).

Booster seats should be used until you can
answer yes to all of these questions when
seated without a booster seat:

E142595

•

Can the child sit all the way back
against their vehicle seat backrest with
knees bent comfortably at the edge of
the seat cushion?

•

Can the child sit without slouching?

•

Does the lap belt rest low across the
hips?

•

Is the shoulder belt centered on the
shoulder and chest?

•

Can the child stay seated like this for
the whole trip?

Always use booster seats in conjunction
with your vehicle lap and shoulder belt.

Types of Booster Seats

E68924

•

Backless booster seats

If your backless booster seat has a
removable shield, remove the shield.

If a vehicle seating position has a low seat
backrest or no head restraint, a backless
booster seat may place your child's head,
as measured at the tops of the ears, above
the top of the seat. In this case, move the
backless booster to another seating
position with a higher seat backrest or
head restraint and lap and shoulder belts,
or consider using a high-back booster seat.

Child Safety

E70710

•

High-back booster seats

If, with a backless booster seat, you cannot
find a seating position that adequately
supports your child's head, a high-back
booster seat would be a better choice.

Children and booster seats vary in size and
shape. Choose a booster that keeps the
lap belt low and snug across the hips,
never up across the stomach, and lets you
adjust the shoulder belt to cross the chest
and rest snugly near the center of the
shoulder.

The following drawings compare the ideal
fit to a shoulder belt uncomfortably close
to the neck and a shoulder belt that could
slip off the shoulder. The drawings also
show how the lap belt should be low and
snug across the child's hips.

E142596

E142597

Child Safety

If the booster seat slides on the vehicle
seat upon which it is being used, placing a
rubberized mesh sold as shelf or carpet
liner under the booster seat may improve
this condition. Do not use any item thicker
than this under the booster seat. Check
with the booster seat manufacturer's
instructions.

CHILD SAFETY LOCKS

WARNING:

You cannot open the

rear doors from inside if you have put the
child safety locks on.

E112197

A child safety lock is on the rear edge of
each rear door. You must switch the child
safety lock separately on each door.

Left-Hand Side

Turn the key counterclockwise to switch
the child lock on and clockwise to switch
it off.

Right-Hand Side

Turn the key clockwise to switch the child
lock on and counterclockwise to switch it
off.

Child Safety

SEATBELT PRECAUTIONS

WARNING:

Always drive and ride

with your seatback upright and the lap
belt snug and low across the hips.

WARNING:

Children must always

be properly restrained.

WARNING:

Do not allow a

passenger to hold a child on their lap
when your vehicle is moving. Failure to
follow this instruction could result in
personal injury or death in the event of a
sudden stop or crash.

WARNING:

All occupants of your

vehicle, including the driver, should
always properly wear their seatbelts,
even when an airbag supplemental
restraint system is provided. Failure to
properly wear your seatbelt could
seriously increase the risk of injury or
death.

WARNING:

It is extremely

dangerous to ride in a cargo area, inside
or outside of a vehicle. In a crash, people
riding in these areas are more likely to be
seriously injured or killed. Do not allow
people to ride in any area of your vehicle
that is not equipped with seats and
seatbelts. Make sure everyone in your
vehicle is in a seat and properly using a
seatbelt. Failure to follow this warning
could result in serious personal injury or
death.

WARNING:

In a rollover crash, an

unbelted person is significantly more
likely to die than a person wearing a
seatbelt.

WARNING:

Each seating position

in your vehicle has a specific seatbelt
assembly made up of one buckle and
one tongue designed to be used as a pair.
Use the shoulder belt on the outside
shoulder only. Never wear the shoulder
belt under the arm. Never use a single
seatbelt for more than one person.

WARNING:

Even with advanced

restraints systems, properly restrain
children 12 and under in a rear seating
position. Failure to follow this could
seriously increase the risk of injury or
death.

WARNING:

Seatbelts and seats

may be hot in a vehicle that is in the
sunshine. The hot seatbelts or seats may
burn a small child. Check seat covers and
buckles before you place a child
anywhere near them.

WARNING:

If your vehicle is

involved in a crash, have the seatbelts
and associated components inspected
as soon as possible. Failure to follow this
instruction could result in personal injury
or death.

All seating positions in this vehicle have
seatbelts. All occupants of the vehicle
should properly wear their seatbelts, even
when an airbag supplemental restraint
system is provided.

The seatbelt system consists of:
•

Lap and shoulder seatbelts.

•

A shoulder seatbelt with automatic
locking mode, except driver seatbelt.

•

Height adjusters at the front outermost
seating positions.

•

Seatbelt pretensioners at the front
outermost and rear outermost seating
positions.

Seatbelts

E71880

A seatbelt warning light and
chime.

E67017

Crash sensors and monitoring
system with readiness indicator.

The seatbelt pretensioners are designed
to tighten the seatbelts when activated. In
frontal and near-frontal crashes, the
seatbelt pretensioners may be activated
alone or, if the crash is of sufficient severity,
together with the front airbags. In side
crashes and rollovers, the pretensioners
will be activated when the Safety Canopy
is activated.

FASTENING AND
UNFASTENING THE
SEATBELTS

This applies to all seating positions, except
for the front center position of Super Cab
and Crew Cab.

E142587

Insert the seatbelt tongue into the
buckle until you hear a snap and feel it
latch.

E142588

2. Press the button to release the

seatbelt.

Using the Seatbelt With Cinch
Tongue

This applies to the front center seating
position of Super Cab and Crew Cab.

The cinch tongue slides up and down the
seatbelt webbing when you stow the
seatbelt or when you put the seatbelts on.
When you buckle the seatbelt, the cinch
tongue allows you to shorten the lap
portion, but pinches the webbing to keep
the lap portion from getting longer. The
cinch tongue is designed to slip during a
crash, so wear the shoulder belt properly
and do not allow any slack in either the lap
or shoulder portions.

Fastening the Cinch Tongue

WARNING:

Always drive and ride

with your seatback upright and the lap
belt snug and low across the hips.

Pull the seatbelt from the retractor so
that the shoulder belt portion of the
seatbelt crosses your shoulder and
chest.

2. Make sure the belt is not twisted. If the

belt is twisted, remove the twist.

Seatbelts

3. Insert the belt tongue into the proper

buckle for your seating position until
you hear a snap and feel it latch.

4. Make sure you securely fasten the

tongue to the buckle by pulling on the
tongue.

While you are fastened in the seatbelt, the
seatbelt with a cinch tongue adjusts to
your movement. However, if you brake
hard, turn hard, or if your vehicle receives
an impact of 5 mph (8 km/h) or more, the
seatbelt locks and helps reduce your
forward movement.

SENSITIVE LOCKING MODE

WHAT IS SENSITIVE LOCKING
MODE

Sensitive locking mode is a seatbelt
retractor feature that allows shoulder belt
length adjustment according to your
movements and locking in response to
vehicle movement.

HOW DOES SENSITIVE LOCKING
MODE WORK

If the driver suddenly brakes, turns a corner
sharply, or the vehicle receives an impact
of about 5 mph (8 km/h) or more, the
seatbelts lock to help reduce forward
movement of the driver and passengers.

In addition, the seatbelt retractor locks if
you pull the seatbelt webbing out too
quickly. If the retractor locks, slowly lower
the height adjuster to allow the seatbelt
to retract.

If the retractor does not unlock, pull the
seatbelt out slowly then feed a small
length of webbing back toward the stowed
position.

For rear seatbelts, recline the rear seat
backrest or push the seat backrest cushion
away from the seatbelt. Feed a small
length of webbing back toward the stowed
position.

AUTOMATIC LOCKING MODE

WHAT IS AUTOMATIC LOCKING
MODE

This feature keeps the seatbelts
pre-locked. The belt still retracts to remove
any slack in the shoulder belt.

WHEN TO USE AUTOMATIC
LOCKING MODE

Use this mode any time you install a child
restraint in a front seating position in a
Regular Cab, Super Cab, Crew Cab or any
rear seating position of a Super Cab or
Crew Cab. The optional front seat center
seatbelt in the Super Cab and Crew Cab
has a cinch mechanism. Properly restrain
children 12 years old and under in a rear
seat whenever possible. See

Child Safety

(page 35).

Note:

Automatic locking mode is not

available on the driver seatbelt.

Seatbelts

ENGAGING AUTOMATIC LOCKING
MODE

E142591

Fasten the combination lap and
shoulder belt.

2. Grasp the shoulder portion and pull

downward until you pull the entire belt
out.

3. Allow the belt to retract. As the belt

retracts, you will hear a clicking sound.
This indicates the seatbelt is now in the
automatic locking mode.

DISENGAGING AUTOMATIC
LOCKING MODE

Unbuckle the combination lap and
shoulder belt and allow it to retract
completely to disengage the automatic
locking mode and activate the vehicle
sensitive locking mode.

ADJUSTING THE SEATBELTS
DURING PREGNANCY

WARNING:

Always ride and drive

with your seatback upright and properly
fasten your seatbelt. Fit the lap portion
of the seatbelt snugly and low across
the hips. Position the shoulder portion of
the seatbelt across your chest. Pregnant
women must follow this practice. See
the following figure.

E142590

Pregnant women should always wear their
seatbelt. Position the lap belt portion of a
combination lap and shoulder belt low
across the hips below the belly and worn
as tight as comfort allows. Position the
shoulder belt to cross the middle of the
shoulder and the center of the chest.

ADJUSTING THE SEATBELT
HEIGHT

WARNING:

Position the seatbelt

height adjuster so that the seatbelt rests
across the middle of your shoulder.
Failure to adjust the seatbelt correctly
could reduce its effectiveness and
increase the risk of injury in a crash.

Seatbelts

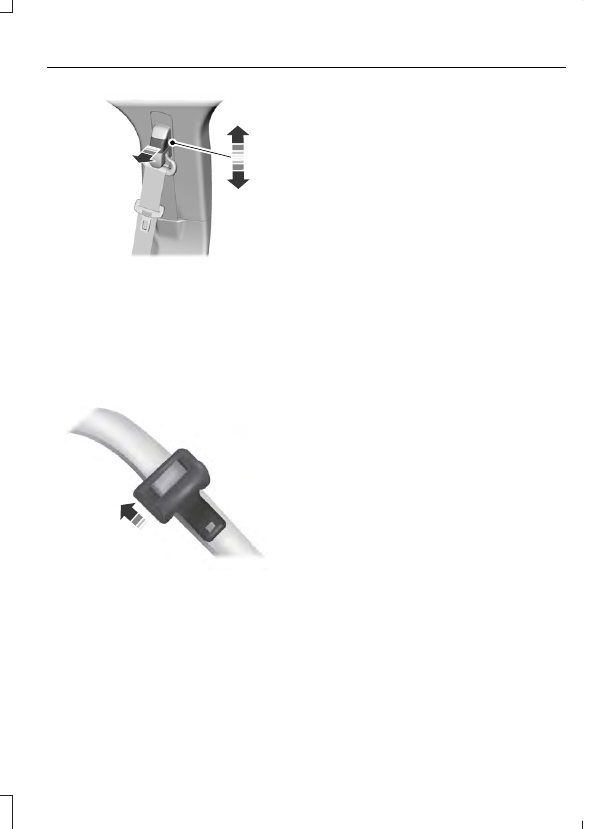

E145664

Pull the button and slide the height
adjuster up or down.

2. Release the button and pull down on

the height adjuster to make sure it is
locked in place.

ADJUSTING THE SEATBELT
LENGTH

E162708

Pull some seatbelt webbing out of the
shoulder belt retractor.

2. While holding the webbing below the

tongue, grasp the metal tip of the
tongue so that it is parallel to the
webbing and slide the tongue up.

3. Provide enough lap belt length so that

the tongue can reach the buckle.

SEATBELT REMINDER

HOW DOES THE SEATBELT

REMINDER WORK

This feature supplements the seatbelt
warning function. It provides additional
reminders by intermittently sounding a
tone and illuminating the seatbelt warning
light when you are in the driver seat and a
seatbelt is unbuckled.

Seatbelts

Ford F-550 (2022 year). Manual in english - page 2
