Ford F-450 (2022 year). Manual in english

Note:

The oil consumption of new engines

reaches its normal level after approximately
3,000 mi (5,000 km).

ADDING ENGINE OIL

WARNING:

Do not remove the filler

cap when the engine is running.

WARNING:

Do not add engine oil

when the engine is hot. Failure to follow
this instruction could result in personal
injury.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that the
vehicle warranty may not cover.

Clean the area surrounding the engine
oil filler cap before you remove it.

2. Remove the engine oil filler cap.

3. Add engine oil that meets our

specifications. See

Engine Oil

(page

401).

4. Reinstall the engine oil filler cap. Turn

it clockwise until you feel a strong
resistance.

Note:

Do not add oil further than the

maximum mark. Oil levels above the
maximum mark may cause engine damage.

Note:

Immediately soak up any oil spillage

with an absorbent cloth.

RESETTING THE ENGINE OIL
CHANGE REMINDER - VEHICLES
WITH: 2.3 INCH SCREEN/4.2 INCH
SCREEN

Press the Menu button on the steering
wheel to enter the information display
main menu.

2. Select

Truck Info

3. Select

Oil Life

4. Select

Reset Oil Life

5. Press and hold the

button until the

system reset confirmation appears.

RESETTING THE ENGINE OIL
CHANGE REMINDER - VEHICLES
WITH: 8 INCH SCREEN

Depending on your cluster, there are two
paths to reset the engine oil change
reminder.

Path 1

Press the Menu button on the steering
wheel to enter the information display
main menu.

2. Select

Settings

3. Select

Vehicle Maintenance

4. Select

Oil Life

5. Press and hold the

button until the

system reset confirmation appears.

Path 2

Press the Menu button on the steering
wheel to enter the information display
main menu.

2. Select

Truck Info

3. Select

Engine Information

4. Press and hold the

button until the

system reset confirmation appears.

ENGINE OIL CAPACITY AND
SPECIFICATION

For filling information, please refer to the
Capacities and Specifications section of
your owner's manual. See

Engine Oil

Capacity and Specification

(page 401).

401

Maintenance

CHECKING THE COOLANT

When the engine is cold, check the
concentration and level of the coolant at
the intervals listed in the scheduled
maintenance information. See

Scheduled

Maintenance

(page 622).

Note:

Make sure that the coolant level is

between the minimum and maximum marks
on the coolant reservoir.

Note:

Coolant expands when it is hot. The

level may extend beyond the

MAX

mark.

If the coolant level is at or below the
minimum mark, add prediluted coolant
immediately.

Maintain coolant concentration within
48% to 50%, which equates to a freeze
point between -29°F (-34°C) and -35°F
(-37°C). Coolant concentration should be
checked using a refractometer. We do not
recommend the use of hydrometers or
coolant test strips for measuring coolant
concentration.

Adding Coolant

WARNING:

Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury.

WARNING:

Do not add engine

coolant when the engine is on or the
cooling system is hot. Failure to follow
this instruction could result in personal
injury.

WARNING:

Do not add coolant

further than the

MAX

mark.

WARNING:

Do not put coolant in

the windshield washer reservoir. If
sprayed on the windshield, coolant could
make it difficult to see through the
windshield.

Note:

Do not use stop leak pellets, cooling

system sealants, or non-specified additives
as they can cause damage to the engine
cooling or heating systems. Resulting
component damage may not be covered by
the vehicle Warranty.

Note:

Automotive fluids are not

interchangeable.

It is very important to use prediluted
coolant approved to the correct
specification in order to avoid plugging the
small passageways in the engine cooling
system. See

Capacities and

Specifications

(page 467). Do not mix

different colors or types of coolant in your
vehicle. Mixing of engine coolants or using
an incorrect coolant may harm the engine
or cooling system components and could
void the vehicle Warranty.

Note:

If prediluted coolant is not available,

use the approved concentrated coolant
diluting it to 50/50 with deionized or
distilled water. See

Capacities and

Specifications

(page 467). Using water that

has not been deionized may contribute to
deposit formation, corrosion and plugging
of the small cooling system passageways.

To top up the coolant level do the
following:

Unscrew the cap slowly. Any pressure
escapes as you unscrew the cap.

2. Add enough prediluted coolant to

reach the correct level.

Note:

We do not recommend the use of

recycled coolant.

402

Maintenance

3. Replace the coolant reservoir cap. Turn

the cap clockwise until it contacts the
hard stop.

4. Check the coolant level in the coolant

reservoir the next few times you drive
your vehicle. If necessary, repeat step
2.

If you have to add more than 1.1 qt (1 L) of
engine coolant per month, have your
vehicle checked as soon as possible.
Operating an engine with a low level of
coolant can result in engine overheating
and possible engine damage.

In case of emergency, you can add a large
amount of water without engine coolant
in order to reach a vehicle service location.
Service your vehicle as soon as possible.

Water alone, without engine coolant, can
cause engine damage from corrosion,
overheating or freezing.

Do not use the following as a coolant
substitute, as they can cause engine
damage from overheating or freezing:
•

Alcohol.

•

Methanol.

•

Brine.

•

Any coolant mixed with alcohol or
methanol antifreeze.

Do not add extra inhibitors or additives to
the coolant. These can be harmful and
compromise the corrosion protection of
the coolant.

Severe Climates

If you drive in extremely cold climates, you
may need to increase the coolant
concentration above 50%.

Note:

A coolant concentration of 60%

provides improved freeze point protection.
Coolant concentrations above 60%
decrease the overheat protection
characteristics of the coolant and could
cause engine damage.

If you drive in extremely hot climates, you
may need to decrease the coolant
concentration to 40%.

Note:

A coolant concentration of 40%

provides improved overheat protection.
Coolant concentrations below 40%
decrease the overheat and corrosion
protection characteristics of the coolant and
could cause engine damage.

Coolant Change

Change the coolant at specific mileage
intervals. Refer to the scheduled
maintenance information. See

Normal

Scheduled Maintenance

(page 628).

Note:

Dispose of used coolant in the

appropriate manner.

Follow your community's regulations and
standards for recycling and disposing of
automotive fluids.

Fail-Safe Cooling

Fail-safe cooling allows you to temporarily
drive your vehicle before any incremental
component damage occurs. The fail-safe
distance depends on ambient
temperature, vehicle load and terrain.

How Fail-Safe Cooling Works

If the engine begins to overheat,
the coolant temperature gauge
moves toward the red zone:

A warning lamp illuminates and
a message may appear in the
information display.

If the engine reaches a preset
over-temperature condition, the engine
automatically switches to alternating
cylinder operation. Each disabled cylinder
acts as an air pump and cools the engine.

403

Maintenance

When this occurs, your vehicle still
operates, however:
•

Engine power is limited.

•

The air conditioning system turns off.

Continued operation increases the engine
temperature, causing the engine to
completely shut down. Your steering and
braking effort increases in this situation.

When the engine temperature cools, you
can re-start the engine. Have your vehicle
checked as soon as possible to minimize
engine damage.

When Fail-Safe Mode Is Activated

WARNING:

Fail-safe mode is for

use during emergencies only. Operate
your vehicle in fail-safe mode only as
long as necessary to bring your vehicle
to rest in a safe location and seek
immediate repairs. When in fail-safe
mode, your vehicle will have limited
power, will not be able to maintain
high-speed operation, and may
completely shut down without warning,
potentially losing engine power, power
steering assist, and power brake assist,
which may increase the possibility of a
crash resulting in serious injury.

WARNING:

Do not remove the

Your vehicle has limited engine power
when in the fail-safe mode, drive your
vehicle with caution. Your vehicle does not
maintain high-speed operation and the
engine could operate poorly.

Remember that the engine is capable of
automatically shutting down to prevent
engine damage. In this situation:

Pull off the road as soon as safely
possible and switch the engine off.

2. If you are a member of a roadside

assistance program, we recommend
that you contact your roadside
assistance service provider.

3. If this is not possible, wait for a short

period of time for the engine to cool.

4. Check the coolant level. If the coolant

level is at or below the minimum mark,
add prediluted coolant immediately.

5. When the engine temperature cools,

you can re-start the engine. Have your
vehicle checked as soon as possible to
minimize engine damage.

Note:

Driving your vehicle without repair

increases the chance of engine damage.

Engine Coolant Temperature
Management

(If Equipped)

WARNING:

To reduce the risk of

crash and injury, be prepared that the
vehicle speed may reduce and the
vehicle may not be able to accelerate
with full power until the coolant
temperature reduces.

If you tow a trailer with your vehicle, the
engine may temporarily reach a higher
temperature during severe operating
conditions, for example ascending a long
or steep grade in high ambient
temperatures.

At this time, you may notice the coolant
temperature gauge moves toward the red
zone and a message may appear in the
information display.

404

Maintenance

You may notice a reduction in vehicle
speed caused by reduced engine power in
order to manage the engine coolant
temperature. Your vehicle may enter this
mode if certain high-temperature and
high-load conditions take place. The
amount of speed reduction depends on
vehicle loading, grade and ambient
temperature. If this occurs, there is no
need to stop your vehicle. You can
continue to drive.

The air conditioning may automatically
turn on and off during severe operating
conditions to protect the engine from
overheating. When the coolant
temperature decreases to the normal
operating temperature, the air conditioning
turns on.

If the coolant temperature gauge moves
fully into the red zone, or if the coolant
temperature warning or service engine
soon messages appear in your information
display, do the following:

Stop your vehicle as soon as it is safe
to do so. Fully apply the parking brake,
shift into park (P) or neutral (N).

2. Leave the engine running until the

coolant temperature gauge needle
returns to the normal position. If the
temperature does not drop after
several minutes, follow the remaining
steps.

3. Switch the engine off and wait for it to

cool. Check the coolant level.

4. If the coolant level is at or below the

minimum mark, add prediluted coolant
immediately.

5. If the coolant level is normal, restart

the engine and continue.

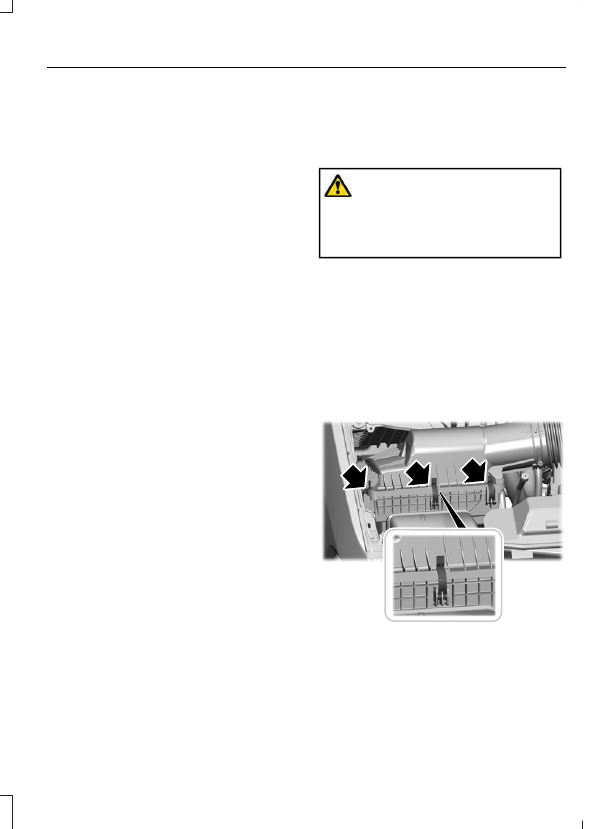

ENGINE AIR FILTER

CHANGING THE ENGINE AIR
FILTER

WARNING:

To reduce the risk of

vehicle damage and personal burn
injuries, do not start your engine with the
air cleaner removed and do not remove
it while the engine is running.

Use the correct specification air filter
element. See

Motorcraft Parts

(page

469).

Note:

Failure to use the correct air filter

element may result in severe engine
damage. Resulting component damage
may not be covered by the vehicle Warranty.

Change the air filter element at the correct
service interval. See

Scheduled

Maintenance

(page 622).

E350657

Disconnect the mass air flow sensor
electrical connector, if required.

405

Maintenance

2. Remove the clips (x3) that secure the

air filter housing cover. Remove the air
filter housing cover. Disconnect and
pull the air intake tube away, as
needed.

E310319

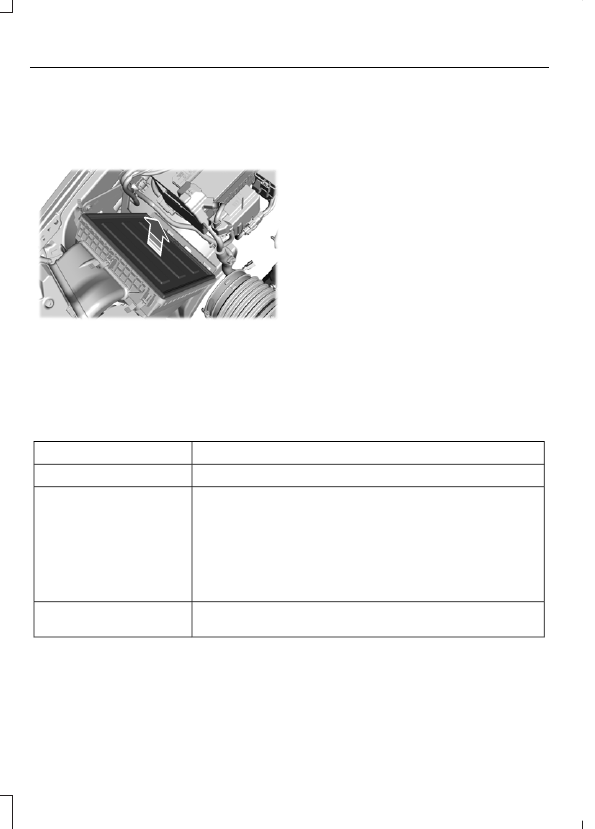

3. Remove the air filter element from the

air filter housing.

4. Remove the auxiliary foam filter from

the air filter housing, if required.

5. To install, reverse the removal

procedure. You can oscillate the
housing cover slightly left to right to
assist with installation as needed, until
positioned such that all three clips can
be re-engaged.

After operating your vehicle during heavy
snowfall or extreme rain, do the following:
•

Snow: At the earliest opportunity, open
the hood, clear any snow and ice from
the air filter housing inlet and reset the
air filter restriction gauge.

•

Extreme rain: The air filter element
dries out after approximately 15–30
minutes of driving at highway speeds.
At the earliest opportunity, open the
hood and reset the air filter restriction
gauge.

Note:

Do not remove the foam filter.

ENGINE AIR FILTER - INFORMATION MESSAGES

Action

Message

Indicates the engine air filter is performing as expected.

Filter OK

Indicates that there is a higher than expected restriction

across the engine air filter, which could represent an air filter

at full useful life or a filter with an obstruction.

When this displays, inspect the engine air filter and replace

if necessary.

After the inspection or engine air filter replacement, you must

reset the system in order to change the status from Check

Filter to Filter OK.

Check Filter See Manual

Indicates that there is an error within the electronic air filter

maintenance minder system requiring service.

System Fault See Manual

406

Maintenance

DRAINING THE FUEL FILTER
WATER TRAP - DIESEL

WARNING:

Do not drain the

water-in-fuel separator while the engine
is running. Failure to follow this warning
may result in fire, serious injury, death or
property damage.

WARNING:

Do not dispose of fuel

in the household refuse or the public
sewage system. Use an authorized waste
disposal facility.

Your vehicle has a diesel fuel conditioner
module. The module is mounted between
the outboard side of the fuel tank and the
frame rail.

Note:

The module is at the front of the fuel

tank or at the front of the aft-axle fuel tank
on some models.

You should drain water from the
module assembly whenever the
warning light illuminates or a

message appears in the information
display advising you to drain the water
separator. This occurs when approximately
6.76 fl oz (200 ml) of water accumulates
in the module. If you allow the water level
to exceed this level, the water may pass
through to the engine and may cause fuel
injection equipment damage.

Filter Location

Use the tables below to find the location
of your filter.

Pick-up Truck

Filter Location

Box Length

Cab Type

Left side of fuel tank.

8 ft (2.4 m)

Regular.

6.75 ft (2.057 m)

SuperCab.

In front of fuel tank.

8 ft (2.4 m)

6.75 ft (2.057 m)

Super Crew Cab.

Left side of fuel tank.

8 ft (2.4 m)

Chassis Cab

Filter Location

Fuel Tank Type

Cab Type

Right side of fuel tank.

Single midship fuel tank

Chassis Cab.

Right side of midship fuel

tank.

Aft axle/midship fuel tanks

Chassis Cab.

Front of fuel tank.

Single aft axle fuel tank

Chassis Cab.

407

Maintenance

Draining the Diesel Fuel
Conditioner Module

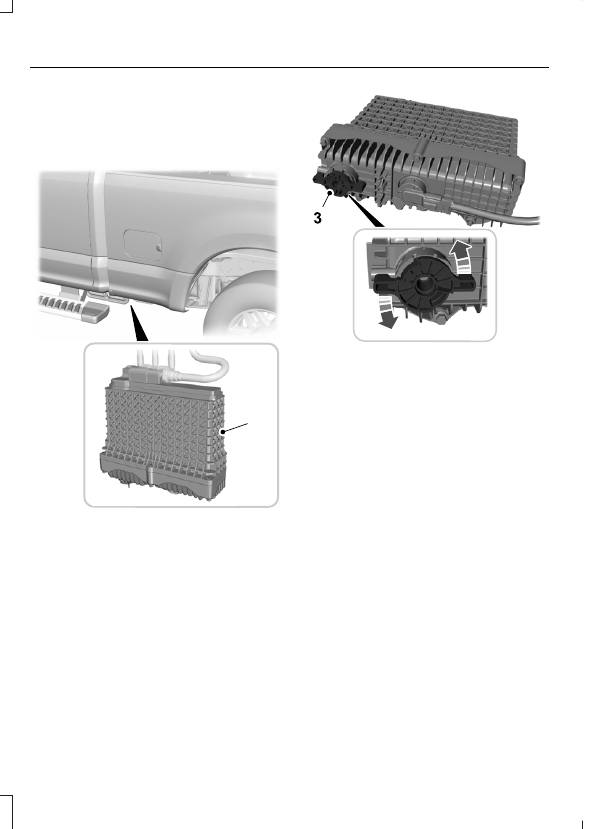

Switch the engine off.

2. Access the underside of your vehicle.

E226475

3. Use the table to find the location of

your fuel filter.

E269861

4. Drain the diesel fuel conditioner

module. Turn the drain plug
counterclockwise until it stops. Do not
use any tools to loosen the drain plug.
Drain the filter, approximately 0.5 gal
(2 L), into an appropriate container.
Do not re-use the fuel drained from the
module.

5. Tighten the drain plug, turn it clockwise

until it stops and you feel a strong
resistance. Do not use any tools to
tighten the drain plug.

6. Prime the system by turning the key to

the on position for 30 seconds. Turn
the key to the off position, then the on
position again for another 30 seconds.
Repeat this twice.

CHANGING THE FUEL FILTER
- DIESEL

Your fuel filters must be changed at the
correct service interval or when you see the
low fuel pressure message appear. Refer
to scheduled maintenance for the correct
service interval.

408

Maintenance

CHANGING THE FUEL FILTER
- GASOLINE

Your vehicle has a lifetime fuel filter that
integrates with the fuel tank. It does not
need regular maintenance or replacement.

CHANGING THE 12V BATTERY

WARNING:

Batteries normally

produce explosive gases which can
cause personal injury. Therefore, do not
allow flames, sparks or lighted
substances to come near the battery.
When working near the battery, always
shield your face and protect your eyes.
Always provide correct ventilation.

WARNING:

When lifting a

plastic-cased battery, excessive pressure
on the end walls could cause acid to flow
through the vent caps, resulting in
personal injury and damage to the
vehicle or battery. Lift the battery with a
battery carrier or with your hands on
opposite corners.

WARNING:

Keep batteries out of

reach of children. Batteries contain
sulfuric acid. Avoid contact with skin,
eyes or clothing. Shield your eyes when
working near the battery to protect
against possible splashing of acid
solution. In case of acid contact with skin
or eyes, flush immediately with water for
a minimum of 15 minutes and get prompt
medical attention. If acid is swallowed,
call a physician immediately.

WARNING:

Battery posts,

terminals and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and
reproductive harm.

Wash your hands

after handling

WARNING:

This vehicle may have

more than one battery. Removing the
battery cables from only one battery
does not disconnect your vehicle
electrical system. Make sure you
disconnect the battery cables from all
batteries when disconnecting power.
Failure to do so may cause serious
personal injury or property damage.

The battery is in the engine compartment.
See

Under Hood Overview

(page 397).

Your vehicle has a maintenance-free
battery. It does not require additional
water during service.

For longer, trouble-free operation, keep the
top of the battery clean and dry and the
battery cables tightly fastened to the
battery terminals. If any corrosion is
present on the battery or terminals, remove
the cables from the terminals and clean
with a wire brush. You can neutralize the
acid with a solution of baking soda and
water.

We recommend that you disconnect the
negative battery cable terminal from the
battery if you plan to store your vehicle for
an extended period.

Note:

If you only disconnect the negative

battery cable terminal, make sure it is
isolated or placed away from the battery
terminal to avoid unintended connection or
arcing.

409

Maintenance

To maintain correct operation of the
battery management system, if you add
any electrical devices to your vehicle, do
not connect the ground connection directly
to the negative battery terminal. A
connection at the negative battery terminal
can cause inaccurate measurements of
the battery condition and potential
incorrect system operation.

Note:

If you add electrical accessories or

components to your vehicle this may
adversely affect battery performance,
durability and the performance of other
electrical systems on your vehicle.

If you replace the battery make sure it
matches the electrical requirements of
your vehicle.

If you disconnect or replace the battery
and your vehicle has an automatic
transmission, it must relearn its adaptive
strategy. Because of this, the transmission
may shift firmly when first driven. This is
normal operation while the transmission
fully updates its operation to optimum
shift feel.

Remove and Reinstall the Battery

To disconnect or remove the battery, do
the following:

Apply the parking brake and switch the
ignition off.

2. Switch all electrical equipment off, for

example lights and radio.

3. Wait a minimum of two minutes before

disconnecting the battery.

Note:

The engine management system has

a power hold function and remains powered
for a period of time after you switch the
ignition off. This is to allow diagnostic and
adaptive tables to be stored. Disconnecting
the battery without waiting can cause
damage not covered by the vehicle
Warranty.

4. Disconnect the negative battery cable

terminal.

5. Disconnect the positive battery cable

terminal.

6. Remove the battery securing clamp.

Remove the battery.

8. To install, reverse the removal

procedure.

Note:

Before reconnecting the battery,

make sure the ignition remains switched off.

Note:

Make sure the battery cable terminals

are fully tightened.

Note:

After cleaning or replacing the

battery, make sure you reinstall the battery
cover or shield.

If you disconnect or replace the vehicle
battery, you must reset the following
features:
•

Window bounce-back. See

Window

Bounce-Back

(page 126).

•

Clock Settings.

•

Pre-set radio stations.

•

Steering Angle Sensor.

Note:

To calibrate the steering angle

sensor, drive the vehicle above 30 mph
(50 km/h) for a minimum of 1.2 mi (2 km).
Make sure to drive straight ahead for a
minimum of 30 seconds. Several vehicle
functions are disabled and a warning light
could appear until the sensor is calibrated.

Battery Management System

The battery management system monitors
battery conditions and takes actions to
extend battery life. If excessive battery
drain is detected, the system temporarily
disables some of the following features:

•

Heated rear window.

•

Heated seats.

•

Climate control.

•

Heated steering wheel.

410

Maintenance

•

Audio unit.

•

Navigation system.

A message may appear in the information
display to alert you that battery protection
actions are active.

After battery replacement, or in some
cases after charging the battery with an
external charger, the battery management
system requires eight hours of vehicle sleep
time to relearn the battery state of charge.
During this time your vehicle must remain
fully locked with the ignition off.

Note:

If you add electrical accessories or

components to the vehicle, it may adversely
affect battery performance and durability.
This may also affect the performance of
other electrical systems in the vehicle.

Battery Disposal

E107998

Make sure that you dispose of
old batteries in an
environmentally friendly way.

Seek advice from your local authority
about recycling old batteries.

ADJUSTING THE HEADLAMPS

Vertical Aim Adjustment

The headlamps on your vehicle are
properly aimed at the assembly plant. If
your vehicle has been in an accident, have
your vehicle checked as soon as possible.

Headlamp Aiming Target

E142592

8 ft (2.4 m).

Center height of lamp to ground.

25 ft (7.6 m).

Horizontal reference line.

Park your vehicle directly in front of a
wall or screen on a level surface,
approximately 25 ft (7.6 m) away.

2. Measure the height from the center of

your headlamp, indicated by a 3
millimeter circle on the lens, to the
ground and mark an 8 ft (2.4 m)
horizontal reference line on the vertical
wall or screen at this height, a piece of
masking tape works well.

3. Switch on the low beam headlamps to

illuminate the wall or screen and open
the hood. Cover one of the headlamps
so no light hits the wall.

411

Maintenance

E167358

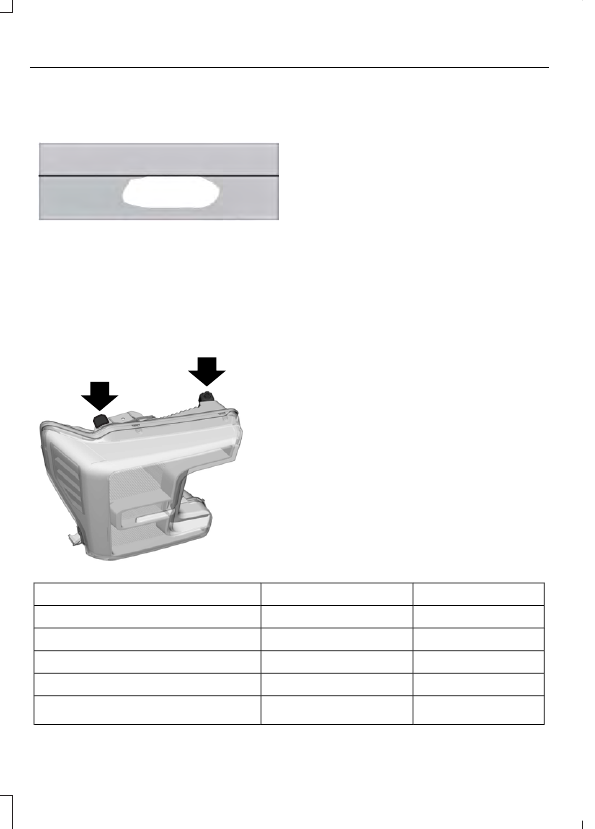

4. On the wall or screen, observe a light

pattern with a distinct horizontal edge
toward the right. If this edge is not at
the horizontal reference line, adjust the
beam so the edge is at the same height
as the horizontal reference line.

E223774

5. Locate the vertical adjuster on each

headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise or counterclockwise in order
to adjust the vertical aim of the
headlamp.

Note:

A. LED headlamp.

B. Halogen headlamp.

6. Repeat steps 3 thru 5 to adjust the

other headlamp.

Close the hood and turn off the lamps.

Horizontal Aim Adjustment

Horizontal aim is not required for this
vehicle and is not adjustable.

EXTERIOR BULBS

EXTERIOR BULB SPECIFICATION
CHART

Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized D.O.T. marking
for North America to make sure they have
the proper lamp performance, light
brightness, light pattern and safe visibility.
The correct bulbs will not damage the
lamp assembly or void the lamp assembly
warranty and will provide quality bulb
illumination time.

Power (Watt)

Specification

Lamp

60/55

H13/9008

Headlamp.

LED

Headlamp.

W5W

Front side marker lamp.

9140

Front fog lamp.

LED

Front fog lamp.

412

Maintenance

Power (Watt)

Specification

Lamp

28/8

T20/7444NA

Front turn signal and parking lamp.

27/7

3157K

Rear lamp, brake lamp, and rear side

marker lamp. Low/Mid series.

WTY21W

Rear turn signal lamp. Low/Mid series.

LED

Rear lamp, brake lamp, rear turn
signal, rear side marker lamp and

reverse lamp. High series.

27/7

3157K

Rear lamp, brake lamp, rear turn signal

and rear side marker lamp.

WT21W

Reversing lamp. Low/Mid series.

168

License plate lamp. Low series.

LED

License plate lamp. High series.

12.8

912

Central high mounted cargo lamp.

LED

Central high mounted cargo lamp.

LED

Side turn signal and mirror clearance
lamp.

LED

Front clearance lamp.

LED

Rear clearance lamp.

LED

Front identification lamp.

LED

Rear identification lamp.

LED

Underhood lamp.

Pickup only.

Chassis cab only.

U.S. and Canada only

Note:

LED lamps are not serviceable. See an authorized dealer if they fail.

413

Maintenance

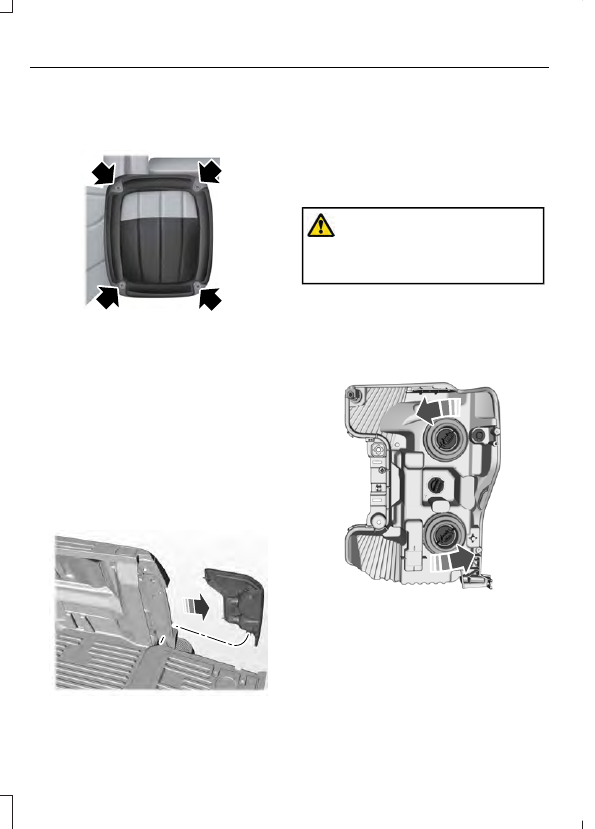

REMOVING A REAR LAMP
ASSEMBLY - VEHICLES WITHOUT:
PICKUP BED

E163828

Switch all of the lamps and the ignition
off.

2. Remove the screws and the lamp lens

from lamp assembly.

3. To install, reverse the removal

procedure.

REMOVING A REAR LAMP
ASSEMBLY - VEHICLES WITH:
PICKUP BED

Make sure the headlamps are off.

2. Open the tailgate to access the rear

lamp assemblies.

E187288

3. Remove the bolts from the tail lamp

assembly.

4. Carefully pull the lamp assembly from

the tailgate pillar by releasing the two
retaining tabs.

5. To install, reverse the removal

procedure.

CHANGING A HEADLAMP BULB

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Note:

To access the right-hand side bulbs,

remove the air intake pipe. See

Changing

the Engine Air Filter

(page 405).

For vehicles with diesel engines, to access
the left-hand side bulbs, remove the washer
reservoir filler tube.

E224991

Switch all of the lamps and the ignition
off.

2. Disconnect the electrical connector.

3. Turn the bulb holder counterclockwise

and remove it.

Note:

You cannot separate the bulb from

the bulb holder.

414

Maintenance

4. To install, reverse the removal

procedure.

Note:

Handle a halogen headlamp bulb

carefully and keep out of children’s reach.
Grasp the bulb only by its plastic base and
do not touch the glass. The oil from your
hand could cause the bulb to break the next
time you operate the headlamps.

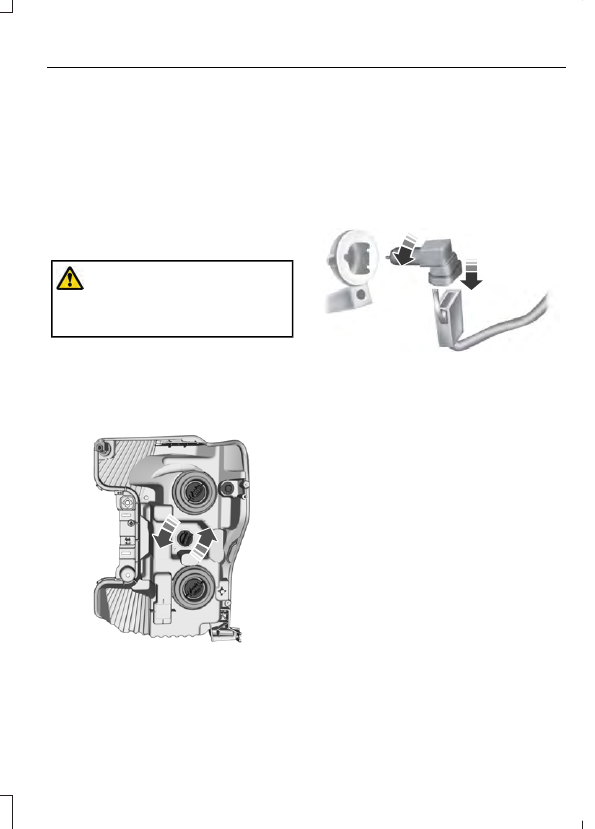

CHANGING A FRONT TURN
SIGNAL LAMP BULB

WARNING:

Make sure the bulbs

have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.

Note:

To access the right-hand side bulbs,

remove the air intake pipe. See

Changing

the Engine Air Filter

(page 405).

To access the left-hand side bulbs, remove
the washer reservoir filler tube. Vehicles with
diesel engine only.

E224990

Switch all of the lamps and the ignition
off.

2. Disconnect the electrical connector.

3. Turn the bulb holder counterclockwise

and remove it.

Note:

You cannot separate the bulb from

the bulb holder.

4. To install, reverse the removal

procedure.

CHANGING A FRONT FOG LAMP
BULB

E163826

Make sure the fog lamps are off.

2. Disconnect the electrical connector

from the fog lamp bulb.

3. Turn the bulb counterclockwise and

remove it from the fog lamp.

4. To install, reverse the removal

procedure.

415

Maintenance

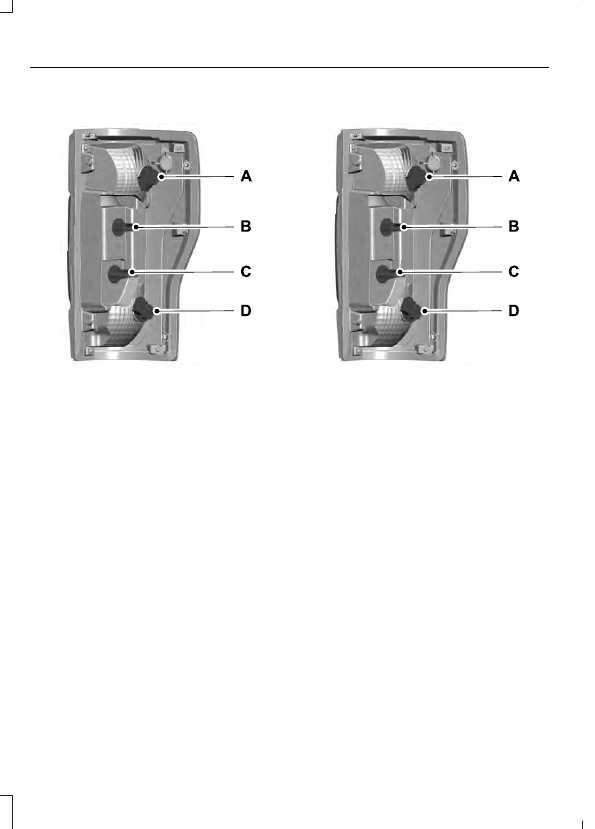

CHANGING A REAR LAMP BULB

E346947

Stoplamp and rear lamp bulb.

Turn signal lamp bulb.

Reversing lamp bulb.

Stoplamp and rear lamp bulb.

Remove the rear lamp assembly. See

Removing a Rear Lamp Assembly

(page 414).

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

4. To install, reverse the removal

procedure.

CHANGING A STOPLAMP BULB

E346947

Stoplamp and rear lamp bulb.

Turn signal lamp bulb.

Reversing lamp bulb.

Stoplamp and rear lamp bulb.

Remove the rear lamp assembly. See

Removing a Rear Lamp Assembly

(page 414).

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

4. To install, reverse the removal

procedure.

416

Maintenance

Ford F-450 (2022 year). Manual in english - page 25
