Note:

An audible alarm sounds and the

system shuts down if it applies brakes for
an extended period of time. This allows the
brakes to cool. The system functions
normally again after the brakes cool.

Note:

When towing with adaptive cruise

control, switch on Tow/Haul Mode and
Diesel Engine Brake.

Note:

Tow/Haul mode increases the time

gaps and allows more distance for braking.

ADAPTIVE CRUISE CONTROL
LIMITATIONS

Sensor Limitations

WARNING:

On rare occasions,

detection issues can occur due to the
road infrastructures, for example bridges,
tunnels and safety barriers. In these
cases, the system may brake late or
unexpectedly. At all times, you are
responsible for controlling your vehicle,
supervising the system and intervening,
if required.

WARNING:

If the system

malfunctions, have your vehicle checked
as soon as possible.

WARNING:

Large contrasts in

outside lighting can limit sensor
performance.

WARNING:

The system only warns

of vehicles detected by the radar sensor.
In some cases there may be no warning
or a delayed warning. Apply the brakes
when necessary. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

The system may not

detect stationary or slow moving
vehicles below 6 mph (10 km/h).

WARNING:

The system does not

detect pedestrians or objects in the road.

WARNING:

The system does not

detect oncoming vehicles in the same
lane.

WARNING:

The system may not

operate properly if the sensor is blocked.
Keep the windshield free from
obstruction.

WARNING:

The sensor may

incorrectly track lane markings as other
structures or objects. This can result in
a false or missed warning.

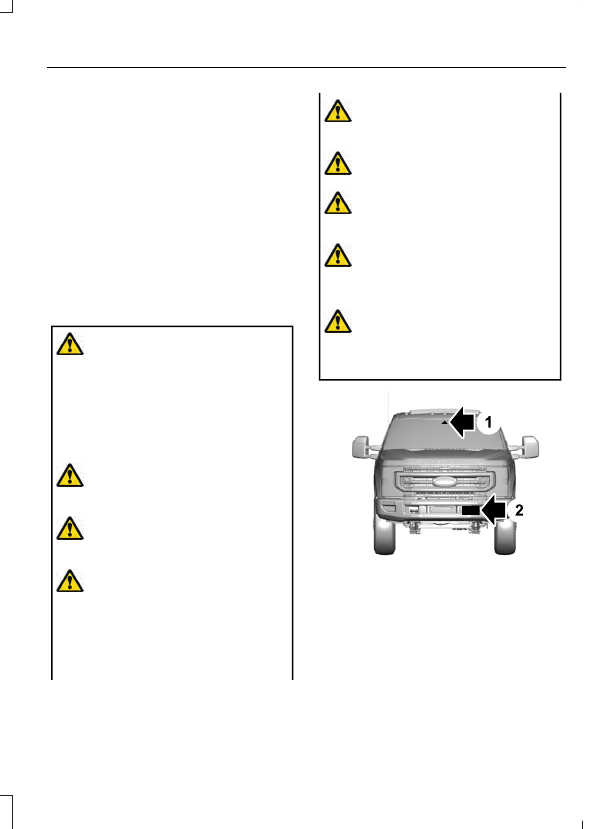

E307836

Camera.

Radar sensor.

The camera is on the windshield behind
the interior mirror.

The radar sensor is in the lower grille.

Note:

You cannot see the sensor. It is

behind a fascia panel.

273

Adaptive Cruise Control

(If Equipped)

Note:

Keep the front of your vehicle free of

dirt, metal badges or objects. Vehicle front
protectors, aftermarket lights, additional
paint or plastic coatings could also degrade
sensor performance.

A message displays if something obstructs
the camera or the sensor. When something
blocks the sensor, the system cannot
detect a vehicle ahead and does not
function. See

How Does Adaptive Cruise

Control Work

(page 272).

The radar sensor has a limited field of
view. It may not detect vehicles at all or
detect a vehicle later than expected in
some situations. The lead vehicle image
does not illuminate if the system does not
detect a vehicle in front of you.

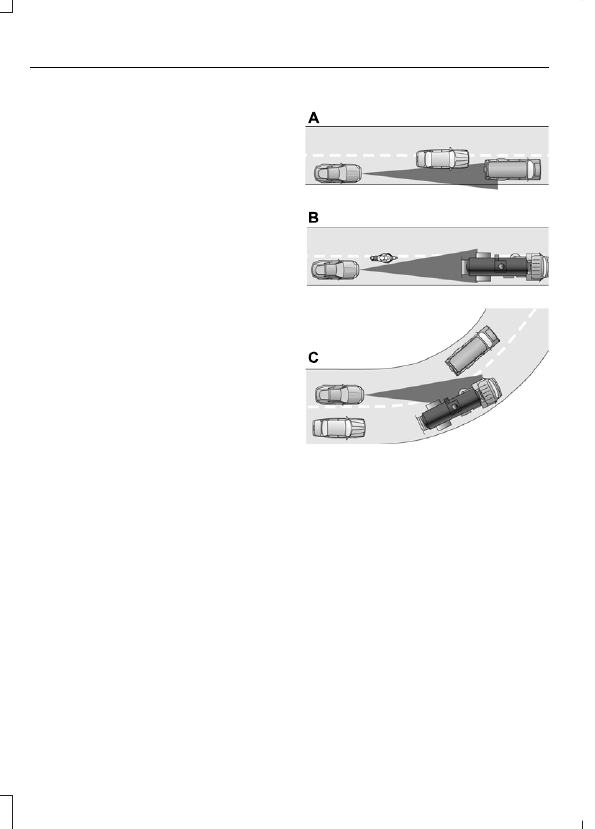

Detection Issues Can Occur:

E71621

When driving on a different line
than the vehicle in front.

With vehicles that edge into your
lane. The system can only detect
these vehicles once they move
fully into your lane.

There may be issues with the
detection of vehicles in front
when driving into and coming out
of a bend or curve in the road.

In these cases, the system may brake late
or unexpectedly.

If something hits the front end of your
vehicle or damage occurs, the
radar-sensing zone may change. This
could cause missed or false vehicle
detection.

274

Adaptive Cruise Control

(If Equipped)

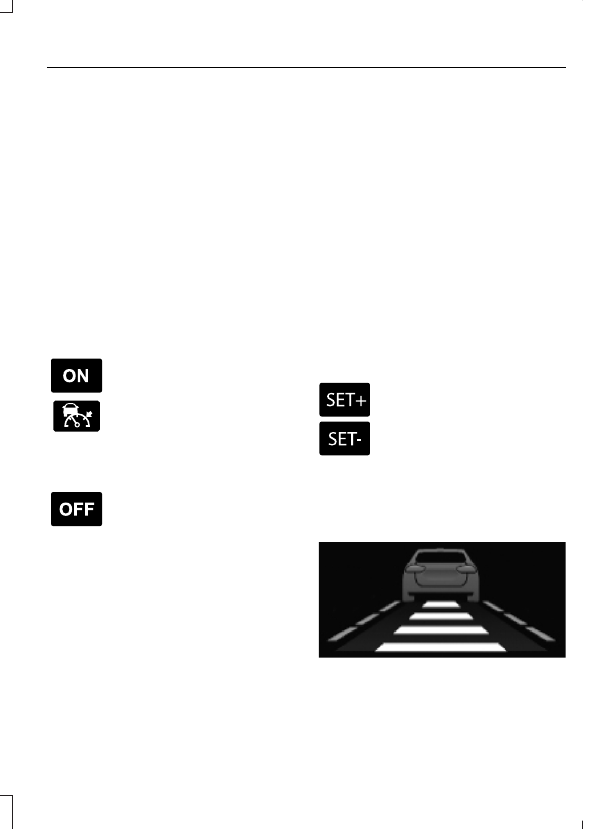

Optimal system performance requires a
clear view of the road by the windshield
camera.

Optimal performance may not occur if:

•

The camera is blocked.

•

There is poor visibility or lighting
conditions.

•

There are bad weather conditions.

SWITCHING ADAPTIVE
CRUISE CONTROL ON AND OFF

The cruise controls are on the steering
wheel.

Switching Adaptive Cruise Control
On

E265296

Press and release the button.

E144529

The indicator, current gap setting
and set speed appear in the
instrument cluster display.

Switching Adaptive Cruise Control
Off

E265297

Press and release the button
when the system is in standby
mode or switch the ignition off.

Note:

When you switch the system off, the

set speed and gap setting clears.

ADAPTIVE CRUISE CONTROL
AUTOMATIC CANCELLATION

The system is not functional at vehicle
speeds below 12 mph (20 km/h). The
information display indicates low engine
speed, an audible alarm sounds and the
automatic braking releases if the vehicle
drops below this speed.

The system may cancel if:
•

The tires lose traction.

•

You apply the parking brake.

The system may deactivate or prevent
activating when requested if:
•

The vehicle has a blocked sensor.

•

The brake temperature is too high.

•

There is a failure in the system or a
related system.

Note:

If the engine speed drops too low, an

audible warning sounds and a message
appears in the information display.
Automatic braking releases.

SETTING THE ADAPTIVE
CRUISE CONTROL SPEED

Drive to the speed you prefer.

Press the Set+ or Set- buttons
to set the current speed.

Take your foot off the accelerator pedal.

The indicator, current gap setting and set
speed appear in the information display.

E233874

A vehicle image illuminates if there is a
vehicle detected in front of you.

275

Adaptive Cruise Control

(If Equipped)

Note:

When adaptive cruise control is

active, the speedometer may vary slightly
from the set speed displayed in the
information display.

Manually Changing the Set Speed

Press the Set+ button to
increase the set speed in small
increments. Press and hold the

Set+ button to accelerate. Release the
button when you have reached your
preferred speed.

Press the Set- button to
decrease the set speed in small
increments. Press and hold the

Set- button to decelerate. Release the
button when you have reached your
preferred speed.

You can also press the accelerator or brake
pedal until you reach the speed you prefer.
Press the Set+ or Set- button to select the
current speed as the set speed.

The system may apply the brakes to slow
the vehicle to the new set speed. The set
speed continuously displays in the
information display when the system is
active.

SETTING THE ADAPTIVE
CRUISE CONTROL GAP

You can decrease or increase the distance
between your vehicle and the vehicle in
front by pressing the gap control.

E263696

Press and release to increase the
gap distance.

E263697

Press and release to decrease
the gap distance.

E233874

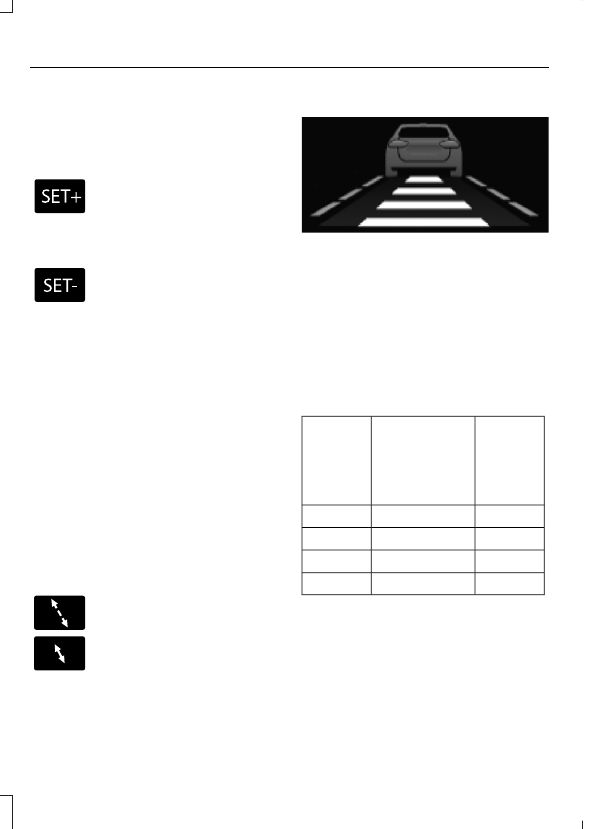

The selected gap appears in the
information display as shown by the bars
in the image.

Note:

The gap setting is time dependent

and therefore, the distance adjusts with your
vehicle speed.

Note:

It is your responsibility to select a gap

appropriate to the driving conditions.

Adaptive Cruise Control Gap Settings

Dynamic

Behavior

Gap Distance

Graphic

Display,

Bars Indic-

ated

Between

Vehicles

Sport.

Closest.

Normal.

Close.

Normal.

Medium.

Comfort.

Far.

Each time you switch the system on, it
selects the last chosen gap setting.

Following a Vehicle

When a vehicle ahead of you enters the
same lane or a slower vehicle is ahead in
the same lane, the vehicle speed adjusts
to maintain the gap setting.

276

Adaptive Cruise Control

(If Equipped)

Note:

When you are following a vehicle and

you switch on a turn signal lamp, adaptive
cruise control may provide a small,
temporary acceleration to help you pass.

Your vehicle maintains a consistent gap
from the vehicle ahead until:
•

The vehicle in front of you accelerates
to a speed above the set speed.

•

The vehicle in front of you moves out
of the lane you are in.

•

You set a new gap distance.

The system applies the brakes to slow
down your vehicle to maintain a safe gap
distance from the vehicle in front of you.
The system only applies limited braking.
You can override the system by applying
the brakes.

Note:

The brakes may emit noise when

applied by the system.

If the system determines that its maximum
braking level is not sufficient, an audible
warning sounds, a message appears in the
information display and an indicator
flashes when the system continues to
brake. Take immediate action.

CANCELING THE SET SPEED

E265298

Press the button or tap the brake
pedal.

The set speed does not erase.

RESUMING THE SET SPEED

Press the button.

Your vehicle speed returns to the
previously set speed and gap setting. The
set speed displays continuously in the
information display when the system is
active.

Note:

Only use resume if you are aware of

the set speed and intend to return to it.

OVERRIDING THE SET SPEED

WARNING:

If you override the

system by pressing the accelerator
pedal, it does not automatically apply
the brakes to maintain a gap from any
vehicle ahead.

When you press the accelerator pedal, you
override the set speed and gap distance.

Use the accelerator pedal to intentionally
exceed the set speed limit.

When you override the system, the green
indicator illuminates and the vehicle icon
does not appear in the instrument cluster
display.

The system resumes operation when you
release the accelerator pedal. The vehicle
speed decreases to the set speed, or a
lower speed if following a slower vehicle.

ADAPTIVE CRUISE CONTROL
INDICATORS

E144529

Illuminates when you switch
adaptive cruise control on. The
color of the indicator changes to

indicate the system status.

White indicates the system is on but
inactive.

Green indicates that you set the speed and
the system is active.

277

Adaptive Cruise Control

(If Equipped)

SWITCHING FROM ADAPTIVE
CRUISE CONTROL TO CRUISE
CONTROL - VEHICLES WITH:
2.3 INCH SCREEN

WARNING:

Normal cruise control

will not brake when your vehicle is
approaching slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary.

To switch from adaptive cruise control to
cruise control, use the instrument cluster
display:

Select

Driver Assist

2. Select

Cruise Control

3. Select a cruise control option.

E332905

The cruise control indicator
replaces the adaptive cruise
control indicator if you select

normal cruise control. The gap setting
does not display, and the system does not
respond to lead vehicles. Automatic
braking remains active to maintain set
speed. The system remembers the last
setting when you start your vehicle.

SWITCHING FROM ADAPTIVE
CRUISE CONTROL TO CRUISE
CONTROL - VEHICLES WITH:
4.2 INCH SCREEN

WARNING:

Normal cruise control

will not brake when your vehicle is
approaching slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary.

To switch from adaptive cruise control to
cruise control, use the instrument cluster
display:

Select

Driver Assist

2. Select

Cruise Control

3. Select a cruise control option.

E332905

The cruise control indicator
replaces the adaptive cruise
control indicator if you select

SWITCHING FROM ADAPTIVE
CRUISE CONTROL TO CRUISE
CONTROL - VEHICLES WITH: 8
INCH SCREEN

WARNING:

Normal cruise control

will not brake when your vehicle is
approaching slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary.

To switch from adaptive cruise control to
cruise control, use the instrument cluster
display:

Select

Driver Assist

2. Select

Cruise Control

3. Select a cruise control option.

278

Adaptive Cruise Control

(If Equipped)

E332905

The cruise control indicator
replaces the adaptive cruise
control indicator if you select

ADAPTIVE CRUISE CONTROL
– TROUBLESHOOTING

ADAPTIVE CRUISE CONTROL –
INFORMATION MESSAGES

Blocked Sensor

E243054

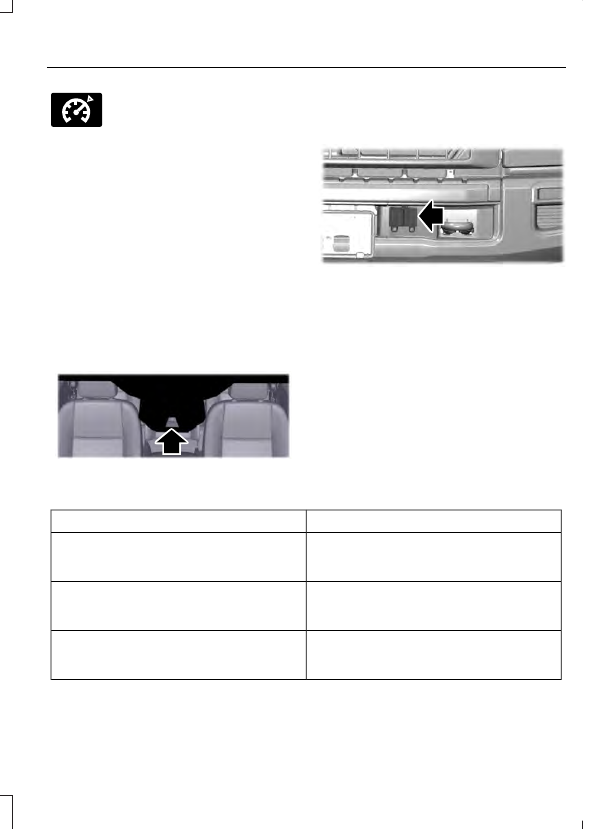

The camera is mounted on the windshield
behind the interior mirror.

E312903

A message displays if something obstructs
the radar signals from the sensor. The
sensor is in the lower grille. The system
cannot detect a vehicle ahead and does
not function when something blocks the
sensor.

Note:

You cannot see the sensor. It is

behind a fascia panel.

Keep the front of your vehicle free of dirt,
metal badges or objects. Vehicle front
protectors and aftermarket lights may also
block the sensor.

Possible Causes and Actions for This Message Displaying:

Action

Cause

Clean the grille surface in front of the radar
or remove the object causing the obstruc-
tion.

The surface of the radar is dirty or
obstructed.

Wait a short time. It may take several
minutes for the radar to detect that it is free
from obstruction.

The surface of the radar is clean but the
message remains in the display.

Do not use the system in these conditions
because it may not detect any vehicles
ahead.

Heavy rain or snow is interfering with the
radar signals.

279

Adaptive Cruise Control

(If Equipped)

Action

Cause

Do not use the system in these conditions
because it may not detect any vehicles
ahead.

Water, snow or ice on the surface of the
road may interfere with the radar signals.

Wait a short time or switch to normal cruise
control.

You are in a desert or remote area with no
other vehicles and no roadside objects.

Due to the nature of radar technology, it is possible to get a blockage warning with no
actual block. A false blocked condition either self clears, or clears after you restart your
vehicle.

280

Adaptive Cruise Control

(If Equipped)

WHAT IS DRIVE MODE
CONTROL

Your vehicle has various drive modes that
you can select for different driving
conditions. Depending on the drive mode
that you select, the system adjusts various
vehicle settings.

HOW DOES DRIVE MODE
CONTROL WORK

Drive mode control adjusts your vehicle
configuration for each mode you select.

Changing the drive mode adjusts the
steering effort and feel of the steering
system.

The stability and traction control assist
your vehicle control in adverse conditions
or high-performance driving.

Throttle control enhances the powertrain
response, transmission controls become
optimized with shift schedules, and
four-wheel drive settings are optimized
and tuned to each mode.

Changing the drive mode can engage or
disengage the electronic locking
differentials.

Changing the drive mode changes the
four-wheel drive mode to the default
setting for the selected drive mode.

Note:

The system has diagnostic checks

that continuously monitor the system for
proper operation. If a mode is unavailable
due to a system fault, the drive mode
system defaults to normal. When the
system defaults to normal, the driveline
settings remain the same as prior to the
system fault.

Note:

The system reverts to the normal

mode each time you start your vehicle. At
startup the system also displays a prompt
on the instrument cluster display that gives
you the option to return to the previously
selected drive mode during the last ignition
cycle. If you select yes, the system returns
to the last selected drive mode and the
default driveline settings associated with
that mode. If you select no, the system
remains in normal mode and the driveline
settings remain the same as selected in the
prior ignition cycle. If you do not select yes
or no, the system stays in normal mode and
the driveline settings remain the same as
selected in the prior ignition cycle.

SELECTING A DRIVE MODE

E249567

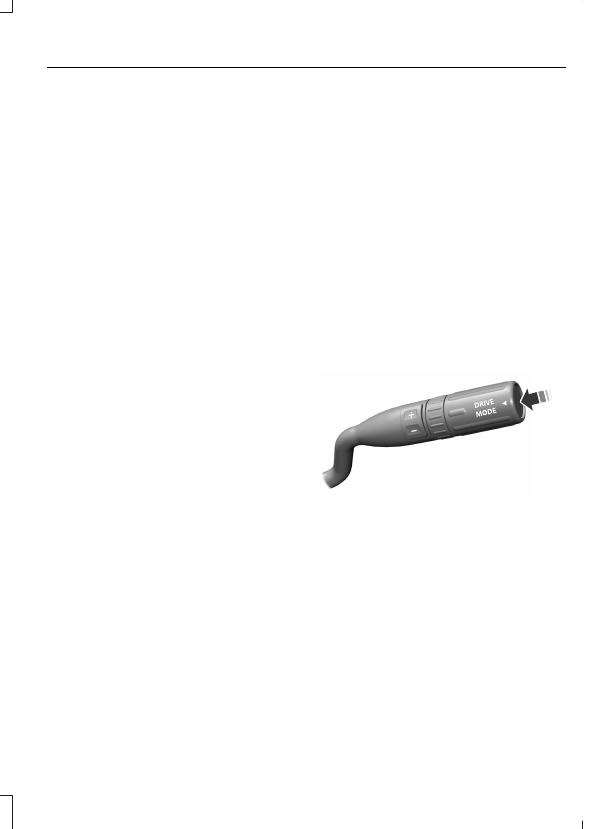

To change the drive mode setting, press
the drive mode button. The drive mode
selection menu appears in the instrument
cluster and allows you to select through
the available drive modes.

281

Drive Mode Control

DRIVE MODES

DEEP SNOW/SAND - 4X4

E295420

For off-road driving on soft, dry
sand or deep snow. This mode
optimizes accelerator pedal

response, traction and stability controls to
help maintain forward momentum. If your
vehicle becomes stuck in deep conditions,
use this mode to help get unstuck.

Four-wheel drive high is the default
four-wheel drive mode. Four-wheel drive
low is selectable in deep snow/sand mode.

The electronic locking differential engages
when you select this mode at any speed,
and you can disengage it at any time using
the button. See

Switching the Electronic

Locking Differential On and Off

(page

238).

Note:

Do not use this mode when driving

on pavement or packed snow. This could
cause driveline bind up and damage the
system depending on the four-wheel drive
mode selection. See

Four-Wheel Drive

(page 228).

ECO - 4X4

E295413

For efficient driving. This mode
helps deliver maximum fuel
efficiency and helps to increase

driving range.

Two-wheel drive high is the default
four-wheel drive mode. Four-wheel drive
low is not available in eco mode.

The electronic locking differential is
available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 238).

ECO - 4X2

E295413

For efficient driving. This mode
helps deliver maximum fuel
efficiency and helps to increase

driving range.

The electronic locking differential is
available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 238).

NORMAL - 4X4

E225310

For everyday driving. This mode
is the perfect balance of
excitement, comfort and

convenience. This is the default mode after
each ignition cycle.

Two-wheel drive high is the default
four-wheel drive mode. All four-wheel drive
modes are selectable when in normal
mode.

The electronic locking differential is
available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 238).

NORMAL - 4X2

E225310

For everyday driving. This mode
is the perfect balance of
excitement, comfort and

convenience. This is the default mode after
each ignition cycle.

The electronic locking differential is
available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 238).

282

Drive Mode Control

ROCK CRAWL - TREMOR, 4X4

E225315

For off-road driving and
optimum rock-climbing. Rock
crawl mode engages the

electronic locking differential, optimizes
throttle response and adjusts transmission
shift points to provide additional control
of your vehicle.

Four-wheel drive low is the only four-wheel
drive mode available in rock crawl mode.

The electronic locking differential engages
when you select this mode at any speed,
and you can disengage it at any time using
the button. See

Switching the Electronic

Locking Differential On and Off

(page

238).

TOW/HAUL - 4X4

E246592

For improved transmission
operation when towing a trailer
or a heavy load. This mode

moves upshifts to higher engine speeds to
reduce the frequency of transmission
shifting. This mode also provides engine
braking in all forward gears, which slows
your vehicle and assists you in controlling
your vehicle when descending a slope. The
amount of downshift braking provided
varies based on the amount you press the
brake pedal.

All four-wheel drive modes are selectable
in tow/haul mode. This mode does not
default to a certain four-wheel drive mode.

The system tunes the steering and
suspension to enhance driving comfort
when towing or carrying heavy loads.

The electronic locking differential is
available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 238).

TOW/HAUL - 4X2

E246592

For improved transmission
operation when towing a trailer
or a heavy load. This mode

The system tunes the steering and
suspension to enhance driving comfort
when towing or carrying heavy loads.

The electronic locking differential is
available below 25 mph (40 km/h). See

Switching the Electronic Locking
Differential On and Off

(page 238).

DRIVE MODE CONTROL –
TROUBLESHOOTING

DRIVE MODE CONTROL –
WARNING LAMPS

E130458

Some drive modes reduce
traction and stability control
performance and the indicator

illuminates in the instrument cluster.

283

Drive Mode Control

WHAT IS THE LANE KEEPING
SYSTEM

The lane keeping system alerts you by
providing temporary steering wheel
vibration when it detects an unintended
lane departure.

HOW DOES THE LANE
KEEPING SYSTEM WORK

The lane keeping system uses a forward
looking camera mounted on the windshield
to monitor vehicle movement within the
travel lane.

When the camera detects a drift out of the
travel lane, the lane keeping system alerts
the driver by vibrating the steering wheel.

The driver can select the steering wheel
vibration intensity.

LANE KEEPING SYSTEM
PRECAUTIONS

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

WARNING:

The system will not

operate if the sensor cannot track the
road lane markings.

WARNING:

The sensor may

incorrectly track lane markings as other
structures or objects. This can result in
a false or missed warning.

WARNING:

In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance.

WARNING:

The system may not

operate properly if the sensor is blocked.
Keep the windshield free from
obstruction.

WARNING:

If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

WARNING:

The system may not

correctly operate if your vehicle is fitted
with a suspension kit not approved by
us.

WARNING:

Large contrasts in

outside lighting can limit sensor
performance.

LANE KEEPING SYSTEM
LIMITATIONS

The lane keeping system only operates
when the vehicle speed is greater than
40 mph (64 km/h).

The system works when the camera can
detect at least one lane marking.

The lane keeping system may not correctly
operate in any of the following conditions:
•

The lane keeping system does not
detect at least one lane marking.

•

You switch the turn signal on.

•

You apply direct steering, accelerate
fast or brake hard.

•

The vehicle speed is less than 40 mph
(64 km/h).

•

The anti-lock brake, stability control or
traction control system activates.

286

Lane Keeping System

(If Equipped)

•

The lane is too narrow.

•

Something is obscuring the camera or
it is unable to detect the lane markings
due to environment, traffic or vehicle
conditions.

•

Entering or exiting a tight curve when
driving at high speeds.

The lane keeping system may not correct
lane positioning in any of the following
conditions:
•

High winds.

•

Uneven road surfaces.

•

Heavy or uneven loads.

•

Incorrect tire pressure.

SWITCHING THE LANE
KEEPING SYSTEM ON AND
OFF - VEHICLES WITH: 4.2
INCH SCREEN

E173233

To activate the lane keeping
system, press the button on the
steering wheel.

To deactivate the lane keeping system,
press the button again.

Note:

When switching the system on or off

a message appears in the information and
entertainment display to show the status.

Note:

The system stores the on or off

setting until manually changed, unless it
detects a MyKey™. If the system detects a
MyKey™, it defaults to the last setting for
that MyKey™.

Note:

If the system detects a MyKey™,

pressing the button does not affect the on
or off status of the system. You can only
change the mode and intensity settings.

System Settings

To switch the system on or off, use the
instrument cluster display:

Select

Driver Assist

2. Select

Lane-Keeping System

3. Switch the feature on or off.

The system remembers the last selection.
You do not need to readjust the setting
each time you turn on your vehicle.

Sensitivity:

This setting allows you to

select where in the lane the system
provides a warning. Increasing the
sensitivity setting moves the warning zones
in closer to your vehicle.

E165517

Normal.

Increased.

Note:

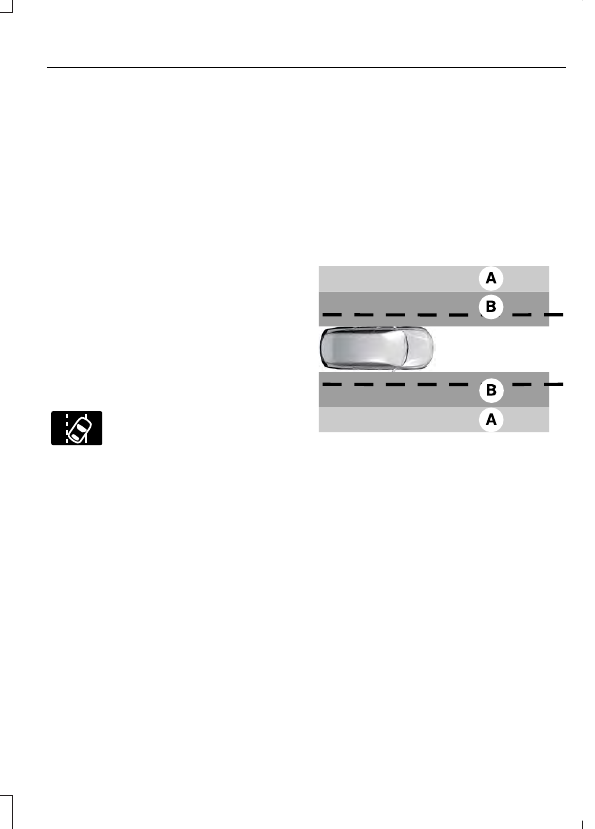

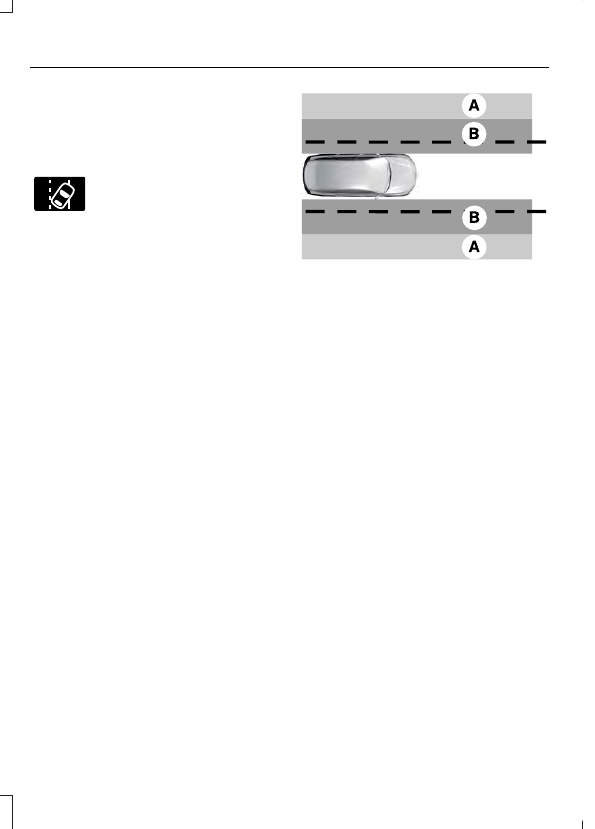

The alert diagram illustrates general

zone coverage. It does not provide exact
zone parameters.

Intensity:

This setting affects the intensity

of the steering wheel vibration. Increasing
the intensity causes a higher rate of
feedback.

•

High.

•

Normal.

•

Low.

287

Lane Keeping System

(If Equipped)

SWITCHING THE LANE
KEEPING SYSTEM ON AND
OFF - VEHICLES WITH: 8 INCH
SCREEN

E173233

To activate the lane keeping
system, press the button on the
steering wheel.

To deactivate the lane keeping system,
press the button again.

Note:

When switching the system on or off

a message appears in the information and
entertainment display to show the status.

Note:

The system stores the on or off

setting until manually changed, unless it
detects a MyKey™. If the system detects a
MyKey™, it defaults to the last setting for
that MyKey™.

Note:

If the system detects a MyKey™,

pressing the button does not affect the on
or off status of the system. You can only
change the mode and intensity settings.

System Settings

To switch the system on or off, use the
instrument cluster display:

Select

Driver Assist

2. Select

Lane-Keeping System

3. Switch the feature on or off.

The system remembers the last selection.
You do not need to readjust the setting
each time you turn on your vehicle.

Sensitivity:

This setting allows you to

select where in the lane the system
provides a warning. Increasing the
sensitivity setting moves the warning zones
in closer to your vehicle.

E165517

Normal.

Increased.

Note:

The alert diagram illustrates general

zone coverage. It does not provide exact
zone parameters.

Intensity:

This setting affects the intensity

of the steering wheel vibration. Increasing
the intensity causes a higher rate of
feedback.

•

High.

•

Normal.

•

Low.

ALERT MODE

WHAT IS ALERT MODE

Alert mode vibrates the steering wheel
when it detects an unintended lane
departure.

288

Lane Keeping System

(If Equipped)

Ford F-450 (2022 year). Manual in english - page 17
