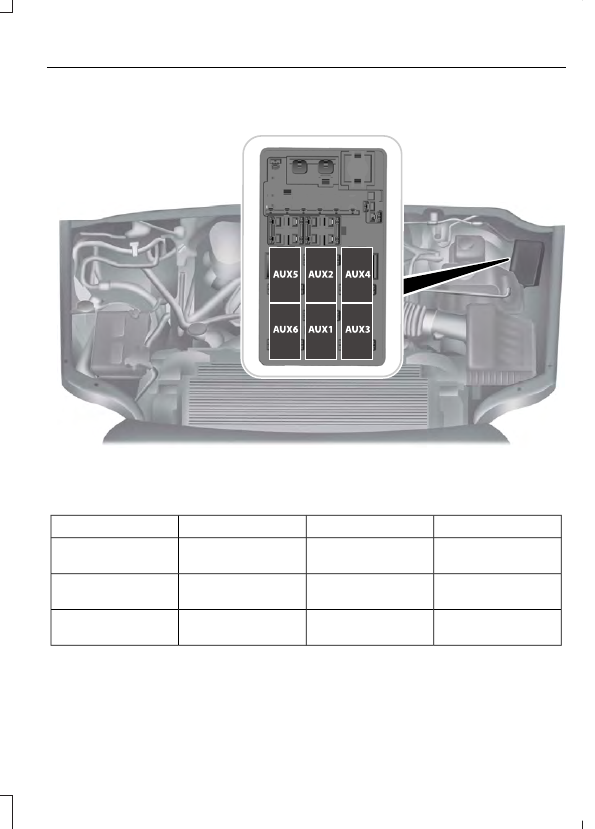

Each switch includes a blunt-cut, sealed
wire. The wires are under the instrument

panel on the right-hand side of the
passenger footwell.

E220730

The power leads are coded as shown:

Fuse Amp Rating

Wire Color

Circuit Number

Switch

25A

Brown with Green

Trace

CB117A

AUX 1

25A

Violet with Orange

Trace

CB114A

AUX 2

25A

Blue with Green

Trace

CB116A

AUX 3

563

Fuse Amp Rating

Wire Color

Circuit Number

Switch

25A

Gray with Brown

Trace

CB113A

AUX 4

40A

Brown with Blue

Trace

CB115A

AUX 5

40A

Gray with Orange

Trace

CB118A

AUX 6

Upfitter Interface Module

 (If Equipped)

The Upfitter Interface Module (UIM) is an
electronic control module that operates
equipment (such as lift buckets, cranes,
motors, salt spreaders and snow plows)
with external relays.

For more information on the
Upfitter Interface Module and the
auxiliary switches, visit:

Web Address

www.fleet.ford.com/truckbbas/

564
