CD slot: Insert a CD.

G

Eject: Press to eject a CD.

H

VOL and Power: Press to switch the system on and off. Turn to adjust the
volume.

I

PHONE: Press to access the phone features of the SYNC system. See your
SYNC information.

J

MENU: Press to access different audio system features. See Menu Structure
later in this section.

K

MEDIA: Press to open the media source menu. You can press this multiple
times to change to CD or to a SYNC-Media device or scroll through the media
sources using the arrow buttons. Press OK to select a source.

L

CLOCK: If not in phone mode, press to display the clock.

M

RADIO: Press this multiple times to select a radio band. Press and hold to
select the autostore function. Press to return to the main screen of the active
radio band.

N

SIRIUS: Press to listen to SIRIUS satellite radio.

O

CD: Press to listen to a CD. Press the function buttons to scroll through the
menu choices.

P

SOUND: Press to access settings for Treble, Midrange, Bass, Fade or Balance.
Use the up and down arrow buttons to select the various settings. When you
make your selection, press the left and right arrow buttons to change the
settings. Press OK to set or press MENU to exit. Sound settings can be set for
each audio source independently.

Q

Menu Structure

Note: Depending on your system, some
options may appear slightly different.

Press MENU.

Press the up and down arrow buttons to
scroll through the options.

Press the right arrow to enter a menu.
Press the left arrow to exit a menu.

Press OK to confirm a selection.

439

Radio

Use the left and right arrows to go up or down the
frequency band.

Manual tune

Select for a brief sampling of all available channels.

Scan

Select to store the six strongest local stations on the AM-
AST and FM-AST frequency bands.

AST

Select to view additional broadcast data (radio text), if
available. This feature defaults to off. RBDS must be on
for you to set a category, or display radio text and station
names.

RBDS/RDS

Audio Settings

Automatically adjusts the volume to compensate for
speed and wind noise. You can set the system between
0 and +7.

Speed Compensated
Volume

Select to adjust settings for Treble, Midrange, Bass, Fade
or Balance.

Sound

Select to optimize sound quality for the chosen seating
position.

Occupancy Mode

Choose between the stereo modes.

DSP

CD Settings

Select to scan all disc selections.

Scan All

Select to scan all music in the current MP3 folder.

Scan Folder

Select to bring soft and loud passages together for a more
consistent listening level.

CD Compression

Clock Settings

Select to set the time.

Set Time

Select to set the calendar date.

Set Date

Select to view clock time in a 12-hour mode or 24-hour
mode.

24h Mode

440

Display Settings

Select to change display brightness.

Dimming

Select to display the language in English, French or
Spanish.

Language

Select to display the outside temperature in Fahrenheit
or Celsius.

Temp. Setting

AUDIO UNIT - VEHICLES WITH:
AM/FM/CD/TOUCHSCREEN
DISPLAY

WARNING

Driving while distracted can result in
loss of vehicle control, crash and
injury. We strongly recommend that

you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Note: The touchscreen system controls
most of the audio features. See your SYNC
information.

441

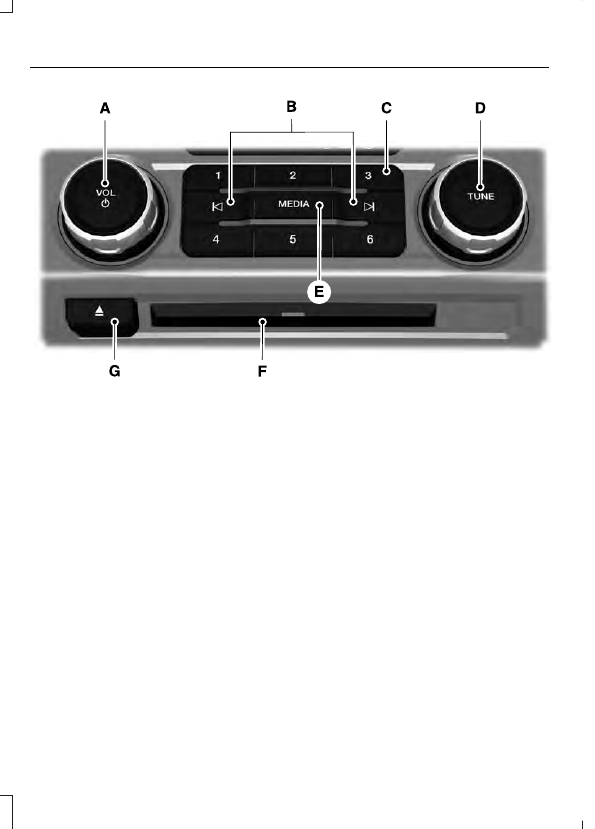

E217907

VOL and Power: Press to switch the system on and off. Turn to adjust the
volume.

A

Seek, Fast Forward and Reverse: In radio mode, select a frequency band
and press either button. The system stops at the first station it finds in that
direction. In CD mode, press to select the next or previous track. Press and hold
to move quickly forward or backward through the current track.

B

Memory presets: Store your favorite radio stations. To store a radio station,
tune to the station, then press and hold a preset button until sound returns.

C

TUNE: In radio mode, adjust to manually search through the radio frequency
band.

D

MEDIA: Press to open the media source menu. You can press this multiple
times to change to CD or to a SYNC-Media device or scroll through the media
sources using the arrow buttons.

E

CD slot: Insert a CD.

F

Eject: Press to eject a CD.

G

DIGITAL RADIO

Note: HD Radio broadcasts are not
available in all markets.
