Exceed 50 mph (80 km/h)

•

Load the vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.

•

Tow a trailer.

•

Use snow chains on the end of the
vehicle with the dissimilar spare tire.

•

Use more than one dissimilar spare tire
at a time.

•

Use commercial car washing
equipment.

•

Try to repair the dissimilar spare tire.

Use of one of the dissimilar spare tires
listed above at any one wheel location can
lead to impairment of the following:
•

Handling, stability and braking
performance.

•

Comfort and noise.

•

Ground clearance and parking at curbs.

•

Winter weather driving capability.

•

Wet weather driving capability.

•

All-wheel driving capability.

3. Full-size dissimilar spare without
label on wheel

When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
•

Exceed 70 mph (113 km/h).

•

Use more than one dissimilar spare
wheel and tire assembly at a time.

•

Use commercial car washing
equipment.

•

Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.

The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
•

Handling, stability and braking
performance.

•

Comfort and noise.

•

Ground clearance and parking at curbs.

•

Winter weather driving capability.

•

Wet weather driving capability.

•

All-wheel driving capability.

When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
•

Towing a trailer.

•

Driving vehicles equipped with a
camper body.

•

Driving vehicles with a load on the
cargo rack.

Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly
and seek service as soon as possible.

Location of the Spare Tire and
Tools

If your vehicle is equipped with a spare tire,
jack and associated tools, see the
following table for their locations:

399

Location

Tool

Under the vehicle, just forward of the rear

bumper.

Spare tire (pick-up trucks only)

Fastened to the floor pan behind the rear-

most seat on the passenger side.

Jack

Regular Cab: Fastened to floor behind the

driver seat.

Jack handle, lug wrench, lug wrench exten-

sion (only available on dual rear wheel

vehicles) and wheel chock (only available

on single rear wheel vehicles equipped with

a diesel engine)

Super Cab and Crew Cab: Fastened to the

floor under the rear seat on the drivers side.

Removing the Spare Tire (With
Spare Tire Carrier Only)

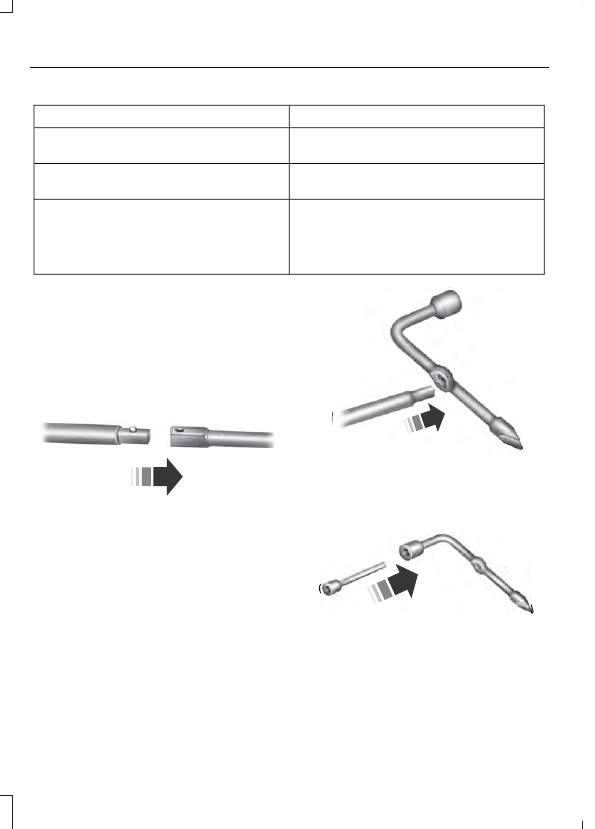

The following tools are required to remove
the spare tire:

E162795

One handle extension and two typical
extensions. To assemble, align the button
with the hole and slide the parts together.

To disconnect, press the button and pull
apart.

E162796

One wheel nut wrench. Slide over the
square end of the jack handle.

E162797

400

E227181

1.

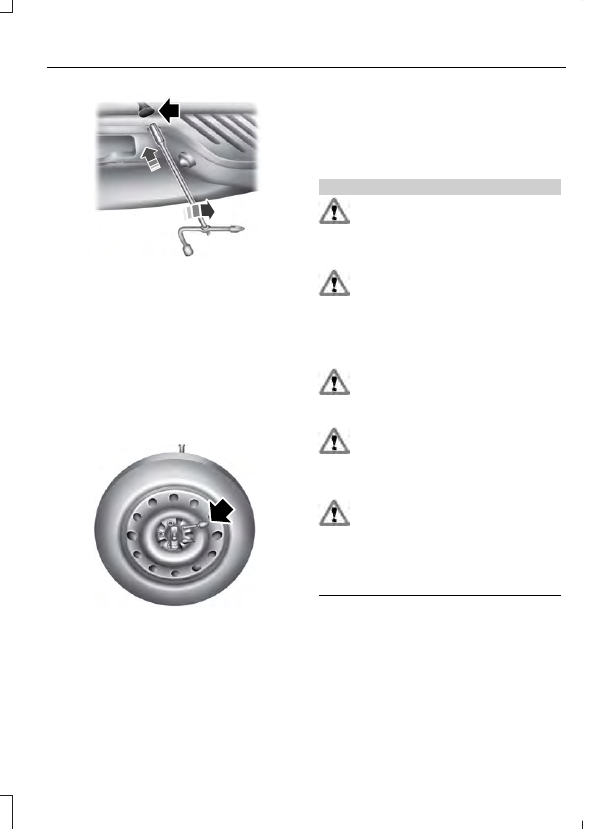

Fully insert the jack handle (with one
extension) through the bumper hole
and into the guide tube. You will feel
some resistance when you turn the jack
handle assembly.

2. Turn the handle counterclockwise and

lower the spare tire until you can slide
the tire rearward and the cable is slack.

3. Remove the retainer through the center

of the wheel. If your vehicle is equipped
with a tether, perform the following
steps.

E162800

4. Lift the spare tire on end to access the

tether attachment.

5. Use the lug wrench to remove the lug

nut from the spare tire tether.

6. If not replacing the spare or flat tire to

the underbody storage area, raise the
wheel retainer up into the installed
position.

7.

Use the attached fastener strap (on
the spare tire tether) to attach the
tether end to the winch retainer prior
to raising to the installed position.

Tire Change Procedure

WARNINGS

When one of the front wheels is off
the ground, the transmission alone
will not prevent the vehicle from

moving or slipping off the jack, even if the
transmission is in park (P).

To help prevent the vehicle from
moving when you change a tire, be
sure to place the transmission in park

(P), set the parking brake and block (in
both directions) the wheel that is
diagonally opposite (other side and end of
the vehicle) to the tire being changed.

Never get underneath a vehicle that
is supported only by a jack. If the
vehicle slips off the jack, you or

someone else could be seriously injured.

Do not attempt to change a tire on
the side of the vehicle close to
moving traffic. Pull far enough off the

road to avoid the danger of being hit when
operating the jack or changing the wheel.

Always use the jack provided as
original equipment with your vehicle.
If using a jack other than the one

provided as original equipment with your
vehicle, make sure the jack capacity is
adequate for the vehicle weight, including
any vehicle cargo or modifications.

Note: Passengers should not remain in the
vehicle when the vehicle is being jacked.

Park on a level surface, set the parking
brake and activate the hazard flashers.

401

E142551

1.

Turn the engine off and block the wheel
that is diagonally opposite of the flat
tire using the wheel chock. Note: Lock
the manual hub on the wheel if the
vehicle is a 4x4.

2. Remove the jack, jack handle, lug

wrench and spare tire from the
stowage locations.

3. Use the tip of the lug wrench to remove

any wheel trim.

4. Loosen each wheel lug nut ½ turn

counterclockwise, but do not remove
them until the wheel is raised off the
ground.

Note: For vehicles with dual rear wheels,
insert the lug wrench extension into the lug
wrench to reach the lug nuts.

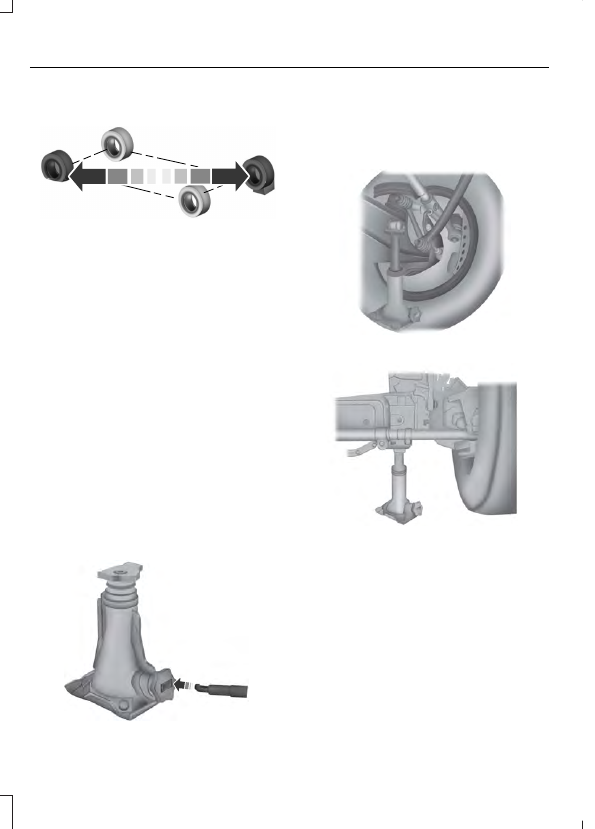

F-250 and F-350 Single Rear Wheel
Vehicles

E162801

1.

Insert the hooked end of the jack
handle into the jack and use the handle
to slide the jack under the vehicle.

2. Position the jack according to the

following guides:

E162802

Front (4x2)

E162803

Front driver side (4x4)

Note: Make sure the jack fits onto the flat
area on the outboard side of the differential.
