Exterior Lamps

Power (Watt)

Specification

Lamp

60/55

H13/9008

Headlamps.

5

W5W

Front side marker lamps.

40

9140

Front fog lamps.

28/8

T20/7444NA

Front direction indicator and parking
lamps.

27/7

3157

Rear lamps, brake lamps, rear direc-
tion indicator and rear side marker
lamps. Low series.*

LED

LED

Rear lamps, brake lamps, rear direc-
tion indicator and rear side marker
lamps. High series.*

27/7

3157

Rear lamps, brake lamps, rear direc-
tion indicator and rear side marker
lamps.**

21

W21W

Reversing lamps.*

27/7

3157

Reversing lamps.**

5

168

License plate lamp. Low series.

LED

LED

License plate lamp. High series.

12.8

912

Central high mounted brake lamp.

12.8

912

Central high mounted cargo lamp.

LED

LED

Side direction indicator and mirror
clearance lamp.

LED

LED

Front clearance lamp.

LED

LED

Rear clearance lamp.

LED

LED

Front identification lamp.

351

Power (Watt)

Specification

Lamp

LED

LED

Rear identification lamp.

LED

LED

Underhood lamp.

*

Pickup only.

**

Chassis cab only.

Note: LED lamps are not serviceable. See an authorized dealer if they fail.

Interior Lamps

Power (Watt)

Specification

Lamp

LED

LED

Map lamp.

LED

LED

Glove compartment lamp.

LED

LED

Interior lamp.

LED

LED

Overhead console lamp.

LED

LED

Luggage compartment lamp.

Note: LED lamps are not serviceable. See an authorized dealer if they fail.

352

CHANGING THE ENGINE AIR
FILTER - 6.2L/6.8L

WARNING

To reduce the risk of vehicle damage
and personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

Use the correct specification air filter
element.  See Motorcraft Parts (page
414).

Note:  Failure to use the correct air filter
element may result in severe engine
damage.  Resulting component damage
may not be covered by the vehicle Warranty.

Change the air filter element at the correct
service interval.  See Scheduled
Maintenance (page 567).

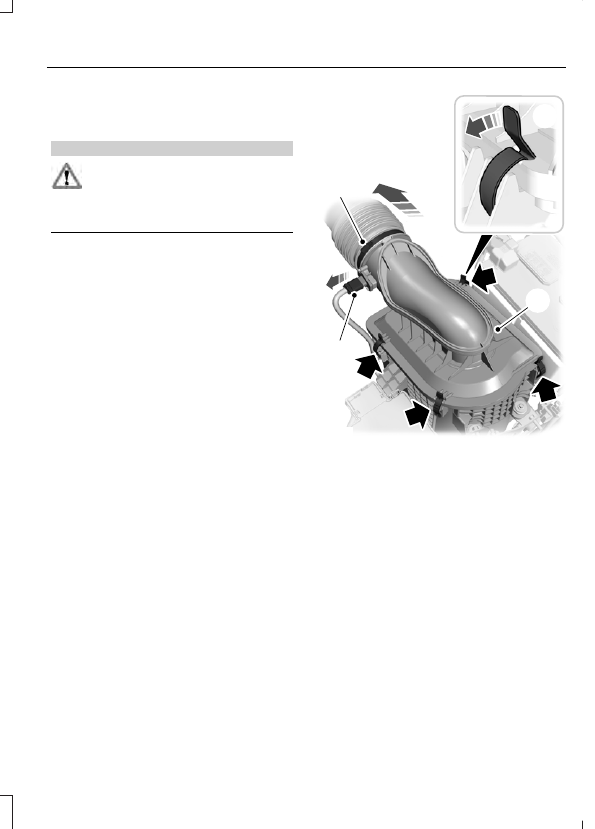

E226426

x4

1

2

4

3

1.

Disconnect the mass air flow sensor
electrical connector.

2. Remove the air intake tube securing

clamp.

3. Pull the air intake tube away from the

air filter housing.

4. Remove the clips that secure the air

filter housing cover.  Remove the air
filter housing cover.

353

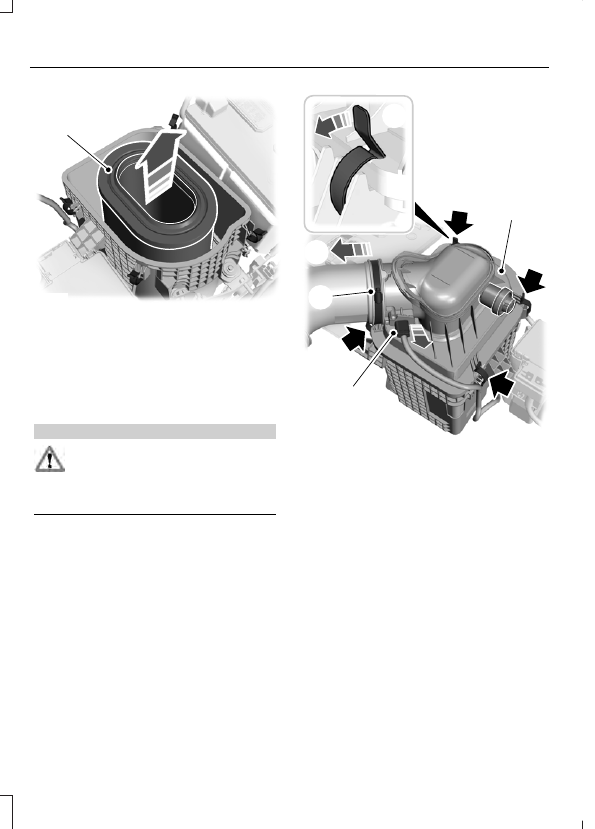

E226427

5

5. Remove the air filter element from the

air filter housing.

6. Install in the reverse order.

CHANGING THE ENGINE AIR
FILTER - 6.7L DIESEL

WARNING

To reduce the risk of vehicle damage
and personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

Use the correct specification air filter
element.  See Motorcraft Parts (page
414).

Note:  Failure to use the correct air filter
element may result in severe engine
damage.  Resulting component damage
may not be covered by the vehicle Warranty.

Change the air filter element at the correct
service interval.  See Scheduled
Maintenance (page 567).

1

2

4

3

E226429

x4

1.

Disconnect the mass air flow sensor
electrical connector.

2. Remove the air intake tube securing

clamp.

3. Pull the air intake tube away from the

air filter housing.

4. Remove the clips that secure the air

filter housing cover.  Remove the air
filter housing cover.
