Power steering fluid reservoir.  See Power Steering Fluid Check (page 341).

H.

Engine oil filler cap.  See Engine Oil Check (page 324).

I.

Battery.  See Changing the 12V Battery (page 343).

J.

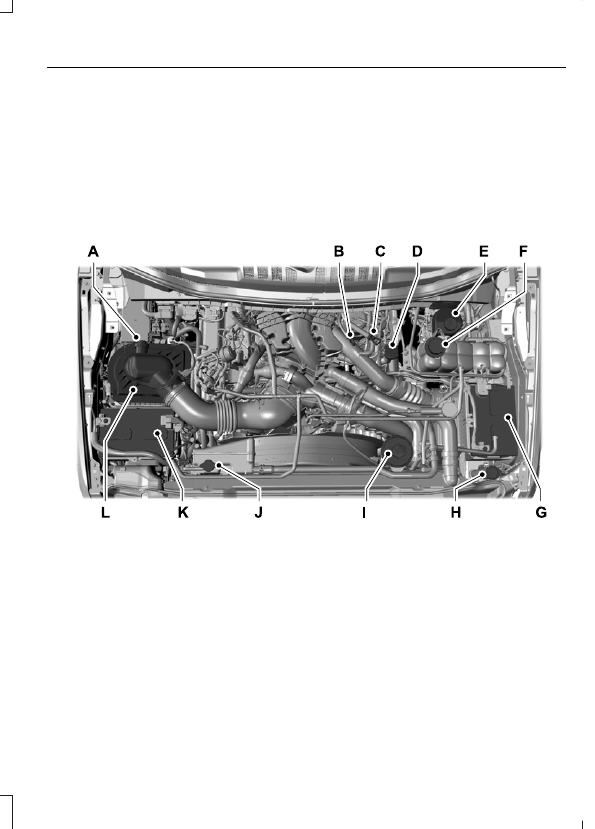

UNDER HOOD OVERVIEW - 6.7L DIESEL

F-Super Duty

E234258

Air filter restriction gauge

A.

Engine oil dipstick

B.

Automatic transmission fluid dipstick

C.

Engine oil fill

D.

Brake fluid reservoir

E.

Engine cooling system coolant reservoir (primary high-temperature cooling
system)

F.

Battery

G.

Windshield washer fluid reservoir

H.

323

Power steering fluid reservoir

I

Secondary cooling system coolant reservoir

J

Battery

K

Air filter assembly

L

Scheduled Maintenance

The recommended scheduled
maintenance services are required because
they are considered essential to the life
and performance of your vehicle.  See
Normal Scheduled Maintenance (page
570).

Use only recommended fuel, lubricants,
fluids and service parts conforming to Ford
specifications. Motorcraft® parts are
designed and built for best performance
in your vehicle.  See Capacities and
Specifications (page 428).

ENGINE OIL DIPSTICK

E161560

A

B

MIN

A

MAX

B

ENGINE OIL CHECK - 6.2L/6.8L

To check the engine oil level consistently
and accurately, do the following:

1.

Make sure that your vehicle is on level
ground.

2. Run engine until it reaches normal

operating temperature.

3. Make sure the parking brake is on. Make

sure the transmission is in park (P) or
neutral (N).

4. Switch the engine off and wait 15

minutes for the oil to drain into the oil
pan. Checking the engine oil level too
soon after you switch the engine off
may result in an inaccurate reading.

5. Open the hood.  See Opening and

Closing the Hood (page 320).

6. Remove the dipstick and wipe it with

a clean, lint-free cloth.  See Under
Hood Overview (page 322).

7.

Replace the dipstick and remove it
again to check the oil level.  See
Engine Oil Dipstick (page 324).

8. Make sure that the oil level is between

the maximum and minimum marks. If
the oil level is at the minimum mark,
add oil immediately.  See Capacities
and Specifications (page 422).

9. If the oil level is correct, replace the

dipstick and make sure it is fully seated.

Note: Do not remove the dipstick when the
engine is running.

Note: If the oil level is between the
maximum and minimum marks, the oil level
is acceptable. Do not add oil.

Note: The oil consumption of new engines
reaches its normal level after approximately
3,000 mi (5,000 km).

324

Adding Engine Oil

WARNING

Do not remove the filler cap when
the engine is running.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by the vehicle Warranty.

E142732

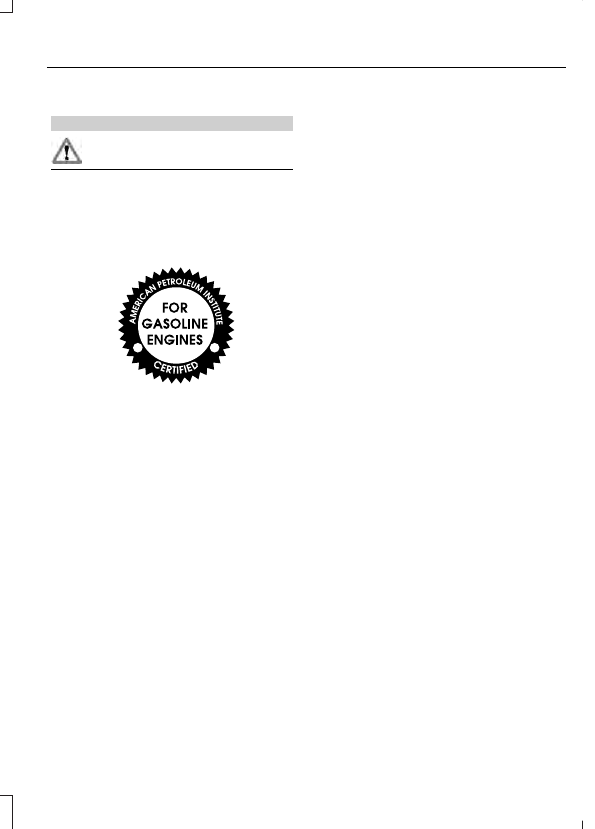

Only use oils certified for gasoline engines
by the American Petroleum Institute (API).
An oil with this trademark symbol
conforms to the current engine and
emission system protection standards and
fuel economy requirements of the
International Lubricants Specification
Advisory Committee (ILSAC), comprised
of U.S. and Japanese automobile
manufacturers.

To top up the engine oil level do the
following:

1.

Clean the area surrounding the engine
oil filler cap before you remove it.

2. Remove the engine oil filler cap.  See

Under Hood Overview (page 322).
Turn it counterclockwise and remove
it.

3. Add engine oil that meets Ford

specifications.  See Capacities and
Specifications (page 422).  You may
have to use a funnel to pour the engine
oil into the opening.

4. Recheck the oil level.

5. If the oil level is correct, replace the

dipstick and make sure it is fully seated.

6. Replace the engine oil filler cap. Turn

it clockwise until you feel a strong
resistance.

Note: Do not add oil further than the
maximum mark. Oil levels above the
maximum mark may cause engine damage.

Note: Make sure you install the oil filler cap
correctly.

Note: Soak up any spillage with an
absorbent cloth immediately.

ENGINE OIL CHECK - 6.7L
DIESEL

To check the engine oil level consistently
and accurately, do the following:

1.

Make sure that your vehicle is on level
ground.

2. Run the engine until it reaches normal

operating temperature.

3. Make sure the parking brake is on. Make

sure the transmission is in park (P) or
neutral (N).

4. Switch the engine off and wait 15

minutes for the oil to drain into the oil
pan. Checking the engine oil level too
soon after you switch the engine off
may result in an inaccurate reading.

5. Open the hood.  See Opening and

Closing the Hood (page 320).

6. Remove the dipstick and wipe it with

a clean, lint-free cloth.  See Under
Hood Overview (page 321).

325

7.

Replace the dipstick and remove it
again to check the oil level.  See
Engine Oil Dipstick (page 324).

8. Make sure that the oil level is between

the maximum and minimum marks. If
the oil level is at the minimum mark,
add oil immediately.  See Capacities
and Specifications (page 428).

9. If the oil level is correct, replace the

dipstick and make sure it is fully seated.

Note: Do not remove the dipstick when the
engine is running.

Note: If the oil level is between the
maximum and minimum marks, the oil level
is acceptable. Do not add oil.

Note: The oil consumption of new engines
reaches its normal level after approximately
3,000 mi (5,000 km).

Adding Engine Oil

WARNING

Do not remove the filler cap when
the engine is running.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by the vehicle Warranty.

E163371

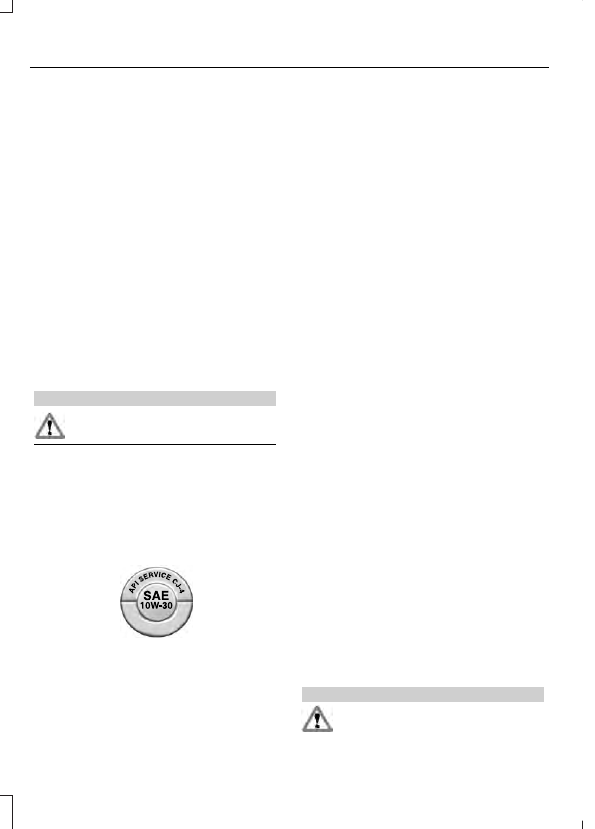

Only use oils certified for diesel engines by
the American Petroleum Institute (API).
An oil with this trademark symbol
conforms to the current engine and
emission system protection standards and
fuel economy requirements of the
International Lubricants Specification
Advisory Committee (ILSAC), comprised
of U.S. and Japanese automobile
manufacturers.

To top up the engine oil level do the
following:

1.

Clean the area surrounding the engine
oil filler cap before you remove it.

2. Remove the engine oil filler cap.  See

Under Hood Overview (page 321).
Turn it counterclockwise and remove
it.

3. Add engine oil that meets Ford

specifications.  See Capacities and
Specifications (page 428).  You may
have to use a funnel to pour the engine
oil into the opening.

4. Recheck the oil level.

5. If the oil level is correct, replace the

dipstick and make sure it is fully seated.

6. Replace the engine oil filler cap. Turn

it clockwise until you feel a strong
resistance.

Note: Do not add oil further than the
maximum mark. Oil levels above the
maximum mark may cause engine damage.

Note: Make sure you install the oil filler cap
correctly.

Note: Soak up any spillage with an
absorbent cloth immediately.

CHANGING THE ENGINE OIL
AND OIL FILTER

WARNINGS

Do not handle a hot oil filter with
bare hands.
