Note: It is recommended that you turn the
collision warning system off if a snow plow
or similar object is installed in such a way
that it may block the radar sensor. Your
vehicle will remember the selected setting
across key cycles.

Note: When possible, the manufacturer
recommends using the highest sensitivity
setting. If warnings are too frequent, you can
reduce your system's sensitivity. Reduced
sensitivity causes fewer and later system
warnings. See General Information (page
111).

Blocked Sensors

E183741

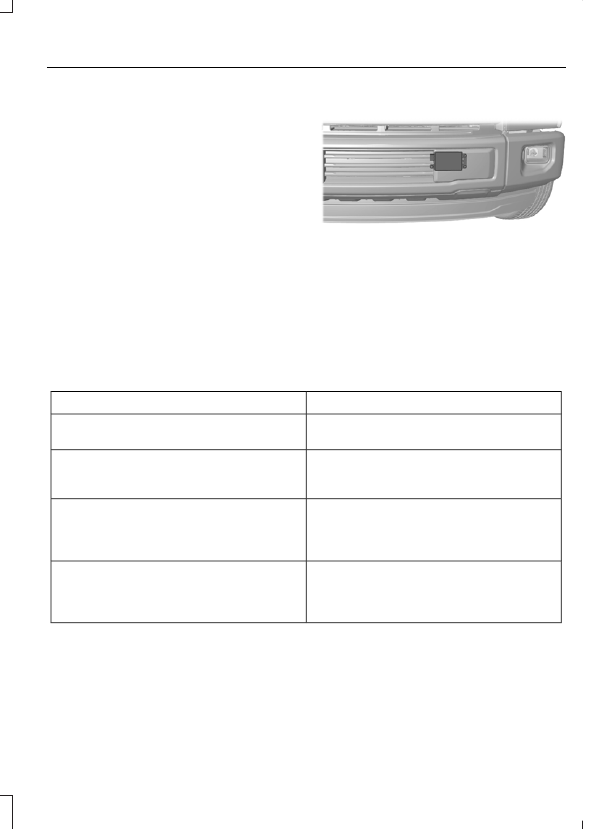

If a blocked sensor message appears in the
information display, dirt, water, or an object
is blocking the sensor. The sensor is
located behind a cover near the driver side
of the lower grille. If anything blocks the
sensor, your vehicle cannot see through
the sensor, and the collision warning
system will not work. Possible causes for
the blocked sensor message and corrective
actions are listed below.

Action

Cause

Clean the radar sensor cover or remove the

obstruction

The radar sensor cover in the grille is dirty

or obstructed

Wait a short time. The radar may take

several minutes to reset after you remove

the obstruction

The surface of the radar sensor cover is

clean but the message remains in the

display

The collision warning system is temporarily

disabled. Shortly after weather conditions

improve, the collision warning system

automatically reactivates

Heavy rain, spray, snow or fog in the air

interferes with the radar signals

The collision warning system is temporarily

disabled. Shortly after weather conditions

improve, the collision warning system

automatically reactivates

Swirling water, snow or ice on the road

surface interferes with the radar signals

259

System Limitations

WARNING

The collision warning system’s brake
support only reduces collision speed
if you first apply your brakes. You

must brake as you would in any typical
braking situation.

Due to the nature of radar technology,
there may be certain instances where
vehicles do not provide a collision warning.
These include:

•

Stationary vehicles or vehicles moving
below 6 mph (10 km/h).

•

Pedestrians or objects in the roadway.

•

Oncoming vehicles in the same lane.

•

Severe weather conditions (see
blocked sensor section).

•

Debris build-up on the grille near the
headlamps (see blocked sensor
section).

•

Small distance to vehicle ahead.

•

Large steering wheel and pedal
movements (very active driving style).

Damage to the front end of your vehicle
may alter the radar sensor's coverage area.
This may result in missed or false collision
warnings. Have an authorized dealer check
your radar sensor for proper coverage and
operation.

260

LOAD LIMIT

Vehicle Loading - with and
without a Trailer

This section guides you in the
proper loading of your vehicle,
trailer, or both. Keep your loaded
vehicle weight within its design
rating capability, with or without
a trailer. Properly loading your
vehicle provides maximum return
of vehicle design performance.
Before you load your vehicle,
become familiar with the
following terms for determining
your vehicle’s weight rating, with
or without a trailer, from the
vehicle’s Tire and Loading
Information label or Safety
Compliance Certification label.

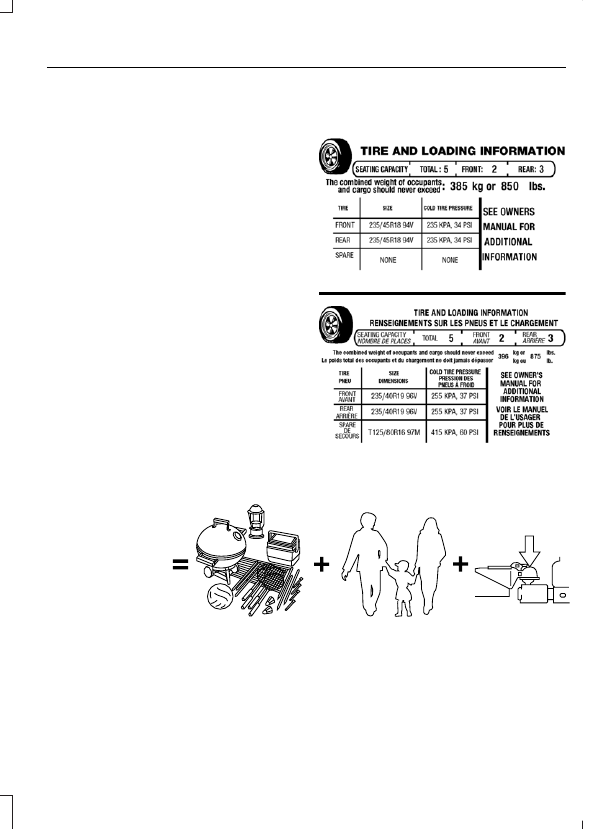

Tire and Loading Label Information
Example:

E198719

Payload

E143816

PAYLOAD

261

Payload is the combined weight
of cargo and passengers that your
vehicle is carrying. The maximum
payload for your vehicle appears
on the Tire and Loading label. The
label is either on the B-pillar or the
edge of the driver door. Vehicles
exported outside the US and
Canada may not have a tire and
loading label. Look for “The
combined weight of occupants
and cargo should never exceed
XXX kg OR XXX lb” for maximum
payload. The payload listed on the
Tire and Loading Information label
is the maximum payload for your
vehicle as built by the assembly
plant. If you install any additional
equipment on your vehicle, you
must determine the new payload.
Subtract the weight of the
equipment from the payload listed
on the Tire and Loading label.
When towing, trailer tongue
weight or king pin weight is also
part of payload.

WARNING

The appropriate loading
capacity of your vehicle can

be limited either by volume
capacity (how much space is
available) or by payload capacity
(how much weight the vehicle
should carry). Once you have
reached the maximum payload of
your vehicle, do not add more
cargo, even if there is space
available. Overloading or
improperly loading your vehicle
can contribute to loss of vehicle
control and vehicle rollover.

GAWR (Gross Axle Weight
Rating)

GAWR is the maximum allowable
weight that a single axle (front or
rear) can carry. These numbers
are on the Safety Compliance
Certification label. The label is
located on the door hinge pillar,
door-latch post, or the door edge
that meets the door-latch post,
next to the driver seating position.

The total load on each axle must
never exceed its Gross Axle
Weight Rating.

GVWR (Gross Vehicle Weight
Rating)

GVWR is the maximum allowable
weight of the fully loaded vehicle.
This includes all options,
equipment, passengers and cargo.
It appears on the Safety
Compliance Certification label.
The label is located on the door
hinge pillar, door-latch post, or the
door edge that meets the
door-latch post, next to the driver
seating position.

The gross vehicle weight must
never exceed the Gross Vehicle
Weight Rating.
