E235007

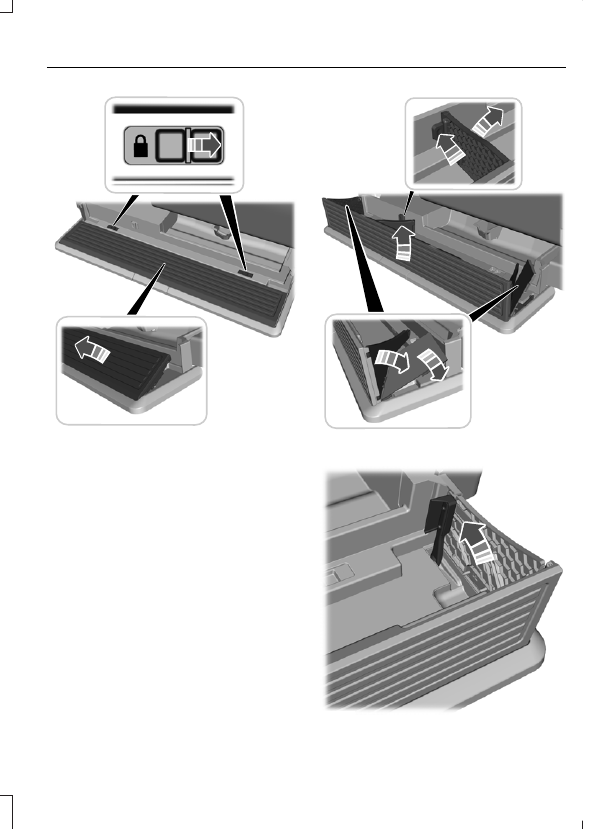

2. Lift front and side panels to expand

and lock them in place.

E235008

3. Lock the panels in an open position.

E235009

171

4. To collapse, lift lever and fold in the

side and front panels.

Note: Make sure the storage divider is not
locked into place when collapsing.

172

GENERAL INFORMATION

WARNINGS

Extended idling at high engine
speeds can produce very high
temperatures in the engine and

exhaust system, creating the risk of fire or
other damage.

Do not park, idle or drive your vehicle
on dry grass or other dry ground
cover. The emission system heats up

the engine compartment and exhaust
system, creating the risk of fire.

Do not start the engine in a closed
garage or in other enclosed areas.
Exhaust fumes can be toxic. Always

open the garage door before you start the
engine.

If you smell exhaust fumes inside
your vehicle, have your vehicle
checked by your authorized dealer

immediately. Do not drive your vehicle if
you smell exhaust fumes.

If you disconnect the battery, your vehicle
may exhibit some unusual driving
characteristics for approximately 5 miles
(8 kilometers) after you reconnect it. This
is because the engine management system
must realign itself with the engine. You can
disregard any unusual driving
characteristics during this period.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

When you start the engine, avoid pressing
the accelerator pedal before and during
operation. Only use the accelerator pedal
when you have difficulty starting the
engine.

If your vehicle is operated in a heavy snow
storm or blowing snow conditions, the
engine air induction may become partially
clogged with snow and ice. If this occurs,
the engine may experience a significant
reduction in power output. At the earliest
opportunity, clear all the snow and ice
away from the air induction inlet.

IGNITION SWITCH

 (If Equipped)

C

D

B

A

E163165

A (off) - The ignition is off.

Note: When you switch the ignition off and
leave your vehicle, do not leave your key in
the ignition. This could cause your vehicle
battery to lose charge.

B (accessory) - Allows the electrical
accessories, such as the radio, to operate
while the engine is not running.

Note: Do not leave the ignition key in this
position for too long. This could cause your
vehicle battery to lose charge.

C (on) - All electrical circuits are
operational and the warning lamps and
indicators illuminate.

D (start) - Cranks the engine.

173

KEYLESS STARTING

 (If Equipped)

Note: The system may not function if the
passive key is close to metal objects or
electronic devices, for example keys or a cell
phone.

Note: A valid passive key must be located
inside your vehicle to switch the ignition on
and start your vehicle.

Note: A light on the button illuminates
when the ignition is on and when your
vehicle starts.

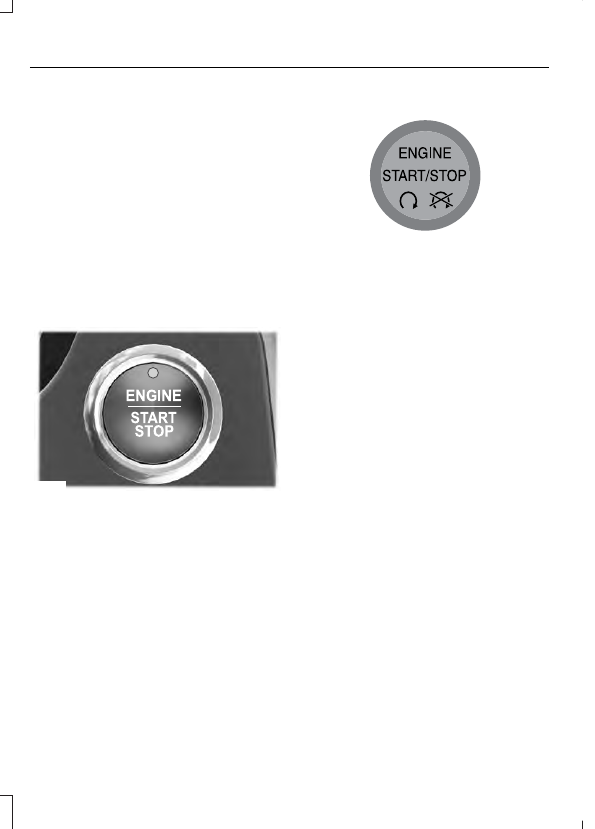

Switching the Ignition On

Type 1

E144447

Type 2

E146431

Press the push button ignition switch once
without your foot on the brake pedal. It is
on the instrument panel near the steering
wheel. All electrical circuits and
accessories are operational and the
warning lamps and indicators illuminate.

Press the push button ignition switch again
without your foot on the brake pedal to
switch the ignition off.

Starting Your Vehicle

1.

Shift into park (P).

2. Fully depress the brake pedal.

3. Briefly press the push button ignition

switch.

Note: Releasing the brake pedal during
engine starting stops the engine from
cranking.

STARTING A GASOLINE
ENGINE - 6.2L/6.8L

When you start the engine, the idle speed
increases.  This helps to warm up the
engine.

If the engine idle speed does not slow
down automatically, have your vehicle
checked by an authorized dealer.
