Ford Galaxy / Ford S-MAX. Manual - part 870

(Diagnosis and Testing).

P0460-15

Circuit of fuel level
indicator sensor faulty
(short to voltage or open
circuit).

REFER to: (310-00 Fuel System - General
Information)

Fuel System - 2.0L Duratec-HE (MI4)/2.3L
Duratec-HE (MI4)/2.5L Duratec (VI5)

(Diagnosis and Testing),

Fuel System - 1.8L Duratorq-TDCi (Lynx)
Diesel/2.0L Duratorq-TDCi (DW) Diesel

(Diagnosis and Testing).

B100A-11

Circuit of fuel pump relay
faulty (short to ground).

REFER to: (310-00 Fuel System - General
Information)

Fuel System - 2.0L Duratec-HE (MI4)/2.3L
Duratec-HE (MI4)/2.5L Duratec (VI5)

(Diagnosis and Testing),

Fuel System - 1.8L Duratorq-TDCi (Lynx)
Diesel/2.0L Duratorq-TDCi (DW) Diesel

(Diagnosis and Testing).

B100A-15

Circuit of fuel pump relay
faulty (short to voltage or
open circuit).

REFER to: (310-00 Fuel System - General
Information)

Fuel System - 2.0L Duratec-HE (MI4)/2.3L
Duratec-HE (MI4)/2.5L Duratec (VI5)

(Diagnosis and Testing),

Fuel System - 1.8L Duratorq-TDCi (Lynx)
Diesel/2.0L Duratorq-TDCi (DW) Diesel

(Diagnosis and Testing).

B10C0-11, B10C0-

Fuel pump circuits faulty. REFER to: (310-00 Fuel System - General

Information)

Fuel System - 2.0L Duratec-HE (MI4)/2.3L
Duratec-HE (MI4)/2.5L Duratec (VI5)

(Diagnosis and Testing),

Fuel System - 1.8L Duratorq-TDCi (Lynx)
Diesel/2.0L Duratorq-TDCi (DW) Diesel

(Diagnosis and Testing).

C1A56-93, C1A56-

16, C1A56-86

Circuits of front left tire
pressure warning sensor
faulty.

REFER to:

Wheels and Tires

(204-04 Wheels

and Tires, Diagnosis and Testing).

C1A58-93, C1A58-

16, C1A58-86

Circuits of front right tire
pressure warning sensor
faulty.

REFER to:

Wheels and Tires

(204-04 Wheels

and Tires, Diagnosis and Testing).

C1A62-93, C1A62-

16, C1A62-86

Circuits of rear right tire
pressure warning sensor
faulty.

REFER to:

Wheels and Tires

(204-04 Wheels

and Tires, Diagnosis and Testing).

C1A60-93, C1A60-

16, C1A60-86

Circuits of rear left tire
pressure warning sensor
faulty.

REFER to:

Wheels and Tires

(204-04 Wheels

and Tires, Diagnosis and Testing).

C1D21-05

Circuit of tire pressure
monitoring module faulty

REFER to:

Wheels and Tires

(204-04 Wheels

and Tires, Diagnosis and Testing).

B10EA-12

Circuit of electric booster
heater faulty (short to
voltage)

REFER to:

Climate Control System

(412-00

Climate Control System - General Information,
Diagnosis and Testing).

B10EA-14

Circuit of electric booster
heater faulty (short to
voltage or open circuit)

REFER to:

Climate Control System

(412-00

Climate Control System - General Information,
Diagnosis and Testing).

B1131-88

No communications
possible with the wiper
motor module.

REFER to:

Communications Network

(418-00

Module Communications Network, Diagnosis
and Testing).

U0155-00

No communication with
the electronic instrument
cluster.

REFER to:

Communications Network

(418-00

Module Communications Network, Diagnosis
and Testing).

Symptom Chart

Pinpoint test

U0129-00

No communication with
the anti-block brake
system module.

REFER to:

Communications Network

(418-00

Module Communications Network, Diagnosis
and Testing).

U0100-00

No communication with
the powertrain control
module (PCM).

REFER to:

Communications Network

(418-00

Module Communications Network, Diagnosis
and Testing).

B112B-88

No communications
possible with the steering
wheel module.

REFER to:

Communications Network

(418-00

Module Communications Network, Diagnosis
and Testing).

B112C-88

No communications
possible with the interior
monitoring sensor
module.

REFER to:

Communications Network

(418-00

Module Communications Network, Diagnosis
and Testing).

B1D17-88

No communications
possible with the anti-
theft alarm signal horn
with integrated battery.

REFER to:

Communications Network

(418-00

Module Communications Network, Diagnosis
and Testing).

U0231-00

No communications
possible with the rain
sensor/light sensor.

REFER to:

Communications Network

(418-00

Module Communications Network, Diagnosis
and Testing).

B1130-88

No communications
possible with the light
switch unit.

REFER to:

Communications Network

(418-00

Module Communications Network, Diagnosis
and Testing).

U0214-00

No communications
possible with the keyless
vehicle module.

REFER to:

Communications Network

(418-00

Module Communications Network, Diagnosis
and Testing).

U0104-00

No communications
possible with the collision
warning module.

REFER to:

Communications Network

(418-00

Module Communications Network, Diagnosis
and Testing).

U0003-00, U0001-

00, U0006-00

No communications
possible via the HS CAN
bus.

REFER to:

Communications Network

(418-00

Module Communications Network, Diagnosis
and Testing).

U0010-00, U0012-

00, U0015-00

No communications
possible via the MS CAN
bus.

REFER to:

Communications Network

(418-00

Module Communications Network, Diagnosis
and Testing).

Symptom

Possible Sources

Action

Generic electronic module (GEM)
not communicating with the
diagnostic unit.

Fuse(s).
Circuit(s).
Generic

electronic
module (GEM).

*
*
*

REFER to:

Communications Network

(418-00 Module Communications
Network, Diagnosis and Testing).

Voltage supply (term. 30) faulty.

Fuse(s).
Circuit(s).
Generic

electronic
module (GEM).

*
*
*

GO to Pinpoint Test

PINPOINT TEST A : VOLTAGE SUPPLY (TERM. 30) FAULTY.

CAUTION: Before replacing the GEM in the event of a GEM malfunction, PERFORM a

"hardware reset" after WORKING THROUGH the relevant DTC. To do this, disconnect
connector C1BP02-G from the GEM and reconnect it. CHECK the operation of the system.
If the malfunction persists, make sure that the latest release of the software is loaded in
the Ford approved diagnostic tool and that the correct variant of the GEM is installed.
CONFIGURE the GEM again using the Ford approved diagnostic tool. If the fault occurs

again, RENEW THE GEM.

TEST CONDITIONS

DETAILS/RESULTS/ACTIONS

A1: CHECK FUSE F17

Ignition switch in position 0.

CHECK Fuse F17 (EJB).

Is the fuse OK?
Yes

GO to A2

RENEW fuse F17 (60 A). CHECK the operation of
the system. If the fuse blows again, LOCATE and
REPAIR the short using the Wiring Diagrams.

A2: CHECK THE VOLTAGE AT FUSE F17

Connect Fuse F17 (EJB).

Measure the voltage between fuse F17 (60 A)
and ground.

Does the meter display battery voltage?
Yes

GO to A3

REPAIR the voltage supply to fuse F17 with the
aid of the Wiring Diagrams. CHECK the operation
of the system.

A3: CHECK FUSE F18

CHECK Fuse F18 (EJB).

Is the fuse OK?
Yes

GO to A4

RENEW fuse F18 (60 A). CHECK the operation of
the system. If the fuse blows again, LOCATE and
REPAIR the short using the Wiring Diagrams.

A4: CHECK THE VOLTAGE AT FUSE F18

Connect Fuse F18 (EJB).

Measure the voltage between fuse F18 (60 A)
and ground.

Does the meter display battery voltage?
Yes

GO to A5

REPAIR the voltage supply to fuse F18 with the
aid of the Wiring Diagrams. CHECK the operation
of the system.

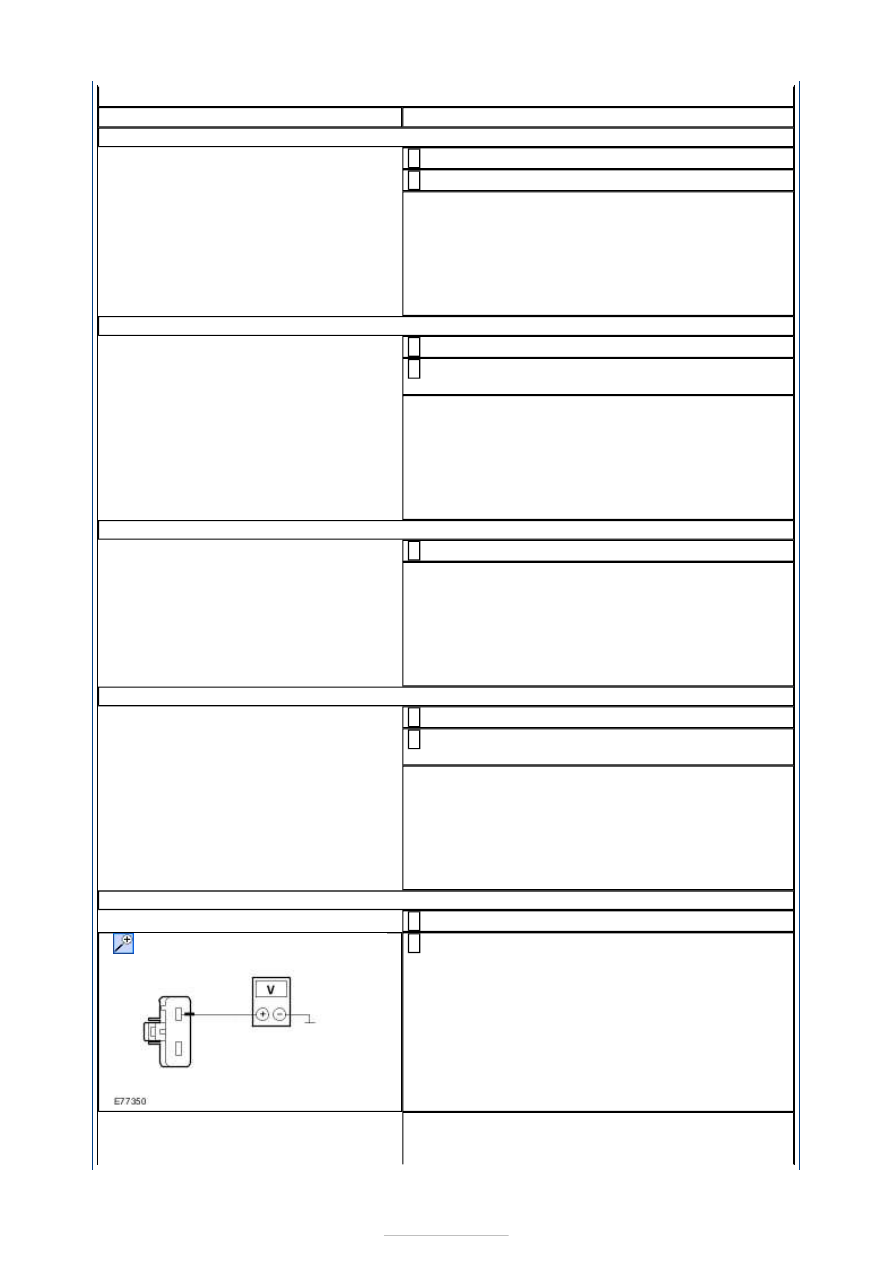

A5: CHECK THE VOLTAGE AT THE GEM

Disconnect Connector C1BP02-G from the GEM.

Measure the voltage between the GEM,
connector C1BP02-G, pin 1, circuit SBB17A (RD),

wiring harness side and ground.

Does the meter display battery voltage?
Yes

GO to A6

LOCATE and REPAIR the break in the circuit
between the GEM and fuse F17 with the aid of
the Wiring Diagrams. CHECK the operation of the
system.

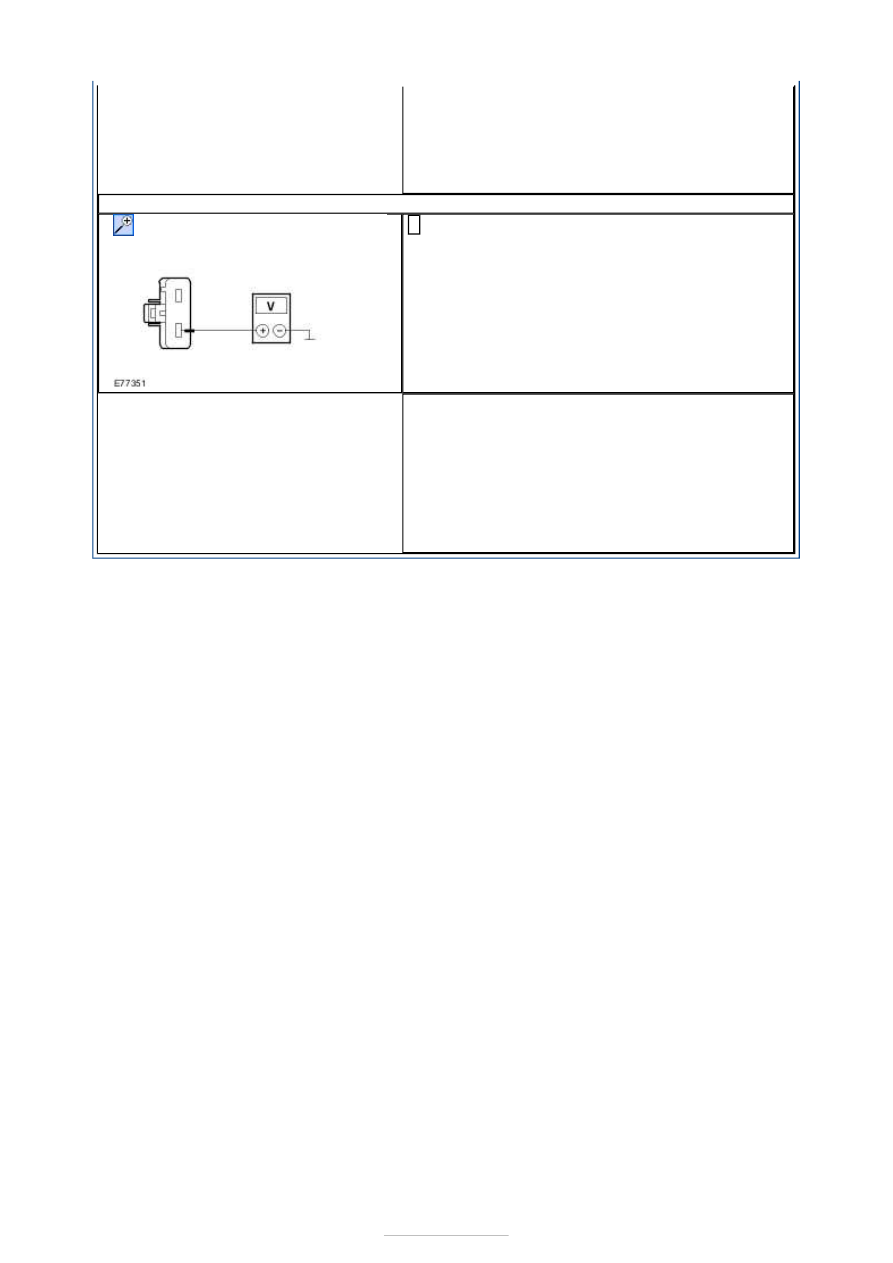

A6: CHECK THE VOLTAGE AT THE GEM

Measure the voltage between the GEM,
connector C1BP02-G, pin 2, circuit SBB18A (YE),

wiring harness side and ground.

Does the meter display battery voltage?
Yes

TEST the GEM and RENEW as necessary. CHECK
the operation of the system.

LOCATE and REPAIR the break in the circuit
between the GEM and fuse F18 with the aid of
the Wiring Diagrams. CHECK the operation of the
system.
