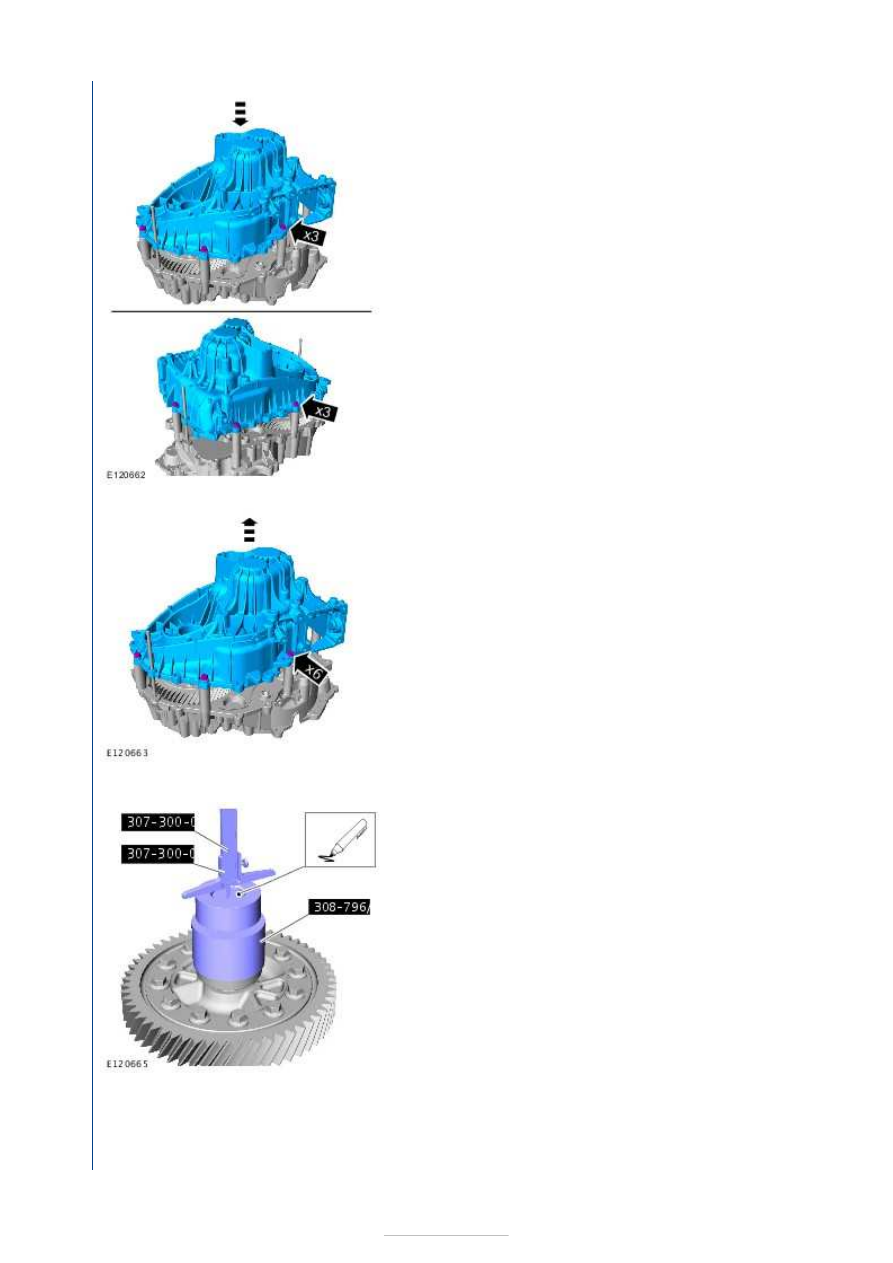

24.

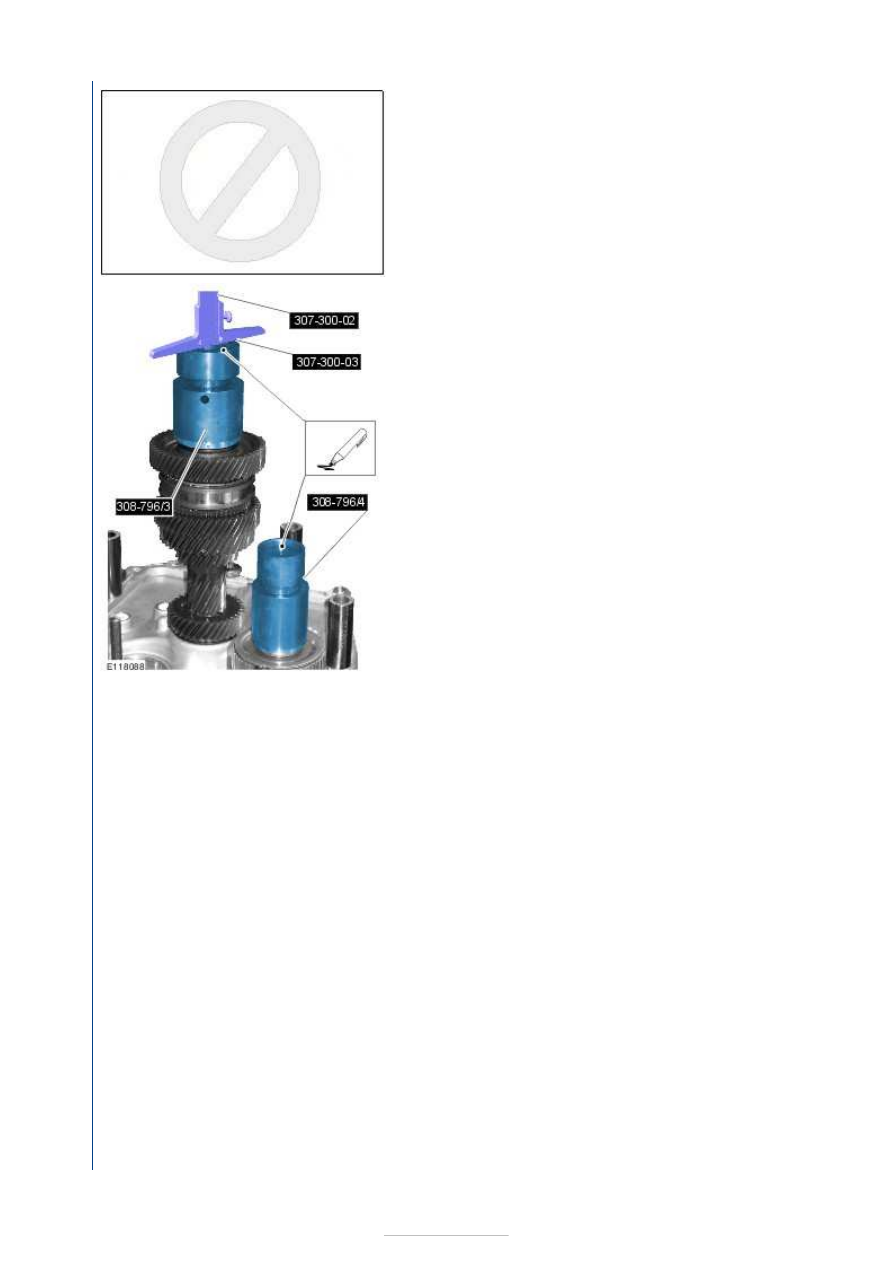

Only press lightly on the special tool to avoid incorrect
readings.
Special Tool(s):
307-300-02
,
307-300-03
Record the measurement results.

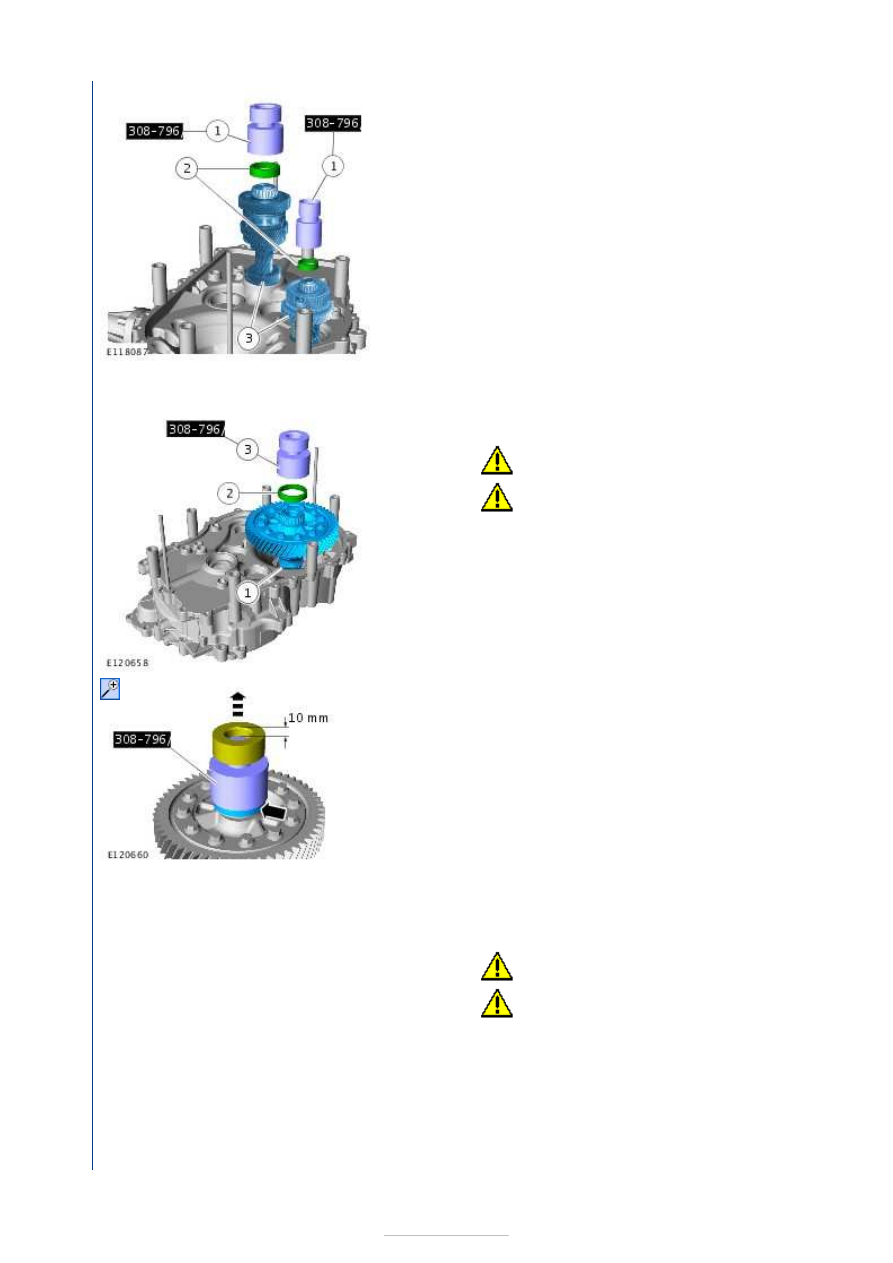

Special Tool(s):
308-796
25.
Measure the required thickness of the input shaft
adjustment shim:
Add the measured values, divide by three and then add
the value for the bearing pre-load.
Input shaft bearing pre-load: 0.03 mm.
Example: 1.10 mm + 1.12 mm + 1.14 mm, divided by 3
= 1.12 mm. 1.12 mm + 0.03 mm = 1.15 mm.
Determined shim thickness: 1.15 mm.
If the calculated shim thickness is an odd number, select
the shim with the next higher number.

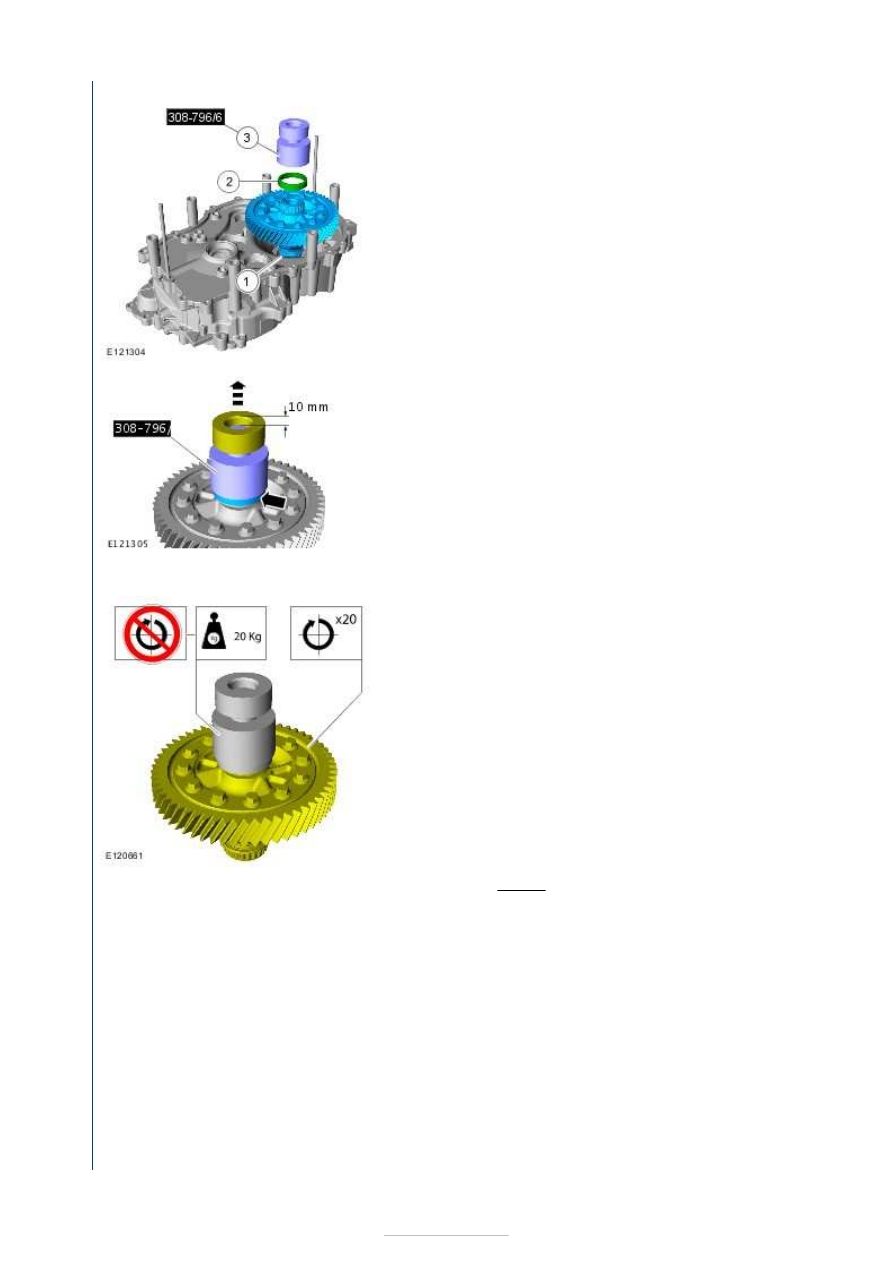

26.
Measure the required thickness of the reverse gear
output shaft adjustment shim:
Add the measured values, divide by three and then add
the value for the bearing pre-load.
Reverse gear output shaft bearing pre-load: 0.11 mm.
Example: 1.40 mm + 1.40 mm + 1.40 mm, divided by 3
= 1.40 mm. 1.40 mm + 0.11 mm = 1.51 mm.
Determined shim thickness: 1.51 mm.
If the calculated shim thickness is an odd number, select
the shim with the next higher number.
27. Remove the following items:
1. Special Tool(s):
308-796
2.
3.
