Ford Ranger EV (2001 year). Manual - part 245

2001 RANGER ELECTRIC VEHICLE

61-9

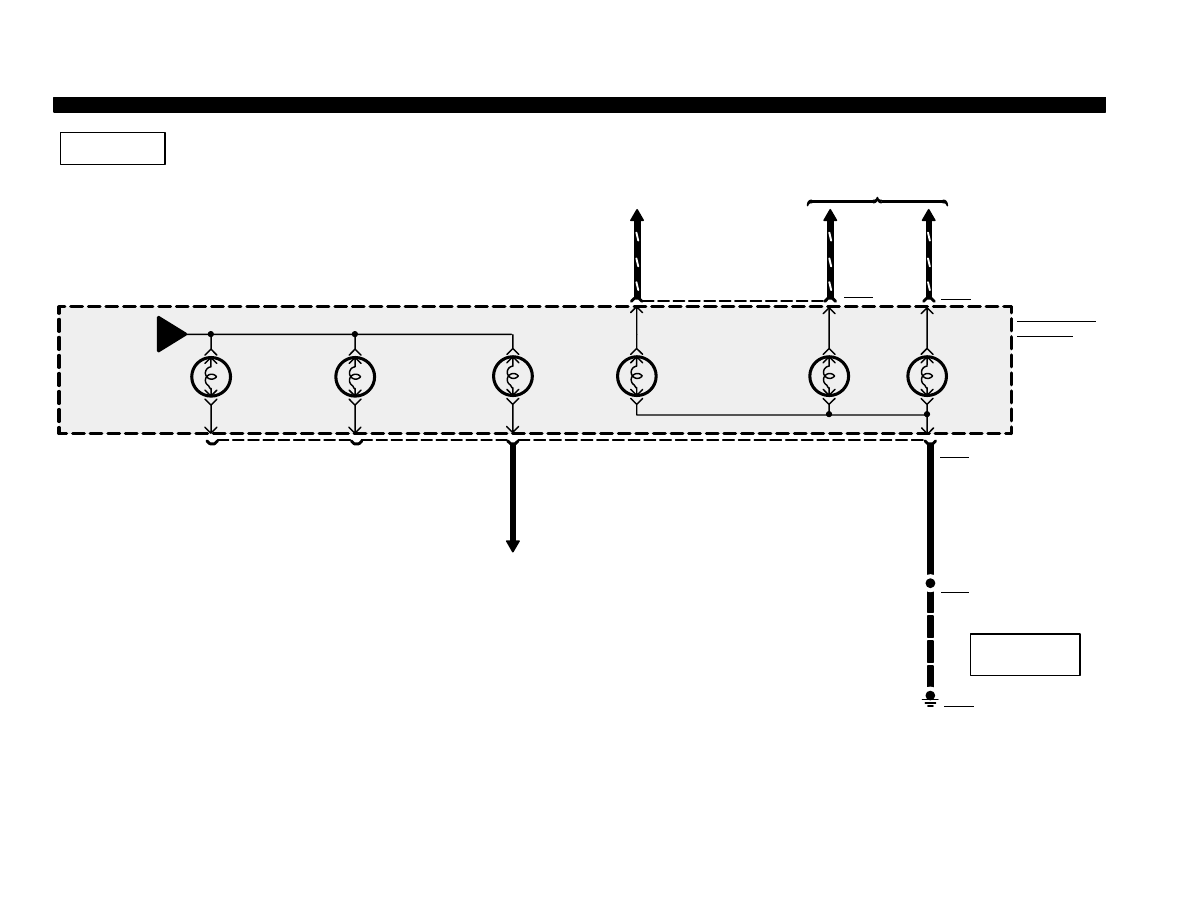

INSTRUMENT CLUSTER

L

632

GY/OG

FROM

INSTRUMENT

CLUSTER

PAGE 61Ć8

AIR BAG

INDICATOR

SAFETY BELT

INDICATOR

ABS

INDICATOR

HI BEAM

INDICATOR

LEFT

TURN

SIGNAL

RIGHT

TURN

SIGNAL

3

LG/WH

2

WH/LB

INSTRUMENT

CLUSTER

TURN/STOP/

HAZARD LAMPS

PAGE 90Ć6

3

10

6

1

5

8

ANTIĆLOCK

BRAKES

PAGE 42Ć2

57

BK

S244

G200

SEE GROUNDS

PAGE 10Ć16

603

DG

0V

C216

C216

C214

57

BK

2

POSTAL

HEADLAMPS

PAGE 85Ć2

(NOT USED)

(NOT USED)

2001 RANGER ELECTRIC VEHICLE

61-10

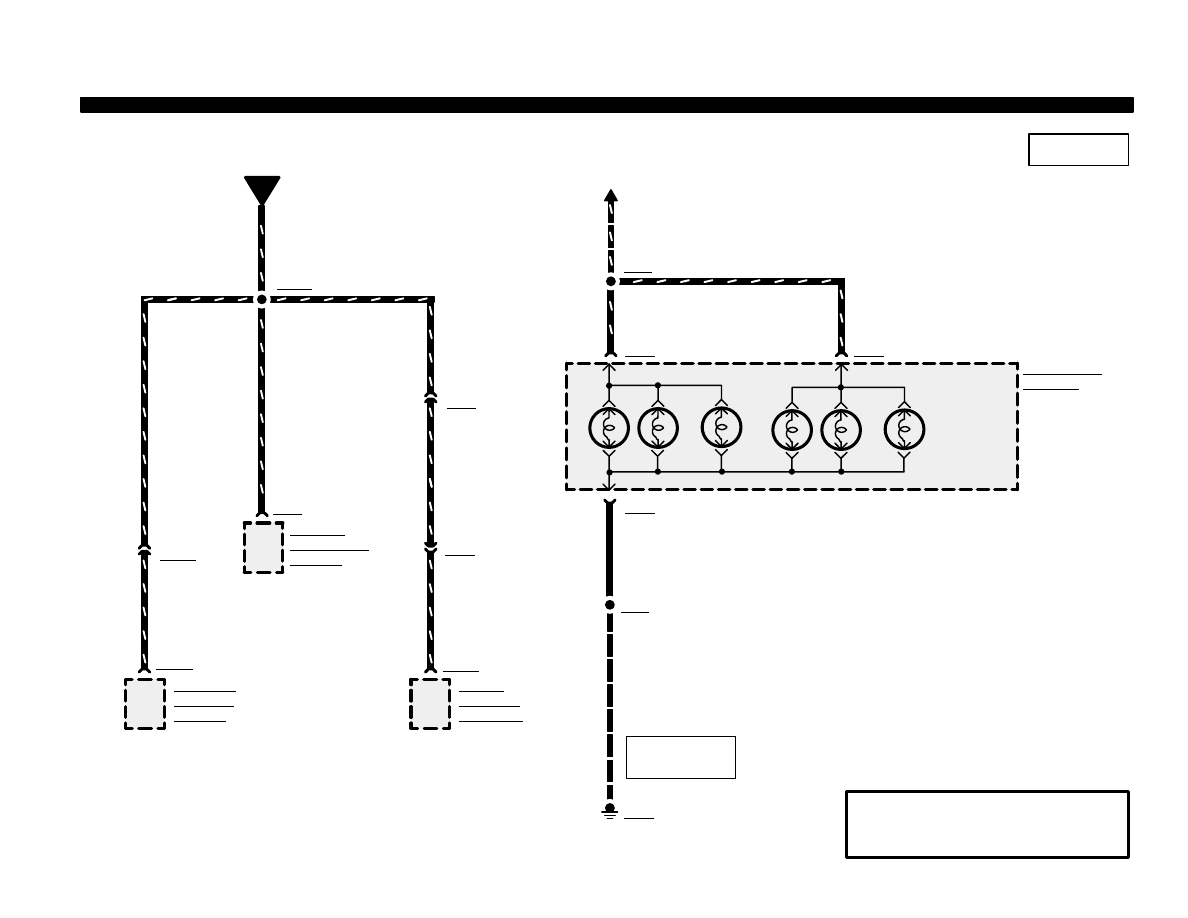

INSTRUMENT CLUSTER

INSTRUMENT

CLUSTER

INSTRUMENT

ILLUMINATION

G200

S244

INSTRUMENT

ILLUMINATION

PAGE 71Ć5

SEE GROUNDS

PAGE 10Ć16

Refer to Location Index, Cell 152, for

Component, Connector, Splice and

Ground descriptions and locations.

J

FROM C214

PAGE 61Ć7

GENERIC

ELECTRONIC

MODULE (GEM)

PAGE 59Ć4

14

POWER

STEERING

ASSEMBLY

PAGE 43Ć1

15

TRACTION

INVERTER

MODULE (TIM)

7

19

LB/RD

C214

19

LB/RD

19

LB/RD

C215

S208

6

3

16

C214

0V

57

BK

C1992

C4998

C221

S2991

C135

C124

C3999

679

GY/BK

679

GY/BK

679

GY/BK

679

GY/BK

679

GY/BK

679

GY/BK

679

GY/BK

57

BK

POSTAL

2001 RANGER ELECTRIC VEHICLE

71-1

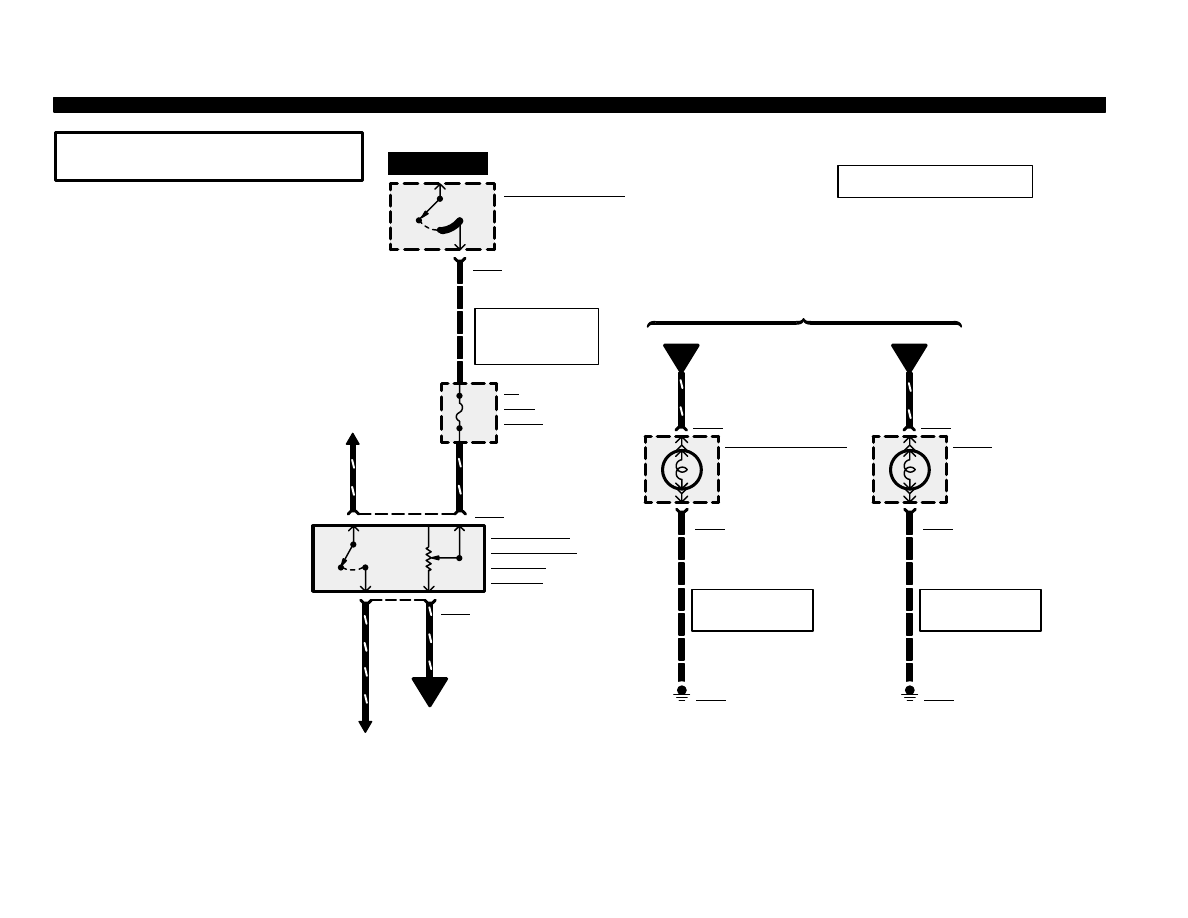

INSTRUMENT ILLUMINATION

G103

B

5

OFF

For diagnostic information, refer to

Section 413Ć00 of the Workshop Manual.

12V (PARK

OR HEAD)

HOT AT ALL TIMES

0V

MAIN LIGHT SWITCH

PAGE 13Ć13

SEE PAGE 149Ć1 FOR

SWITCH TESTING

7

7.5A

I/P

FUSE

PANEL

PAGE 13Ć14

SEE POWER

DISTRIBUTION

PAGES 13Ć13, 13Ć14

PARK

HEAD

C205

14

BN

DOME

1

3

4

2

A

705

LG/OG

COURTESY

LAMPS

PAGE 89Ć1

COURTESY

LAMPS

PAGE 89Ć1

1011

TN/OG

C204

55

BK/PK

19

LB/RD

C204

TO S208

PAGE 71Ć2

INSTRUMENT

ILLUMINATION

DIMMING

MODULE

C205

C205

MAIN LIGHT SWITCH

PAGE 13Ć13

SEE PAGE 149Ć1 FOR

SWITCH TESTING

57

BK

SEE GROUNDS

PAGES 10Ć8, 10Ć4

G103

C

0V

C228

C228

RADIO

PAGE 130Ć1

57

BK

SEE GROUNDS

PAGES 10Ć3, 10Ć4

TO S208

PAGE 71Ć2

19

LB/RD

19

LB/RD

9

7

1

2

3

EXCEPT POSTAL

2001 RANGER ELECTRIC VEHICLE

71-2

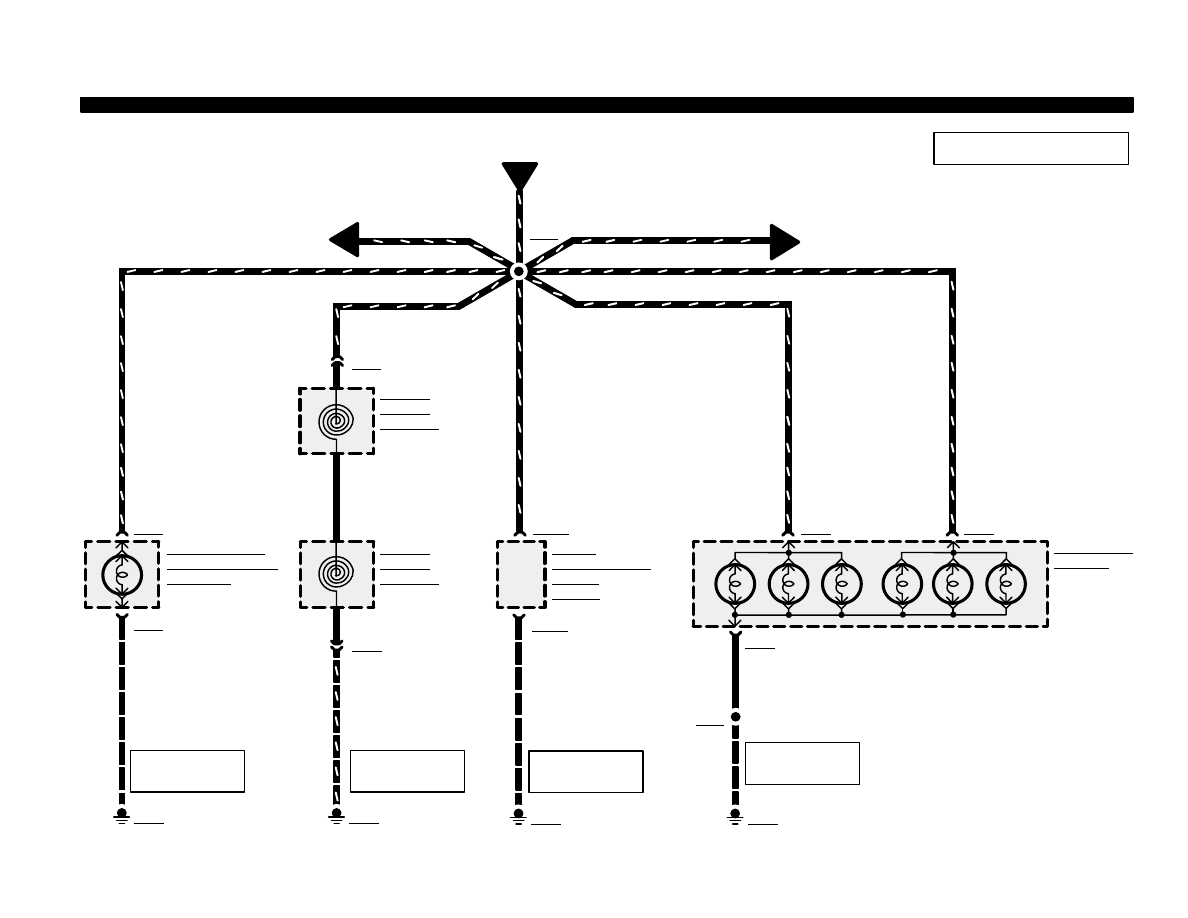

INSTRUMENT ILLUMINATION

G101

A

0V

HEATER OR A/CĆ

HEATER CONTROL

ASSEMBLY

PAGES 53Ć4, 54Ć4

AIR BAG

SLIDING

CONTACT

FRESH/

RECIRCULATION

SELECT

SWITCH

PAGES 53Ć4, 54Ć4

FROM C204

PAGE 71Ć1

B

C

TO C205

PAGE 71Ć1

TO C228

PAGE 71Ć1

19

LB/RD

19

LB/RD

19

LB/RD

19

LB/RD

6

3

16

C219

19

LB/RD

S214

C233

C2998

C214

C215

C219

SEE GROUNDS

PAGES 10Ć1, 10Ć2

SEE GROUNDS

PAGES 10Ć3, 10Ć4

G103

57

BK

570

BK/WH

C233

AIR BAG

SLIDING

CONTACT

SEE GROUNDS

PAGES 10Ć4, 10Ć5

G103

BK

C2998

57

INSTRUMENT

CLUSTER

PAGE 61Ć5

SEE GROUNDS

PAGES 10Ć4, 10Ć5

BK

C214

57

0V

S208

G103

19

LB/RD

2

3

EXCEPT POSTAL

19

LB/RD

19

LB/RD
