2001 RANGER ELECTRIC VEHICLE
21-1

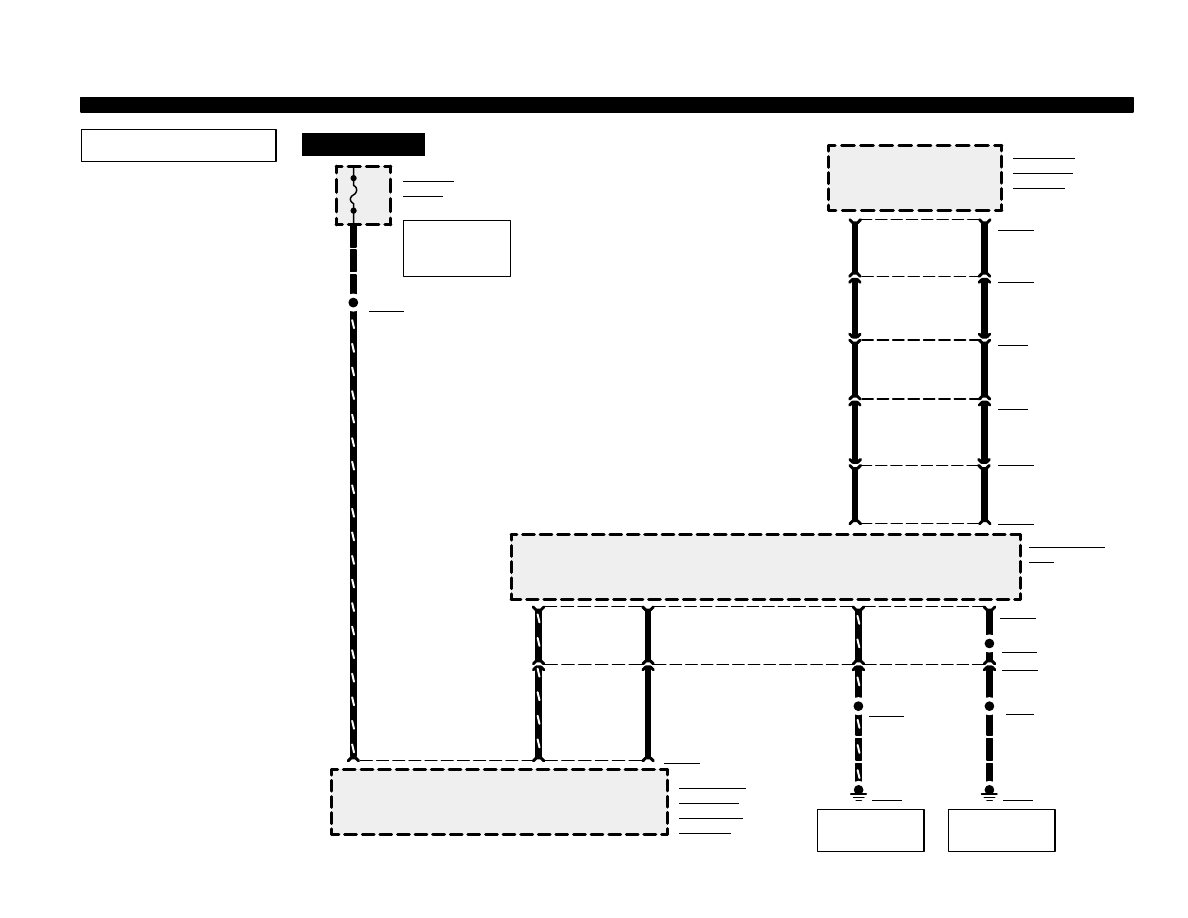

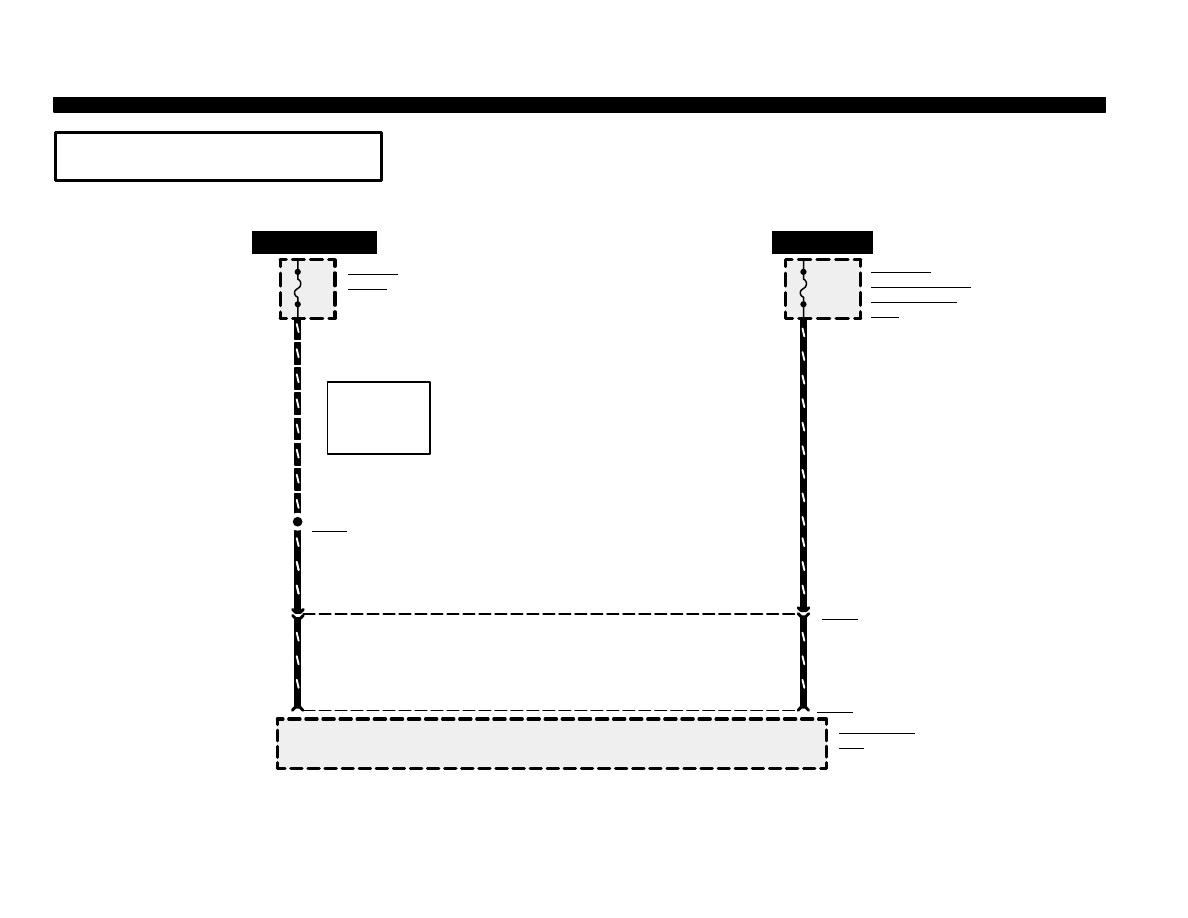

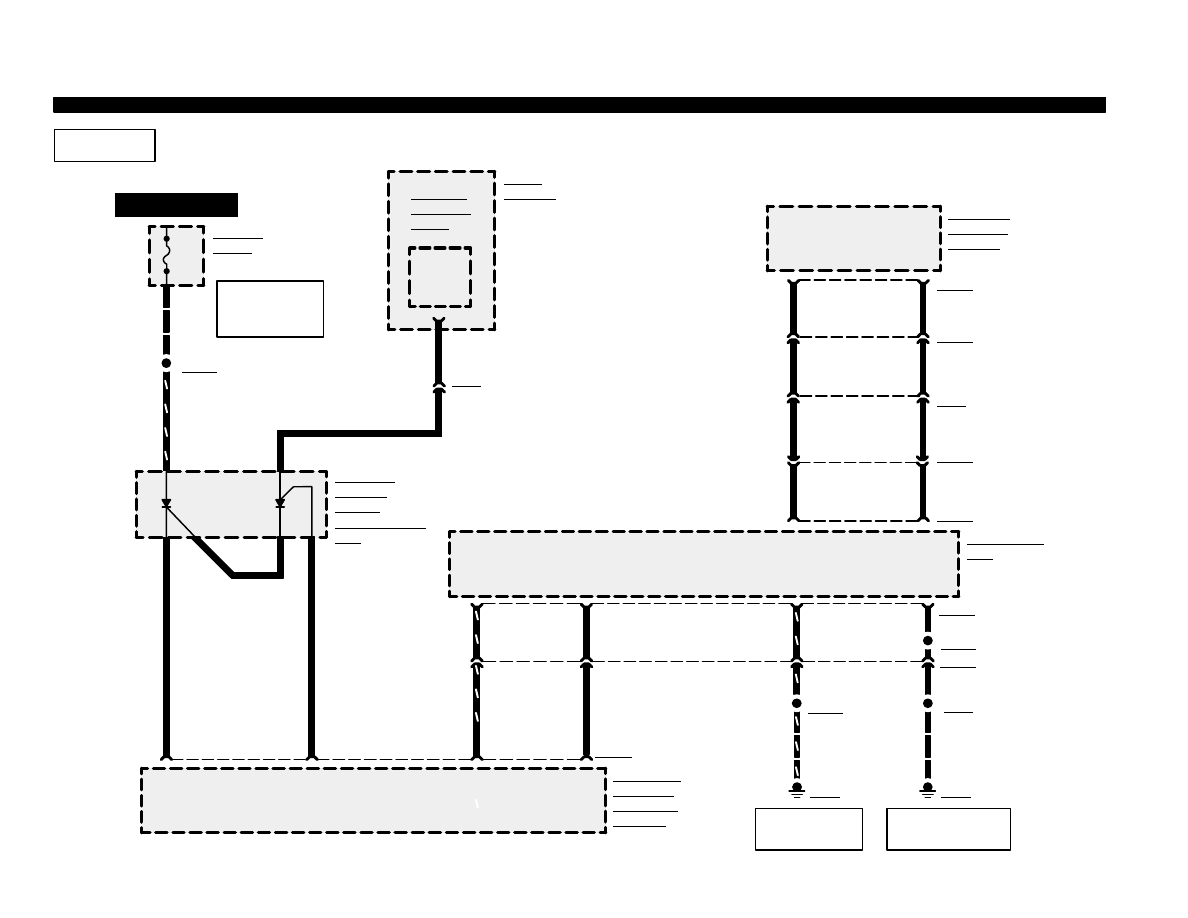

CONTACTOR BOX RELAY CONTROL
19
15A
For diagnostic information, refer to Section
418Ć06 of the Workshop Manual.
HOT IN START OR RUN
S1959
295
LB/PK
295
LB/PK
13
17
22
10A
HOT AT ALL TIMES
190
WH/OG
190
WH/OG
12V (START OR RUN)
12V
C1939
C1982
I/P FUSE
PANEL
PAGES 13Ć10,
13Ć25
ELECTRIC
VEHICLE POWER
DISTRIBUTION
BOX (EVPDB)
PAGES 13Ć3, 13Ć18
CONTACTOR
BOX
PAGE 16Ć11
SEE POWER
DISTRIBUTION
PAGES 13Ć10,
13Ć25, 13Ć26
