Ford Ranger EV (2001 year). Manual - part 196

414-03B-180

High Voltage/Traction Battery — Nickel Metal Hydride

DISASSEMBLY AND ASSEMBLY (Continued)

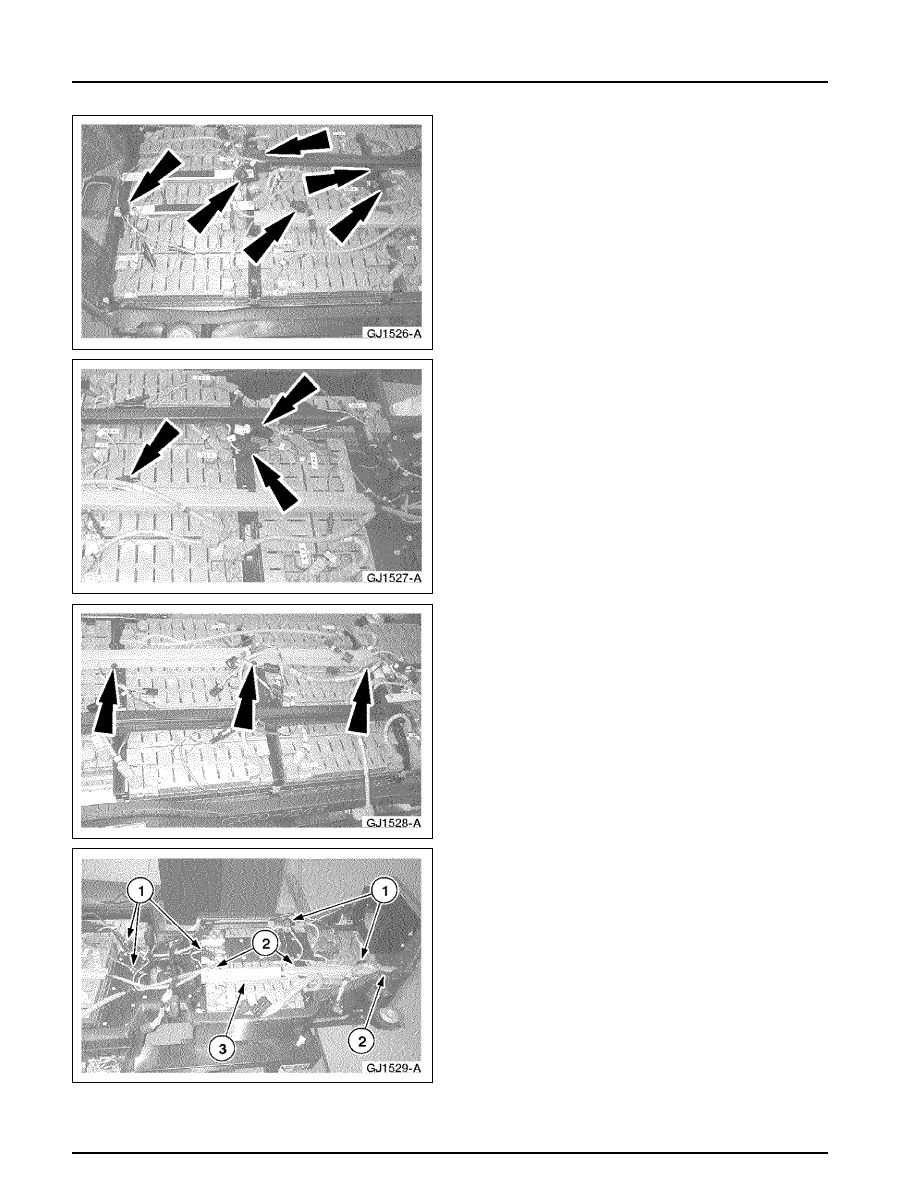

17. Disconnect the sense leads.

18. Disconnect the sense leads and unclip the relay.

19. Remove the high-voltage harness push pins.

20. Remove the high voltage harness.

1 Disconnect the sense leads.
2 Remove the push pins.
3 Remove the harness.

414-03B-181

High Voltage/Traction Battery — Nickel Metal Hydride

DISASSEMBLY AND ASSEMBLY (Continued)

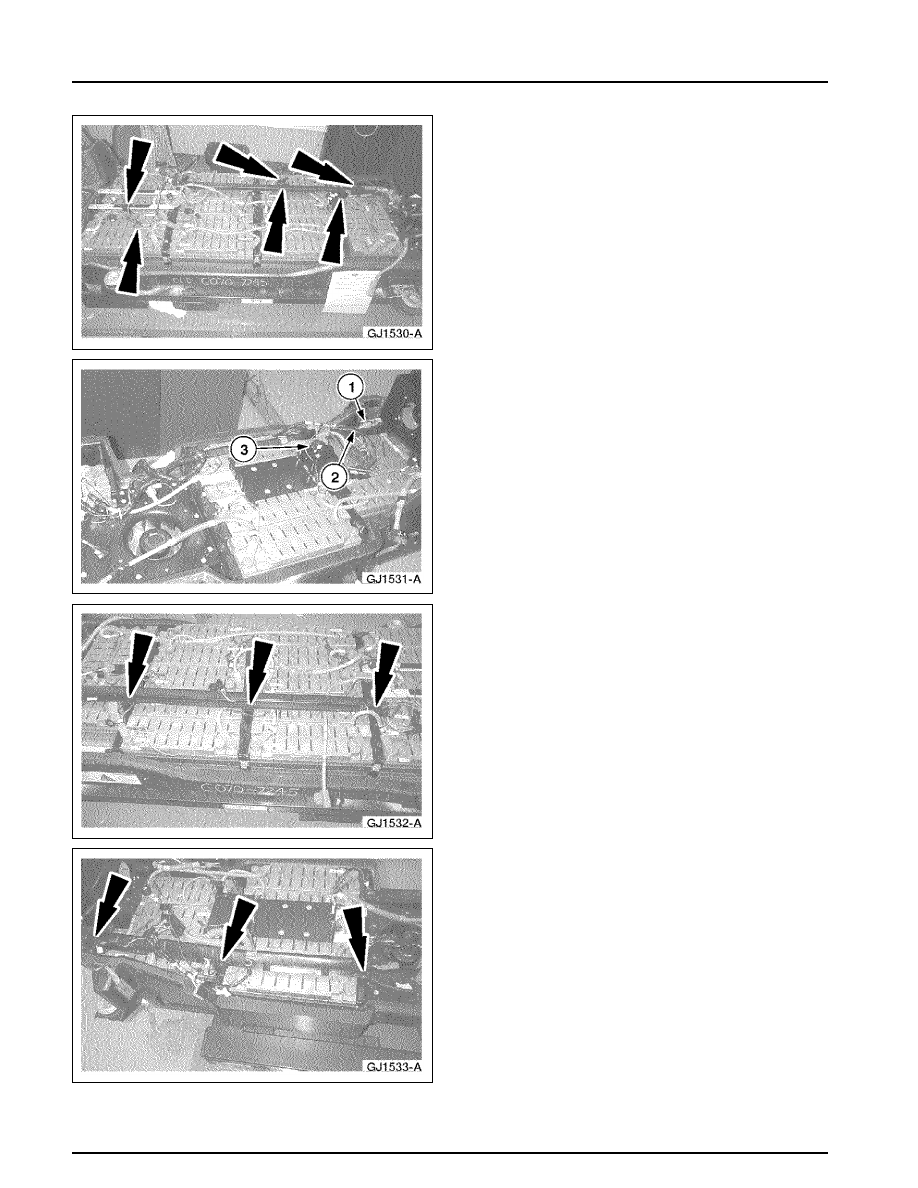

21. Disconnect the thermistor electrical connectors

and unclip the relay.

22. Disconnect the low-voltage harness.

1 Disconnect the blower electrical connectors.
2 Disconnect the thermistor electrical

connectors.

3 Unclip the relay.

23. Remove the low-voltage harness push pins.

24. Remove the low-voltage harness push pins and

remove the harness.

414-03B-182

High Voltage/Traction Battery — Nickel Metal Hydride

DISASSEMBLY AND ASSEMBLY (Continued)

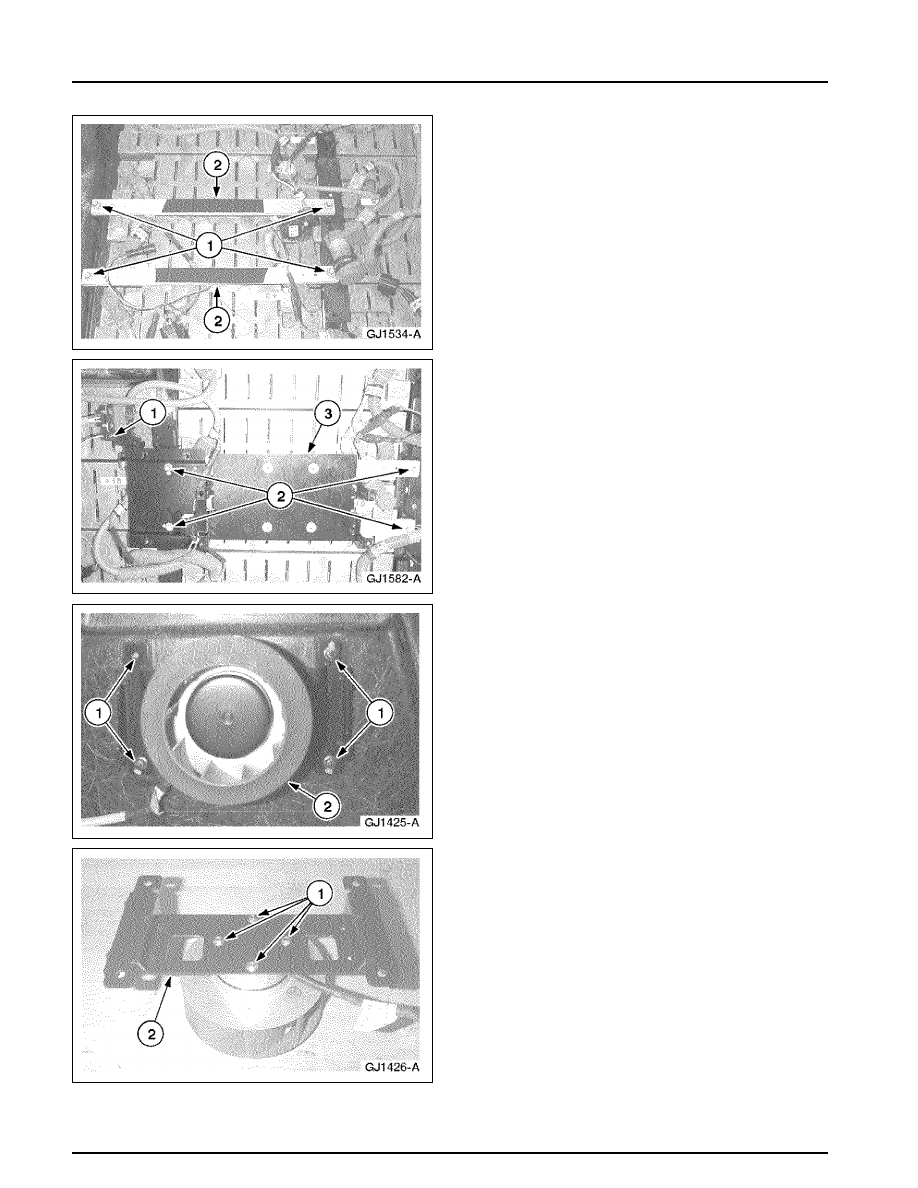

25. Remove the composite bars.

1 Remove the bolts.
2 Remove the bars.

26. Remove the BCM/IOM mounting bracket.

1 Remove the 4-pin auxiliary mounting bolt.
2 Remove the bolts.
3 Remove the bracket.

27. Remove the flow through blower.

1 Remove the nuts.
2 Remove the blower.

28. Remove the flow through blower bracket.

1 Remove the bolts.
2 Remove the bracket.

414-03B-183

High Voltage/Traction Battery — Nickel Metal Hydride

DISASSEMBLY AND ASSEMBLY (Continued)

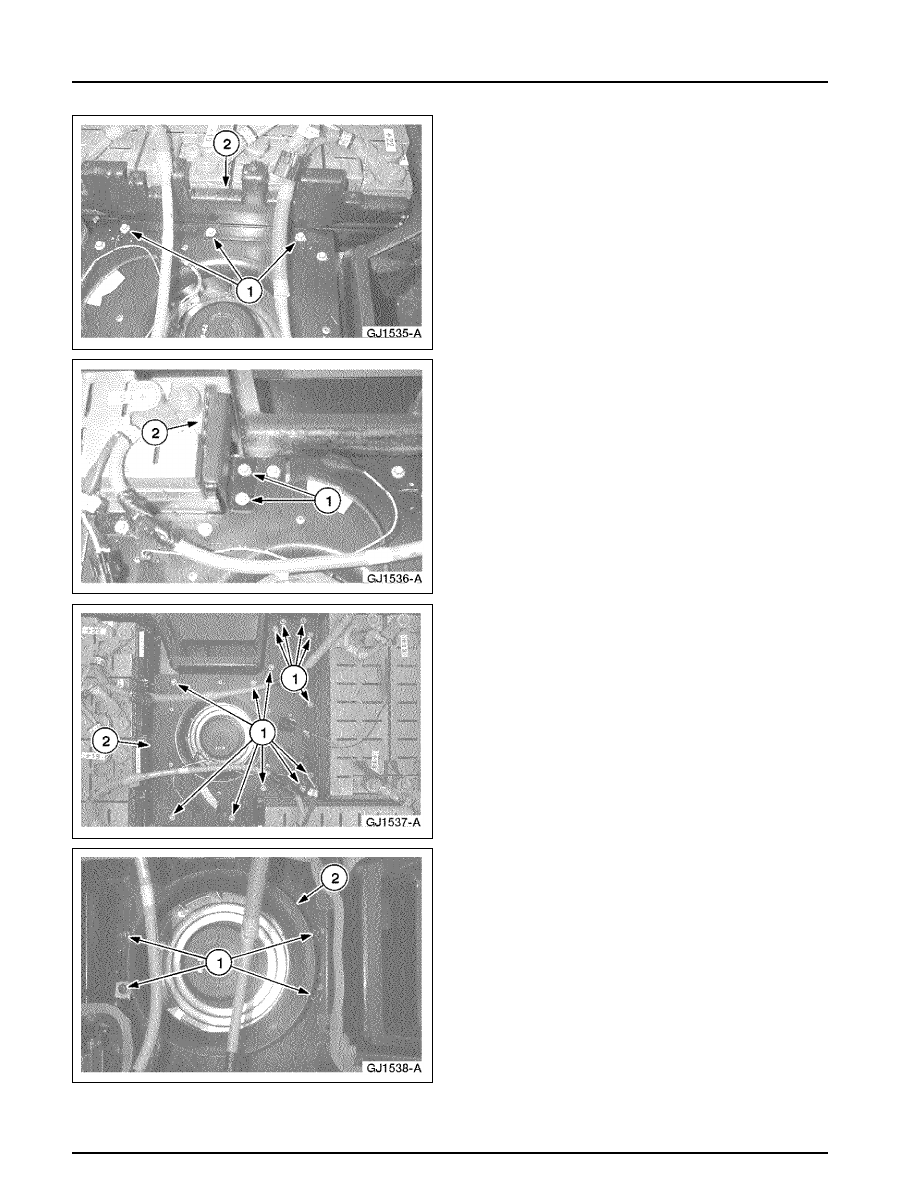

29. Remove the battery hold down.

1 Remove the bolts.
2 Remove the hold down.

30. Remove the battery hold down.

1 Remove the bolts.
2 Remove the hold down.

31. Remove the recirculating blower cover.

1 Remove the bolts.
2 Remove the cover.

32. NOTE: The ‘‘P’’ clip that retains the blower

harness is located on one of the drivers side
blower mounting nuts. Note the location for
installation.
Remove the recirculating blower.
1 Remove the nuts.
2 Remove the blower.
