Ford Ranger EV (2001 year). Manual - part 172

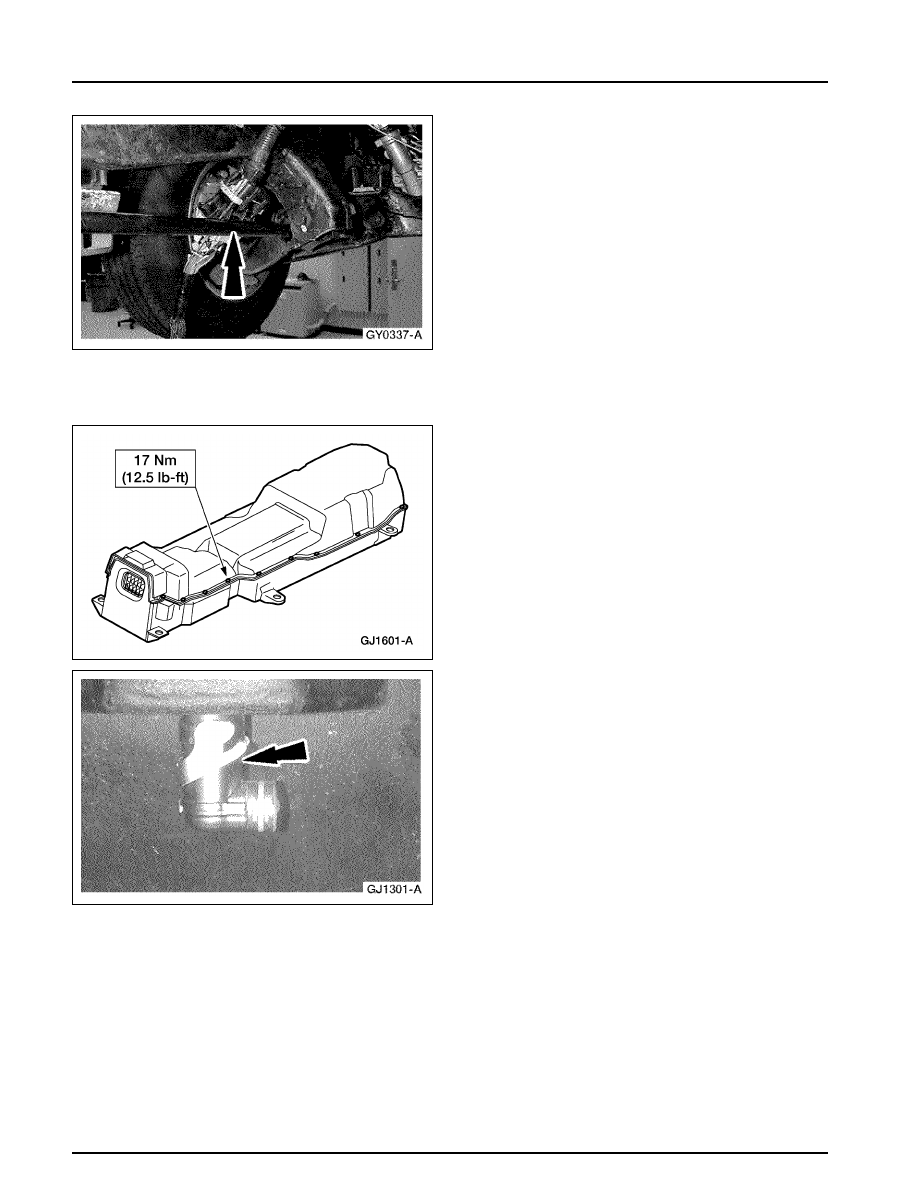

414-03B-84

High Voltage/Traction Battery — Nickel Metal Hydride

GENERAL PROCEDURES (Continued)

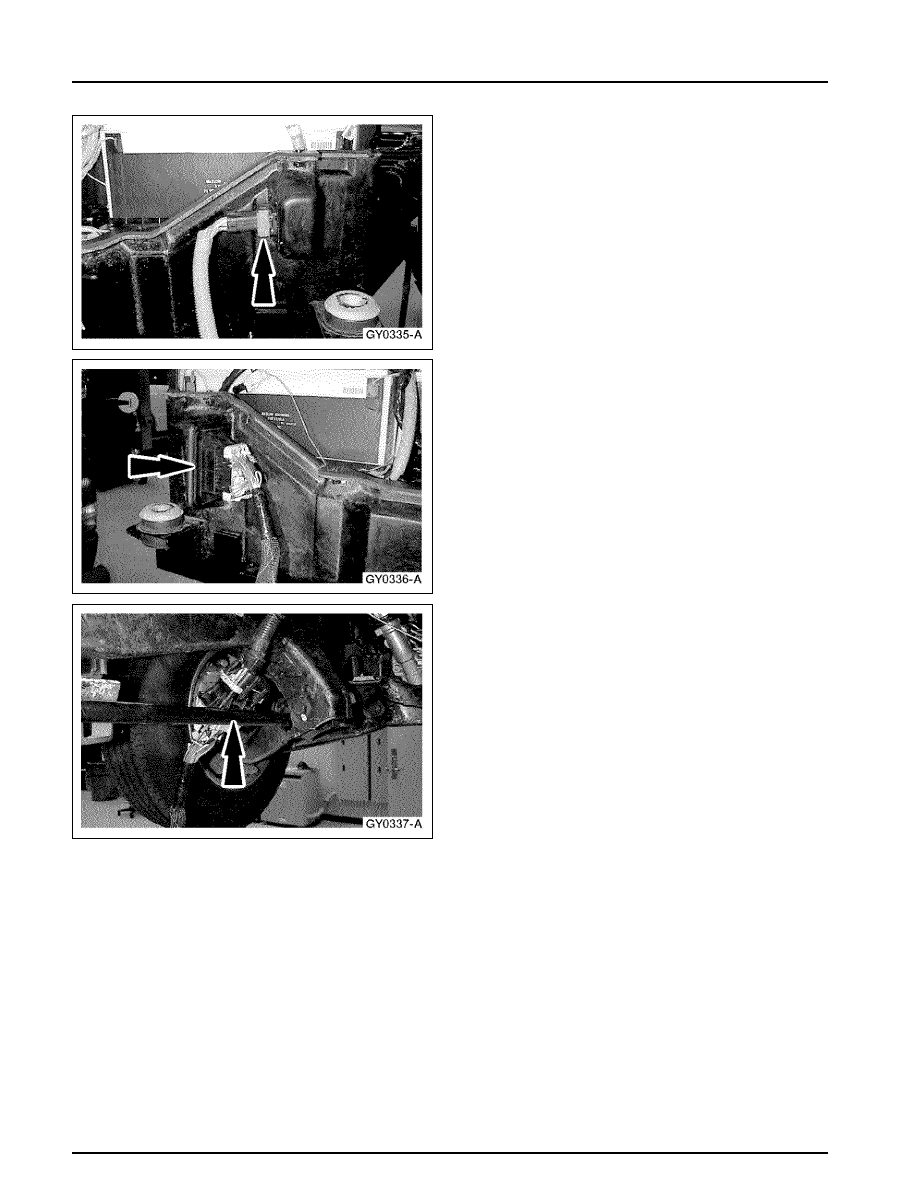

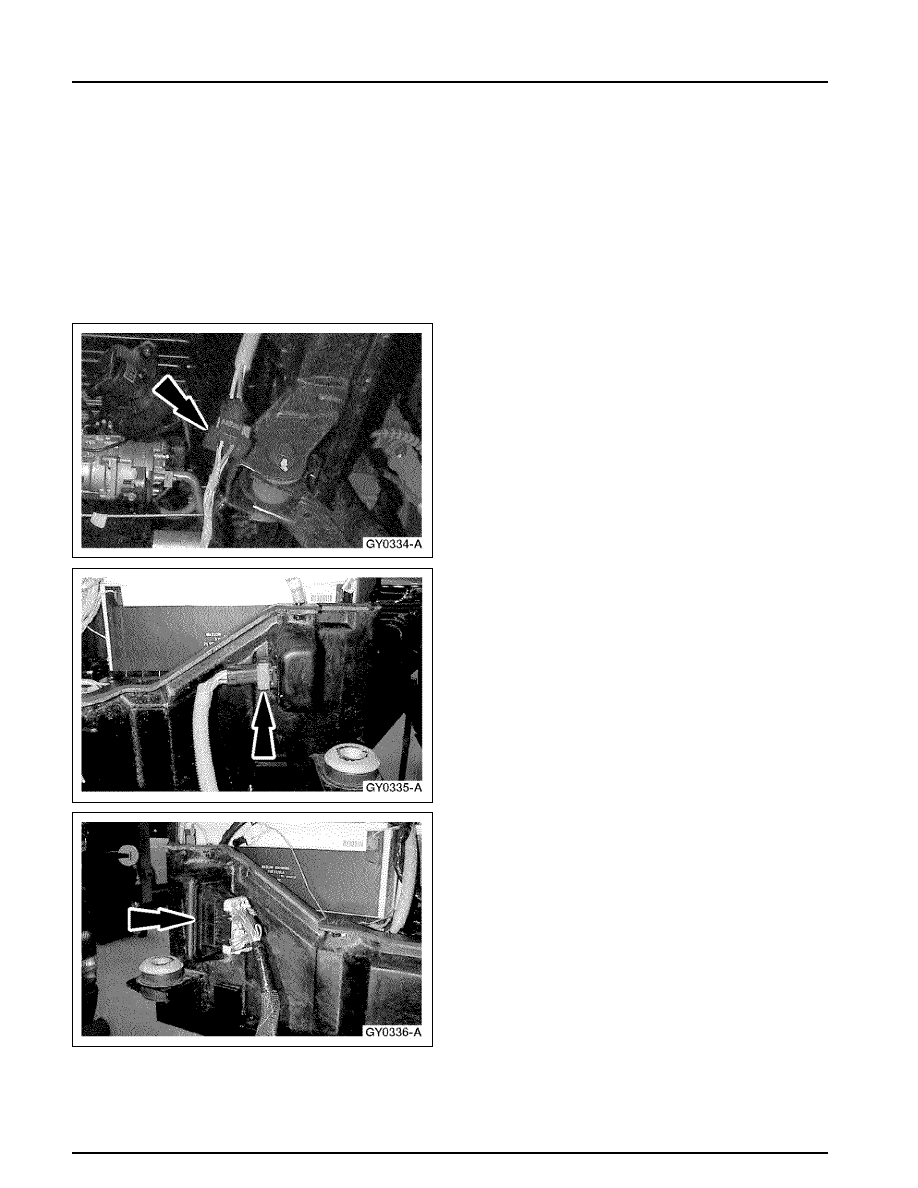

13. Connect the Traction Battery High-Voltage

Service Cord to the traction battery auxiliary
load high-voltage connector on the traction
battery.

14. Connect the Traction Battery Low-Voltage

Service Cord to the 76-pin low-voltage
connector on the traction battery.

•

Loosely install the bolt.

15. Connect the Traction Battery Low-Voltage

Service Cord to the 76-pin low-voltage
connector on the vehicle.

•

Loosely install the bolt.

16. Charge the traction battery to a full state of

charge (SOC). Refer to

Section 100-05

414-03B-85

High Voltage/Traction Battery — Nickel Metal Hydride

GENERAL PROCEDURES (Continued)

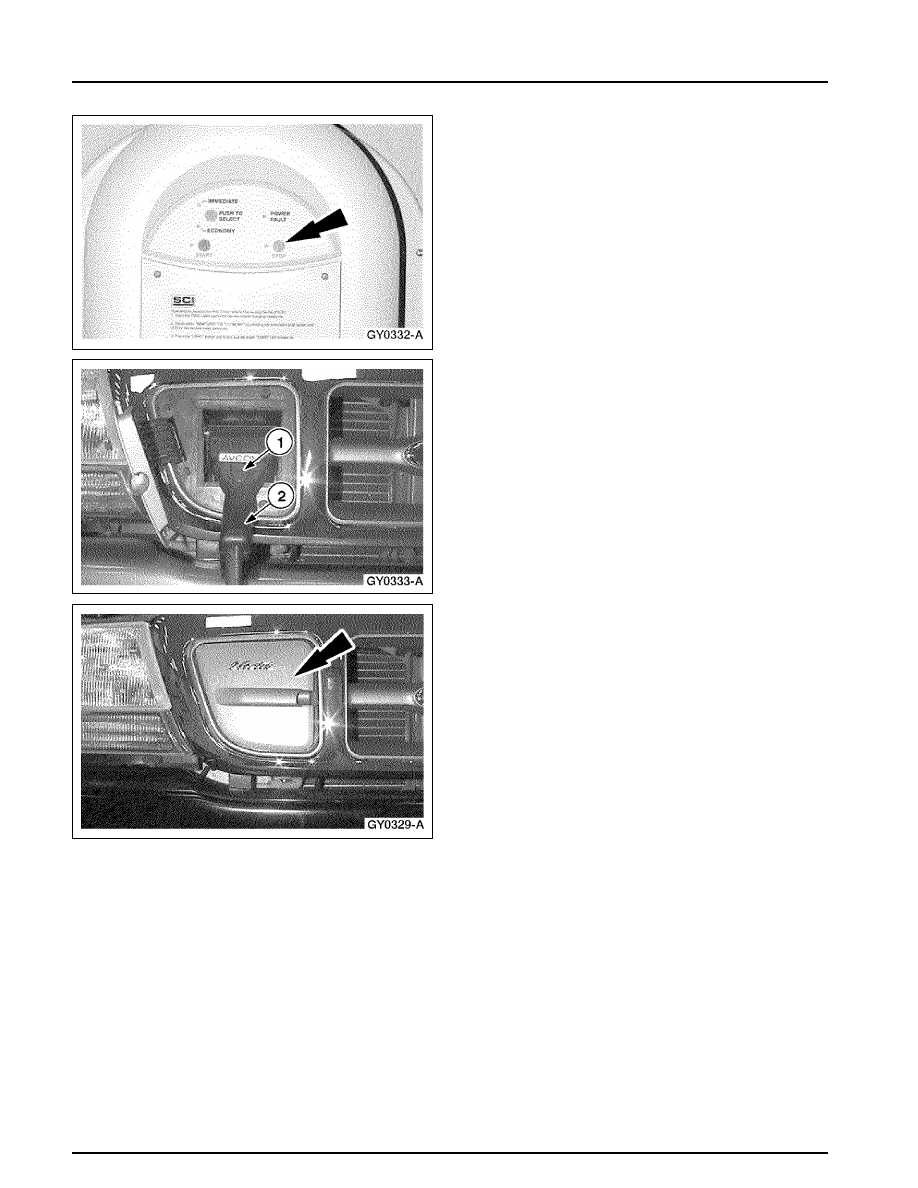

17. After charging has been completed, press the

button to deactivate the power control station
(PCS).

18. Disconnect the PCS from the charger inlet

connector.
1 Press and hold the release button.
2 Lift and disconnect the PCS from the

charger inlet connector.

19. Close the charge inlet access door.

20. Enter the indicated data on the Dealer Battery

Return Form that is packaged with the new
battery module.

21. Remove the In-Line Bypass Battery Module(s)

and replace it with a freshly charged battery
module(s). Assembly the traction battery. Check
the specific battery module number procedure
for specific removal information. The battery
modules are grouped as follows: 2-6; 1, 7, 8,
9, 25; 10, 11, 12, 23, 24; 13-15; 16, 19, 20, 22;
and 17, 18, 21. Refer to the specific Traction
Battery Module procedure.
