Ford Ranger EV (2001 year). Manual - part 87

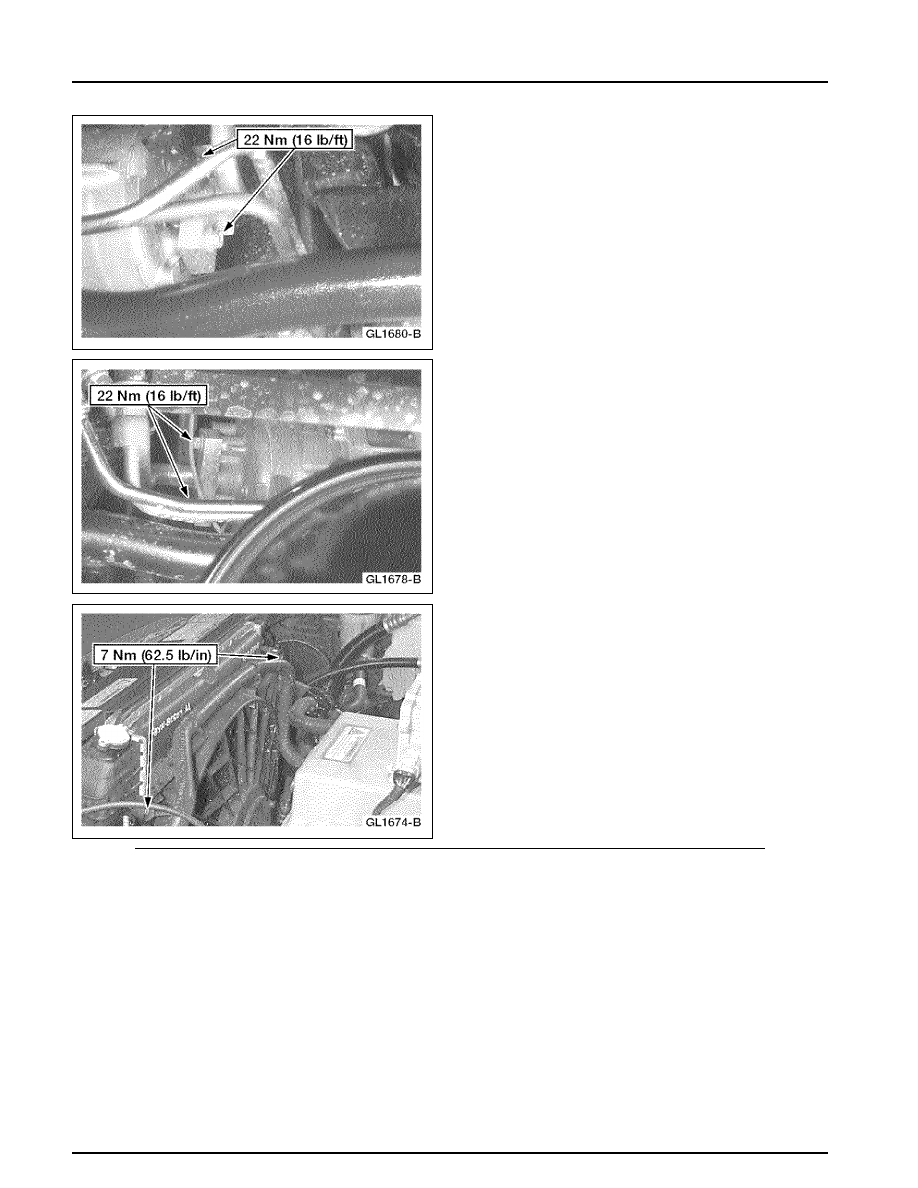

412-03-15

412-03-15

Air Conditioning

REMOVAL AND INSTALLATION (Continued)

A/C Inverter Motor Controller

Removal

1. Disconnect the traction battery auxiliary load

high-voltage connector. Refer to

 Section

100-05

.

412-03-16

412-03-16

Air Conditioning

REMOVAL AND INSTALLATION (Continued)

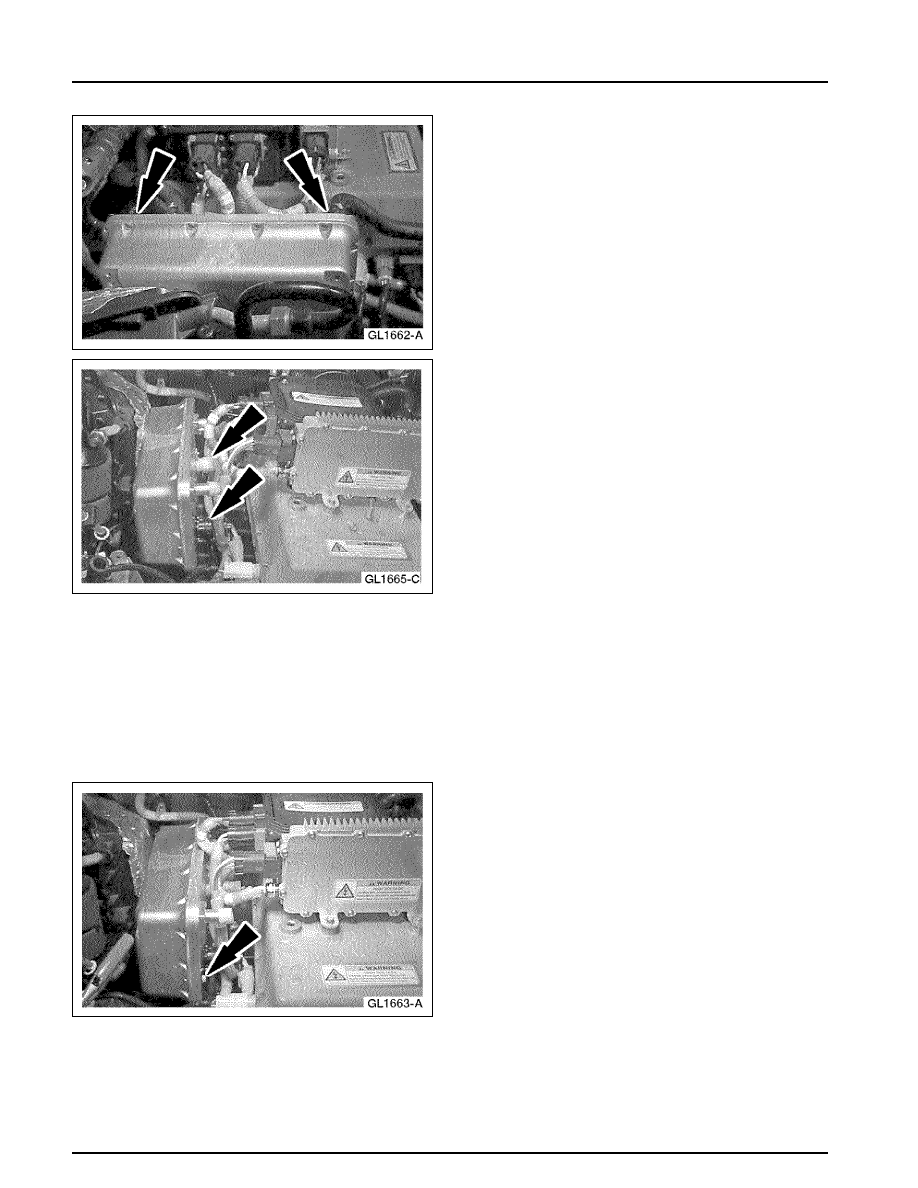

2. Clamp off and disconnect the coolant hoses.

3. Disconnect the two A/C inverter motor

controller (IMC) electrical connectors.

•

One on HVPDB — upper rear.

•

One on A/C IMC.

4. Raise and support the vehicle. Refer to

 Section

100-02

.

5. Disconnect the IMC electrical connector on the

A/C compressor.

6. Lower the vehicle.

7. Remove the three A/C IMC bolts.

•

One — front, lower.

•

One — rear, lower.

•

One — rear, upper.

412-03-17

412-03-17

Air Conditioning

REMOVAL AND INSTALLATION (Continued)

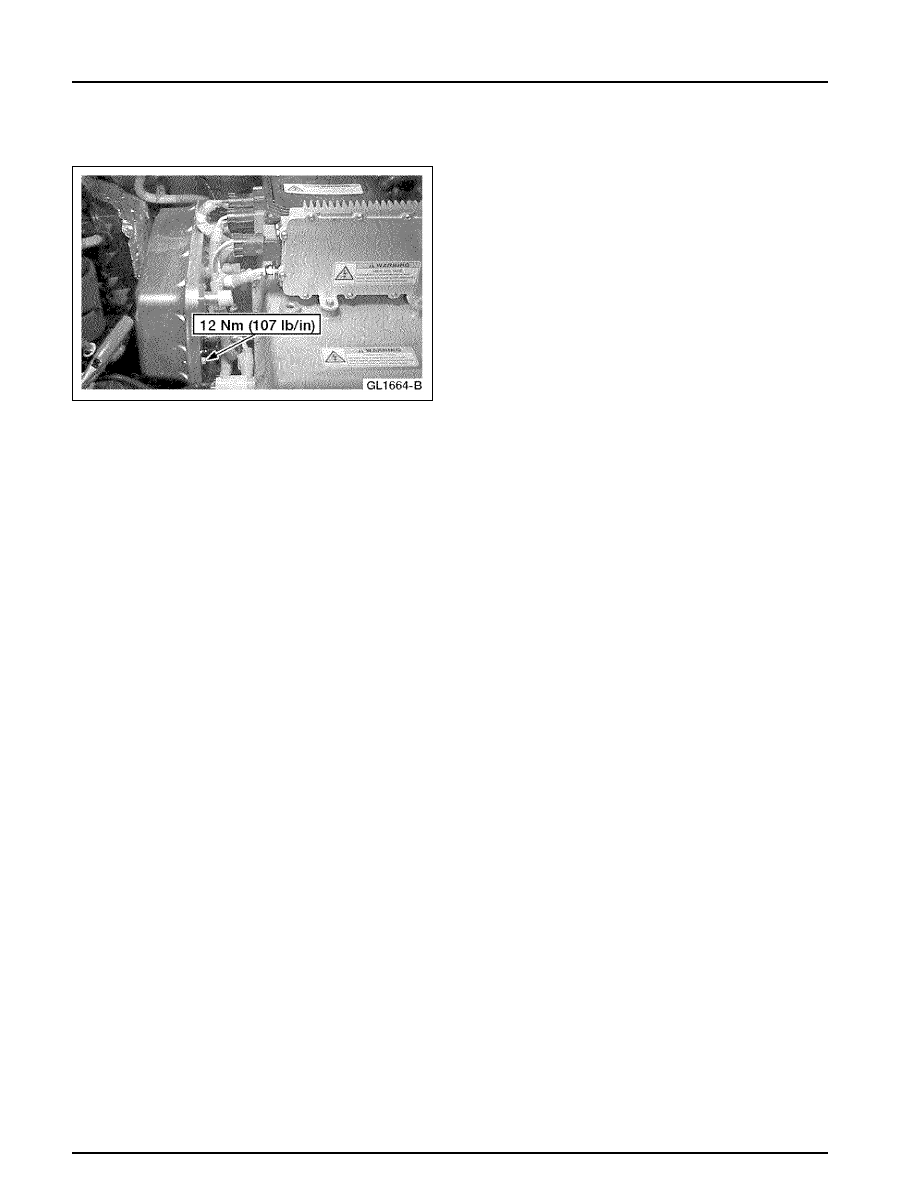

Installation

1. To install, reverse the removal procedure.

•

After installation, bleed the cooling system.
For additional information, refer to

 Section

303-03

.

412-04-1

412-04-1

Control Components

Manual Table of Contents

SECTION 412-04 Control Components

VEHICLE APPLICATION:

Ranger EV

CONTENTS

PAGE

SPECIFICATIONS .......................................................................................

412-04-2

DESCRIPTION AND OPERATION

Control Components ..................................................................................

412-04-2

REMOVAL AND INSTALLATION

Interface Adapter Assembly (IAA) Module ........................................................

412-04-2

Positive Temperature Coefficient (PTC) Switching Module.....................................

412-04-4

Variable Blower Controller (VBC)...................................................................

412-04-5
