Anti-Lock Control

REMOVAL AND INSTALLATION (Continued)

Anti-Lock Brake Sensor —Front

Removal

1. Refer to Section 206-09 of the 2001 Ranger

Workshop Manual.

Anti-Lock Brake Sensor —Rear

Removal and Installation

1. Raise and support the vehicle. Refer to

 Section

100-02

.

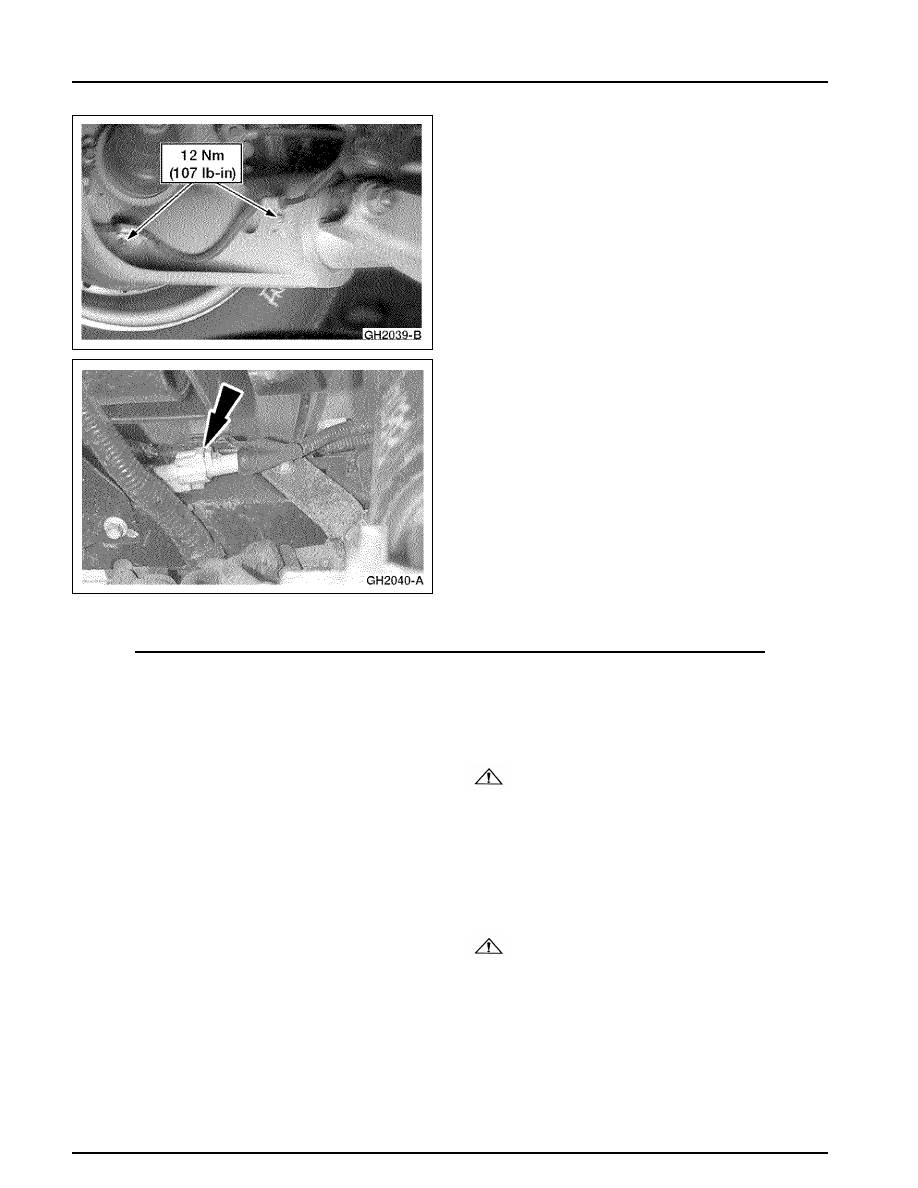

2. Remove the bolt and the anti-lock brake sensor.

206-09-16

206-09-16

Anti-Lock Control

REMOVAL AND INSTALLATION (Continued)

3. Remove the harness bracket bolts.

4. Disconnect the sensor electrical connector and

remove the anti-lock brake sensor.

5. To install, reverse the removal procedure.

Hydraulic Control Unit

Removal

WARNING: Brake fluid contains polyglycol

ethers and polyglycols. Avoid contact with eyes.
Wash hands thoroughly after handling. If brake
fluid contacts eyes, flush eyes with running water
for 15 minutes. Get medical attention if irritation
persists. If  taken internally, drink water and
induce vomiting. Get medical attention
immediately.

CAUTION: Brake fluid is harmful to

painted and plastic surfaces. If brake fluid is
spilled onto a painted or plastic surface,
immediately wash it with water.

1. Disconnect the auxiliary battery ground cable.

206-09-17

206-09-17

Anti-Lock Control

REMOVAL AND INSTALLATION (Continued)

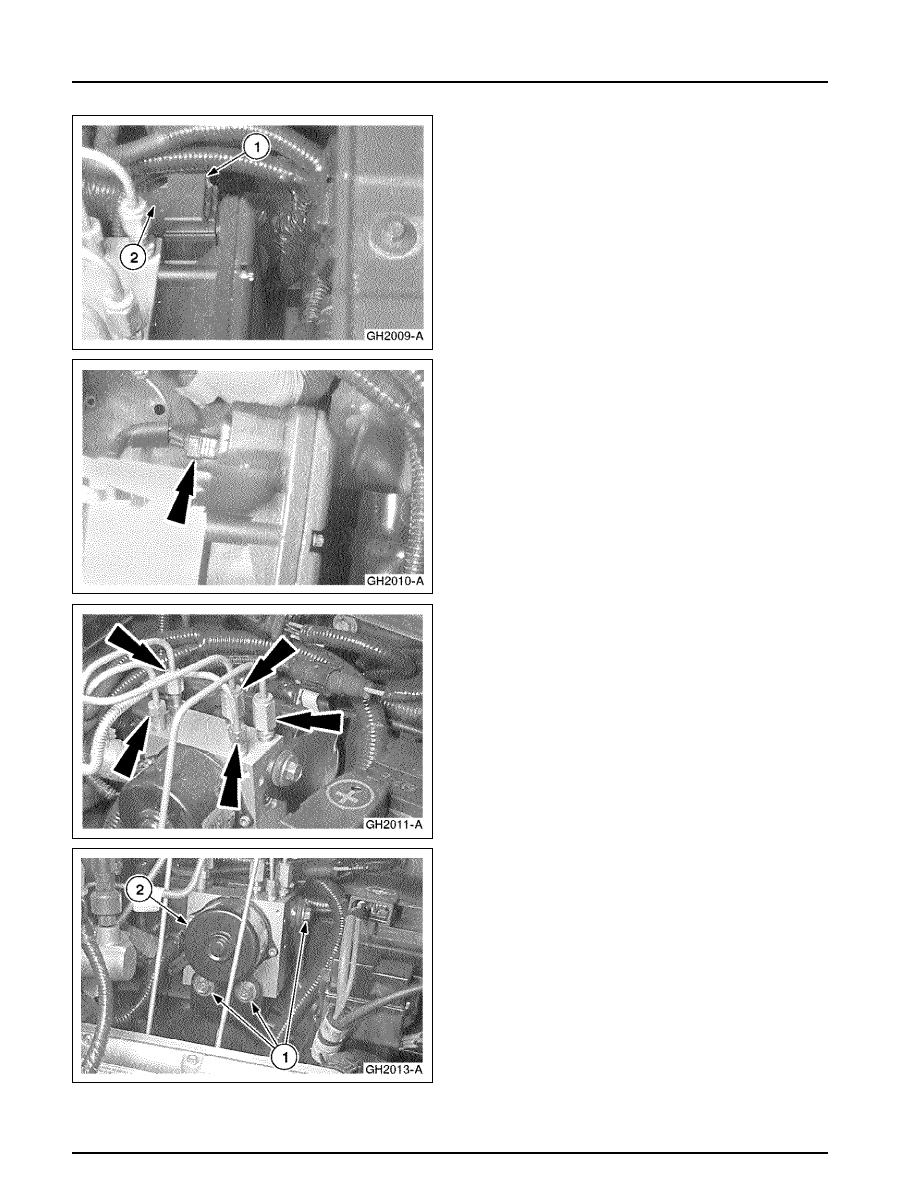

2. Disconnect the upper hydraulic control unit

(HCU) electrical connector.
1 Pull up on the connector latch.
2 Disconnect the electrical connector.

3. Disconnect the lower HCU electrical connector.

4. Disconnect the brake line fittings.

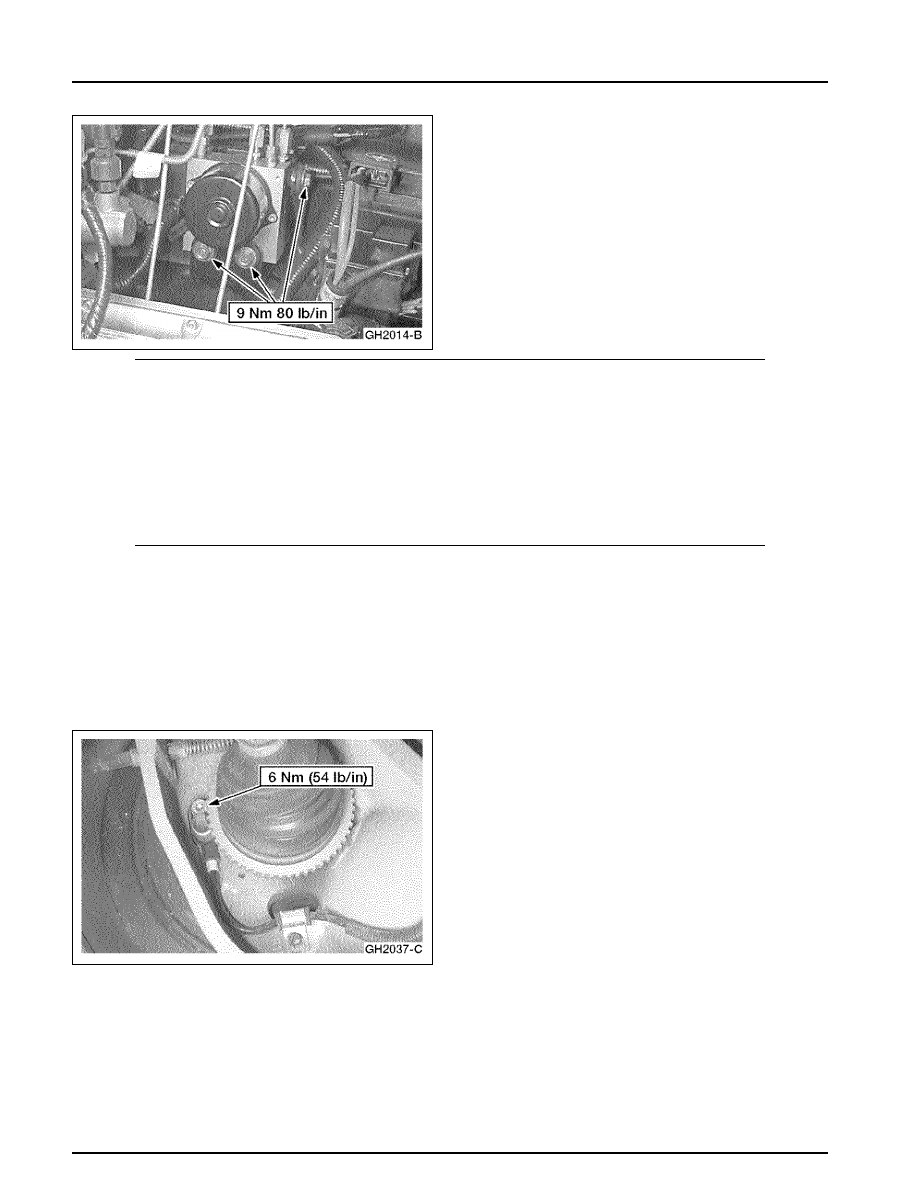

5. Remove the HCU/anti-lock brake control

module assembly.
1 Remove the bracket bolts.
2 Remove the assembly.

206-09-18

206-09-18

Anti-Lock Control

REMOVAL AND INSTALLATION (Continued)

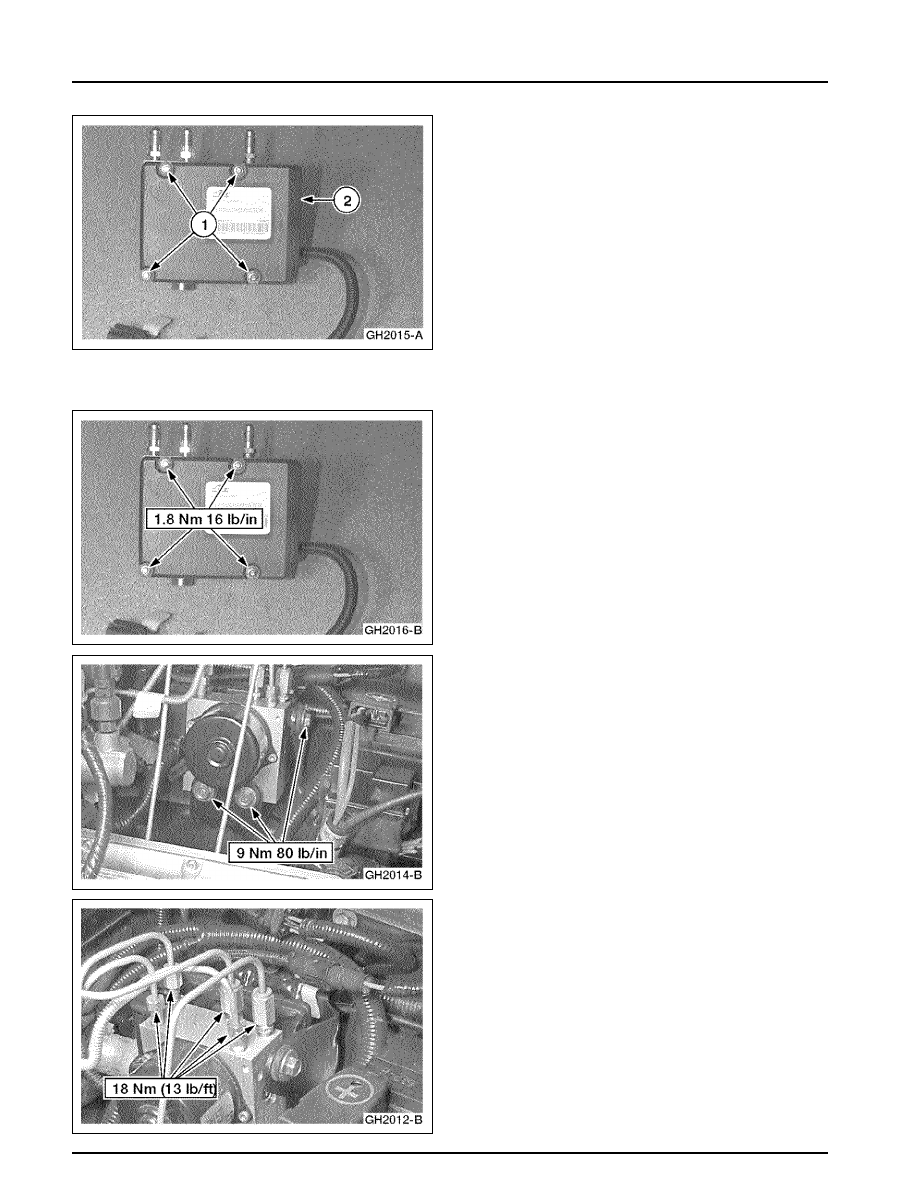

6. Remove the anti-lock brake control module.

1 Remove the screws.
2 Remove the module.

Installation

1. To install, reverse the removal procedure.

•

After installation, bleed the brake system.
Refer to Section 206-09 of the 2001 Ranger
Workshop Manual.
