Ford Ranger EV (2001 year). Manual - part 28

204-02-17

204-02-17

Rear Suspension

REMOVAL AND INSTALLATION (Continued)

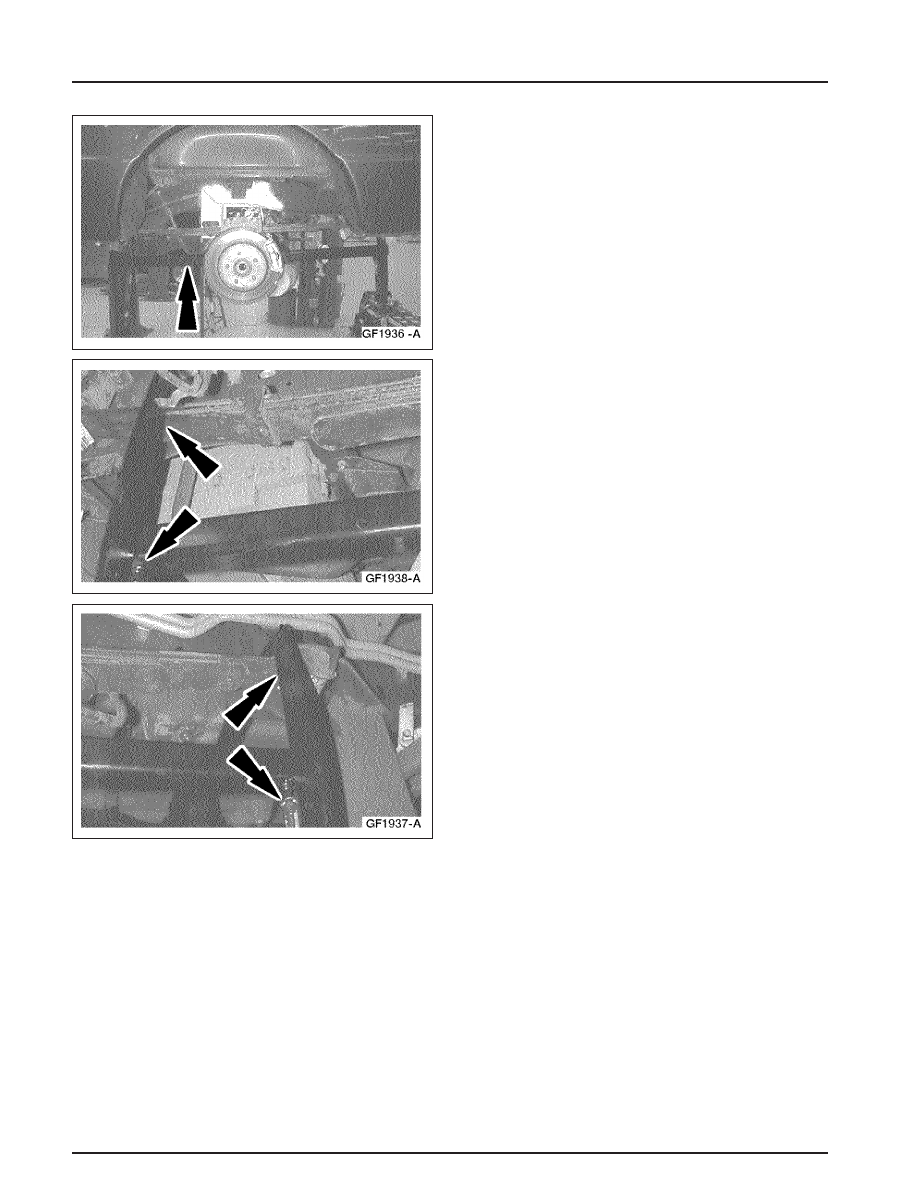

3.

Install the special tools to flatten both the rear
springs.

4.

Position the front spring clamp.

5.

Position the rear spring clamp.

6.

Tighten the spring clamps alternately until the
spring is parallel to the bar of the special tool.

204-02-18

204-02-18

Rear Suspension

REMOVAL AND INSTALLATION (Continued)

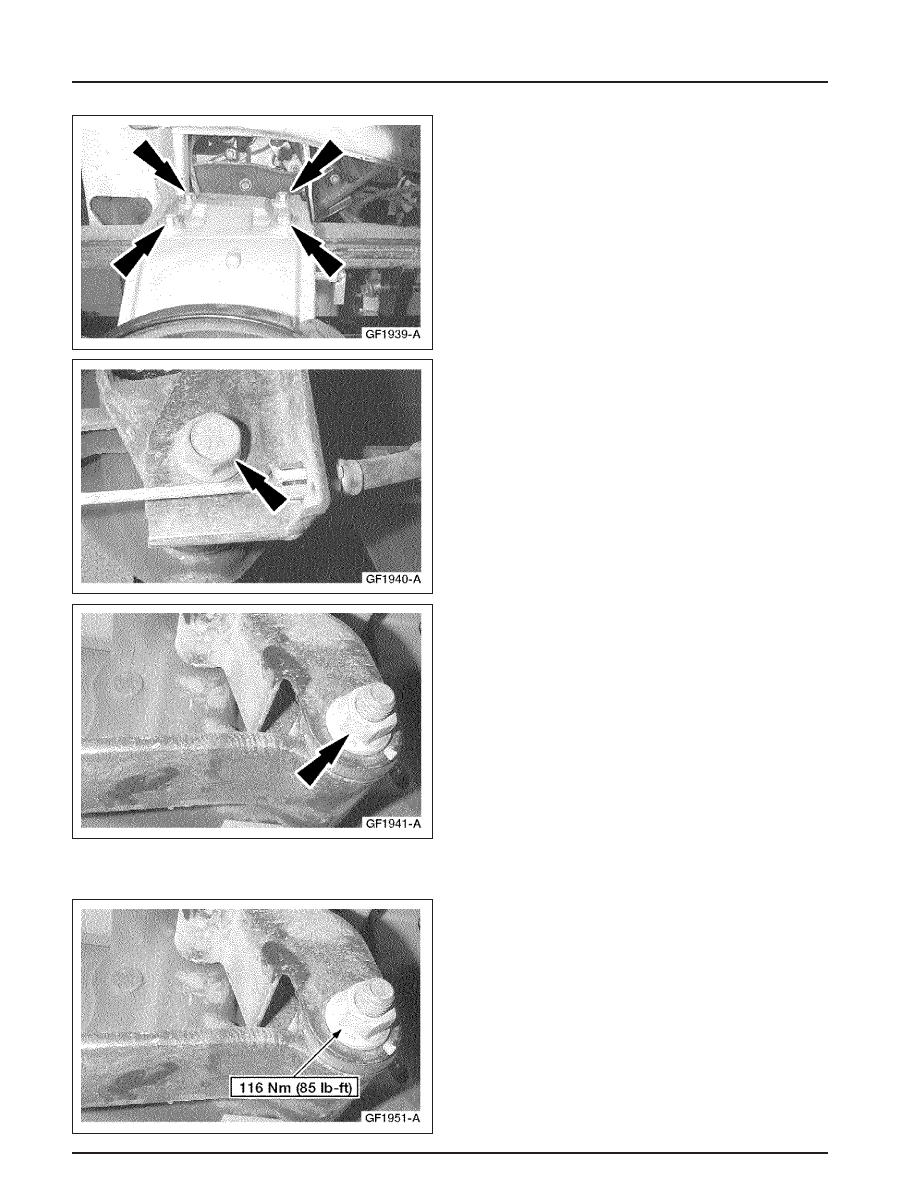

7.

Remove the LH spring clamping plate.

8.

Remove the front spring mount through bolt.

9.

Remove the rear spring mount through bolt.

Installation

1.

Position the spring and install the rear mount
through bolt.

204-02-19

204-02-19

Rear Suspension

REMOVAL AND INSTALLATION (Continued)

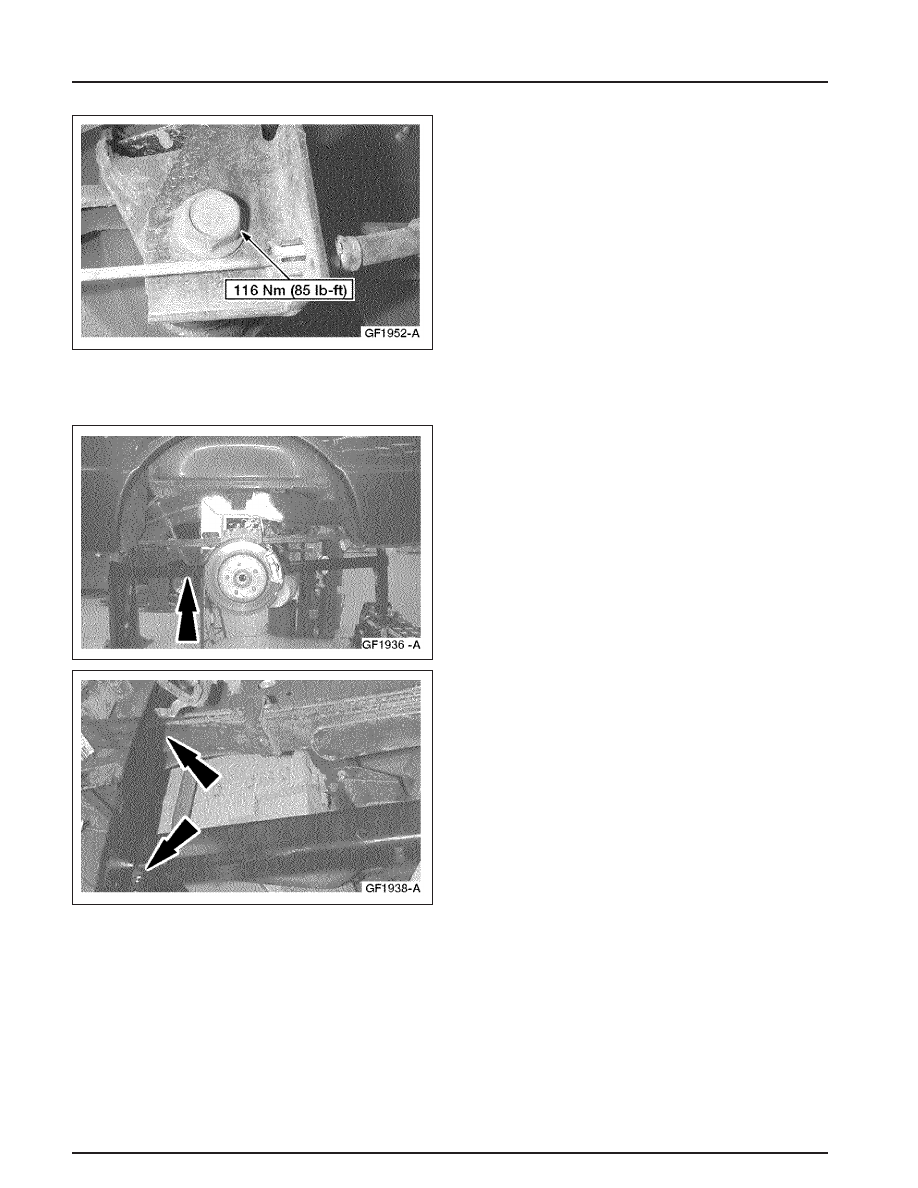

2.

Install the front spring mount through bolt.

3.

Position the upper spring insulator between the
spring and the axle.

4.

Install the special tools to flatten both the rear
springs.

5.

Position the front spring clamp.

204-02-20

204-02-20

Rear Suspension

REMOVAL AND INSTALLATION (Continued)

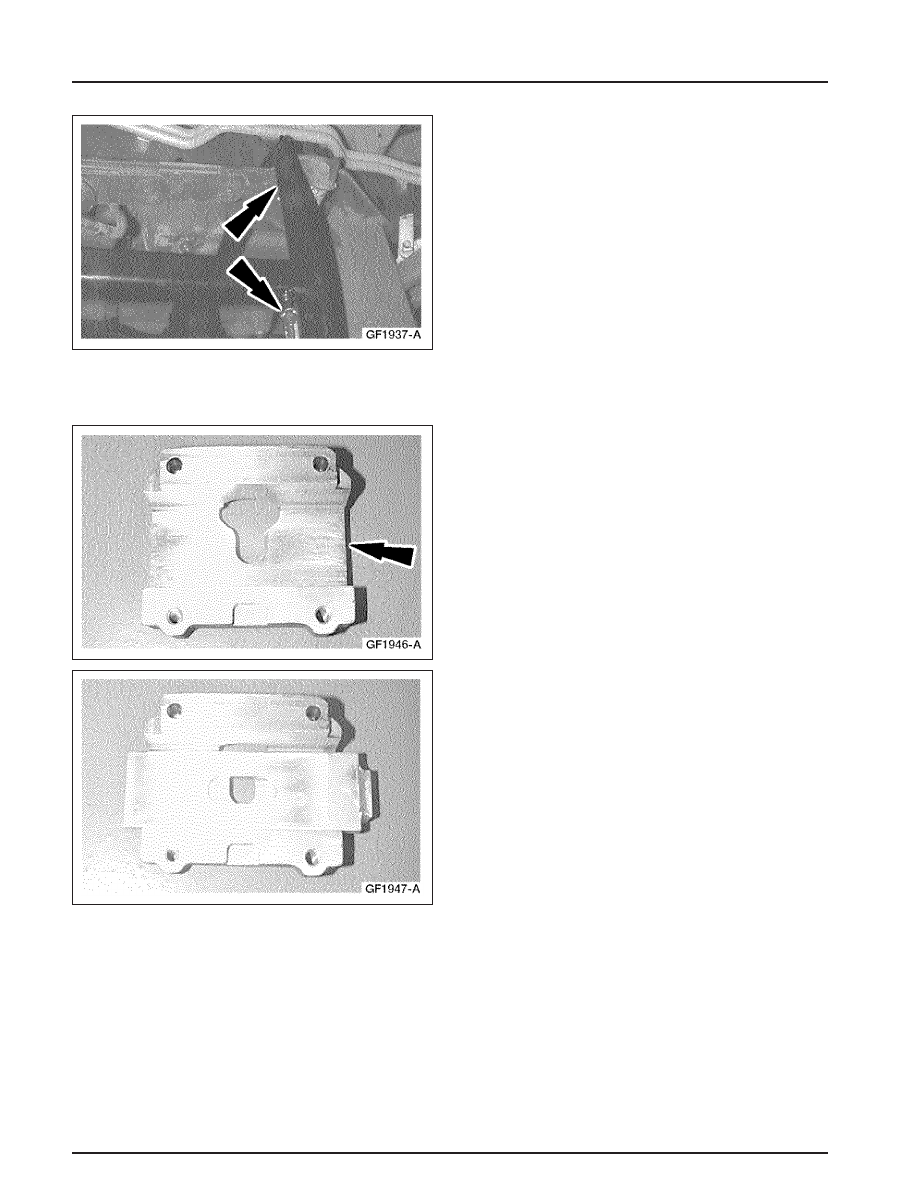

6.

Position the rear spring clamp.

7.

Tighten the spring clamps alternately until the
spring is parallel to the bar of the special tool.

8.

Apply a soap and water solution to the inside
of the spring clamp plate.

9.

Position the rear leaf spring shim in the spring
clamp plate.
