Identification Codes

DESCRIPTION AND OPERATION (Continued)

Nickel Metal Hydride (NiMH) Battery Pack

This label indicates a Nickel Metal Hydride (NiMH)
battery pack.

100-02-2

100-02-2

Jacking, Towing and Lifting

GENERAL PROCEDURES

Jacking

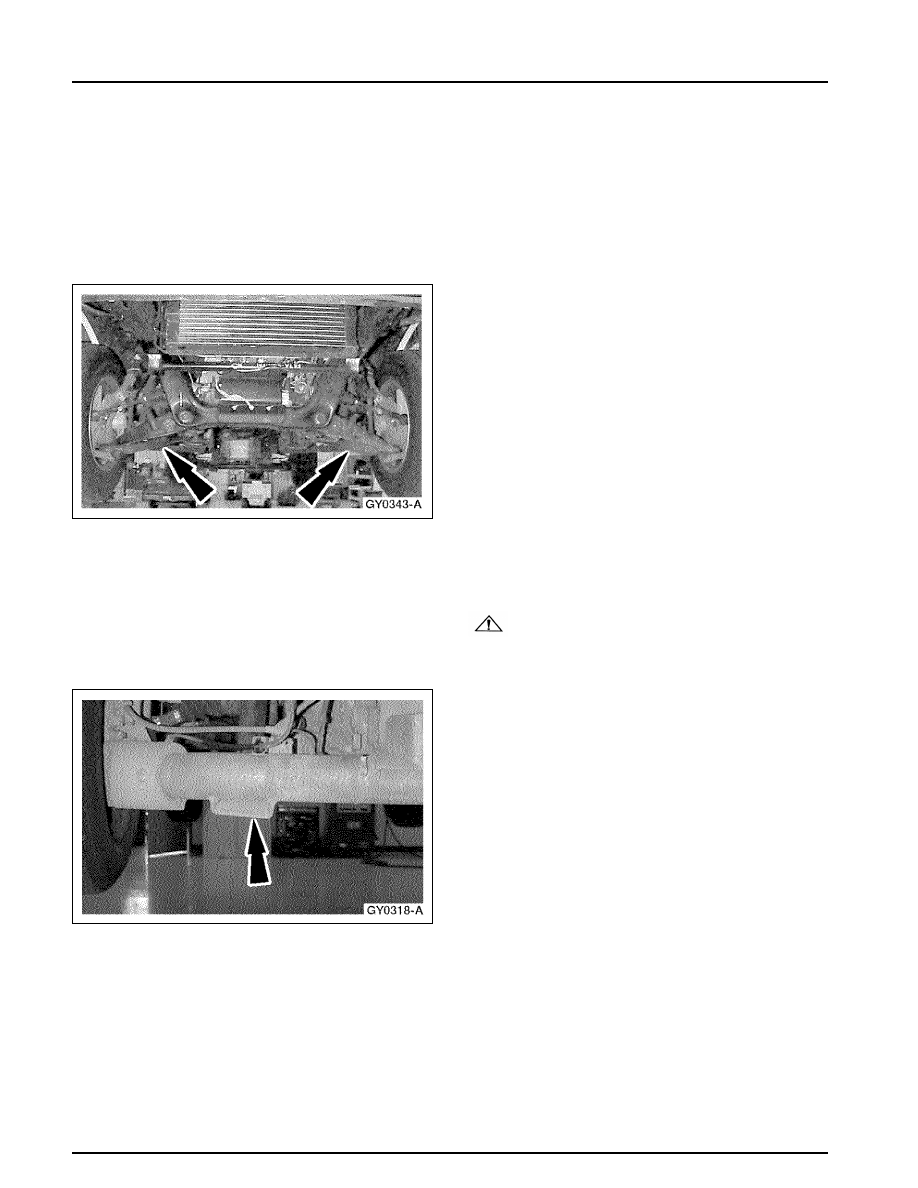

Jacking Points — Front

1. Set the parking brake and block the rear

wheels.

2. Position the jack under the front A arms and

lift the vehicle.

Jacking Point — Rear

1. Block the front wheels.

CAUTION: Do not lift the vehicle from any

point on the axle other than the pads as axle
damage may result.

2. NOTE: LH pad shown, RH similar.

Position the jack under the rear axle pad(s) and
lift the vehicle. The pads are part of the rear
shock absorber mounting points.

3. Lift the vehicle.

100-02-3

100-02-3

Jacking, Towing and Lifting

GENERAL PROCEDURES (Continued)

Towing

Pre-Towing Instructions

WARNING: Tow truck operators should

not attempt to service, recharge or operate the
vehicle under any circumstances. This vehicle is
made up of complex electrical systems, and these
operations must be performed by authorized
personnel only. Improper  handling could result
in vehicle damage, personal injury, or death.

WARNING: If the vehicle does not operate

properly, do not attempt to jump-start the
12-volt battery or push the vehicle. This could
result in vehicle damage, personal injury, or
death.

WARNING: Failure to turn the vehicle off

before servicing may result in personal injury or
death.

CAUTION: Do not disconnect the

halfshafts if the motor/transaxle is inoperable.
This may result in damage to the
motor/transaxle.

1. Verify that the key is in the OFF position.

2. Position the front wheels straight ahead and

lock the steering wheel in place using a steering
wheel locking device.

3. Depress the brake pedal and release the parking

brake.

Approved Towing Methods

Front Wheel Lift Towing

CAUTION: There are three approved

methods for towing the Electric Ranger. Use of
other than the specified methods may cause
vehicle damage.

1. Place the gear selector in neutral (N).

2. Lock the front wheels in a straight ahead

position with a steering wheel locking device.
Do not rely on the column lock to hold the
wheels.
