Ford Fiesta (2011 year). Manual - part 156
E113769
Installation
1. NOTE: Before resistance spot welding of body
panels with a total panel thickness of 3 mm and
greater, the manufacturer's welding equipment
instructions and sub-section 501-25 must be
followed.
Refer to: Tools and Equipment for Body Repairs
(501-25 Body Repairs - General Information,
Description and Operation).
2. NOTE: Sealer or adhesive must not be applied
in welding zones. Areas which were bonded or
sealed needs to be thoroughly sealed
afterwards.
Refer to: Sealer, Underbody Protection Material
General Information, Description and
Operation).
3.
General Equipment: Resistance Spotwelding
Equipment
•
E113770
4.

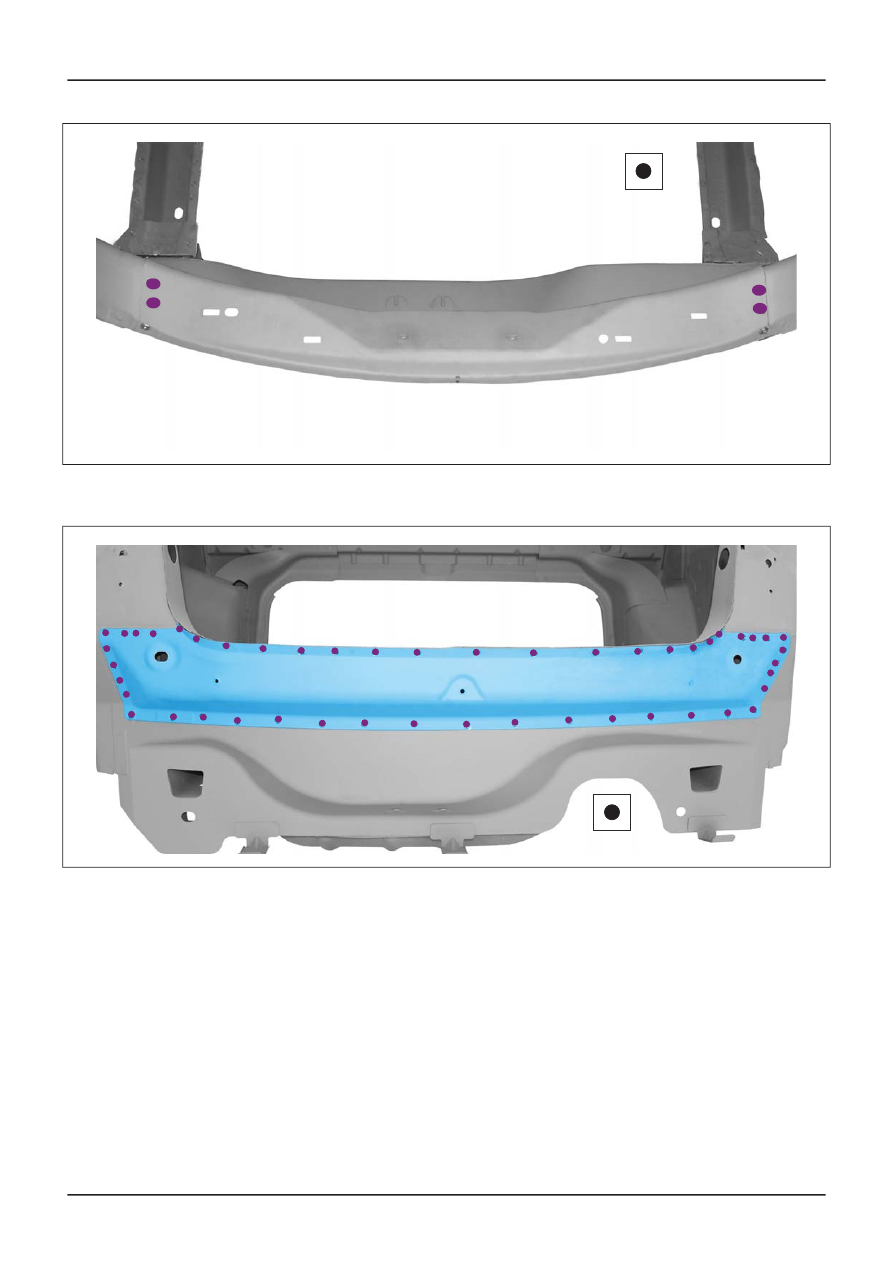

General Equipment: Resistance Spotwelding
Equipment
•
G1133612en
501-30-
65
Rear End Sheet Metal Repairs
501-30-
65
REMOVAL AND INSTALLATION
and Adhesives
(501-25 Body Repairs -
201
