6.
General Equipment: Spot weld drill Bit
•
E112045
7.

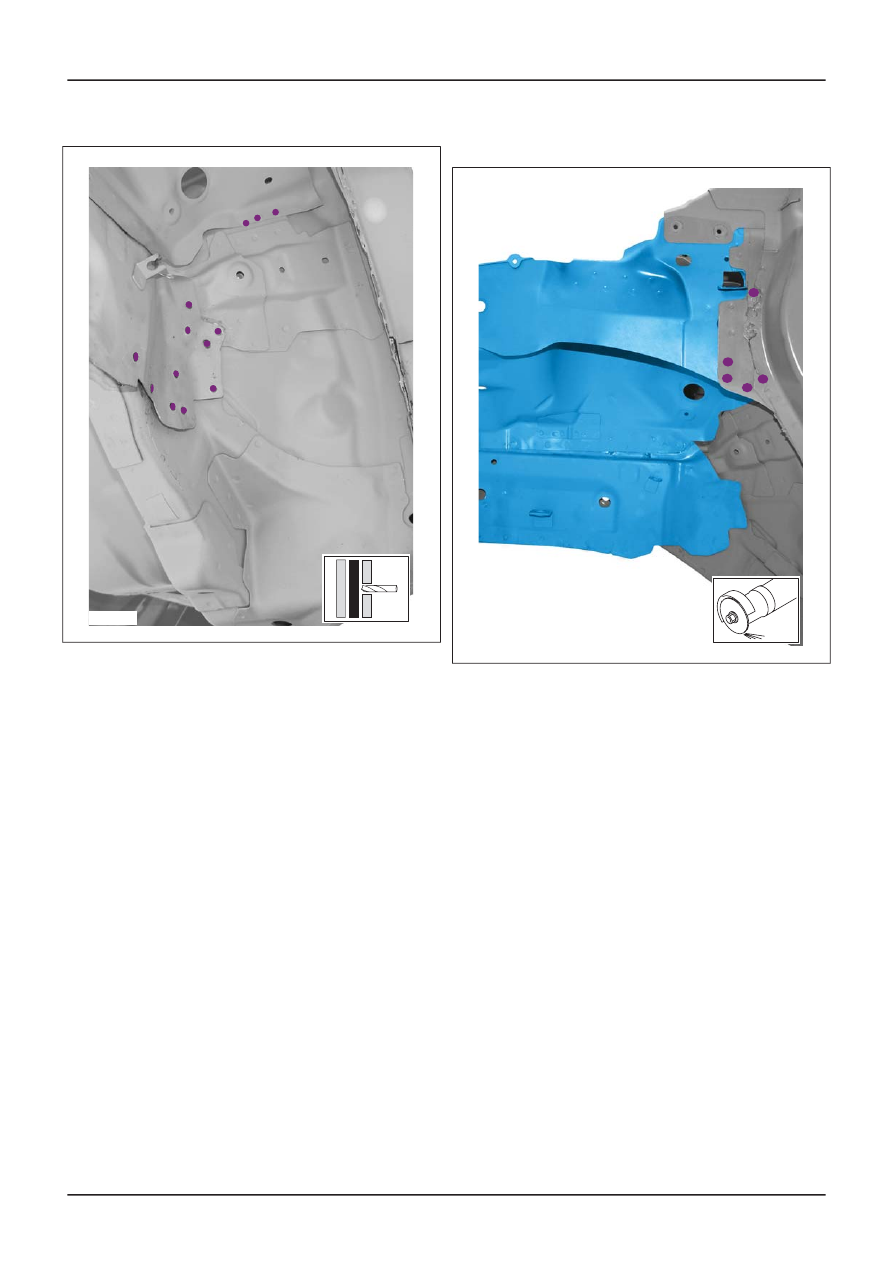

Equipment: Spherical cutter
•
• Grind out from inside.
E112052
Installation

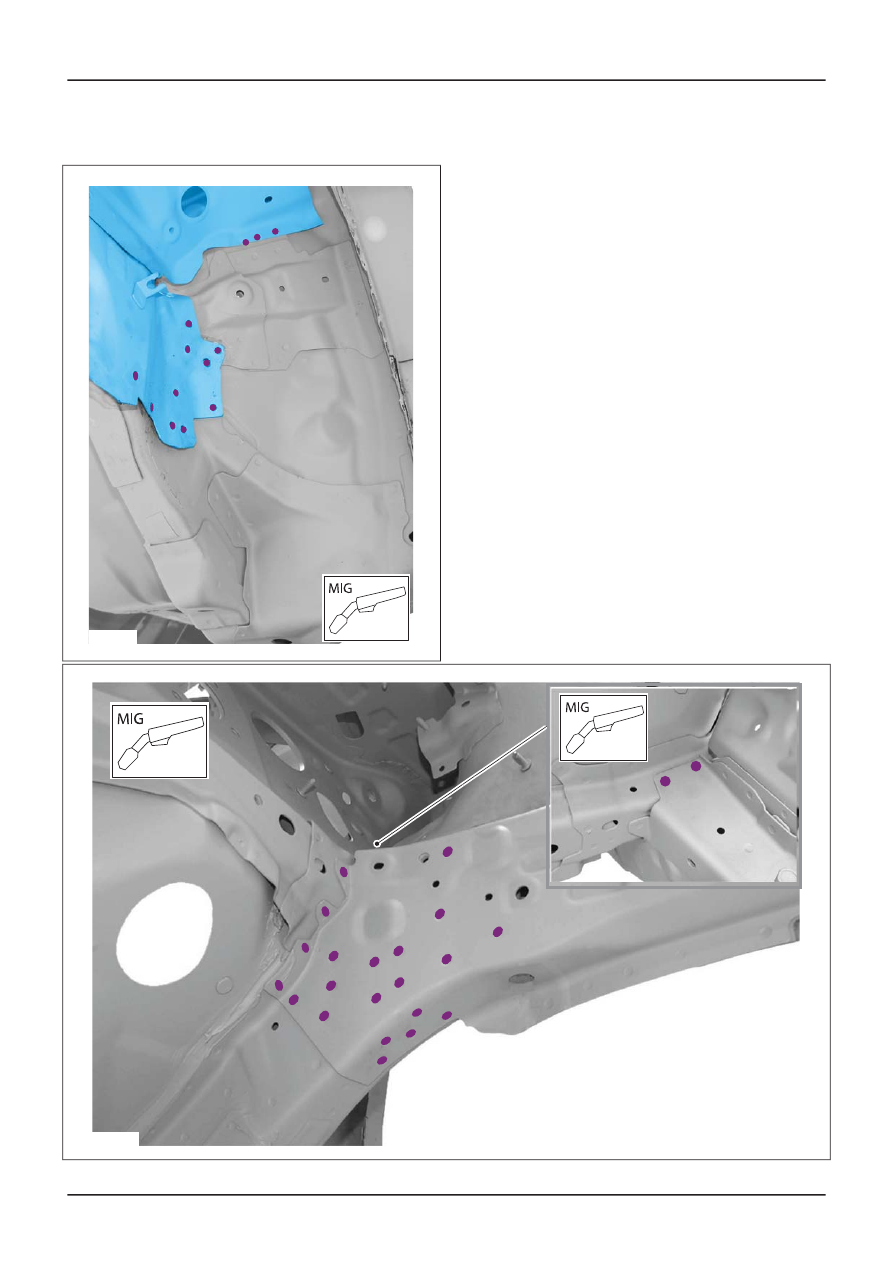

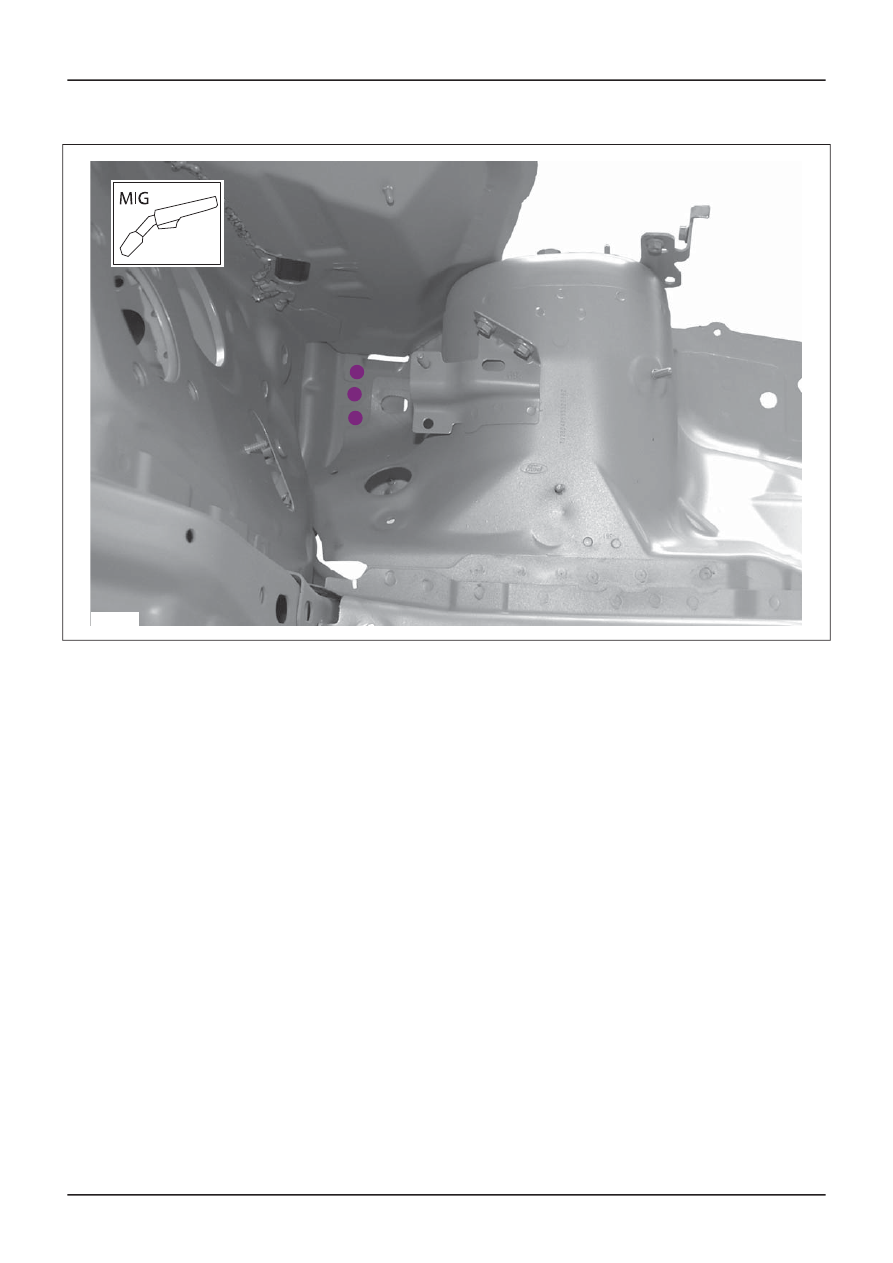

1. NOTE: Before resistance spot welding of body
panels with a total panel thickness of 3 mm and
greater, the manufacturer's welding equipment
instructions and sub-section 501-25 must be
followed.
Refer to: Tools and Equipment for Body Repairs
(501-25 Body Repairs - General Information,
Description and Operation).
2. NOTE: Sealer or adhesive must not be applied
in welding zones. Areas which were bonded or
sealed needs to be thoroughly sealed
afterwards.
Refer to: Sealer, Underbody Protection Material
and Adhesives
(501-25
Body Repairs -
General Information, Description and
Operation).
G1133568en
501-27-
20
Front End Sheet Metal Repairs
501-27-
20
REMOVAL AND INSTALLATION
201
