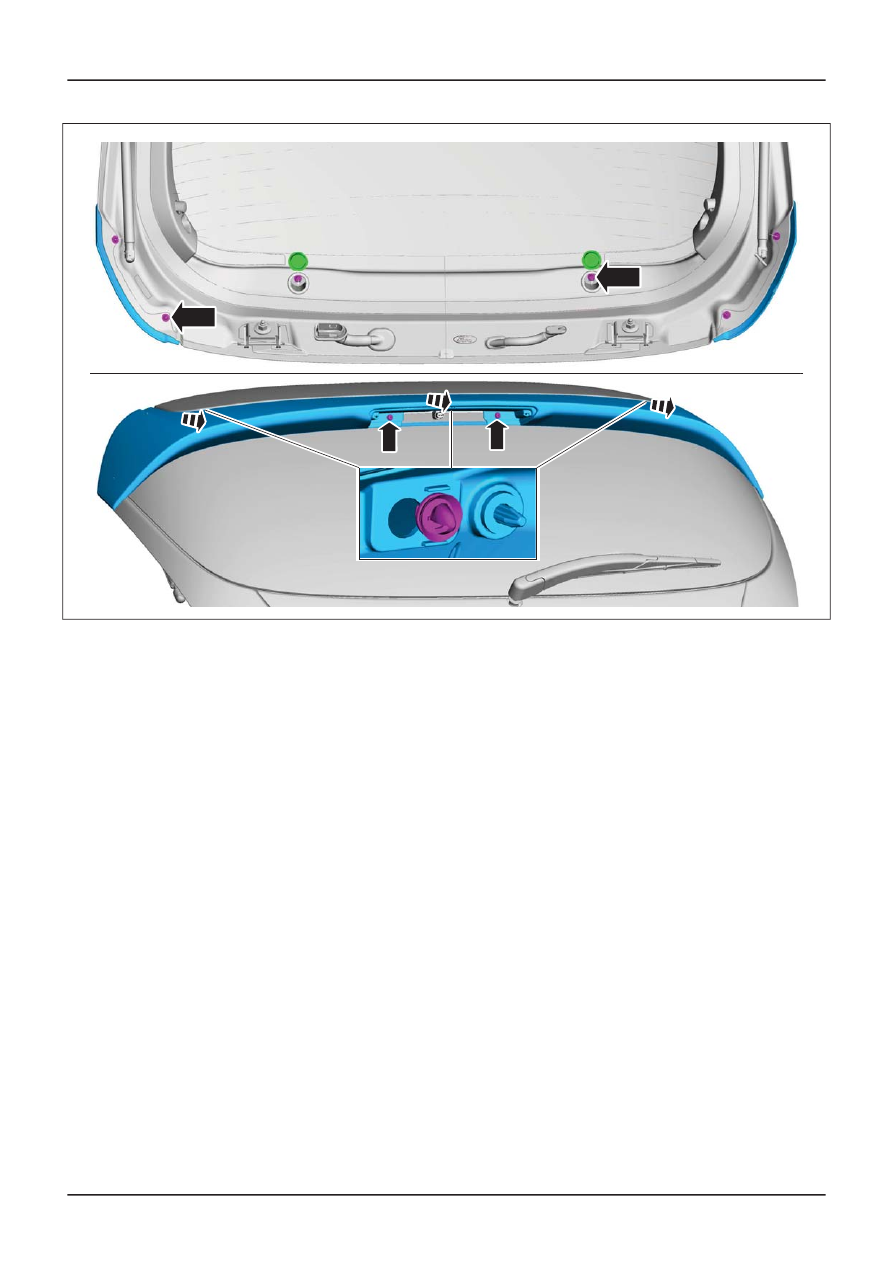

Trim strip - tailgate (5-door)
E106474
The trim strip is a push-fit.
It can be re-used after removal.
Variant sign - luggage compartment lid
(4-door)
E108238
65
mm
65
mm
There are different variant signs and positions on
the vehicle depending on the vehicle specification.
Before replacing, determine the dimensions from
this or a similar vehicle and fit accordingly.
The sign is secured with adhesive tape.
A new one will need to be fitted after the old one
has been removed.
The variant sign must be horizontally centered.
Variant sign - tailgate (5-door)
E108239
36 mm
84
mm
50
mm
There are different variant signs and positions on
the vehicle depending on the vehicle specification.
Before replacing, determine the dimensions from
this or a similar vehicle and fit accordingly.
The sign is secured with adhesive tape.
A new one will need to be fitted after the old one
has been removed.
The variant sign must be horizontally centered.
G1109833en
501-08-
6
Exterior Trim and Ornamentation
