Ford Falcon. Manual - part 509

501-29-12

Side Panel Sheet Metal Repairs

501-29-12

WELD INFORMATION (Continued)

G00001 en

501-29-13

Side Panel Sheet Metal Repairs

501-29-13

WELD INFORMATION (Continued)

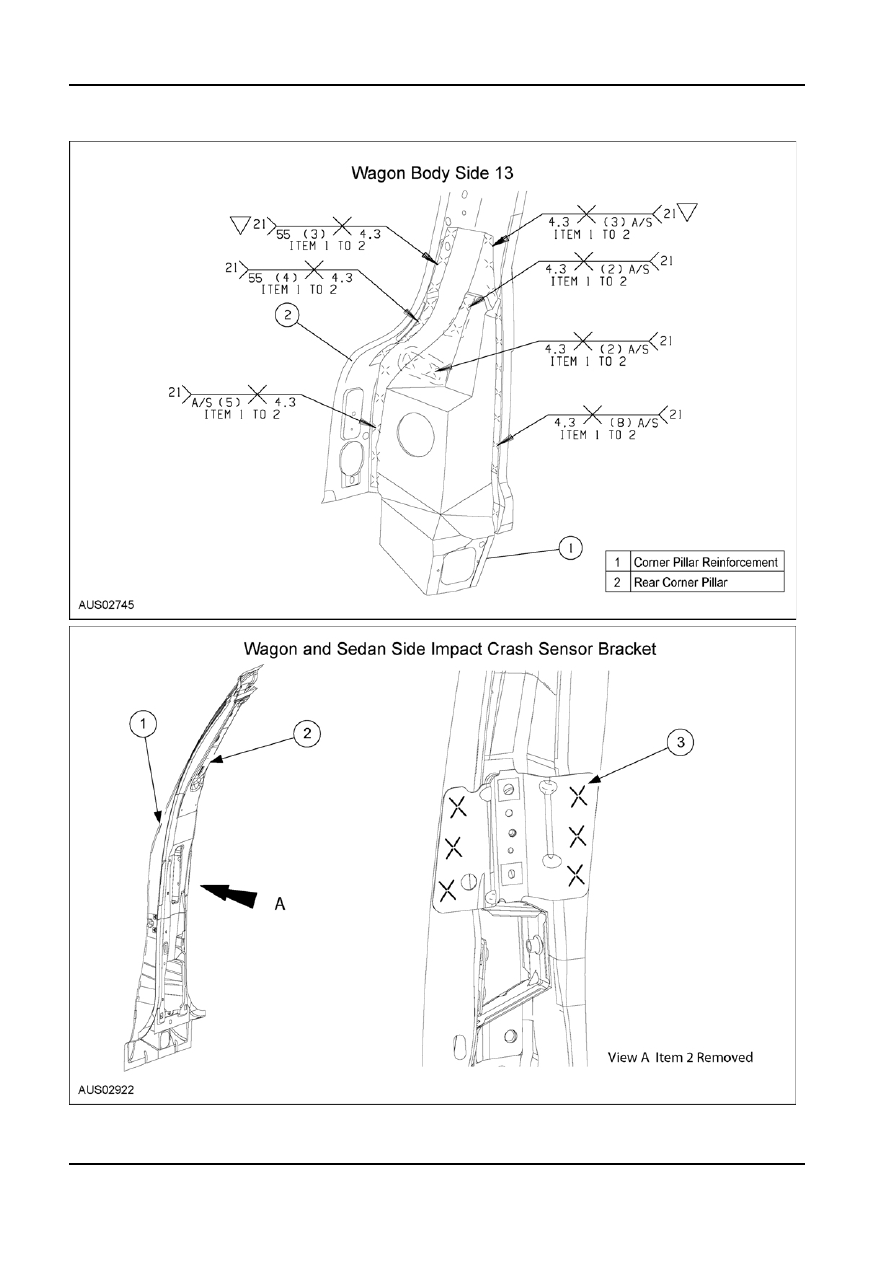

Side Impact Crash Sensor Bracket
The side impact crash sensor bracket must be

replaced if damaged. It MUST NOT be straightened or

panel beaten. This is critical for correct function of the

crash severity sensor which plays a major part in

activating the side impact airbags in a crash. In the

event of having to replace the side impact sensor

bracket, the bracket should be spotwelded in six

places to the Full Length Reinforcement (Item 1 in the

illustration). If a spotwelder is not available, it is then

necessary to drill three 4mm diameter holes on each

flange of the bracket, (6 in total) and puddle MIG weld

to fill the holes and fuse with the full length

reinforcement.

G00001 en

501-29-14

Side Panel Sheet Metal Repairs

501-29-14

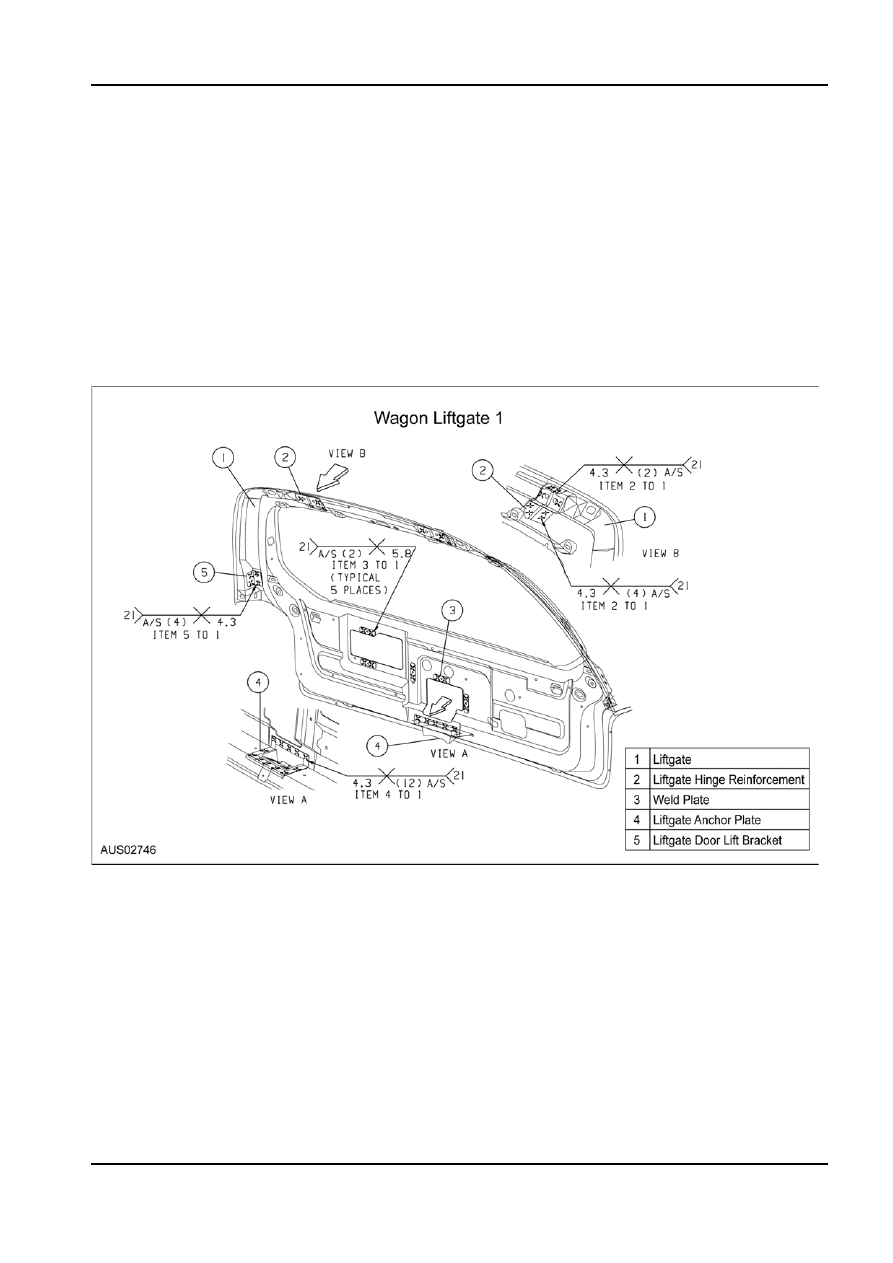

WELD INFORMATION (Continued)

G00001 en

501-29-15

Side Panel Sheet Metal Repairs

501-29-15

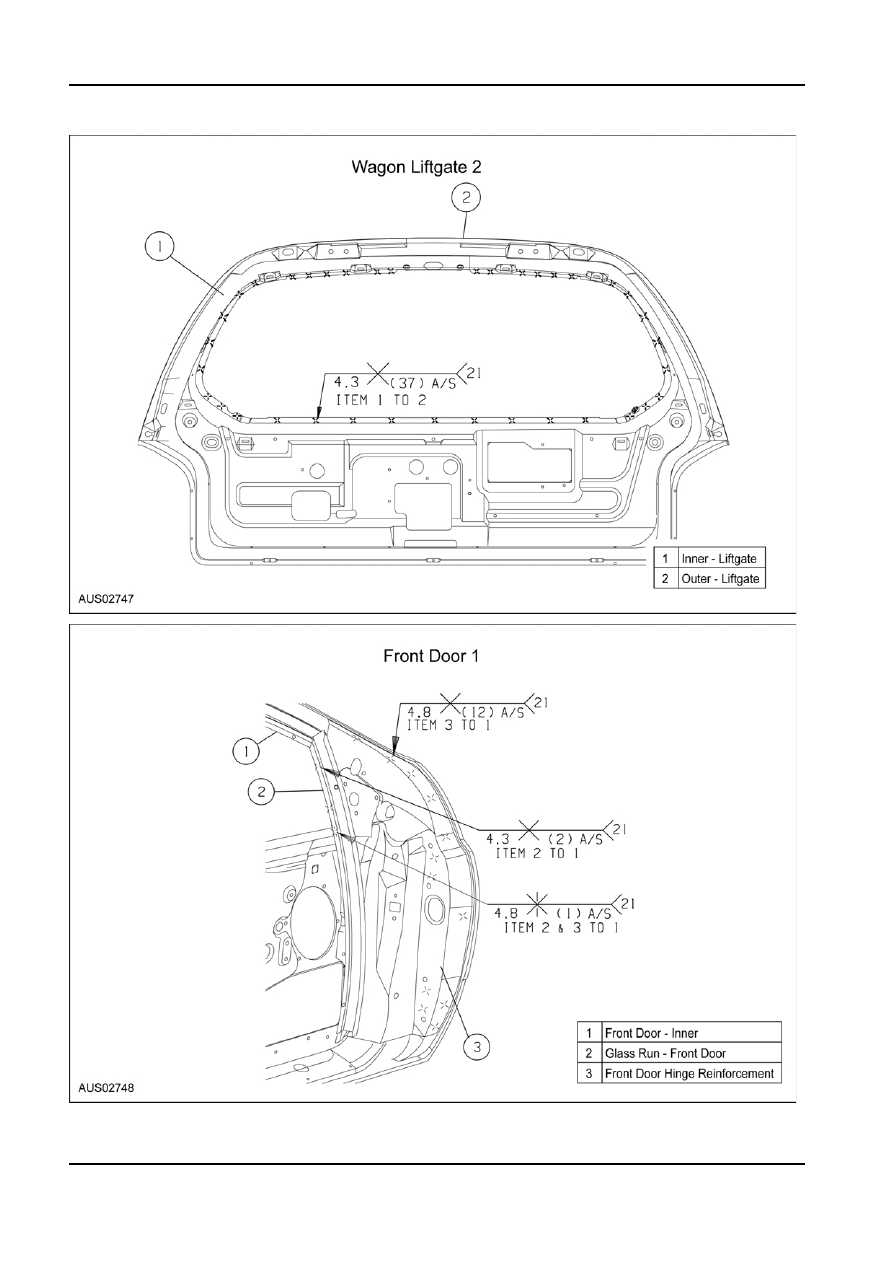

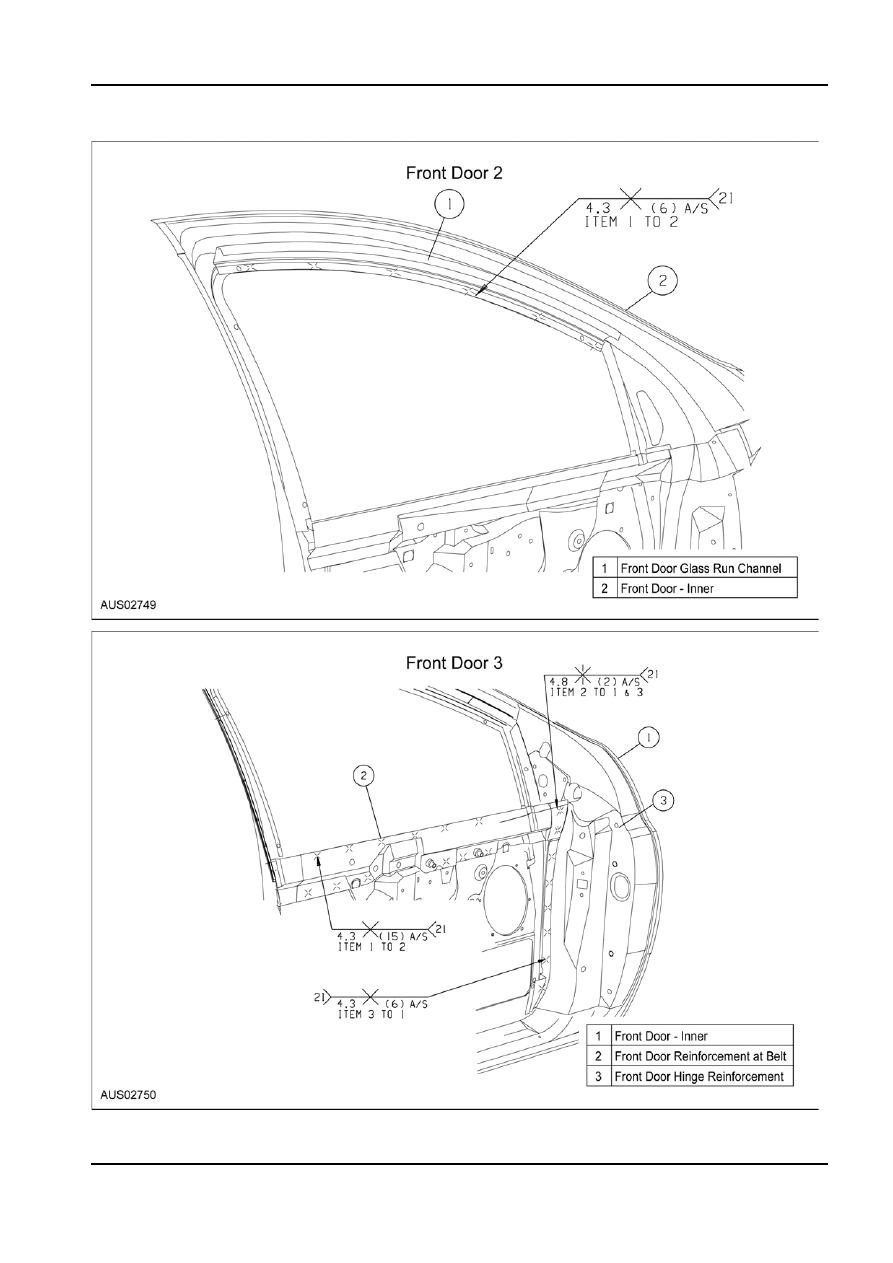

WELD INFORMATION (Continued)

G00001 en
