Ford Falcon. Manual - part 451

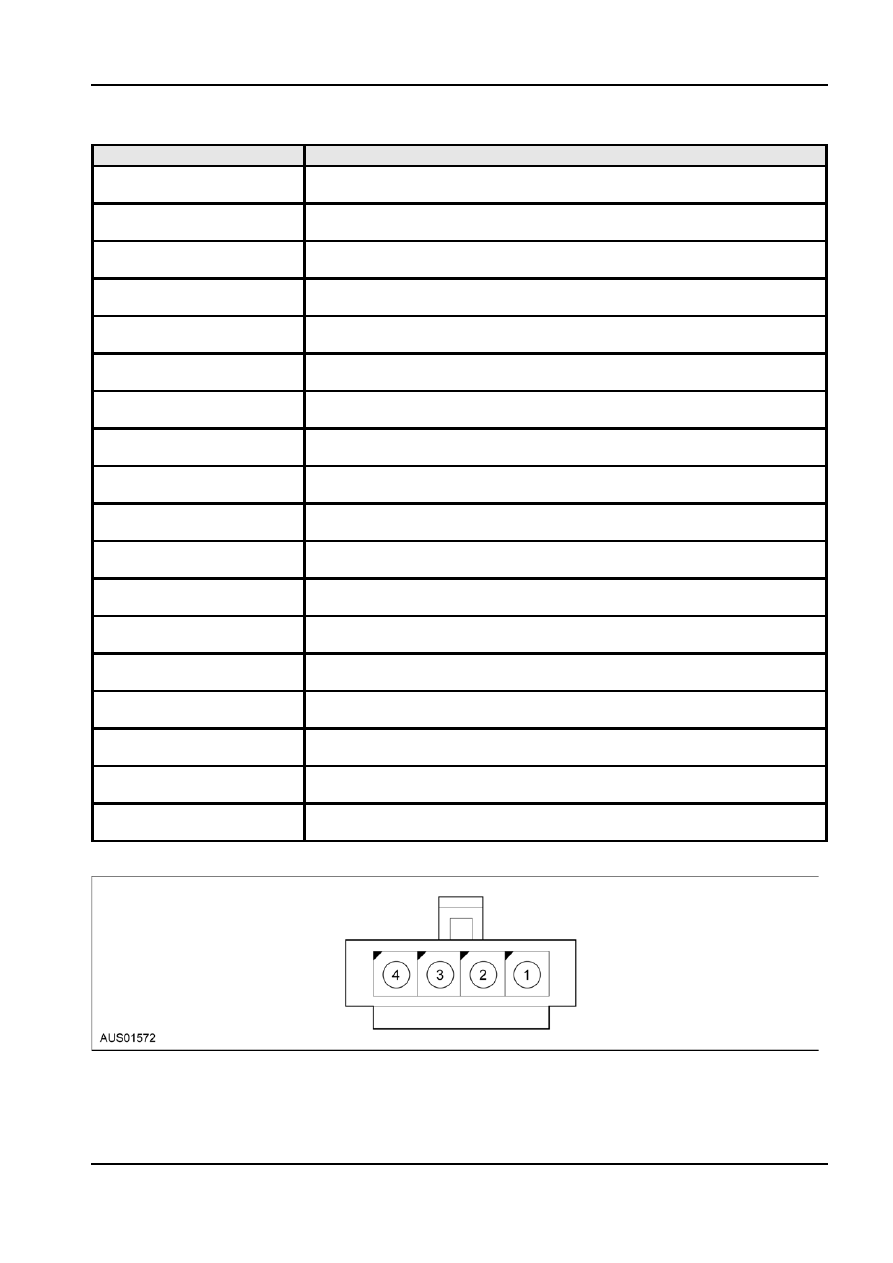

501-20b-19

Occupant Restraints — Passive

501-20b-19

DIAGNOSIS AND TESTING (Continued)

Pin Number(s)

Circuit Designation/Description

3

Circuit 1257 (W)

Driver Side Airbag Feed

4

Circuit 1258 (BR)

Driver Side Airbag Return

5

Circuit 1259 (W/Y)

Pass. Side Airbag Return

6

Circuit 1260 (BR/Y)

Pass. Side Airbag Return

19

Circuit 617 (P)

Front Crash sensor Feed

20

Circuit 618 (V)

Front Crash Sensor Return

23

Circuit 8107 (BR/G)

Seat Track Sensor Feed

24

Circuit 8108 (B/O)

Seat Track Sensor Return

25

Circuit 85 (B/L)

Driver Buckle Switch Input

26

Circuit 1514 (R/B)

Pass. Buckle Switch Input

27

Circuit 1261 (W/B)

Driver Side Sensor Feed

28

Circuit 1262 (W/R)

Driver Side Sensor Return

29

Circuit 1263 (G/W)

Pass. Side Sensor Feed

30

Circuit 1264 (R)

Pass. Side Sensor Return

31

Circuit 1079 (LG/R)

Driver Pretensioner Feed

32

Circuit 1080 (LG/B)

Driver Pretensioner Return

33

Circuit 1081 (Y/R)

Pass. Pretensioner Feed

34

Circuit 1082 (Y/B)

Pass. Pretensioner Return

C233

G12344 en

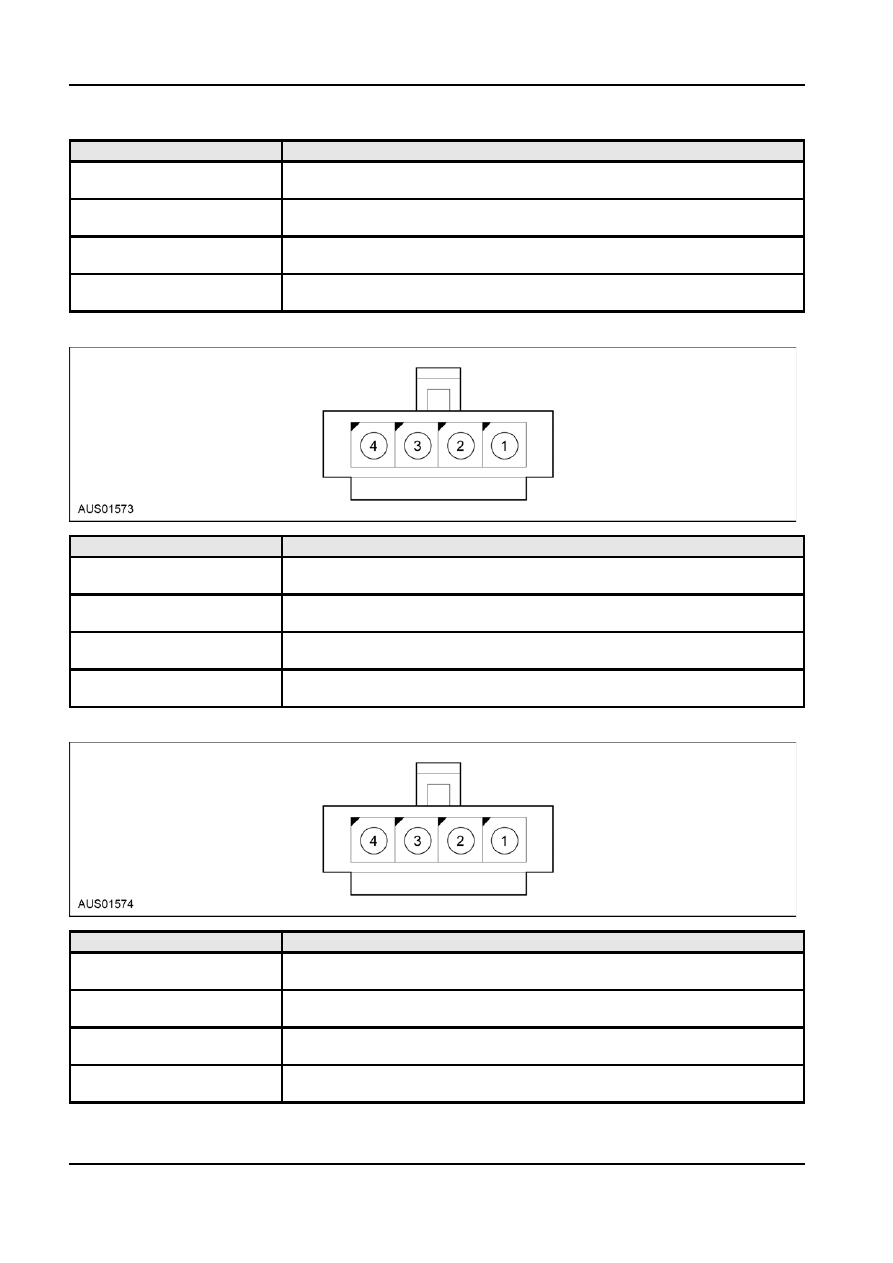

501-20b-20

Occupant Restraints — Passive

501-20b-20

DIAGNOSIS AND TESTING (Continued)

Pin Number(s)

Circuit Designation/Description

1

Circuit 1203D (B)

Ground

2

Circuit 85 (B/L)

Driver Buckle (Hall Sensor) Switch Input

3

Circuit 1079 (LG/R)

Driver Pretensioner Feed

4

Circuit 1080 (LG/B)

Driver Pretensioner Return

C234

Pin Number(s)

Circuit Designation/Description

1

Circuit 1203B (B)

Ground

2

Circuit 1514 (R/B)

Pass. Buckle (Hall Sensor) Switch Input

3

Circuit 1081 (Y/R)

Pass. Pretensioner Feed

4

Circuit 1082 (Y/B)

Pass. Pretensioner Return

C190

Pin Number(s)

Circuit Designation/Description

1

Circuit 614 (O/B)

Driver Airbag Feed Squib 1

2

Circuit 615 (GR/W)

Driver Airbag Return Squib 1

3

Circuit 1516 (Y/W)

Driver Airbag Feed Squib 2

4

Circuit 1517 (GR/B)

Driver Airbag Return Squib 2

G12344 en

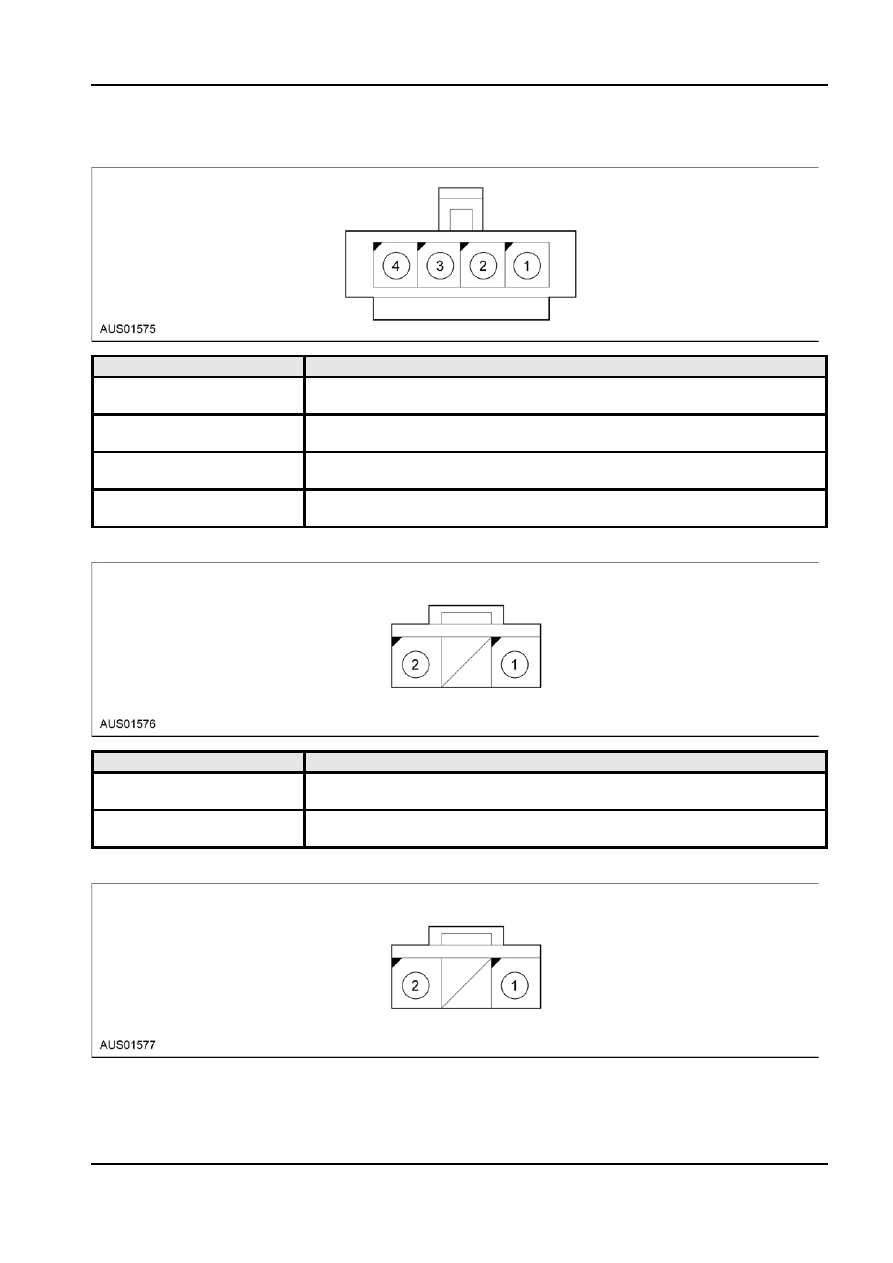

501-20b-21

Occupant Restraints — Passive

501-20b-21

DIAGNOSIS AND TESTING (Continued)

C146

Pin Number(s)

Circuit Designation/Description

1

Circuit 1518 (R/W)

Pass. Airbag Feed Squib 2

2

Circuit 1519 (LG/R)

Pass. Airbag Return Squib 2

3

Circuit 607 (BR)

Pass. Airbag Feed Squib 1

4

Circuit 616 (P/B)

Pass. Airbag Return Squib 1

C342

Pin Number(s)

Circuit Designation/Description

1

Circuit 1258 (BR)

Driver Side Airbag Return

2

Circuit 1257 (W)

Driver Side Airbag Feed

C344

G12344 en

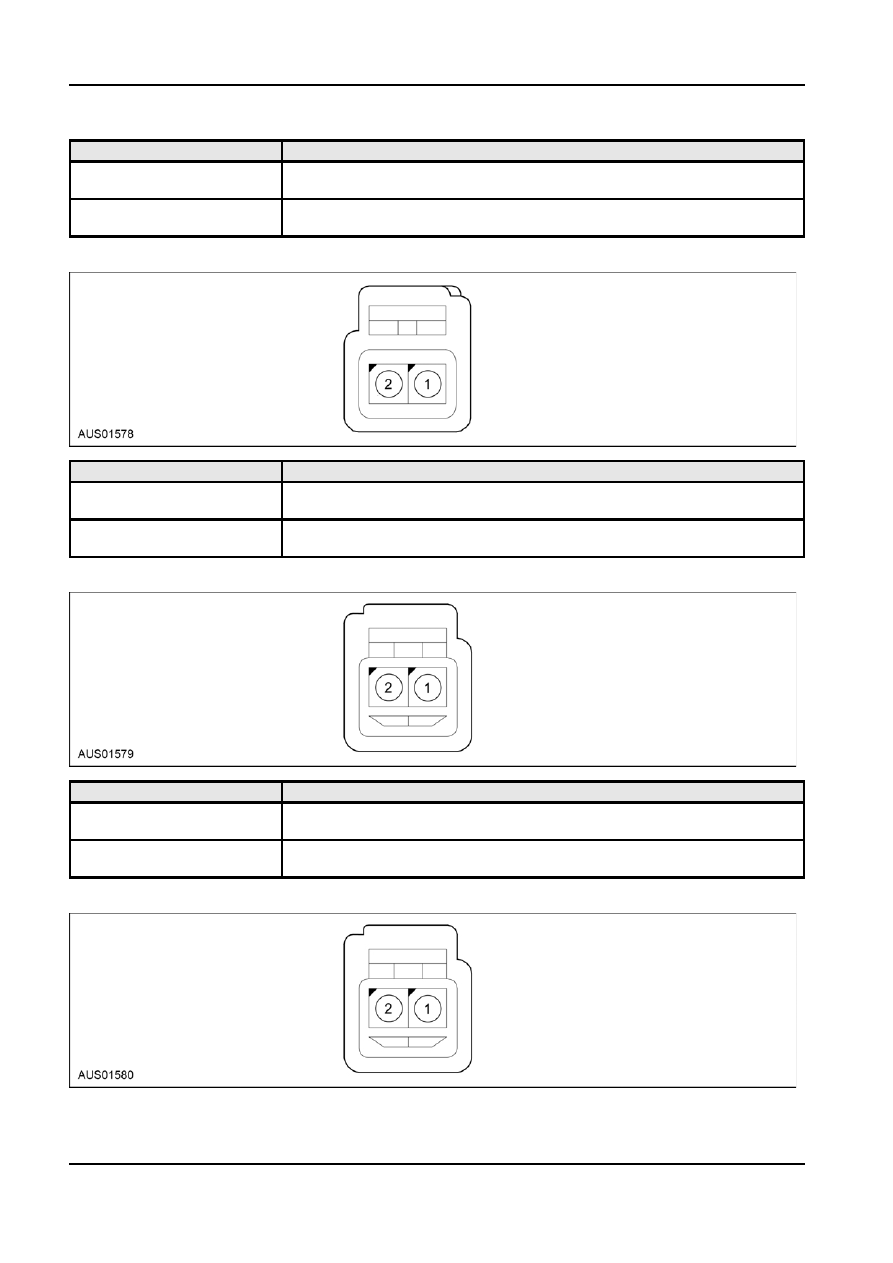

501-20b-22

Occupant Restraints — Passive

501-20b-22

DIAGNOSIS AND TESTING (Continued)

Pin Number(s)

Circuit Designation/Description

1

Circuit 1260 (BR/Y)

Pass. Side Airbag Return

2

Circuit 1259 (W/Y)

Pass. Side Airbag Return

C340

Pin Number(s)

Circuit Designation/Description

1

Circuit 618 (V)

Front Crash Sensor Return

2

Circuit 617 (P)

Front Crash sensor Feed

C341

Pin Number(s)

Circuit Designation/Description

1

Circuit 1262 (W/R)

Driver Side Sensor Return

2

Circuit 1261 (W/B)

Driver Side Sensor Feed

C345

G12344 en
