Ford Falcon. Manual - part 388

419-07-1 Satellite

Navigation 419-07-1

SECTION : 419-07 Satellite Navigation

VEHICLE APPLICATION : 2003.0 BA Falcon
CONTENTS

PAGE

SPECIFICATIONS

 Specifications  .........................................................................................................................419-07-2

DESCRIPTION AND OPERATION

 Satellite Navigation  ................................................................................................................419-07-3

  GPS (Global Positioning System)  ........................................................................................419-07-3

 Component

Layout



...............................................................................................................419-07-3

DIAGNOSIS AND TESTING

 Satellite Navigation  ................................................................................................................419-07-5

 Symptom

Chart



....................................................................................................................419-07-5

 Pinpoint

Tests



......................................................................................................................419-07-6

REMOVAL AND INSTALLATION

  Navigation System Module  ..................................................................................................419-07-14

  Navigation System Antenna  .................................................................................................419-07-14

  Navigation System Display Module  .....................................................................................419-07-14

419-07-2 Satellite

Navigation 419-07-2

SPECIFICATIONS

Torque Specifications

Description

Nm

Module mounting bracket

8.0

± 1.5

G88869 en

419-07-3 Satellite

Navigation 419-07-3

DESCRIPTION AND OPERATION

Unfavorable satellite constellations in conjunction

Satellite Navigation

with the mounting position of the GPS antenna (in

this case GPS reception may be obstructed for a

How does the system work?

longer period of time)

The movement of the vehicle is measured by sensors

In valleys and in mountainous regions

that are integrated in the navigation computer. The

distance driven is recorded by an electronic signal

If the GPS antenna has been properly installed,

from the speedometer and the rotary movements of

sufficient GPS reception should be present about 95%

bends by the gyroscope (a rotary measurement

of the driving time. If interference in the reception

system). The information from these sensors is,

occurs more frequently, improper mounting of the

however, not always exact. Measurements could be

GPS antenna may be the cause. In this case, we

affected by skidding of the wheels, varying tyre

recommend you contact your Authorised Ford Dealer.

pressure due to changes in temperature, etc. By

However, the navigation system is able to

comparison of these signals with the digitized

compensate reception problems over a period of a

CD-ROM map it is possible to correct any

few minutes without functional interference.

inaccuracies of the sensors and to determine the

Component Layout

position of the vehicle quite precisely. In order to

correct the data, a signal from the GPS satellites is

The navigation system comprises of four main

required for a period of several minutes.

components.

GPS (Global Positioning System)

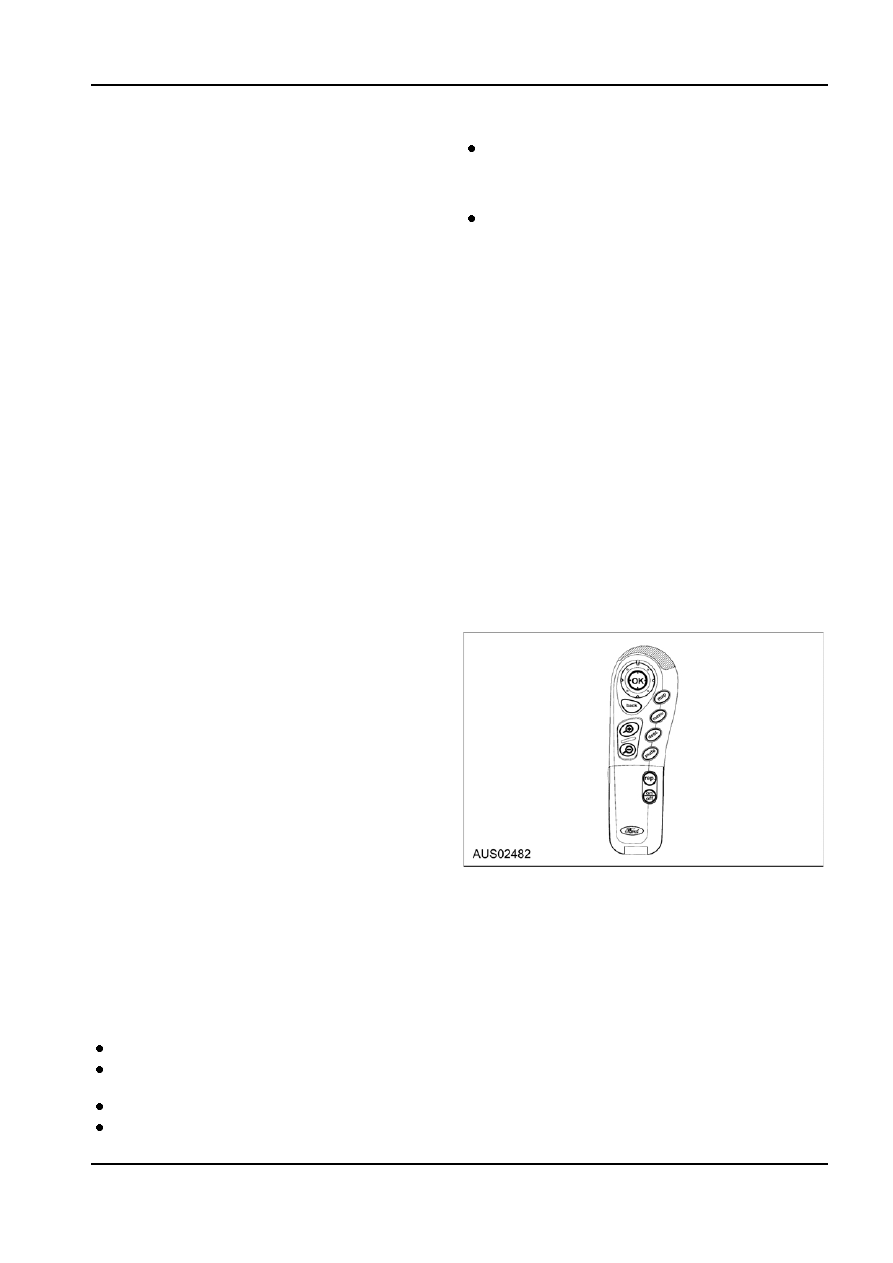

Remote Control

The GPS System is based on the reception of

The remote control is required for

navigation signals from a total of 27 GPS satellites

activation/deactivation of the system and the

orbiting the earth at a height of 21,000 kilometers,

utilization of the navigation functions. The remote

once every 12 hours. To determine a 3D position (with control utilizes an Infra-Red (IR) transmitter with the

longitude, latitude and height), signals from at least 4

corresponding IR receiver located on top of the

satellites must be received. This allows an accuracy

display. To achieve best results point the remote

of about 30m to 100m which is further improved by

control toward the display when activiating any

other sensors.

functions.

Start-up Behavior

When the vehicle is parked for a long period of time,

the satellites move on during this period. Therefore,

when the ignition is turned on again it can take a few

minutes before the navigation system can pick up

enough satellites and evaluate the received signals.

When starting up, the navigation system may tell you:

’You are leaving the digitized area’. The navigation

system supposes the vehicle is in an off-road position.

If there are other roads in this position, the system

may send an inappropriate message. This means that

the navigation system supposes the vehicle is on one

of the other roads. When the vehicle has been at a

standstill for a longer period of time, the navigation

function may be temporarily inhibited. The system will

operate reliably again once the GPS reception is

G.P.S Antenna

available in sufficient quality.

The GPS antenna (located under the rear package

Limited GPS Reception

tray cover) is used to receive signals transmitted by

GPS satellites. For optimum performance of the

Functional disturbance may also occur if GPS

navigation system, do not place objects on the right

reception is interrupted or interference occurs over a

hand side of the rear package tray. Metallic

distance of several kilometers.

compound window tinting can also obstruct GPS

GPS reception may be interrupted or interference

signal reception and is not recommended for

could occur:

installation on the rear windscreen.

In between high buildings

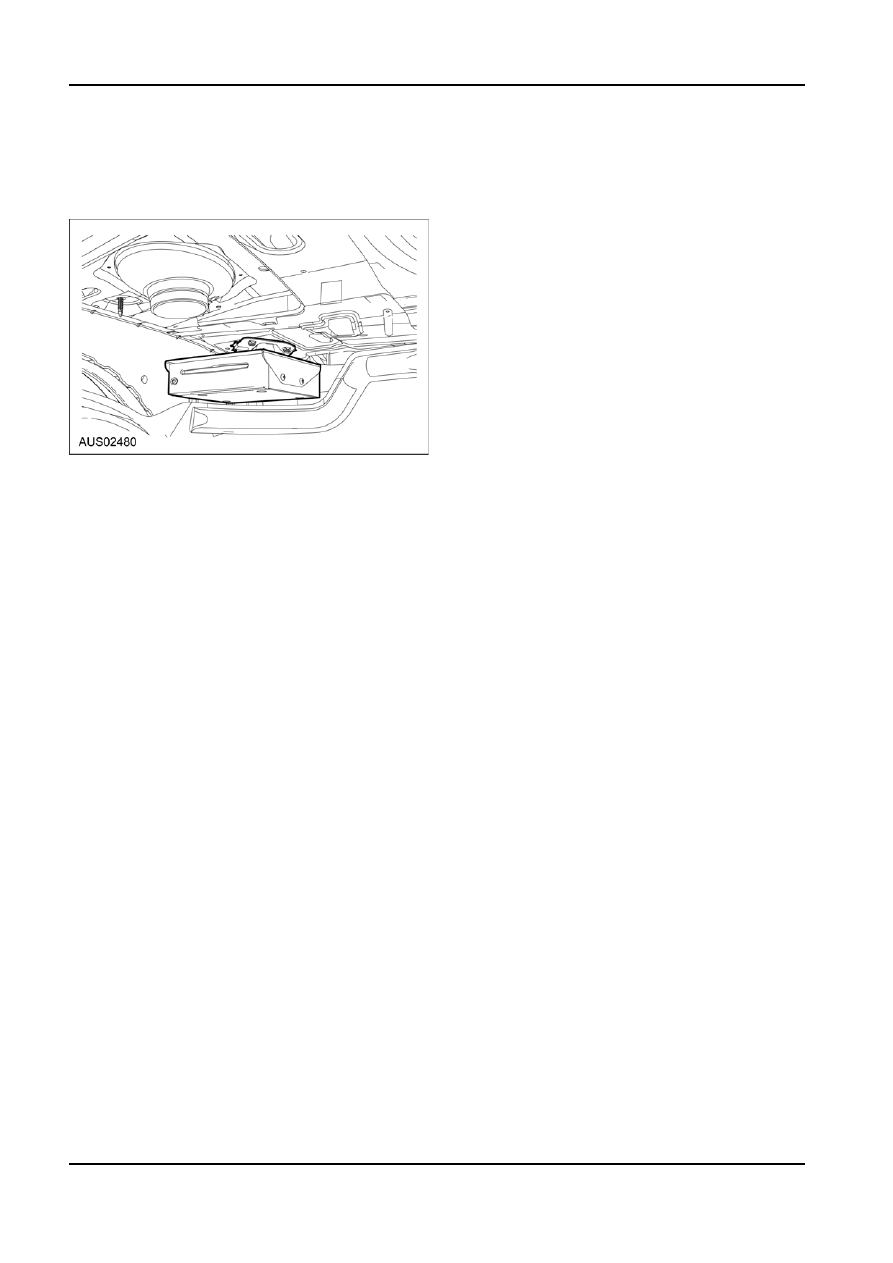

Processor

In multiple story car parks or garages, in tunnels

The processor (located inside the boot compartment

and under bridges

under the rear package tray cover) controls the

In forests or tree-lined streets

navigation related functions including screen display

During heavy rain showers

output. The map DVD (map database) is located

G88870 en

419-07-4 Satellite

Navigation 419-07-4

DESCRIPTION AND OPERATION (Continued)

inside the navigation processor. The map DVD can be

removed and inserted using the front panel switch

(ignition switch must be in the ’ACC’ or ’ON’

positions).

Display

The display (located on the instrument panel) is

shared between the GPS, Audio and Climate Control

systems.

G88870 en
