417-01-35 Exterior

Lighting 417-01-35

DIAGNOSIS AND TESTING (Continued)

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 14A (BR)

0 voltage, less than 5 ohms between LH rear

LH rear lamp power input

lamp and tail lamp relay

2

Circuit 57EJ (B)

0 voltage, less than 5 ohms between LH tail

LH tail lamp ground

lamp and chassis ground

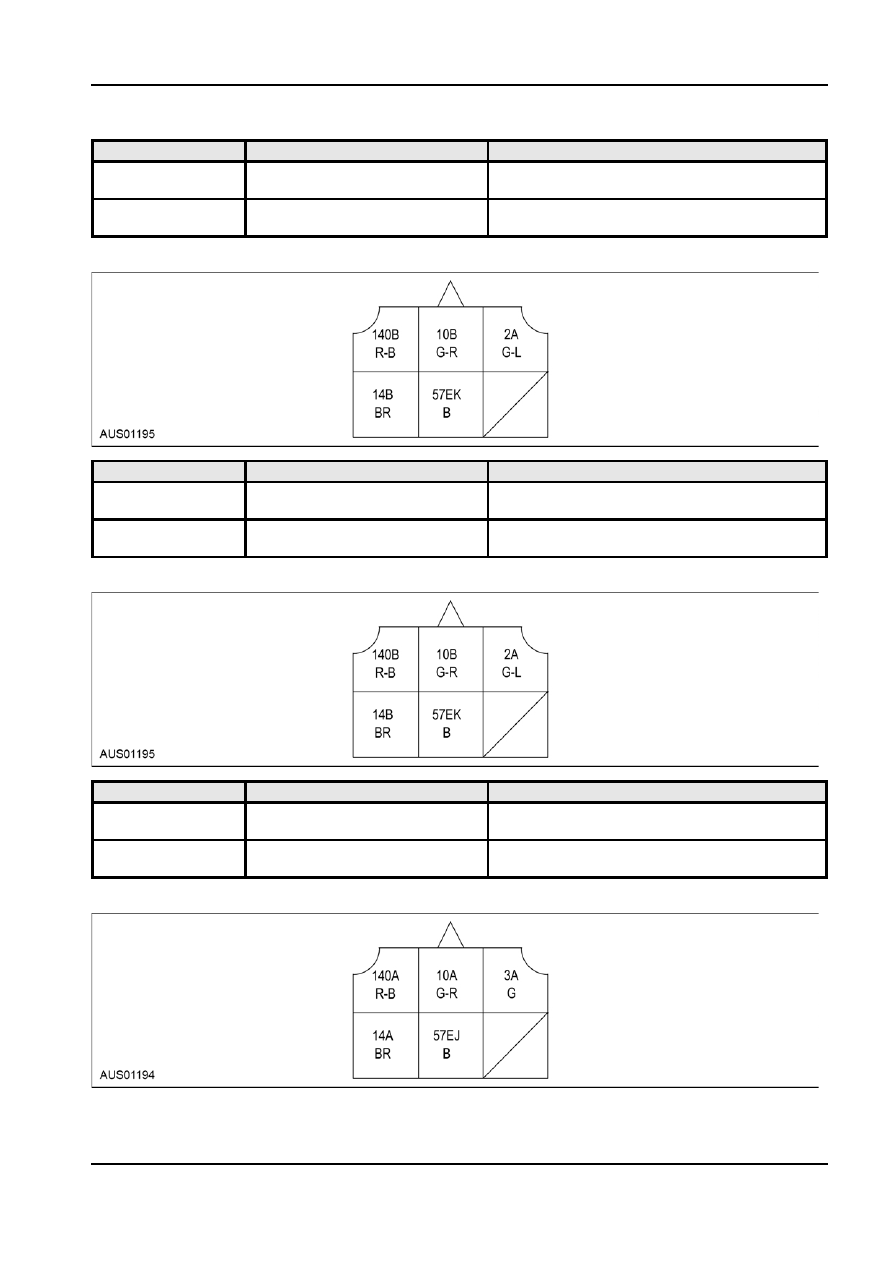

C-45 Wagon RH Tail Lamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 14B (BR)

0 voltage, less than 5 ohms between RH rear

RH rear lamp power input

lamp and tail lamp relay

2

Circuit 57EK (B)

0 voltage, less than 5 ohms between RH tail

RH tail lamp ground

lamp and chassis ground

C-77 Sedan RH Tail Lamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 14B (BR)

0 voltage, less than 5 ohms between RH rear

RH rear lamp power input

lamp and tail lamp relay

2

Circuit 57EK (B)

0 voltage, less than 5 ohms between RH tail

RH tail lamp ground

lamp and chassis ground

C-78 Sedan LH Tail Lamp

G86732 en

417-01-36 Exterior

Lighting 417-01-36

DIAGNOSIS AND TESTING (Continued)

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 14A (BR)

0 voltage, less than 5 ohms between LH rear

LH rear lamp power input

lamp and tail lamp relay

2

Circuit 57EJ (B)

0 voltage, less than 5 ohms between LH tail

LH tail lamp ground

lamp and chassis ground

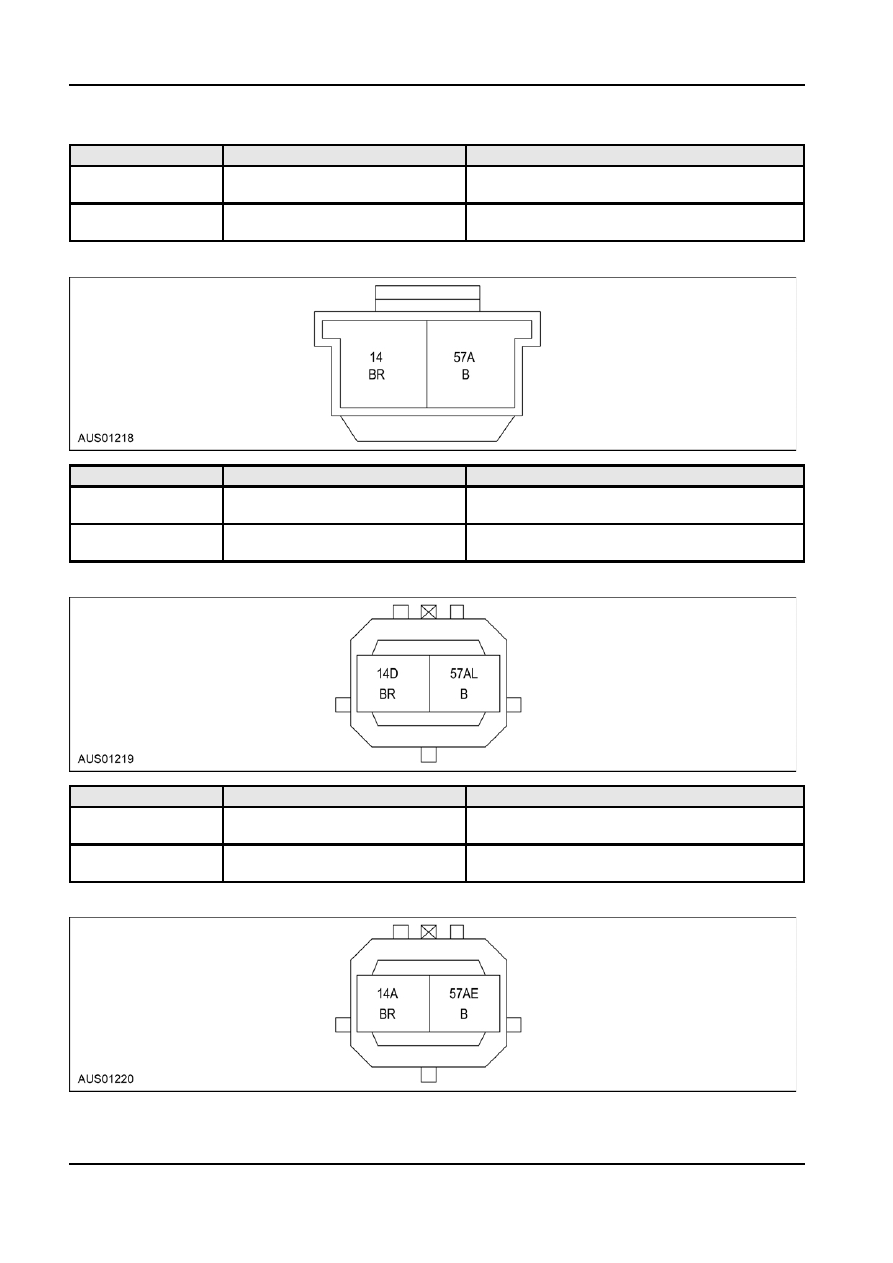

C-81 License Lamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 14 (BR)

0 voltage, less than 5 ohms between license

License lamp power input

lamp and tail lamp relay

2

Circuit 57A (B)

0 voltage, less than 5 ohms between license

License lamp ground

lamp and chassis ground

C-159 RH Parking Lamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 14D (BR)

0 voltage, less than 5 ohms between RH parking

RH parking lamp power input

lamp and tail lamp relay

2

Circuit 57AL (B)

0 voltage, less than 5 ohms between RH parking

RH parking lamp ground

lamp and chassis ground

C-160 LH Parking Lamp

G86732 en

417-01-37 Exterior

Lighting 417-01-37

DIAGNOSIS AND TESTING (Continued)

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 14A (BR)

0 voltage, less than 5 ohms between LH parking

LH parking lamp power input

lamp and tail lamp relay

2

Circuit 57AE (B)

0 voltage, less than 5 ohms between LH Parking

LH parking lamp ground

Lamp and chassis ground

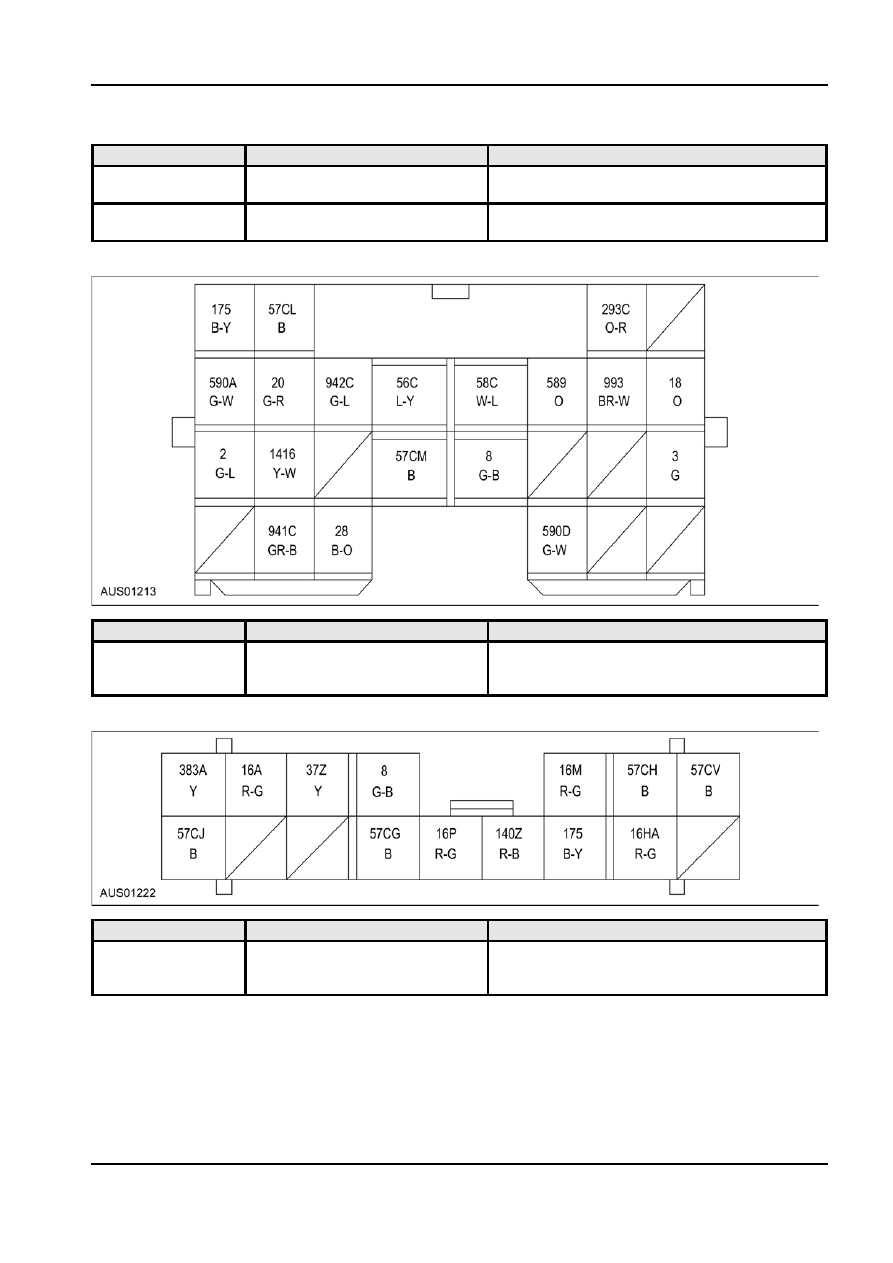

C-167 Multifunction Switch

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 175 (B-Y)

0 voltage, less than 5 ohms between

Multifunction switch parking lamps Multifunction switch and tail lamp relay

input from tail lamp relay

C-331 Junction Box (JB)

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 175 (B-Y)

0 voltage, less than 5 ohms between tail lamp

Multifunction switch parking lamps relay and Multifunction switch

input from tail lamp relay

G86732 en

417-01-38 Exterior

Lighting 417-01-38

DIAGNOSIS AND TESTING (Continued)

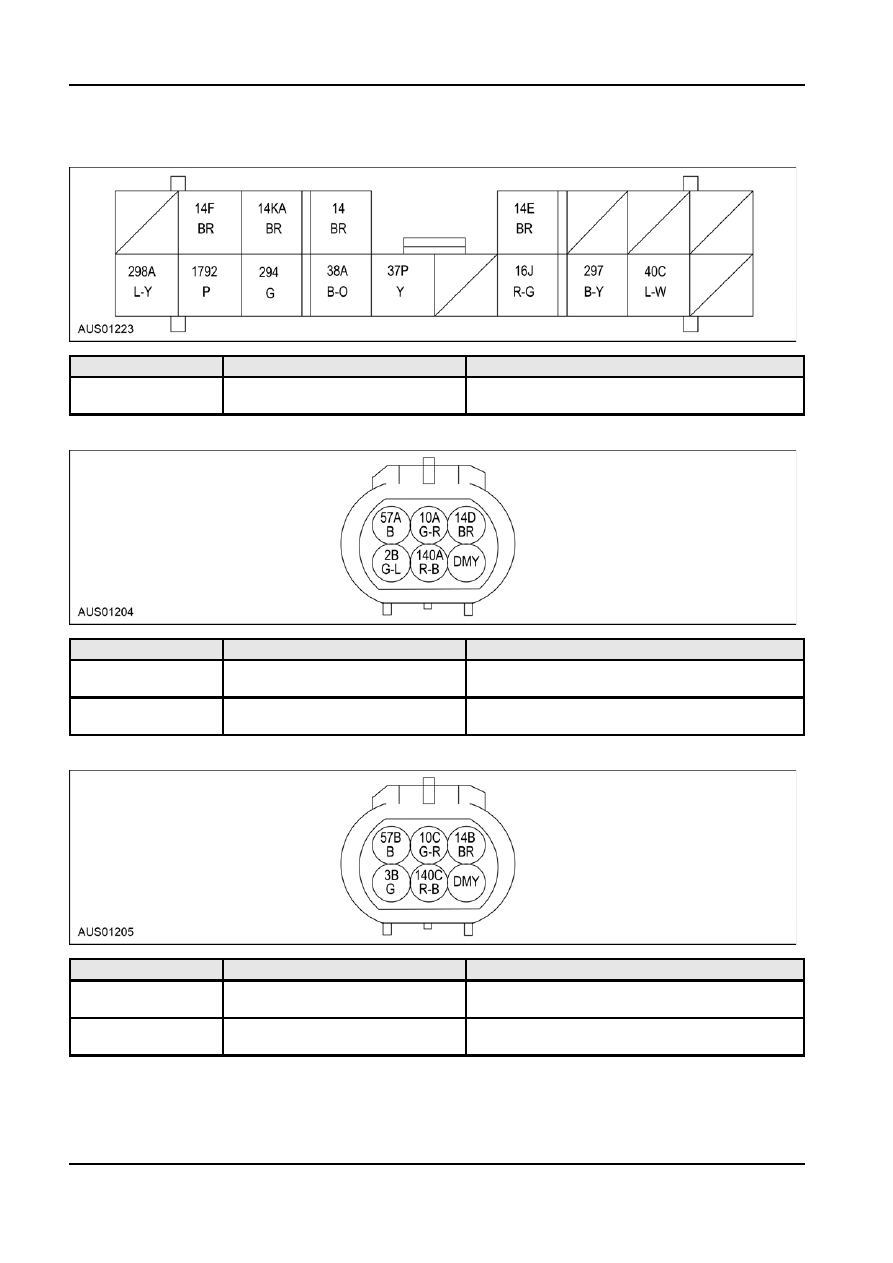

C-334 Junction Box (JB)

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 14E (BR)

0 voltage, less than 5 ohms between tail lamp

Parking lamp power input

relay and parking, rear and license lamps

C-705 Ute Cab Chassis RH Tail Lamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 14D (BR)

0 voltage, less than 5 ohms between RH rear

RH rear lamp power input

lamp and tail lamp relay

2

Circuit 57A (B)

0 voltage, less than 5 ohms between LH tail

LH tail lamp ground

lamp and chassis ground

C-707 Ute Cab Chassis LH Tail Lamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 14B (BR)

0 voltage, less than 5 ohms between LH rear

LH rear lamp power input

lamp and tail lamp relay

2

Circuit 57B (B)

0 voltage, less than 5 ohms between LH tail

LH tail lamp ground

lamp and chassis ground
