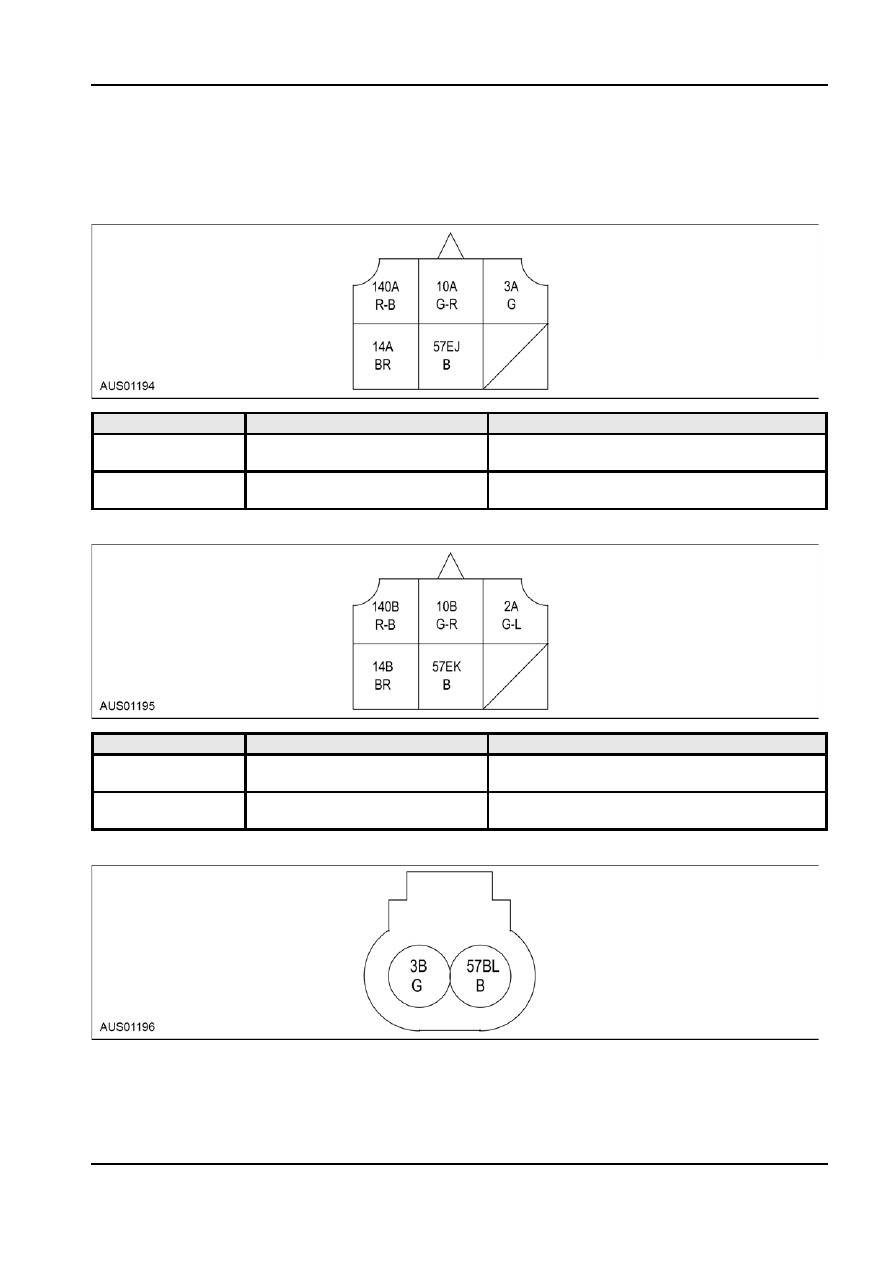

417-01-15 Exterior

Lighting 417-01-15

DIAGNOSIS AND TESTING (Continued)

Turn Signal and Hazard Lamps
Connector Circuit Reference

C-44 Wagon LH Tail Lamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 3A (G)

0 voltage, less than 5 ohms between LH turn

LH turn signal power input

signal and cluster

2

Circuit 57EJ (B)

0 voltage, less than 5 ohms between LH tail

LH tail lamp ground

lamp and chassis ground

C-45 Wagon RH Tail Lamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 2A (G-L)

0 voltage, less than 5 ohms between RH turn

RH turn signal power input

signal and cluster

2

Circuit 57EK (B)

0 voltage, less than 5 ohms between RH tail

RH tail lamp ground

lamp and chassis ground

C-46 LH Side Marker

G86729 en

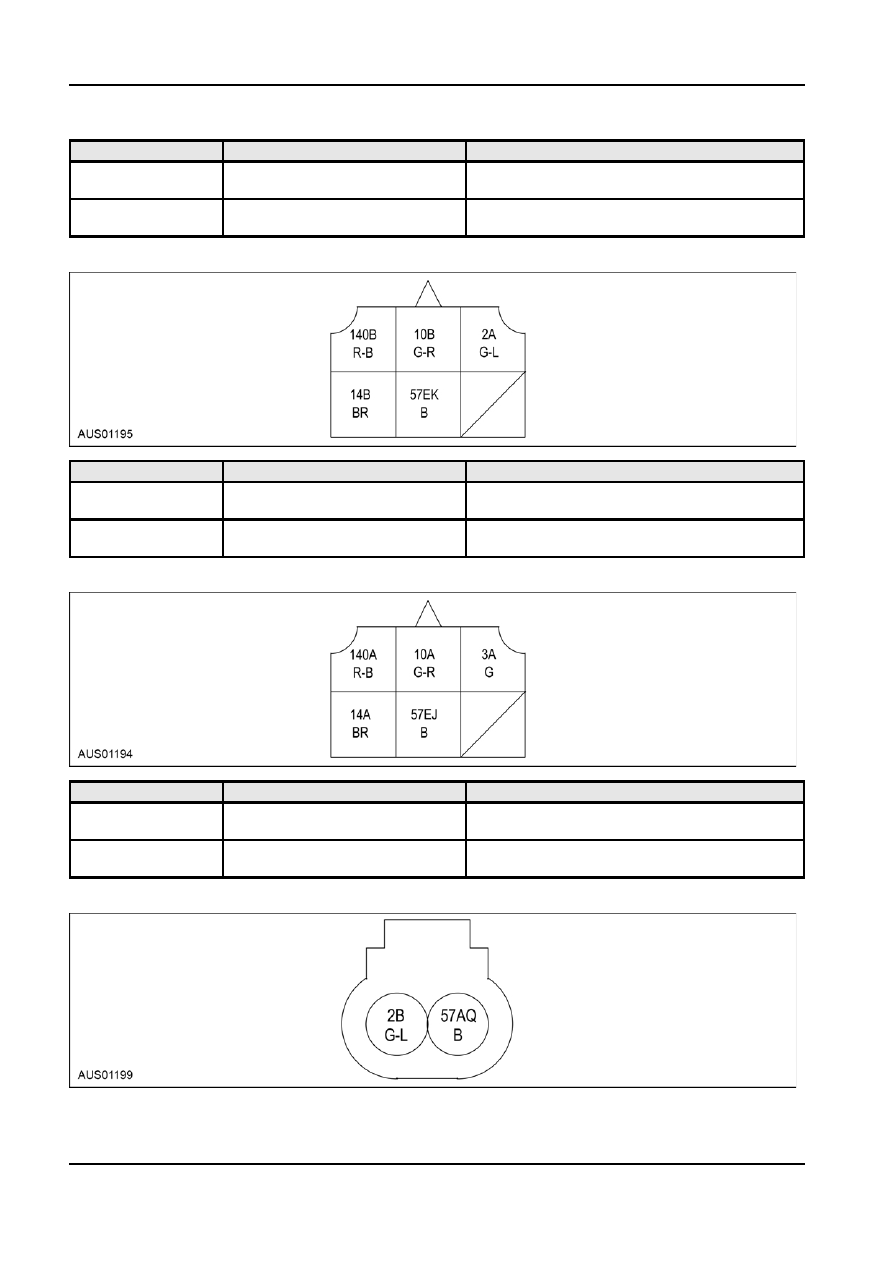

417-01-16 Exterior

Lighting 417-01-16

DIAGNOSIS AND TESTING (Continued)

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 3B (G)

0 voltage, less than 5 ohms between LH side

LH side marker power input

marker and cluster

2

Circuit 57BL (B)

0 voltage, less than 5 ohms between LH side

LH side marker ground

marker and ground

C-77 RH Tail Lamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 2A (G-L)

0 voltage, less than 5 ohms between RH turn

RH turn signal power input

signal and cluster

2

Circuit 57EK (B)

0 voltage, less than 5 ohms between RH tail

RH tail lamp ground

lamp and ground

C-78 LH Tail Lamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 3A (G)

0 voltage, less than 5 ohms between LH turn

LH turn signal power input

signal and cluster

2

Circuit 57EJ (B)

0 voltage, less than 5 ohms between LH tail

LH tail lamp ground

lamp and ground

C-154 RH Side Marker

G86729 en

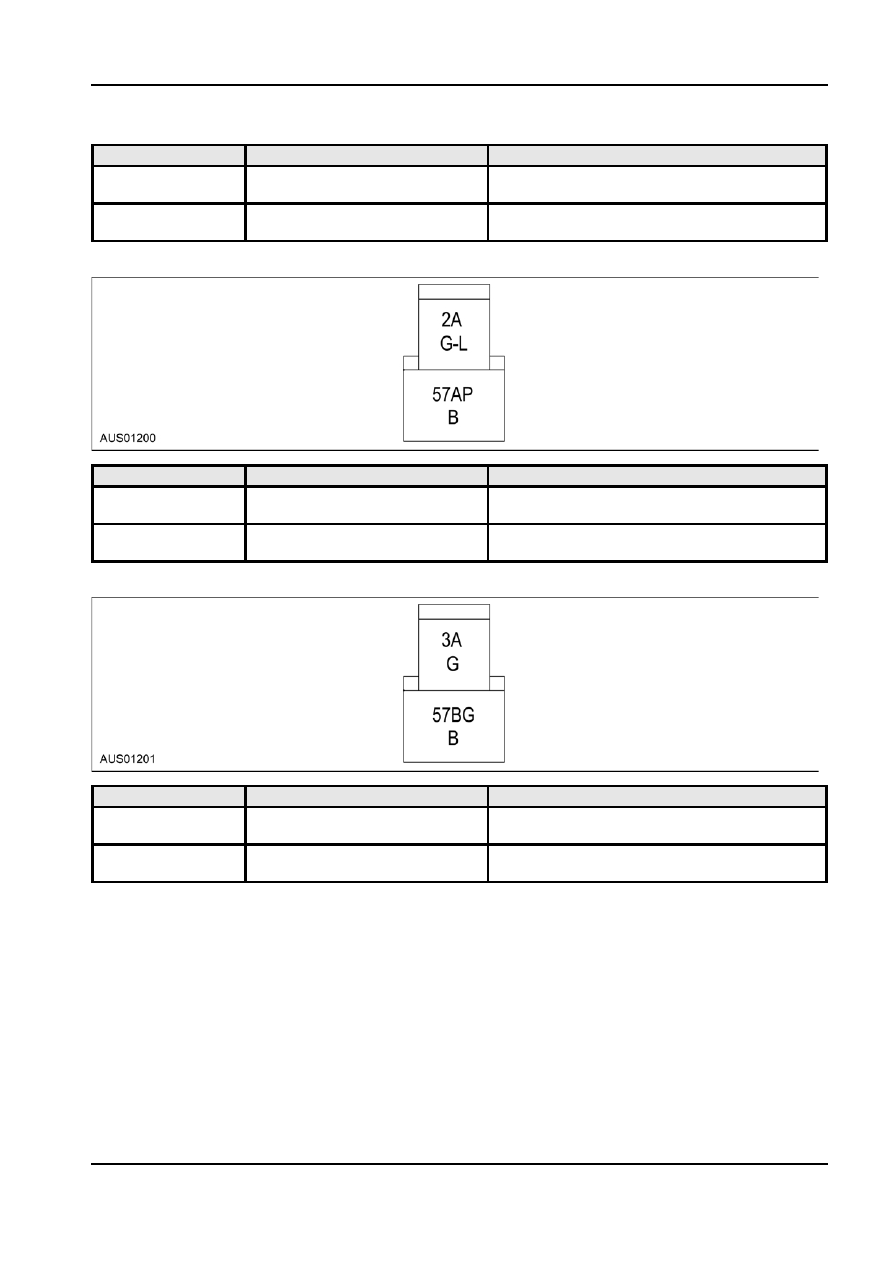

417-01-17 Exterior

Lighting 417-01-17

DIAGNOSIS AND TESTING (Continued)

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 2B (G-L)

0 voltage, less than 5 ohms between RH side

RH side marker power input

marker and cluster

2

Circuit 57AQ (B)

0 voltage, less than 5 ohms between RH side

RH side marker ground

marker and ground

C-159 RH Turn Signal

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 2A (G-L)

0 voltage, less than 5 ohms between RH turn

RH turn signal power input

signal and cluster

2

Circuit 57AP (B)

0 voltage, less than 5 ohms between RH turn

RH turn signal ground

signal and ground

C-160 LH Turn Signal

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 3A (G)

0 voltage, less than 5 ohms between LH turn

LH turn signal power input

signal and cluster

2

Circuit 57BG (B)

0 voltage, less than 5 ohms between LH turn

LH turn signal ground

signal and ground

G86729 en

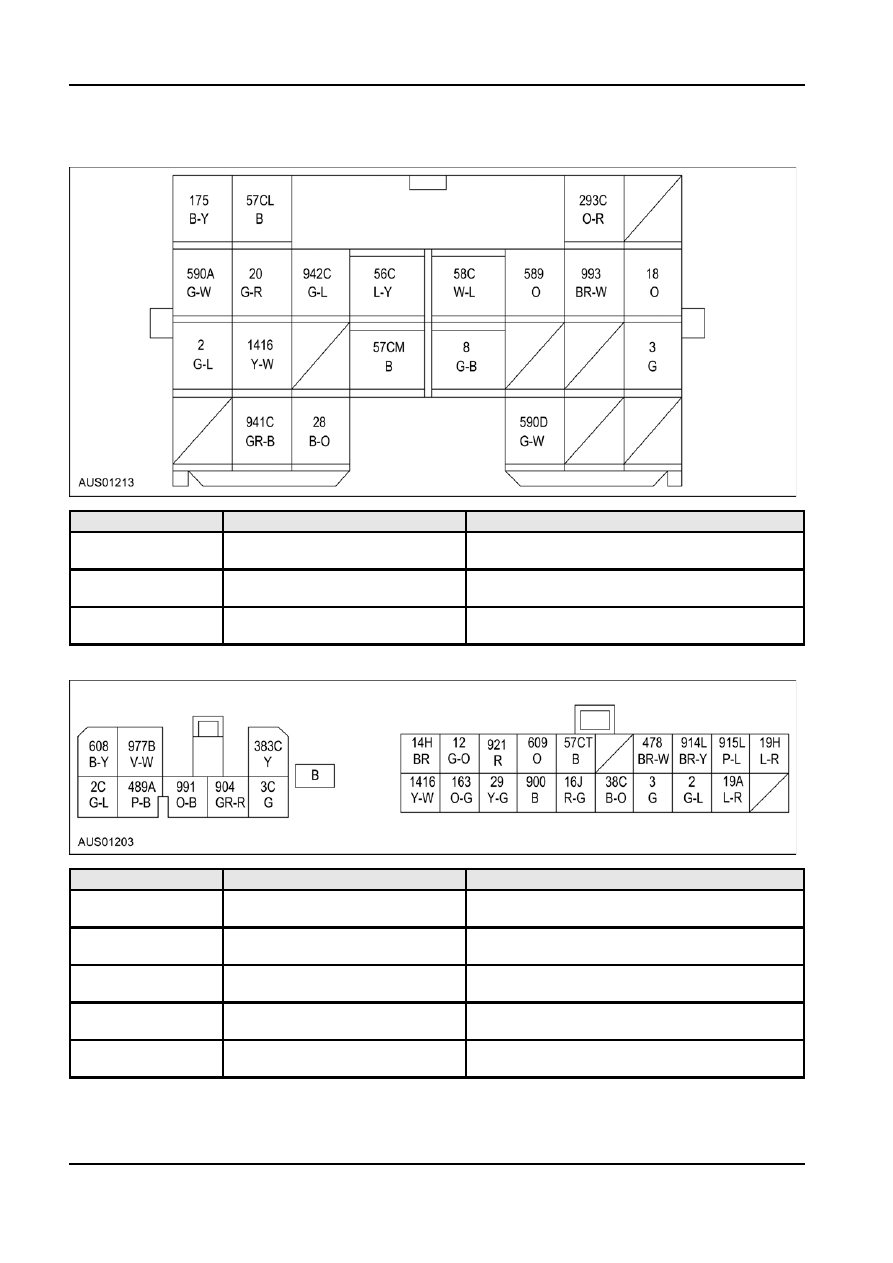

417-01-18 Exterior

Lighting 417-01-18

DIAGNOSIS AND TESTING (Continued)

C-167 Multifunction Switch

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 2 (G-L)

0 voltage, less than 5 ohms between cluster and

RH turn signal feed

Multifunction switch

2

Circuit 3 (G)

0 voltage, less than 5 ohms between cluster and

LH turn signal feed

Multifunction switch

3

Circuit 8 (G-B)

0 voltage, less than 5 ohms between

Turn signal flasher feed

Multifunction switch and ignition relay

C-171 Cluster

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

Circuit 2 (G-L)

0 voltage, less than 5 ohms between cluster and

RH turn signal feed

Multifunction switch

2

Circuit 2C (G-L)

0 voltage, less than 5 ohms between cluster and

RH turn signal lamp power input

RH turn signal lamps

3

Circuit 3 (G)

0 voltage, less than 5 ohms between cluster and

LH turn signal feed

Multifunction switch

4

Circuit 3C (G)

0 voltage, less than 5 ohms between cluster and

LH turn signal lamp power input

LH turn signal lamps

5

Circuit 383C (Y)

Greater than 10 volts, 10,000 ohms between

Hazard lights B+ input

hazard lights input and chassis ground

G86729 en
