Ford Falcon. Manual - part 246

307-01-87 Automatic

Transmission 307-01-87

ASSEMBLY (Continued)

Pump Cover & Converter Support

Special Tool(s)

Pump Aligner

Assembly
Pump Cover

G73134 en

307-01-88 Automatic

Transmission 307-01-88

ASSEMBLY (Continued)

Pump, Cover and Converter Support

1.  Check the pump body for any damage, scoring or 4.  Lubricate the pump bush and the drive and driven

similar in the pump gear recess. Check the pump

gears with automatic transmission fluid. Install the

bush for wear or damage.

pump driven gear and the pump drive gear to the

pump body.

2.  Thoroughly clean the pump body gear recess,

pump body flange and the pump gears. Install the 5.  Lubricate the pump body ‘O’ ring with automatic

gears in the pump body and check the pump end

transmission fluid and fit to the pump body. Put

clearance using a depth micrometer or similar.

the pump body to one side.

The end clearance should be 0.020 - 0.040 mm.

6.  Ensure that the pump cover cavities, ports, holes

3.  Remove the gears from the pump body and install

etc. are clean and free of any obstruction.

the seal flush with the front face of the pump body 7.  Lubricate all loose parts with automatic

if this was removed previously.

transmission fluid prior to assembly.

G73134 en

307-01-89 Automatic

Transmission 307-01-89

ASSEMBLY (Continued)

8.  Assemble the Primary Regulator valve to the

pump cover. Ensure that the regulator valve slides

freely and that the regulator valve plug ‘O’ ring

compression is adequate but not excessive.

Install the retaining pin.

Primary Regulator Valve

G73134 en

307-01-90 Automatic

Transmission 307-01-90

ASSEMBLY (Continued)

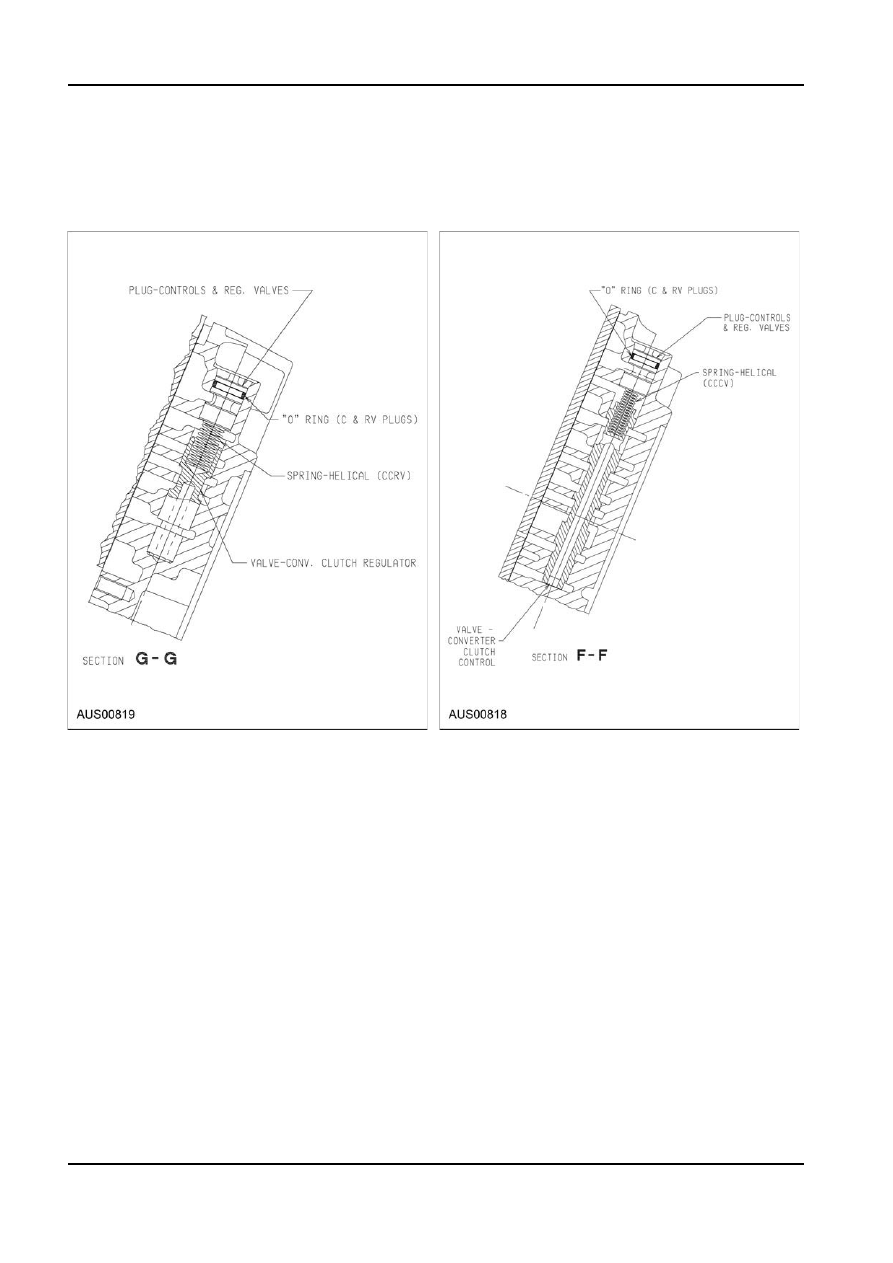

9.  Install the converter clutch regulator valve and

10. Install the converter clutch control valve, spring

plug. The compression of the plug ‘O’ ring must

and plug. Plug ‘O’ ring compression must be

be adequate but not excessive. Install the

adequate but not excessive. Install the retaining

retaining pin.

pin.

Converter Clutch Regulator Valve

Converter Clutch Control Valve

G73134 en
