DESCRIPTION AND OPERATION

Engine — I6

The 4.0L I6 is a four valve per cylinder, dual overhead

camshaft engine with individual intake and exhaust

variable cam timing units. A distributorless ignition

system with individual coils mounted above the spark

plugs is used. The cylinder block is cast iron, and is

attached to an aluminium oil pan with cross-bolted

main bearing caps to increase rigidity. The oil pump is

mounted on the nose of the crankshaft, and a single

stage roller chain drives the hollow camshafts.

Hydraulic lash adjusters and roller finger followers

activate the valves. An electronic throttle body is

employed together with a variable length intake

manifold. Petrol, LPG and Turbocharged versions are

also available.

G99771 en

303-01a-8 Engine

—

I6 303-01a-8

DESCRIPTION AND OPERATION (Continued)

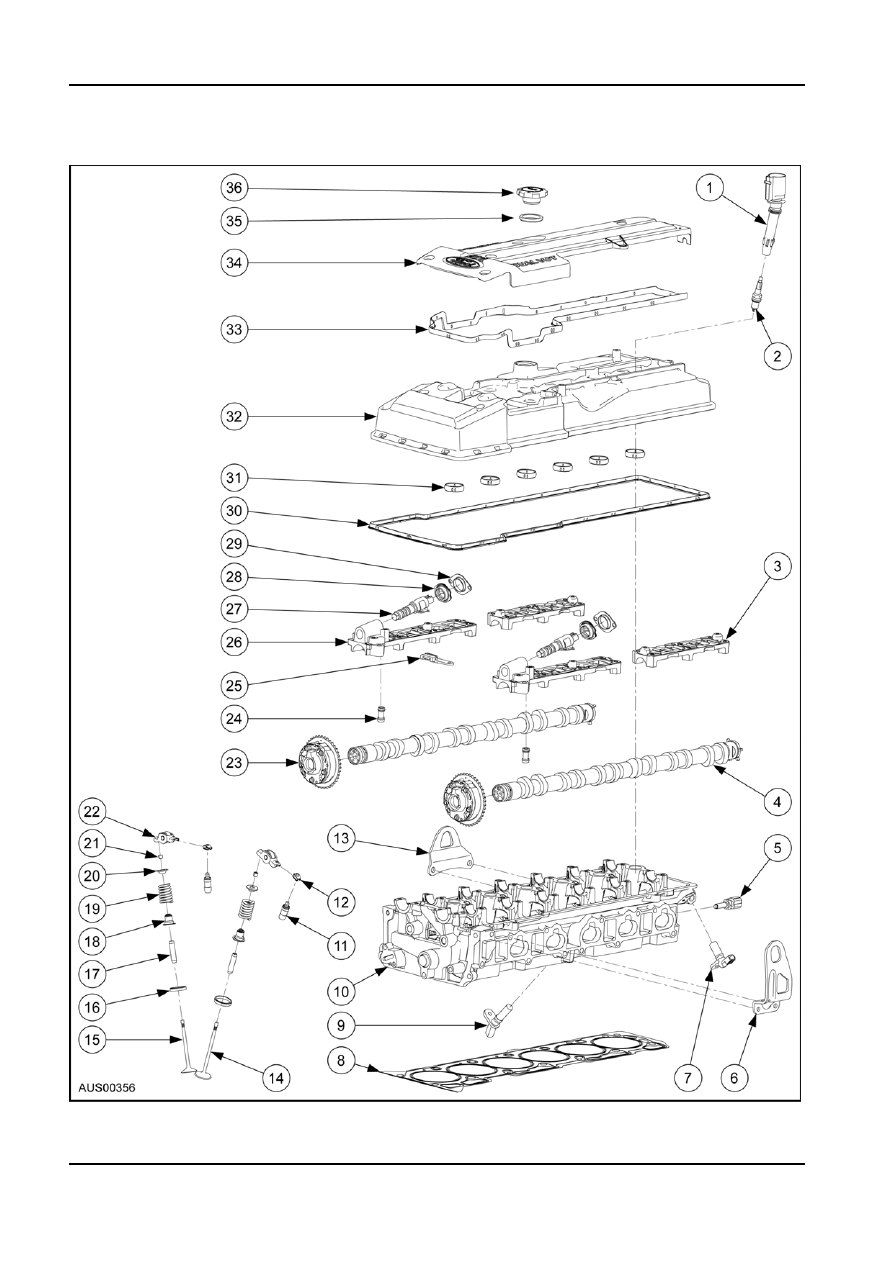

Upper Engine Components

G99771 en

303-01a-9 Engine

—

I6 303-01a-9

DESCRIPTION AND OPERATION (Continued)

Upper Engine Components

Item

Description

1

Coil and Boot Assembly

2

Spark Plug

3

Cap - Camshaft intake bridge - Rear

4

Camshaft - Intake

5

Cylinder head temperature sensor

6

Engine lifting eye, LH, FRT

7

Sensor Assembly camshaft timing

8

Head gasket

9

Sensor Assembly camshaft timing

10

Cylinder head

11

Lash adjuster assembly

12

Clip

13

Engine lifting eye, RH, RR

14

Valve - Inlet

15

Valve - Exhaust

16

Insert - Cylinder Head

17

Bushing - Valve guide

18

Seal - Valve stem

19

Spring - Valve

20

Retentioner - Valve spring

21

Key - Valve spring retention

22

Rocker arm

23

Cam timing assembly - Engine variable

24

Filter - Engine oil

25

Top timing chain guide

26

Cap - Camshaft exhaust bridge, FRT

27

Housing and Valve assembly camshaft

variable timing

28

Gasket - Valve rocker arm cover

29

Plate - Gasket valve rocker arm cover

30

Gasket - Rocker arm cover

31

Gasket - Spark plug

32

Cover - Valve rocker arm

33

Gasket - Spark plug cover

34

Spark plug cover assembly

35

Oil filler cap gasket

36

Oil filler cap

G99771 en

303-01a-10

Engine — I6

303-01a-10

DESCRIPTION AND OPERATION (Continued)

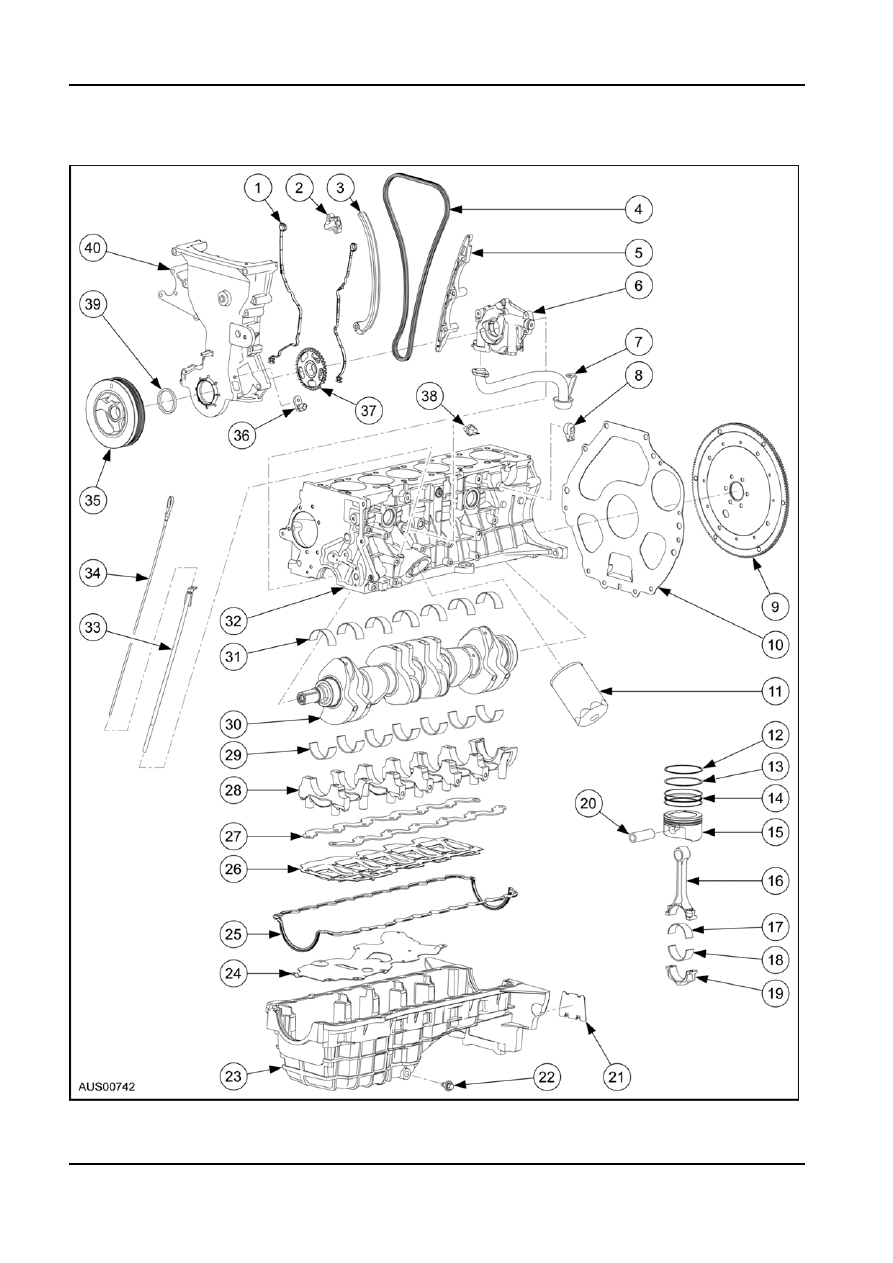

Lower Engine Components
